Systembuild Evolution 7808886COM Manuale utente

B347808886COM03GO

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

WARNING

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Follow Ameriwood Home

Date of Purchase ___ / ___ / ___

Lot Number:

7808886COM

Entry Storage Bench

Tube

You

Assembly Difficulty Meter

Easy Tough

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

Helpful Hints

Tube

You

systembuild.com

Quick

Tip

Assembly

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

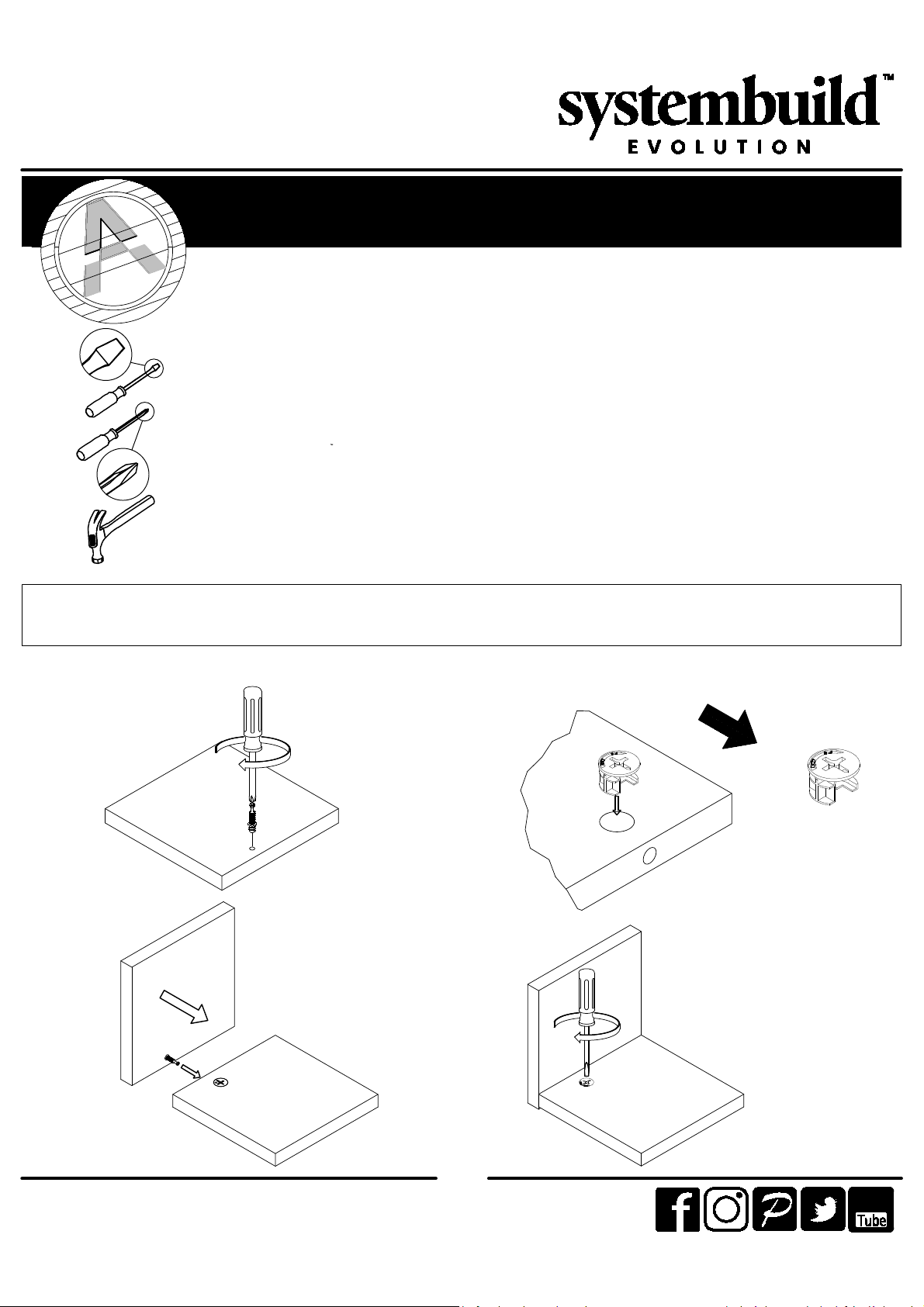

Before You Start

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

systembuild.com

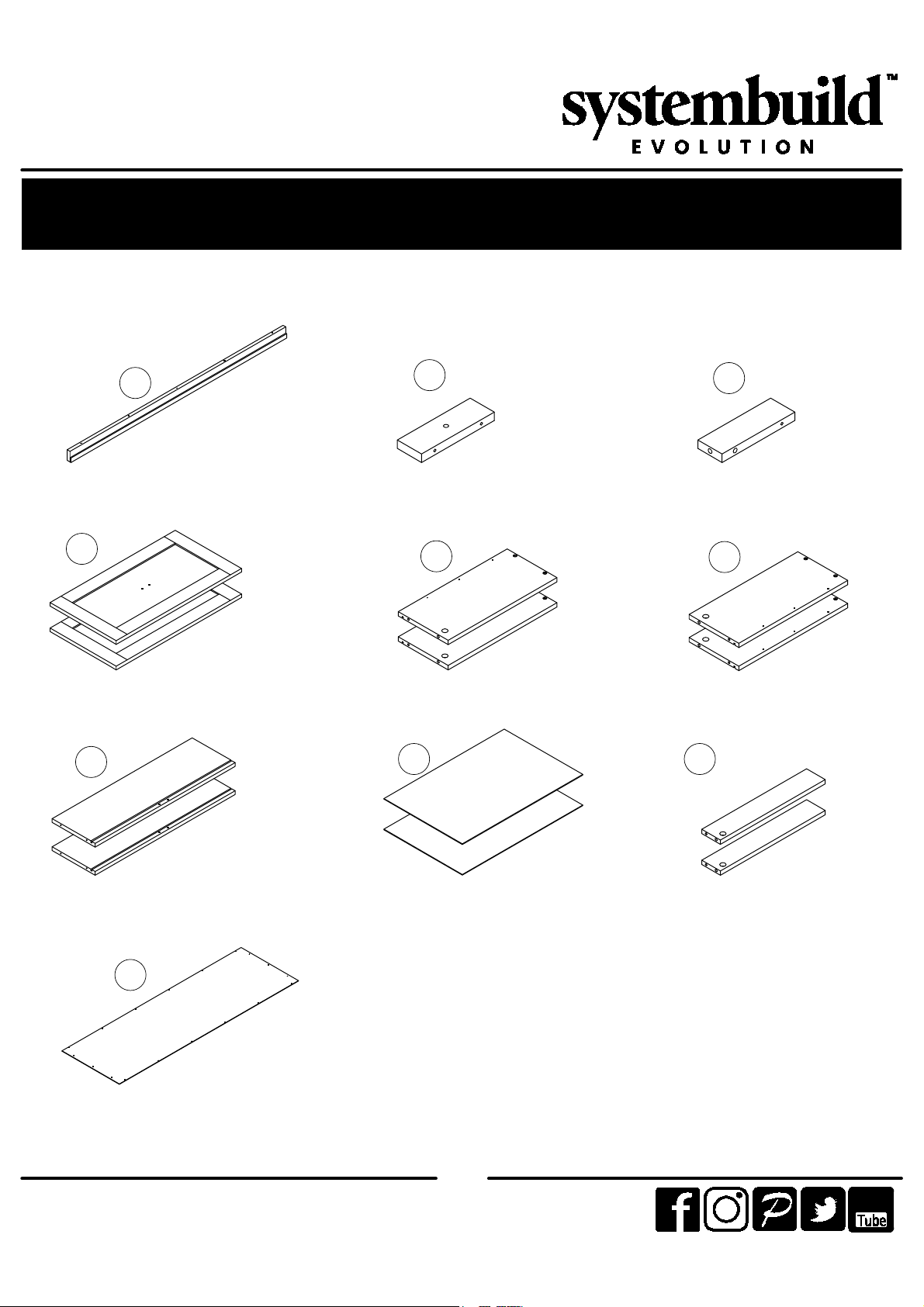

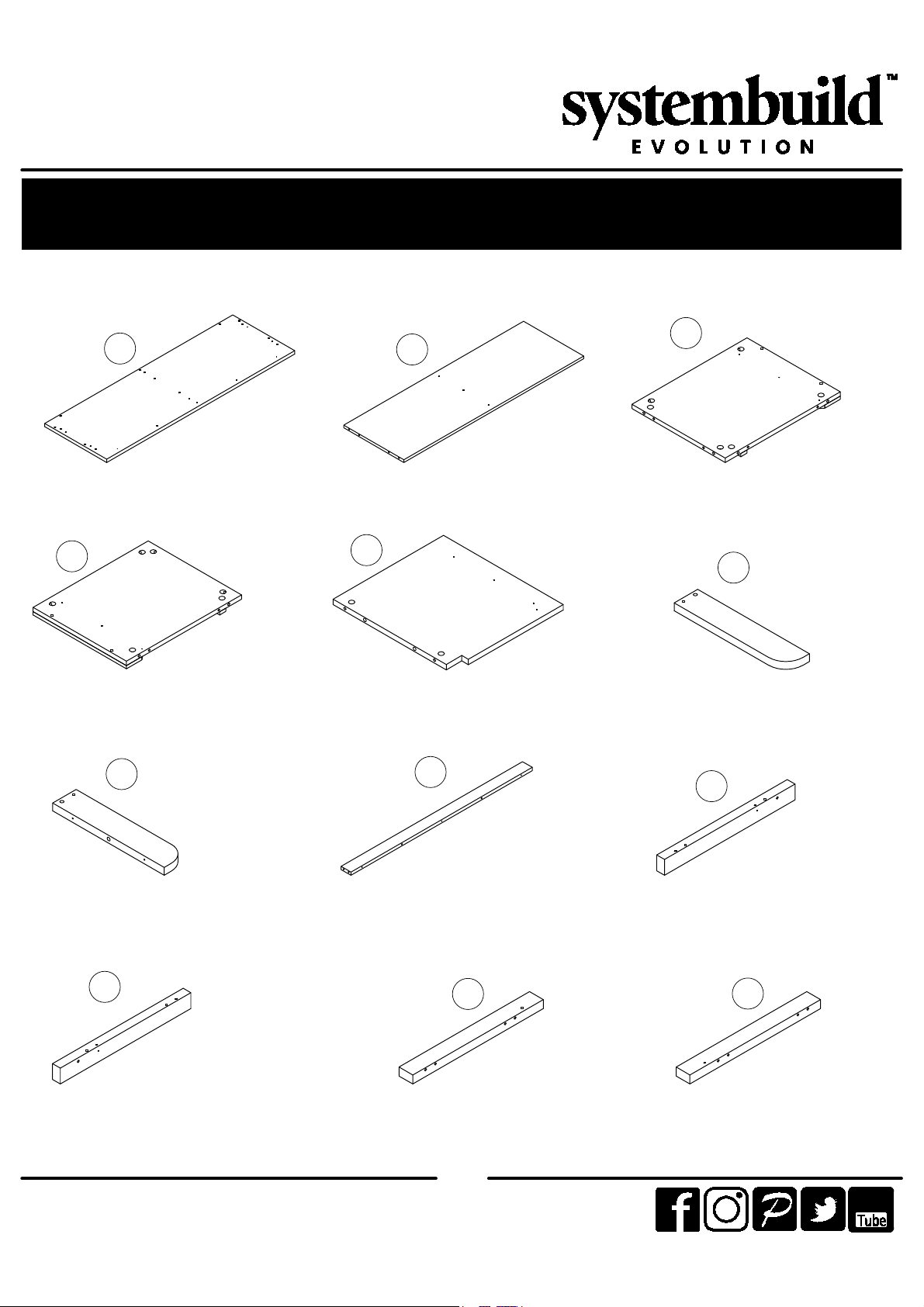

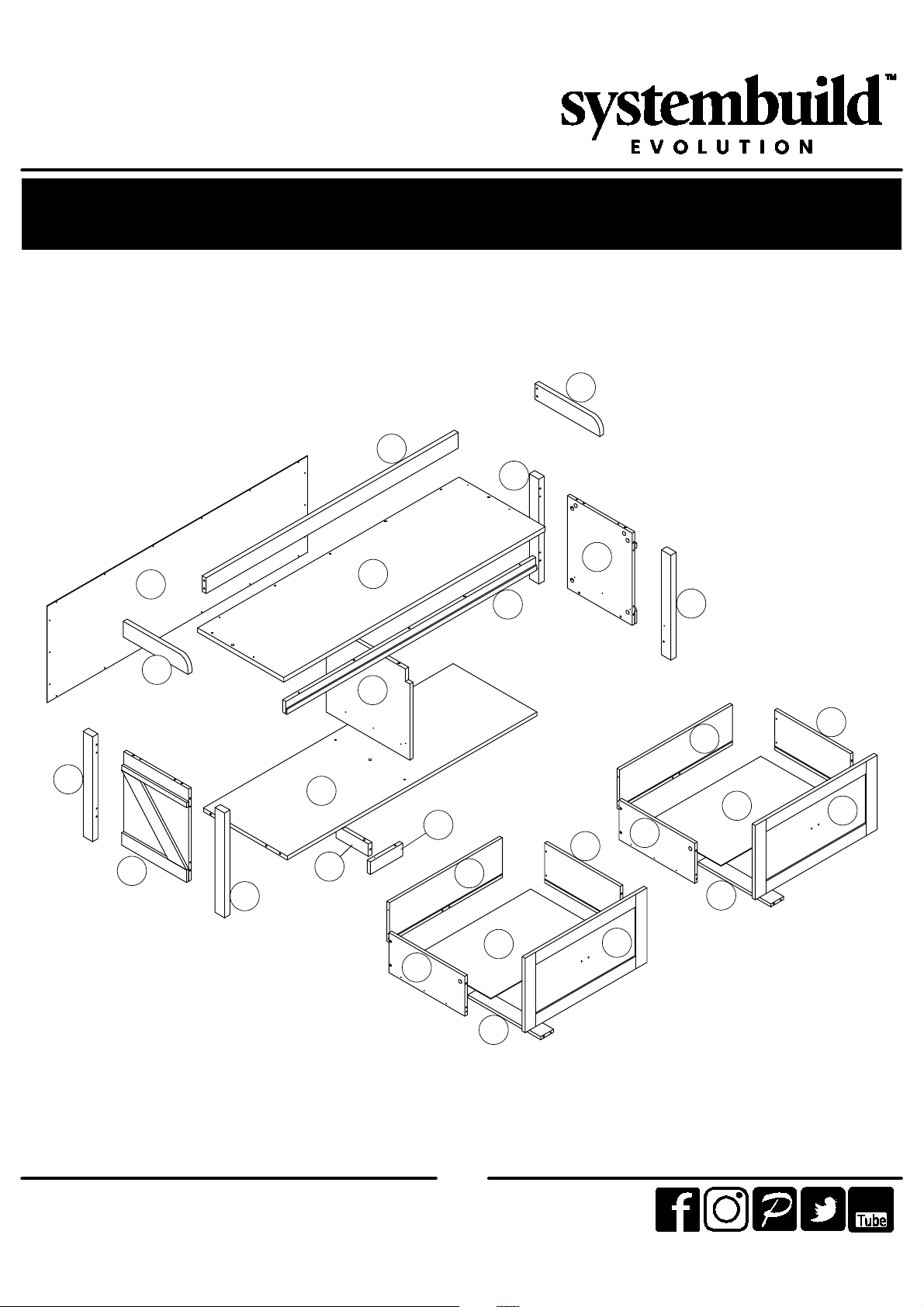

Board Identification

Not actual size

TOP

T7808886010GO

QTY: 1 PC

Tube

You

systembuild.com

BOTTOM

T7808886020GO

QTY: 1 PC

LEFT SIDE PANEL

T7808886031GO

QTY: 1 PC

RIGHT SIDE PANEL

T7808886041GO

QTY: 1 PC

PARTITION

T7808886051GO

QTY: 1 PC

LEFT RAIL

T7808886060GO

QTY: 1 PC

RIGHT RAIL

T7808886070GO

QTY: 1 PC

BACK RAIL

T7808886080GO

QTY: 1 PC

FRONT LEFT LEG

T7808886091GO

QTY: 1 PC

FRONT RIGHT LEG

T7808886101GO

QTY: 1 PC

REAR LEFT LEG

T7808886110GO

QTY: 1 PC

REAR RIGHT LEG

T7808886120GO

QTY: 1 PC

Board Identification

Not actual size

Tube

You

systembuild.com

TOP APRON

T7808886130GO

QTY: 1 PC

BOTTOM SUPPORT

T7808886140GO

QTY: 1 PC

BOTTOM SUPPORT

T7808886150GO

QTY: 1 PC

DRAWER FRONT

T7808886161GO

QTY: 2 PCS

LEFT DRAWER SIDE

T7808886171GO

QTY: 2 PCS

RIGHT DRAWER SIDE

T7808886181GO

QTY: 2 PCS

DRAWER BACK

T7808886190GO

QTY: 2 PCS

DRAWER BOTTOM

T7808886200GO

QTY: 2 PCS

DRAWER SUPPORT

T7808886210GO

QTY: 2 PCS

BACK PANEL

T7808886220GO

QTY: 1 PC

Board Identification

Not actual size

Tube

You

systembuild.com

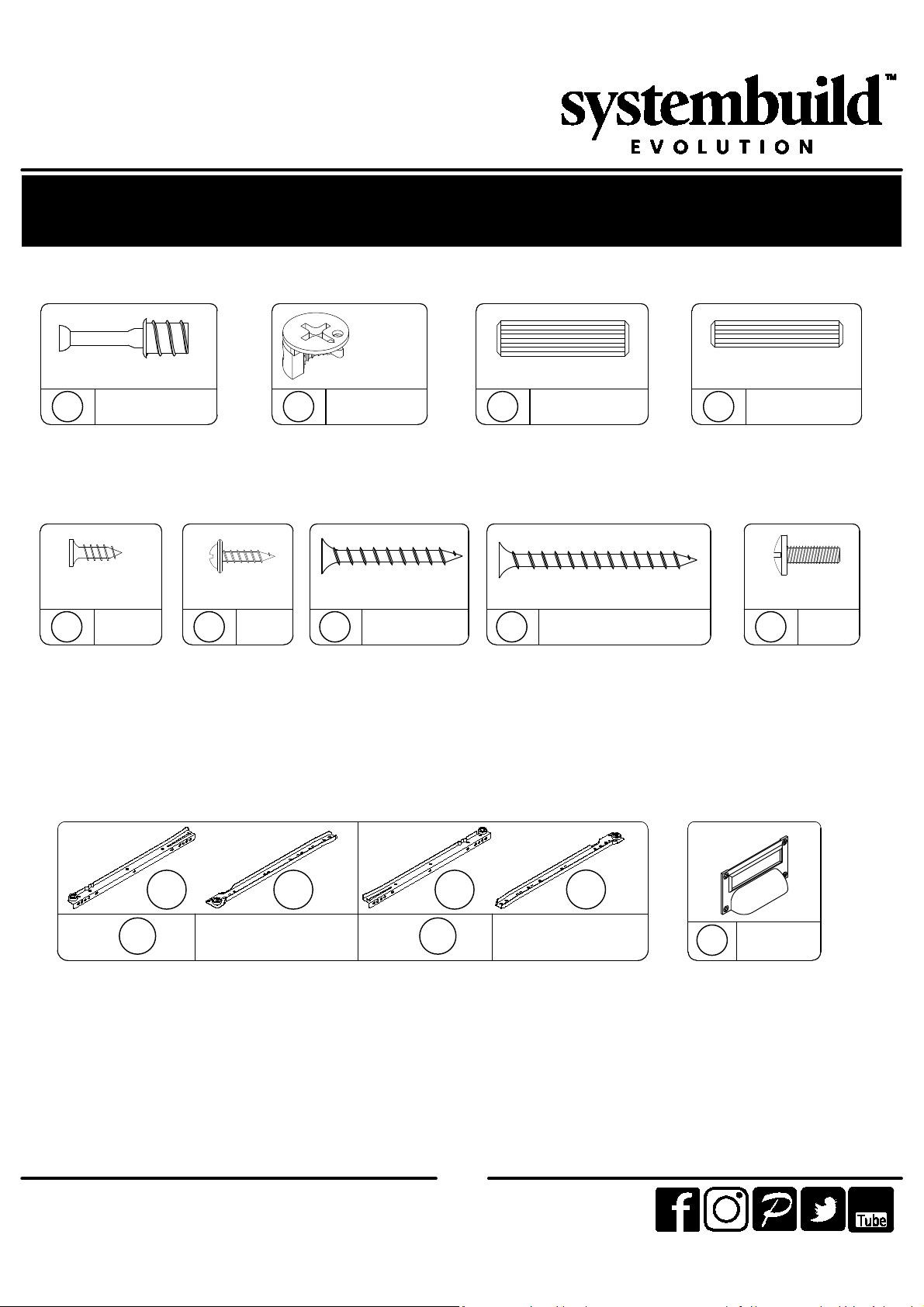

Part List

Hardware Bag Reference number:

27808886COM2GO

Actual Size

×26

Ø15 x 10mm

CAM LOCK

TGO2100

×26

CAM BOLT

TGO2000

Ø8 x 20mm

Tube

You

systembuild.com

×18

SCREW

TGO1301

Ø3 x 12mm

6 ×4

M4 x 12mm

×15

Ø4.2 x 45mm

SCREW

TGO1008

BOLT

TGO1620

×18

WOOD DOWEL

TGO2903

Ø6 x 30mm

×17

WOOD DOWEL

TGO2900

Ø8 x 30mm

×28

SCREW

TGO1007

Ø3.5 x 12mm

5 ×12

Ø4.2 x 32mm

SCREW

TGO1022

No Actual Size

×2 set

14"

left cabinet

member

left drawer

member

×2 set

right cabinet

member

right drawer

member

10-1 10-2 11-1 11-2 14"

×2

HANDLE

TGO5513

METAL SLIDE

TGO4513

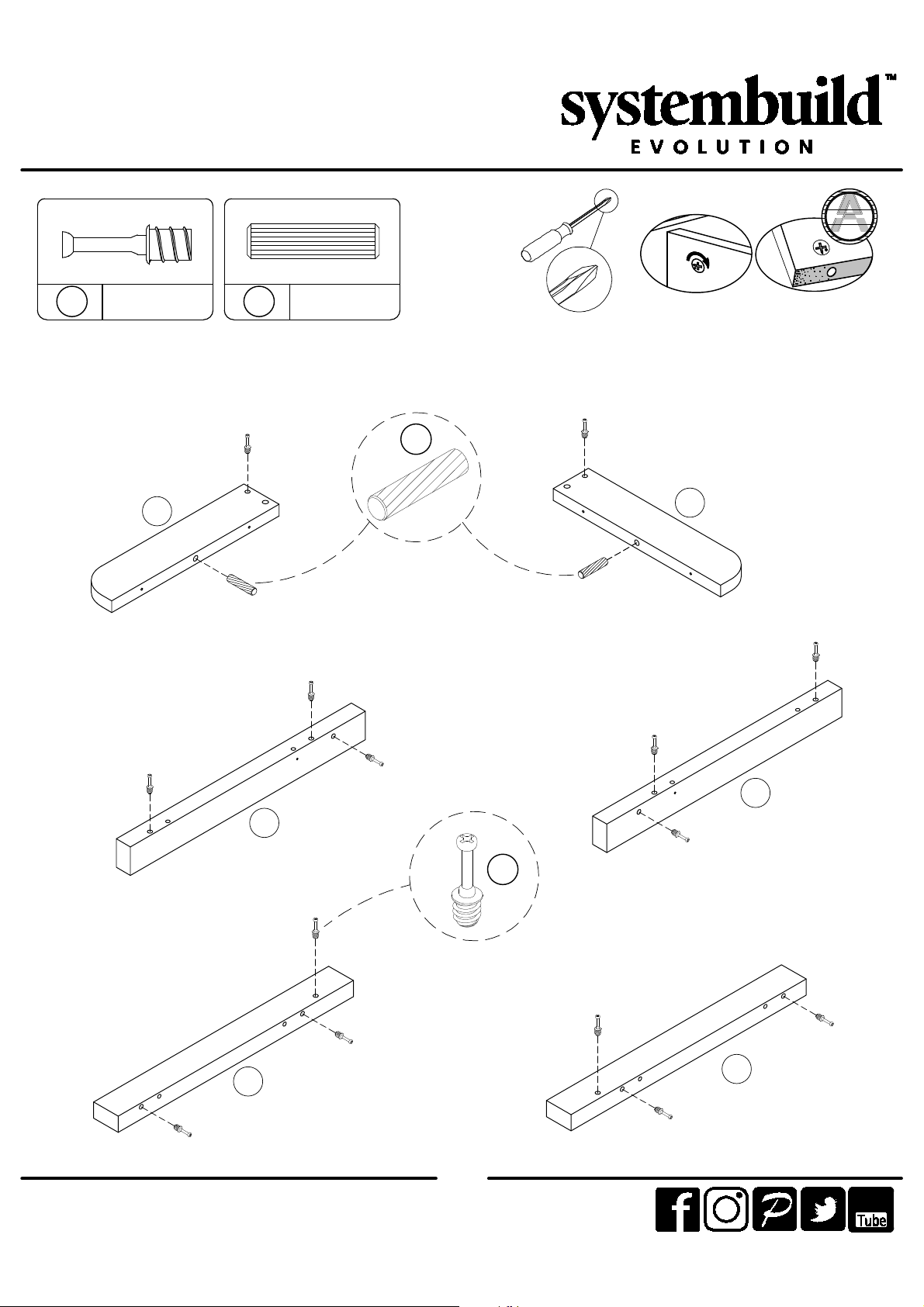

STEP 1

1.1 Screw (1) into (A) as illustrated.

1.2 Insert (3) into (B), (H) & (M) as illustrated.

×6

Tube

You

systembuild.com

×10

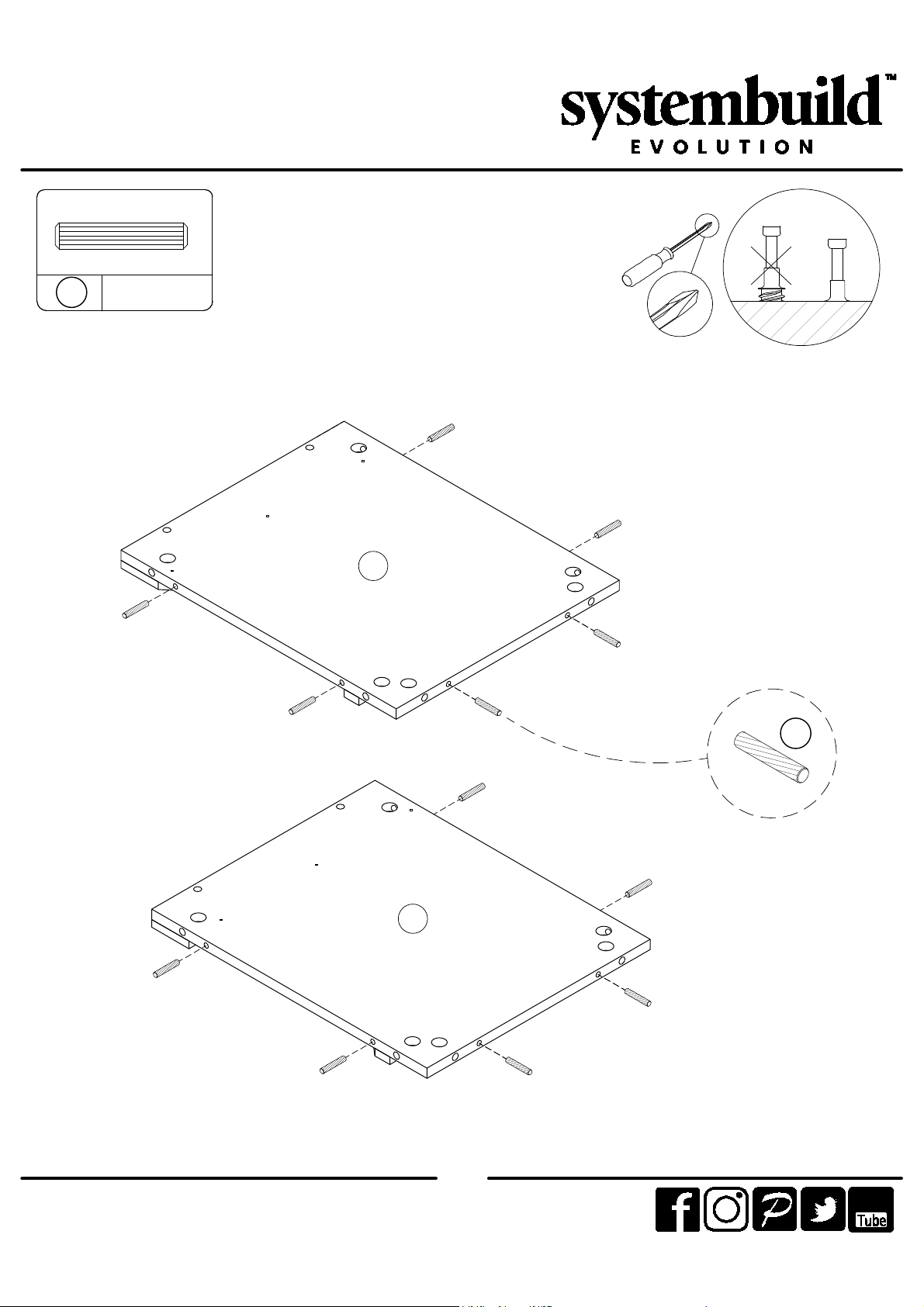

STEP 2

Tube

You

2.1 Insert (4) into (C) & (D) as illustrated.

systembuild.com

×12

STEP 3

Tube

You

×14

3.1 Screw (1) into (F), (G), (I), (J), (K) & (L) as illustrated.

3.2 Insert (3) into (F) & (G) as illustrated.

systembuild.com

3 ×2 Proper orientation of CAM LOCK

Tip

Quick

Assembly

UNLOCK

LOCK
