Systembuild Evolution 3604408COM Manuale utente

3604408COM

2 Door Tall Cabinet

B343604408COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-866-452-4081 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.systembuild.com

Assembly Difficulty Meter

Easy Tough

Secure Your Furniture

Keep your home and family safe

with the wall anchor kit that is

included with the product.

Serious or fatal crushing injuries can

occur from tipping furniture.

WARNING: Manufacturer assumes no liability

for improper installation or excessive loads

placed on screws or bracket. This wall anchor

is not a substitute for proper adult supervision.

Helpful Hints

systembuild.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

systembuild.com

Before You Start

Quick

Tip

Assembly

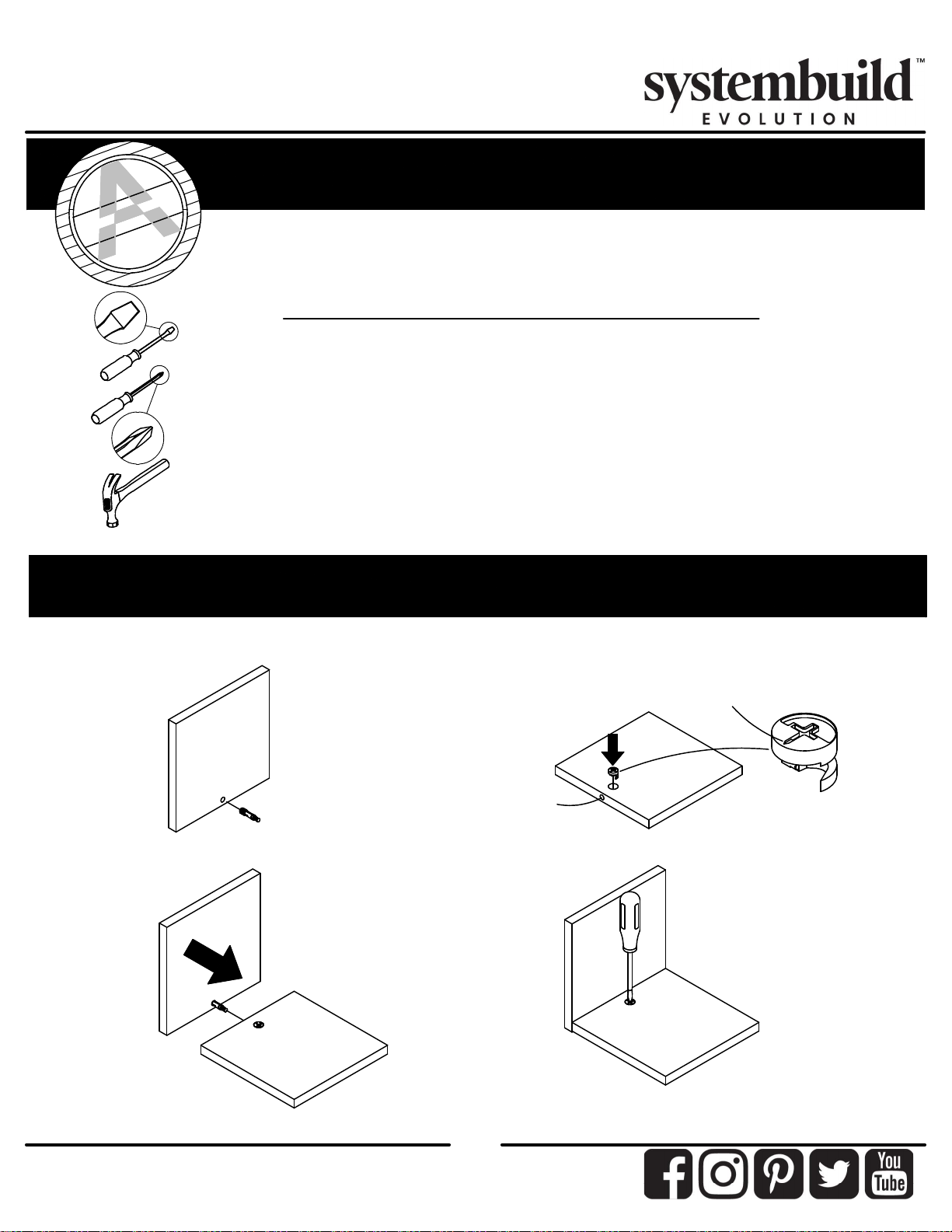

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Parts are labeled on the surface or edge of the part

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Press parts together so CAM BOLT inserts

into edge hole.

Press CAM BOLT into hole. Press CAM LOCK into hole.

End hole

Using a screwdriver, turn the CAM LOCK clockwise to

lock the CAM LOCK and CAM BOLT into their holes

and fastening parts together.

Arrow to point towards end

hole in edge of part.

systembuild.com

Before You Start

Quick

Assembly

Tip

Please Note:

You may need to lightly tap the wood dowels into the holes during

your assembly process.

systembuild.com

Board Identification

Not actual size

This part is made of paperboard

construction. It is not made from

wood, but is required for the

assembly of your unit.

Left Panel

33604408010 Right Panel

343604408020

Top

33604408030

Bottom

33604408040

Left Door

33604408060

Right Door

33604408070 Back Panel

K360440800

Shelf

33604408050

Adjustable Shelf (x2)

33604408060

systembuild.com

Board Identification

Not actual size

systembuild.com

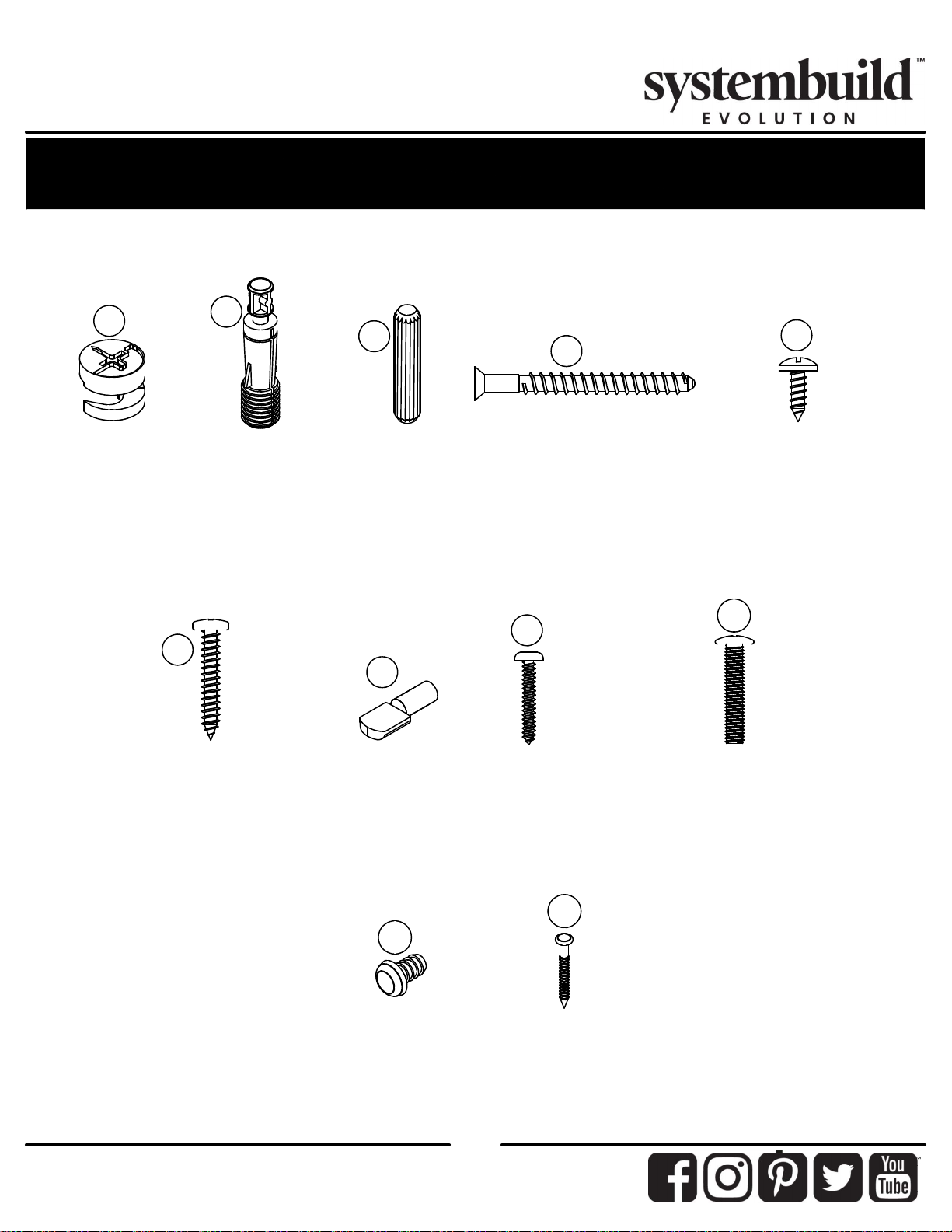

Part List

Actual Size

(x40)

#A12105

7/16" pan head screw

(x8)

#A22700

cam lock

(x8)

#A22710

cam bolt

(x8)

#A21670

wood dowel

(x4)

#A23030

confirmat screw

(x4)

#A17400

7/8" bolt

(x50)

#A21110

nail

(x8)

#A80250

shelf support

(x2)

#A11210

3/4" pan head screw

(x10)

#A12810

1" pan head screw

(x2)

#A89370

door pad

systembuild.com

Part List

Not Actual Size

(x1)

#A84050

safety bracket

(x6)

#A65615

hinge

(x2)

#A55010

handle

(x5)

#A44710

foot

(x1)

#A55055

lock

7d 11a

11b

11c

11d

11e

(x4)

#A92550

base plate kit

(x1)

#A55410

slide bolt

systembuild.com

STEP1

(x8)

systembuild.com

STEP2

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x4) (x4)
