Systembuild Evolution 7296500COM Manuale utente

7296500COM

Storage Cart

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B347296500COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

For the latest information on SystemBuild products

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-866-452-4081 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.systembuild.com

Assembly Difficulty Meter

Easy Tough

Helpful Hints

systembuild.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-866-452-4081

Monday-Friday

9am - 5pm CST

Visit systembuild.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

systembuild.com

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Parts are labeled on the surface or edge of the part

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Press CAM BOLT into hole.

Press parts together so CAM BOLT inserts

into edge hole.

Using a screwdriver, turn the CAM LOCK clockwise to

lock the CAM LOCK and CAM BOLT into their holes

and fastening parts together.

Press CAM LOCK into hole.

End hole

Arrow to point towards end

hole in edge of part.

systembuild.com

Before You Start

Quick

Tip

Assembly

Tube

You

Please Note:

You may need to lightly tap the wood dowels into the holes during

your assembly process.

systembuild.com

Board Identification

Not actual size

Tube

You

Left Panel

37296015010

Right Panel

34976015020

Upper Drawer Front

34976015070

Top

34976320030

Bottom

37296015040

ABC

Back

34976015050

Drawer Side (x2)

39993120346200C

Drawer Back

39993120060790B

Drawer Bottom

39993341061810D

DWR

BTM

DWR

BACK

DWR

SIDE

Left Door

37296015080 Right Door

37296015090

Adjustable Shelf

37296015100

systembuild.com

Board Identification

Not actual size

Tube

You

DWR

BACK

DWR

SIDE

DWR

BTM

DWR

SIDE

systembuild.com

Part List

Actual Size

Tube

You

(x8)

#A22710

cam bolt

(x8)

#A22700

cam lock

(x8)

#A21670

wood dowel

(x4)

#A23030

confirmat screw

(x4)

#A80250

shelf support

(x26)

#A12120

7/16" screw

(x10)

#A11080

7/16" screw

(x4)

#A21970

drive fastener

(x2)

#A11170

5/8" screw

(x2)

#A89020

plastic stop

(x2)

#A54510

drawer bracket

systembuild.com

Tube

You

Part List

Not Actual Size

13b

left cabinet member

right cabinet member

left drawer member

right drawer member

(x1)

drawer slide kit

#A56760

13a

13c

13d

(x1)

#A54900

drawer brace

(x2)

#A42720

caster

(x2)

#A42730

locking caster

(x4)

#A65640

hinge

systembuild.com

STEP1

Tube

You

(x2)

(x3) (x1)

13a MARKED WITH "L"

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x2)

13a

systembuild.com

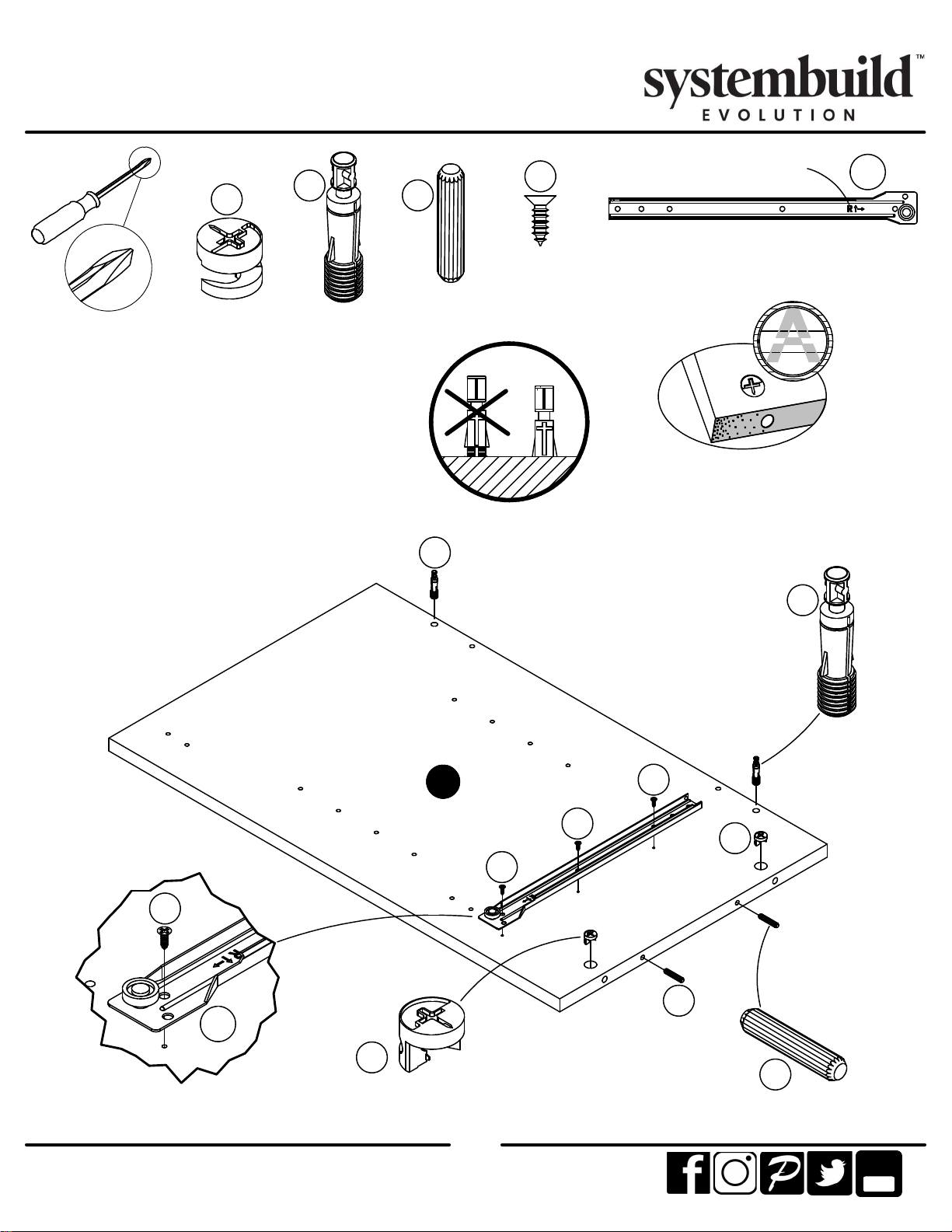

STEP2

Tube

You

(x1)

13b

MARKED WITH "R"

1238

(x2) (x2) (x2)

(x3)

Proper orientation of CAM LOCK

Tip

Assembly

Quick

13b
