Systembuild Evolution 7531296COM Manuale utente

B347531296COM04GO

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

WARNING

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Follow Ameriwood Home

Date of Purchase ___ / ___ / ___

Lot Number:

7531296COM

1 Door Storage Cabinet

Tube

You

Assembly Difficulty Meter

Easy Tough

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 2

ESTIMATED ASSEMBLY TIME: 1 HOUR

Helpful Hints

Tube

You

systembuild.com

Quick

Tip

Assembly

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Before You Start

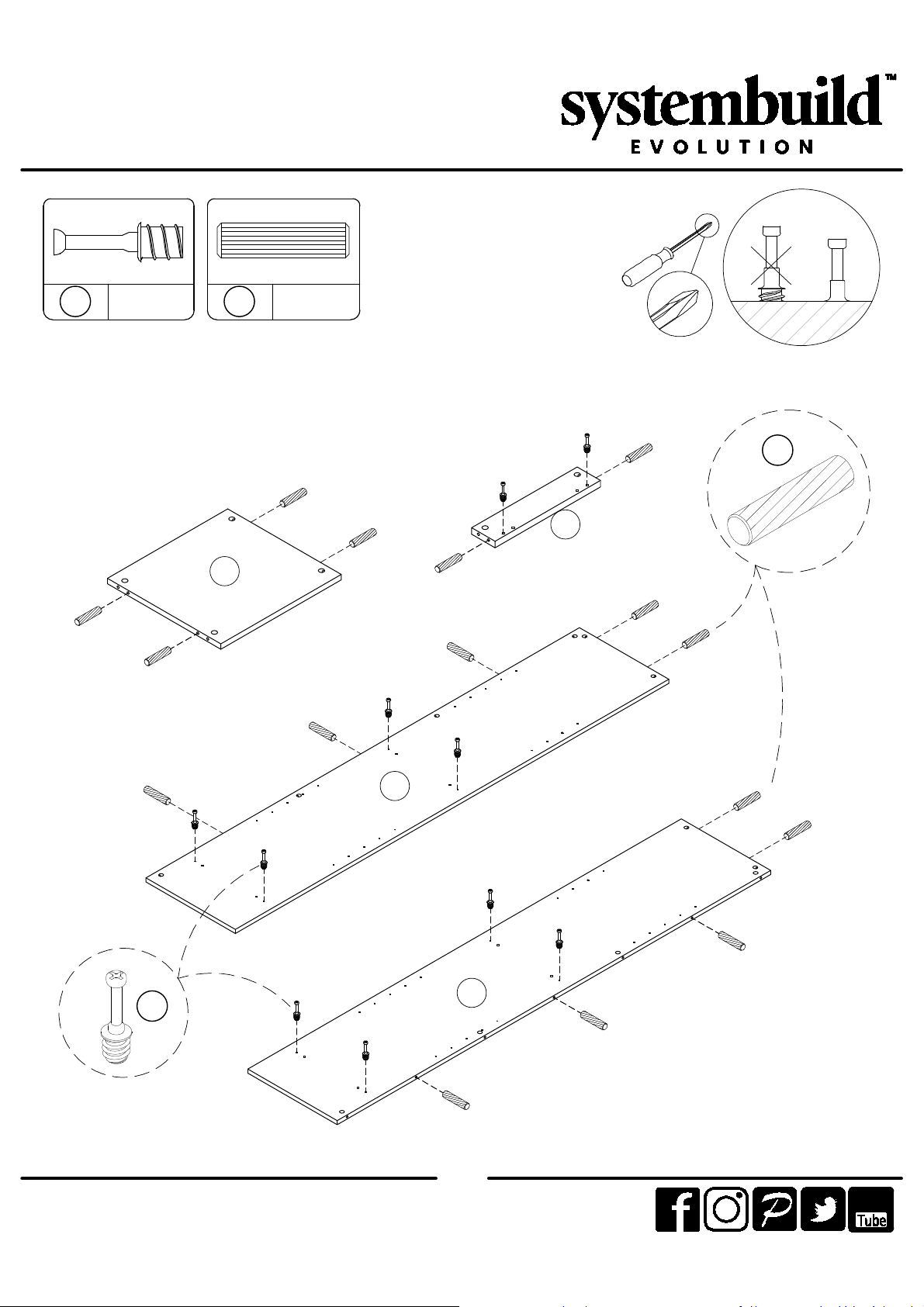

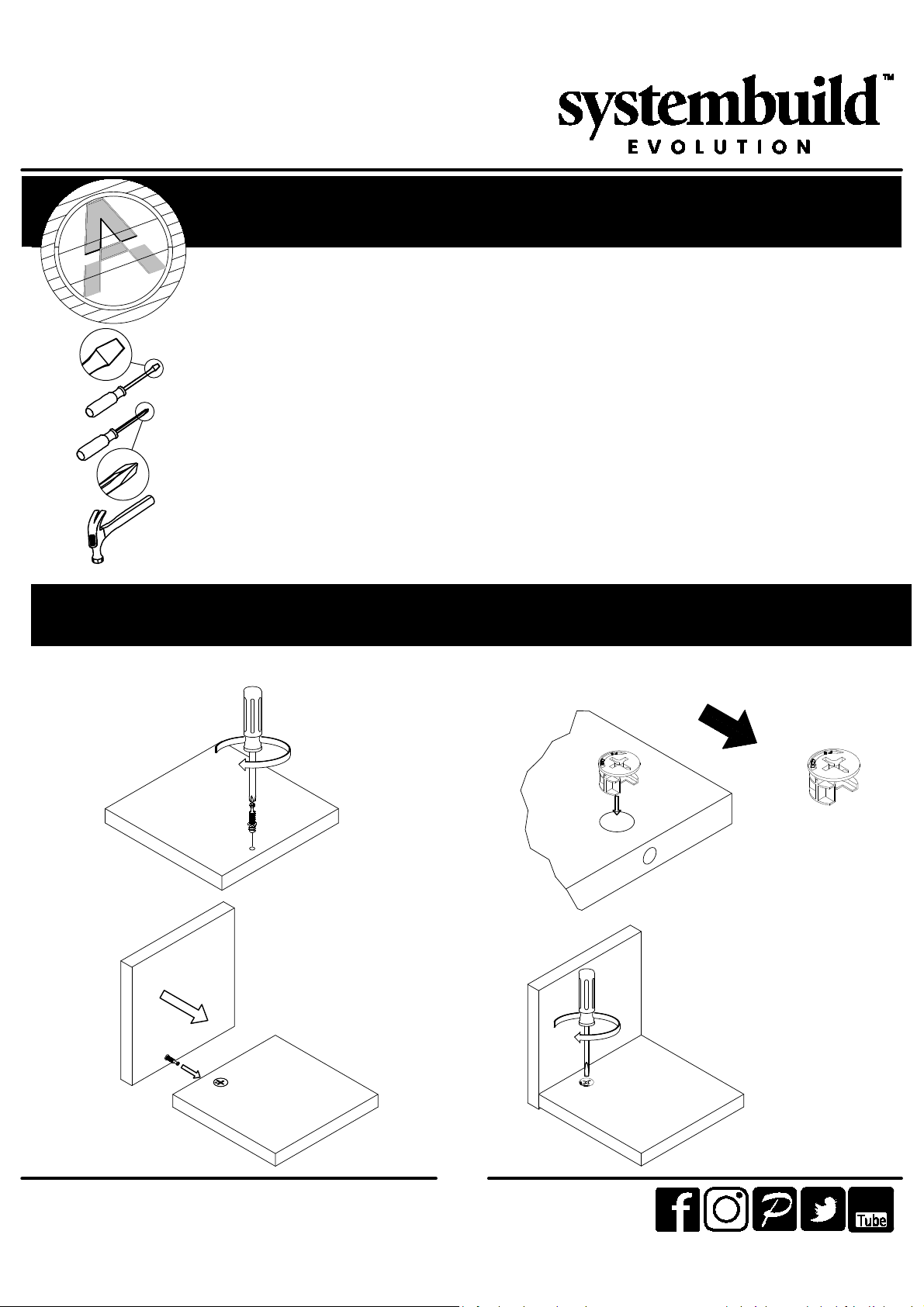

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

systembuild.com

Cam Lock Fastening System

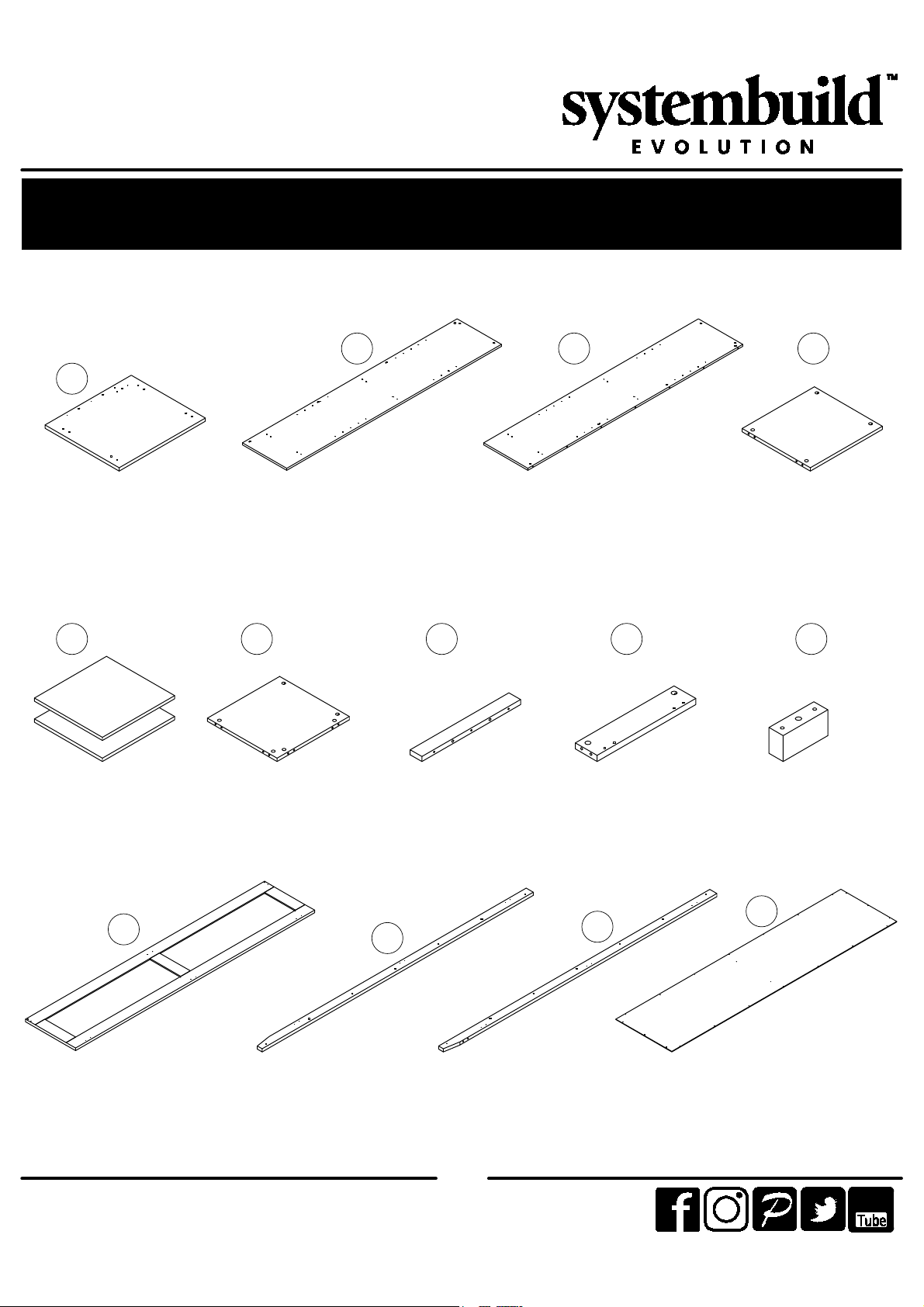

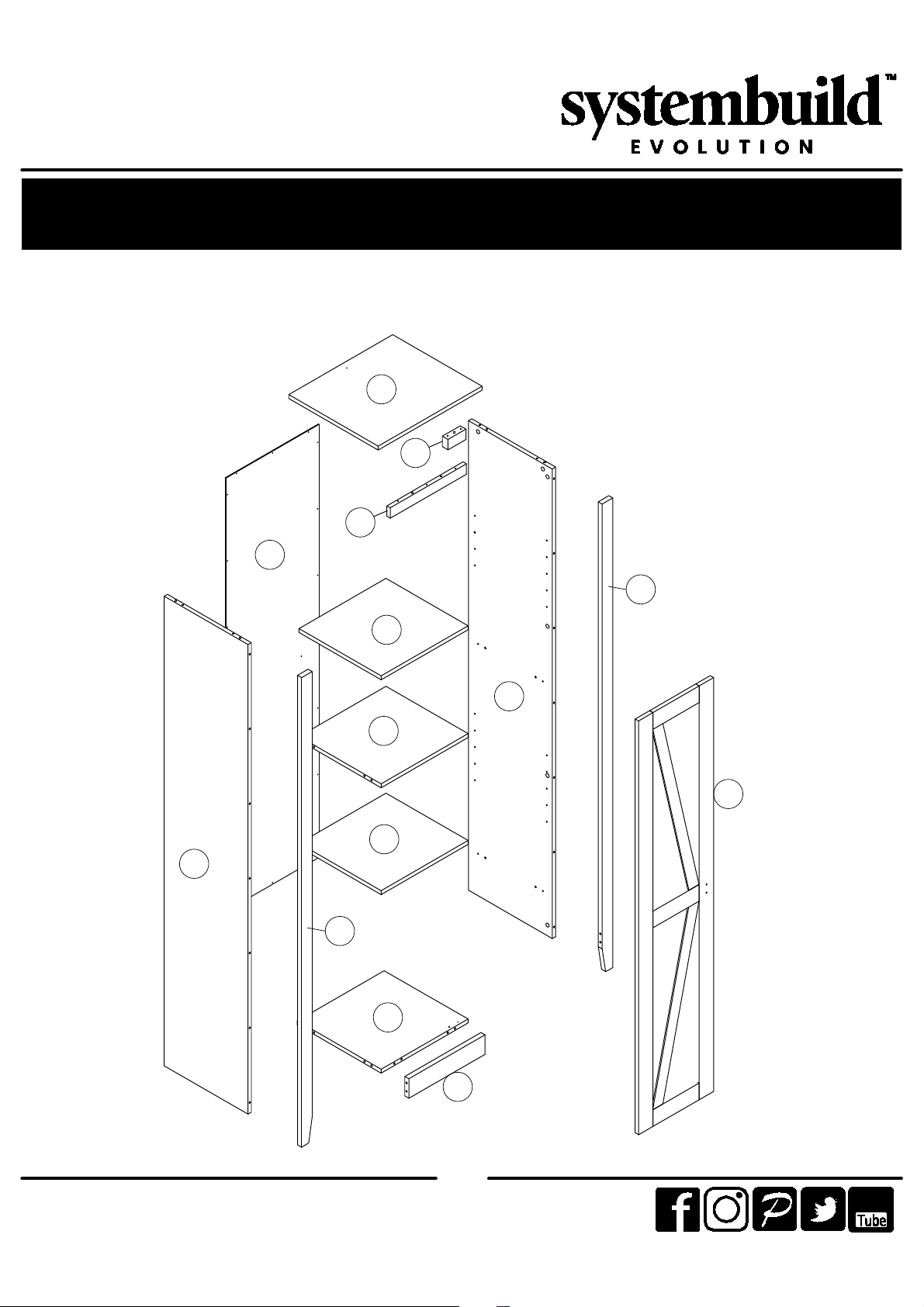

Board Identification

Not actual size

TOP

T7531296010GO

QTY: 1 PC

Tube

You

systembuild.com

LEFT SIDE PANEL

T7531296021GO

QTY: 1 PC

RIGHT SIDE PANEL

T7531296031GO

QTY: 1 PC

FIXED SHELF

T7531296040GO

QTY: 1 PC

ADJUSTABLE SHELF

T7531296050GO

QTY: 2 PCS

DOOR

T7531296100GO

QTY: 1 PC

LEFT APRON

T7531296110GO

QTY: 1 PC

RIGHT APRON

T7531296120GO

QTY: 1 PC

BACK PANEL

T7531296131GO

QTY: 1 PC

BOTTOM

T7531296060GO

QTY: 1 PC

TOP APRON

T7531296070GO

QTY: 1 PC

LOWER APRON

T7531296080GO

QTY: 1 PC

WOOD BLOCK

T7531296090GO

QTY: 1 PC

Board Identification

Not actual size

Tube

You

systembuild.com

Part List

Hardware Bag Reference number:

27531296COM1GO

Actual Size

×24 ×25

WOOD DOWEL

TGO2900

Ø8 x 30mm

Ø15 x 10mm

CAM LOCK

TGO2100

1 ×24

CAM BOLT

TGO2000

M8 x 20mm

Tube

You

systembuild.com

×22

SCREW

TGO1301

Ø3 x 12mm

×2

M4 x 19mm

×5

Ø4.2 x 45mm

SCREW

TGO1008

BOLT

TGO1608

×4

SCREW

TGO1012

Ø3 x 12mm

4 5

×2

45 x 12 x 1mm

STRIKE PLATE

TGO3525

×10

COVER

TGO2214

Ø20mm

No Actual Size

×1

HANDLE

TGO5510

×8

SHELF SUPPORT

TGO2800

Ø6 x 30mm

WALL ANCHOR

TGO6501

17 x3

HINGE

TGO4306

18 x1

30x50x20mm

WALL BRACKET

TGO3502

×4

Ø3 x 15mm

SCREW

TGO1315

x13

Ø4.2 x 13mm

SCREW

TGO1304

11 ×1

SCREW

TGO1314

Ø4.2 x 28mm

MAGNETIC CATCH

TGO6512

STEP 1

1.1 Screw (2) into (A) as illustrated.

1.2 Attach (G) & (I) to (A) with (3) & (9) as illustrated.

×4

Tube

You

systembuild.com

×3

3 ×5

STEP 2

Tube

You

×6

3 6

2.1 Insert (3) into (F) as illustrated.

2.2 Attach (16) to (F) & (I) with (6) as illustrated.

systembuild.com

×4 16 ×2

STEP 3

Tube

You

×10

2 11

3.1 Screw (2) into (K) & (L) as illustrated.

3.2 Attach (18) to (K) with (11) as illustrated.

systembuild.com

×6 18 ×3

4.1 Screw (2) into (B), (C) & (H) as illustrated.

4.2 Insert (3) into (B), (C), (D) & (H) as illustrated.

STEP 4

Tube

You

systembuild.com

×10

2 ×16
