Tally T6090 Manuale utente

T6090

Maintenance Manual

Line Impact Printer

withT6065,T6091,

T6100 &T6101 Supplements

Paper Path

Appendix B

Recommended Spare Parts,

Illustrated Parts Breakdown and Components Lists

Appendix B

B-1

Appendix B: Recommended Spare Parts, Illustrated Parts Breakdowns, and Component Lists

Recommended Spare Parts List

PART NAME PART NO.

Power Supply 081153

Personality CBA (Ser/Par) 080901

Personality CBA (4 Plex) 081086

Personality CBA (Lan) 080920

Engine Controller CBA 080873

Control Panel Assembly 075123

Hammer Bank Assembly 081144

Hammer Module Kit 081152

Control Panel Cable 079873

Paper/Shuttle Drive Motor 078259

Ribbon Drive Motor 075138

Fan 079644

Blower (Under Platform) 081095

Power Cord 730078

Shuttle Sensor 081123

Platen Sensor 080185

Tractor Kit, Upper (set w/sensors) 080878

Tractor Kit, Lower (set w/sensors) 081128

Gas Spring, (Lid) 731060

Paper Drive Belts 075127

Paper Advance Motor Pulley 080711

Paper Tractor Pulley, (Top) 080635

Paper Tractor Pulley, (Bottom) 080647

Duct (H.B.) 080727

Duct Seal 080751

Tie Block, Lower 080658

Tie Block, Upper (H.B. Shaft) 080657

Bearing Block, Right 081326

Bearing Block, Left 081327

Shuttle Drive Belt 731685

Shuttle Assembly 081149

Ribbon Shield Assembly 081298

Platen Assembly 080953

Tool Kit 081147

Sound Deadening Hood 079622

Manuals

Serial/Parallel Ops/Aps 080932

LAN Supplement 081057

FourPlex Ops/Aps 080978

Maintenance Manual 080933

Ribbons

Fabric Ribbon, 25 Million Char, Box of 4 081267

Fabric Ribbon, 50 Million Char, Box of 4 081269

Fabric Ribbon, 150 Million Char, Box of 2 081271

B-2

Maintenance Manual

Rear View

Cover Set – T6090

B-3

Appendix B: Recommended Spare Parts, Illustrated Parts Breakdowns, and Component Lists

Reference# Description Part Number

2 Lid Cover Assembly 079616

3 Sound Deadening Hood 079622

5 Gas Spring 731060

6 Hinge Stop 079684

7 8–32 x 3/8" SEMS Screw 402524 – 42

8 Bracket – Paper Guide, closing 081098

10 Cabinet – RH End Assembly 090706

11 Cabinet – LH End Assembly 079875

14 Control Panel Assembly 075123

19 8–32 x 5/8" SEMS Screw 402524 – 51

20 8–32 x 3/8" SEMS Screw 402524 – 42

21 8–32 x 3/8" Countersunk Flathead, crosspoint 402524 – 42

B-4

Maintenance Manual

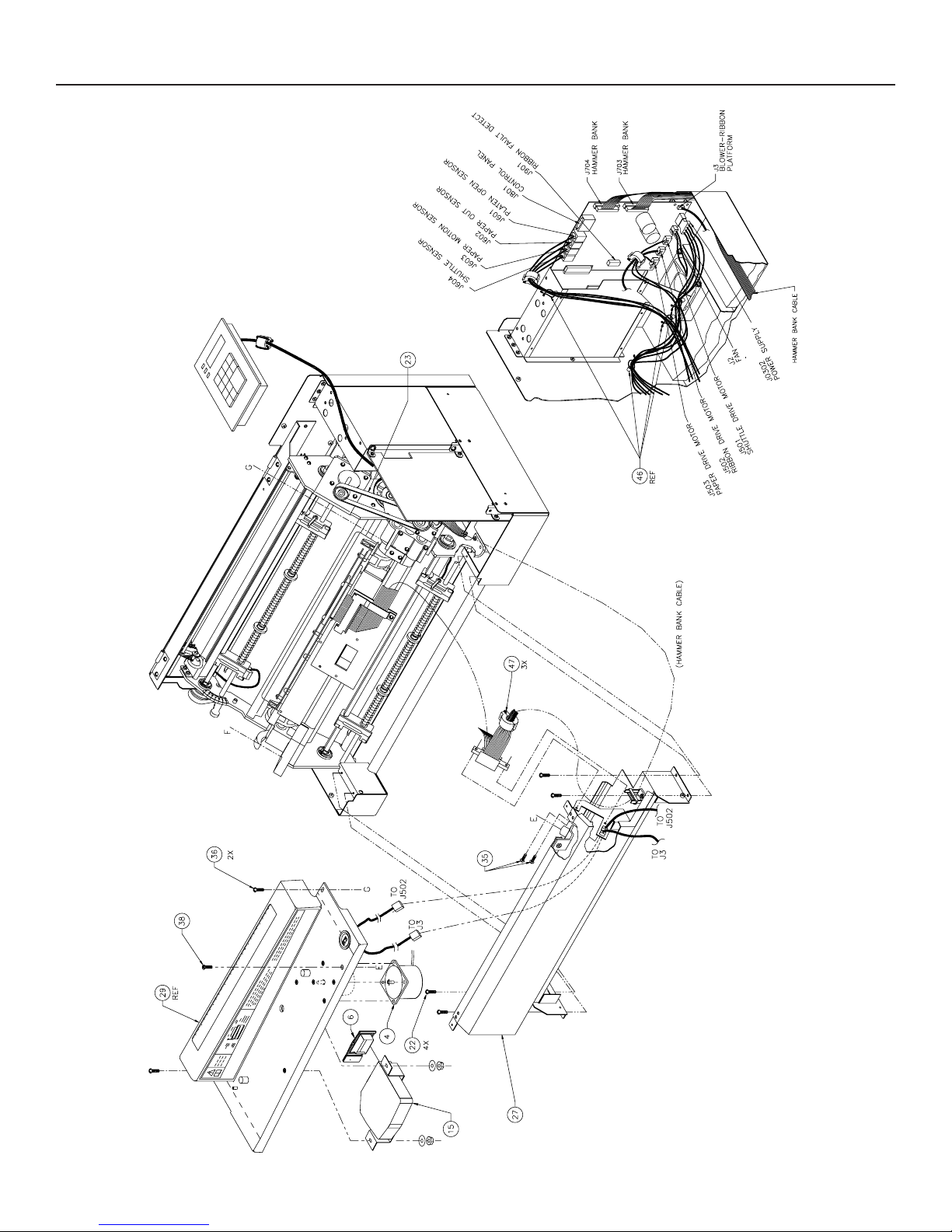

Basic Assembly – T6090

(OPTION)

B-5

Appendix B: Recommended Spare Parts, Illustrated Parts Breakdowns, and Component Lists

Reference# Description Part Number

4 Ribbon Drive Motor 075138

6 Duct Seal 080751

15 Blower 081095

22 8–32 x 0.437 SEMS Screws (20ea) 402524 – 49

23 Belt – Flat (Shuttle) 731685

27 Front Cabinet Assembly 080702

29 Ribbon Platform 612591

35 6–32 x 0.375 SEMS Screws 730381

36 8–32 x 0.625 SEMS Screws 402524 – 51

38 8–32 x 0.375 SEMS Flathead Screws 402454 – 45

46 Nylon Twistlock Cable Support 730755

47 Clamp-on Ferrite Bead (3 ea) 730910

B-6

Maintenance Manual

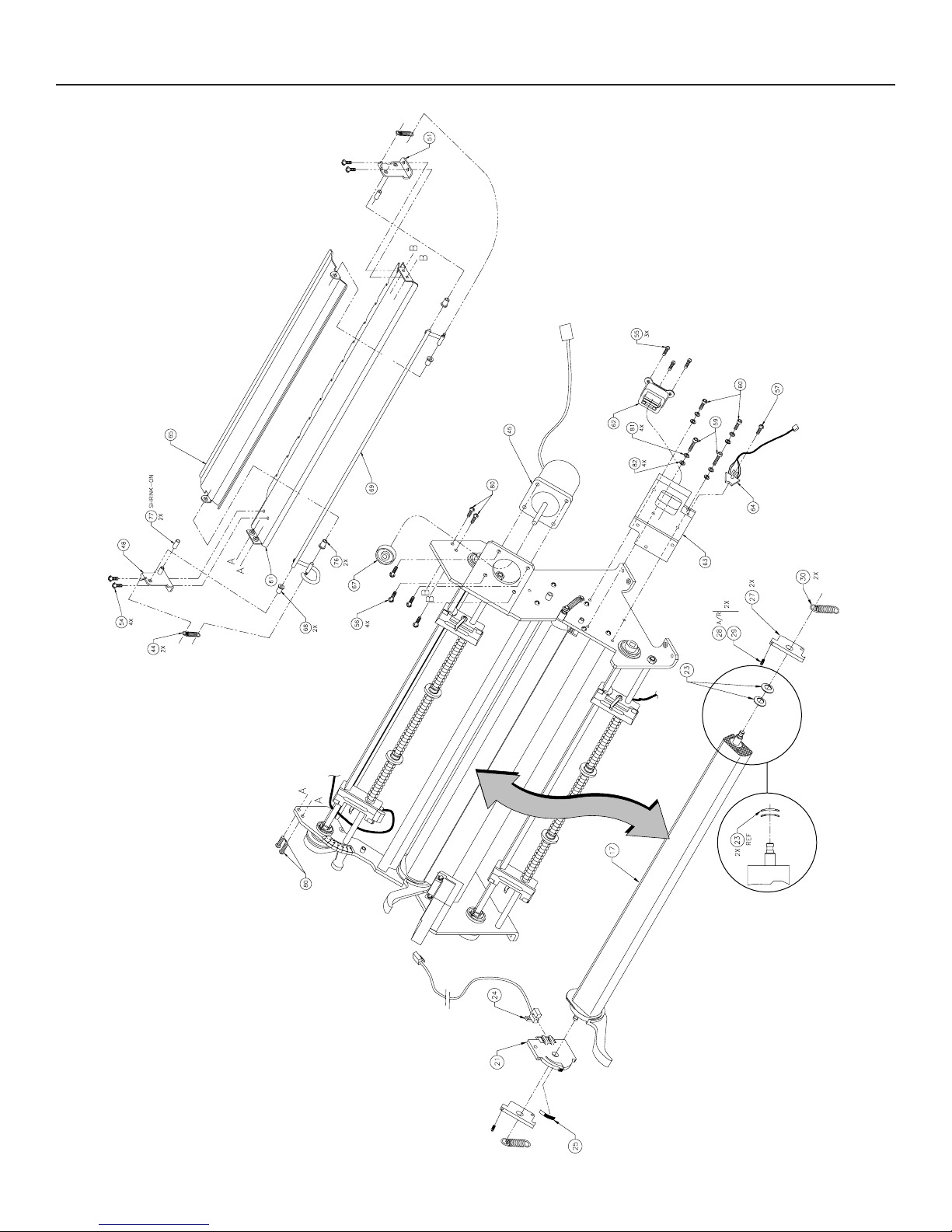

Print Mechanism – T6090

B-7

Appendix B: Recommended Spare Parts, Illustrated Parts Breakdowns, and Component Lists

Reference # Description Part Number

17 Platen Assembly 080953

21 Platen Lever Detent Plate 080931

23 3/8" Spring Washer 400995 – 20

24 Platen Open Sensor

Cable Assembly 080185

25 Platen Position Label 081008

27 Platen Gap Adjust Plate 080618

28 242 Thread Locking Adhesive 730213

29 8–32 x 0.625 Set Screw (2 ea) 400236 – 107

30 Platen Adjust Spring 731114

44 Extension Spring 731694

45 Shuttle Drive Motor 078259

48 LH Pivot Bracket Assembly 081231

51 RH Pivot Bracket Assembly 081232

54 8–32 x 0.38 SEMS Screws (4 ea) 402524 – 41

55 6–32 x 0.25 SEMS Screws (3 ea) 402524 – 21

56 8–32 x 0.50 SEMS Scrrews (10 ea) 402524 – 43

57 4–40 x 0,50 SEMS Screw (1 ea) 402524 – 03

59 8–32 x 1.25 Socket Head

Screw (2 ea) 400512 – 254

60 8–32 x 1.0 Socket Head

Screw (2 ea) 400512 – 252

61 Lower Paper Guide Assembly 080626

62 Stabilizer Block Assembly 078549

63 Stabilizer Support Bracket 080656

64 Shuttle Sensor Cable Assembly 081123

65 Upper Paper Guide 081230

67 Flat Belt Pulley Assembly 075490

68 Nylon Linear Bearing 402898 – 01

69 Paper Guide Wire Form 080632

76 Bronze Flanged Bushing,

Oil Impregnated 400844 – 04

80 8–32 x 0.437 SEMS Screw (4 ea) 402524 – 49

81 #8 Split Lock Washer (4) 400215 – 10

82 #8 Flat Washer 400216 – 10

B-8

Maintenance Manual

Paper Movement System – T6090
