Tally T9408 Manuale utente
T9408
®
Maintenance manual Laser printer
6-2
Exploded Views and Parts List
6-1. Main Exploded View
1
2
3
4
5
6
7
6-3
Exploded Views and Parts List
6-2. Main Parts List
NO DESCRIPTION Part No. Q’TY PART STATUS
6-1-1 MEA ETC-COVER MT 396 108 1 A/B
6-1-2 PRA ETC-MAIN 1 B
6-1-3 ELA HOU-CONTROLLER B’D 396 040 1 A/B
6-1-4 ENGINE-6.0 396 041 1 A/B
6-1-5 MEA ETC-FEEDER CAS 396 042 1 A/B
6-1-6 PRA AUTO AXL-DEVE 1 B
6-1-7 UNIT LSU 396 043 1 A/B
6-4
Exploded Views and Parts List
1
2
3
45
6
78
9
10
11
12
13
14
15
16
17
18
19
15
S1
S1
S1
S1
S1

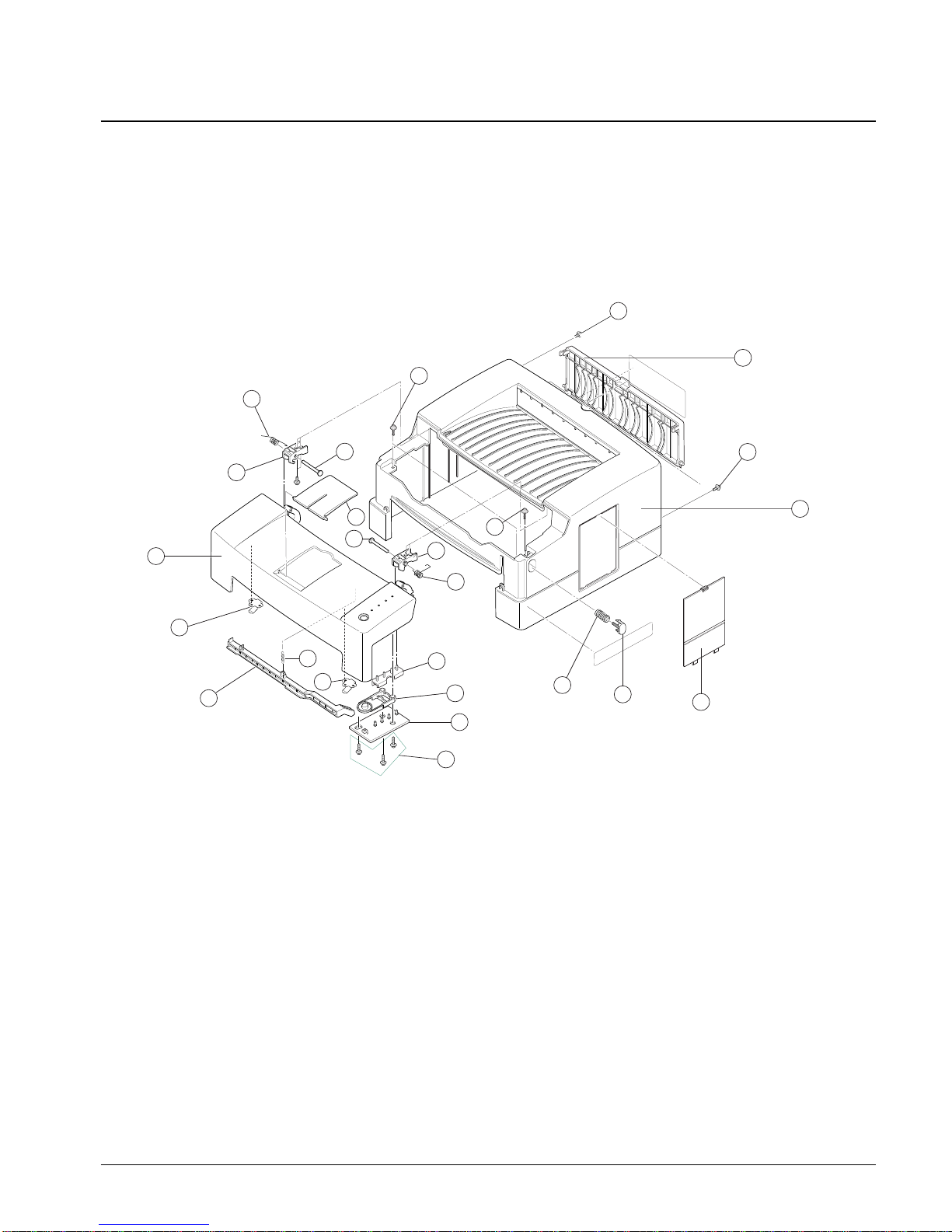

6-3. Cover Exploded View
6-5
Exploded Views and Parts List
6-4. Cover Parts List
NO DESCRIPTION Part No. Q’TY PART STATUS
6-3-1 PMO-COVERMAIN 396 109 1 A/B
6-3-2 PMO-COVER_EXIT 396 044 1 B
6-3-3 PMO-COVER_SIMM 396 110 1 A/B
6-3-4 SPRING-CS:PI0.7,D12.4 1 B
6-3-5 PMO-BUTTON_C/O 1 B
6-3-6 MEC-HOUSING_COVER 396 111 1 A/B
6-3-7 IPR-SHAFT COVER OPEN 396 045 1 B
6-3-8 HINGE-HSGR 396 046 1 B
6-3-9 COM,SPRING C/O,R 396 047 1 B
6-3-10 PMO-WINDOW LED 1 B
6-3-11 PMO-BUTTON_PANEL 1 B
6-3-12 PBA-PANEL,LED 396 112 1 A/B
6-3-13 SPRING-ES 396 049 1 B
6-3-14 PMO_LEVER_HOOK 396 050 1 B
6-3-15 IPR-PLATE SPRING DEV 2 B
6-3-16 HINGE-HSG L 396 051 1 B
6-3-17 COM,SPRING C/O,L 396 052 1 B
6-3-18 IPR-SHAFT COVER OPEN 396 053 1 B
6-3-19 PMO-STACKER_SUB 1 B
6-3-S1 SCREW-TAPTITE:PWH,+B,M3 7 B
6-6
Exploded Views and Parts List
6-5. Frame Exploded View
32
23
4
2
3
589
12
20
11
13
15
14
10
17
10
6
21
23
16
30
28
29
26
27
25
24
22
19 18
7
1
31
6-7
Exploded Views and Parts List
6-6. Frame Parts List
NO DESCRIPTION Part No. Q’TY PART STATUS
6-5-1 FRAME ASS’Y 396 113 1 A/B
6-5-2 BUSH TR INNER 396 054 2 B
6-5-3 GEAR-TRANSFER 396 055 1 B
6-5-4 GND-TRANSFER,PLATE 1 B
6-5-5 HOLDER-TR BEARING,L 396 056 1 B
6-5-6 HOLDER-TR BEARING,R 396 057 1 B
6-5-7 SPRING PLATE TR 396 058 1 B
6-5-8 GEAR-EXIT 396 059 1 B
6-5-9 BEARING-EXIT,F/DOWN 2 B
6-5-10 RUBBER-EXIT 396 060 3 B
6-5-11 SHAFT-EXIT 396 061 1 B
6-5-12 GEAR-EXIT/U, ID 396 062 2 B
6-5-13 SPRING-EXITF/DOWN 396 063 3 B
6-5-14 ROLLER-EXIT 396 064 3 B
6-5-15 HOLDER-EXIT,F/DOWN 396 065 3 B
6-5-16 SHIELD-ICU 1 B
6-5-17 GROUND G/TR 1 B
6-5-18 SPRING-PLATE G/DEV 396 114 2 A/B
6-5-19 GUIDE-DEV,L 1 B
6-5-20 GUIDE-DEV,R 1 B
6-5-21 FRAME-BASE 1 B
6-5-22 GROUND-OPC 1 B
6-5-23 GROUND MOTOR 1 B
6-5-24 ACTUATOR-FEED 396 066 1 A/B
6-5-25 ACTUATOR-EMPTY 396 067 1 A/B
6-5-26 GUIDE-TRANSFER 1 B
6-5-27 INSULATOR-G/TR 1 B
6-5-28 GROUND-ICU 1 B
6-5-29 ASSY-ERASE,LAMP 396 068 1 A/B
6-5-30 SHIELD-COVER SIMM 1 B
6-5-31 POWER SWITCH 396 069 1 A/B
6-5-32 ROLLER-TRANSFER 396 070 1 A/B
6-8
Exploded Views and Parts List
4
6
5
7
23
3
16
217
2
3
12
6
S2
8
9
11
15
14
20
19
21
10
14 15
18
13
22
S1
S1
1
6-7. Fuser Exploded View
6-9
Exploded Views and Parts List
6-8. Fuser Parts List
NO DESCRIPTION Part No. Q’TY PART STATUS
1 FUSER ASS’Y 396 071 1 A/B
2 SPRING EXIT F/UP 1 B
3 ROLLER EXIT F/UP 1 B
4 ELECTRODE-FU,L 1 B
5 THERMOSTAT 396 072 1 A/B
6 CBF-HARNESS,LAMP 396 073 1 B
7 GEAR-EXIT/L,ID 396 074 1 B
8 GEAR FUSER 396 075 1 B
9 H/R BEARING,L 396 076 1 B
10 H/R BEARING,R 396 077 1 B
11 H/ROLLER 396 078 1 B
12 LAMP-HALOGEN 396 079 1 A/B
13 ELECTRODE-FU,R 1 B
14 FRAME-LOWER,FU 396 080 1 B
15 P/R BEARING 396 081 1 B
16 GROUND-PLATE,FU 1 B
17 SPRING-THERMISTOR 1 B
18 BEARING EXIT FU,R 1 B
19 BEARING EXIT FU,L 1 B
20 GEAR-EXIT,FU 396 082 1 B
21 ACTUATOR EXIT 396 083 1 A/B
22 RING-CS 2 B
23 FRAME-UPPER,FU 1 B
S1 SCREW-TAPTITE 5 B
S2 SCREW-TAPTITE 2 B
6-10
Exploded Views and Parts List
12 14
11
94
2
15
3
7
6
5
13
10
S1
S1
1
6-9. Drive Assembly Exploded View
