Tandberg Data 440LTO Manuale utente

Use, duplication or disclosure restricted by GSA ADP Schedule

Contract with IBM Corp.

Quick Start Guide

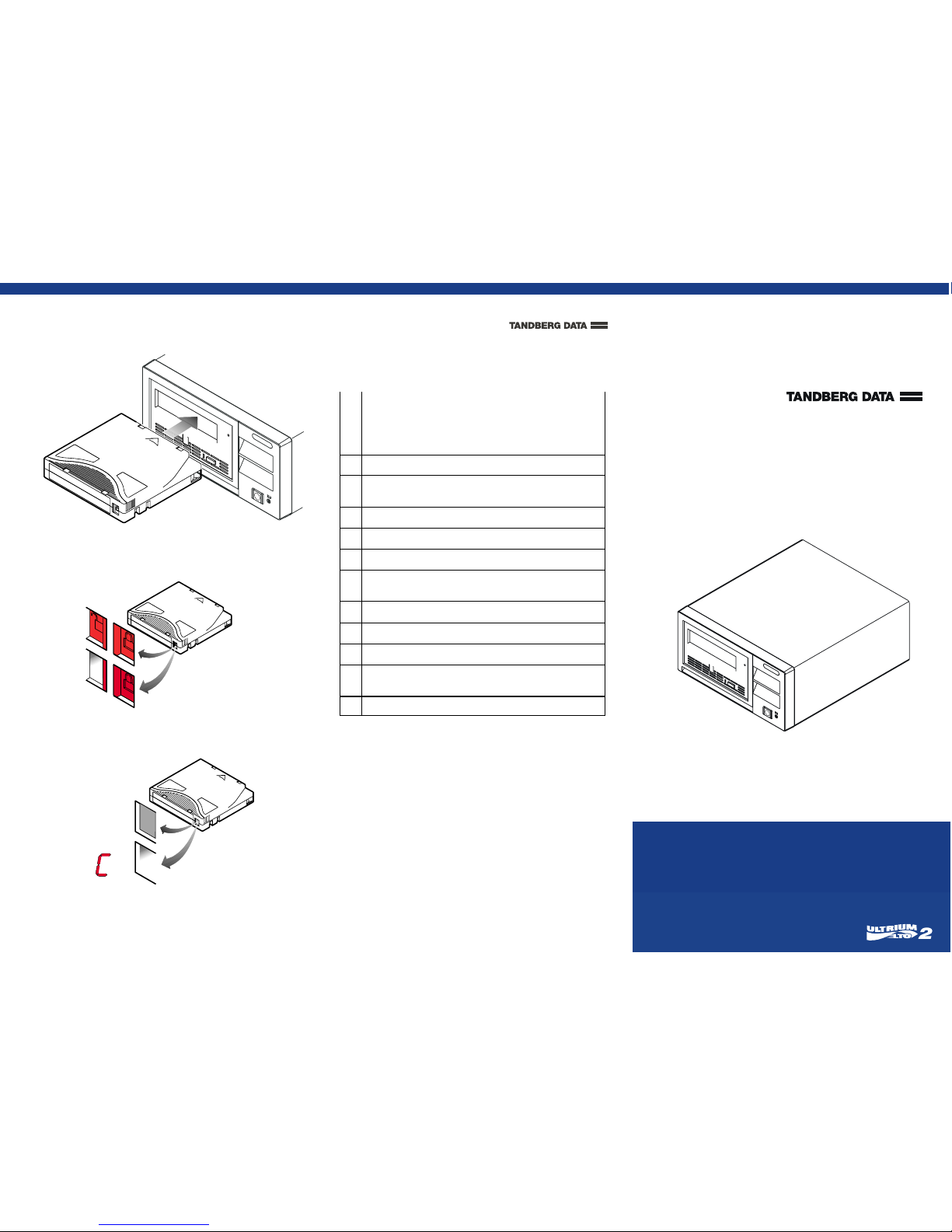

Tandberg 440LTO External Tape Drive

0043 2630-1 Tandberg Data Cartridge LTO1

0043 2744-1 Tandberg Data Cartridge LTO2

043 2631 LTO Cleaning Cartridge

Single-Character Display

No error.This code displays:

When power is cycled (turned off, then on) to the tape

drive

When diagnostics have finished running and no error

occurred

The maximum operating temperature was exceeded.

The externally supplied power is outside the specified

voltage limits.

A firmware error occurred.

A firmware or tape drive hardware failure occurred.

A tape drive hardware failure occurred.

A tape drive or media error occurred, but cannot be

isolated to faulty hardware or to the tape cartridge.

A media error occurred because of a faulty tape cartridge.

A tape drive or SCSI bus error occurred.

A tape drive or RS-422 error occurred.

A tape drive hardware failure has occurred for conditions

NOT covered by error code 5.

The tape drive needs to be cleaned.

Tape Storage SolutionTape Storage Solution

1. Set the SCSI ID by pushing the + or - on the SCSI address

switch.

Note: Do not select an address that is already in use.

2. Press the power switch to ensure power is off.

3. Plug the power cord into the power receptacle on the back of

the tape drive and the other end into a grounded electrical

outlet.

4. Connect the SCSI bus cable between the host and the tape

drive.

5. Install he SCSI terminator.

6. Press the power switch to power on the tape drive. The tape

drive runs the Power-On Self Test.

7. Refer to your host and application software manuals to

configure the tape drive for use.

Installation and Setup

External

SCSI Connectors

Power

SCSI Address

Switch

Receptacle

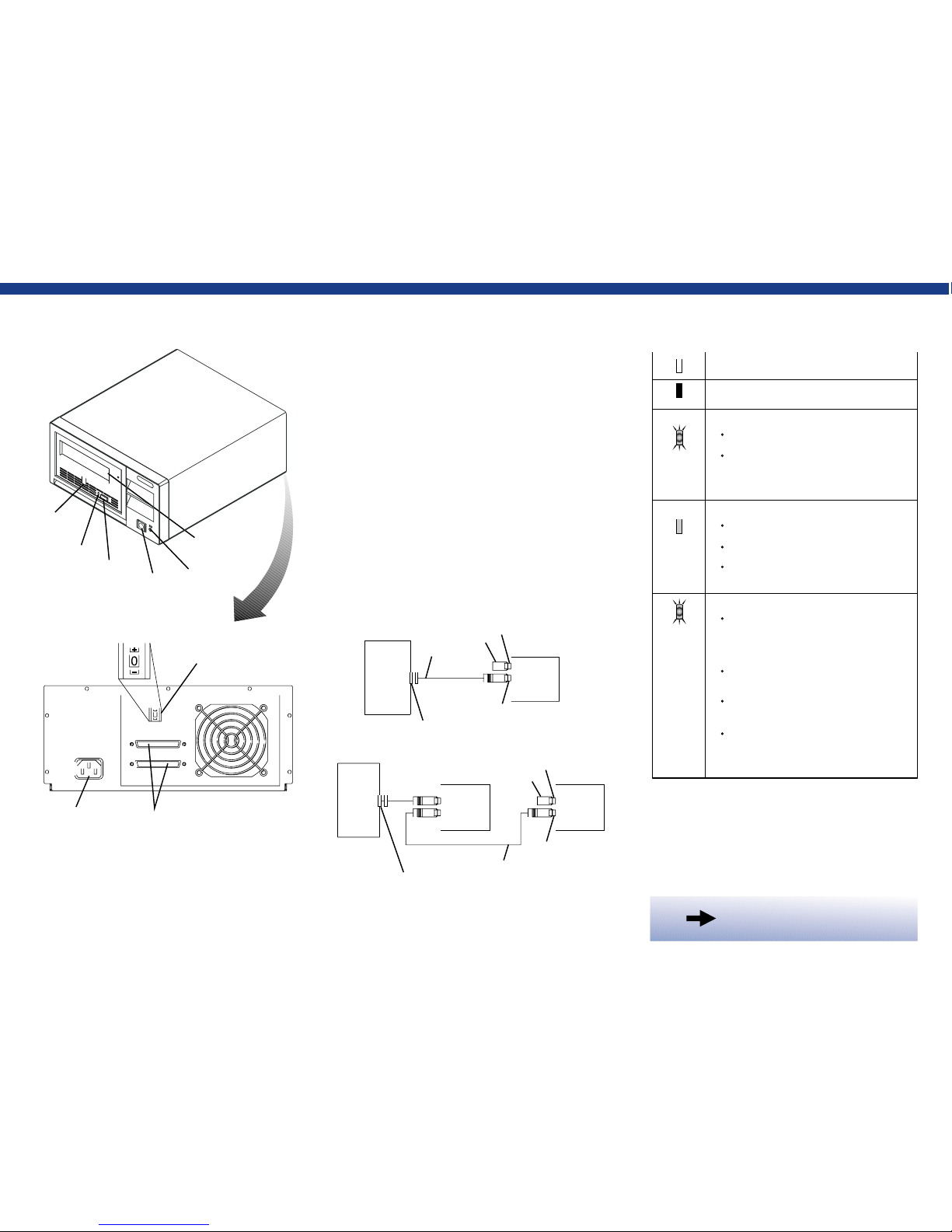

Connecting the SCSI Bus Cable

Multiple Devices on the SCSI Bus (Top View)

Tape

Drive

SCSI Connector

Terminator

Host Another

Tape

Device

SCSI Connector

SCSI Bus Cable

SCSI Host Adapter Card

Single Device on the SCSI Bus (Top View)

SCSI Connector

Terminator

SCSI Bus Cable

Tape

Host Drive

SCSI Connector

SCSI Host Adapter Card

Single-

Character Cartridge Load

Display Compartment

Status

Light Unload

Button Power

Switch

Power

Indicator

Status Light

The tape drive has no power, or is powered off.

The tape drive is powered on.

One of the following applies:

If the light flashes less than once per second,

the tape drive is in sleep mode.

If the light flashes once per second, the tape

drive is reading from the tape, writing to the

tape, rewinding the tape, or locating data on

the tape.

One of the following applies:

The tape drive is performing a selected

operation

The tape drive is displaying the drive error

code log.

The tape drive is in maintenance mode or is

exiting maintenance mode.

One of the following applies:

If the light flashes less than once per second,

the tape drive is updating firmware using the

field microcode replacement (FMR) tape, or

the drive has exceeded the recommended

temperature.

If the light flashes once per second, an error

occurred and the tape drive or media may

require service.

If the light flashes once per second and the C

displays in the single character display, the

tape drive needs to be cleaned.

If the light flashes twice per second, the tape

drive detected an error and is performing a

firmware recovery. Tape drive resets

automatically.

Green/Solid

Green/Flashing

Amber/Solid

Amber/Flashing

?http://www.tandberg.com
