These instructions describe the Magnum 224 LTO library (224), the StorageLibrary T24 (T24), and the

StorageLoader 2U LTO (2U). Please read the entire section that you are using prior to beginning the procedure.

PREPARING FOR INSTALLATION OR REPLACEMENT

Note: If your library is installed in a rack, it is not necessary to remove the library from the rack to complete this

procedure. It is also not necessary to disconnect the Ethernet cable from the back of the library.

✔Obtain these items—a #2 Phillips screwdriver and a small flat-blade screwdriver.

✔Ensure that the environment is free of conditions that could cause electrostatic discharge (ESD)—If possible,

use an antistatic mat and a grounded static protection wristband during installation. If a mat and wristband

are not available, touch a known grounded surface, such as a computer’s metal chassis.

GENERAL INFORMATION

All of the libraries accommodate Ultrium 4 (LTO-4), Ultrium 3 (LTO-3), or Ultrium 2 (LTO-2) tape drives and half

height (HH) or full height (FH) configurations. None of the libraries accommodate LTO-1 tape drives.

Warning Before performing any installation or maintenance procedures, be sure that the library’s

power switch is off and that the power cord is disconnected from the library and the

outlet.

Warnung Vor der Ausführung von Installations- oder Wartungsarbeiten ist darauf zu achten, daß

der Library-Netzschalter auf “Aus” gestellt ist und daß das Anschlußkabel vom Library

und der Steckdose entfernt ist.

Advertencia Antes de realizar cualquier procedimiento de instalación o de mantenimiento,

comprobar que el interruptor de alimentación de la biblioteca está apagado y que el

cable de alimentación no está enchufado ni a la biblioteca ni a la toma de corriente.

! Important The tape drives must be specially configured (at the factory) for use in the libraries. Purchase

tape drive kits only from Tandberg Data or Tandberg Data-approved suppliers.

To view this information... go to...

Installing additional tape drives page 5

Replacing a tape drive with the same configuration

(half height -to- half height or full height -to- full height)

page 7

Replacing a half height tape drive with a full height tape drive page 9

Reconfiguring the library (this step must be completed for the library to operate)page 10

Resuming operation page 11

Confirming the installation page 12

3 OF 12

Note: Most of the illustrations show SCSI configurations. Use the same steps to install Fibre Channel tape drives.

REFERENCE ILLUSTRATIONS

TAPE DRIVE COVER PLATES AND SERIAL CABLE

Glossary of Abbreviations

FH = Full Height (tape drive) TD = Tape Drive T24 = StorageLibrary T24

HH = Half Height 224 = Magnum 224 2U = StorageLoader 2U LTO

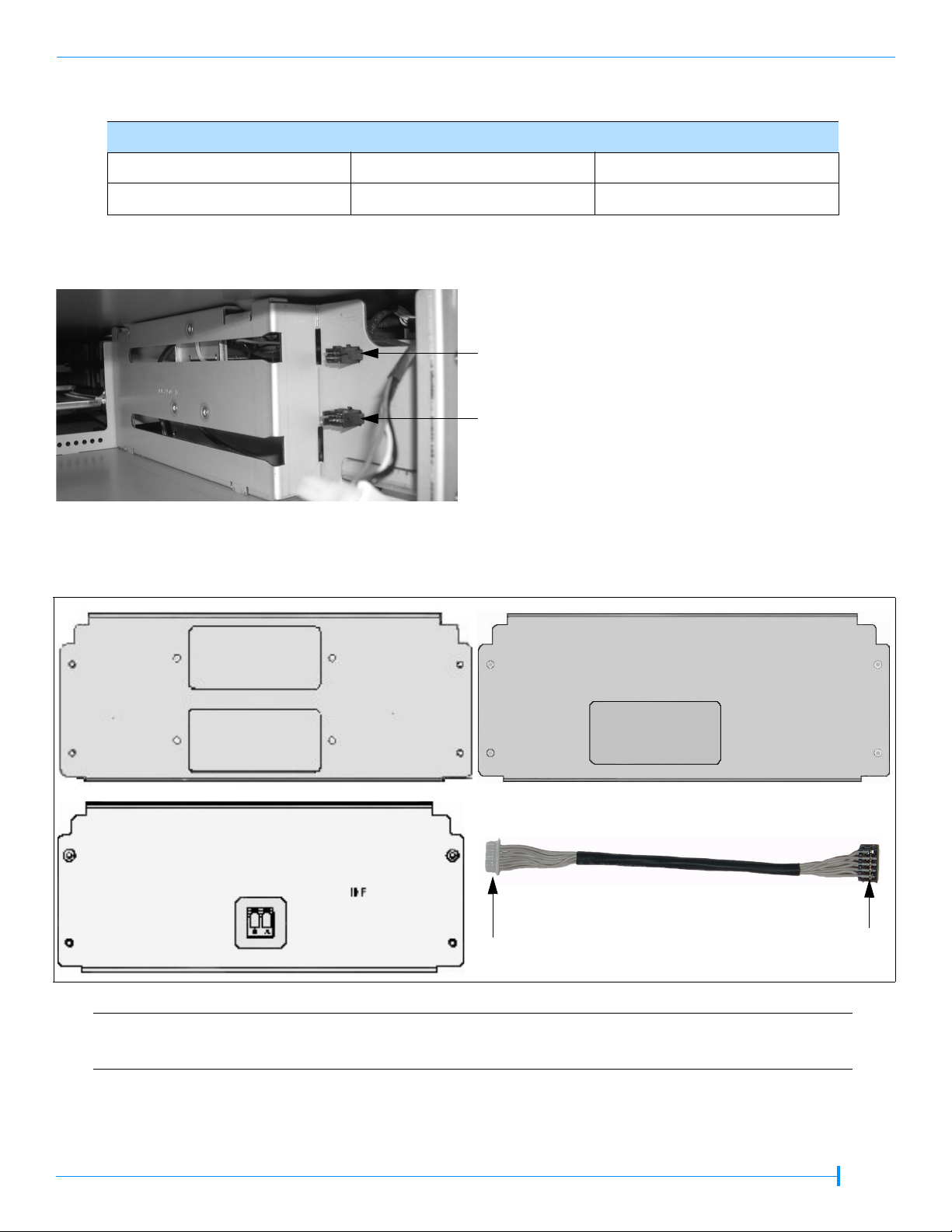

Figure 1 Internal library serial connectors

! Important Be sure to use the serial cable (S) that came with your replacement kit. The serial

cables are specifically configured (at the factory) for use with the individual tape drives.

Bottom library serial

connector

Top library serial

connector

Looking inside

back of library

Lower SCSI

cover plate

Upper SCSI

cover plate

Half Height SCSI

Tape Drive

Cover Plate

Full Height Fibre Channel

Tape Drive Cover Plate

Full Height SCSI

cover plate

Full Height SCSI

Tape Drive Cover Plate

Serial cable (S)

Connect to

library (black)

Connect to

tape drive (white)

4 OF 12

SERIAL CABLE CONNECTIONS

POWER CABLE CONNECTIONS

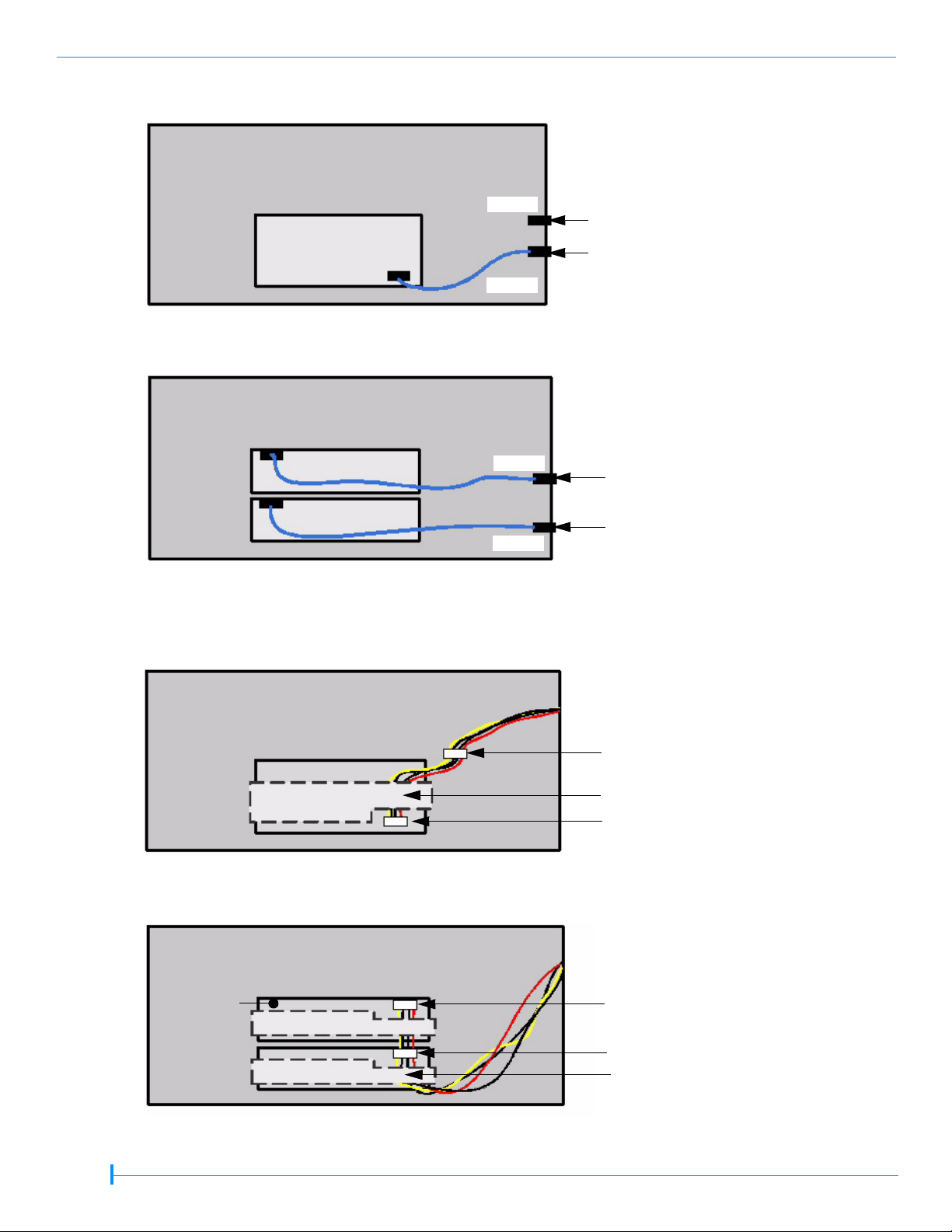

Figure 2 Serial cable routing—full height tape drive

Figure 3 Serial cable routing—half height tape drives

Figure 4 Power cable routing—full height tape drive

Figure 5 Power cable routing—half height tape drives

Serial cable (S)

Bottom serial connector

Top serial connector

Drive 1

Drive 2

Library

Full Height

Tape Drive

Serial cable (S)

Top serial connector

Drive 1

Drive 2

HH Tape Drive

Library

Bottom serial connector

Power cable (P)

End power connector

Library

FH tape drive

TD carrier

Middle power connector

(not used in this configuration)

Route cable through tape drive carrier

Middle power connector (lower TD)

End power connector (upper TD)

Library

Half height

tape Drive

Power cable (P)

TD carrier

Route cable through tape drive carriers

5 OF 12

INSTALLING ADDITIONAL TAPE DRIVES

To install an additional tape drive, follow these steps:

1.1.

1. Preparing for replacement—

a.a.

a. Power off the host.

b.b.

b. Power off the library (press the 0on the back of the unit).

c.c.

c. Disconnect the power cord, the SCSI or Fibre Channel cable(s), and the terminator (if one is installed).

d.d.

d. Remove the tape drive cover plate. Set the plate and the screws aside.

Note: This figure shows the SCSI library. Remove the Fibre Channel tape drive cover plate the same way.

2.2.

2. Removing the internal cooling plates and disconnecting cables—

a.a.

a. Remove the two screws (A) holding the tape drive cooling plate (B). Remove the plate, and discard it and

the screws.

b.b.

b. Disconnect all of the power cables (P).

3.3.

3. Installing the tape drive—

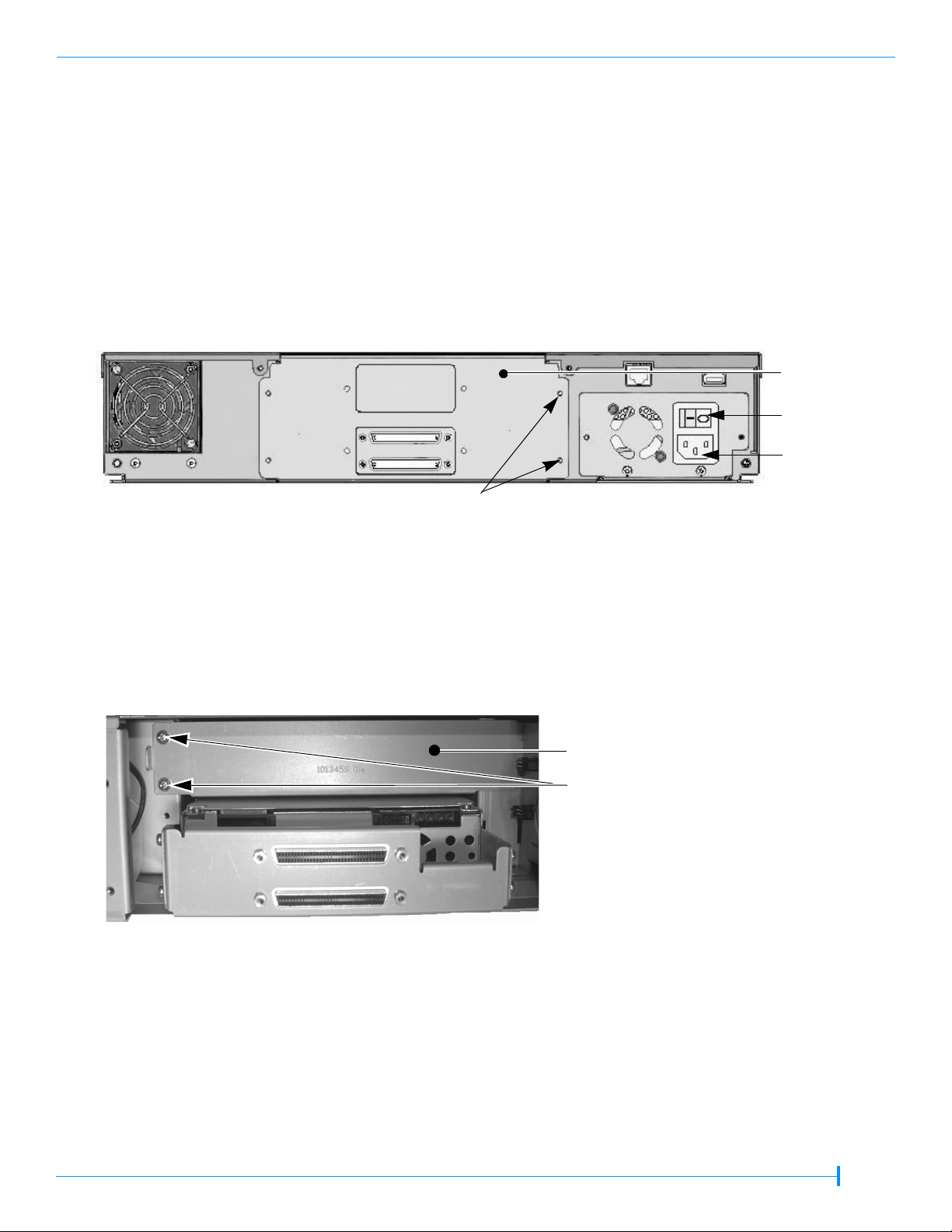

Figure 6 Tape drive cover plate (HH SCSI library)

Figure 7 Tape drive cooling plate

Power OFF

Disconnect

power cord

Tap e dr iv e

cover plate

(press the 0)

Back of library Screws (2 each side)

Cooling plate (B)

Looking inside back of library

Screws (A)

6 OF 12

a.a.

a. Library connectors—Locate the serial cable (S) that came in your replacement kit and attach it to the

appropriate serial connector inside the library (see Figure 1 on page 3 and Figure 3 on page 4).

b.b.

b. While holding the cables to the side, slide the new tape drive directly into the library, leaving it a short

distance out to access the cables. Use care not to damage the cables.

c.c.

c. Tape drive connectors—Connect the supplied serial cable (S) and the power cable (P) to the tape drives.

Serial—Route the serial cable (S) over the tape drive carrier and under the power cable as shown here;

connect as shown in Figure 3 on page 4.

Power—Route the power cable (P) through the tape drive carriers as shown here; and connect as shown in

Figure 5 on page 4.

d.d.

d. Slide the tape drive the remaining distance into the library. Install the tape drives from bottom to top—fill

the bottom slot first, the second slot next, and so forth.

4.4.

4. Completing the installation—

a.a.

a. Locate the tape drive cover plate (see “Tape Drive Cover Plates and Serial Cable” on page 3). First, remove

the necessary SCSI plates, then attach the tape drive cover plate with the screws you removed earlier.

Tape drive Quantity Install in this opening... Serial connector Internal label

Half height Second tape drive Top Top Drive 2

Single tape drive Bottom Bottom Drive 1

Figure 8 Installing additional tape drives: half height connectors

! Important The library requires both the SCSI cover plates and the tape drive cover plates for

ESD protection. Do not leave any openings uncovered.

Do not connect the SCSI cables until after you reconfigure the library.

Serial cable (S)

Tape drive carrier

(route over carrier and

under the power cable)

Press the serial cable (S) down into the carrier to prevent

catching it between the tape drive and the library.

Power cable (P)

(route under carrier and

over serial cable)

7 OF 12

b.b.

b. Reconfigure your library—You must reconfigure your library for your backup application to recognize

the new tape drive. See page 10 for instructions.

REPLACING ATAPE DRIVE (SAME CONFIGURATION)

To replace a tape drive with a different tape drive of the same configuration (half height to half height, or full

height to full height), follow these steps.

1.1.

1. Preparing for replacement—

a.a.

a. Power off the host.

b.b.

b. Power off the library (press the 0on the back of the unit).

c.c.

c. Disconnect the power cord, the SCSI or Fibre Channel cable(s), and the terminator (if present).

d.d.

d. Remove the tape drive cover plate. Set the plate and the screws aside.

2.2.

2. Removing the tape drive—

a.a.

a. Pull the tape drive a short distance out of the library, then disconnect the serial cables (S) from the tape

drive(s) that you are replacing.

b.b.

b. Disconnect all of the power cables (P).

c.c.

c. While holding the cables out of the way, pull the tape drive straight out of the library.

d.d.

d. Disconnect the serial cable from the library and discard it. Do not reuse the serial cable.

Library If your library has... Attach this SCSI cover plate...

Tape drive configuration Quantity Location External drive label

224, T24, or 2U Half height two None NA

one Top NA

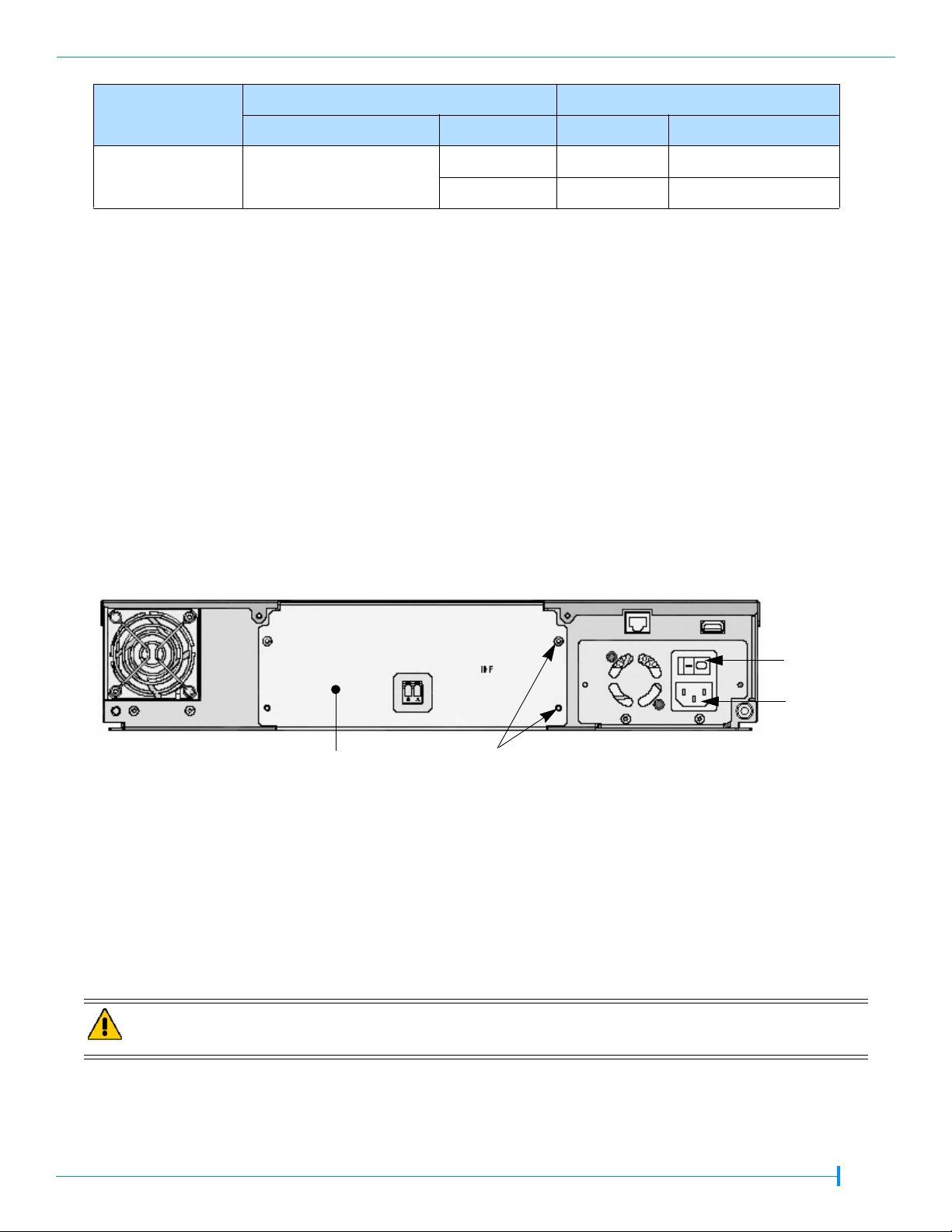

Figure 9 Tape drive cover plate (FH Fibre Channel library)

Caution Be certain to support the tape drive as you remove it from the library. LTO Ultrium tape

drives weigh several pounds each.

Power OFF

Disconnect

power cord

Tape drive cover plate

(press the 0)

Back of library Screws (2 each side)

8 OF 12

3.3.

3. Installing the new tape drive—

a.a.

a. Library connectors—Locate the serial cable (S) that came in your replacement kit and attach it to the

appropriate serial connector inside the library (see Figure 1 on page 3).

Full height tape drive—see Figure 2 on page 4

Half height tape drive—see Figure 3 on page 4

b.b.

b. While holding the cables out of the way, slide the new tape drive into the library, leaving it a short distance

out to access the cables. Use care not to damage the cables.

c.c.

c. Tape drive connectors—Connect the supplied serial cable (S) and the power cable (P) to the tape drives.

Full Height tape drive cable connections—

Serial—Route the serial cable (S) under the tape drive carrier and connect as shown in Figure 2 on page 4.

Power—Route the power cable (P) through the tape drive carriers and connect as shown in Figure 4 on

page 4.

Half Height tape drive cable connections—

Serial—Route the serial cable (S) over the tape drive carrier and under the power cable (see Figure 8 on page

6) and connect as shown in Figure 3 on page 4.

Power—Route the power cable (P) through the tape drive carriers and connect as shown in Figure 5 on

page 4.

d.d.

d. Slide the tape drive the remaining distance into the library. Use care not to damage the cables during this

step.

4.4.

4. Completing the installation—

a.a.

a. Attach the SCSI cover plate and the tape drive cover plate that came with your replacement kit. See “Tape

Drive Cover Plates and Serial Cable” on page 3.

b.b.

b. Reconfigure your library—You must reconfigure your library for your backup application to recognize

the new tape drive. See page 10 for instructions.

Tape drive Quantity Install in this opening... Serial connector Internal label

Full height Single tape drive Bottom Bottom Drive 1

Half height Second tape drive Top Top Drive 2

Single tape drive Bottom Bottom Drive 1

! Important The library requires both the SCSI cover plates and the tape drive cover plates for

ESD protection. Do not leave any openings uncovered.

Do not connect the SCSI cables until after you reconfigure the library.

9 OF 12

REPLACING ATAPE DRIVE (HALF HEIGHT TO FULL HEIGHT)

To replace a half height tape drive with a full height tape drive, follow these steps.

1.1.

1. Preparing for replacement—

a.a.

a. Power off the host.

b.b.

b. Power off the library (press the 0on the back of the unit).

c.c.

c. Disconnect the power cord, the SCSI or Fibre Channel cable(s), and the terminator (if present).

d.d.

d. Remove the tape drive cover plate. Set the plate and the screws aside.

2.2.

2. Removing the cables, internal cooling plates, and tape drives—

a.a.

a. Pull the tape drive a short distance out of the library and disconnect the serial cable (S). Repeat for all the

tape drives that you are replacing.

b.b.

b. Disconnect all of the power cables (P).

c.c.

c. Remove the screws (A) holding the tape drive cooling plate (B). Remove the plate, and discard it and the

screws (see Figure 7 on page 5).

d.d.

d. While holding the cables out of the way, remove the tape drive(s).

e.e.

e. Disconnect the serial cable (S) from the library. Do not reuse this cable. If you are replacing multiple tape

drives, remove and discard the serial cables from all the tape drives you are replacing.

3.3.

3. Installing the tape drive—

a.a.

a. Library connectors—Locate the serial cable (S) that came in your replacement kit and attach it to the

appropriate serial connector inside the library (see Figure 1 on page 3 and Figure 2 on page 4).

b.b.

b. While holding the cables to the side, slide the new tape drive directly into the library, leaving it a short

distance out to access the cables. Use care not to damage the cables.

c.c.

c. Tape drive connectors—Connect the supplied serial cable (S) and the power cable (P) to the tape drives.

Figure 10 Tape drive cover plate (HH SCSI library)

Caution Be certain to support the tape drive as you remove it from the library. LTO Ultrium tape

drives weigh several pounds each.

Power OFF

Disconnect

power cord

Tape drive

cover plate

(press the 0)

Back of library Screws (2 each side)

10 OF 12

Serial—Route the serial cable (S) under the tape drive carrier and connect as shown in Figure 2 on page 4.

Power—Route the power cable (P) through the tape drive carriers and connect as shown in Figure 4 on

page 4.

d.d.

d. Slide the tape drive the remaining distance into the library.

4.4.

4. Completing the installation—

a.a.

a. Attach the SCSI cover plates and the tape drive cover plate that came with your replacement kit. See “Tape

Drive Cover Plates and Serial Cable” on page 3.

b.b.

b. Reconfigure your library—You must reconfigure your library for your backup application to recognize

the new tape drive. See page 10 (below) for instructions.

RECONFIGURING THE LIBRARY AND RESUMING OPERATION

RECONFIGURING THE LIBRARY

In order for the library to recognize the new tape drive, you must set the tape drive configuration to match the

tape drives that you installed in the library.

Note: Do not connect the SCSI cables at this time.

To set tape drive configuration:

1.1.

1. At the Home screen, press Drive.

If necessary, enter the operator panel password (see the Product Manual at www.tandbergdata.com).

2.2.

2. Press until the selection arrow ( ) points to Drive Configuration, press Select, and then press Modify.

! Important The library requires both the SCSI cover plates and the tape drive cover plates for

ESD protection. Do not leave any openings uncovered.

Do not connect the SCSI cables until after you reconfigure the library.

Drive Drive Configuration

Drive ID 1: IBM LTO FullHigh

Interface 2: no drive

Drive Configuration

Library SCSI Bridge

Select Back Modify OK

Altri manuali per Magnum 224

Questo manuale è adatto per i seguenti modelli

Altri manuali Tandberg Data Magazzinaggio

Tandberg Data

Tandberg Data StorageLoader DLT VS160 Manuale utente

Tandberg Data

Tandberg Data SDLT220-320 INTEGRATION Manuale utente

Tandberg Data

Tandberg Data Magnum 448 Manuale utente

Tandberg Data

Tandberg Data StorageLoader DLT VS160 Manuale utente

Tandberg Data

Tandberg Data DLT-V4 Manuale utente

Tandberg Data

Tandberg Data RDX QuikStation 8 Manuale utente

Tandberg Data

Tandberg Data StorageLibrary LTO-3 SCSI Manuale utente

Tandberg Data

Tandberg Data LTO-1 HH Manuale utente

Tandberg Data

Tandberg Data STORAGE CAB4000 - Manuale utente

Tandberg Data

Tandberg Data RDX QuikStor Manuale utente

Tandberg Data

Tandberg Data StorageLoader 2U LTO Manuale utente

Tandberg Data

Tandberg Data RDX QuikStation 8 Manuale utente

Tandberg Data

Tandberg Data DAT 160 Manuale utente

Tandberg Data

Tandberg Data StorageLibrary T40+ Series Manuale utente

Tandberg Data

Tandberg Data LTO 1 Manuale utente

Tandberg Data

Tandberg Data SLR7 Manuale utente

Tandberg Data

Tandberg Data RDX QuikStor Manuale utente

Tandberg Data

Tandberg Data Storage Library T24 Manuale utente

Tandberg Data

Tandberg Data DLT-V4 Manuale utente

Tandberg Data

Tandberg Data SLR AUTOLOADER PROGRAMMER Manuale utente

Tandberg Data

Tandberg Data 440LTO Manuale utente

Tandberg Data

Tandberg Data STORAGE LIBRARY T40 Manuale utente

Tandberg Data

Tandberg Data StorageLibrary T24 LTO Manuale utente

Tandberg Data

Tandberg Data NAS Hardware Viking FS-1500 Manuale di istruzioni

Manuali Magazzinaggio popolari di altre marche

QNAP

QNAP TS 32PXU Series Manuale utente

LaCie

LaCie RUGGED RAID Manuale utente

Freecom

Freecom CLS DOCK Manuale utente

PNY

PNY Attache P-FD64MBATT3 Manuale utente

HP StorageWorks MSL2024 Manuale utente

OLT

OLT 6x6 Maximizer Manuale utente

Transcend

Transcend JetFlash 160 Manuale utente

LaCie

LaCie RUGGED MINI Manuale utente

Thunderbolt

Thunderbolt 600 Manuale utente

Panasonic

Panasonic LB-DH8 series Manuale

Intel

Intel RAID High Availability Manuale utente

LaCie

LaCie 12big Thunderbolt 3 Manuale utente

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuale utente

Panasonic

Panasonic LKM-F931-1 Manuale utente

Tabernus

Tabernus Enterprise Erase E2400 Manuale utente

Rocstor

Rocstor COMMANDER 3F series Manuale utente

HP P9000 Manuale utente

Western Digital

Western Digital Ultrastar Data60 Manuale utente
