INSTALLING THE

IN ARACK

Both the Tandberg StorageLibrary T24 and the Tandberg StorageLibrary T48 are designed

for installation in a standard 4-post, 19-inch rack.

The Tandberg StorageLibrary T24 uses 2 units (2U) of rack space

The Tandberg StorageLibrary T48 uses 4 units (4U) of rack space

The rack-mount kit includes the following items:

BEFORE YOU BEGIN

Select an appropriate location—The maximum recommended ambient temperature for

the library is 40° C (104° F). Install the library in an environment compatible with this

temperature limit. A ventilated rack is recommended.

Ensure that the work area is free from conditions that could cause electrostatic

discharge (ESD). Discharge static electricity from your body by touching a known

grounded surface, such as a computer’s metal chassis.

Ensure that the robot is “parked” and that the shipping key is in place prior to moving

the library. See the Product Manual at www.tandberg.com for instructions.

Obtain the following tools:

! Important Two-post racks will not support either the Tandberg

StorageLibrary T24 or the Tandberg StorageLibrary T48.

18 – M5 x 12 Crest Cup™ screws (black) 2 – sets of side support rails

(left-side front and back rails and

right-side front and back rails)

2 – M3 x 8 Crest Cup screws (silver)

8 – washers

#2 Phillips screwdriver Level Tape measure

2 OF 8

ASSEMBLING THE RAILS

1. Measure the depth of your rack—Using a tape measure, measure the inside distance

from the front mounting holes of your rack to the back mounting holes.

2. Position the front and back sections of the left-side rail as shown in Figure 1, with the

front rail section on top of the back rail section. Spread the sections to the distance you

measured in step 1.

3. Assemble the left rail using four M5 screws, as shown in Figure 1. Keep the screws loose

so that you can adjust the length of the assembled rail, if necessary.

Warning Before performing any installation or maintenance procedures, be sure

that the library power switch is in the off position and that the power

cord is disconnected from the library and the outlet.

Warnung Vor der Ausführung von Installations- oder Wartungsarbeiten ist darauf zu

achten, daß der Library-Netzschalter auf “Aus” gestellt ist und daß das

Anschlußkabel vom Library und der Steckdose entfernt ist.

Advertencia Antes de realizar cualquier procedimiento de instalación o de manten-

imiento, comprobar que el interruptor de alimentación de la biblioteca

está apagado y que el cable de alimentación no está enchufado ni a la

biblioteca ni a la toma de corriente.

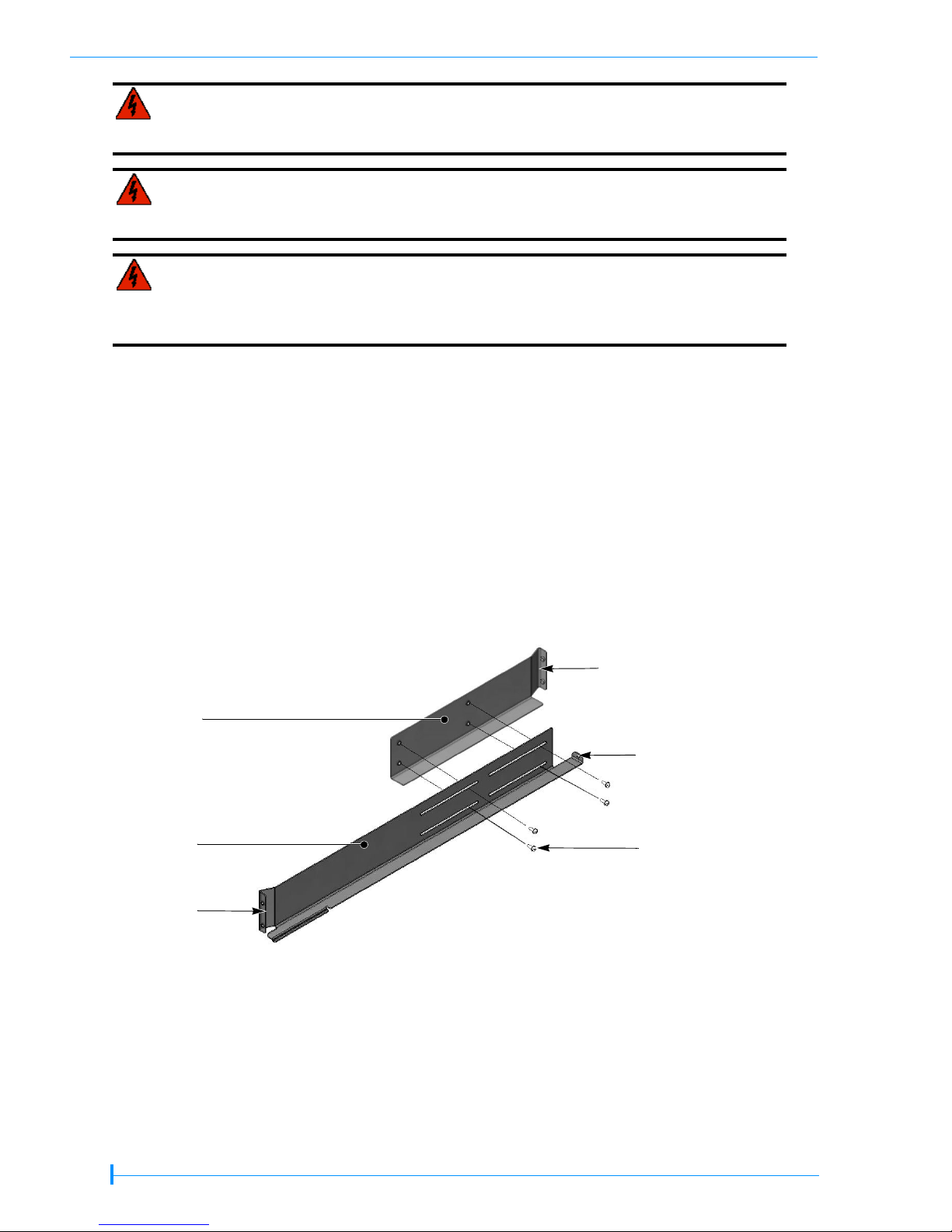

Figure 1 Assembling the left-side rail

Left-side rails (viewed from front)

Front

Back

Front

section

flange

section

M5 screw

(black)

Small back flange

(attach the library

here in final step)

Back flange

3 OF 8

4. Assemble the right-side rail in the same way (see Figure 2).

ATTACHING THE RAILS TO THE RACK

1. Left side rail assembly—Position the left-side rail assembly in the rack so that the front

flange is behind the front screw holes in the rack (see Figure 3).

Figure 2 Assembling the right-side rail

Figure 3 Attaching the left-side rail to the rack

Right-side rails (viewed from the back)

Front

Back

M5 screw

Front

flange

section

(black)

section

Back

flange

Level

M5 screw (A)

Rack rail

(back)

Front flange (C)

Rack rail

(front)

Front rack

screw holes (B)

M5 screw (A)

Back

flange (D)

Front of Rack

Back of Rack

Depth of rack (E)

(black)

4 OF 8

2. Front of rack—Insert an M5 screw (A) through one of the front rack screw holes (B) and

engage the pem nut in the rail flange (C). If your rack has square mounting holes or the

holes are much larger than the screws provided in the kit, use a washer. Finger-tighten

the screw.

Insert an M5 screw (A) through a second screw hole (B) and engage the pem nut on the

second screw hole in the rail flange (C). If necessary, use a washer. Finger-tighten the

screw.

3. Adjust the length of the rail assembly as necessary to fit the depth of the rack (E).

4. Back of rack—Make sure the rail assembly is level, then use M5 screws (A) to attach the

back flange (D) of the rail to the inside of the rack, using the same procedure as step 2.

If your rack has square mounting holes or the holes are much larger than the screws

provided in the kit, use a washer. Finger-tighten the screws.

5. Using a #2 Phillips screwdriver, tighten the screws securing the rails to the front and

back of the rack.

6. Using a #2 Phillips screwdriver, tighten the four screws holding the rail assembly

together.

7. Right side rail assembly—Repeat steps 1 through 6 for the right-side rail assembly.

Make sure that the right rail assembly is at the same level as the left rail assembly.

ATTACHING THE LIBRARY TO THE RAILS

To attach the library to the rails:

1. From the front of the rack, place the library onto the shelf created by the rails.

Tandberg StorageLibrary T24 Weight Warning—

Warning The library weighs 43 pounds (19.5 kg). Two people are

needed to move or lift the library. Most of the weight is toward

the back of the library.

Warnung Die Library wiegt 19.5 kg Es sind mindestens 2 Personen

erforderlich, um die Library zu bewegen oder zu heben. Der

hintere Teil Library hat das gröβte Gewicht.

Advertencia La biblioteca montada sobre bastidor pesa 19.5 kg Se necesi-

tan dos personas para mover o levantar la biblioteca. La parte

trasera de la biblioteca es la de mayor peso.

5 OF 8

Tandberg StorageLibrary T48 Weight Warning—

Figure 4 Placing the Tandberg StorageLibrary T24 on the rails

Warning The library weighs 69.4 pounds (31.5 kg). Two people are

needed to move or lift the library. Most of the weight is toward

the back of the library.

Warnung Die Library wiegt 31.5 kg Es sind mindestens 2 Personen

erforderlich, um die Library zu bewegen oder zu heben. Der

hintere Teil Library hat das gröβte Gewicht.

Advertencia La biblioteca montada sobre bastidor pesa 31.5 kg Se necesi-

tan dos personas para mover o levantar la biblioteca. La parte

trasera de la biblioteca es la de mayor peso.

Figure 5 Placing the Tandberg StorageLibrary T48 on the rails

6 OF 8

2. Remove the shipping key from the library. Carefully slide the library all the way back

until it makes contact with the small flanges at the back of the rails (see Figure 7 and

Figure 7).

3. From the back of the rack, attach the library to the rails by inserting an M3 (the two

smaller screws) screw into each of the small flanges. Tighten the screws using a #2

Phillips screwdriver.

Tandberg StorageLibrary T24—

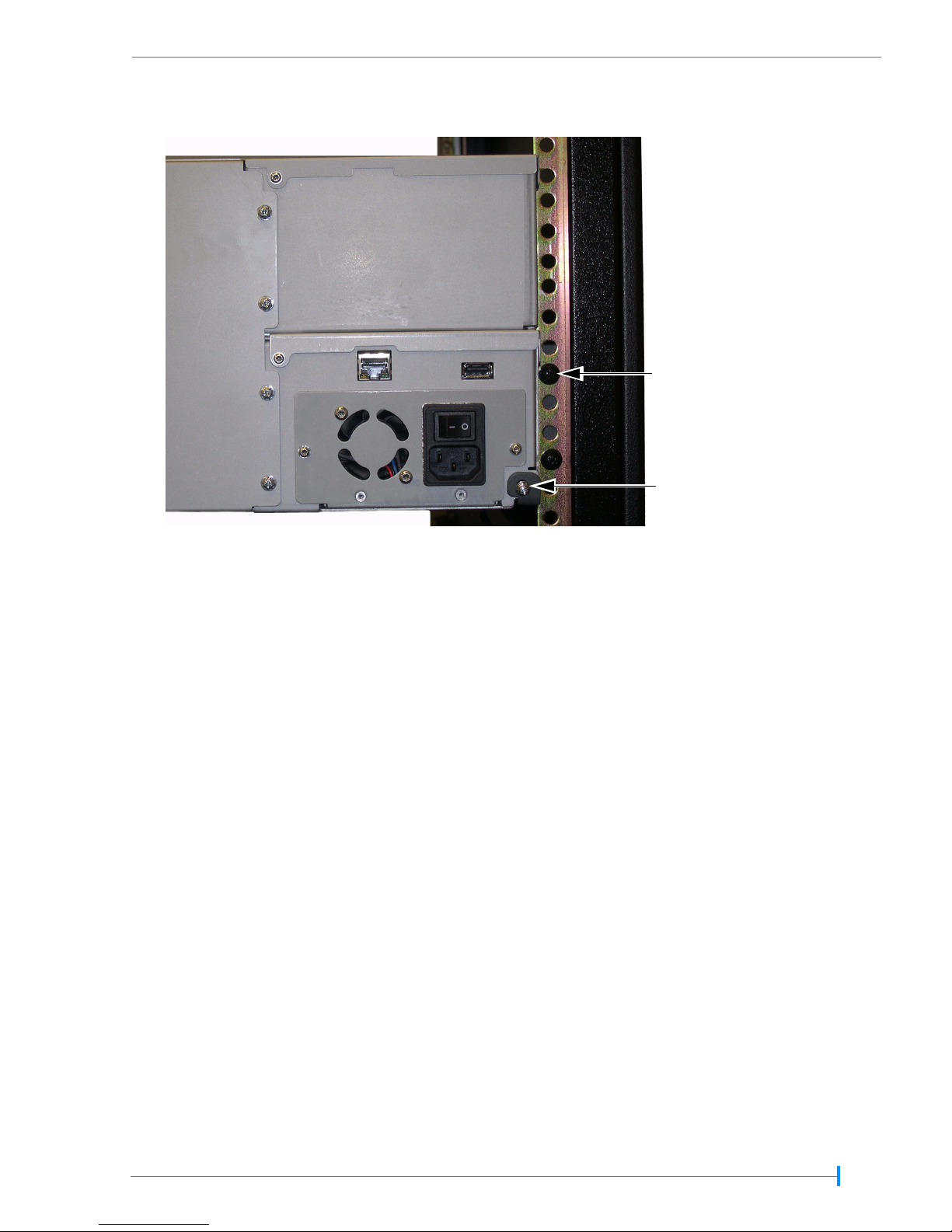

Figure 6 Attaching the Tandberg StorageLibrary T24 to the rails at the back of the rack

Insert M3 x 8 screws here

(one on each side)

M5 x 12 (black) screws

(total qty installed = 16)

Back of rack

(total qty shipped = 18)

7 OF 8

Tandberg StorageLibrary T48—

ADDITIONAL INFORMATION

Library operation and use—reference the individual Product Manuals at

www.tandberg.com

Technical support—go to www.tandberg.com

For a more complete list of weight warnings (multiple languages), see the Library Safety

Notices at www.tandberg.com

Figure 7 Attaching the Tandberg StorageLibrary T48 to the rails at the back of the rack

Insert M3 x 8 screws here

(one on each side)

M5 x 12 (black) screws

(total qty installed = 16)

Back of rack

(total qty shipped = 18)

8 OF 8
