Targus 400-0170-001A Manuale utente

BRUSSELS HANNOVER BARCELONA TOKYO MILAN AMSTERDAM SINGAPORE LONDON PARIS NEW YORK LOS ANGELES TORONTO HONG KONG SYDNEY

Targus Wireless

Multimedia Presenter

USER’S GUIDE

Making Your Mobile Life Easier.®

Visit our Web site at: www.targus.com

Features and specifications are subject to change without notice.

400-0170-001A

TABLE OF CONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

System Requirements. . . . . . . . . . . . . . . . . . . 4

Installing the Batteries . . . . . . . . . . . . . . . . . . 5

Windows®98SE/Me Operating Systems . . 6

Windows®2000/XP Operating Systems . . 7

Establishing a Communications Link . . . . . . 7

Using the Presenter . . . . . . . . . . . . . . . . . . . . 8

Functionality. . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Mouse Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Presenter Mode. . . . . . . . . . . . . . . . . . . . . . . 10

Multimedia Mode. . . . . . . . . . . . . . . . . . . . . . 11

Laser Pointer . . . . . . . . . . . . . . . . . . . . . . . . . 12

Operating Hints . . . . . . . . . . . . . . . . . . . . . . 12

Maintaining the Trackball . . . . . . . . . . . . . . . 13

Safety Measures . . . . . . . . . . . . . . . . . . . . . . 13

Specifications . . . . . . . . . . . . . . . . . . . . . . . . 14

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . 15

Technical Support . . . . . . . . . . . . . . . . . . . . 16

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

CAUTION

LASER RADIATION. DO NOT STARE INTO THE BEAM OR VIEW

DIRECTLY WITH OPTICAL INSTRUMENTS. CLASS II LASER

PRODUCT.

NEVER POINT A LASER BEAM INTO A PERSON’S EYES OR VIEW A

LASER BEAM DIRECTLY, AS PROLONGED EXPOSURE CAN BE

HAZARDOUS TO THE EYES.

MOMENTARY EXPOSURE FROM A LASER POINTER, SUCH AS AN

INADVERTENT SWEEP OF THE LIGHT ACROSS A PERSON'S EYES,

MAY CAUSE TEMPORARY FLASH BLINDNESS SIMILAR TO THE

EFFECT OF A CAMERA FLASH BULB. ALTHOUGH THIS CONDITION

IS TEMPORARY, IT CAN BECOME MORE DANGEROUS IF THE

EXPOSED PERSON IS ENGAGED IN A VISION-CRITICAL ACTIVITY

SUCH AS DRIVING.

Targus Wireless Multimedia Presenter

TARGUS WIRELESS

MULTIMEDIA PRESENTER

Introduction

Congratulations on your purchase of a Targus Wireless

Multimedia Presenter. The presenter is a combination

trackball mouse and multimedia presenter. With the

presenter you can control cursor movement anywhere

within 66 feet (20 m) of its receiver and project a red laser

pointer beam.

NOTE: The actual effective distance may increase or

decrease depending on the surrounding environment.

The Targus Wireless Multimedia Presenter also features

primary and secondary buttons (left and right mouse click

buttons) that emulate the page up/down keys when in

Presenter Mode and volume up/volume down keys when in

Multimedia Mode.

System Requirements

Hardware

› PC with an Intel®Pentium®processor or equivalent

›USBinterface

Operating System

›Windows

®98SE/ME/2000/XP

Targus Wireless Multimedia Presenter

Installing the Batteries

1 Remove the battery cover located on the bottom of the

presenter.

2 Insert the supplied batteries, making sure that the

positive (+) and negative (-) ends of each battery match

the polarity indicators inside the battery housing.

WARNINGS: When replacing the batteries, you may use

alkaline or other heavy-duty NiMH batteries. Never

combine an alkaline with a NiMH battery in a device.

Avoid mixing new and used batteries in a device.

3 Slide the battery cover back into position until it “clicks”

firmly into place.

Targus Wireless Multimedia Presenter

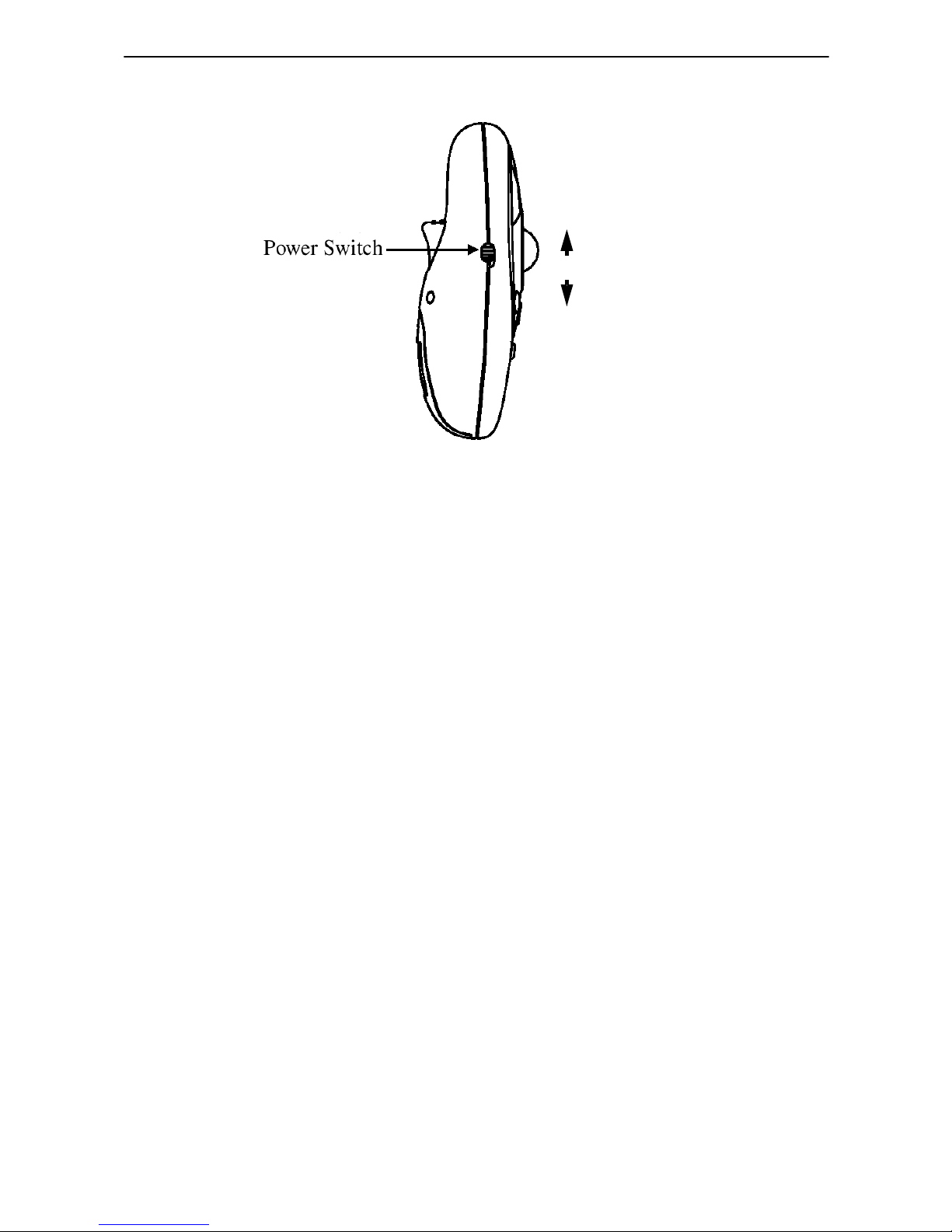

4 Turn the power switch located on the side of the

presenter to the “On” position.

Connecting the Receiver and

Installing the Default Device

Drivers

1 Plug the USB receiver into an available USB port on

your computer.

Windows®98SE/Me Operating Systems

The Add New Hardware Wizard appears.

If it does not, the operating system has installed the

default driver automatically. No other steps are

necessary.

1ClickNext.

The locate driver screen appears.

OFF

Targus Wireless Multimedia Presenter

2 Select Search for the best driver for your device.

(Recommended) and then click Next.

The wizard searches for the appropriate device driver.

3ClickNext, then Finish to complete the driver

installation.

Windows®2000/XP Operating Systems

The Found New Hardware Wizard appears.

If it does not, the operating system has installed the

default driver automatically. No other steps are

necessary.

1ClickNext.

The wizard searches for the appropriate device driver.

2ClickNext, then Finish to complete the driver

installation.

Establishing a Communications

Link

After your computer detects the USB receiver and the

driver software is installed, you must establish a

communications link between the presenter and its receiver

BEFORE you can use the presenter.

Make sure that your computer is turned on and has

detected the USB receiver before you establish a

communications link.

The light emitter diode (LED) illuminates to indicate your

computer has detected the receiver.

Targus Wireless Multimedia Presenter

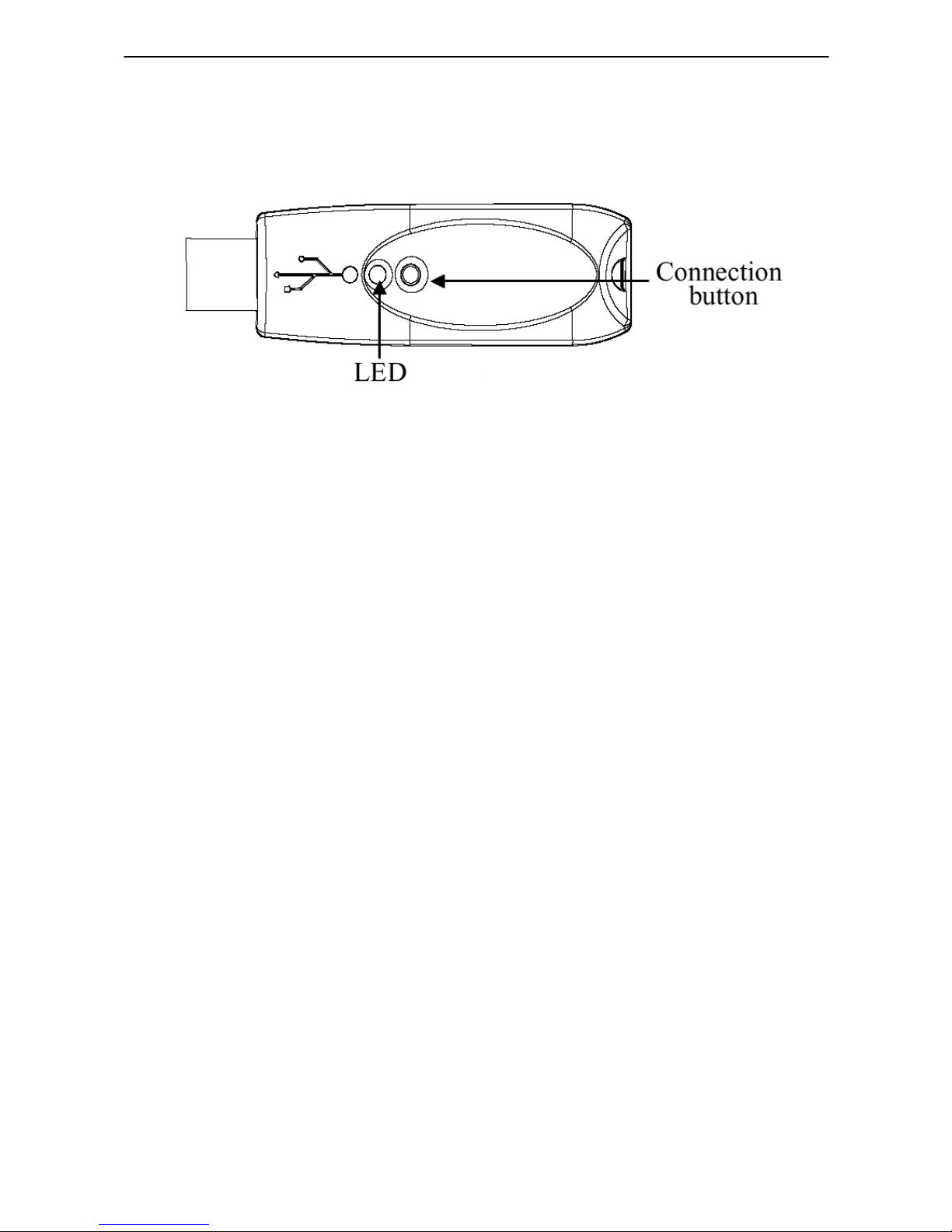

1 Press and release the Connection button on the

receiver.

The receiver’s LED turns off.

2 Press and release the Connection button, located on the

bottom of the presenter.

The receiver’s LED resumes glowing when the set up

has been completed.

You are now ready to use the presenter.

Using the Presenter

The presenter’s default setting is Mouse mode. To change

modes, press the Mode select button. The mode indicator

LED illuminates to indicate the mode you are currently in:

› Green LED - Mouse mode

› Red LED - Presentation mode

› Yellow LED - Multimedia mode

Targus Wireless Multimedia Presenter

Functionality

The presenter provides 3 working modes:

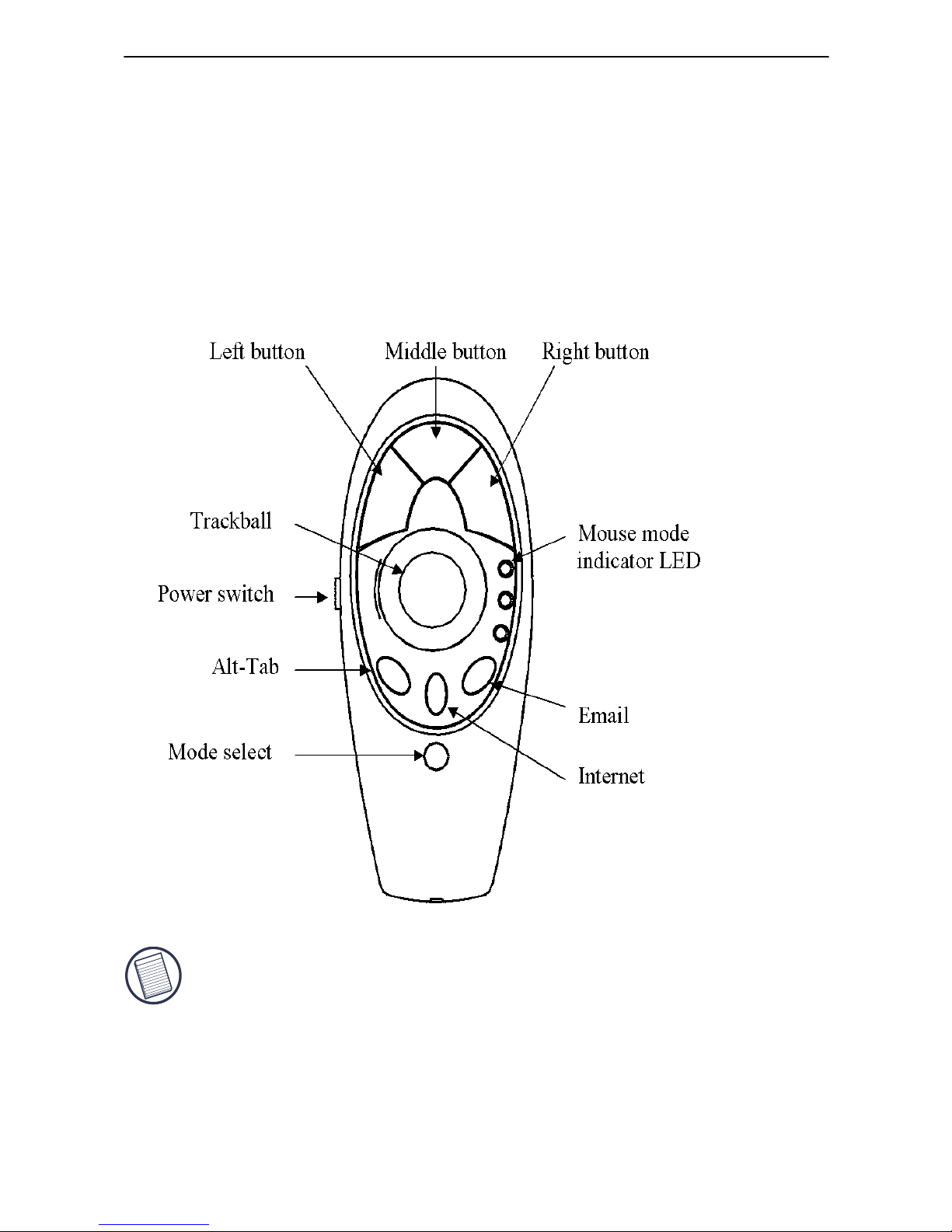

Mouse Mode

In Mouse Mode the device will work as a Trackball Mouse

and provide functionalities as follows:

NOTE: The following keys do not work under the

Windows 98 operating system:

• Internet hot key

•E-mailhotkey

Targus Wireless Multimedia Presenter

Presenter Mode

In Presenter Mode the device will work as a Wireless

Presenter and provide the functionalities as follows:

NOTE: The following keys do not work under the

Windows 98 operating system:

• Internet hot key

•E-mailhotkey
