ST-6500 Setup Guide for Windows
TOSHIBA TEC CORPORATION
Windows Setup Guide for ST-6500/ST-6500-C7
TOSHIBA TEC CORPORATION
1
1. Introduction
This setup guide describes the procedure and notes for installing the drivers on the
ST-6500/ST-6500-C7.
The procedure outline to set up the OS for the ST-6500/ST-6500-C7 is described below. Some
drivers supported by some OS will be automatically installed, when the OS is installed.
Procedure outline to set up the ST-6500/ST-6500-C7 on Windows
1) Setting up BIOS
2) Installing Windows
3) Installing the 810E2 chipset software
4) Installing the SM712 graphic driver (for the ST-6500-C7)
5) Installing the PnP touch panel driver
6) Changing the serial port setting
Windows Setup Guide for ST-6500/ST-6500-C7
TOSHIBA TEC CORPORATION
2
2. Setup on Windows 98/Windows 98SE
1) Setting up BIOS
By pressing the F2 key on the keyboard, when the machine starts up, the BIOS Setup Menu
is selected. Select the following item for BIOS setup.
[Exit]-> Load Setup Defaults (Win98/Me)
2) Installing Windows
Install Windows 98 or Windows 98SE.
3) Installing the 810E2 Chipset Software
wInstalling the Intel Chipset Installation Utility
Execute Chipset¥Chipset¥Disk1¥Setup.exe contained in the driver kit, and install “Intel
Chipset Installation Utility.”
wInstalling the Intel 810/815 Chipset Family Graphics Driver
To enable the CRT display, this driver must be installed.
Execute Chipset¥Graphics¥Win9x¥Graphics¥Setup.exe contained in the driver kit, and
install “Intel 810/815 Chipset Family Graphics Driver.”
wInstalling the Intel®PRO/100 VE Network Connection Driver
Execute Chipset¥LAN¥100pdisk.exe contained in the driver kit, to extract the files onto the
hard disk. Select [PCI Ethernet Controller] in the Device Manager and click on the
“Properties”button.
Windows Setup Guide for ST-6500/ST-6500-C7
TOSHIBA TEC CORPORATION
3
The following screen appears. Select “Reinstall Driver”to install the driver.
Select the folder to extract 100pdisk.exe to, as the folder containing the driver to be installed.
Select “Intel®PRO/100 VE Network Connection”to install the driver.
For detailed installation procedure, refer to Intel’s documents and online help.
Windows Setup Guide for ST-6500/ST-6500-C7
TOSHIBA TEC CORPORATION
4
4) Installing the SM712 Graphic Driver
Select [Display] on the Control Panel and display the “Display Properties”screen. On this
screen, select [Settings] –[Advanced] to display the “Standard PCI Graphics Adapter
Properties”screen. Select [Adapter] –[Change] on this screen. Select
“Display¥SM712¥Win98”in the driver kit to install“Silicon Motion LynxEM+.”
5) Installing the CHIPS Graphic Driver
Select [Display] on the Control Panel and display the “Display Properties”screen. On this
screen, select [Settings] –[Advanced] to display the “Standard PCI Graphics Adapter
Properties”screen. Select [Adapter] –[Change] on this screen. Select
“Display¥Chips¥Win98”in the driver kit to install “Chips And Technologies, Accelerator.”
Windows Setup Guide for ST-6500/ST-6500-C7
TOSHIBA TEC CORPORATION
5
6) Installing the PnP Touch Panel Driver

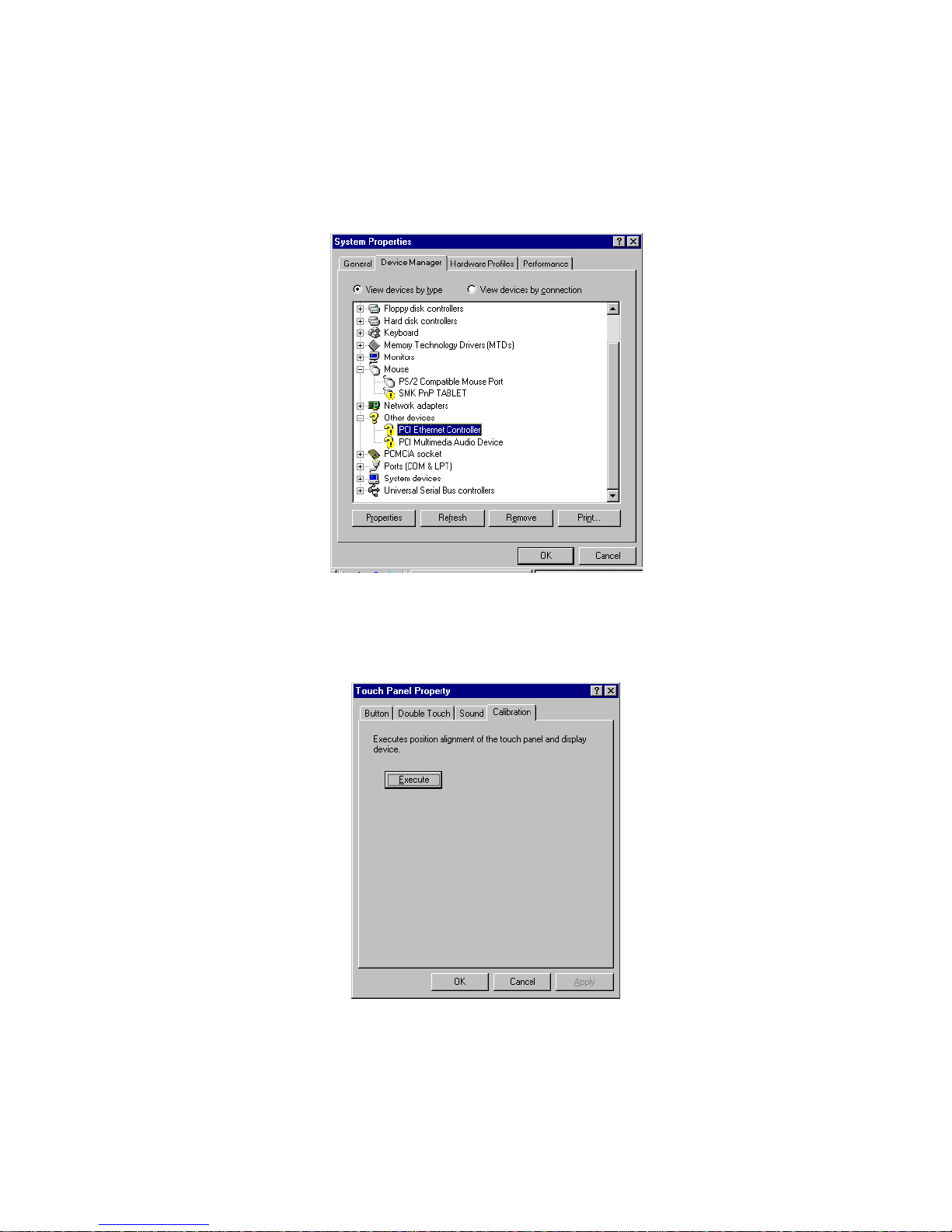

Select “SMK PnP TABLET”in the Device Manager, and click on the “Properties”button. On
the “SMK PnP TABLET properties”screen, select [General] –[Reinstall Driver] to install the
driver.
Select “Tablet¥PnPTablet¥Win9x”in the driver kit to install “SMK PnP Tablet Driver.”
Reboot the machine. Select [Touch Panel] on the Control Panel to display the “Touch Panel
Property”screen. On this screen, select [Calibration] –[Execute] to set up calibration.
Windows Setup Guide for ST-6500/ST-6500-C7
TOSHIBA TEC CORPORATION
6
IMPORTANT:
*Unless any of the PS/2 mouse, the serial mouse, or the USB mouse is used, the
touch panel is not detected. When installing the driver, connect any of the mice
and let the machine detect the touch panel.
*Do not check the “Beep when touched”checkbox on the Sound tab page.
This function is not available on Windows 98. (Windows 98 cannot keep the
sound constant.)
7) Changing the Serial Port Setting
IRQ for COM4 has been set incorrectly. Change the IRQ to “11.”No additional operation
for the SIO1 port is required, since it cannot be actually used due to hardware configuration.
Windows Setup Guide for ST-6500/ST-6500-C7
TOSHIBA TEC CORPORATION
7
8) Setting up the Dual Display
To enable the dual display, carry out this setup.
The ST-6500-C7 enables the dual display using the Dual Display functions supported by
Windows.

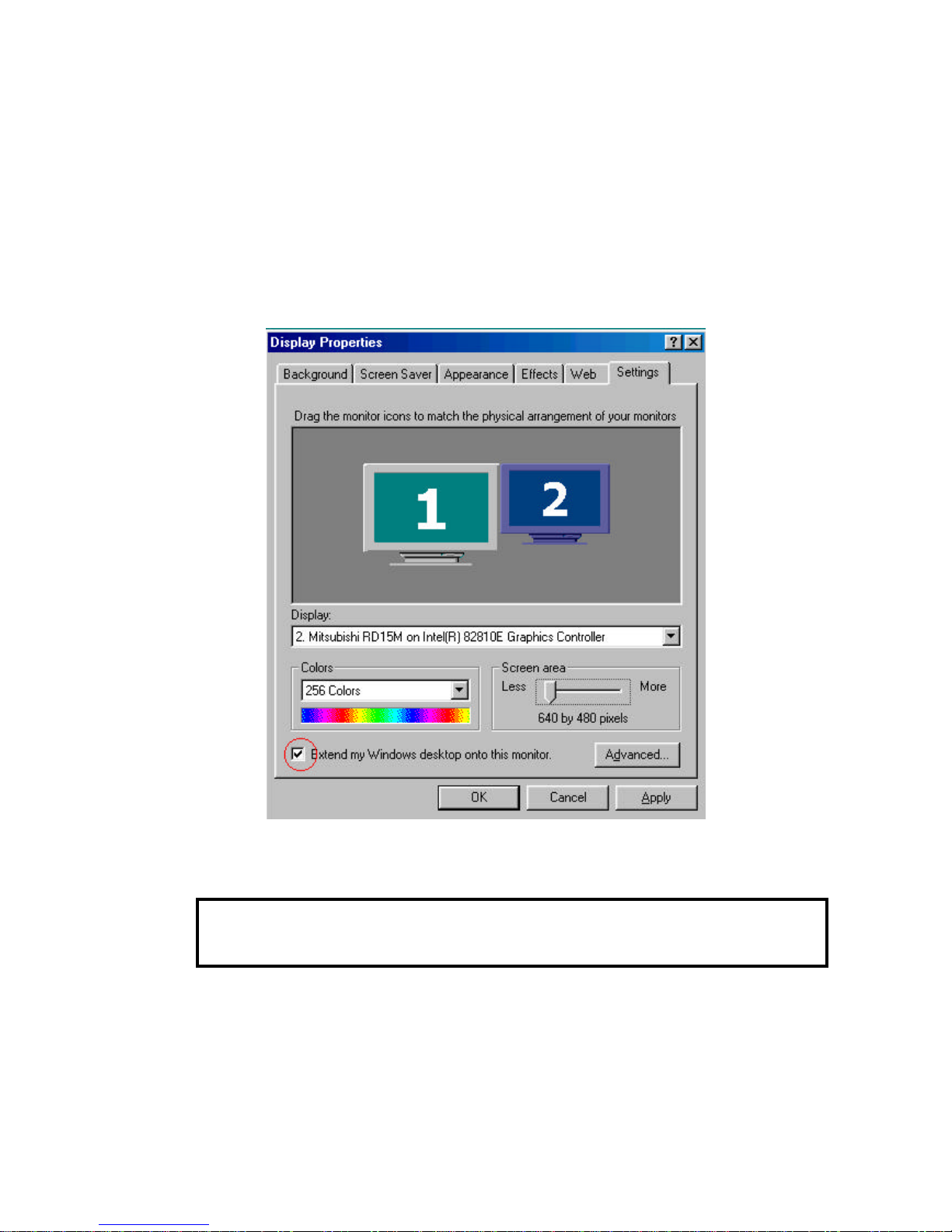

Select [Display] on the Control Panel to display the “Display Properties”screen. On this
screen, select [Settings] –[Display]. Select the on-board VGA (Intel810E2)-equipped
display. Check the “Extend my Windows desktop onto this monitor”checkbox at the lower
left, then click on the “Apply”button. The on-board VGA will be enabled.
Select proper “Colors”and “Screen area”.
IMPORTANT:
*Windows 98/98SE/2000/XP can use the Dual Display functions supported by the
OS. However, Windows NT cannot use the Dual Display functions, since
Windows NT does not support them.
Windows Setup Guide for ST-6500/ST-6500-C7
TOSHIBA TEC CORPORATION
8
IMPORTANT:

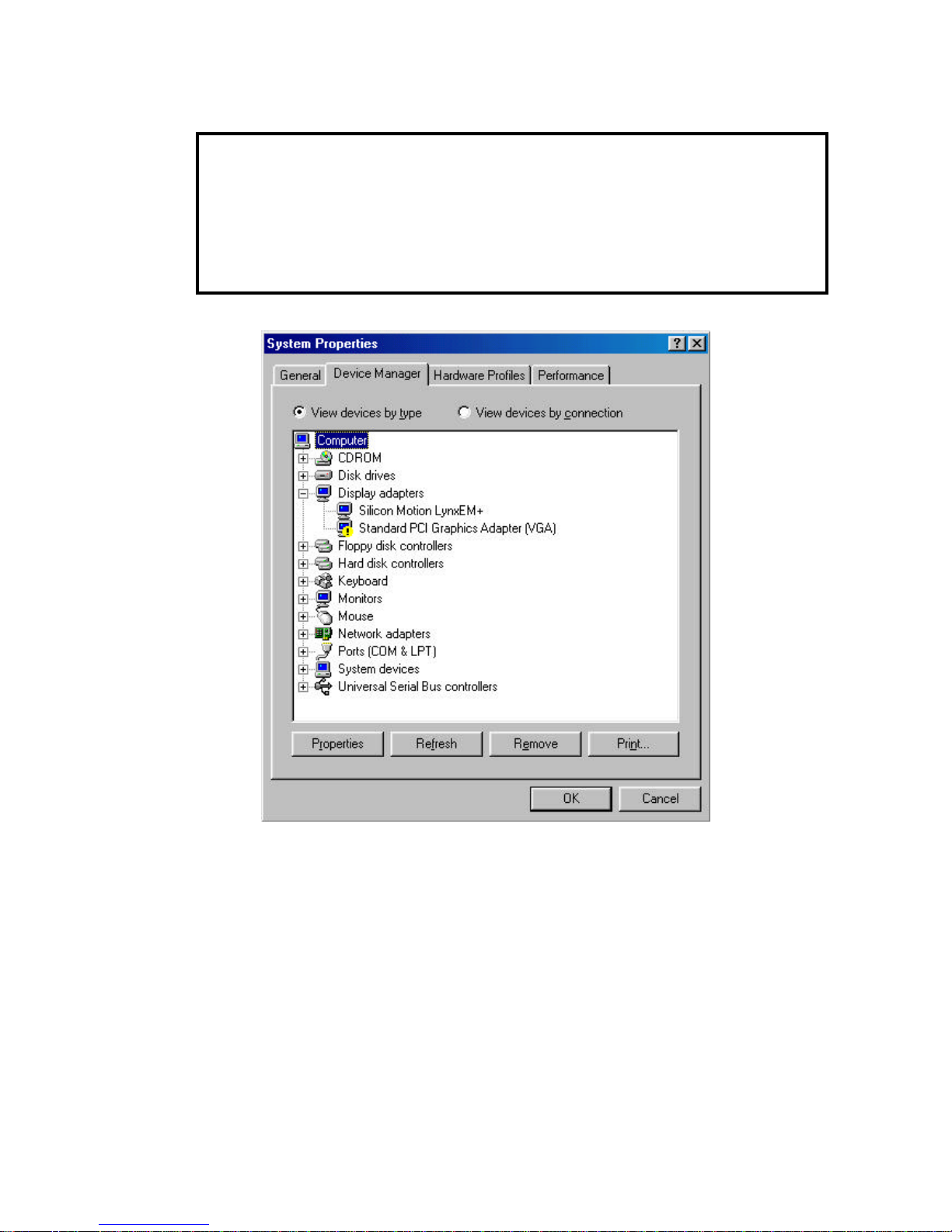

*If the SM712 VGA board (SMI) has been inserted on the machine, when Windows
98 is installed, the on-board VGA (Intel810E2) cannot be used after Windows 98
has been installed. On the “Device Manager”tab of the “System Properties”
screen, the on-board VGA (Intel810E2) is marked with “!”, which indicates the
device is disabled. (See the screen below.)
To solve this problem, remove the SM712 VGA board from the machine, then
start up the PC. It will make the on-board VGA (Intel810E2) enabled.
Windows Setup Guide for ST-6500/ST-6500-C7
TOSHIBA TEC CORPORATION
9
9) Cautions of dual-screen use by Windows98 and Windows98SE.
If a dual-screen is set up by Windows 98 and Windows 98SE, an error may occur. iIn order
to set up a dual-screen without generating an error, please set up the follows;
Settings tab of Display Properties Control Panel.
When screen is in the state of disable, as shown in a figure, it is displayed faintly.
A second screen can be enabled by clicking the second display of a figure.
And then the following message boxes are displayed, choose Yes.
