TEC ST-71 SERIES Manuale utente
PRINTED IN JAPAN
TEC POS Terminal
ST-71 SERIES
Document No. EO18-12010
Original Dec., 2005
(Revised )
NOTE:
Model names that end with "-R" are RoHS compliant models. If "-R" is not
attached, that model is non RoHS compliant.
Never install non RoHS compliant optional equipment or parts on a RoHS
compliant machine which is supposed to be used in the countries that enforce
the RoHS directive, as doing this is legally prohibited.
Maintenance Manual
WARNING!
Follow all manual instructions. Failure to do so could create safety hazards such as fire or
electrocution.
NOTES: 1. Manual instructions must be followed when installing option kits or adding cables to
avoid system failures and to insure proper performance and operation.
2. Failure to follow manual instructions or any unauthorized modification, substitution
or change to this product will void the limited product warranty.
EO18-12010
(Revision Date: Jan. 30, 2006)
TABLE OF CONTENTS
Page
1. UNPACKING ..............................................................................................................1- 1
1.1 Procedure........................................................................................................................1- 1
1.2 Checks.............................................................................................................................1- 1
1.3 Tapes...............................................................................................................................1- 2
1.4 Notes for Installation........................................................................................................1- 2
2. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT................................2- 1
2.1 Installing the Hard Disk Drive (HDD)...............................................................................2- 2
2.2 Installing the LVDS PC Board and Back Indicator Unit ...................................................2- 5
(KIT-71-DSP1, TFTST-71-2A/5A Series)
2.3 Installing the Line Display, Pole Unit, and VFD Stand....................................................2-10
(LIUST-71-BAAK, KIT-71-POLE, and KIT-71-BASE Series)
2.4 Installing the PCMCIA/CF PC Board (MIFST-71-2 Series) ............................................2-19
2.5 Installing the COM5 or COM6 Connector (KIT-71-COM Series)....................................2-23
2.6 Installing the MCR Unit (MCRST-71-3, KIT-71-RELY Series)........................................2-25
2.7 Installing the iButton Unit (KIT-71-BTN1, KIT-71-RELY Series).....................................2-31
2.8 Installing the Additional Memory.....................................................................................2-33
3. CONNECTORS/SHORT PIN AND DIP SWITCH SETTING.......................................3- 1
3.1 Connectors......................................................................................................................3- 1
3.2 Short Pin and DIP Switch Setting....................................................................................3- 3
4. BIOS SETUP ..............................................................................................................4- 1
4.1 General............................................................................................................................4- 1
4.2 Basic Operation and Keys Used......................................................................................4- 1
4.3 BIOS Setup Screen Configuration and Default Setting ...................................................4- 5
4.4 Notes and Restrictions ...................................................................................................4-21
5. DIAGNOSTIC TEST OPERATION.............................................................................5- 1
5.1 Outline.............................................................................................................................5- 1
5.2 Serviceman Diagnostic Test Program Setup Procedure.................................................5- 2
5.3 ST-71 Diagnostic Menu..................................................................................................5-14
5.4 BIOS Diagnostic Test Program ......................................................................................5-15
5.5 Serviceman Diagnostic Test Program............................................................................5-24
6. PERIODIC MAINTENANCE .......................................................................................6- 1
6.1 Procedure of Periodic Maintenance ................................................................................6- 1
7. TROUBLESHOOTING................................................................................................7- 1
EO18-12010
CAUTION!
1. This manual may not be copied in whole or in part without prior written permission of TOSHIBA
TEC.
2. The contents of this manual may be changed without notification.
3. Please refer to your local Authorised Service representative with regard to any queries you
may have in this manual.
Copyright © 2005
by TOSHIBA TEC CORPORATION
A
ll Rights Reserved
570 Ohito, Izunokuni-shi, Shizuoka-ken, JAPAN
NOTE: Pictures in this manual show that body colour may differ from that of the original.
Page
8. MAIN UNIT REPLACEMENT .....................................................................................8- 1
8.1 Operator’s Display Section..............................................................................................8- 1
8.2 Bottom Cover Section......................................................................................................8- 7
9. APPENDIX..................................................................................................................9- 1
9.1 Serial Interface COM1 to COM6......................................................................................9- 1
9.2 VGA Connector ...............................................................................................................9- 2
9.3 DRW1, DRW2 (Cash Drawer 24V Type).........................................................................9- 2
9.4 LAN..................................................................................................................................9- 2
9.5 USB.................................................................................................................................9- 3
9.6 PS/2 (Keyboard, Mouse) .................................................................................................9- 3
9.7 24V OUT Connector........................................................................................................9- 3
9.8 LINEOUT.........................................................................................................................9- 3
9.9 MIC..................................................................................................................................9- 3
9.10 LVDS1 Connector............................................................................................................9- 4
9.11 Parallel (LPT) Connector.................................................................................................9- 4
9.12 Powered USB (24V) Connector.......................................................................................9- 5
9.13 Powered USB (12V) Connector.......................................................................................9- 5
1. UNPACKING EO18-12010
1.1 Procedure
1- 1

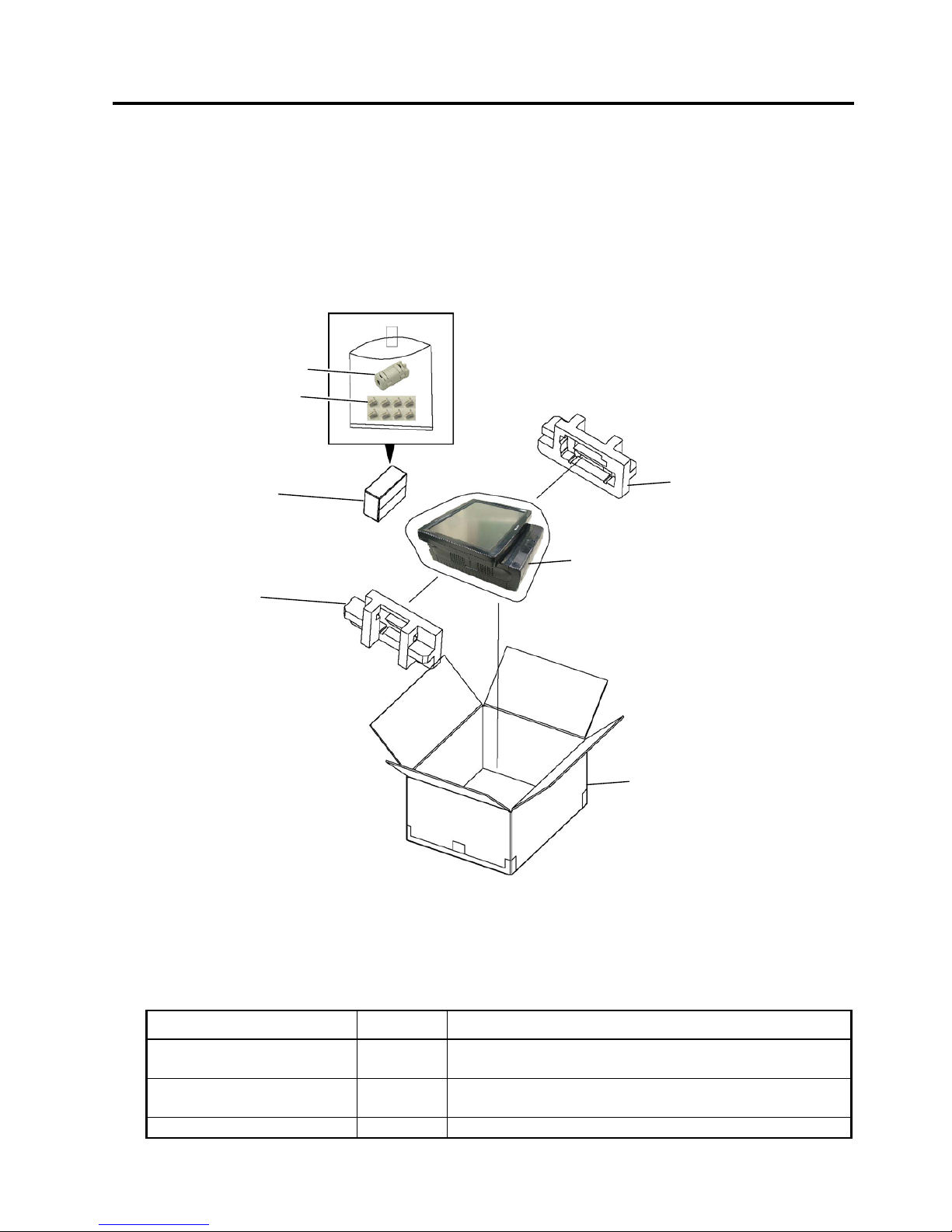

1. UNPACKING
1.1 Procedure
1) Open the carton.
2) Take the accessories out of the carton.
3) Take out the POS terminal, then remove the pads.
4) Place the POS terminal on a level surface.
1.2 Checks
1) Check for the damage or scratches on the machine.
2) Confirm that none of the accessories are missing.
Detailed information of each accessory is as shown below.
Accessory Quantity Usage
Bind Screw M-3x3 8 Used to secure the Hard Disk Drive (HDD) to the HDD
Holder.
Ferrite Core 1 Attached to the cable when using the option HS-530 Handy
Scanner.
Owner’s Manual 1
Ferrite Core (1 pc.)
Bind Screw M-3x3
(8 pcs.)
Pad
Pad
Carton
ST-71 POS Terminal
Carton
1. UNPACKING EO18-12010
1.3 Tapes
1- 2
1.3 Tapes
Remove all the tapes from the POS terminal.
1.4 Notes for Installation
WARNING!
1. Care must be taken not to get your fingers caught between the LCD Frame and the POS terminal
when bending the display backward.
2. DO NOT raise the LCD Frame while the Front Cover is not in position. When the LCD Frame is
raised at right angle (90°) or more, the LCD may fall under its own weight, and your fingers may be
caught.
CAUTION!
1. When removing the protective film from the display surface, please be sure to do it slowly. If it is
done quickly, static electricity may generate, and the TFT may be damaged.
2. When installing the POS terminal, take the following precautions. Failure to do this may cause fire,
electric shock, or injury.
(1) Avoid locations where it is subject to the following:
• Direct sunlight
• High temperature, high humidity
• Rapid change in temperature
• Excessive vibration
• Dust
(2) Keep away from any devices that emit magnetism or electromagnetic wave.
(3) Keep away from flame or moisture.
(4) Be sure to place the POS terminal on a level and stable surface.

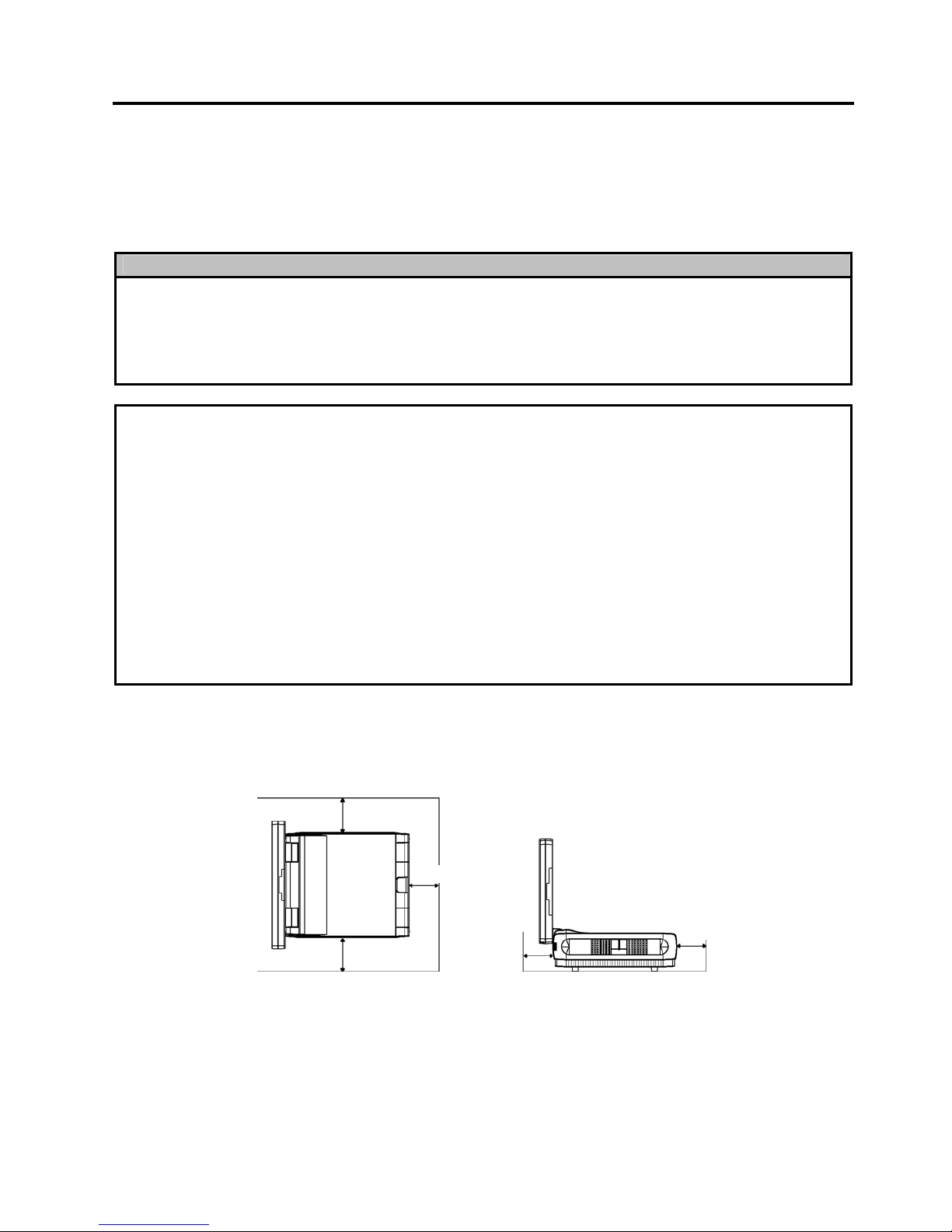

1. Place the POS terminal on a level surface.
2. Provide a minimum space to the left, right, front and rear of the POS terminal for proper cooling.
(The unit has air vents and a fan on the front and left. Spaces should be provided to prevent the air vents
from being blocked and the air flow from being obstructed.)
NOTE: A fan is provided on these sides. Do not prevent the ventilation of the fan.
80 mm
(
See NOTE.
)
80 mm 80 mm
80 mm
See NOTE.
2. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-12010
2.1 Installing the Hard Disk Drive (HDD)
2- 1
2. INSTALLATION PROCEDURE FOR OPTIONAL
EQUIPMENT
WARNING!
1. Disconnect the power cord before installing the optional parts.
2. Be careful not to short-circuit the lithium battery on the ENGINE PC board.

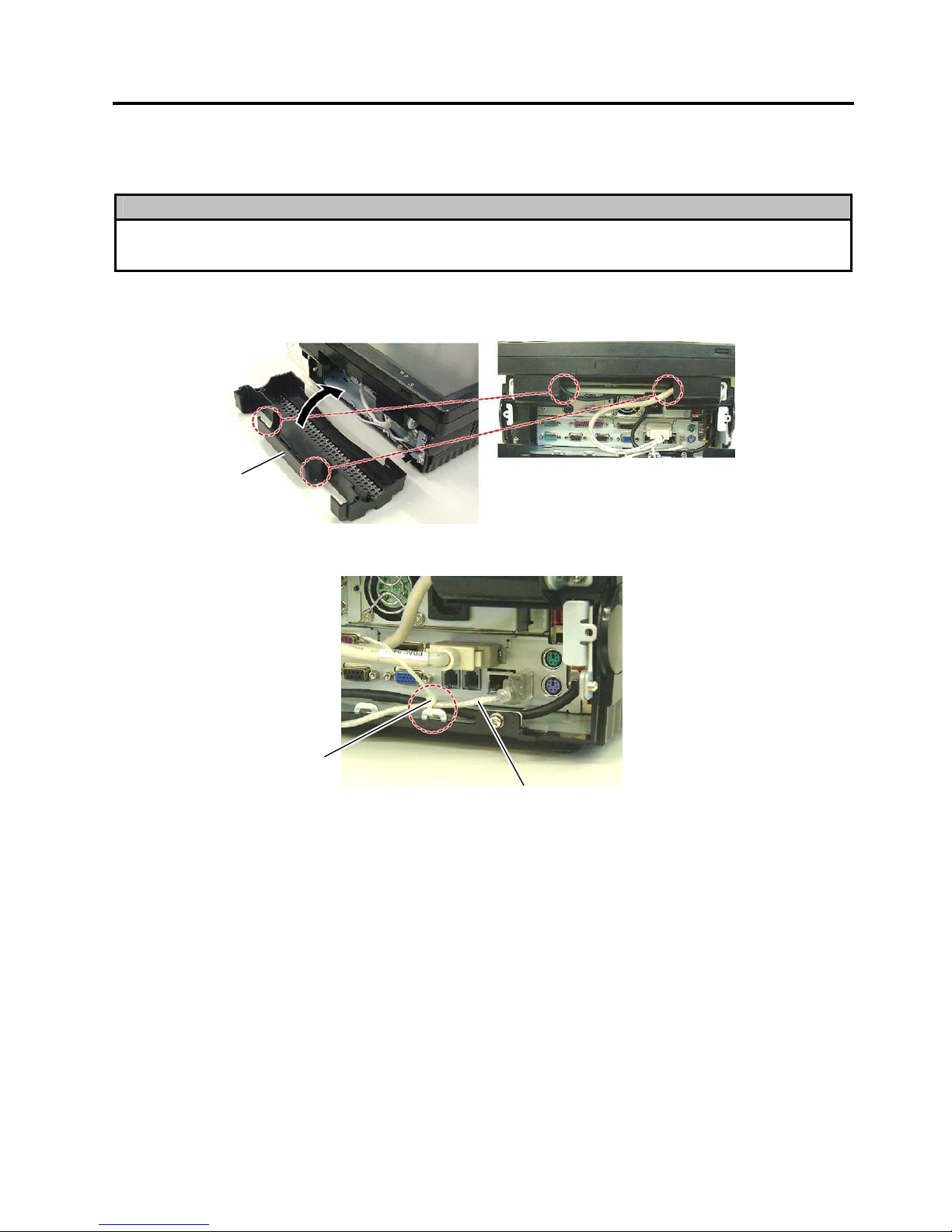

NOTES:
1. When assembling, be careful not to let the Front Cover catch any cables. Lead the cables through the U-
shaped holes on the Front Cover so that the Front Cover is closed correctly.
2. When the cable is connected to the USB port, lead the cable obliquely downward then secure with the fasten
band as shown below. If lead directly below, the cable may come off.
This section describes procedures to install optional equipments into the POS terminal.
Front Cover
Fasten Band
USB Cable
2. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-12010
2.1 Installing the Hard Disk Drive (HDD)
2- 2
2.1 Installing the Hard Disk Drive (HDD)
CAUTION!
1. For the specification of an HDD to be installed, please refer to the POS Optional Device (Document
No. EO21-12001), POS OPTIONAL DEVICE BASIC SPECIFICATION.
2. Please use TOSHIBA TEC approved HDDs. Failure to do this may cause an error.
Installation procedure for the first HDD is shown below.

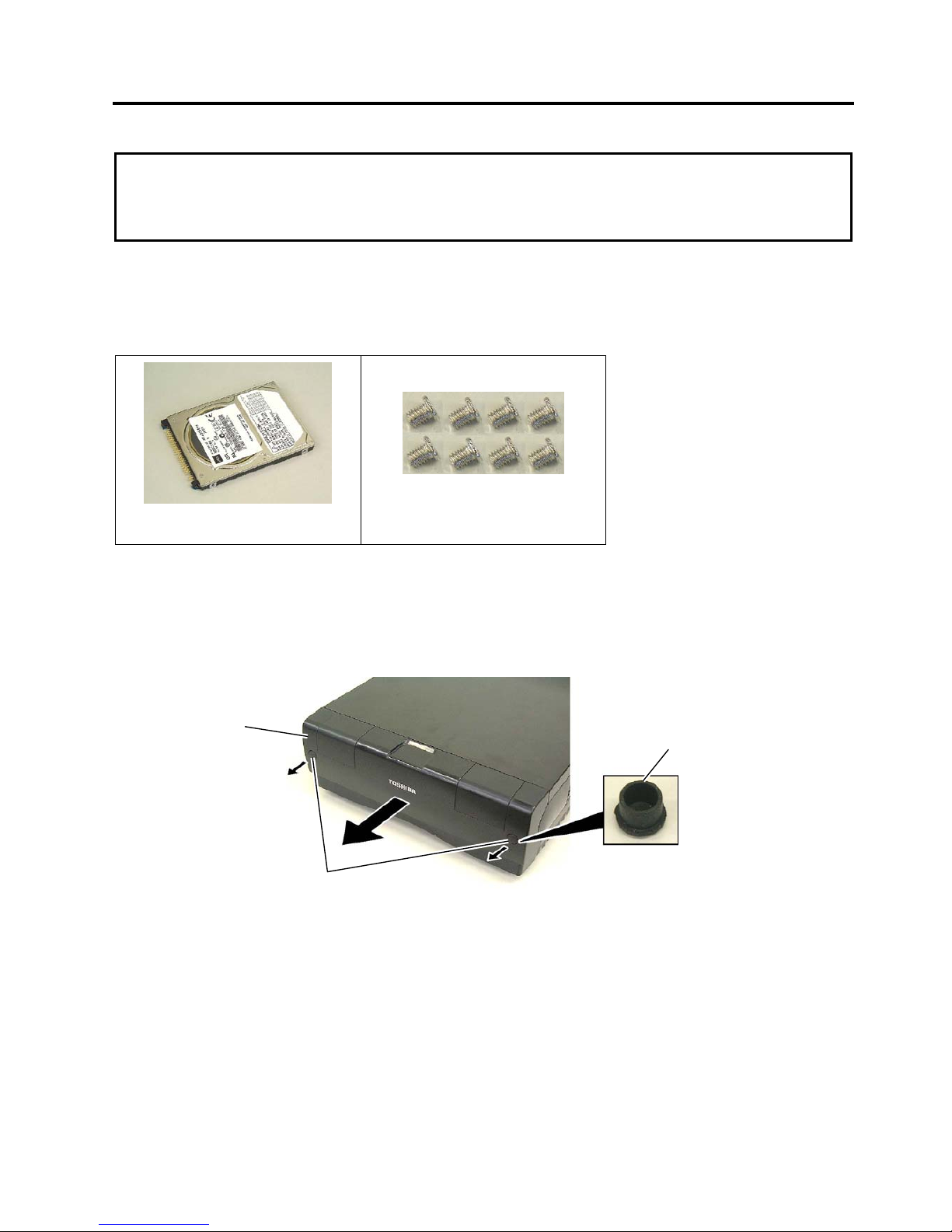

• Required Parts
The following part is required to install an HDD.
HDD Unit (locally procured) HDD Fixing Screw M-3x3 (8 pcs.)
(NOTE)
NOTE: This is an accessory part of the POS terminal.
• Installation Procedure
1) Remove the two Rubber Caps from the Rear Cover.
2) Remove the two screws then remove the Rear Cover.
Rubber Cap
Rubber Cap
and
DSM-4x10 Screw
Rear Cover
2. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-12010
2.1 Installing the Hard Disk Drive (HDD)
2- 3

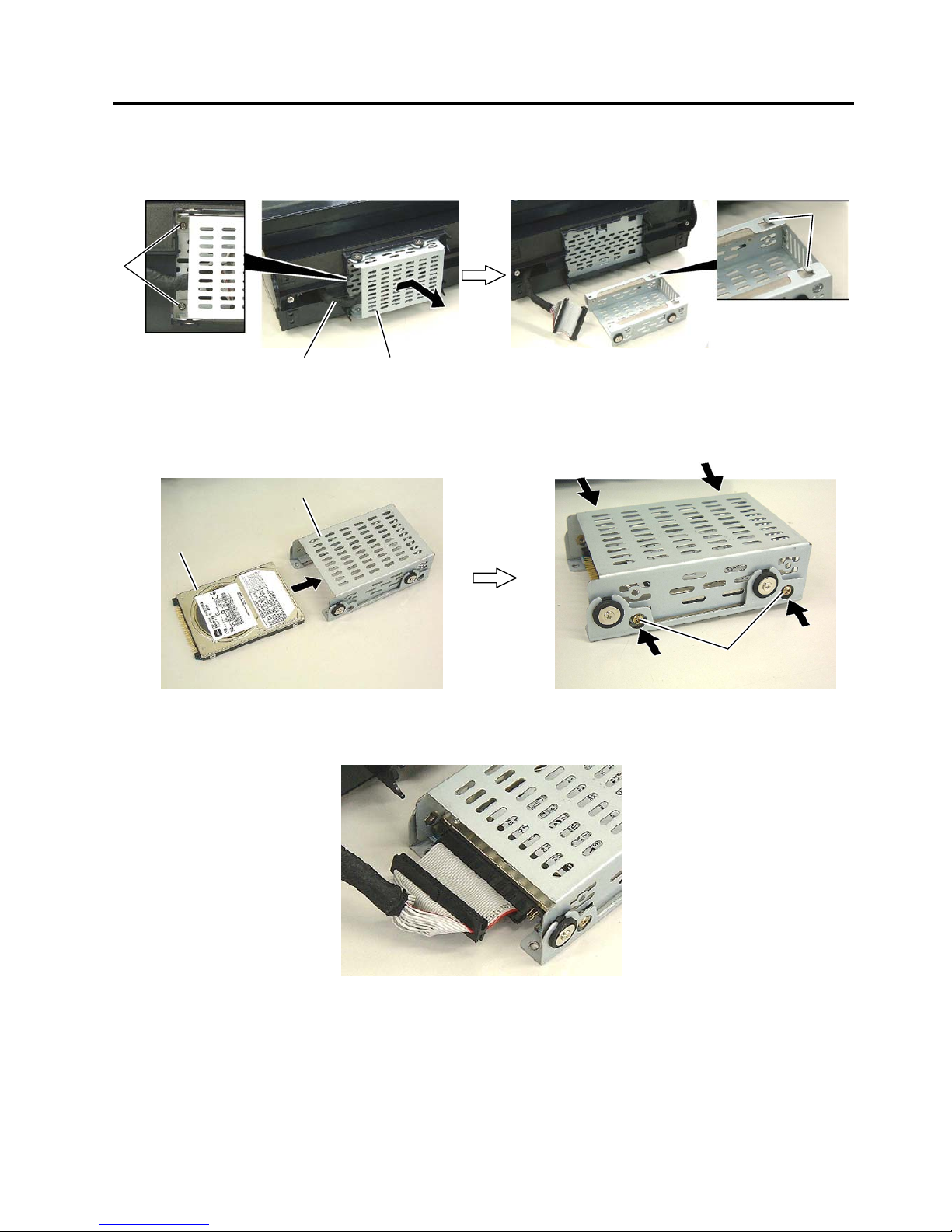

3) Let the HDD Cable off the HDD Holder.
4) Remove the two screws, then remove the HDD Holder in the direction as indicated by the arrow.
(Carefully remove the HDD Holder on which the two hooks are provided.)
5) Insert an HDD into the HDD Holder, then secure with the four HDD fixing screws. (The four out of eight
pieces of option HDD fixing screws are used for an HDD.)
6) Connect the HDD Connector to the HDD.
Screw
M-3x3
HDD Cable HDD Holder
Hook
HDD
HDD Holder
Screw M-3x3
2. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-12010
2.1 Installing the Hard Disk Drive (HDD)
2- 4

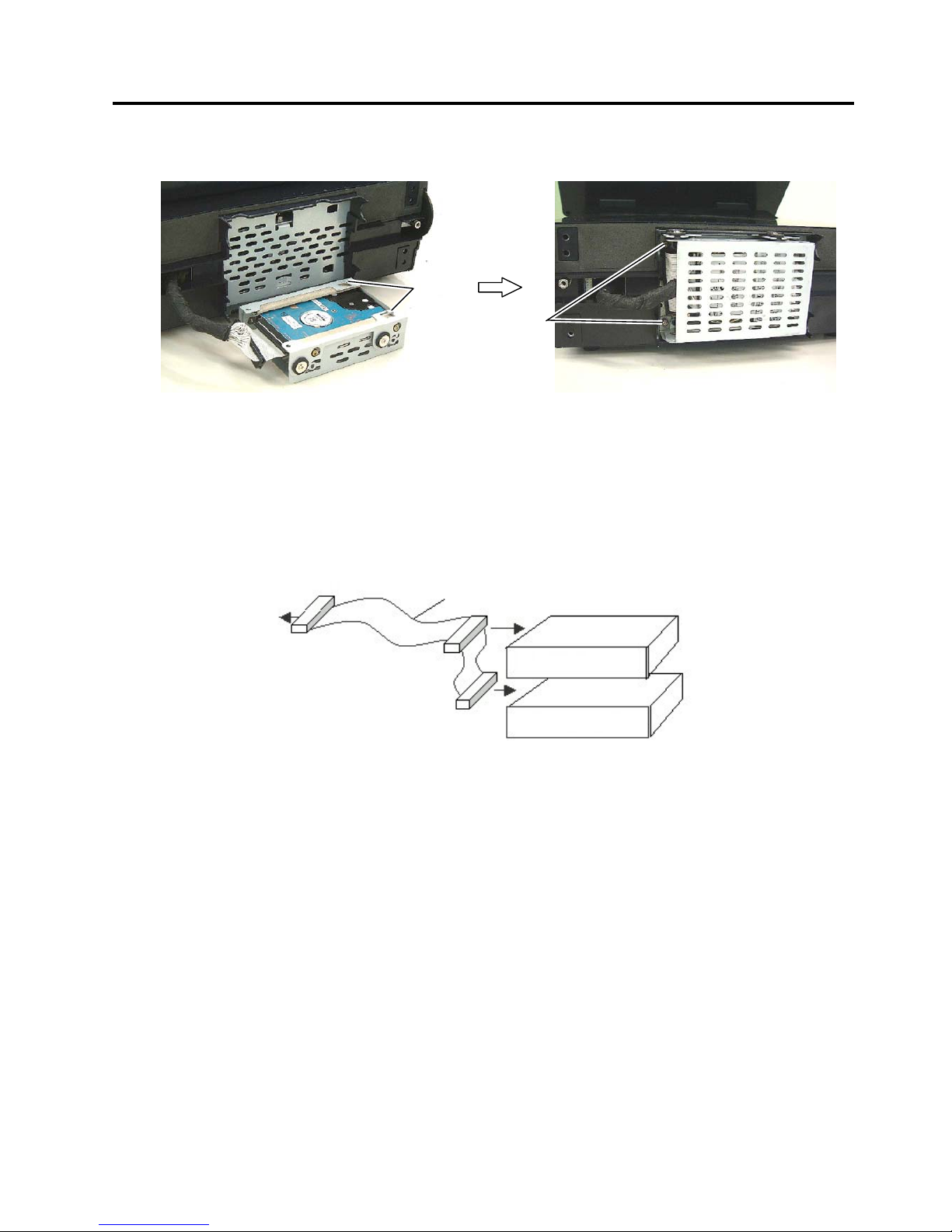

7) Fit the HDD Holder Hooks into the positioning holes which are provided on the frame, then secure with the
two screws.
8) Reassemble in the reverse order of removal.
9) After the installation is completed, perform an HDD test in the BIOS diagnostic test program. Then, make
sure that the HDD performs properly. (Refer to Section 5.4 BIOS Diagnostic Test Program.)
< Installation of the second HDD >
When installing the second HDD, connect the HDD Interface Cable as shown below.
Screw
M-3x3
Hook
HDD Interface Cable
Primary IDE
(RISER PC Board)
2nd HDD (Slave)
1st HDD (Master)
