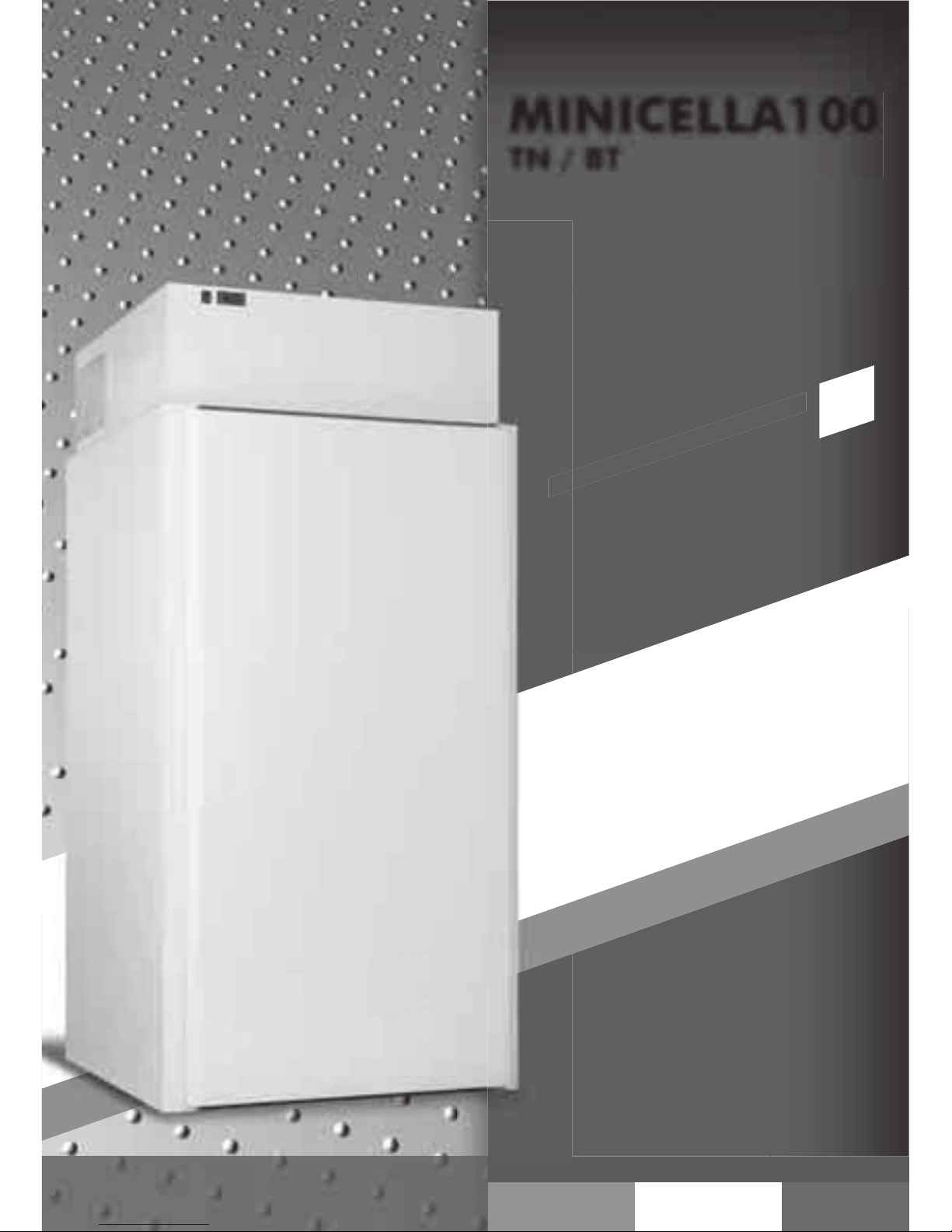

Tecnodom MINI COLD ROOM 100 Istruzioni operative

Italian Products

100x100 cm base Cold

and Freezer Rooms

MINICELLA100

TN / BT

INSTALLATION AND

OPERATION GUIDE

SMALL COLD-ROOMS

Cod. LINMCEL-IT-EN_REV_01_2014_M05

10.06.2014

Welcome

The producer thanks you for choosing one of its products.

We kindly ask you to read carefully our manual: this will guarantee the optimal

use of your appliance.

ITALIANO

RAEE - Gestione riﬁuti apparecchiature elettriche ed elettroniche

Il simbolo del bidone barrato posto sul prodotto o sulla documentazione del manuale d’uso, indica che il prodotto è stato immesso nel

mercato dopo la data del 13 agosto 2005. Al termine del ciclo di vita utile, il prodotto, deve essere raccolto, smaltito, trasportato in

modo separato rispetto agli altri riﬁuti urbani seguendo le normative vigenti in ogni paese. In questo modo potrà essere recuperato

contribuendo ad evitare possibili effetti negativi sull’ambiente e sulla salute, favorendo il reimpiego e/o il riciclo dei materiali di cui

è composta l’apparecchiatura. Lo smaltimento abusivo del prodotto da parte dell’utente comporta l’applicazione di sanzioni ammini-

stratiuve previste dalla norma vigente. La Direttiva comunitaria RAEE N° 2002/96/CE, (in Italia recepita con il Dgls del 15.05.2005

N°151); Direttiva comunitaria N°2003/108/CE riguardante il trattamento dei riﬁuiti delle apparecchiature elettriche ed elettroniche.

ENGLISH

RAEE - Electrical and Electronic Waste Management)

The barred can symbol displayed on the product or in the use manual documentation indicates that the product has been placed for sale

on the market after August 13, 2005. At the end of its useful life-cycle, the product must be collected, disposed of, and transported se-

parately from urban waste, in accordance to the norms in force in each individual country. In this way, it can be recovered, contributing

to avoid possible negative effects on the environment and health, and favoring the re-use and/or recycling of the materials of which the

equipment is made of. The abusive disposal of the product by the user entails the application of administrative sanctions established by

the norms in force. The EU Directive RAEE N. 2002/96/CE, (implemented in Italy by the Law Decree n. 151 dated May 15, 2005); EU

Directive N. 2003/108/CE concerning the handling of electrical and electronic waste.

FRANCAIS

RAEE - Gestion des déchets d’appareillages électriques et électroniques

Le symbole de la poubelle barrée placé sur le produit ou sur la documentation du manuel d’utilisation, indique que le produit a été mis

sur le marché après la date du 13 août 2005. A la ﬁn du cycle de vie utile, le produit doit être trié, éliminé, transporté de façon séparée

par rapport aux autres déchets urbains en suivant les normatives en vigueur dans chaque pays. De cette façon, il pourra être récupéré

en contribuant à éviter d’éventuels effets négatifs sur l’environnement et sur la santé, en favorisant le réemploi et/ou le recyclage des

matériaux dont est composé l’appareillage. L’élimination abusive du produit de la part de l’utilisateur comporte l’application de san-

ctions administratives prévues par la normative en vigueur. La Directive communautaire RAEE N° 2002/96/CE, (en Italie déﬁnie dans

le D. lég. du 15.05.2005 n°151); Directive communautaire N° 2003/108/CE concernant le traitement des déchets des appareillages

électriques et électroniques.

DEUTSCH

RAEE - Umgang mit Abfällen elektrischer und elektronischer Geräte

Das Symbol der durchkreuzten Mülltonne auf dem Produkt oder der Dokumentation der Gebrauchsanweisung gibt an, dass das Produkt nach

dem 13. August 2005 auf den Markt gebracht wurde. Am Ende des Nutzungszyklus muss das Produkt entsprechend der im jeweiligen Land

geltenden Bestimmungen gesammelt, entsorgt und getrennt von anderem Hausmüll transportiert werden. Auf diese Weise kann es zurückgewon-

nen werden, wodurch zur Vermeidung möglicher negativer Auswirkungen auf die Umwelt und die Gesundheit beigetragen sowie die Wieder-

verwertung und das Recycling der Materialien erleichtert wird, aus denen das Gerät besteht. Die widerrechtliche Entsorgung des Produktes

durch den Nutzer zieht die Anwendung der von den gültigen Bestimmungen vorgesehenen Verwaltungsstrafen nach sich. Die gemeinschaftliche

Richtlinie RAEE Nr. 2002/96/EG, (in Italien mit der Gesetzesverordnung Nr. 151 vom 15.05.2005 umgesetzt); Gemeinschaftliche Richtlinie Nr.

2003/108/CE bezüglich der Behandlung von Abfällen elektrischer und elektronischer Geräte.

ESPANOL

RAEE - Gestión de los residuos de aparatos eléctricos y electrónicos

El símbolo del bidón barrado en el producto o en la documentación del manual de utilización, indica que el producto, ha sido introdu-

cido en el mercado después de la fecha 13 de Agosto del 2005. Al ﬁnal de su ciclo de vida, el producto debe ser recogido, eliminado

y transportado de forma separada respecto a los otros residuos urbanos, siguiendo la normativa vigente en cada país. De este modo

podrá ser recuperado contribuyendo a evitar posibles efectos negativos en el medio ambiente y en la salud, favoreciendo así la reutili-

zación y/o el reciclaje de los materiales que componen el aparato. La eliminación ilegal del producto por parte del usuario, supone la

aplicación de sanciones administrativas previstas en la normativa vigente La Directiva comunitaria RAEE N° 2002/96/CE, (en Italia se

acoge al Decreto Legislativo del 15.05.2005 nº.151); Directiva comunitaria N° 2003/108/CE respecto al tratamiento de los residuos

de los aparatos eléctricos y electrónicos.

PORTUGUÊS

RAEE - Resíduos de Equipamentos Eléctricos e Electrónicos

O símbolo do contentor de lixo barrado com uma cruz, aposto no produto ou no manual de utilização, indica que o produto foi colo-

cado no mercado a partir de 13 de Agosto de 2005 e que, no ﬁm do seu ciclo de vida, deve ser recolhido, eliminado e transportado

de modo separado respeito aos outros resíduos urbanos e em conformidade com as normativas vigentes em cada país de utilização.

Agindo dessa maneira estará contribuindo para evitar possíveis efeitos negativos no ambiente e na saúde, favorecendo a reutilização

e/ou reciclagem dos materiais de que é composta a aparelhagem. Uma eliminação incorrecta e abusiva do produto por parte do uti-

lizador implicará a aplicação das sanções administrativas previstas pela normativa vigente. Directiva comunitária RAEE N°2002/96/

CE, em Itália acolhida pelo D.L. nº 151 de 15 de Maio de 2005, e Directiva comunitária N°2003/108/CE, relativas ao tratamento dos

resíduos de equipamentos eléctricos e electrónicos.

RAEE

WEEE

RAEE

WEEE

RAEE

WEEE

RAEE

WEEE

RAEE

WEEE

RAEE

WEEE

INDEX

INTRODUCTION pag. 28

USING MANUAL pag. 28

MANUAL PRESERVATION pag. 28

MINI COLD-ROOM DESCRIPTION pag. 29

1. MINI COLD-ROOM POSITIONING pag. 30

1.1 TRANSPORTATION pag. 30

1.2 DOWNLOAD - UNLOAD / LENGTHS / WEIGHTS pag. 30

1.3 PACKING pag. 30

1.4 CONDENSATE WATER DRAINING/ DRAINING CONNECTION pag. 30

1.5 INSTALLATION INSIDE YOUR SHOP/RESTAURANT /WORKROOM pag. 31

1.6 WALL MINIMUM DISTANCE pag. 31

1.7 MINI COLD-ROOM WITH BUIlT- IN UNIT pag. 31

1.8 MINI COLD-ROOM WITH REMOTE CONDENSING UNIT VERSION pag. 32

ELECTRICAL CONNECTION AND EARTHING

pag. 32

2.1 ELECTRICAL POWER SUPPLY pag. 32

2.2 START UP AND USE pag. 33

3. CLEANING pag. 33

3.1 MINI COLD-ROOM CLEANING pag. 33

3.2 CONDENSER’S BUIlT-IN UNIT CLEANING pag. 34

3.3 FLOOR CLEANING pag. 34

4. GENERAL GUIDELINES pag. 35

4.1 MAX SHELF LOAD pag. 35

4.2 STORING PRODUCTS pag. 35

4.3 DEFROSTING pag. 36

5. MAINTENANCE - WASTE MANAGEMENT - DISPOSAL OF MATERIALS

pag. 36

5.1 PERIODICAL CHECK pag. 36

5.2 REPLACEMENT OF THE LIGHT pag. 36

5.3 SUBSTITUTION OF THE FAN MOTOR pag. 36

5.4 SUBSTITUTION OF THE COMPRESSOR/ Refrigerated gas pag. 37

5.5 CONDENSER’S BUIlT-IN UNIT CLEANING pag. 37

5.6 MINI Cold-Room WITH ELECTRIC DEFROSTING pag. 37

5.7 GARBAGE DISPOSAL pag. 37

5.8.REQUESTING SPARE PARTS pag. 37

INSTRUCTION FOR THE MOUNTING OF THE MINICOLD AND MINIFREEZER ROOM

pag. 38

7. CONTROL PANEL pag. 40

DECLARATION OF CONFORMITY at the end of the manual

APPENDIX - 1 - Product identification plate at the end of the manual

APPENDIX - 2 - MINI Cold-Room parts description at the end of the manual

APPENDIX - 3 - Versions at the end of the manual

APPENDIX - 4 - Dimensions and weights at the end of the manual

APPENDIX - 5 - Dielectric test at the end of the manual

APPENDIX - 6 - Summary of electrical diagram MINI Cold-Room at the end of the manual

INTRODUCTION

The “MINI COLD-ROOM” has been constructed in respect of the overall community norms concerning the

free circulation of industrial and commercial products in EU countries

Directive 2004/108/CE - Electromagnetic Compatibility

Directive 2006/95/CE - Low Voltage

Directive 2002/95/EC - RoHS

Before proceeding with all the operations on the products, it is recommendable to read carefully the user’s manual

and maintenance. In addition, it is important to follow all the current regulations (loading-unloading, installation of the

product, electrical connections, positioning of the item, disposal of material).

Therefore, the units are supplied with all the documentation imposed by such standards.

The company will not be held liable for any breakage, accidents or faults due to non-complian-

ce, including non-compliance for not following the instructions of this manual. Moreover, the

company will not be responsible if the user makes any modiﬁcations, variants or if non-authori-

sed accessories are installed in the unit.

The maintenance requests easy operations, which can be carried out exclusively by specialized

technician.

USING MANUAL

The user and maintenance manual constitutes an integral part of the MINI Cold-Room. It

must be kept intact and in the safe place for the entire life of the appliance, even if the

appliance is transferred to another user or owner. The manual must be easily consulted by opera-

tors and maintenance staff and must be placed nearby the unit.

The appliance includes all documentation required by regulations in force, which are reached during the planning

and manufacturing phase.All the instructions prescribed on this manual must help the operator and the qualiﬁed

technician to conduct all installation procedures, connections, use and maintenance of the system, in a safely

manner and correctly.This user and maintenance manual contains all the information required for handling the

unit with particular attention to safety.

MANUAL PRESERVATION

It is advisable to use the manual with care and in such a way as not to compromise its

contents.

Under no circumstances shall the user remove, pull out or rewrite any parts of the ma-

nual.

Keep the manual in a place protected against humidity and heat.The instruction manual shall

be kept nearby the unit so that operators can easily consult the manual. The manual must also return to its

location after each consultation. Furthermore, the manual must be kept for the entire life of the appliance and

must be handed over to any successive user or owner.

THE MANUFACTURER RESERVES THE RIGHT TO MAKE TECHNICAL MODIFICATIONS

TO ITS OWN PRODUCTS WITHOUT GIVING PRIOR NOTICE.

MINI COLD-ROOM DESCRIPTION

The Mini Cold-Room assures the stability and do not deteriorate on the time.The materials composed the

cold-room are made do not absorb smell an do not agree the formation of the parasitics, the mushroom and

mould.The cold-rooms are composed with modular panels with different width mm 1000 with thickness mm

60The ﬁxed panels is done from the internal part of the cold-room by the eccentric hooks.The ﬂoor and ceiling

panels are positioned to the internal side of the vertical panels and around of perimetral side, is applied a plastic

sanitary proﬁle.The characteristics of the cold-rooms are showed below.

Wall - ceiling - ﬂoor cover panels

The wall panel is made with two atoxic prepainted stainless steel zinc plates appproved by Igiene Institute.The

ﬂoor panel is made externally with stainless steel zinc plate and internally with stainless steel AISI 304 inox

operating antiskid.

Cold-room temperature:

Normal temperature NT: 0 / +8°C

Low temperature LT: -18 / -20°C

Isolamento:

The insulation is made with polyurethane injection (PUR) with characteristics as follow:

Panel thickness : 60 mm

K (Kcal /h m2 °C): 0,26

Density: 40-42 kg/mc

The insulation of the basin is free of CFC in order to guarantee a low environmental impact.

The Mini Cold-Room is available as follow:

• already assembled or not assembly.

• On pallet and nylon covering if the cold-room is deliveried already mounted.

• Walls and ﬂoor panels thickness mm 60 available to introducing trolley trays with soft wheels

• Door with magnetic closimg gasket 700 x 1680 H mm

• Stainless steel grids 400 x 870 mm

• Monoblockrefrigerating in R404A/R507 available for TN / BT version including with electronic control

panel Positioning on the roof of the small cold-room.

External sizes small cold-room

• Included monoblock 1000 x 1000 x 2300 H mm

• Without monoblock 1000 x 1000 x 1800 H mm

ATTENTION

All operations regarding the points:

1. MINI Cold-Room POSITIONING - 2. ELECTRICAL POWER SUPPLY AND CONNECTIONS - 3. CLEANING - 5.

MAINTENANCE

must be carried out by high qualiﬁed technical staff.

1. MINI COLD-ROOM POSITIONING

Before to unload/download and positioning the MINI Cold-Room inside the sale-area, please read

with attention this instruction manual so the sections regarding unload/download of the MINI Cold-

Room, length, weight, water pipe drain position and electronic control panel settings.

1.1 TRANSPORTATION

NO SI

Do not superimpose

MINI Cold-Room

packing (allowed only if there

is wooden crate packing option).

We recommend you to transport the

MINI Cold-Room

always in the upright posi-

tion (as mention on the packing). If the MINI Cold-Room with built in condensing

unit was inclined during transportation we suggest you to keep the product in

the suggested upright position for at least 8 hours, before switching it on. In this

way, you will allow the oil to ﬂow in all the components, lubricating them again.

Afterwards you can proceed with the start.

1.2 DOWNLOAD - UNLOAD / LENGTHS / WEIGHTS

The unloading/loading procedures should be executed by pallet-jack or by forklift

driven by skilled and authorized staff.We decline any liability for failing to comply

with safety rules currently in force.

Before starting the unloading, positioning and installation procedures of the MINI

Cold-Room inside the shop/kitchen according to the model of the MINI Cold-Ro-

om, please read carefully the information showed in the dimensions and weights list.

The manufacturer declines any responsibilities due to operations performed without adopting the

above safety precautions.

1.3 PACKING

At the delivery please check that the packing is intact and that during transportation no damage

was occurred. Remove the external carton-box; remove the fastener that keeps still the MINI Cold-

Room to its pallet, put it in the correct position and then remove the adhesive white protection of

the stainless steel.

The recovery and the recycling of the packing materials such us, plastic, iron, carton box, wood

help the saving of row material and reduce the waste. Please consult your area address book for

disposal of materials and authorized garbage dump.

1.4 CONDENSATE WATER DRAINING/ DRAINING CONNECTION

The MINI Cold-Rooms are available as follow:

WITH BUIlT-IN UNIT:

• Monoblock unit:

MINI Cold-Room included automatic re-evaporation water drain

PREDISPOSED FOR REMOTE UNIT:

• Monoblock unit: predisposed for remote unit.

• MINI Cold-Room predisposed for remote unit.

Both of them include water pipe drain with siphon predisposed for water drain connection ( to be

install by the

customer)

You never install the MINI Cold-Room without siphon and to connect more drains of the same MINI

Cold-Room together. Each drain must have only one siphon.

For more information please, see the APPENDIX 3 “VERSION”.

1.5 INSTALLATION INSIDE YOUR SHOP/RESTAURANT / WORKROOM

It is advisable to install the

MINI Cold-Room

inside an area with an air conditioning system. Please

note that malfunctions may arise in areas that are not provided with air conditioning, e.g. conden-

sation formation

ATTENTION

In order to allow a good functioning of the

MINI Cold-Room

please draw attentions to the fol-

lowing instructions:

• Do not place the MINI Cold-Room to a direct exposure of sunlight and to all the other

means of irradiation, such as high intensity incandescent lights, cooking ovens, heating radiators.

• Avoid to close the air in-take of the monoblock or built-in unit.

• Do not put any material as carton or others, on the top of the MINI Cold-Room in

which is positioning the monoblock unit or the condensing unit.

• Do not positioning the MINI Cold-Room inside the area in which there is to much hu-

midity (possible making condensation of the surface of the MINI Cold-Room).

• Do not positioning the MINI Cold-Room inside a close cavity (there is no circulation of

air and the MINI Cold-Room will not run properly).

• Do not positioning two or more MINI Cold-Rooms back-to-back position (the unit will not be properly).

Verify that in the installation room there is enough air turnover, even during closing and rest hours.

In this way the expansion/condensing unit will work correctly.

1.6 WALL MINIMUM DISTANCE

In order to allow a good performance of the MINI Cold-Room, during the installation you must

respect the MINIMUM WALL distances :

not less than 5 cm all around the Cold-Room and not less than 40 cm from the momoblock, posi-

tionated on the top af the Cold-Room, to the ceiling of the room where the Cold-Room is placed.

1.7 MINI COLD-ROOM WITH BUIlT- IN UNIT

If the MINI Cold-Room is ﬁtted with built-in condensing unit, check if the foot board obstructs air circulation.

Do not put any cartoons or any others materials and do not close the air in-take and out-take on

all sides of the MINI Cold-Rooms.

For a good running and performance of the MINI Cold-Room, do not obstruct the condensing unit ventilation.

All the air suction grids and air delivery grids must be always opening.

Check if the room is sufﬁciently aired, even when the shop is closed. Avoid to obstruct the sources of air placing

objects along the perimeter of the MINI Cold-Room. It is necessary to place MINI Cold-Rooms at least ﬁve

centimetres from the wall. Before activating electric connection clean the MINI Cold-Room completely by using

tepid water and neutral detergents (non-aggressive) . Dry it with a smooth rag.

1.8 MINI COLD-ROOM WITH REMOTE CONDENSING UNIT VERSION

The electrical and cooling connection must be done only from a qualiﬁed technician.

We recommend to follow the electrical norms.

The engine of the MINI Cold-Rooms with remote refrigerating unit must be protected from atmo-

spheric agents and the room must not be used for storing goods (free space all around the remote

unit). Respect the spaces between the unit and the walls or others obstacles, in order to have a

good air exchange to avoid a good performance and easy maintenance during the cleaning of the

condensing unit. It is necessary to remember that higher room temperature and insufﬁcient air cir-

culation around the condensing unit imply higher energy costs and worse technical performances

of the refrigerator, with a possible waste of the exposed goods.

2. ELECTRICAL CONNECTION AND EARTHING

2.1 ELECTRICAL POWER SUPPLY

The installation and the electrical connections must be carried out in conformity with the electri-

cal rules in force.These operations must be carried out by qualiﬁed staff.The company declines

any responsibilities originated from the no observance of the above rules in force.

See the appliance electric diagrams at appendix – 6 at the end of this manual.

Before plugging in the MINI Cold-Room, it is necessary to proceed with its complete and

careful cleaning, using warm water with no aggressive detergents and drying with a soft

cloth all the humid parts (read with attention the chapter 3. cleaning).

In order to carry out a correct plug in you must proceed as follow:

1. Before the connection to the electrical supply it is necessary to verify that the frequency / tension of

the line correspond to those written on the identiﬁcation label of the MINI Cold-Room (APPENDIX

2 - IDENTIFICATION LABLE OF THE MINI Cold-Room). A variation +/- 10% of the nominal rated

voltage is permitted. It is needful to connect the appliance to an efﬁcient ground socket (see point 6)

2. It is advisable to install an onnipolar sectioning switch with opening of contacts at least 3 mm

wide at the source as for example automatic switch, fuse wire (the fuse screw must be removed

from the socket) switch for fault current and electricity meter.

3. In order to save the appliance from overload or short circuit, the connection to the electricity

has to be done through a magneto-thermal switch high sensibility (30 mA) with manual re-

establishment, of the right power.

4. For protective device size, consider the power consumptions showed on the identiﬁcation label

of the appliance (APPENDIX 2 – identiﬁcation label product)

5. It is necessary that the connection cable section is commensurate to the power consumption of the unit.

6. The law requires that the unit is earthed; therefore it is necessary to connect it to an

efﬁcient earth connection. In order to prevent any risks if the electrical cable and the

compressor supplied are damaged, these must be replaced by qualiﬁed technician.

Installation must be carried out only by qualiﬁed technicians according to the regulation in

force. No liability whatsoever can be accepted if the above instructions in not complied with.

WARNING

Any operation of ordinary and extraordinary maintenance of the appliance must be done discon-

necting the electric power supply. This maintenance must be done by qualiﬁed technician.

The plug has to be always connected to a ﬁxed outlet. It is strictly forbidden to connect the applian-

ce plug to an extension cord or an adapter.

2.2 START UP AND USE

WARNING

Before to proceed to the switch-ON of the MINI Cold-Room you have to verify as follow:

• don’t start the appliance with humid or wet hands

• appliance surfaces and surrounding are dry

• the MINI Cold-Room with built-in unit had been placed in vertical position, if it should be slo-

ped, we suggest to wait at least 8 hours before to proceed with the start-up.

• the parameters regulation are referring to the use instruction of the control panel attached to the present manual.

• before connecting the plug in the socket check if the sectioning unit is in the

• position marked by “0,” “OFF”

• for remote unit MINI Cold-Room the ﬁrst starting has to be made by qualiﬁed technicians.

After having checked as above, it is possible to start the appliance, giving electricity from the gene-

ral power pack (see paragraph. 2.1). Press green button in position n. 1, ON.

WARNING

Before loading the food on the appliances, wait that the temperature needed is the same on the

control panel. Avoid to set a lower temperature than that suggested according to the category the

MINI Cold-Room belong to in order to avoid evaporator block.

To regulate functioning parameters please follow the instruction attached to the present manual.

3. CLEANING

All the procedures must be carried out with the stationary unit removing the tension from both

the refrigerated item and the condensing unit.

3.1 MINI COLD-ROOM CLEANING

The maintenance of the apliance must include at least one daily cleaning of the loading zone, in

order to prevent the development and the accumulation of bacteria.

ATTENTION

It is essential to keep daily clean the apliance in order to prevent the development and the accu-

mulation of bacteria. Before cleaning the chamber of the apliance, you must execute a defrosting

process, by removing the lid of the drainage basin.

Inside the upper part housing the block, it is recommended not to clean the electrical cables in

order to prevent to pull them

Do not ﬂush directly the inner parts of the apliance because the electrical parts could get damaged.

• Do not use any hard metal tools to remove the ice.

• For the cleaning use only warm water (not hot) with no-aggressive detergents, taking care

of drying the wet parts with a soft cloth.

• Avoid to use products that contain chlorine or diluted solutions, caustic soda, abrasive de-

tergents, muriatic acid, vinegar, bleach or other products that might scratch or grind.

• We recommend to clean the device at least once a month, when it used for deep-frozen products.

Attention, during the cleaning operations it is recommended to use work gloves.

3.2 CONDENSER’S BUIlT-IN UNIT CLEANING

Any operation of cleaning must be done disconnecting the

electric power supply.

The condenser of the MINI Cold-Room with built-in unit must be cleaned, in

normal conditions of use of the MINI Cold-Room, at least once a month by

using a vacuum cleaner and a real-bristle brush.

It is advisable to use gloves since the reduced thickness of the wings can cut.

Dirty condensing unit reduce the output ofthe engine causing an increase

of energy consumption.

Take care not to damage the refrigerating ﬂuid circuit.

The unit is on the top of the MINI Cold-Room.

The condenser features sharp edges.Wear protective gloves when cleaning.

3.3 FLOOR CLEANING

Use the correct cleaning products (follow manufacturer's instructions, use mild detergent in warm

water, rinse and dry with a soft cloth).

• Immediately clean up the spilled product

• Check the joint between the ﬂoor panels

• Use correct solution of detergent.

• Use hand trucks with light wheels soft rubber.

• Do not use abrasive cleaners

• Do not wipe the ﬂoor with pressure equipment.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Tecnodom Frigorifero

Tecnodom

Tecnodom PERFEKT Manuale utente

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
