Teltonika MVC300 Manuale utente

USER MANUAL

Version 1.02

1. Legal notice

of the contents in this document in any form without prior written permission of TELTONIKA Ltd is prohibited. The

manufacturer reserves the right to modify the product and manual for the purpose of technical improvement

without prior notice.

Other product and company names mentioned herein may be trademarks or trade names of their respective owners.

2. Attention

Before using the device we strongly recommend reading this user manual first.

Do not rip open the device. Do not touch the device if the device block is broken.

The device is not water-resistant. Keep it dry.

Device is powered by a low voltage +12V DC power adaptor.

3. Table of Contents

1. Legal notice................................................................................................................................................................2

2. Attention....................................................................................................................................................................2

3. Table of Contents.......................................................................................................................................................3

4. SAFETY INFORMATION...............................................................................................................................................4

5. Introduction ...............................................................................................................................................................5

6. Specifications .............................................................................................................................................................5

7. Setting up your camera..............................................................................................................................................6

7.1. Camera overview ...............................................................................................................................................6

7.2. Configuring your computer................................................................................................................................6

7.3. Installing VLAN player........................................................................................................................................7

7.4. Connecting camera to PC...................................................................................................................................8

7.5. Using camera in the car .....................................................................................................................................8

7.6. Using RTSP .........................................................................................................................................................9

8. Camera’s user interface...........................................................................................................................................10

8.1. Live view ..........................................................................................................................................................10

8.2. Playback ...........................................................................................................................................................11

8.3. Advanced settings............................................................................................................................................11

8.3.1. Video settings ..........................................................................................................................................11

8.3.2. Stream settings ........................................................................................................................................12

8.4. Maintenance....................................................................................................................................................12

9. Abbreviations...........................................................................................................................................................14

4. SAFETY INFORMATION

In this document you will be introduced on how to use a MVC300 camera safely. We suggest you to adhere to

the following recommendations in order to avoid personal injuries and/or property damage.

You have to be familiar with the safety requirements before using the device!

To avoid burning and voltage caused traumas of the personnel working with the device please follow these

safety requirements.

The device is intended to be supplied from a Limited Power Source (LPS) whose power consumption

should not exceed 15VA and current rating of overcurrent protective device should not exceed 2A.

The highest transient overvoltage in the output (secondary circuit) of used PSU shall not exceed 71V

peak.

The device can be used with the Personal Computer (first safety class) or Notebook (second safety

class). Associated equipment: PSU (power supply unit) (LPS) and personal computer (PC) shall

comply with the requirements of standard EN 60950-1.

Do not mount or service the device during a thunderstorm.

To avoid mechanical damages to the device it is recommended to transport it packed in a damage-

proof pack.

Protection in primary circuits of associated PC and PSU (LPS) against short circuits and earth faults of

associated PC shall be provided as part of the building installation.

To avoid mechanical damage to the device it is recommended to transport it packed in a damage-proof pack.

While using the device, it should be placed so, that its indicating LEDs would be visible as they inform in which working

mode the device is in and if it has any working problems.

Protection against overcurrent, short circuiting and earth faults should be provided as a part of the building

installation.

Signal level of the device depends on the environment in which it is working. In case the device starts

working insufficiently, please refer to qualified personnel in order to repair this product. We recommend

forwarding it to a repair centre or the manufacturer. There are no exchangeable parts inside the device.

5. Introduction

Thank you for purchasing a MVC300 camera!

The MVC300 camera is a sleek and compact video recording device perfect for in-car mounting: an ideal solution if you

want to capture any significant events that might occur on the road. It can also be used to augment any fleet

management system with added video surveillance.

With Ethernet functionality you can take the MVC300 camera out of the car altogether and integrate it into a stationary

surveillance system, in other words it can perfectly double as a fully-fledged IP network camera. Video viewing also does

not elude flexibility: it can be done via our Web Users Interface or through any video player capable of processing the

RTSP streaming protocol.

6. Specifications

Video

5Mpix CMOS sensor

Sensor size: 1/2.5 inch

H.264 compression

Full HD 1080p @ 23 fps

SXVGA (1280 x 960) @ 30 fps

Functions

10/100Mbps Ethernet port

microSD card slot (cards up to 32GB are supported)

8 x IR LEDs (for night version only)

Light sensor (for night version only)

Microphone

Powered from DC connector or USB cable

Embedded web server for live video and configuration

Configurable RTSP stream

Recording to microSD card

Configurable recording length

Configurable On Screen Display

Windscreen mounting

Electrical, Mechanical & Environmental:

Dimensions (H x W x D) 67mm x 67mm x 45mm

Weight 80g

Power supply 8-30VDC or USB cable (5VDC)

Power consumption < 3.5W

Indicators 1 x status LED

Operating temperature 0º to 45º C

Storage temperature -20º to 60º C

Operating humidity 10% to 90% Non-condensing

Storage humidity 5% to 95% Non-condensing

7. Setting up your camera

7.1. Camera overview

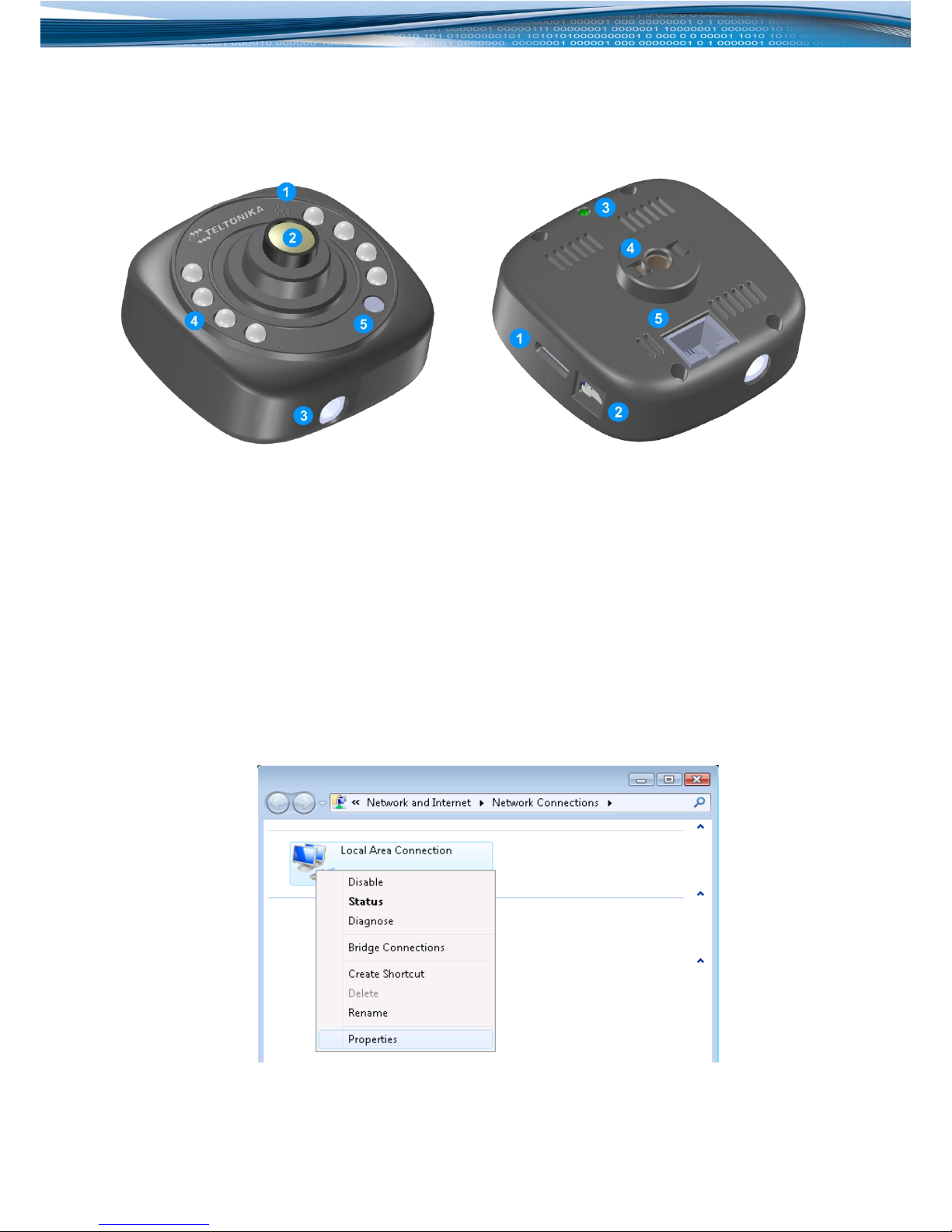

Front Panel Back Panel

1Microphone

1microSD card slot

2Camera lens

2USB/power connector

3DC power connector

3Status LED

4IR LEDs (optional)

4Mounting connector

5Light sensor (optional)

5Ethernet connector

7.2. Configuring your computer

The camera can be connected to your computer via an ethernet cable. Camera‘s IP address is 192.168.1.10. Your PC has

to be in the same subnet.

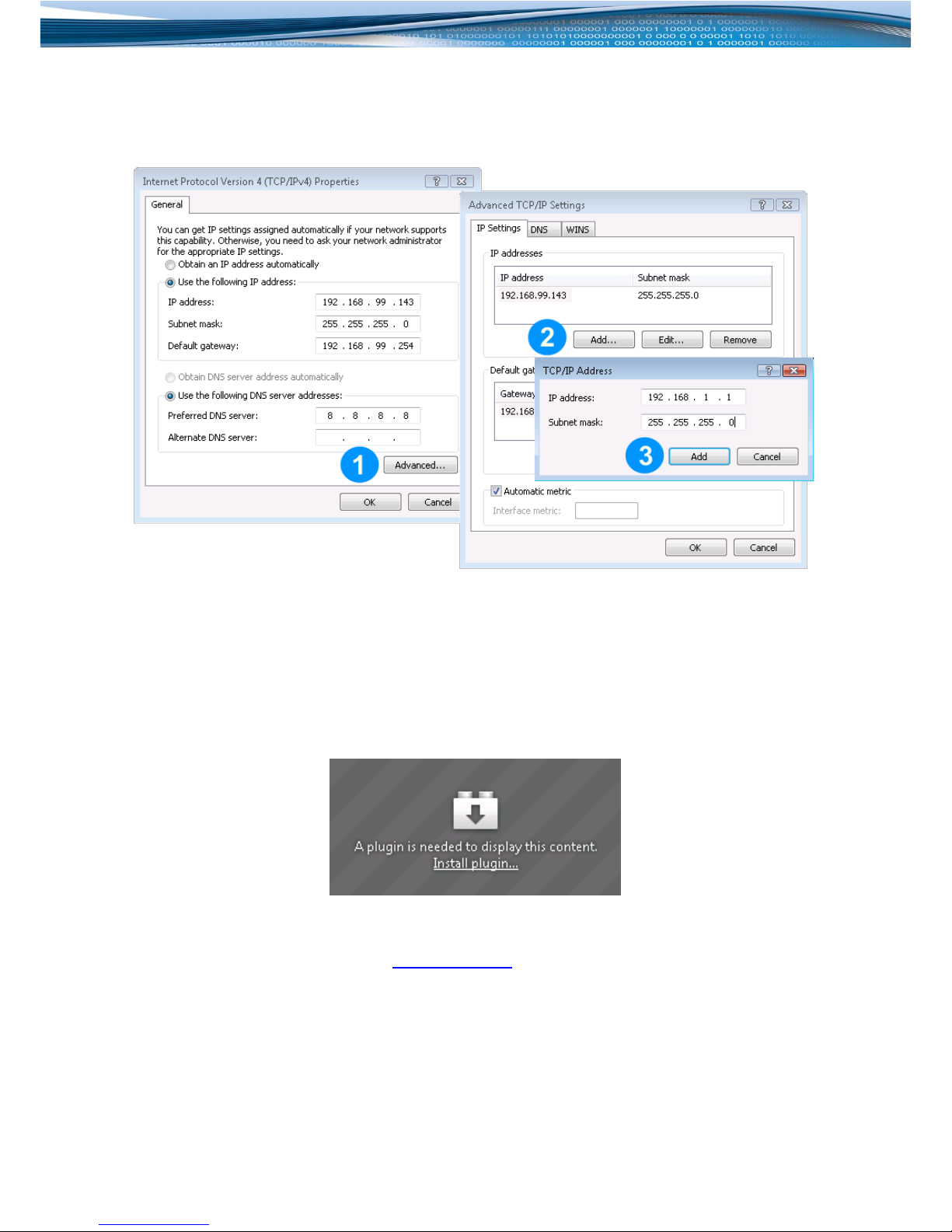

1. Go to Start > Control Panel > Network and Internet > Network and Sharing Center. In the left pane click

Manage network connections link. Right click on Local Area Connection and select Properties.

2. Choose Internet Protocol Version 4 (TCP/IP) and click Properties.

3. Check if your PC‘s IP adress starts 192.168.1.x. If not, click Advanced... to bring up advanced setting. Click Add...,

specify IP adress and Subnet mask (e.g. 192.168.1.1 and 255.255.255.0), click Add to save changes.

4. Click OK to apply new network settings.

7.3. Installing VLAN player

VLAN player is necessary in order to be able to see video in the Live view window. If the player’s plugin is missing

camera’s WebUI won’t show live video and may display a warning message:

VLAN player installation steps:

1. Acquire VideoLAN player installer from www.videolan.org.

2. Launch downloaded installer.

3. Make sure both Mozilla plugin and ActiveX plugin are selected when choosing components. This will ensure

that the plugin is installed on all browsers.

4. Complete VLAN player installation process.

7.4. Connecting camera to PC

Camera can be connected to your PC for watching live video, playing back recorded files and changing settings. To

connect the camera to your PC:

1. Insert microSD card.

2. Connect the camera to the PC with the USB cable in order to supply power to the device.

3. Connect Ethernet cable to the camera and PC (alternatively, you can connect both the camera and your PC to an

Ethernet hub/switch).

7.5. Using camera in the car

After setting the camera to the desired configuration it can be set up for use in the car:

1. Insert microSD card.

2. Attach car mount to the camera.

3. When in the car, attach camera to the windscreen.

4. Connect car power supply adapter to camera’s DC power socket.

5. Camera will start recording automatically after power is supplied.

7.6. Using RTSP

Camera is capable of streaming video by RTSP protocol. After the camera is connected to the PC (or network) any RTSP

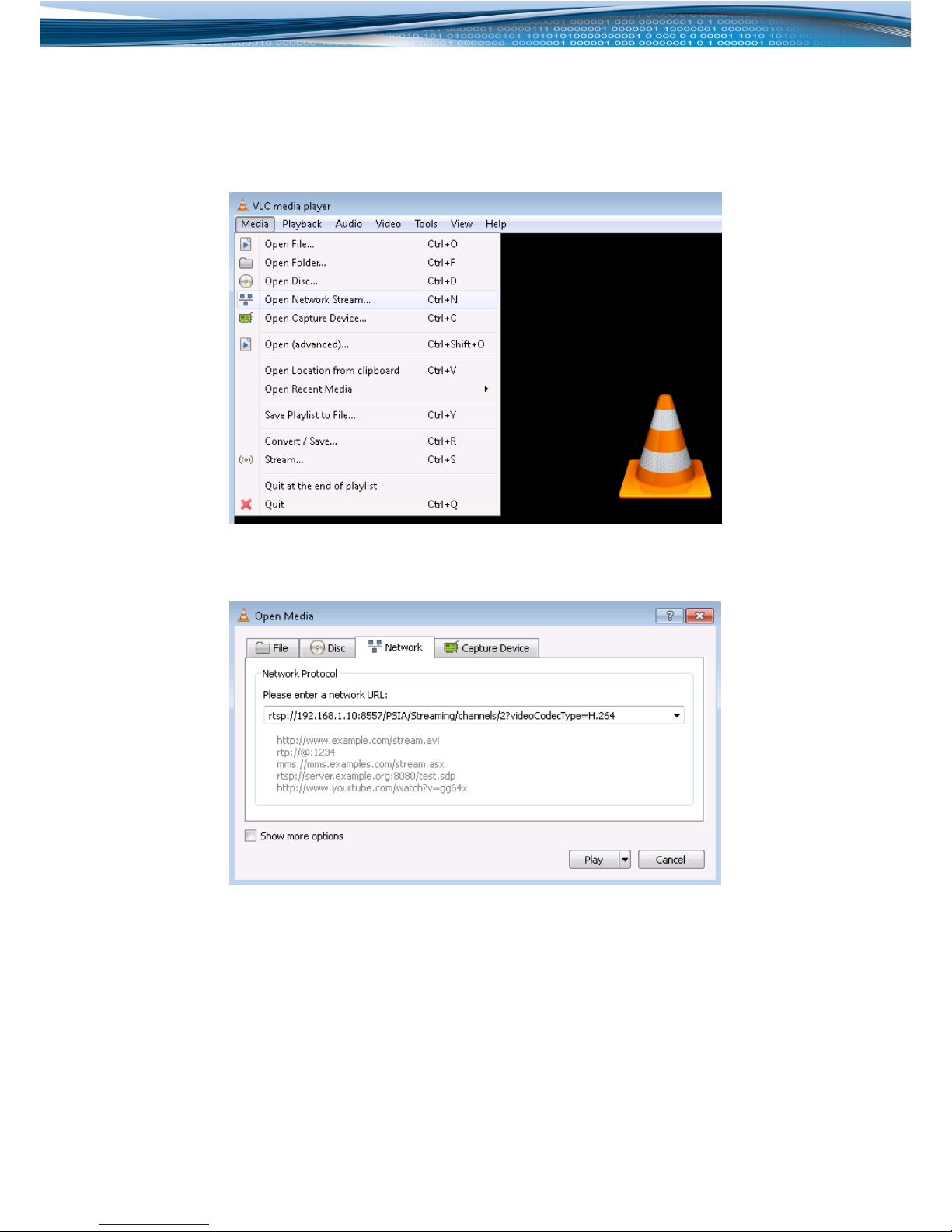

capable media player can be used to see the video stream. To start an RTSP stream in VideoLAN player:

1. Go to Media and select Open Network Stream (alternatively Crtl +N combination can be used).

2. Enter URL rtsp://192.168.1.10:8557/PSIA/Streaming/channels/2?videoCodecType=H.264 and press Play to

see stream video.

8. Camera’s user interface

Camera’s WebUI can be accessed when camera is connected to your PC. Type http://192.168.1.10 into your internet

browser’s address field in order to reach the camera’s WebUI.

8.1. Live view

Live view tab displays video from the camera and is used to configure basic video settings.

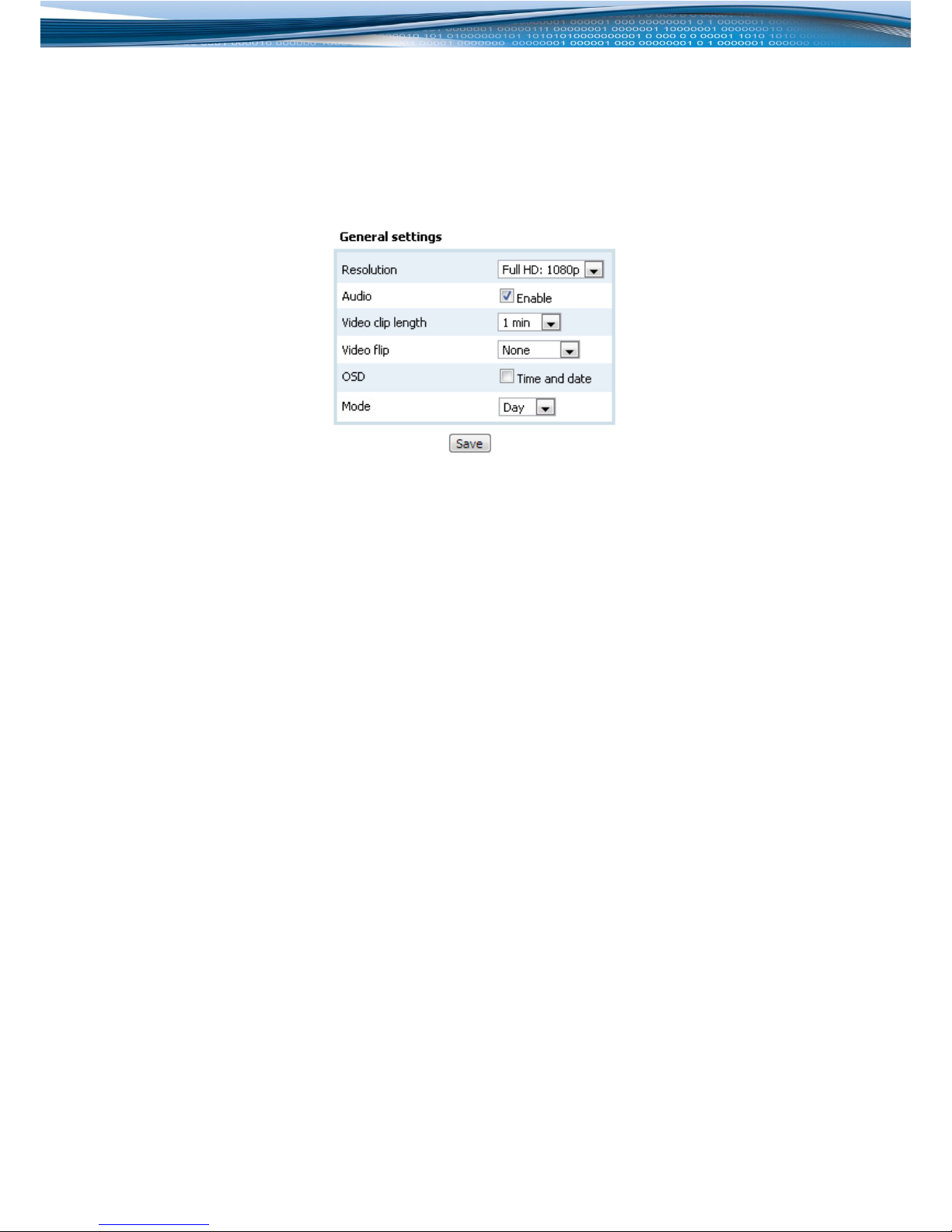

Resolution Specify video resolution of live stream and recorded videos. Possible options are:

HD: 720p 1280 x 720

D1: 480p 720 x 480

SXVGA 1280 x 960

Full HD: 1080p 1920 x 1080

Audio When enabled live streaming and any recorded video will include audio.

Video clip length Specify the length of the recorded video files.

Video flip Select required video flip. Use the Both option if your camera is mounted upside down.

OSD Check to include time and date information into video stream and recorded videos.

Mode Select Day or Night mode to tune the camera to specific conditions.

Save Press Save to apply new settings.
