Tenda N60 Manuale utente
Concurrent Dual Band Wireless N600 Gigabit Router
1
Concurrent Dual Band Wireless N600 Gigabit Router
Copyright Statement
is the registered trademark of Shenzhen Tenda Technology Co., Ltd. All
the products and product names mentioned herein are the trademarks or
registered trademarks of their respective holders. Copyright of the whole product
as integration, including its accessories and software, belongs to Shenzhen Tenda
Technology Co., Ltd. Without prior expressed written permission from Shenzhen
Tenda Technology Co., Ltd, any individual or party is not allowed to copy, plagiarize,
reproduce, or translate it into other languages.
All photos and product specifications mentioned in this manual are for references
only. Upgrades of software and hardware may occur; Tenda reserves the right to
revise this publication and to make changes in the content hereof without
obligation to notify any person or organization of such revisions or changes. If you
would like to know more about our product information, please visit our website at
http://www.tendacn.com.
2
Concurrent Dual Band Wireless N600 Gigabit Router
Table of Contents
COPYRIGHT STATEMENT...............................................................................................2
CHAPTER 1 PRODUCT OVERVIEW ................................................................................4
1.1 WHAT IT DOES .....................................................................................................4
1.2 FEATURES............................................................................................................4
1.3 PACKAGE CONTENTS ...........................................................................................5
CHAPTER 2 HARDWARE................................................................................................6
2.1 PANEL OVERVIEW................................................................................................6
2.2 MINIMUM SYSTEM REQUIREMENTS ....................................................................7
2.3 HARDWARE INSTALLATION..................................................................................7
CHAPTER 3 LOGIN TO WEB UTILITY .............................................................................9
CHAPTER 4 CONFIGURATIONS ...................................................................................11
4.1 DEVICE INFO .....................................................................................................11
4.2 NETWORK .........................................................................................................13
4.3 SECURITY SETTINGS..........................................................................................23
4.4 ADVANCED SETTINGS........................................................................................32
4.5 WIRELESS SETTINGS .........................................................................................39
4.6 USB APPLICATIONS...........................................................................................50
4.7 IPTV SETTINGS.................................................................................................59
4.8 TOOLS ...............................................................................................................60
A PPENDIX 1 CONFIG TCP/IP SETTINGS ON PC ..........................................................66
3
Concurrent Dual Band Wireless N600 Gigabit Router
Chapter 1 Product Overview
1.1 What it does
The Tenda N60 Concurrent Dual Band Wireless N600 Gigabit Router accommodates users
looking for extreme wireless performance. Delivering up to 300+300Mbps wireless speed, it
uses dual band technology to deliver 2.4GHz and 5GHz wireless signals simultaneously,
allowing you to check email and browse the Internet using the 2.4GHz while streaming
High-Definition movies and other bandwidth-intensive applications on the 5GHz band.
Also, it reduces the possibility of interference from appliances and cordless phones that
use the 2.4GHz band.
1.2 Features
2.4GHz：IEEE802.11n, IEEE802.11g，IEEE 802.11b；5GHz：IEEE 802.11n，IEEE
802.11a；IEEE802.3，IEEE802.3u；
Deliver 2.4GHz and 5GHz wireless signals simultaneously
1 Gigabit WAN port for Internet connection
3 Gigabit LAN ports for LAN connection
1 IPTV port
Up to 300+300Mbps wireless rate
Combines the function of a wireless AP, router, switch and firewall
Provides Internet connection types: Dynamic/ static IP,L2TP,PPTP，PPPOE/
PPPOE dual access
Supports IPTV service
1 USB port for storage or printer sharing
Built-in firewall supports domain name/MAC address filter
WEP, WPA-PSK, WPA2-PSK and WPA&WPA2-PSK secure your wireless network
against unauthorized access
Supports guest network
WPS one-touch encryption
Hidden/invisible SSID
MAC-based access control
WMM streams your video and audio
Bandwidth control
SNTP, WDS, UPnP, DDNS and DMZ
Syslog records router's usage status
4
Concurrent Dual Band Wireless N600 Gigabit Router
1.3 Package Contents
Please unpack the box and check the following items:
N60 Concurrent Dual Band Wireless N600 Gigabit Router
Power Adapter
Quick Installation Guide
CD-ROM
1-meter Ethernet cable
If any of the above items are incorrect, missing, or damaged, please contact your Tenda
reseller for immediate replacement.
5
Concurrent Dual Band Wireless N600 Gigabit Router
Chapter 2 Hardware
2.1 Panel Overview
Front Panel
Power LED: A solid light indicates a proper connection to the power supply
while a blinking light indicates system is functioning correctly.
WPS LED: A blinking light indicates router is performing WPS authentication
on a client device.
5G LED: A solid light indicates wireless is active while a blinking light indicates
router is transmitting data wirelessly over 5GHz.
2.4G LED: A solid light indicates wireless is active while a blinking light
indicates router is transmitting data wirelessly over 2.4 GHz.
LAN/1/2/3 LED: A solid light indicates corresponding LAN port is correctly
connected while a blinking light indicates such port is transmitting data.
IPTV LED: A solid light indicates corresponding IPTV port is correctly
connected while a blinking light indicates it is transmitting data.
WAN LED: A solid light indicates the WAN port is correctly connected while a
blinking light indicates it is transmitting data.
USB LED: A solid light indicates the USB port is correctly connected.
6
Concurrent Dual Band Wireless N600 Gigabit Router

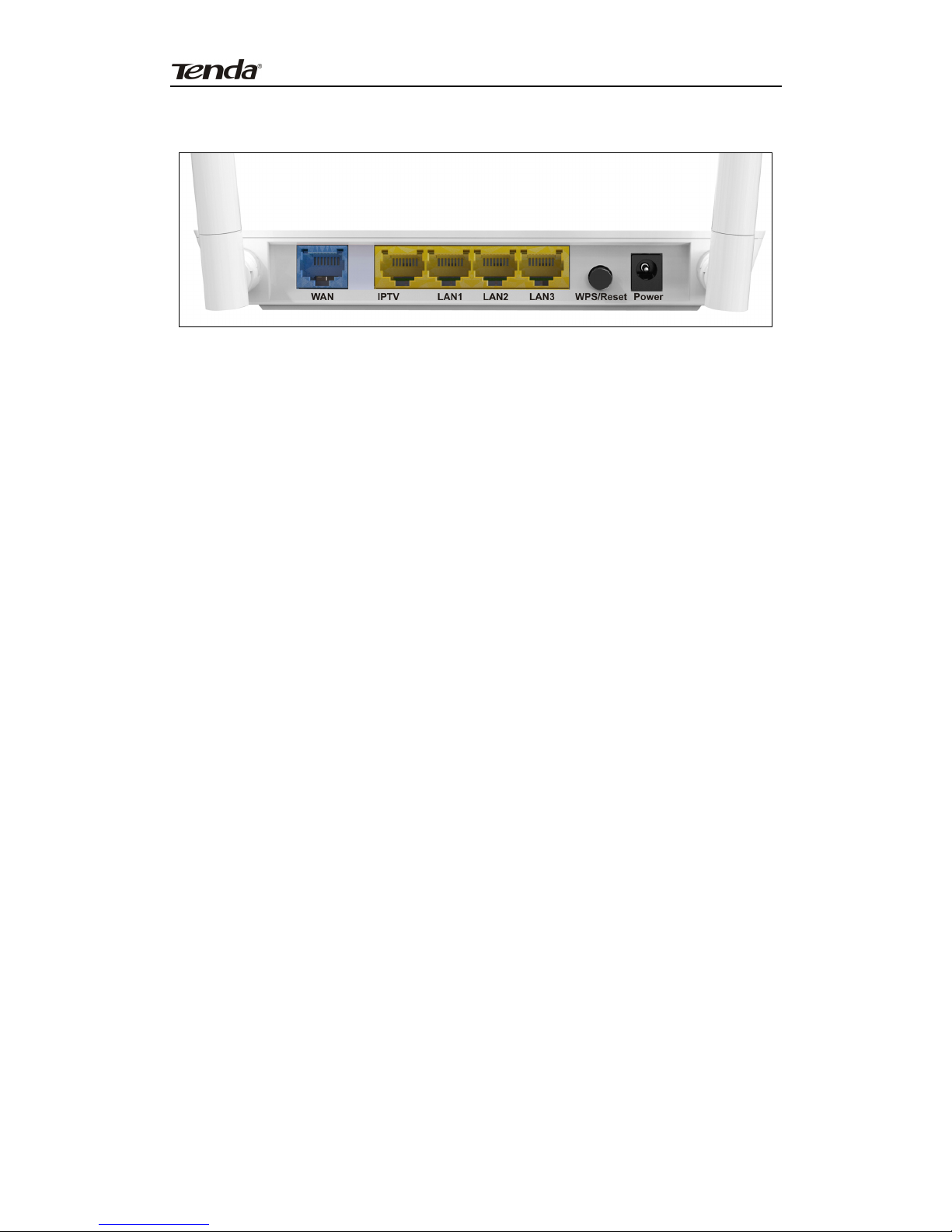

Back Panel
WAN: Internet port （RJ-45 ）for connection to an Internet-enabled xDSL
Modem/Cable Modem or existing Ethernet.
IPTV：IPTV port for connection to a network set-top box. However such port can
function as a LAN port if IPTV STB port is not enabled.
LAN/1/2/3: 3 LAN ports （RJ-45）for connection to PC’s NIC or uplink to a hub,
switch or wireless AP.
WPS/Reset: WPS button/Reset button: Pressing it for about 1 second enables WPS
encryption with a blinking WPS LED while Pressing it for about 7 seconds restores
the device to factory defaults.
2.2 Minimum System Requirements
Installed Network Adapter
Internet Explorer 5.0 or higher
Broadband Internet Service (through xDSL/Cable Modem/Ethernet)
2.3 Hardware Installation
1. Connect one end of the included power adapter to the router and then plug
the other end into a wall outlet nearby. (Using a power adapter with a different
voltage rating than the one included with the router will cause damage to the
product.)
7
Concurrent Dual Band Wireless N600 Gigabit Router
2.Connect one of the LAN ports on the Router to the NIC port on your PC using an
Ethernet cable.
3. Connect the Ethernet cable from Internet side to the WAN port on the Router.
8
Concurrent Dual Band Wireless N600 Gigabit Router
Chapter 3 Login to Web Utility
The device’s default IP is 192.168.0.1. You can change it to accommodate your own
needs. Here in this manual, we use the default IP.
Connect you PC to the router and config your PC’s TCP/IP settings following
instructions in appendix 1 hereto. And then do as follows to run a Ping command
to test connectivity between your PC and the router.
1. Select“Start”—“Run”and enter“cmd”. Then press “Enter”.
Enter “ping 192.168.0.1” and press “Enter”. If you see the following screen, it
means the router is reachable on your PC. If you don’t get the following screen,
verify router’s power supply, Ethernet cable connections and your PC’s TCP/IP
settings.
9
Concurrent Dual Band Wireless N600 Gigabit Router
Login to web utility

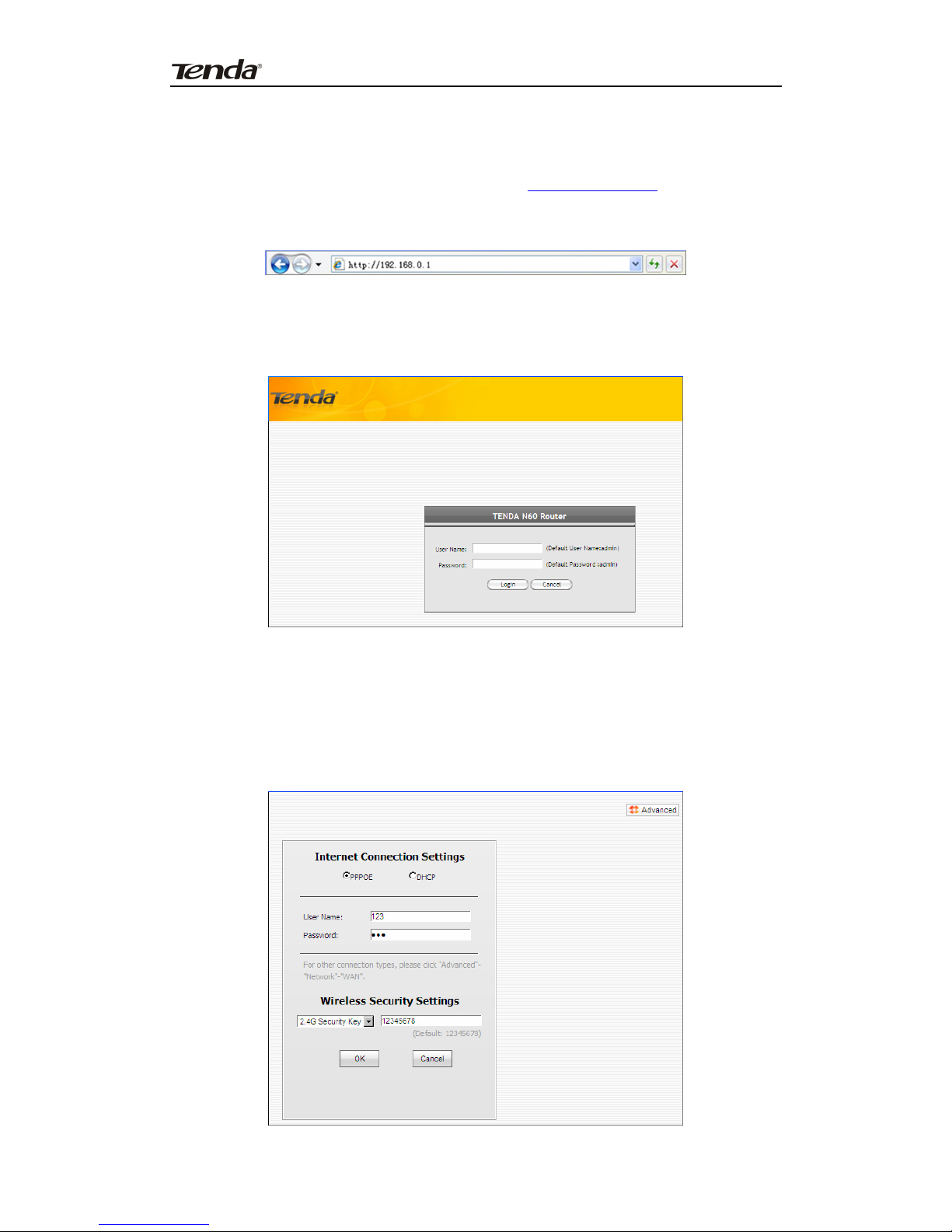

Launch a web browser on your PC and enter http://192.168.0.1 as below. Then
press“Enter”.
Enter user name and password in corresponding fields on window below (Default
user name and password are respectively set to admin).
Note:
For security purpose, please change the default user name and password after you
logged in to web utility.
You will see the following interface if you entered a correct user name and a correct
password.
10
