Tenda W311R+ Manuale utente

11N Wireless Broadband Router

is the registered trademark of Shenzhen

Tenda Technology Co., Ltd. All the products and product

names mentioned herein are the trademarks or

registered trademarks of their respective holders.

its accessories and software, belongs to Shenzhen Tenda

Technology Co., Ltd. Without the permission of Shenzhen

Tenda Technology Co., Ltd, any individual or party is not

allowed to copy, plagiarize, imitate or translate it into

other languages.

All the photos and product specifications mentioned in

this manual are for references only. As the upgrade of

software and hardware, there will be changes. And if

there are changes, Tenda is not responsible for informing

in advance. If you want to know more about our product

information, please visit our website at www.tenda.cn.

11N Wireless Broadband Router

Contents

CHAPTER 1 INTRODUCTION..........................................1

1.1PRODUCT FEATURES.......................... 2

1.2 PACKAGE CONTENTS ......................... 4

1.3 LED INDICATOR AND PORT DESCRIPTION ....... 4

CHAPTER 2 PRODUCT INSTALLATION........................7

2.1 HARDWARE INSTALLATION .................... 7

2.2 NETWORK APPLICATION PLAN ................. 9

CHAPTER 3 HOW TO LOGIN TO THE ROUTER.......10

3.1 HOW TO SET THE NETWORK CONFIGURATIONS .. 10

3.2 LOGIN TO THE ROUTER ...................... 13

CHAPTER 4 QUICK SETUP GUIDE..............................15

4.1 SETUP WIZARD ............................ 15

CHAPTER 5 ADVANCED SETTINGS............................19

5.1 LAN SETTINGS ............................ 19

5.2 WAN SETTINGS............................ 20

5.3 MAC ADDRESS CLONE ...................... 23

5.4 DNS SETTINGS ............................... 24

CHAPTER 6 WIRELESS SETTINGS .............................25

6.1 BASIC SETTINGS .............................. 25

6.2 WIRELESS SECURITY SETTINGS............... 27

6.3 ADVANCED SETTINGS ....................... 31

6.4 WPS SETTINGS ............................ 33

6.5 WDS SETTINGS............................ 35

11N Wireless Broadband Router

6.6 WIRELESS ACCESS CONTROL................. 37

6.7 CONNECTION STATUS ....................... 38

CHAPTER 7 DHCP SERVER............................................39

7.1 DHCP SETTINGS........................... 39

7.2 DHCP LIST AND BINDING ................... 40

CHAPTER 8 VIRTUAL SERVER .....................................41

8.1 PORT RANGE FORWARDING .................. 41

8.2 DMZ SETTINGS............................ 43

8.3 UPNP SETTINGS ........................... 43

CHAPTER 9 TRAFFIC CONTROL ..................................45

9.1 TRAFFIC CONTROL.......................... 45

CHAPTER 10 SECURITY SETTINGS............................47

10.1 CLIENT FILTER SETTINGS................... 47

10.2 URL FILTER SETTINGS ..................... 49

10.3 MAC ADDRESS FILTER ..................... 51

10.4 PREVENT NETWORK ATTACK................. 52

10.5 REMOTE WEB MANAGEMENT ................ 53

10.6 WAN PING............................... 54

CHAPTER 11 ROUTING SETTINGS.............................55

11.1 ROUTING TABLE........................... 55

CHAPTER 12 SYSTEM TOOLS.......................................56

12.1 TIME SETTINGS ........................... 56

12.2 DDNS .................................. 57

12.3 BACKUP/RESTORE SETTINGS................ 59

12.4 RESTORE TO FACTORY DEFAULT SETTING...... 61

11N Wireless Broadband Router

12.5 UPGRADE FIRMWARE....................... 62

12.6 REBOOT THE ROUTER ...................... 62

12.7 PASSWORD CHANGE ....................... 63

12.8 SYSLOG ................................. 64

12.9 LOGOUT ................................. 65

APPENDIX 1 GLOSSARY.................................................66

APPENDIX 2 QUESTIONS AND ANSWERS..............68

11NWirelessBroadbandRouter

Chapter 1 Introduction

Thank you for purchasing Tenda W311R/W311R+ 11N

Wireless Broadband Router!

W311R/W311R+ utilizes the latest IEEE802.11n

standard with its wireless transmitting distance up to 6

times and transmitting rate 3 times than wireless

G-products. It complies perfectly backwards with

802.11b/g standards and includes Router, Wireless AP,

4-port switch, and firewall in one. WMM enables you a

comfortable journey in audio and video streaming and

on-line games. It supports WDS (Wireless Distribution

System) function for repeating and amplifying the

signals to extend the wireless network coverage.

Besides, you can shut broadcast SSID manually. It

supports PBC and PIN encryption methods, IP

address/Port/MAC address/Website filtering to protect

your network against malicious attack.

It supports broadband control function to distribute

downloading rates for each member. “Setup Wizard”

was designed for less IT-savvy people to install the

device easily and share the Internet quickly.

11NWirelessBroadbandRouter

1.1 Product Features

zIncludes router, wireless access point,

four-port switch and firewall in one

z“Setup Wizard” enables you to connect

Internet without entering administration

interface

zComplies with the latest IEEE802.11n standard

and IEEE802.11 b/g standards

zIncreases 6 times coverage distance than

802.11g standard and reduces the dead spots

in the coverage area

zSupports transmitting rate 3 times than

wireless G-products

zSupports 64/128-bit WEP, WPA, WPA2,

WPA&WPA2 encryption methods

zSupports RTS/CTS protocol and data

partitioning function

zProvides one 10/100Mbps Auto-Negotiation

Ethernet WAN port

zProvides four 10/100Mbps Auto-Negotiation

Ethernet LAN ports

zSupports xDSL/Cable MODEM, static and

dynamic IP in community networking

zSupports MAC address/ IP address/ URL

filtering

11NWirelessBroadbandRouter

zSupports remote Web management and simple

Web upgrading method

zSupports wireless Roaming technology for

high-efficient wireless connections

zSupports SSID stealth mode and access control

based over MAC address (up to 30 entries)

zSupports Auto MDI/MDIX

zProvides syslog to record the status of the

router

zSupports auto negotiation/manual mode for

802.11b/802.11g

zSupports UPnP and DDNS

zSupports Firefox1.0, IE5.5 or above

zSupports LAN access control to the Internet

zSupports SNTP

zSupports virtual server, DMZ host

zSupports WDS wireless network extension

zSupports broadband control function

zDetachable antenna(only for W311R+)

11NWirelessBroadbandRouter

1.2 Package Contents

Please unpack the box and check the following items:

¾One W311R/W311R+ Wireless Broadband

Router

¾One Quick Installation Guide

¾One Power Adapter

¾One CD-ROM

¾One External Antenna(only for W311R+)

If any of listed items are missing or damaged, please

contact the Tenda reseller from whom you purchased

for replacement immediately.

1.3 LED Indicator and Port Description

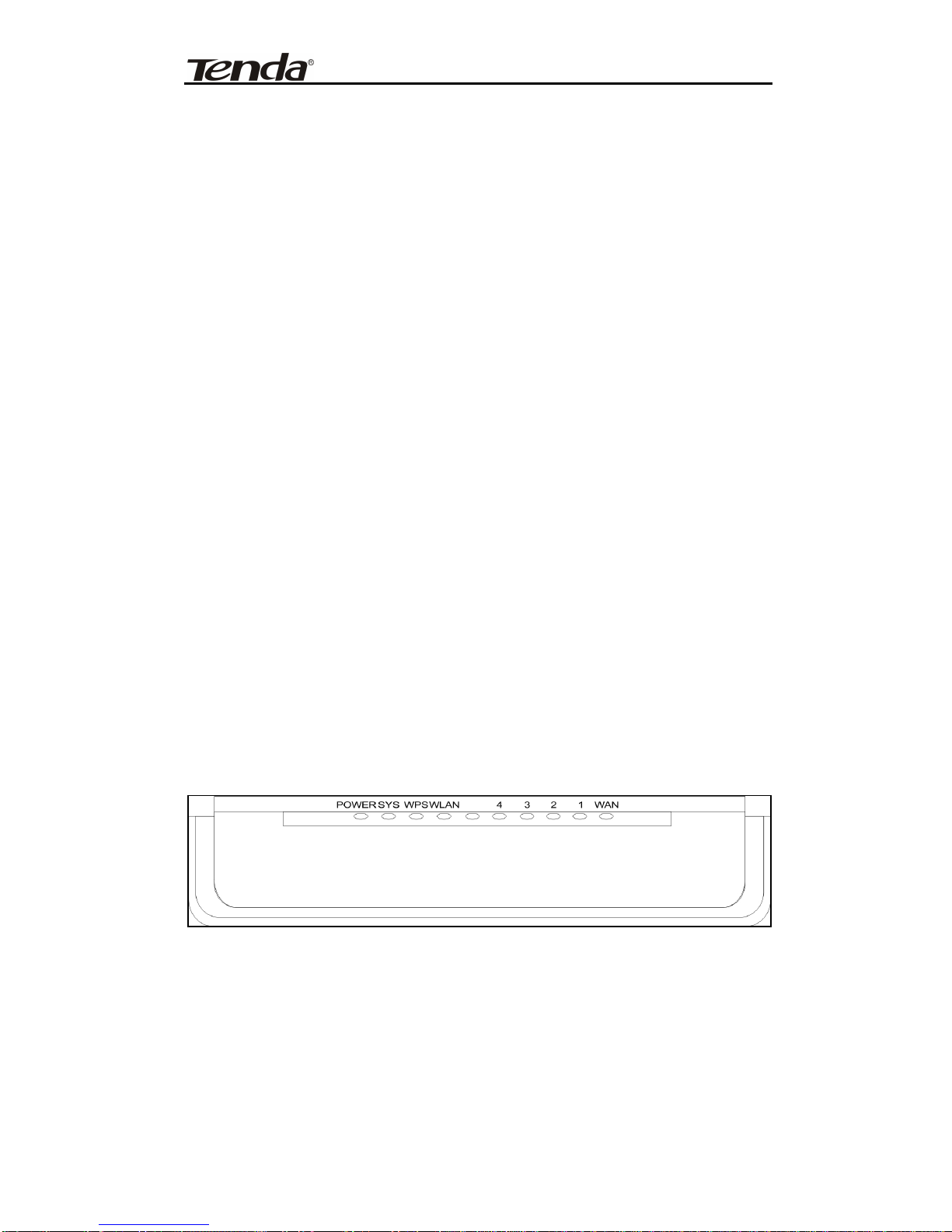

Front Panel and LED Indicator Show

LED indicator description on front panel :( from L to R)

¾POWER

When turns green, Always ON indicates the power

connects well.

11NWirelessBroadbandRouter

¾SYS

When turns green, blinking indicates the system

runs well.

¾WPS

When blinking, it indicates the device is negotiating

with client in WPS mode.

¾WLAN

Wireless signal LED indicator. When turns green,

blinking indicates the wireless function is enabled.

¾LAN (4,3,2,1)

Wired local network LED indicator. Always ON

indicates it is connected with Ethernet device;

blinking indicates the device is transmitting and/or

receiving data.

¾WAN

Wide area network indicator. Always ON indicates

it is connected with Ethernet device; blinking

indicates the device is transmitting and/or

receiving data.
