User's GuideSLOU179A – December 2005 – Revised May 2007

TPA3100D2 Rev.A Audio Power Amplifier EvaluationModule With LC Filter

Contents1 Introduction .......................................................................................... 22 Operation ............................................................................................ 33 TPA3100D2 Rev.A EVM Schematic ............................................................. 54 TPA3100D2 Rev.A EVM PCB Layers ........................................................... 65 TPA3100D2 Rev.A EVM Parts List .............................................................. 8

List of Figures

1 TI TPA3100D2 Rev.A Audio Power Amplifier EVM – Top View ............................. 22 TI TPA3100D2 Rev.A Audio Power Amplifier EVM – Bottom View .......................... 23 TPA3100D2 Rev.A EVM Schematic ............................................................. 54 TPA3100D2 Rev.A EVM – Top Layer ........................................................... 65 TPA3100D2 Rev.A EVM – Bottom Layer ....................................................... 7

List of Tables

1 Gain Settings ........................................................................................ 42 TPA3100D2 Rev.A EVM Parts List .............................................................. 8

SLOU179A – December 2005 – Revised May 2007 TPA3100D2 Rev.A Audio Power Amplifier Evaluation Module With LC Filter 1Submit Documentation Feedback

www.ti.com

1 Introduction

1.1 Description

Introduction

The TPA3100D2 Rev.A evaluation module consists of a single 20-W, class-D, stereo audio poweramplifier complete with a small number of external components mounted on a circuit board that can beused to directly drive a speaker with an external analog audio source as the input.

Figure 1. TI TPA3100D2 Rev.A Audio Power Amplifier EVM – Top View

Figure 2. TI TPA3100D2 Rev.A Audio Power Amplifier EVM – Bottom View

TPA3100D2 Rev.A Audio Power Amplifier Evaluation Module With LC Filter2 SLOU179A – December 2005 – Revised May 2007Submit Documentation Feedback

www.ti.com

1.2 TPA3100D2 Rev.A EVM Specifications

2 Operation

2.1 Quick Start List for Stand-Alone Operation

2.1.1 Power Supply

2.1.2 Evaluation Module Preparations

2.1.2.1 Inputs and Outputs

2.1.2.2 Control Inputs

Operation

Supply voltage range 10 V to 26 VI

Supply current 4 A maxP

Continuous output power per channel, 8 Ω, V

= 18 V, THD + N = 3.5% 20 WR

Minimum load impedance 3.2 Ω

Follow these steps to use the TPA3100D2 Rev.A EVM stand-alone or when connecting it into existingcircuits or equipment. Connections to the EVM module can be made using banana plugs for the powersupply and output connections. The inputs accept standard RCA plugs.

1. Ensure that all external power sources are set to OFF.2. Connect an external regulated power supply adjusted from 10 V to 26 V to the module V

(J7) andGND ( J8) banana jacks taking care to observe marked polarity.

1. If connecting to a fully differential input or a grounded input (the shield of the RCA jack is GND),remove jumpers J9 and J10 from the EVM board. These are located next to the input jacks J1 and J2.If connecting to a floating source, like a portable CD player, install J9 and J10. After setting the J9 andJ10 jumpers appropriately, connect the audio source to J1 (RIGHT) and J2 (LEFT).2. Connect a speaker across ROUT+ ( J6) and ROUT- ( J5). Connect another speaker across LOUT+ ( J3)and LOUT- ( J4).3. Install both gain jumpers GAIN0 ( J12) and GAIN1 ( J13). This sets the gain of the amplifier to thelowest level, 20 dB.4. Remove the jumper at MSTR/ SLV ( J14). If only one EVM is evaluated, it must be configured as themaster. If multiple EVMs are connected together using the SYNC output (TP2), the additional EVMsmust be configured in the slave mode by installing the J14 jumper.5. Remove the jumper ( J11). This places the device in a latched mode when a short-circuit event occurs.

1. SD: This terminal is active low. A low signal on the device terminal (< 0.8 V) shuts down the amplifier;a high signal (> 2 V) on the device terminal places the amplifier in the active state. Holding downswitch S1 places the amplifier in the SHUTDOWN state. Releasing S1 returns the amplifier to theactive state.2. MUTE: This terminal is active high. A high signal (> 2 V) on this terminal immediately terminates audioplayback through the speakers and the outputs stop switching; a low signal (< 0.8 V) enables thedevice. S2 on the EVM controls the state of the MUTE terminal. Holding down switch S2 places theamplifier in the MUTE state. Releasing S2 returns the amplifier to the active state.3. GAIN0/GAIN1: Together, these terminals determine the gain of the amplifier. Refer to Table 1 .Installing a jumper in J12 or J13 sets the respective terminal to GND. Removing the jumper sets therespective terminals to VREG (~4 V). Removing jumpers INCREASES the gain while installing jumpersDECREASES the gain. Logic levels are TTL compatible.4. MSTR/ SLV: This terminal is used with the SYNC ( TP2) output to synchronize the switchingfrequencies of multiple EVMs. For example, with 2 EVMs, one would be configured as the MASTER byremoving the J14 jumper. The other EVM would be configured as the SLAVE device by installing a

SLOU179A – December 2005 – Revised May 2007 TPA3100D2 Rev.A Audio Power Amplifier Evaluation Module With LC Filter 3Submit Documentation Feedback

www.ti.com

2.1.2.3 Control Outputs

2.1.3 Power Up

Operation

jumper in the J14 location. Logic levels are TTL compatible.

Table 1. Gain Settings

GAIN1 (J13)

(1)

GAIN0 (J12)

(1)

Amplifier Gain (dB)

ON ON 20ON OFF 26OFF ON 32OFF OFF 36

(1)

OFF = Jumper removed; ON = Jumper installed

1. FAULT: This pin is a TTL compatible output for reporting a short-circuit fault on the output. If theoutputs are shorted to GND, V

, or to each other, this terminal goes high and remains high until oneof the following operations is performed: power is cycled, SHUTDOWN is cycled, or MUTE is cycled. Ifjumper J11 is installed, the MUTE terminal is connected directly to the FAULT terminal and ashort-circuit fault is automatically cleared when it occurs.

1. Verify correct voltage and input polarity and turn the external power supplies on. The EVM shouldbegin operation.2. Adjust the input signal.3. Adjust the control inputs to the desired settings.4. If no sound is audible, check the position of the MSTR/ SLV ( J14) jumper. It should be removed ifevaluating a single EVM.5. Adjust the amplifier gain by installing/removing the gain jumpers, J12 and J13.

TPA3100D2 Rev.A Audio Power Amplifier Evaluation Module With LC Filter4 SLOU179A – December 2005 – Revised May 2007Submit Documentation Feedback

www.ti.com

3 TPA3100D2 Rev.A EVM Schematic

TPA3100D2

GAIN1

LINP

1.0mF

RINN

1.0mF

RINP

AGND

LINN

GAIN0

SYNC

MSTR/SLV

AVCC

FAULT

MUTE

SHUTDOWN

BSRP

ROUTP

ROUTN

BSRN

VCC

VREG

VBYP

AGND

BSLP

LOUTP

ROUTP

BSLN

ROSC

1mF

10nF

R6 100k

PVCCR

PGNDR

PVCCR

PGNDR

VCLAMPR

VCLAMPL

PVCCL

PGNDL

PVCCL

1mF

VCC

1mF

220mF

C20 10mF

C11

C12

C13

C14

RIN

LIN

J14

J13

J12

R3 100k

R5 100k

R4 100k

TP2

C10

GND

VCC

C18

C19

C22

C21

C16

C15

0.22mF0.22mF

C1 C2

C6 C7

1.0

LOUT+

LOUT-

0.22mF

L3 33mH

L4 33mH

1.0

ROUT-

ROUT+

VREG

TP1

FAULT

J11

VREG

VCC

R1 100k

R2 100k

C17

PGND AGND

Connected at PowerPad

and then to J8 with single

point connection.

1.0 nF

J10

C23

L1 33mH

L2 33mH

820

720

1.0 nF

C24

1.0 nF

C25

10 20

920

1.0 nF

C26

TPA3100D2 Rev.A EVM Schematic

Figure 3. TPA3100D2 Rev.A EVM Schematic

SLOU179A – December 2005 – Revised May 2007 TPA3100D2 Rev.A Audio Power Amplifier Evaluation Module With LC Filter 5Submit Documentation Feedback

www.ti.com

4 TPA3100D2 Rev.A EVM PCB Layers

TPA3100D2 Rev.A EVM PCB Layers

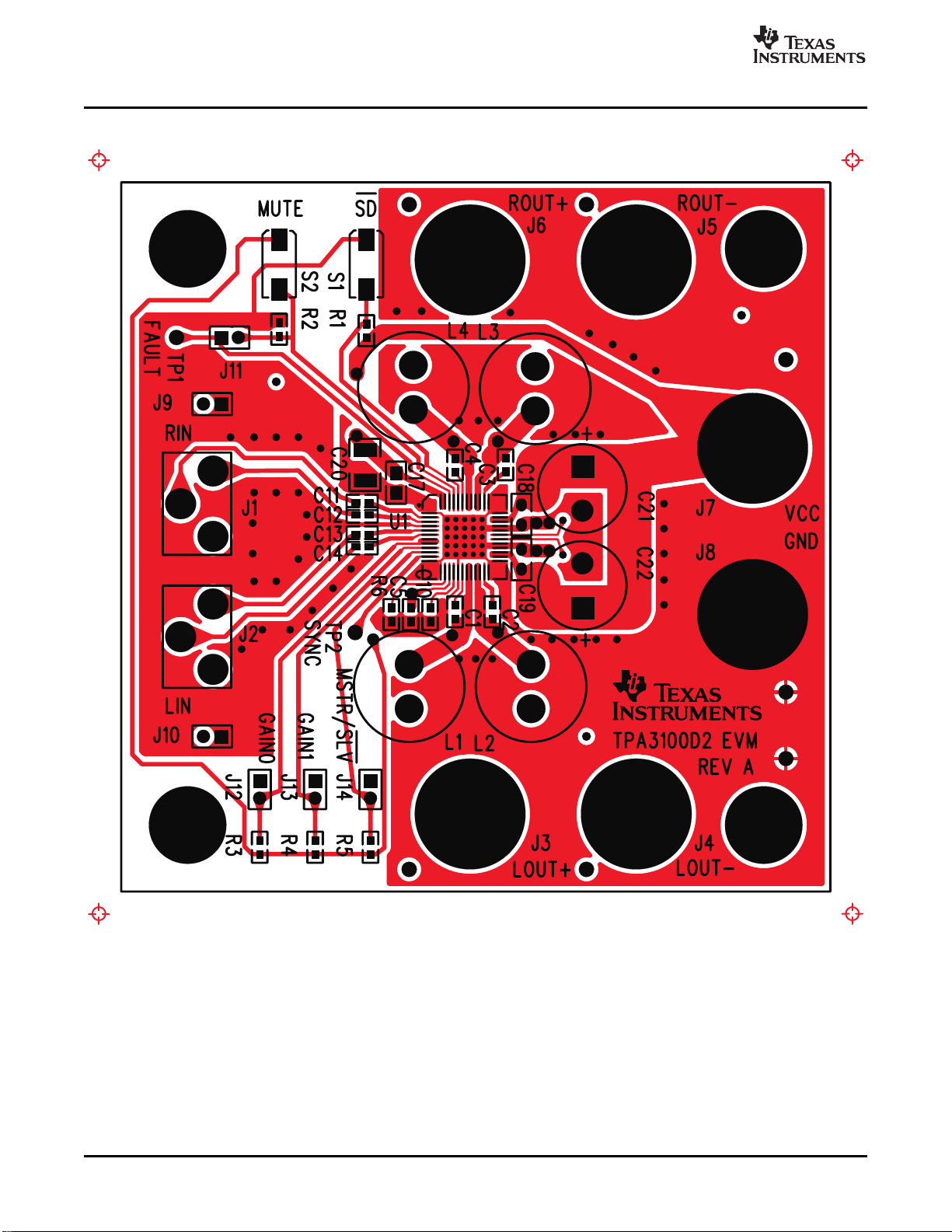

Figure 4. TPA3100D2 Rev.A EVM – Top Layer

6TPA3100D2 Rev.A Audio Power Amplifier Evaluation Module With LC Filter SLOU179A – December 2005 – Revised May 2007Submit Documentation Feedback

www.ti.com

TPA3100D2 Rev.A EVM PCB Layers

Figure 5. TPA3100D2 Rev.A EVM – Bottom Layer

SLOU179A – December 2005 – Revised May 2007 TPA3100D2 Rev.A Audio Power Amplifier Evaluation Module With LC Filter 7Submit Documentation Feedback

www.ti.com

5 TPA3100D2 Rev.A EVM Parts List

TPA3100D2 Rev.A EVM Parts List

Table 2. TPA3100D2 Rev.A EVM Parts ListRef. Description Size Qty Mfg Part # Vendor #

C1 – C4 Capacitor, ceramic, 0.22- µF, ±10%, X7R, 16-V 0603 4 TDK C1608X7R1C224KT Digi-key/445-1318-2

C5 Capacitor, ceramic, 0.01- µF, ±10%, X7R, 50-V 0603 1 TDK C1608X7R1H103KT Digi-key/445-1311-2

C6 – C9 Capacitor, ceramic, 1.0- µF, ±10%, X7R, 50-V 1206 4 Murata GRM31CR71H105KA61L Digi-key/490-3908-1-ND

C10 – C14 Capacitor, ceramic, 1.0- µF, ±10%, X5R, 10-V 0603 5 TDK C1608X5R1A105KT Digi-key/445-1321-2

C17 – C19 Capacitor, ceramic, 1.0- µF, +80%/–20%, Y5V, 50-V 0805 3 TDK C2012Y5V1H105Z Digi-key/445-1364-2

C15, C16 Capacitor, ceramic, 1.0- µF, +80%/–20%, Y5V, 16-V 0805 2 TDK C2012Y5V1C105Z Digi-key/445-1367-2

C20 Capacitor, ceramic, 10- µF, +80%/–20%, Y5V, 50-V 1210 1 Murata GRM32DF51H106ZA01L Digi-key/490-1891-2

C21, C22 Capacitor, electrolytic, 220- µF, low impedance Radial 2 Panasonic EEU-FC1V221 Digi-key/P10297

L1– L4 Inductor, 33- µH, radial lead, ferrite material, shielded Radial 4 Toko A7503AY-330M

C23 – C26 Capacitor, ceramic, 1.0-nF, ±5%, COG, 50-V 0603 4 Panasonic ECJ-1VC1H102J Digi-Key/PCC2151TR-ND

R1 – R6 Resistor, chip, 100 k Ω, 1/16 W, 5% 0603 6 Panasonic ERJ-3GEYJ104V Digi-Key/P100KGTR-ND

R7 – R10 Resistor, chip, 20 k Ω, 1/4 W, 5% 1206 4 Panasonic ERJ-8GEYJ200V Digi-Key/P20ETR-ND

J1, J2 Phono jack, PC mount, switched , red 2 Switchcraft PJRAN1X1U03 Newark/16C1860

J3 – J8 Banana jack w/knurled thumbnut (nickel plate) 6 Johnson 111-2223-001 Digi-Key/J587

J9 – J14 Header, 2 position, male 2 mm 6 Norcomp 2163-36-01-P2 Digi-Key / 2163S-36

J9 – Shunt, 2 mm 2 mm 6 FCI 86730-101J14(shunts) Electronics

TP1, TP2 Test points, 0.040" mounting hole 1 Vero 20-313137

S1, S2 Switch, momentary, SMD, low profile 2 Panasonic EVQ-PPBA25 Digi-Key/P8086S

MH1 – MH4 Standoffs, 4-40 thread,5/8" length 4 Keystone 1808 (Newark) 89F1934

MH5 – MH8 Screws, 4-40 Phillips, 3/8" 4 (Digi-Key) H781-ND

U1 TPA3100D2PHP 48-pin QFN 1 TI TPA3100D2PHP

TPA3100D2 Rev.A Audio Power Amplifier Evaluation Module With LC Filter8 SLOU179A – December 2005 – Revised May 2007Submit Documentation Feedback

FCC Warning

This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATIONPURPOSES ONLY and is not considered by TI to be a finished end-product fit for general customer use. It generates, uses, andcan radiate radio frequency energy and has not been tested for compliance with the limits of computing devices pursuant to part 15of FCC rules, which are designed to provide reasonable protection against radio frequency interference. Operation of thisequipment in other environments may cause interference with radio communications, in which case the user at his own expensewill be required to take whatever measures may be required to correct this interference.

EVM TERMS AND CONDITIONS

Texas Instruments (TI) provides the enclosed Evaluation Module and related material (EVM) to you, the user, (you or user)SUBJECT TO the terms and conditions set forth below. By accepting and using the EVM, you are indicating that you have read,understand and agree to be bound by these terms and conditions. IF YOU DO NOT AGREE TO BE BOUND BY THESE TERMSAND CONDITIONS, YOU MUST RETURN THE EVM AND NOT USE IT.This EVM is provided to you by TI and is intended for your INTERNAL ENGINEERING DEVELOPMENT OR EVALUATIONPURPOSES ONLY. It is provided “AS IS” and “WITH ALL FAULTS.” It is not considered by TI to be fit for commercial use. Assuch, the EVM may be incomplete in terms of required design-, marketing-, and/or manufacturing-related protective considerations,including product safety measures typically found in the end product. As a prototype, the EVM does not fall within the scope of theEuropean Union directive on electromagnetic compatibility and therefore may not meet the technical requirements of the directive.Should this EVM not meet the specifications indicated in the EVM User’s Guide, it may be returned within 30 days from the date ofdelivery for a full refund of any amount paid by user for the EVM, which user agrees shall be user’s sole and exclusive remedy.THE FOREGOING WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY TI TO USER, AND IS IN LIEU OF ALL OTHERWARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESSFOR ANY PARTICULAR PURPOSE OR NON-INFRINGEMENT.TI shall have no obligation to defend any claim arising from the EVM, including but not limited to claims that the EVM infringes thirdparty intellectual property. Further, TI shall have no liability to user for any costs, losses or damages resulting from any suchclaims. User shall indemnify and hold TI harmless against any damages, liabilities or costs resulting from any claim, suit orproceeding arising from user’s handling or use of the EVM, including but not limited to, (i) claims that the EVM infringes a thirdparty’s intellectual property, and (ii) claims arising from the user’s use or handling of the EVM. TI shall have no responsibility todefend any such claim, suit or proceeding.User assumes all responsibility and liability for proper and safe handling and use of the EVM and the evaluation of the EVM. TIshall have no liability for any costs, losses or damages resulting from the use or handling of the EVM. User acknowledges that theEVM may not be regulatory compliant or agency certified (FCC, UL, CE, etc.). Due to the open construction of the EVM it is theuser’s responsibility to take any and all appropriate precautions with regard to electrostatic discharge.EXCEPT TO THE EXTENT OF THE USER’S INDEMNITY OBLIGATIONS SET FORTH ABOVE, NEITHER PARTY SHALL BELIABLE TO THE OTHER FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES WHETHER TI ISNOTIFIED OF THE POSSIBILITY OR NOT.TI currently deals with a variety of customers for products, and therefore our arrangement with the user is not exclusive.TI assumes no liability for applications assistance, customer product design, software performance, or infringement ofpatents or services described herein.

User agrees to read the EVM User’s Guide and, specifically, the EVM warnings and Restrictions notice in the EVM User’s Guideprior to handling the EVM and the product. This notice contains important safety information about temperatures and voltages.It is user’s responsibility to ensure that persons handling the EVM and the product have electronics training and observe goodlaboratory practice standards.By providing user with this EVM, product and services, TI is NOT granting user any license in any patent or other intellectualproperty right.

EVM WARNINGS AND RESTRICTIONS

It is important to operate this EVM within the supply voltage range of –0.3 V to 30 V and input voltage range of –0.3 V to 4.5 V.Exceeding the specified input range may cause unexpected operation and/or irreversible damage to the EVM. If there arequestions concerning the input range, please contact a TI field representative prior to connecting the input power.Applying loads outside of the specified output range may result in unintended operation and/or possible permanent damage to theEVM. Please consult the EVM User's Guide prior to connecting any load to the EVM output. If there is uncertainty as to the loadspecification, please contact a TI field representative.

EVM WARNINGS AND RESTRICTIONS (continued)

During normal operation, some circuit components may have case temperatures greater than 85 °C. The EVM is designed tooperate properly with certain components above 85 °C as long as the input and output ranges are maintained. These componentsinclude but are not limited to linear regulators, switching transistors, pass transistors, and current sense resistors. These types ofdevices can be identified using the EVM schematic located in the EVM User's Guide. When placing measurement probes nearthese devices during operation, please be aware that these devices may be very warm to the touch.

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265Copyright 2005, Texas Instruments Incorporated
