TI-Nspire™ Data Collection

and Analysis Guidebook

This guidebook applies to TI-Nspire™ software version 3.1. To obtain the

latest version of the documentation, go to education.ti.com/guides.

Important Information

Except as otherwise expressly stated in the License that accompanies a

program, Texas Instruments makes no warranty, either express or

implied, including but not limited to any implied warranties of

merchantability and fitness for a particular purpose, regarding any

programs or book materials and makes such materials available solely on

an "as-is" basis. In no event shall Texas Instruments be liable to anyone

for special, collateral, incidental, or consequential damages in connection

with or arising out of the purchase or use of these materials, and the sole

and exclusive liability of Texas Instruments, regardless of the form of

action, shall not exceed the amount set forth in the license for the

program. Moreover, Texas Instruments shall not be liable for any claim of

any kind whatsoever against the use of these materials by any other

party.

FCC Statement

Note: This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Modifications not expressly approved by the manufacturer could void the

user’s authority to operate the equipment under FCC rules.

Mac® and DataQuest™ are trademarks of their respective owners.

Contents

iii

Important Information................................................................... ii

Getting Started .......................................................................1

About Vernier DataQuest™........................................................... 1

Exploring the Screens..................................................................... 2

Learning about Collection Devices................................................ 5

Performing an Experiment.....................................................9

Starting a Document ...................................................................... 9

Connecting Sensors ...................................................................... 10

Modifying Sensor Settings ........................................................... 10

Setting the Collection Mode........................................................ 12

Collecting Data ............................................................................. 16

Storing a Data Set ........................................................................ 21

Saving an Experiment .................................................................. 21

Working in the Graph View ..................................................23

Displaying Graphs......................................................................... 23

Customizing the Graph ................................................................ 28

Analyzing the Data in Table View ........................................41

Defining Column Options ............................................................ 41

Creating a New Data Set.............................................................. 42

Changing a Data Set Name.......................................................... 42

Adding a New Column................................................................. 43

Adding a New Calculated Column .............................................. 45

Striking and Restoring Data ........................................................ 47

Analyzing Data in Graph View .............................................51

Viewing Data for Analysis............................................................ 51

Interpolating the Value Between Two Data Points.................... 53

Finding the Slope ......................................................................... 53

Finding the Area Under a Data Plot............................................ 54

Removing Analysis Options ......................................................... 60

Using Advanced Data Collection Options ...........................63

Setting Up Offline Sensors........................................................... 63

Setting Up a Remote Collection Unit .......................................... 64

Setting Up the Sensor for Triggering .......................................... 65

Using the Manual Trigger to Start the Collection ...................... 67

Using a Delay to Start the Collection .......................................... 68

Retrieving Remote Data ............................................................... 70

Working with Advanced Analysis Features ........................ 71

Replaying the Data Collection .....................................................71

Adjusting Derivative Settings....................................................... 73

Drawing and Clearing a Predictive Plot ......................................74

Using Motion Match..................................................................... 75

Printing Data ........................................................................ 77

Selecting Print All Options ........................................................... 77

Printing Data Views ...................................................................... 77

Using the Sensors and Data with Other Applications........ 79

Collecting Data in Other Applications......................................... 79

Opening the Sensor Console Application Menus ....................... 80

Viewing Existing Data ..................................................................81

Analyzing Data in the Data & Statistics Application ..................83

Compatible Sensors ............................................................. 85

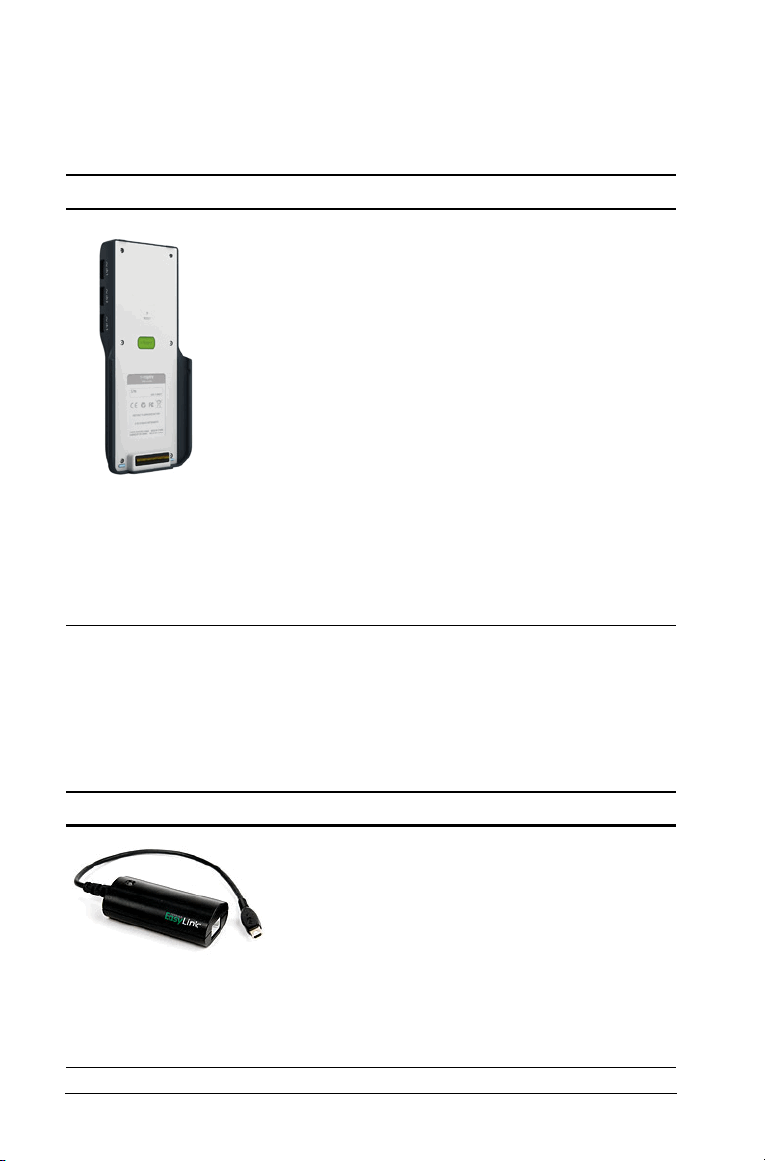

TI-Nspire™ Lab Cradle .......................................................... 89

Exploring the Lab Cradle.............................................................. 90

Setting up the Lab Cradle for Data Collection............................ 91

Using the Lab Cradle ....................................................................91

Learning About the Lab Cradle ...................................................92

Viewing Data Collection Status ................................................... 94

Managing Power .......................................................................... 95

Charging the Lab Cradle ..............................................................97

Upgrading the Operating System................................................98

Appendix: Service and Support ......................................... 103

Texas Instruments Support and Service .....................................103

Service and Warranty Information ............................................ 103

Precautions for Rechargeable Batteries .................................... 104

Index ................................................................................... 105

Getting Started 1

Getting Started

The Vernier DataQuest™ application is built into the TI-Nspire™ software

and the operating system (OS) for handhelds. Use the Vernier

DataQuest™ application to collect, view, and analyze data.

To use the Vernier DataQuest™ application, the TI-Nspire™ handheld OS

must be 3.0 or higher. To update the OS, go to education.ti.com.

About Vernier DataQuest™

• Run the application on either a TI-Nspire™ handheld or a Windows™

or Mac™ computer.

• Choose from multiple sensor interfaces and sensors, such as the

TI-Nspire™ Lab Cradle, to collect data.

• Collect data with up to five connected sensors (three analog and two

digital) using the TI-Nspire™ Lab Cradle. For a complete list of

compatible sensors, see Compatible Sensors.

Important: The TI-Nspire™ CM-C Handheld is not compatible with

the Lab Cradle and only supports the use of a single sensor at a time.

• Collect data either in the classroom or at remote locations using

collection modes such as time-based or event-based.

• Select and focus on a subset of collected data.

• Collect several data runs for comparison.

• Create a graphical hypothesis using the Draw Prediction feature.

• Play back the data set to compare the outcome to the hypothesis.

• Analyze data using functions such as interpolation, tangential rate, or

modeling.

• Display results in a graph or a table.

• Customize the way results are displayed.

• Link the data to other TI-Nspire™ applications.

Using Vernier DataQuest™ Data in Other TI-Nspire™

Applications

Data obtained during a data collection run is written to the graph and

table views in the Vernier DataQuest™ application and can be used in

these TI-Nspire™ applications:

•Calculator

•Graph

2 Getting Started

• Geometry

• Lists& Spreadsheet

• Data & Statistics

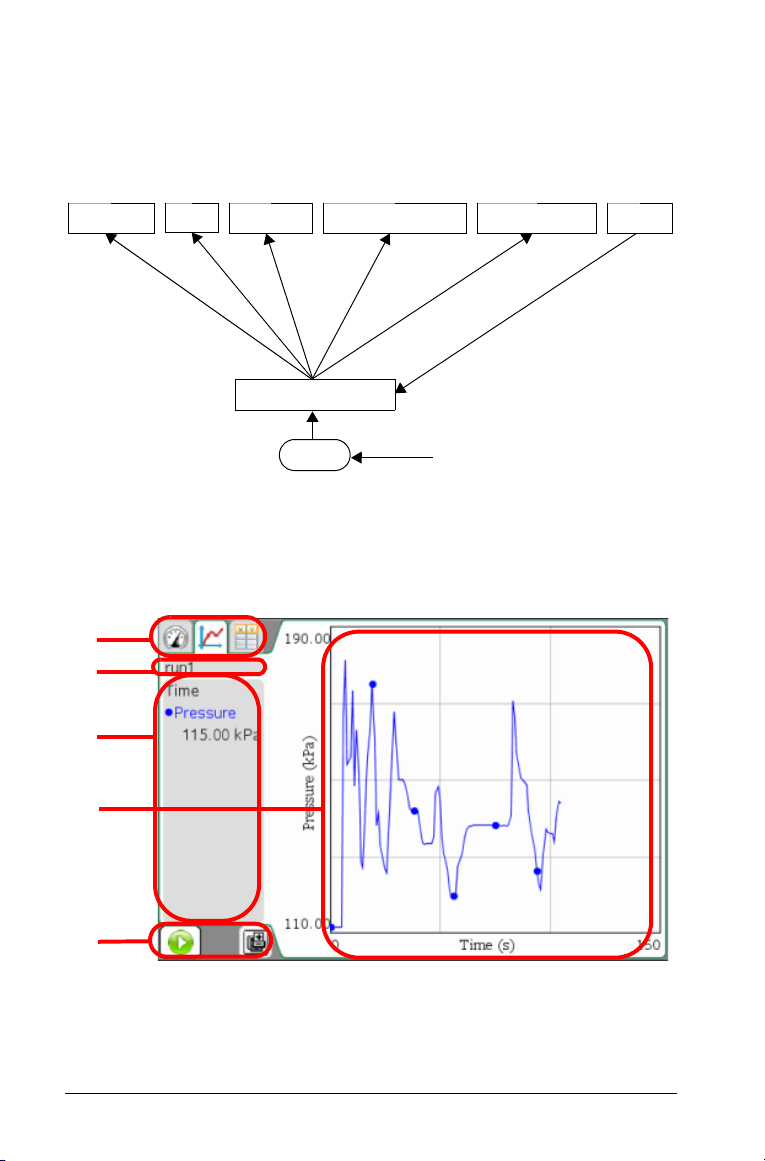

This graphic shows how data can be shared among the applications.

Exploring the Screens

The Vernier DataQuest™ application screen is identical in the handheld

and the TI-Nspire™ software. The following graphic shows the

application screen.

Lists & Spreadsheet Data & Statistics

Vernier DataQuest™

Sensor Data in

Calculator Graphs Geometry Notes

Insert a Notes page to add

notes about a data set,

experiment, and so on.

Getting Started 3

Learning About Menus

Like other TI-Nspire™ applications, the Vernier DataQuest™ application

has its own application and context menus.

When you first open a document or problem, insert the Vernier

DataQuest™ application to open the application menu.

Click Insert > Vernier DataQuest.

The Vernier DataQuest™ application opens with the Meter view

active and the application menu open.

Important! If you connect a sensor before starting the Vernier

DataQuest™ application, the connected sensor automatically

launches the Vernier DataQuest™ application screen.

ÀVernier DataQuest™ application view tabs. The

application provides three views:

•Meter. Displays the list of sensors connected or set up to

use offline.

•Graph. Displays collected data in a graphical

representation, or displays the prediction before a data

collection run.

•Table. Displays collected data in columns and rows.

ÁData Set selection tool. This tool is displayed in the Graph

view only and lets you choose which data set to graph.

ÂView Details area. This area contains information about the

data appropriate for the current view.

ÃData work area. The primary display of the data. The type

of data displayed depends on the view.

ÄData collection controls. Use these buttons to start and

stop collections, store data sets, and capture data points.

4 Getting Started

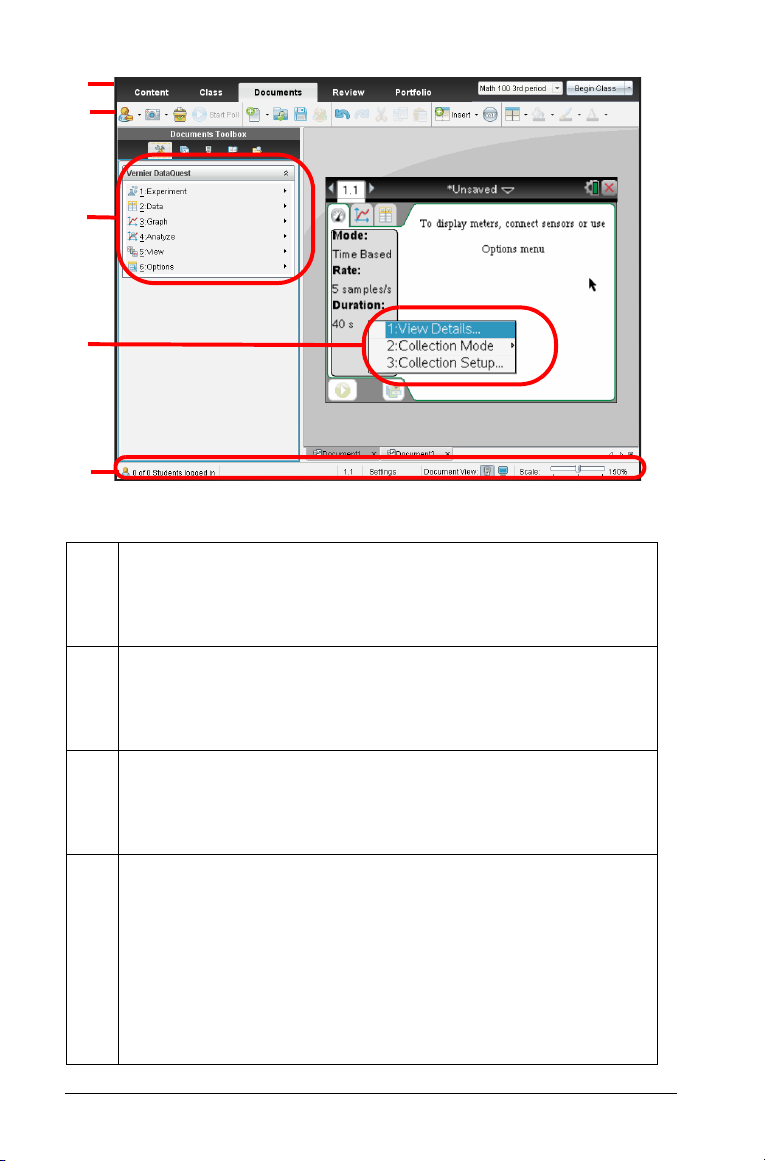

ÀWorkspace Selector. In the TI-Nspire™ Teacher Software,

click these tabs to switch from the Content Workspace to the

Documents Workspace. These tabs are not shown in the

student software.

ÁToolbar. Contains shortcuts to tools used to create folders,

save files, create lesson bundles, send files to handhelds, and

copy/paste. Options available from the toolbar change

depending on which workspace is open.

ÂApplication menu. Contains commands specific to the

Vernier DataQuest™ application. Use these commands to

collect and analyze data, set up sensors, view data in a graph

or table, and so on.

ÃContext menu. Provides access to the tools most commonly

used with the selected objects. Different options can appear

on the context menu depending on the active object or the

task you are performing.

Open the context menu by right-clicking an object or a work

area.

Handheld: Move the cursor to the desired object, and then

press /b.

Getting Started 5

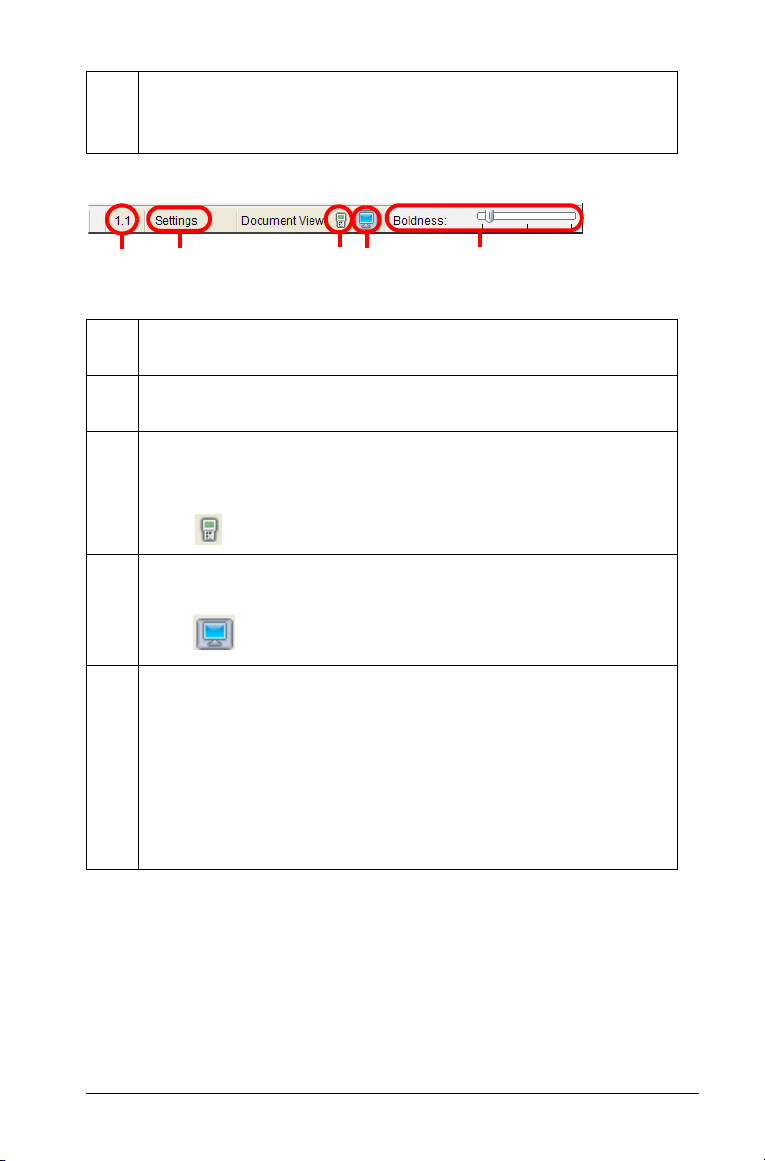

Exploring the Status Bar

Learning about Collection Devices

You can select from a variety of sensors and interfaces to collect data

while running the Vernier DataQuest™ application with TI-Nspire™

software.

ÄStatus bar. Provides information about the active document

and allows you to switch between the handheld view and the

computer view.

ÀProblem and page number. Displays the current page

number and problem number in an active document.

ÁSettings. Displays the current settings. Click here to change

General or Graphs & Geometry settings.

ÂHandheld: Lets you view documents as they appear on a

handheld screen. The screen size is limited as it would be on

the handheld.

Click to activate the handheld view.

ÃComputer: Lets you view documents as they appear in the

software. Computer is the default view in the software.

Click to activate the computer view.

ÄScale. A slider that lets you manage contrast (computer) or

the size of the document (handheld).

• Used in the computer view to make the lines lighter or

darker. Slide left to decrease the boldness. Slide right to

increase the boldness.

• Used in the handheld view to change the size of the

document and work area. Slide left to make the document

smaller. Slide right to make the document larger.

ÀÁ ÂÃÄ

6 Getting Started

Multi-Channel Sensor Interfaces

Multi-channel sensor interfaces let you connect more than one sensor at

a time.

Single-Channel Sensor Interfaces

Single-channel sensor interfaces can only connect to one sensor at a time.

These sensors have either a mini-USB connector for use with a handheld

or a standard USB connector for use with a computer. For a complete list

of compatible sensors, see Compatible Sensors.

Sensor Interface Description

Texas Instruments

TI-Nspire™ Lab Cradle

This sensor is used with handhelds,

computers, or as a stand-alone sensor.

This sensor interface allows you to connect

and use one to five sensors at the same time.

It can be used in the lab or at a remote

collection location.

The Lab Cradle supports two digital sensors

and three analog sensors.

The Lab Cradle also supports high-sample

data collection sensors, such as a hand-grip

heart rate monitor or a blood pressure

monitor.

When used as a remote sensor, you can

download data to either a handheld or a

computer.

For more information, see the TI-Nspire™

Lab Cradle Guidebook.

Sensor Interface Description

Vernier EasyLink®

This sensor interface is used with

handhelds. It has a mini-USB connector

so it can be plugged directly into the

handheld.

Connect sensors to Vernier EasyLink® to:

• Measure barometric pressure.

• Measure the salinity of a solution.

• Investigate the relationship between

pressure and volume (Boyles’ Law).

Altri manuali per TI-Nspire

Indice

Altri manuali Texas Instruments Calcolatrice

Texas Instruments

Texas Instruments TI-5630 Manuale

Texas Instruments

Texas Instruments TI-95 Manuale utente

Texas Instruments

Texas Instruments Titanium TI-89 Guida rapida

Texas Instruments

Texas Instruments TI-60 Manuale utente

Texas Instruments

Texas Instruments TI36X - Solar Scientific Calculator Manuale utente

Texas Instruments

Texas Instruments Titanium TI-89 Manuale utente

Texas Instruments

Texas Instruments TI-73 Explorer Guida rapida

Texas Instruments

Texas Instruments TI-82 STATS Manuale utente

Texas Instruments

Texas Instruments TI-81 Manuale

Texas Instruments

Texas Instruments TI-84 - Plus - Edition Graphing Calculator Manuale

Texas Instruments

Texas Instruments TI-83 - Plus Graphing Calculator Guida rapida

Texas Instruments

Texas Instruments TI-34 - MultiView Scientific Calculator Manuale utente

Texas Instruments

Texas Instruments TI-10 Manuale utente

Texas Instruments

Texas Instruments Tl-84 Plus CE Manuale utente

Texas Instruments

Texas Instruments TI-84 - Plus - Edition Graphing Calculator Manuale utente

Texas Instruments

Texas Instruments TI-Nspire Manuale utente

Texas Instruments

Texas Instruments Voyage 200 Manuale utente

Texas Instruments

Texas Instruments TI-92 Manuale di istruzioni

Texas Instruments

Texas Instruments Titanium TI-89 Manuale utente

Texas Instruments

Texas Instruments Solar Little Professor Manuale utente

Texas Instruments

Texas Instruments TI-83-Plus Istruzioni per il montaggio

Texas Instruments

Texas Instruments TI-73 Explorer Guida rapida

Texas Instruments

Texas Instruments TI-83 - Plus Graphing Calculator Manuale utente

Texas Instruments

Texas Instruments CBL Manuale utente

Manuali Calcolatrice popolari di altre marche

HP 35s Manuale

Casio

Casio CFX-9970G Manuale utente

LEXIBOOK

LEXIBOOK EL350 Manuale utente

HP HP-97 Manuale utente

Citizen

Citizen SDC-414N Manuale utente

Casio

Casio fx-3800P Manuale utente

Canon

Canon P26-DHIII Manuale utente

Citizen

Citizen 520DPA Manuale utente

Sharp

Sharp EL-9900 Manuale utente

Casio

Casio FX-9860GII - SOFTWARE VERSION 2-00 Manuale utente

Casio

Casio MS-7UC Manuale utente

Sharp

Sharp WriteView EL-W506 Manuale tecnico

Casio

Casio FC-200 Manuale utente

Casio

Casio fx-CG50 Manuale utente

HP HP-67 Guida utente

Royal

Royal CBC2000 Manuale utente

Heathkit

Heathkit IC-2009 Manuale utente

Universal

Universal UNV-15907 Manuale utente
