Texas Instruments AFE20408EVM Manuale utente
EVM User's Guide: AFE20408EVM
AFE20408 Evaluation Module
Description
The AFE20408EVM is an easy-to-use platform to
evaluate the functionality and performance of the
AFE20408 device. The AFE20408EVM has optional
circuits and jumpers to configure the device for
different applications.
The AFE20408 is a highly integrated power-amplifier
monitor and control device capable of temperature,
current, and voltage supervision. The AFE20408 bias
controller features eight digital-to-analog converters
(DAC) with programmable output ranges. The eight
gate bias outputs are switched on and off through
dedicated control pins.
Get Started
1. Order the EVM.
2. Configure EVM jumpers.
3. Install AFE20408EVM GUI from ti.com.
4. Download the latest libraries.
5. Connect USB and external power supplies.
6. Launch AFE20408EVM GUI.
Features
• Configurable circuit to evaluate the AFE20408
• Onboard VDD (5-V) and VIO (3.3-V) support via
USB
• Onboard VSSA and VSSB (−10.5-V or −7-V)
support
• FT4222 easily writes to the AFE using
AFE20408EVM GUI
• External SPI and I2C connections available
Applications
•Macro remote radio unit (RRU)
•Active antenna system mMIMO (AAS)
•Outdoor backhaul unit
•Radar
www.ti.com Description
SLAU917 – OCTOBER 2023
Submit Document Feedback
AFE20408 Evaluation Module 1
Copyright © 2023 Texas Instruments Incorporated
1 Evaluation Module Overview
1.1 Introduction
The AFE20408 supervisor also features a highly-accurate multi-channel analog-to-digital converter (ADC). The
device integrates two high-voltage inputs, two high-side current-sense amplifiers, and an on-chip temperature
sensor.
The function integration and wide operating temperature range make the AFE20408 an excellent choice for an
all-in-one, bias control circuit for the power amplifiers found in RF communication systems.
This user's guide describes the characteristics, operation, and recommended use cases of the AFE20408EVM.
This document provides examples and instructions on how to use the AFE20408EVM board and included
software. Throughout this document, the terms evaluation board, evaluation module, and EVM are synonymous
with the AFE20408EVM. This document also includes schematics, the reference printed circuit board (PCB)
layouts, and a complete bill of materials (BOM).
1.2 Kit Contents
Table 1-1 details the contents of the EVM kit. Contact the TI Product Information Center at (972) 644-5580 if any
component is missing. Download the latest versions of the related software on the TI website, www.ti.com.
Table 1-1. AFE20408EVM Kit Contents
Item Quantity
AFE20408EVM board 1
USB micro-B plug to USB-A plug cable 1
1.3 Specification
The EVM is intended to provide basic functional evaluation of the device. The layout is not intended to be a
model for the target circuit, nor laid out for electromagnetic compatibility (EMC) testing. The EVM consists of a
printed-circuit board (PCB), which has the AFE20408 installed.
1.4 Device Information
The documents in Table 1-2 provide information regarding Texas Instruments integrated circuits used in the
assembly of the AFE20408EVM. This user's guide is available from the TI web site under literature number
SLAU917. Any letter appended to the literature number corresponds to the document revision that is current at
the time of the writing of this document. Newer revisions are available from the TI web site at www.ti.com, or call
the Texas Instruments Literature Response Center at (800) 477-8924 or the Product Information Center at (972)
644-5580. When ordering, identify the document by both title and literature number.
Table 1-2. Related Device Documentation
Document Literature Number
AFE20408 product data sheet SLASF96
Evaluation Module Overview www.ti.com
2AFE20408 Evaluation Module SLAU917 – OCTOBER 2023
Submit Document Feedback
Copyright © 2023 Texas Instruments Incorporated
2 Hardware
2.1 Hardware Setup
This section describes the overall system setup for the EVM. A personal computer (PC) runs software that
communicates with the FTDI controller onboard using I2C or SPI protocols. External power supplies are required
for certain EVM inputs, such as the VCCA and VCCB supplies.
2.1.1 Hardware Theory of Operation
The AFE20408EVM is connected to the computer through the on-board FTDI digital controller using the
USB cable that is supplied with the EVM. The evaluation board features connectors and test points for all
communication lines, DAC outputs, supplies, and the ADC inputs. Figure 2-1 shows a block diagram of the
AFE20408EVM.
AFE20408 Power Supplies
USB Micro
LDOs
FTDI Controller
Digital
Headers
Supply
Selection
AFE20408 AFE20408
Outputs
AFE20408 ADC
Inputs

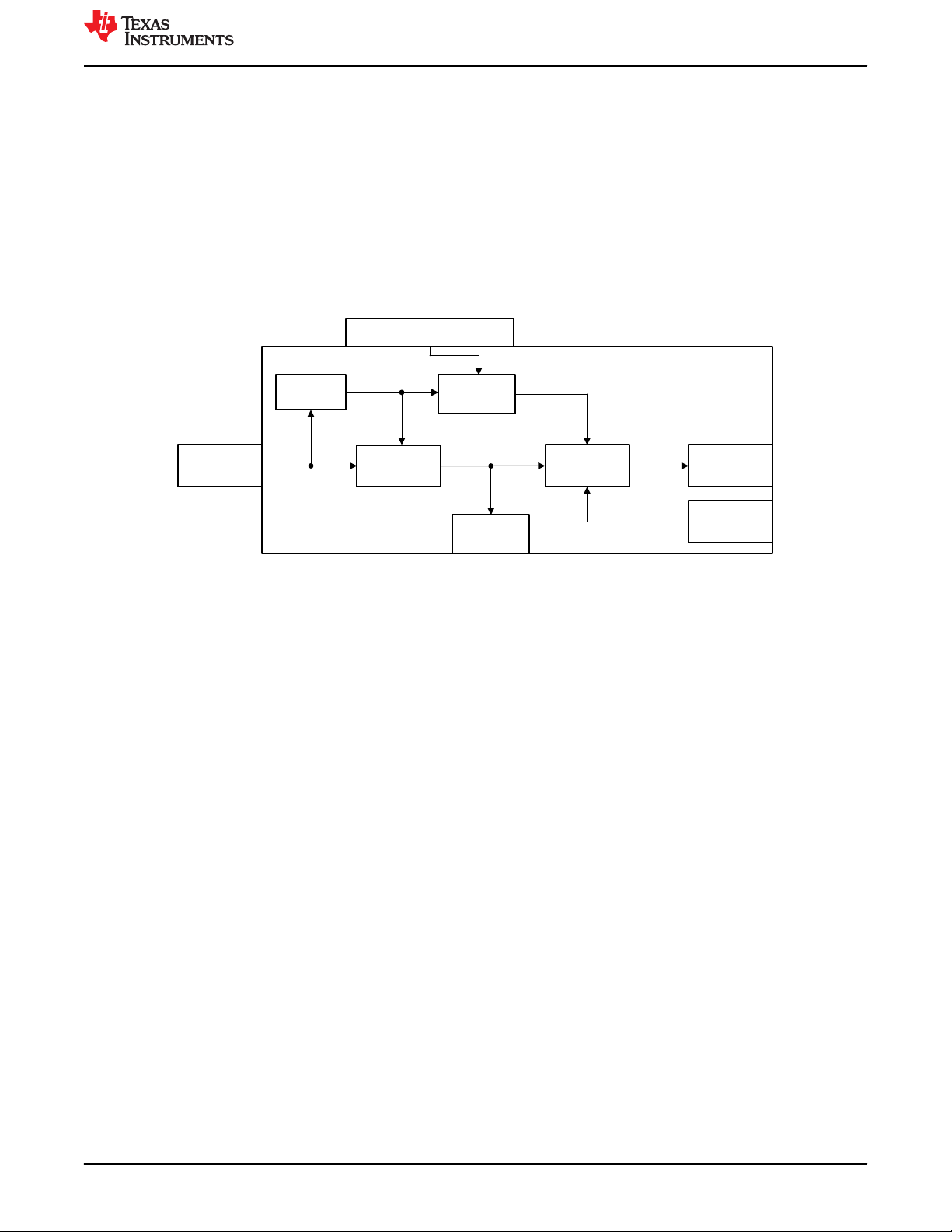

Figure 2-1. Theory of Operation Block Diagram
The USB provides the 5-V supply to the EVM. A voltage regulator generates 3.3 V from the USB 5-V supply.
These 5-V and 3.3-V supplies are used to power the FTDI controller. By default, the AFE20408 VDD supply
is powered by the USB 5-V and the VIO supply is powered by the LDO 3.3-V supply through the jumper J13
settings. Alternatively, VDD and VIO can be supplied externally through banana jacks J5 and J8, respectively.
Remove the jumper connector on J13 before connecting external supplies to VDD and VIO. The VSSA and
VSSB supplies can be powered by the on-board voltage regulator with jumper J29. The voltage regulator is
powered by an external negative power supply (VNEG) through banana jack J7. VSSA and VSSB can also
be supplied externally through banana jacks J11 and J12, respectively. Remove the jumper connector on J29
before connecting external supplies to VSSA and VSSB. The remaining device power supplies VCCA and VCCB
must be powered externally through banana jacks J3 and J4, respectively.
www.ti.com Hardware
SLAU917 – OCTOBER 2023
Submit Document Feedback
AFE20408 Evaluation Module 3
Copyright © 2023 Texas Instruments Incorporated
2.1.2 Jumper Definitions
Table 2-1 shows the jumper definitions of the AFE20408EVM.
Table 2-1. Jumper Definitions
Designator Name Positions
J2 VCCA-GND-VSSA
SHORT 1-2 - VCCA is grounded.
SHORT 2-3 - VSSA is grounded (default).
OPEN - This jumper is closed.
J6 VCCB = VCCA SHORT 1-2 - VCCA and VCCB are connected (default).
OPEN - VCCA and VCCB are not connected.
J9 VCCB-GND-VSSB
SHORT 1-2 - VCCB is grounded.
SHORT 2-3 - VSSB is grounded (default).
OPEN - This jumper is closed.
J13 USB-VDD-VIO
SHORT 1-2 - VIO is connected to on-board 3.3-V (default).
SHORT 3-4 - VDD is connected to on-board 5-V (default).
OPEN - VDD and VIO are powered by external supplies.
No other jumper orientation allowed.
J17 CS - SCL
SHORT 1-2 - Uses the FTDI CS pin for SPI mode (default).
SHORT 2-3 - Uses the FTDI SCL pin for I2C Mode.
OPEN - Open if external communication is used.
J18 SCLK - SDA
SHORT 1-2 - Uses the FTDI SCLK pin for SPI mode (default).
SHORT 2-3 - Uses the FTDI SDA pin for I2C Mode.
OPEN - Open if external communication is used.
J19 I2C ADDR SELECTION
SHORT 1-2 and 11-12 - SPI configuration (default).
SHORT all else - I2C configuration, see Table 2-6 for jumper configurations.
OPEN - Open if external communication is used.
J23 DRVEN DIS
SHORT 1-2 - Connects DRVEN0 to FTDI controller.
SHORT 3-4 - Connects DRVEN1 to FTDI controller.
OPEN - DRVENx is pulled up high (default).
J24 S0+ = HV0 SHORT 1-2 - Connects ADCHV0 and SENSE0+ together.
OPEN - ADCHV0 and SENSE0+ are separate (default).
J28 VNEG Select
SHORT 1-2 - VNEG regulator output is –10.5-V.
SHORT 3-4 - VNEG regulator output is –7-V.
OPEN - VNEG regulator is not used (default).
J29 VSS Select
SHORT 1-2 - VSSA is connected to the VNEG regulator output.
SHORT 3-4 - VSSB is connected to the VNEG regulator output.
OPEN - VSSA and VSSB are powered externally (default).
Hardware www.ti.com
4AFE20408 Evaluation Module SLAU917 – OCTOBER 2023
Submit Document Feedback
Copyright © 2023 Texas Instruments Incorporated
2.1.3 Connector Definitions
Table 2-2 shows the power connector definitions of the AFE20408EVM.
Table 2-2. Power Connector Definitions
Designator Definition
J1 USB connector
J3 AFE20408 VCCA supply (3-V to 11-V)
J4 AFE20408 VSSA supply (−11-V to −3-V)
J5 AFE20408 VDD supply (3-V to 5.5-V)
J7 VNEG supply (−10-V to −33-V)
J8 AFE20408 VIO supply (1.65-V to 3.6-V)
J10 AFE20408 Ground
J11 AFE20408 VCCB supply (3-V to 11-V)
J12 AFE20408 VSSB supply (−11-V to −3-V)
When powering the EVM, follow these guidelines:
• Choose between onboard power or external power for VIO and VDD using the J13 jumper. Do not short this
jumper and use external power at the same time.
• The VNEG supply can be used in place of the VSSA and VSSB supplies. Do not short the J29 jumper and
use external supplies for VSSA and VSSB at the same time.
• The VSSA voltage must always be less than (more negative) or equal to the VSSB voltage.
• To operate the group A DACs in the positive range, apply a positive voltage to VCCA and ground VSSA. To
operate the group A DACs in the negative range, apply a negative voltage to VSSA and ground VCCA.
• To operate the group B DACs in the positive range, apply a positive voltage to VCCB and ground VSSB. To
operate the group B DACs in the negative range, apply a negative voltage to VSSB and ground VCCB.
• To operate in the mixed voltage range, the group B DACs must be positive and the group A DACs must be
negative. Apply a positive voltage to VCCB and ground VSSB for the group B DACs, and apply a negative
voltage to VSSA and ground VCCA for the group A DACs.
Table 2-3 shows other connector definitions for the AFE20408EVM. All of these terminal blocks are unpopulated
by default.
Table 2-3. Terminal Block Connector Definitions
Designator Definition
J14 Connector for DACA3, OUTA2, DACA2, and
VSSA
J15 Connector for DACA1, OUTA1, DACA0, and
VSSA
J20 Connector for DACB3, OUTB2, DACB2, and
VSSB
J21 Connector for DACB1, OUTB1, DACB0, and
VSSB
J25 Connector for current sense pins SENSE1+
and SENSE1-
J26 Connector for current sense pins SENSE0-,
SENSE0+, and ADCHV0
www.ti.com Hardware
SLAU917 – OCTOBER 2023
Submit Document Feedback
AFE20408 Evaluation Module 5
Copyright © 2023 Texas Instruments Incorporated
2.1.4 Test Points
The AFE20408EVM has a variety of test points available for measuring and debugging purposes. Table 2-4
explains the purpose of each test point.
Table 2-4. AFE20408EVM Test Points
Test Point Net Description
TP1 SENSE0+ High side of SENSE0 resistor
TP2 SENSE0- Low side of SENSE0 resistor
TP3 SENSE1+ High side of SENSE1 resistor
TP4 SENSE1- Low side of SENSE1 resistor
TP5 VLDO Output of VNEG regulator
TP6 ADCHV0 ADCHV0 test point
TP7 PAON AFE20408 PAON test point
TP8 VCCA AFE20408 VCCA supply
TP9 VCCB AFE20408 VCCB supply
TP10 VSSA AFE20408 VSSA supply
TP11 VSSB AFE20408 VSSB supply
TP12 SENSE0+ SENSE0+ test point
TP13 SENSE0- SENSE0- test point
TP14, TP15, TP16,
TP17 GND Ground connections
TP18 VIO AFE20408 VIO supply
TP19 VDD AFE20408 VDD supply
TP20 SENSE1+ SENSE1+ test point
TP21 SENSE1- SENSE1- test point
TP22 FTDI_IO2 FTDI GPIO2 testpoint. Can be connected to DRVEN0 by
shorting positions 1-2 on J23 with a jumper
TP23 FTDI_IO3 FTDI GPIO3 testpoint. Can be connected to DRVEN1 by
shorting positions 3-4 on J23 with a jumper
Hardware www.ti.com
6AFE20408 Evaluation Module SLAU917 – OCTOBER 2023
Submit Document Feedback
Copyright © 2023 Texas Instruments Incorporated
2.2 Hardware Overview
This section details how to configure the EVM for and voltage outputs using I2C and SPI. The following
subsections provide detailed information on the EVM hardware and jumper positions for the two communication
modes (see also Section 2.1.2).
2.2.1 Electrostatic Discharge Caution
CAUTION
Many of the components on the AFE20408EVM are susceptible to damage by electrostatic
discharge (ESD). Customers are advised to observe proper ESD handling precautions when
unpacking and handling the EVM, including the use of a grounded wrist strap at an approved ESD
workstation.
2.2.2 Connecting the FTDI Digital Controller
To connect the FTDI digital controller on the EVM board to the PC, align and firmly connect the USB connector
to the J3 connector. Verify the connection is snug; a loose connection can cause intermittent operation. A 100
mil header (J22) is available for external communication. Table 2-5 lists the J22 pin definitions. To use external
communcation, disconnect jumpers J17 and J18 to remove the connection to the FTDI controller. Resistors R7
and R9 can be populated for pullups for I2C. These resistors do not need to be populated for the FTDI driver.
Table 2-5. Digital Header J22 Pin Definitions
Designator Definition
2 AFE20408 SCL/CS
4 AFE20408 SDA/SCLK
6 AFE20408 A0/SDI
8 AFE20408 A1/SDO
10 AFE20408 DRVEN0
12 AFE20408 DRVEN1
14 AFE20408 RESET
16 AFE20408 PAON
1,3,5,7,9,11,13,15 Ground
www.ti.com Hardware
SLAU917 – OCTOBER 2023
Submit Document Feedback
AFE20408 Evaluation Module 7
Copyright © 2023 Texas Instruments Incorporated
2.2.3 SPI Configuration
The following figure shows the AFE20408EVM configured for SPI communication.
Figure 2-2. AFE20408EVM Configuration for SPI
2.2.4 I2C Configuration
The following figure shows the AFE20408EVM configured for I2C communication.
Figure 2-3. AFE20408EVM Configuration I2C
Hardware www.ti.com
8AFE20408 Evaluation Module SLAU917 – OCTOBER 2023
Submit Document Feedback
Copyright © 2023 Texas Instruments Incorporated
The jumper connections on J19 determine the device address of the AFE20408. The following table shows the
required configuration of the A1 and A0 jumpers for specific device addresses.
Table 2-6. I2C Device Address Map
Device Pins I2C Device Address
A1 A0 [A6:A0]
GND GND 101 0000
GND VIO 101 0001
GND SDA 101 0010
GND SCL 101 0011
VIO GND 101 0100
VIO VIO 101 0101
VIO SDA 101 0110
VIO SCL 101 0111
SDA GND 101 1000
SDA VIO 101 1001
SDA SDA 101 1010
SDA SCL 101 1011
SCL GND 101 1100
SCL VIO 101 1101
SCL SDA 101 1110
SCL SCL 101 1111
www.ti.com Hardware
SLAU917 – OCTOBER 2023
Submit Document Feedback
AFE20408 Evaluation Module 9
Copyright © 2023 Texas Instruments Incorporated
3 Software
3.1 Software Setup
This section provides the procedure for EVM software installation.
3.1.1 Software Installation
Note
Do not connect the EVM to the PC when the software is installing.
Download the latest version of the EVM graphical user interface (GUI) installer from the Order and start
development subsection of the AFE20408EVM tool folder on TI.com. Run the GUI installer to install the
AFE20408EVM GUI software on your PC. The software installation automatically copies the required LabVIEW™
software files and drivers to the PC.
When the AFE20408EVM GUI is launched, an installation dialog window opens and prompts the user to select

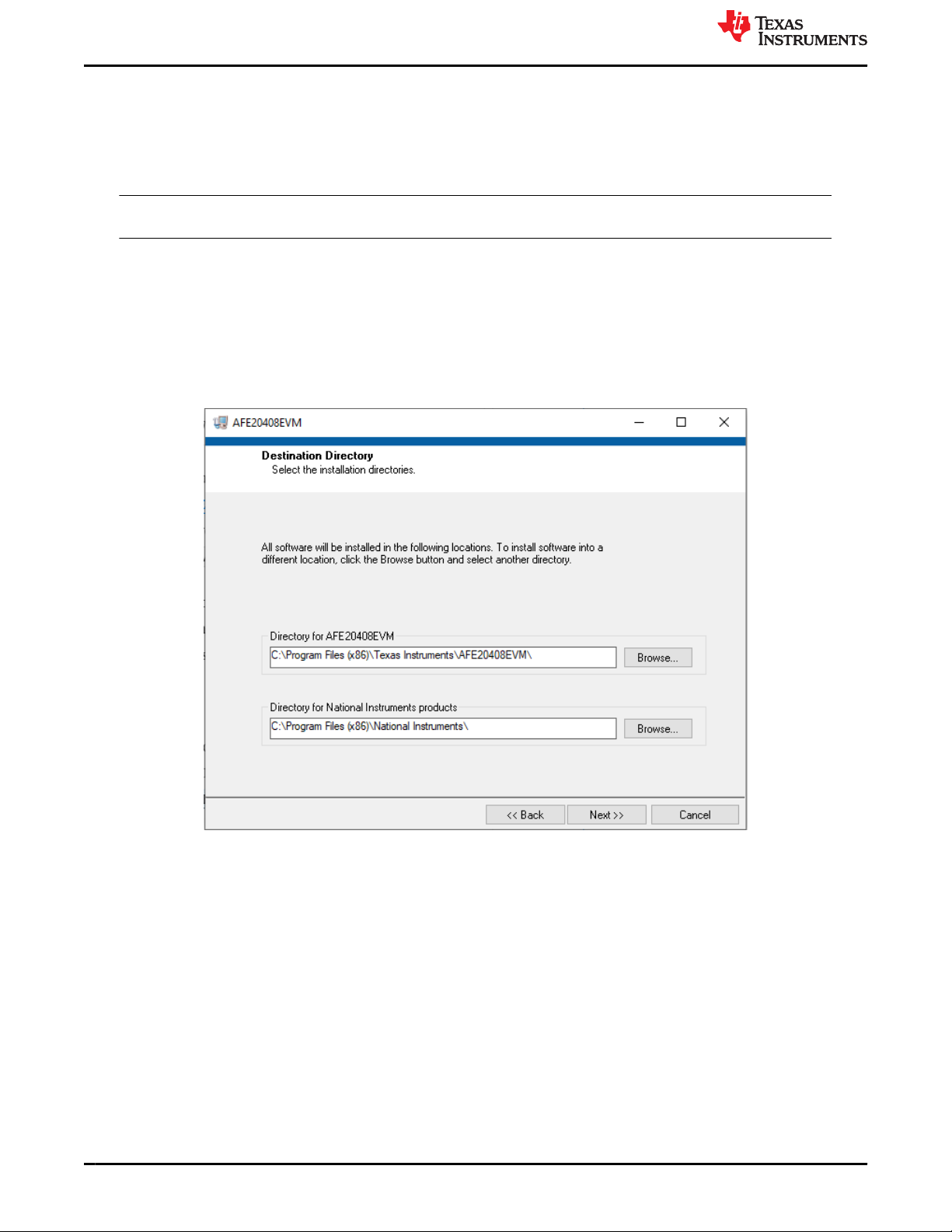

an installation directory. If left unchanged, Figure 3-1 shows that the software location defaults to C:\Program
Files (x86)\Texas Instruments\AFE20408EVM.
Figure 3-1. Software Installation Path
Software www.ti.com
10 AFE20408 Evaluation Module SLAU917 – OCTOBER 2023
Submit Document Feedback
Copyright © 2023 Texas Instruments Incorporated
Indice
Altri manuali Texas Instruments Scheda madre
Texas Instruments
Texas Instruments TUSB1002EVM Manuale utente
Texas Instruments
Texas Instruments TPS6030 EVM-170 Series Manuale utente
Texas Instruments
Texas Instruments UCC3580EVM Manuale utente
Texas Instruments
Texas Instruments LMP91300NPN Manuale utente
Texas Instruments
Texas Instruments TMAG5 73 Series Manuale utente
Texas Instruments
Texas Instruments BQ25616J Manuale utente
Texas Instruments
Texas Instruments TPS65033-Q1 Series Manuale utente
Texas Instruments
Texas Instruments AMC7834EVM Manuale utente
Texas Instruments
Texas Instruments CAPTIVATE-EMC Manuale utente
Texas Instruments
Texas Instruments AFE4110 Manuale utente
Texas Instruments
Texas Instruments TPA6205A1DRB Manuale utente
Texas Instruments
Texas Instruments DRV8899-Q1 Manuale utente
Texas Instruments
Texas Instruments TAS5424 Manuale utente
Texas Instruments
Texas Instruments TPS51125 Manuale utente
Texas Instruments
Texas Instruments AN-1993 LM3406HV Manuale utente
Texas Instruments
Texas Instruments TPA3250D2EVM Manuale utente
Texas Instruments
Texas Instruments TSB42AA9 (StorageLynx) EVM Manuale utente
Texas Instruments
Texas Instruments UCC28221 Manuale utente
Texas Instruments
Texas Instruments TPS23753AEVM-235 Manuale utente
Texas Instruments
Texas Instruments AN-1907 LM3423 Manuale utente
Manuali Scheda madre popolari di altre marche
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuale utente
Gigabyte
Gigabyte GA-9IVDT Manuale utente
Commell
Commell MS-C73 Manuale utente
IBT Technologies
IBT Technologies MB860 Manuale utente
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuale utente
Biostar
Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione
