1 Overview

1.1 What is the DP159?

The DP159 is a Dual-Mode DisplayPort to Transition Minimized Differential Signal (TMDS) retimer

supporting Digital Video Interface (DVI) 1.0 and High Definition Multimedia Interface (HDMI) 1.4b and 2.0

output signals. The DP159 supports the Dual-Mode Standard version 1.1 type 1 and type 2 through the

DDC link. The DP159 supports data rates up to 6 Gbps per data lane to support UltraHD (4K x 2K / 60

Hz) 8 bits per color high resolution video and HDTV with 16-bit color depth at 1080p (1920 x 1080 / 60

Hz). The DP159 can automatically configure itself as a redriver at data rates < 1.0 Gbps or as a retimer

above this data rate.

1.2 What is the DP159RGZEVM?

The DP159RGZEVM is a PCB created to help customers evaluate the DP159 device for video

applications. This EVM can also be used as a hardware reference design for implementation of the DP159

in the RSB package. PCB design/layout files can be provided upon request to provide PCB design

illustrations of the routing/placement rules.

Note that the EVM design supports both the standard DP159 application and a DP159-thru-HDMI

application, so it contains many components that would not be needed by a typical DP159 application. A

separate reference design specific to the DP159 is available for customers.

1.3 What is Included in the DP159RGZEVM?

The major components of the EVM are as follows:

• DP159RGZ

• Standard DP sink connector (connects to source)

• Standard HDMI source connector (connects to sink)

• DC power regulators

• I2C™ programming interface for external I2C host connection

• USB interface (I2C utility available)

DP159

(48-pin QFN)

DP C Toponnector

HDMI Connector

IN0P/N

IN1P/N

IN2P/N

IN3P/N

TMDS_D2P/N

TMDS_D1P/N

TMDS_D0P/N

TMDS_CLKP/N

AUXP/N DDC_SCL/SDA

AARDVARK

Connector

SCL_CTL

SDA_CTL

5-V

DONGLE

5-V to 3.3-V

LDO

3.3-V to 1.1-V

LDO

USB2

Connector

TUSB3410

DDC - Snoop Only

www.ti.com

Overview

SLLU225A–August 2015–Revised March 2018

DP159RGZ Evaluation Module

1.4 DP159RGZEVM Board

Figure 1 illustrates the DP159RGZEVM board.

Figure 1. DP159RGZEVM Board

2 Hardware Description

Figure 2 shows the DP159RGZEVM block diagram.

100-Ωdifferential impedance for HDMI differential pairs.

Figure 2. DP159RGZEVM Block Diagram

Hardware Description

www.ti.com

4SLLU225A–August 2015–Revised March 2018

Submit Documentation Feedback

DP159RGZ Evaluation Module

2.1 Video Connectors for DP159 Ports

The EVM has a DP connection for the source and a HDMI connection for the sink. J2 is a standard DP

connector (Molex 47272-0001). P2 is a standard HDMI connector (Molex 4715-10001). There is a third

video connection on the board for a HDMI source (P1), this function is not installed on the

DP159RGZEVM.

2.2 Enable/Reset

There are three device enable/reset options to use with the EVM:

A. Supervisor circuitry option

This is the default configuration on the DP159RGZEVM. The enable (EN) signal is held low until the

power good (PG) from the 3.3-V voltage regulator reaches a stable high-voltage level then released

high.

B. RC timing option

C26 external capacitor and internal resistor are used to control the EN ramp time after the device is

powered on. C26 is a Do Not Install (DNI option) by default. C26 needs to be installed and R77 needs

to be uninstalled to enable this option.

C. External control option

A push button (SW1) is provided for manual control of the DP159’s EN/OE input.

2.3 Power

A DC power jack (J9) to accept a 5-V wall power adapter is provided on the EVM. The DC power jack

(CUI Inc. PJ-202AH) has an inner diameter of 2.1 mm and an outer diameter of 5.5 mm. The tip of the +5-

V power supply must be positive. A +5-V power supply of at least 1.5 A that meets the given requirements

can be used to power the DP159RGZEVM. Power is provided to the EVM from the 5-V wall power

adapter when SW2 is set to position 1.

CAUTION

Care should be taken to not plug in any power source higher than the

configured voltage (5 V).

Alternately, it is possible to power the EVM by connecting a USB Micro cable from J13 to a USB host and

setting SW2 to position 3.

www.ti.com

Hardware Description

SLLU225A–August 2015–Revised March 2018

DP159RGZ Evaluation Module

2.4 Jumper Configuration

Jumpers are provided to operate the device/EVM in different configurations. Table 1 lists the jumper

settings.

Table 1. Jumper Settings

Jumper Signal Name Description Default Config

J1 HPD_SRC JP 1-2 for DP159 thru HDMI NC

JP 2-3 for NOT USED

NC for DP159

J3 I2_EN_PIN JP 1-2 for I2C ENABLE NC: Enables device configuration from I2C

or pin straps.

JP 2-3 for PIN STRAP

NC – PIN STRAP (internal pulldown)

J4 SCL JP 1-2 for USB IF TO I2C JP 1-2: USB I2C Interface

JP 2-3 for EXT IF TO I2C

NC – N/A

J6 SDA JP 1-2 for USB IF TO I2C JP 1-2: USB I2C Interface

JP 2-3 for EXT IF TO I2C

NC – N/A

J7 HDMI_SEL_TEST_A1 JP 1-2 for: NC

• I2C Addr bit A1 = 1, when I2C_EN = H

• DVI mode, when I2C_EN = L

JP 2-3 for:

• I2C Addr bit A1 = 0, when I2C_EN = H

• Normal mode, when I2C_EN = L

NC for weak internal pulldown (HDMI

mode)

J8 VSADJ JP 1-2 for 7.0 kΩJP 1-2: Default of 7.0 kΩ

JP 2-3 for adjustable resistance

NC – N/A

J10 SLEW_CTL JP 1-2 for fastest data rate NC

JP 2-3 for 20 ps slow

NC for 40 ps slow

J11 SIG_EN JP 1-2 for Signal Detect Enabled NC

JP 2-3 for Signal Detect Disabled

NC for weak internal pullup (Detect

Disabled)

J12 EQ_SEL_A0 JP 1-2 for: NC

• I2C Addr bit A0 = 1, when I2C_EN = H

• Fixed EQ at 14 dB, when I2C_EN = L

JP 2-3 for:

• I2C Addr bit A0 = 0, when I2C_EN = H

• Fixed EQ at 7.5 dB, when I2C_EN = L

NC for adaptive EQ

J14 TX_TERM_CTL JP 1-2 for No TX termination NC

JP 2-3 for TX termination 75–100 Ω

NC for auto termination set

J15 PRE_SEL JP 1-2 for –5 dB NC

JP 2-3 for –2.5 dB

NC for 0 dB

Hardware Description

www.ti.com

6SLLU225A–August 2015–Revised March 2018

Submit Documentation Feedback

DP159RGZ Evaluation Module

Table 1. Jumper Settings (continued)

Jumper Signal Name Description Default Config

J16 CEC_EN JP 1-2 for DP159 thru HDMI NC

JP 2-3 for NOT USED

NC for DP159

J17 SWAP/POL JP 1-2 for Polarity Swap NC

JP 2-3 for Lane Swap

NC for No Swap

2.5 Component Population Configuration

To allow the DP159RGZEVM to support both the default DP input as well as a HDMI test input, there are

many components that need to be removed, placed, or modified depending on the board configuration.

Here’s a summary of the default component configuration for the DP159RGZEVM. In addition, the unused

HDMI receptacle is depopulated.

Function Reference Designator DP159RGZEVM

Differential Pair - IN C11, C12, C13, C14, C15, C16, C24,

C25 populated with 0.1 µF

Differential Pair - HDMI IN R14, R15, R18, R19, R20, R21, R22,

R23 not populated

SDA / SCL - HDMI R16, R17, R24, R25, R123, R124 not populated

Differential Pair - DP IN R112, R109, R111, R108, R110, R107,

R106, R105 populated with 0 Ω

SDA / SCL / HPD - DP R33, R31, R32 (R126, R135, R132,

R133 - snoop) populated with 0 Ω

Pullup Differential Pair HDMI IN R1, R2, R3, R4, R6, R7, R8, R9 populated, but not

connected

2.5.1 HPD Snoop Option

To accommodate systems that do not properly resend DDC commands after HPD goes low, we have

implemented a HPD snoop mode on the DP159RGZEVM. This mode allows the HPD line to be routed

around the DP159, but remain connected to the DP159 on the sink side to allow the DP159 to snoop its

state. This snoop mode is disabled by default on the DP159RGZEVMs.

• Pop R131, no pop R129, R130, R139 for HPD on

• No pop R131, pop R129, R130, R139 for HPD snoop only

2.5.2 DDC Snoop Option – not Available for DP159RGZ REV B

To accommodate systems that do not properly support clock stretching on the DDC lines, we have

implemented a snoop mode on the DP159RGZEVM. This mode allows the DDC lines to be routed around

the DP159RGZ, but remain connected to the DP159RGZ on the sink side to allow the DP159RGZ to

snoop the DDC traffic. This snoop mode is enabled by default on the DP159RGZ REV B1 EVMs.

• Pop R126, R125, R132, R133. No pop R31, R32 – DP159RGZ, DDC snoop only

• Pop R31, R32. No pop R126, R125, R132, R133 – DP159RGZ, DDC on

www.ti.com

Hardware Description

SLLU225A–August 2015–Revised March 2018

DP159RGZ Evaluation Module

2.6 Local I2C Access Through J5

Access to DP159’s local I2C signals is provided via the J5 input connector. Note that I2C signal levels

should be at 3.3 V when I2C interface is accessed through the connector.

A standalone external I2C host can be connected via J5 for debug and control purposes. An example of an

external I2C Host controller is the Total Phase Aardvark I2C/SPI Host Adapter (Total Phase Part#:

TP240141). Sample scripts for this I2C Host controller are provided by request.

Table 2. Aardvark I2C (J5) Pin-Out

J5 pin # Description J5 pin

#Description

1 SCL_CTL 2 GND

3 SDA_CTL 4 NC

5 NC 6 NC

7 NC 8 NC

9 NC 10 GND

(1) The target I2C address for DP159 can be modified by the EVM jumper settings.

Table 3. DP159 Target I2C Address(1)

DP159 I2C Target Address

Bit 7 (MSB) Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 (W/R)

A6 A5 A4 A3 A2 A1 A0

1 0 1 1 1 1 0 0/1

2.7 Local I2C Access Through USB Interface via TUSB3410

Access to DP159’s local I2C signals is also provided through the TUSB3410 on the DP159RGZEVM using

a USB TI Utility called Eye Scan. To use the utility:

• Install the Eye Scan software from Texas Instruments

• J6 must be set to SDA – SDA_USB

• J4 must be set to SCL – SCL_USB

• Attach USB micro cable to J13 and to the host computer

NOTE: The USB connection should be made prior to installing any DP or HDMI cables.

• Start the Eye Scan software

Hardware Description

www.ti.com

8SLLU225A–August 2015–Revised March 2018

Submit Documentation Feedback

DP159RGZ Evaluation Module

Figure 3 shows the Register Status / Control tab.

Figure 3. Register Status / Control Tab

Confirm that the SN65DP149/159/TMDS171/181 Interface is present and selected at the top. If it is not,

check the USB connection and confirm that the driver is loaded in Device Manager. It may take a moment

for the USB driver to load, if the DP159RGZ does not appear, hit the Refresh button. This tab can be used

to read and write the status and control registers of the device.

www.ti.com

Hardware Description

SLLU225A–August 2015–Revised March 2018

DP159RGZ Evaluation Module

Figure 4 shows the Eye Scan tab.

Figure 4. Eye Scan Tab

To run an Eye Scan, select the Eye Scan tab, select the relevant lanes, and press scan. Note that Eye

Scan cannot be performed when the device is in retimer mode, it does not function in redriver mode.

Hardware Description

www.ti.com

10 SLLU225A–August 2015–Revised March 2018

Submit Documentation Feedback

DP159RGZ Evaluation Module

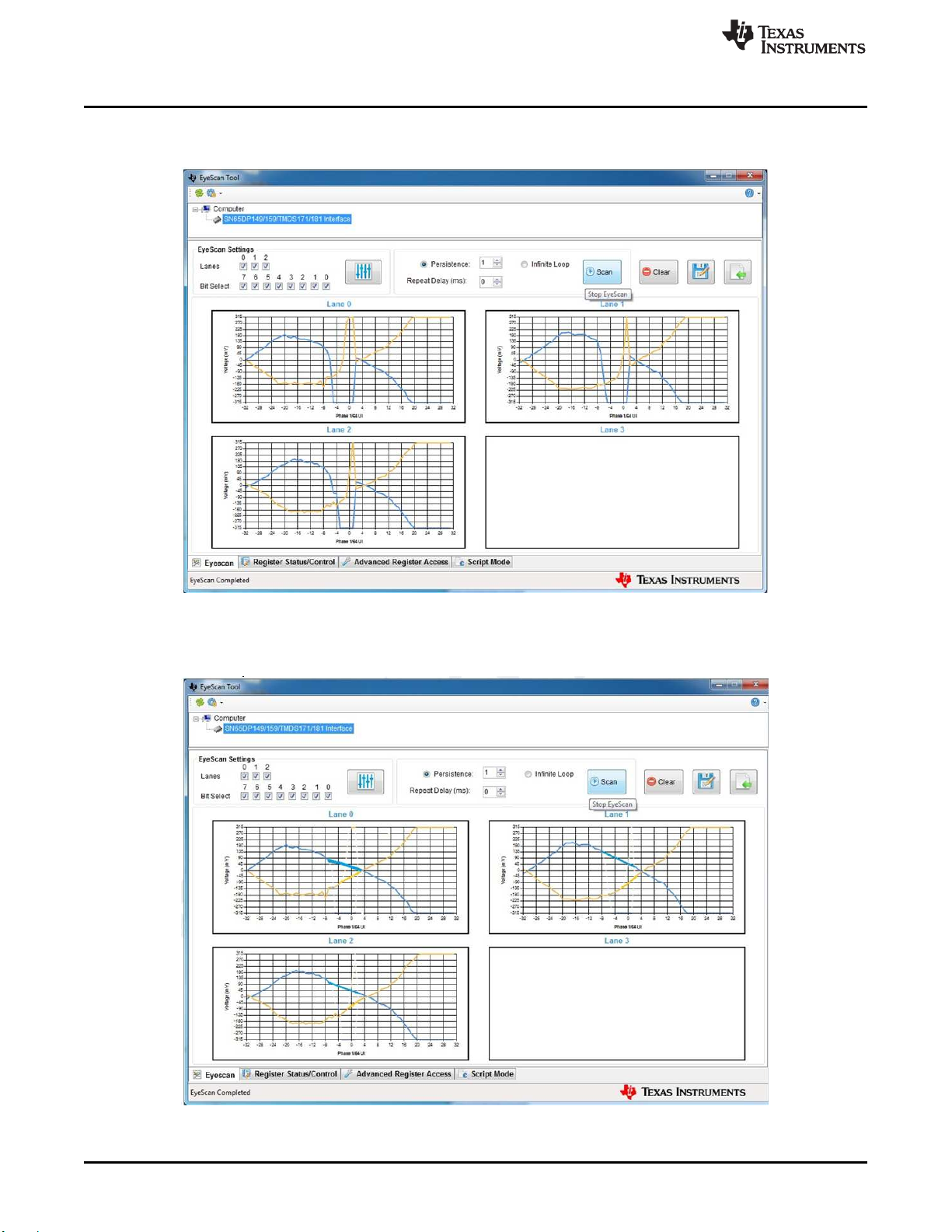

Note that at HDMI 2.0 speeds there is a bug that causes invalid eyescan results. Results that look like

this:

Figure 5. Sample Eyescan at HDMI2.0 Raw

Should be interpreted as this:

Figure 6. Sample Eyescan at HDMI2.0 Interpreted

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Texas Instruments Scheda madre

Texas Instruments

Texas Instruments FPC401 Manuale utente

Texas Instruments

Texas Instruments ADS1610EVM Manuale utente

Texas Instruments

Texas Instruments bq76925EVM Manuale utente

Texas Instruments

Texas Instruments TUSS44 0 Series Manuale utente

Texas Instruments

Texas Instruments TMAG5273 Manuale utente

Texas Instruments

Texas Instruments ISO154xEVM Manuale utente

Texas Instruments

Texas Instruments INAEVM-ALT-SO8 Manuale utente

Texas Instruments

Texas Instruments LMH1297EVM Manuale utente

Texas Instruments

Texas Instruments TPS26600-02EVM Manuale utente

Texas Instruments

Texas Instruments INA220EVM Manuale utente

Texas Instruments

Texas Instruments TIO 1 2 Series Manuale utente

Texas Instruments

Texas Instruments TPS1H000-Q1 EVM Manuale utente

Texas Instruments

Texas Instruments bq25606 Manuale utente

Texas Instruments

Texas Instruments LMH9226RRL-EVM Manuale utente

Texas Instruments

Texas Instruments RS485-HF-DPLX-EVM Manuale utente

Texas Instruments

Texas Instruments TPA6120A2EVM Manuale utente

Texas Instruments

Texas Instruments TPS65084x EVM Manuale utente

Texas Instruments

Texas Instruments DEM-DAI3008 Manuale utente

Texas Instruments

Texas Instruments TPS563300EVM-226 Manuale utente

Texas Instruments

Texas Instruments ONET8501P-EV Manuale utente

Texas Instruments

Texas Instruments MC 8316AEVM Series Guida rapida

Texas Instruments

Texas Instruments TRF370315 Manuale utente

Texas Instruments

Texas Instruments TPS51125 Manuale utente

Texas Instruments

Texas Instruments DS90UH949A-Q1EVM Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
