User's Guide
SBOU055A–February 2008–Revised February 2010
INA209 Evaluation Module
This user's guide describes the characteristics, operation, and use of the INA209 evaluation module
(EVM). It discusses the processes and procedures required to properly use this EVM board. This
document also includes the physical printed circuit board (PCB) layout, schematic diagram, and circuit
descriptions.
Contents
1 Overview ..................................................................................................................... 2
2 System Setup ................................................................................................................ 4
3 INA209EVM Hardware Setup ............................................................................................ 10
4 INA209 Software Overview .............................................................................................. 17
5 Bill of Materials ............................................................................................................. 24
List of Figures
1 Hardware Included With the INA209EVM ............................................................................... 2
2 Hardware Setup for the INA209EVM..................................................................................... 4
3 Block Diagram of the INA209 Test Board ............................................................................... 5
4 INA209 Test Board Schematic............................................................................................ 6
5 Theory of Operation For the USB Dig Platform......................................................................... 9
6 Typical Hardware Connections .......................................................................................... 10
7 Connecting the Two EVM PCBs ........................................................................................ 11
8 Connecting Power to the EVM........................................................................................... 12
9 Connecting the USB Cable............................................................................................... 13
10 Default Jumper Settings.................................................................................................. 14
11 INA209EVM Software—Functioning Properly ......................................................................... 18
12 INA209EVM Software—No Communication With the USB Dig Platform .......................................... 19
13 INA209EVM Software—No Communication Between the USB Dig Platform and the INA209 ................. 20
14 EVM Controls Pull-Down Menu.......................................................................................... 23
15 Current Revision of Software ............................................................................................ 23
Windows is a registered trademark of Microsoft Corporation.
I2C is a trademark of NXP Semiconductors.
X2Y is a registered trademark of X2Y Attenuators LLC.
All other trademarks are the property of their respective owners.
1
SBOU055A–February 2008–Revised February 2010 INA209 Evaluation Module
Submit Documentation Feedback Copyright © 2008–2010, Texas Instruments Incorporated
Overview
www.ti.com
1 Overview
This document provides the information needed to set up and operate the INA209EVM evaluation module,
a test platform for the INA209 high-side current shunt monitor. For a more detailed description of the
INA209 product line, please refer to the product data sheet (SBOS403) available from the Texas
Instruments web site at http://www.ti.com. Support documents are listed in the section of this guide
entitled Related Documentation from Texas Instruments .
The INA209EVM is an evaluation module that is used to fully evaluate the INA209 current shunt monitor.
The INA209 is a mixed-signal current shunt monitor. The INA209EVM consists of two PCBs. One board
generates the digital signals (USB DIG Platform) required to communicate with the INA209
(INA209_Test_Board), and the second board contains the INA209, as well as support and configuration
circuitry.
NOTE: Much of the information contained in this document is also contained in the QuickStart
Video, which is included with the EVM kit. It is highly recommended that you watch this video
before using this EVM.
Throughout this document, the abbreviation EVM and the term evaluation module are synonymous with
the INA209EVM.
1.1 INA209EVM Hardware
Figure 1 shows the hardware included with the INA209EVM kit. Contact the factory if any component is
missing. It is highly recommended that you check the TI web sit at http://www.ti.com to verify that you
have the latest software. It is also recommended that you watch the QuickStart Video (included on the
compact disk) before using the INA209EVM.

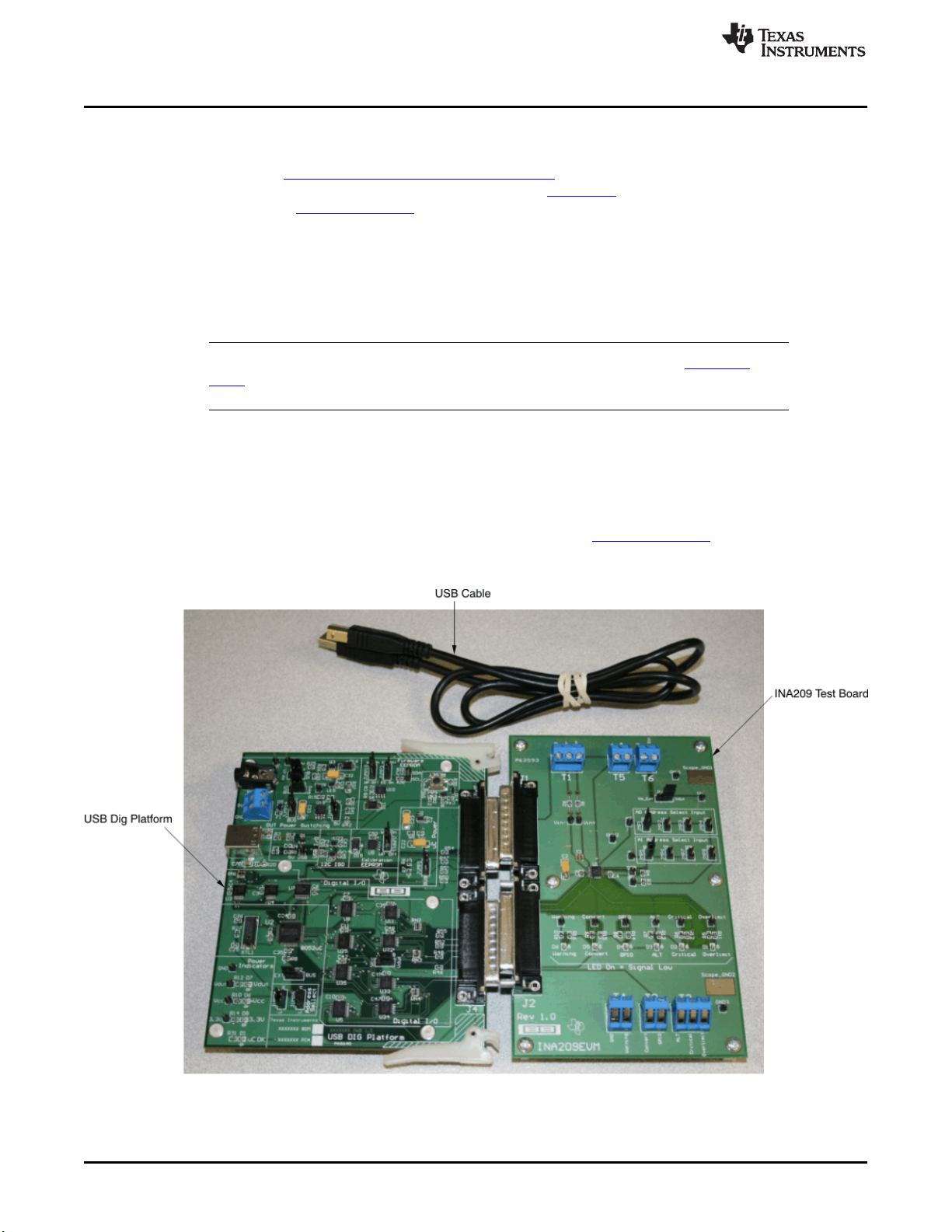

Figure 1. Hardware Included With the INA209EVM
2INA209 Evaluation Module SBOU055A–February 2008–Revised February 2010
Submit Documentation Feedback
Copyright © 2008–2010, Texas Instruments Incorporated
www.ti.com
Overview
The complete kit includes the following items:
• INA209 test PCB
• USB Dig platform PCB
• USB cable
•QuickStart Video
1.2 Related Documentation from Texas Instruments
The following document provides information regarding Texas Instruments integrated circuits used in the
assembly of the INA209EVM. This document is available from the TI web site under literature number
SBOU055. Any letter appended to the literature number corresponds to the document revision that is
current at the time of the writing of this User’s Guide. Newer revisions may be available from the TI web
site at http://www.ti.com/, or call the Texas Instruments Literature Response Center at (800) 477-8924 or
the Product Information Center at (972) 644-5580. When ordering, identify the document by both title and
literature number.
Data Sheet Literature Number
INA209 Product Data Sheet SBOS403
1.3 If You Need Assistance
If you have questions about the INA209 evaluation module, send an e-mail to the Linear Application Team
1.4 Information About Cautions and Warnings
This document contains caution statements.
CAUTION
This is an example of a caution statement. A caution statement describes a
situation that could potentially damage your software or equipment.
The information in a caution or a warning is provided for your protection. Please read each caution and
warning carefully.
1.5 FCC Warning
This equipment is intended for use in a laboratory test environment only. It generates, uses, and can
radiate radio frequency energy and has not been tested for compliance with the limits of computing
devices pursuant to subpart J of part 15 of FCC rules, which are designed to provide reasonable
protection against radio frequency interference. Operation of this equipment in other environments may
cause interference with radio communications, in which case the user at his own expense is required to
take whatever measures may be required to correct this interference.
3
SBOU055A–February 2008–Revised February 2010 INA209 Evaluation Module
Submit Documentation Feedback Copyright © 2008–2010, Texas Instruments Incorporated
System Setup
www.ti.com
2 System Setup
Figure 2 shows the system setup for the INA209EVM. The PC runs software that communicates with the
USB Dig platform. The USB Dig platform generates the digital signals used to communicate with the
INA209 test board. Connectors on the INA209 test board allow for connection to the system that will be
monitored by the user.
Figure 2. Hardware Setup for the INA209EVM
Minimim PC operating requirements:
• Microsoft Windows®XP or higher
• USB port
• Works on US or European regional settings
4INA209 Evaluation Module SBOU055A–February 2008–Revised February 2010
Submit Documentation Feedback
Copyright © 2008–2010, Texas Instruments Incorporated
INA209
I C
Interface
2
V Supply
Switched 5.0V Power
DUT
I C
Address
Jumpers
2
General-Purpose
Digital I/O
Connects to Alert, Warning, Critical,
Overlimit, GPIO, and Convert
Connection to
Shunt Voltage
and GND
25-Pin
Male DSUB Signals
From USB DIG Platform
25-Pin
Female DSUB Signals
From USB DIG Platform
www.ti.com
System Setup
2.1 Theory of Operation for the INA209 Test Board Hardware
Figure 3 shows the block diagram of the INA209 test board. The INA209 test board functionality is
relatively simple. It provides connections to the I2C™ interface and general-purpose inputs/outputs
(GPIOs) on the USB Dig platform. It also provides connection points for external connection of the shunt
voltage, bus voltage, and GND on the system being measured.
Figure 3. Block Diagram of the INA209 Test Board
5
SBOU055A–February 2008–Revised February 2010 INA209 Evaluation Module
Submit Documentation Feedback Copyright © 2008–2010, Texas Instruments Incorporated
System Setup
www.ti.com
Figure 4 illustrates the system setup for the INA209 test board schematic. LEDs D1 through D6 are used
as indicators for many of the digital signals (for example, Warning, Critical, GPIO, etc). Jumpers JMP1
through JMP8 allow the configuration of A0 and A1. Connector T1 allows the connection of shunt and bus
voltages.
Figure 4. INA209 Test Board Schematic
6INA209 Evaluation Module SBOU055A–February 2008–Revised February 2010
Submit Documentation Feedback
Copyright © 2008–2010, Texas Instruments Incorporated
www.ti.com
System Setup
2.2 Signal Definition of J1 (25-Pin Male DSUB) on the INA209 Test Board
Table 1 shows the different signals connected to J1 on the INA209 test board. Table 1 also identifies
signals connected to pins on J1 that are not used on the INA209 test board.
Table 1. Signal Definition of J1 (25-Pin Male DSUB) on the INA209 Test Board
J1 Pin Signal Used On This EVM? INA209 Pin
1 DAC A No —
2 DAC B No —
3 DAC C No —
4 DAC D No —
5 ADS1+ No —
6 ADS1– No —
7 ADS2+ No —
8 ADS2– No —
9 I2C_SCK No —
10 I2C_SDA2 No —
11 ONE_WIRE No —
12 I2C_SCK_ISO Yes SCL
13 I2C_SDA_ISO Yes SDA
14 XTR_LOOP+ No —
15 XTR_LOOP– No —
16 INA– No —
17 VDUT Yes VS
18 VCC No —
19 +15V No —
20 –15V No —
21 GND Yes GND
22 SPI_SCK No —
23 SPI_CS1 No —
24 SPI_DOUT No —
25 SPI_DIN1 No —
7
SBOU055A–February 2008–Revised February 2010 INA209 Evaluation Module
Submit Documentation Feedback Copyright © 2008–2010, Texas Instruments Incorporated
System Setup
www.ti.com
2.3 Signal Definition of J2 (25-Pin Female DSUB) on the INA209 Test Board
Table 2 shows the different signals connected to J2 on the INA209 test board. Table 2 also identifies
signals connected to pins on J2 that are not used on the INA209 test board.
Table 2. Signal Definition of J2 (25-Pin Female DSUB) on the INA209 Test Board
J1 Pin Signal Used On This EVM? INA209 Pin
1 NC No —
2 CTRL1 Yes Convert
3 CTRL2 Yes GPIO
4 CTRL3 No —
5 CTRL4 No —
6 CTRL5 No —
7 CTRL6 No —
8 CTRL7 No —
9 CTRL8 No —
10 MEAS1 Yes Warning
11 MEAS2 Yes GPIO
12 MEAS3 Yes Overlimit
13 MEAS4 Yes Critical
14 MEAS5 Yes ALT
15 MEAS6 No —
16 MEAS7 No —
17 MEAS8 No —
18 SPI_SCK No —
19 SPI_CS2 No —
20 SPI_DOUT2 No —
21 SPI_DIN2 No —
22 VDUT No VS
23 VCC No —
24 GND Yes GND
25 GND Yes GND
8INA209 Evaluation Module SBOU055A–February 2008–Revised February 2010
Submit Documentation Feedback
Copyright © 2008–2010, Texas Instruments Incorporated
TUSB3210
8052 C
with USB Interface
and UART
m
USB Bus
From Computer
3.3V
Regulator
Adjustable
Regulator
V
(3V to 5.5V)
CC
VmC
3.3V
S
V_USB
5V
8Kx8 Byte
EEPROM
Buffers and
Latches
Power
Switching
V
(3V to 5.5V)
DUT
Switched Power
I C, SPI
Control Bits and
Measure Bits
2
External
Power
Reset Button
and
Power-On Reset
USB Dig EVM
www.ti.com
System Setup
2.4 Theory of Operation For the USB Dig Platform
Figure 5 shows the block diagram for the USB Dig platform. This platform is a general-purpose data
acquisition system that is used on several different Texas Instruments evaluation modules. The block
diagram shown in Figure 5 illustrates the general platform outline.
The core component of the USB Dig platform is the TUSB3210.
Figure 5. Theory of Operation For the USB Dig Platform
9
SBOU055A–February 2008–Revised February 2010 INA209 Evaluation Module
Submit Documentation Feedback Copyright © 2008–2010, Texas Instruments Incorporated
INA209EVM Hardware Setup
www.ti.com
3 INA209EVM Hardware Setup
The INA209EVM hardware setup involves connecting the two halves of the EVM together, applying power,
connecting the USB cable, and setting the jumpers. This section covers the details of this procedure.
3.1 Electrostatic Discharge Warning
Many of the components on the INA209EVM are susceptible to damage by electrostatic discharge (ESD).
Customers are advised to observe proper ESD handling precautions when unpacking and handling the
EVM, including the use of a grounded wrist strap at an approved ESD workstation.
CAUTION
Failure to observe ESD handling procedures may result in damage to EVM
components.
3.2 Typical Hardware Connections
A typical INA209EVM hardware setup connects the two EVM PCBs, then supplying power, and
connecting an external shunt and load. The external connections may be the real-world system to which
the INA209 will be connected. Figure 6 shows the typical hardware connections.
Figure 6. Typical Hardware Connections
10 INA209 Evaluation Module SBOU055A–February 2008–Revised February 2010
Submit Documentation Feedback
Copyright © 2008–2010, Texas Instruments Incorporated
Indice
Altri manuali Texas Instruments Scheda madre
Texas Instruments
Texas Instruments ADS8028EVM-PDK Manuale utente
Texas Instruments
Texas Instruments DRV8834EVM Manuale utente
Texas Instruments
Texas Instruments UCD90240EVM-704 Manuale utente
Texas Instruments
Texas Instruments TPS53124 Manuale utente
Texas Instruments
Texas Instruments DEM-DSD1796 Manuale utente
Texas Instruments
Texas Instruments DAC39RF10EVM Manuale utente
Texas Instruments
Texas Instruments TPS563231EVM-032 Manuale utente
Texas Instruments
Texas Instruments TAS5706EVM2 Manuale utente
Texas Instruments
Texas Instruments ADC121S101EVM Manuale utente
Texas Instruments
Texas Instruments TLV62080 Manuale utente
Texas Instruments
Texas Instruments ADS1256EVM-PDK Manuale utente
Texas Instruments
Texas Instruments BQ20Z40EVM-001 Manuale utente
Texas Instruments
Texas Instruments ADS126 EVM-PDK Series Manuale utente
Texas Instruments
Texas Instruments TPS563203 Manuale utente
Texas Instruments
Texas Instruments OMAP35 Series Manuale utente
Texas Instruments
Texas Instruments TPA3220 Manuale utente
Texas Instruments
Texas Instruments LM5168FQEVM Manuale utente
Texas Instruments
Texas Instruments ADS5295 Manuale utente
Texas Instruments
Texas Instruments DRV2624EVM-CT Manuale utente
Texas Instruments
Texas Instruments TPSM33625EVM Manuale utente
Manuali Scheda madre popolari di altre marche
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuale utente
Gigabyte
Gigabyte GA-9IVDT Manuale utente
Commell
Commell MS-C73 Manuale utente
IBT Technologies
IBT Technologies MB860 Manuale utente
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuale utente
Biostar
Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione
