Texas Instruments PCM1802EVM Manuale utente

User’s Guide

PCM1802EVM and PCM1803AEVM Evaluation Module

ABSTRACT

This user's guide describes the function and use of the PCM1802EVM and PCM1803AEVM. This document

includes the hardware configuration instructions, a quick-start guide, jumper and connector descriptions,

schematics, and printed-circuit board (PCB) layout that demonstrate TI's recommended practices for these

devices.

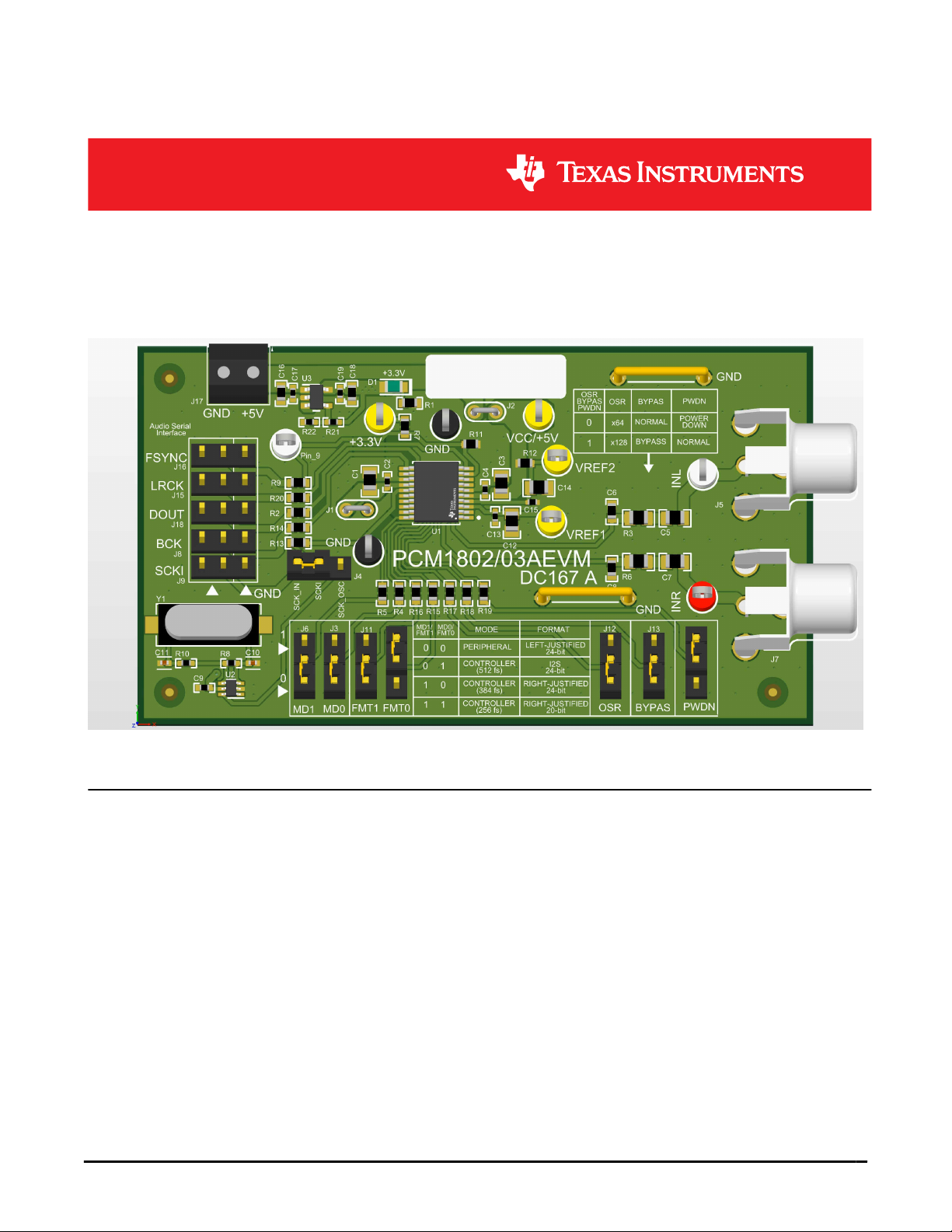

Figure 1-1. PCM1802EVM and PCM1803AEVM

Table of Contents

1 Trademarks..............................................................................................................................................................................1

2 Introduction.............................................................................................................................................................................2

3 Power Supply.......................................................................................................................................................................... 2

4 Hardware Configuration.........................................................................................................................................................3

5 Interfacing With the EVM........................................................................................................................................................5

5.1 PCM1802EVM and PCM1803AEVM Inputs...................................................................................................................... 5

5.2 PCM1802EVM and PCM1803AEVM Output..................................................................................................................... 5

6 Switching Between the PCM1802EVM and PCM1803AEVM............................................................................................... 5

7 Board Layout...........................................................................................................................................................................6

8 Schematic and Bill of Materials.............................................................................................................................................7

8.1 Schematic.......................................................................................................................................................................... 8

8.2 Bill of Materials.................................................................................................................................................................10

9 Related Documentation........................................................................................................................................................14

1 Trademarks

All trademarks are the property of their respective owners.

www.ti.com Table of Contents

SBAU384 – JULY 2021

Submit Document Feedback

PCM1802EVM and PCM1803AEVM Evaluation Module 1

2 Introduction

The PCM1802EVM and PCM1803AEVM are evaluation modules (EVMs) designed to demonstrate the

performance and functionality of the PCM1802 and PCM1803A devices, respectively. Although the populated

components differ between the two device variants, the PCM1802EVM and PCM1803AEVM use the same

hardware and printed circuit board (PCB) layout. The variants are differentiated by the label at the top of

the PCB, and by the variant name, DC167-001 (PCM1802EVM) and DC167-002 (PCM1803AEVM), within the

manufacturing files.

Both the PCM1802 and PCM1803A are high-performance, low-cost, single-chip, stereo analog-to-digital

converters (ADCs) with single-ended analog voltage inputs. The devices are configured through logic-level

mode selection pins and do not require a digital interface such as I2C or SPI to configure registers. As such, no

software is necessary to interface with the EVMs. The EVMs are powered with a single 5-V supply. Access to the

converter output is provided on the audio serial interface in I2S, right-justified (RJ), and left-justified (LJ) formats.

3 Power Supply

The PCM1802EVM and PCM1803AEVM are powered with a single 5-V power supply connected to J17. An

onboard low-dropout regulator converts the 5-V supply to the 3.3-V rail used by the ADC. The analog supply,

VCC, is fixed at 5 V and the digital supply, VDD, is fixed at 3.3 V. The power status of the EVM is indicated by

LED (D1), which illuminates when power is applied to the board.

J1 (VCC, 5 V) and J2 (VDD, 3.3 V) are jumper wires that can be used to disconnect the voltage supply

pins (VCC and VDD) of the device from the supply nets (5 V and 3.3 V). This process is done by cutting or

unsoldering the wire. These disconnections can help measure the power consumption of each voltage rail using

an ammeter or digital multimeter (DMM).

Introduction www.ti.com

2PCM1802EVM and PCM1803AEVM Evaluation Module SBAU384 – JULY 2021

Submit Document Feedback

4 Hardware Configuration

The audio data format and the ADC operating mode are controlled by the MODE0, MODE1, FMT0, FMT1, OSR,

BYPAS, and PWDN pins. These signals are referenced to VDD and can be set to high (1) or low (0). If no shunt

is installed, then an internal 50-kΩ pulldown resistor sets the pin low so that the ADC remains in a defined state.

Table 4-1 shows the header numbers and their pin functions and Table 4-2, Table 4-3, Table 4-4, Table 4-5, and

Table 4-6 list the possible modes, output formats, and other functions of the device.

MODE0 and MODE1 are used to select the serial audio data communication timing and must be set prior to

power on. In controller mode, BCK and LRCK are output pins that are generated by internal divider circuitry

from the SCKI input. Thus, SCKI must be a valid multiple of the intended sample rate. The frequency of BCK is

constant at 64 BCKs per frame.

In peripheral mode, BCK and LRCK function as input pins. The device accepts either 64-BCKs per frame or

48-BCKs per frame format (only for a 384 fS system clock), but not a 32-BCK per frame format. Although BCK

and LRCK are no longer derived from SCKI in peripheral mode, a valid SCKI is still required for operation.

Table 4-1. PCM1802EVM and PCM1803AEVM Headers and Jumpers

Designator Function

J9 Audio serial interface: system clock input (SCK_IN)

J8 Audio serial interface: bit-clock input or output (BCK)

J15 Audio serial interface: latch-enable input or output (LRCLK)

J18 Audio serial interface: digital data output (DOUT)

J16 PCM1802 only: Frame synchronous clock input and output (FSYNC)

J4 System clock source select (SCKI)

J10 Format [0] select (FMT0)

J11 Format [1] select (FMT1)

J3 Mode [0] select (MODE0 and MD0)

J6 Mode [1] select (MODE1 and MD1)

J12 Oversampling ratio select (OSR)

J13 High-pass filter bypass control select (BYPAS)

J14 Power-down control (nPWDN)

J7 Analog audio input: right

J5 Analog audio input: left

J17 5-V supply input

J1 VDD, 3.3-V jumper wire

J2 VCC, 5-V jumper wire

Table 4-2. PCM1802 and PCM1803A Mode Settings

MODE1, MD1 MODE0, MD0 Interface Mode

0 0 Peripheral mode (256 fs, 384 fs, 512 fs, and 768 fs)

0 1 Controller mode (512 fs)

1 0 Controller mode (384 fs)

1 1 Controller mode (256 fs)

Table 4-3. PCM1802 and PCM1803A Format Settings

FMT1 FMT0 Format

0 0 Left-justified, 24-bit

0 1 I2S, 24-bit

1 0 Right-justified, 24-bit

1 1 Right-justified, 20-bit

www.ti.com Hardware Configuration

SBAU384 – JULY 2021

Submit Document Feedback

PCM1802EVM and PCM1803AEVM Evaluation Module 3

Table 4-4. PCM1802 and PCM1803A Oversampling Ratio Settings

OSR Oversampling Ratio

0 x64

1 x128 (fS < 50 kHz)

Table 4-5. PCM1802 and PCM1803A High-Pass Filter Bypass Mode Settings

BPYAS High-Pass Filter (HPF) Mode

0 Normal (no DC component on DOUT) mode

1 Bypass (DC component on DOUT) mode

Table 4-6. PCM1802 and PCM1803A Power-Down Settings

nPWDN Mode

0 Power-down mode

1 Normal operation mode

The default jumper locations place the device in peripheral mode and in the I2S, 24-bit audio format with x64

oversampling ratio, normal HPF mode, and not in power-down mode. For more information on the operating

modes and clock timing of the PCM1802 and PCM1803A device, see the PCM1802 Single-Ended Analog-Input

24-Bit, 96-kHz Stereo A/D Converter and PCM1803A Single-Ended, Analog-Input 24-Bit, 96-kHz Stereo A/D

Converter data sheets, respectively.

In addition, the SCKI signal can be sourced from an onboard oscillator or provided externally at J9. J4 selects

the SCKI clock source (SCK_OSC) or externally from J9 (SCK_IN) by changing the position of J4 as shown in

Table 4-7.

Table 4-7. PCM1802EVM and PCM1803AEVM SCK Source Select

Shunt Position SCK Source Select

Pins 1-2 SCKI sourced externally through J9 (SCK_IN)

Pins 2-3 SCKI sourced from onboard oscillator (SCK_OSC)

Hardware Configuration www.ti.com

4PCM1802EVM and PCM1803AEVM Evaluation Module SBAU384 – JULY 2021

Submit Document Feedback

5 Interfacing With the EVM

5.1 PCM1802EVM and PCM1803AEVM Inputs

The right and left audio inputs to the PCM1802EVM and PCM1803AEVM can be applied through the RCA

connectors (J7 and J5, respectively) or directly to the test points (TP4 and TP3, respectively). The single-ended

audio inputs pass through an optional antialiasing filter made by R6 and C8 for the right input and R3 and C6 for

the left input. The capacitors can be left depopulated and the resistors replaced with 0-Ω resistors if the filter is

not desired.

An input high-pass filter is created by the 4.7-µF capacitors (C5 and 79) and 20-kΩ input impedance for the

PCM1802 or 40-kΩ input impedance for the PCM1803A. This filter structure results in a high-pass filter cutoff

frequency of approximately 1.69-Hz and 0.84-Hz for the PCM1802EVM and PCM1803AEVM, respectively.

5.2 PCM1802EVM and PCM1803AEVM Output

The digital I/O of the PCM1802EVM and PCM1803AEVM are provided by J8, J9, J15, J16, and J18; the

functions are outlined in Table 4-1. The first two pins of each header are duplicated signals to allow for signal

input and monitoring. The third pin of each signal is connected to GND.

6 Switching Between the PCM1802EVM and PCM1803AEVM

As discussed previously, the populated components differ between the two variants, but the PCM1802EVM and

PCM1803AEVM use the same hardware and PCB layout. The variants are differentiated by the label at the top

of the PCB, and by the variant name, DC167-001 (PCM1802EVM) and DC167-002 (PCM1803AEVM), within the

manufacturing files. As such, a PCM1802EVM can be converted to a PCM1803AEVM and vice versa.

The difference between the two variants is located at pin 9 of U1, which can be either the PCM1802 or

PCM1803A. Specifically, all pin functions between the two devices are similar or identical, with the exception of

pin 9. Pin 9 functions as FSYNC for the PCM1802, and functions as TEST for the PCM1803A.

Although the FSYNC and TEST details can be reviewed within each device data sheet, the hardware changes

are captured in Section 8.1. Specifically, FSYNC is considered part of the audio serial interface (J16), which can

be used when R9 is populated, and TEST is a test pin that must be grounded for normal operation, which can be

done through R11.

www.ti.com Interfacing With the EVM

SBAU384 – JULY 2021

Submit Document Feedback

PCM1802EVM and PCM1803AEVM Evaluation Module 5

7 Board Layout

Figure 7-1 to Figure 7-4 illustrate the EVM board layout.

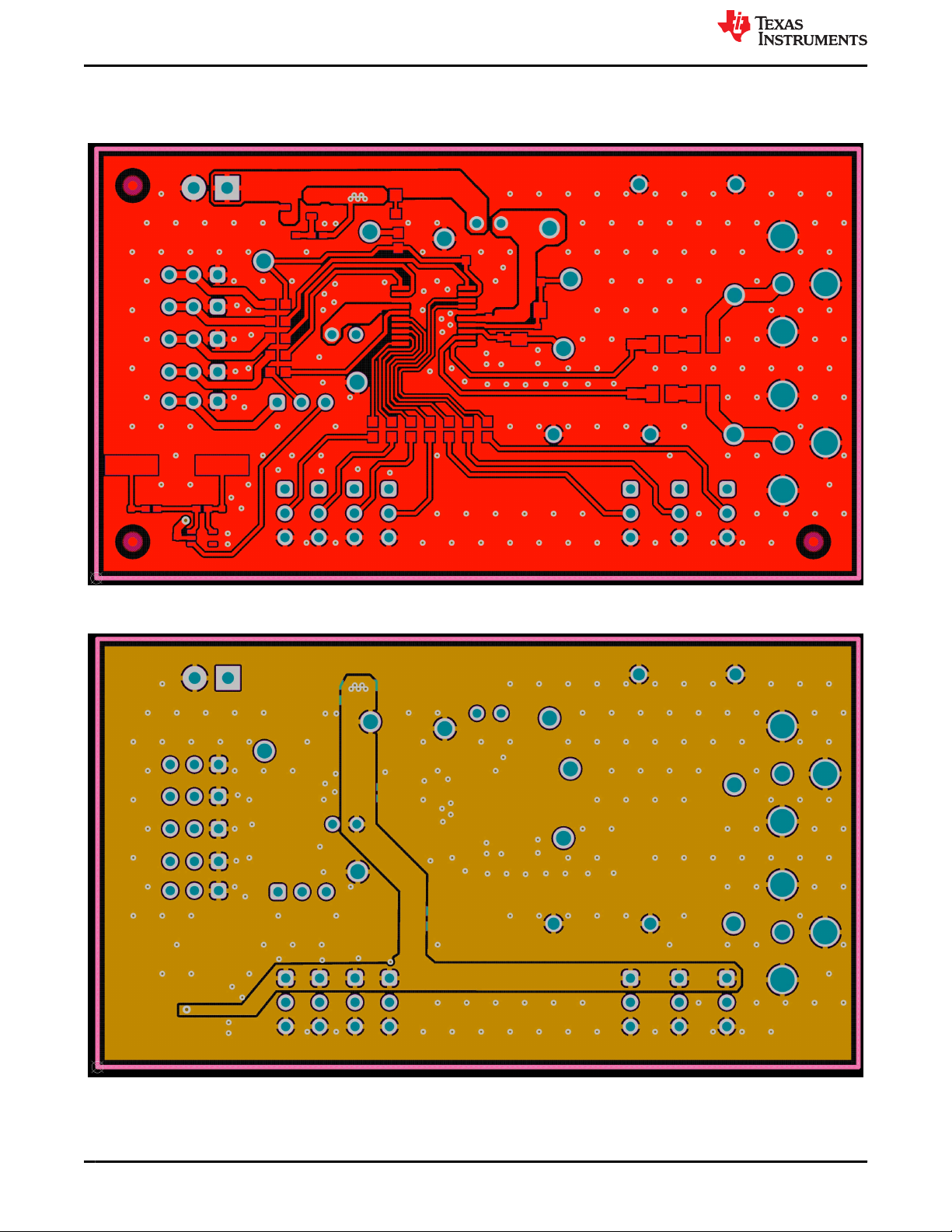

Figure 7-1. PCM1802EVM and PCM1803AEVM Top Layer

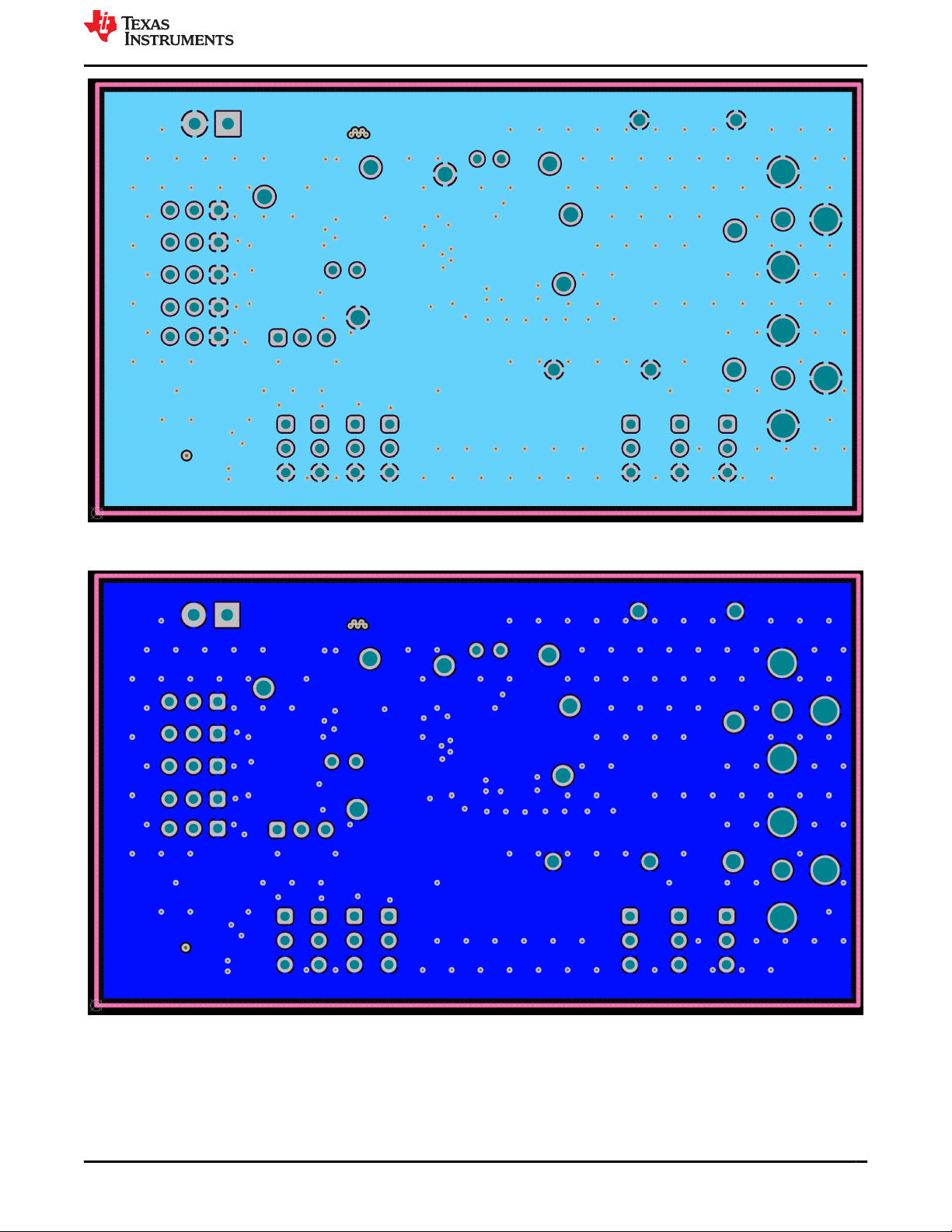

Figure 7-2. PCM1802EVM and PCM1803AEVM Power Plane 1

Board Layout www.ti.com

6PCM1802EVM and PCM1803AEVM Evaluation Module SBAU384 – JULY 2021

Submit Document Feedback

Figure 7-3. PCM1802EVM and PCM1803AEVM Power Plane 2

Figure 7-4. PCM1802EVM and PCM1803AEVM Bottom Layer

8 Schematic and Bill of Materials

This section contains the EVM schematics and bill of materials.

www.ti.com Schematic and Bill of Materials

SBAU384 – JULY 2021

Submit Document Feedback

PCM1802EVM and PCM1803AEVM Evaluation Module 7

8.1 Schematic

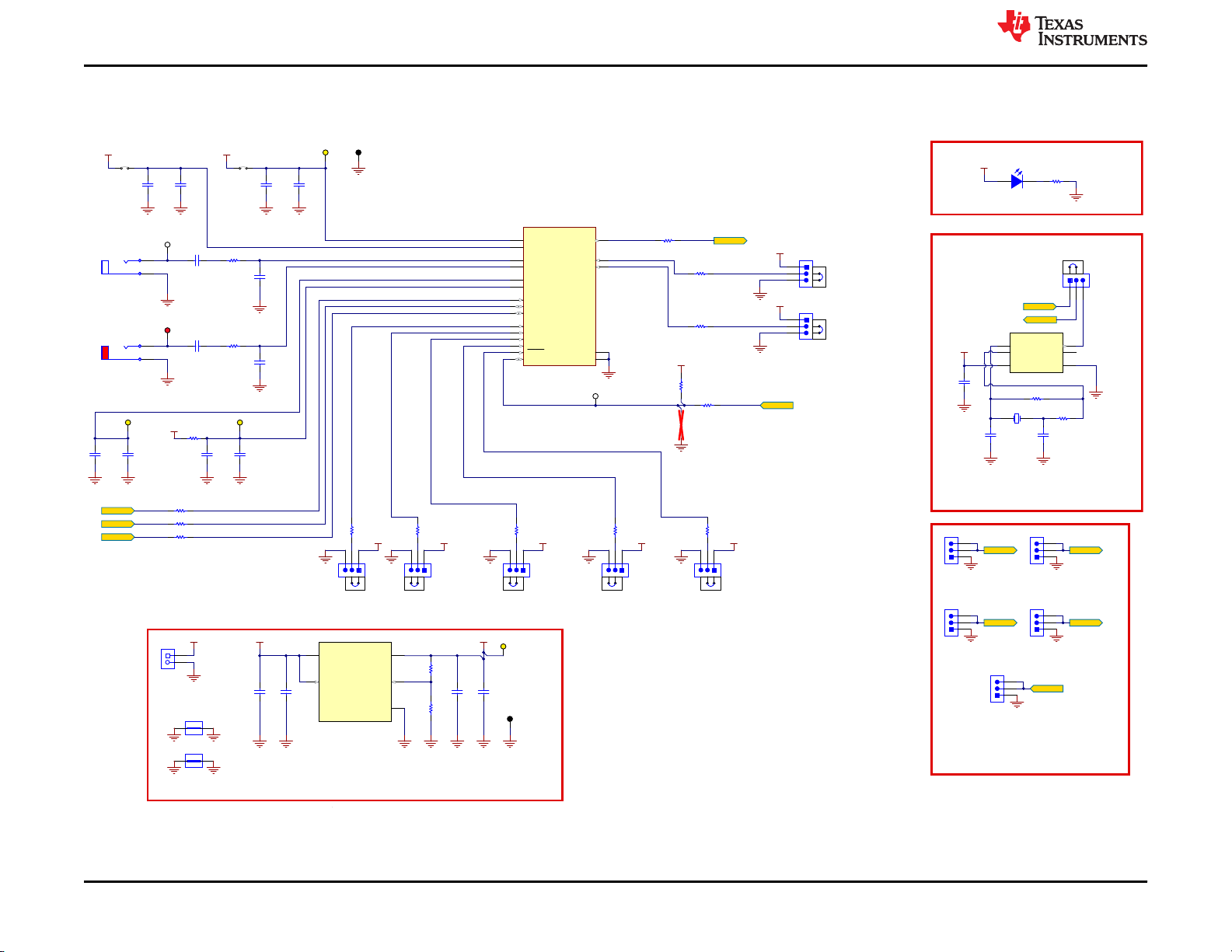

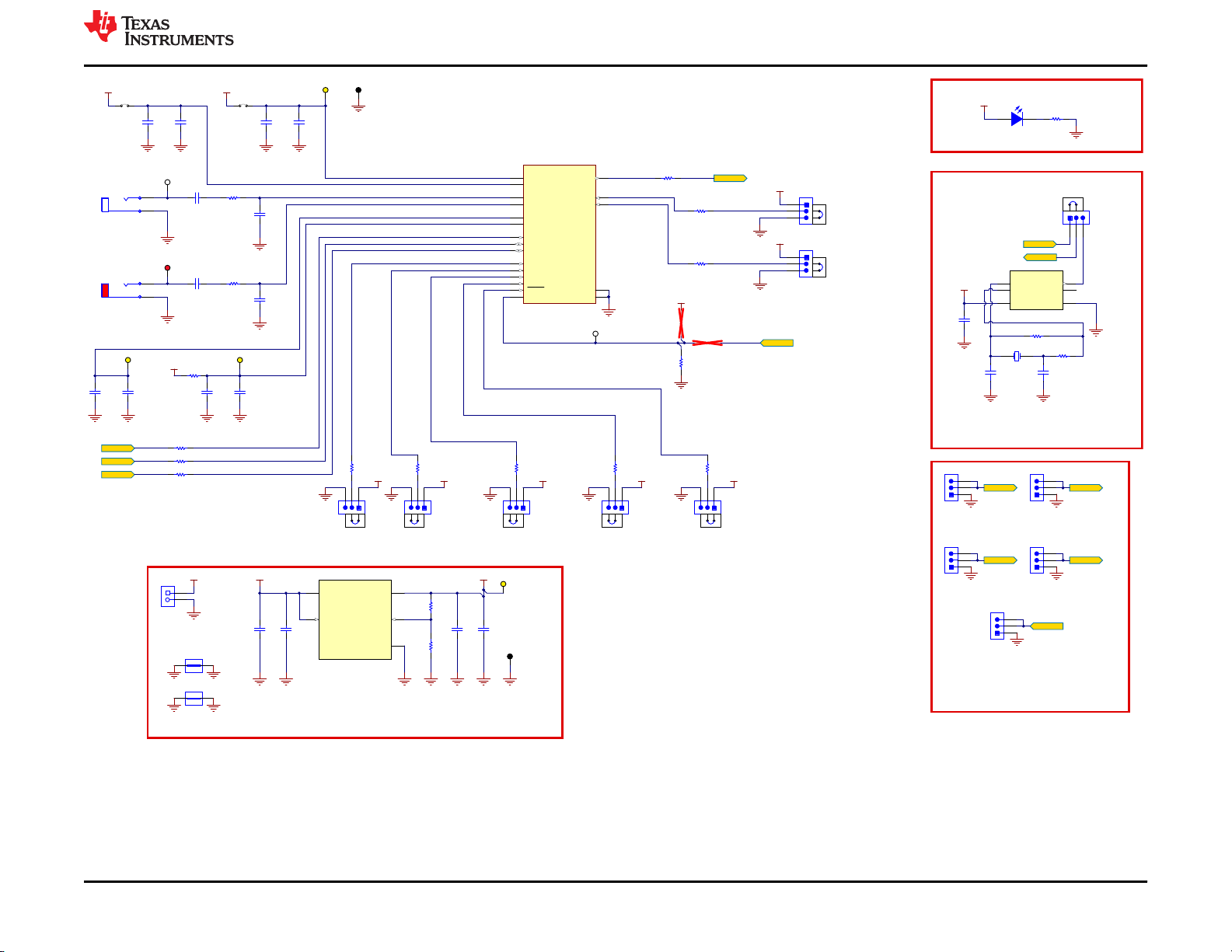

Figure 8-1 and Figure 8-2 illustrate the EVM schematics for the PCM1802EVM and PCM1803AEVM, respectively.

47.0

R13

GND GND GND GND

GND

10uF

16V

C16

GND GND GND GNDGND

+5V+3.3V

+3.3V+5V

+3.3V

LRCK

GND

CLOCK SOURCE HEADERS

POWER

GND GND

GND

+3.3V

GND

CONTROLLER

1 2

0.1uF

50V

+5V

GND

SCKI

SCK_IN

SCKI

GND

GNDGND

CLOCK GENERATOR

1.0M

R10

PCM1802EVMDC167A

Main Schematics

INTERFACE

MODE [0]

MODE [1]

INTERFACE

EXTERNAL

+5V INPUT

DOUT

BCK

0.1uF

16V

C17

J17

Green

1 2

442

GND

+3.3V

Power Ready

POWER LED

LRCK

BCK

DOUT

SCK_IN

0.1uF

50V

0.1uF

50V

C13

SN74LVC1GX04DCKR

NC 1

GND 2

VCC

47.0

R20 47.0

R14

47.0

10uF

16V

C18

0.1uF

16V

C19

0.1uF

16V

GND

100

J15

J18

10.0k

10 Fµ

16V

10 Fµ

16V

10 Fµ

16V

C12

PDWN

BCK

BYPAS

FMT0

FMT1

FSYNC

LRCK

OSR

SCKI

VCC

VDD

VINL

VINR

VREF1

VREF2

AGND 6

DGND 13

DOUT 12

MODE0 19

MODE1 20

PCM1802DBR

GND GND

0.1uF

50V

C15

10 Fµ

16V

C14

FSYNC

47.0

+3.3V

FORMAT [1]

SELECTION

J10

GND

10.0k

R15

+3.3V

J11

GND

10.0k

R16

+3.3V

J12

GND

10.0k

R17

OVERSAMPLE

SELECTION

RATIO

+3.3V

J13

GND

10.0k

R18

HPF BYPASS

SELECTION

CONTROL

+3.3V

J14

GND

10.0k

R19

POWER DOWN

CONTROL

FORMAT [0]

SELECTION

GND

FSYNC

J16

(SCKI SOURCE)

FORMAT

NUMBER FM T1 FMT0 FORMAT

0 0 0 Left-justified, 24-bit

1 0 1 I2S, 24-bit

2 1 0 Right-justified, 24-bit

3 1 1 Right-justified, 20-bit

VINL

VINR

VREF1

VREF2

SCKI_pin

BCK_pin

LRCK_pin

FMT0

FMT1

OSR

BYPAS

nPDWN

Pin_9

DOUT_pin

MODE0

MODE1

OSR OVERSAM PLING RATIO

0 x64

1 x128 (f < 50 kHz)

BPYAS HIGH-PASS FILTER (HPF) M ODE

0 Normal (no DC component on DOUT)

mode

1 Bypass (DC component on DOUT)

mode

nPWDN MODE

0 Power-down mode

1 Normal operation mode

R12

VCC/+5V

TP10

GNDGND

TP11

GNDGND

OSCOPE GND CLIP BAR

4.7µF

16V

4.7µF

16V

25V

0.01uF

25V

0.01uF

MODE1 MODE0 INTERFACE MODE

0 0 Peripheral Mode (256 fS, 384 fS, 512 fS, 768 fS)

0 1 Controller Mode (512 fS)

1 0 Controller Mode (384 fS)

1 1 Controller Mode (256 fS)

OR PERIPHERAL

SELECTION

TP3

INL

TP6

VREF1

TP7

VREF2

TP1

VCC/+5V

TP4

INR

TP9

GND

TP2

GND

R11

GND

10.0k

+3.3V

TP5

Pin_9

GND

SCK_OSC

50V

33pF

C10

50V

33pF

C11

J1 J2

VDD/+3.3V

VCC/+5V

TP8

+3.3V

GND 2

3NR/FB 4

OUT 5

TPS73601DBVR

52.3k

R21

30.1k

R22

Figure 8-1. PCM1802EVM (DC167-001) Main Schematic Page

Schematic and Bill of Materials www.ti.com

8PCM1802EVM and PCM1803AEVM Evaluation Module SBAU384 – JULY 2021

Submit Document Feedback

47.0

R13

GND GND GND GND

GND

10uF

16V

C16

GND GND GND GNDGND

+5V+3.3V

+3.3V+5V

+3.3V

LRCK

GND

CLOCK SOURCE HEADERS

POWER

GND GND

GND

+3.3V

GND

CONTROLLER

1 2

0.1uF

50V

+5V

GND

SCKI

SCK_IN

SCKI

GND

GNDGND

CLOCK GENERATOR

1.0M

R10

PCM1803AEVMDC167A

Main Schematics

INTERFACE

MODE [0]

MODE [1]

INTERFACE

EXTERNAL

+5V INPUT

DOUT

BCK

0.1uF

16V

C17

J17

Green

1 2

442

GND

+3.3V

Power Ready

POWER LED

LRCK

BCK

DOUT

SCK_IN

0.1uF

50V

0.1uF

50V

C13

SN74LVC1GX04DCKR

NC 1

GND 2

VCC

47.0

R20 47.0

R14

47.0

10uF

16V

C18

0.1uF

16V

C19

0.1uF

16V

GND

100

J15

J18

10.0k

10 Fµ

16V

10 Fµ

16V

10 Fµ

16V

C12

VCC

VDD

VINL

VINR

VREF1

VREF2

FMT0

FMT1

MODE0 19

MODE1 20

PDWN

BCK

BYPAS

DOUT 12

LRCK

OSR

SCKI

TEST

9AGND 6

DGND 13

PCM1803ADBR

GND GND

0.1uF

50V

C15

10 Fµ

16V

C14

FSYNC

47.0

+3.3V

FORMAT [1]

SELECTION

J10

GND

10.0k

R15

+3.3V

J11

GND

10.0k

R16

+3.3V

J12

GND

10.0k

R17

OVERSAMPLE

SELECTION

RATIO

+3.3V

J13

GND

10.0k

R18

HPF BYPASS

SELECTION

CONTROL

+3.3V

J14

GND

10.0k

R19

POWER DOWN

CONTROL

FORMAT [0]

SELECTION

GND

FSYNC

J16

(SCKI SOURCE)

FORMAT

NUMBER FM T1 FMT0 FORMAT

0 0 0 Left-justified, 24-bit

1 0 1 I2S, 24-bit

2 1 0 Right-justified, 24-bit

3 1 1 Right-justified, 20-bit

VINL

VINR

VREF1

VREF2

SCKI_pin

BCK_pin

LRCK_pin

FMT0

FMT1

OSR

BYPAS

nPDWN

Pin_9

DOUT_pin

MODE0

MODE1

OSR OVERSAM PLING RATIO

0 x64

1 x128 (f < 50 kHz)

BPYAS HIGH-PASS FILTER (HPF) M ODE

0 Normal (no DC component on DOUT)

mode

1 Bypass (DC component on DOUT)

mode

nPWDN MODE

0 Power-down mode

1 Normal operation mode

R12

VCC/+5V

TP10

GNDGND

TP11

GNDGND

OSCOPE GND CLIP BAR

4.7µF

16V

4.7µF

16V

25V

0.01uF

25V

0.01uF

MODE1 MODE0 INTERFACE MODE

0 0 Peripheral Mode (256 fS, 384 fS, 512 fS, 768 fS)

0 1 Controller Mode (512 fS)

1 0 Controller Mode (384 fS)

1 1 Controller Mode (256 fS)

OR PERIPHERAL

SELECTION

TP3

INL

TP6

VREF1

TP7

VREF2

TP1

VCC/+5V

TP4

INR

TP9

GND

TP2

GND

R11

GND

10.0k

+3.3V

TP5

Pin_9

GND

SCK_OSC

50V

33pF

C10

50V

33pF

C11

J1 J2

VDD/+3.3V

VCC/+5V

TP8

+3.3V

GND 2

3NR/FB 4

OUT 5

TPS73601DBVR

52.3k

R21

30.1k

R22

Figure 8-2. PCM1803AEVM (DC167-002) Main Schematic Page

www.ti.com Schematic and Bill of Materials

SBAU384 – JULY 2021

Submit Document Feedback

PCM1802EVM and PCM1803AEVM Evaluation Module 9

8.2 Bill of Materials

Table 8-1 and Table 8-2 list the bill of materials (BOM) for the PCM1802EVM and PCM1803AEVM, respectively.

Table 8-1. PCM1802EVM (DC167-001) Bill of Materials

Designator Quantity Value Description Package Reference Part Number Manufacturer

!PCB1 1 Printed Circuit Board DC167 Any

C1, C3, C12, C14 4 10uF CAP, CERM, 10 uF, 16 V, +/- 10%, X7R, 0805 805 CL21B106KOQNNNE Samsung Electro-

Mechanics

C2, C4, C13, C15 4 0.1uF CAP, CERM, 0.1 uF, 50 V, +/- 10%, X7R, 0402 402 C1005X7R1H104K050BB TDK

C5, C7 2 4.7uF CAP, CERM, 4.7 uF, 16 V, +/- 10%, X7R, AEC-

Q200 Grade 1, 0805

805 GCM21BR71C475KA73L MuRata

C6, C8 2 0.01uF CAP, CERM, 0.01 uF, 25 V, +/- 5%, C0G/NP0,

AEC-Q200 Grade 1, 0603

603 C0603C103J3GECAUTO Kemet

C9, C17, C19 3 0.1uF CAP, CERM, 0.1 uF, 16 V, +/- 10%, X7R, 0402 402 GCM155R71C104KA55D MuRata

C10, C11 2 33pF Cap Ceramic 33pF 50V C0G ±5% SMD 0402

+125°C Paper T/R

402 CL05C330JB5NNNC Samsung

C16, C18 2 10uF CAP, CERM, 10 uF, 16 V, +/- 20%, X5R, 0603 603 GRM188R61C106MAALD MuRata

D1 1 Green LED, Green, SMD LED_0805 LTST-C170KGKT Lite-On

H1, H2, H3, H4 4 Bumpon, Hemisphere, 0.25 X 0.075, Clear 75x250 mil SJ5382 3M

J1, J2 2 Jumper Wire, 100mil spacing, pkg of 200, TH Wire Jumper 923345-01-C 3M

J3, J4, J6, J8, J9, J10,

J11, J12, J13, J14, J15,

J16, J18

13 Header, 100mil, 3x1, Gold, TH 3x1 Header TSW-103-07-G-S Samtec

J5 1 RCA Jack, 1Pos, Tin, White, R/A, TH RCA Jack, 1Pos, R/A,

RCJ-013 CUI Inc.

J7 1 RCA Jack, 1Pos, Tin, Red, R/A, TH RCA Jack, 1Pos, R/A,

RCJ-012 CUI Inc.

J17 1 Terminal Block, 3.5mm Pitch, 2x1, TH 7.0x8.2x6.5mm ED555/2DS On-Shore Technology

LBL1 1 Thermal Transfer Printable Labels, 0.650" W x

0.200" H - 10,000 per roll

PCB Label 0.650 x

0.200 inch

THT-14-423-10 Brady

R1 1 442 RES, 442, 1%, 0.1 W, AEC-Q200 Grade 0, 0603 603 CRCW0603442RFKEA Vishay-Dale

R2, R9, R13, R14, R20 5 47 RES, 47.0, 1%, 0.1 W, 0603 603 RC0603FR-0747RL Yageo

R3, R6 2 100 RES, 100, 1%, 0.125 W, AEC-Q200 Grade 0,

0805

805 CRCW0805100RFKEA Vishay-Dale

R4, R5, R7, R15, R16,

R17, R18, R19

8 10.0k RES, 10.0 k, 1%, 0.1 W, AEC-Q200 Grade 0,

0603

603 CRCW060310K0FKEA Vishay-Dale

R8 1 1.0Meg RES, 1.0 M, 5%, 0.063 W, AEC-Q200 Grade 0,

0402

402 CRCW04021M00JNED Vishay-Dale

R10 1 0 RES, 0, 5%, 0.063 W, 0402 402 RC0402JR-070RL Yageo America

R12 1 0 RES, 0, 5%, 0.1 W, AEC-Q200 Grade 0, 0603 603 ERJ-3GEY0R00V Panasonic

Schematic and Bill of Materials www.ti.com

10 PCM1802EVM and PCM1803AEVM Evaluation Module SBAU384 – JULY 2021

Submit Document Feedback

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Texas Instruments Scheda madre

Texas Instruments

Texas Instruments DAC8534 Manuale utente

Texas Instruments

Texas Instruments PCM1840EVM Manuale utente

Texas Instruments

Texas Instruments OPT4060DTSEVM Manuale utente

Texas Instruments

Texas Instruments LMX2615EVM-CVAL Manuale utente

Texas Instruments

Texas Instruments bq25120EVM Manuale utente

Texas Instruments

Texas Instruments AM64 SK EVM Series Manuale utente

Texas Instruments

Texas Instruments TPS53317AEVM-726 Manuale utente

Texas Instruments

Texas Instruments LM8330EVM Manuale utente

Texas Instruments

Texas Instruments TPS51125AEVM Manuale utente

Texas Instruments

Texas Instruments TPS2375EVM Manuale utente

Texas Instruments

Texas Instruments CC2564MODN Manuale utente

Texas Instruments

Texas Instruments INA280EVM Manuale utente

Texas Instruments

Texas Instruments DVEVM Manuale utente

Texas Instruments

Texas Instruments TPA3132D2EVM Manuale utente

Texas Instruments

Texas Instruments LP87561Q1 Manuale utente

Texas Instruments

Texas Instruments TPS25810EVM-745 Manuale utente

Texas Instruments

Texas Instruments ISO154 EVM Series Manuale utente

Texas Instruments

Texas Instruments ADS528 Series Manuale utente

Texas Instruments

Texas Instruments UCC25660 Series Manuale utente

Texas Instruments

Texas Instruments CC900DB Manuale utente

Texas Instruments

Texas Instruments MSP430i2040 Manuale utente

Texas Instruments

Texas Instruments TPS23882EVM Manuale utente

Texas Instruments

Texas Instruments BQ25171EVM Manuale utente

Texas Instruments

Texas Instruments TPS793 YEQEVM Series Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
