EVM User's Guide: TLV3607 TLV3607EVM

TLV3607 Evaluation Module

Description

The TLV3607EVM is an evaluation board designed

to evaluate the high-speed dual channel TLV3607

comparator. The TLV3607EVM has layout options

intended to simply evaluate timing performance

with different measurement tools. The output of

the TLV3607 is designed for low-voltage differential

signals (LVDS), which provide high-speed signals to

interconnect devices such as FPGAs with minimal

power dissipation.

Features

• Low propagation delay

• Low overdrive dispersion

• High toggle frequency

• Narrow pulse width detection capability

• LVDS output

• Low input offset voltage

• RTE Package 16-pin WQFN

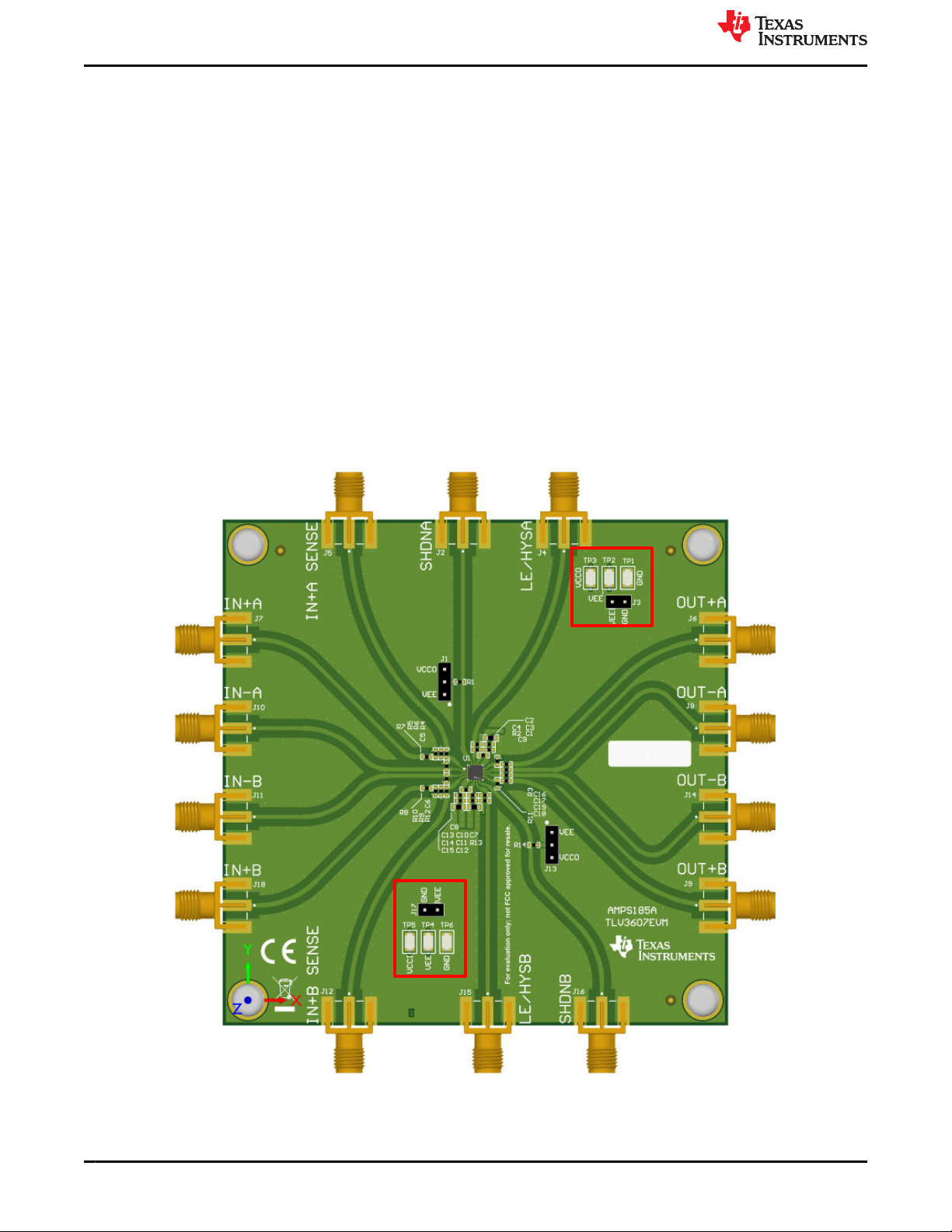

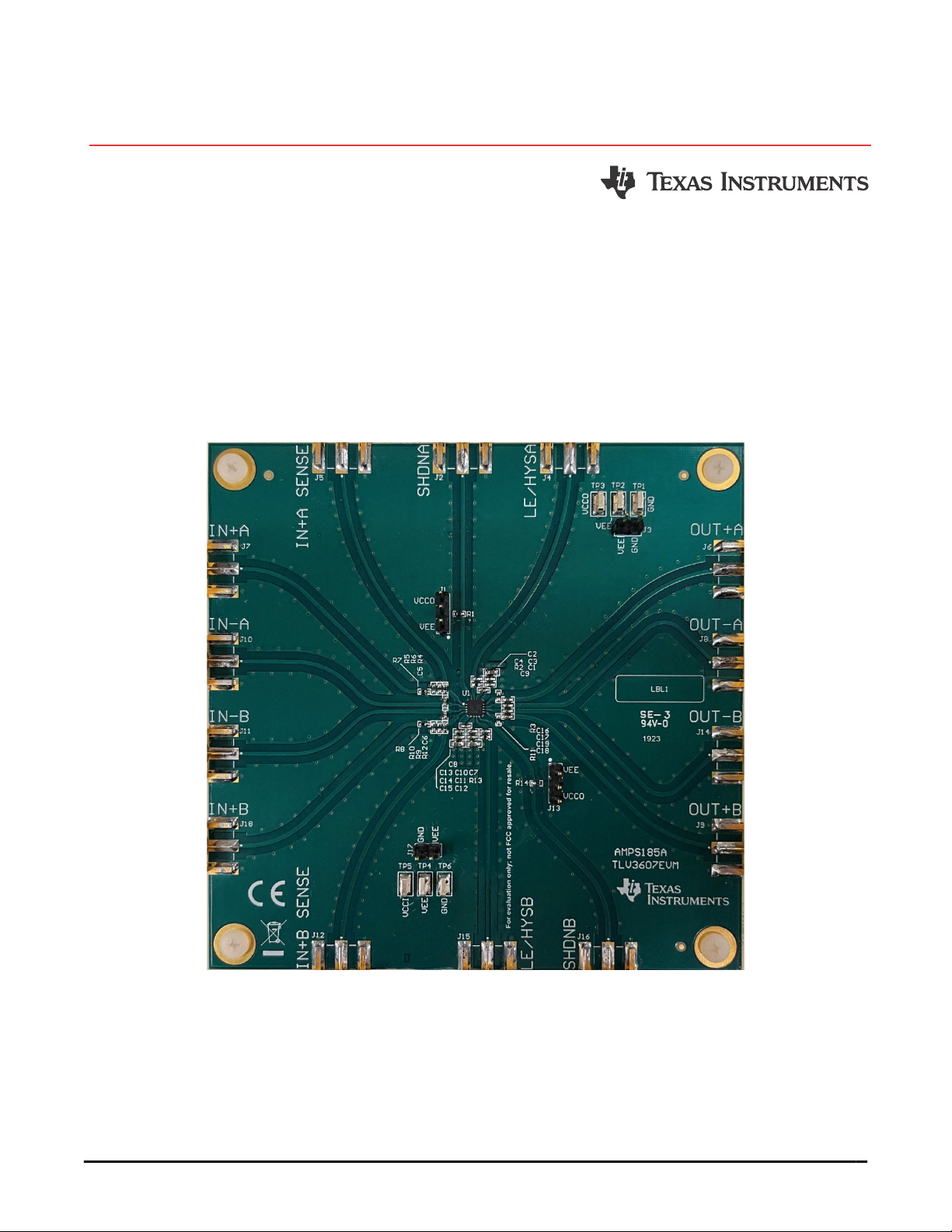

TLV3607EVM Board (Top View)

www.ti.com Description

SNOU197 – JULY 2023

Submit Document Feedback

TLV3607 Evaluation Module 1

1 Evaluation Module Overview

1.1 Introduction

This user's guide describes the functionality and set up procedure of the evaluation board TLV3607EVM, which

is designed to evaluate the performance of the high-speed dual channel TLV3607 comparator. Information such

as the contents of the kit, specifications of the device, and recommended equipment for the set up is also

included. Although TLV3607 can be operated in either single or split supply configuration, this user's guide will

assume single supply is used.

–

C19

0.1uF

C18

0.1uF

OUT-B

OUT+B

–

C16

0.1uF

C17

0.1uF

OUT+A

OUT-A

TLV3607A

TLV3607B

–

IN+A

IN-A

IN+A

SENSE SHDNA

LE/HYSA

(50



Option)

R12

IN-B

IN+B

SENSE

SHDNB

LE/HYSB

(50



Option)

(Hysteresis

Option)

R10

(Hysteresis

Option)

(Hysteresis

Option)

R11

(Hysteresis

Option)

Figure 1-1. TLV3607EVM Block Diagram

1.2 Kit Contents

The kit comes with the following:

• 1 x TLV3607EVM

• 4 x jumper caps

Evaluation Module Overview www.ti.com

2TLV3607 Evaluation Module SNOU197 – JULY 2023

Submit Document Feedback

1.3 Specification

• Supply Range: +2.4 V to +5.5 V

• Input Common Mode Voltage Range: (VEE - 0.2 V) to (VCCI + 0.2 V)

Table 1-1. TLV3607EVM SMA and Test Point to DUT Pin Mapping

TLV3607EVM CONNECTIONS

SMA J7: IN+A

SMA J5: IN+A SENSE

IN+A (Pin 1)

SMA J10: IN-A IN-A (Pin 2)

SMA J11: IN-B IN-B (Pin 3)

SMA J18: IN+B

SMA J12: IN+B SENSE

IN+B (Pin 4)

Test Point 5: VCCI VCCI (Pin 5)

Test Point 2 and 4: VEE VEE (Pin 6, 14)

SMA J15: LE/HYSB LE/HYSB (Pin 7)

SMA J16: SHDNB SHDNB (Pin 8)

SMA J9: OUT+B OUT+B (Pin 9)

SMA J14: OUT-B OUT-B (Pin 10)

SMA J8: OUT-A OUT-A (Pin 11)

SMA J6: OUT+A OUT+A (Pin 12)

Test point 3: VCCO VCCO (Pin 13)

SMA J4: LE/HYSA LE/HYSA (Pin 15)

SMA J2: SHDNA SHDNA (Pin 16)

Test Points 1 and 6: GND System Ground

Note

There are only sense lines for the non-inverting inputs (IN+A SENSE and IN+B SENSE).

1.4 Device Information

The following device is used in this evaluation module:

• TLV3607RTER

www.ti.com Evaluation Module Overview

SNOU197 – JULY 2023

Submit Document Feedback

TLV3607 Evaluation Module 3

2 Hardware

2.1 Recommended Equipment Setup

• Power Supply

• High Speed Functional Generator with fast rise/fall time recommended (≤ 500 ps)

• High Speed Oscilloscope with 50-Ω terminations

• SMA Cables/adapters

– All sensed input signals and output signals must have matched cable lengths

• IN+A SENSE, IN+B SENSE, OUT+A, OUT-A, OUT+B, OUT-B

2.2 Board Setup

2.2.1 Power Supplies

The TLV3607EVM can operate from +2.4V to +5.5V in either single or split supply configuration. Connect VCCI

and VCCO to TP5 and TP3, respectively. For single supply configuration, connect system ground to TP1 and

TP6; use J3 and J17 to connect VEE to GND. This user's guide assumes single supply configuration is used.

If split supply configuration is desired, then connect VEE to TP2 and TP4; connect GND to TP1 and TP6. This

configuration can be desirable if the reference voltage is at GND or if there is a need to zoom into the amplitude

of the input as much as possible.

Figure 2-1. TLV3607EVM Power Supplies Connection

Hardware www.ti.com

4TLV3607 Evaluation Module SNOU197 – JULY 2023

Submit Document Feedback

2.2.2 Inputs

Resistors R4 and R12 are 0-Ω resistors. The non-inverting input terminals (IN+A and IN+B) have corresponding

sense lines so that the inputs to the device can be terminated on the lines with 50-Ω to an oscilloscope.

This allows the input signals to be observed with minimal loading and distortion. There are also optional input

resistors (R6 and R9) for direct 50-Ω termination if required by the input signal generator, otherwise the input

resistors can be left uninstalled.

–

IN+A

IN-A

IN+A

SENSE

Option for 50



termination

TLV3607A

–

R12

IN-B

IN+B

SENSE

Option for 50



termination

TLV3607B

Figure 2-2. Input Side Block Diagram

The TLV3607 can be put in either active or shutdown mode through the SHDNA and SHDNB pins. Each channel

of the TLV3607 is in shutdown mode when their respective shutdown pins are tied to VEE though jumpers J1

and J13; otherwise the pins can be left open or tied to VCCO. If necessary to dynamically control when the

device shutdowns, then a pulsing signal can be applied to SMA connectors J2 and J16.

The TLV3607 utilizes pins LE/HYSA and LE/HYSB to adjust the internal hysteresis of the comparator through

the attachment of a external resistors R2 and R14 connecting to VEE. R2 and R14 are 150-kΩ resistors to allow

for 30 mV of internal hysteresis, but these resistors can be replaced accordingly to desired amount of hysteresis.

C4 and C7 are 100 pF capacitors for extra filtering.

Alternatively, these pins also have a latch functionality. If the pin is connected to VEE, then the device holds

the output state for as long as the pin remains connected to that voltage. If the pin is connected to VCC, then

the device functions normally with no hysteresis. However, if necessary to dynamically control when the device

latches, then a pulsing signal can be applied to SMA connectors J4 and J15.

www.ti.com Hardware

SNOU197 – JULY 2023

Submit Document Feedback

TLV3607 Evaluation Module 5

–

SHDNA

LE/HYSA

TLV3607A

–

SHDNB

LE/HYSB

TLV3607B

VEE

VCCO

R13

VEE

R14

VEE

VCCO

J13

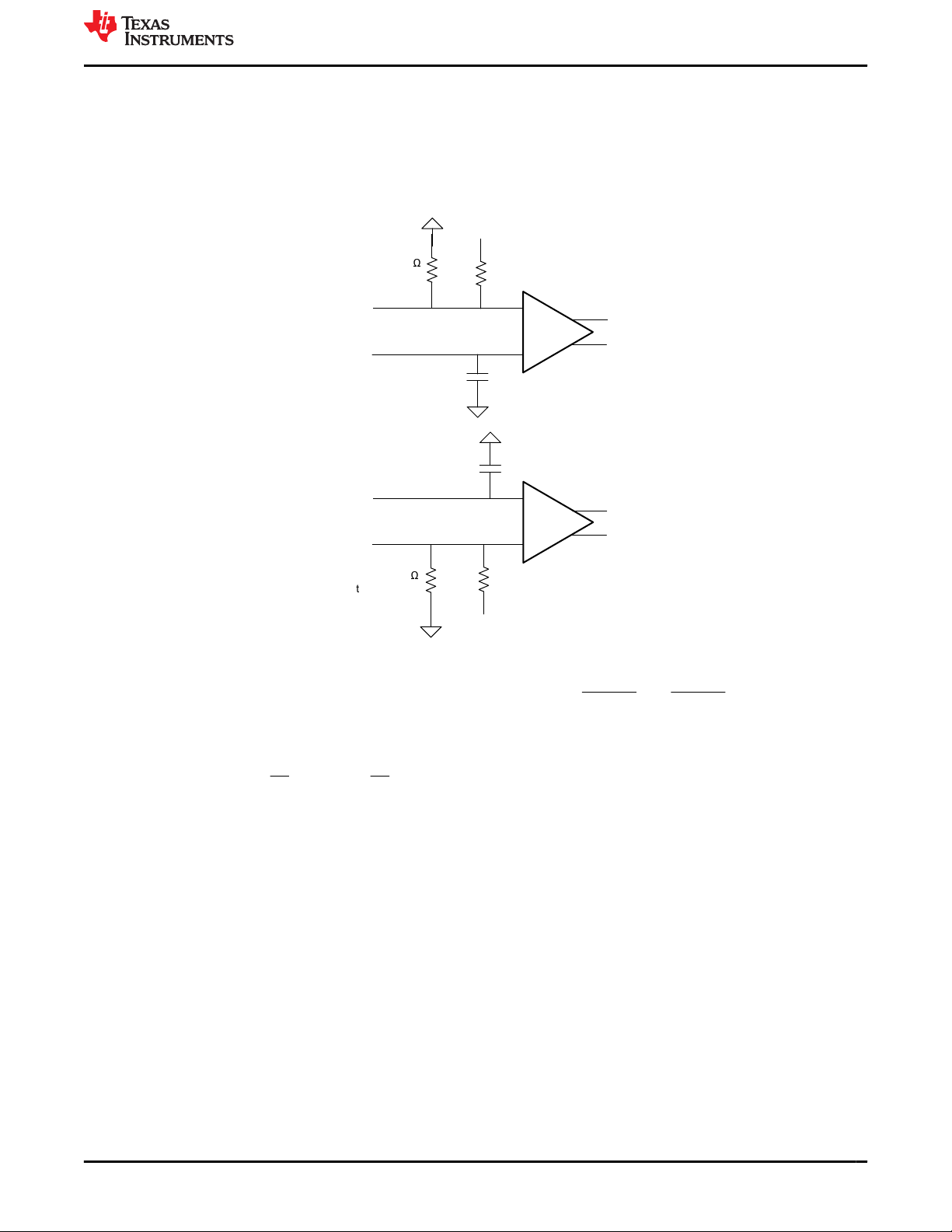

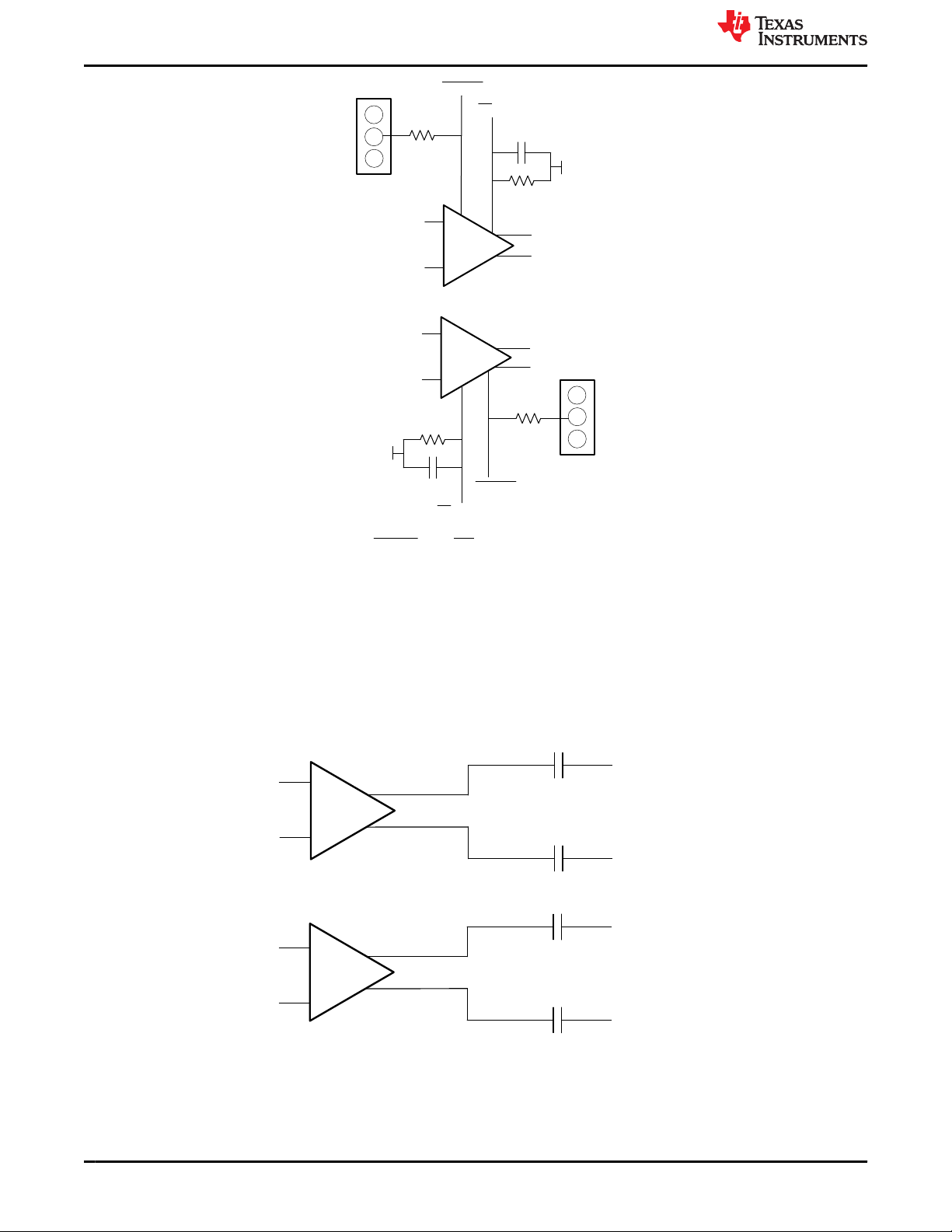

Figure 2-3. SHDN and LE/HYS Side Block Diagram

2.2.3 Outputs

C16, C17, C18, and C19 are installed with 0.1-uF capacitors. If a 100-Ω differential probe is unavailable to

measure the LVDS output, then these capacitors allow for the AC portion of the signal to be seen on a 50-Ω

terminated scope. Keep in mind that any duty cycle other than 50% results in a DC portion of the signal that

is not halfway between VOH and VOL. As mentioned earlier, this is due to the charging and discharging of the

capacitors. A higher duty cycle results in a higher DC output voltage because the capacitors are charging more

than the capacitors are discharging.

–

C19

0.1uF

C18

0.1uF

OUT-B

OUT+B

–

C16

0.1uF

C17

0.1uF

OUT+A

OUT-A

TLV3607A

TLV3607B

Figure 2-4. Output Side Block Diagram

Hardware www.ti.com

6TLV3607 Evaluation Module SNOU197 – JULY 2023

Submit Document Feedback

2.2.4 Hysteresis

The TLV3607 utilizes pins LE/HYSA and LE/HYSB to adjust the internal hysteresis of the comparator through

the attachment of a external resistors R2 and R14 connecting to VEE. These resistors can be replaced

accordingly to desired amount of hysteresis. A curve of hysteresis versus resistance is provided below to provide

guidance in setting the desired amount.

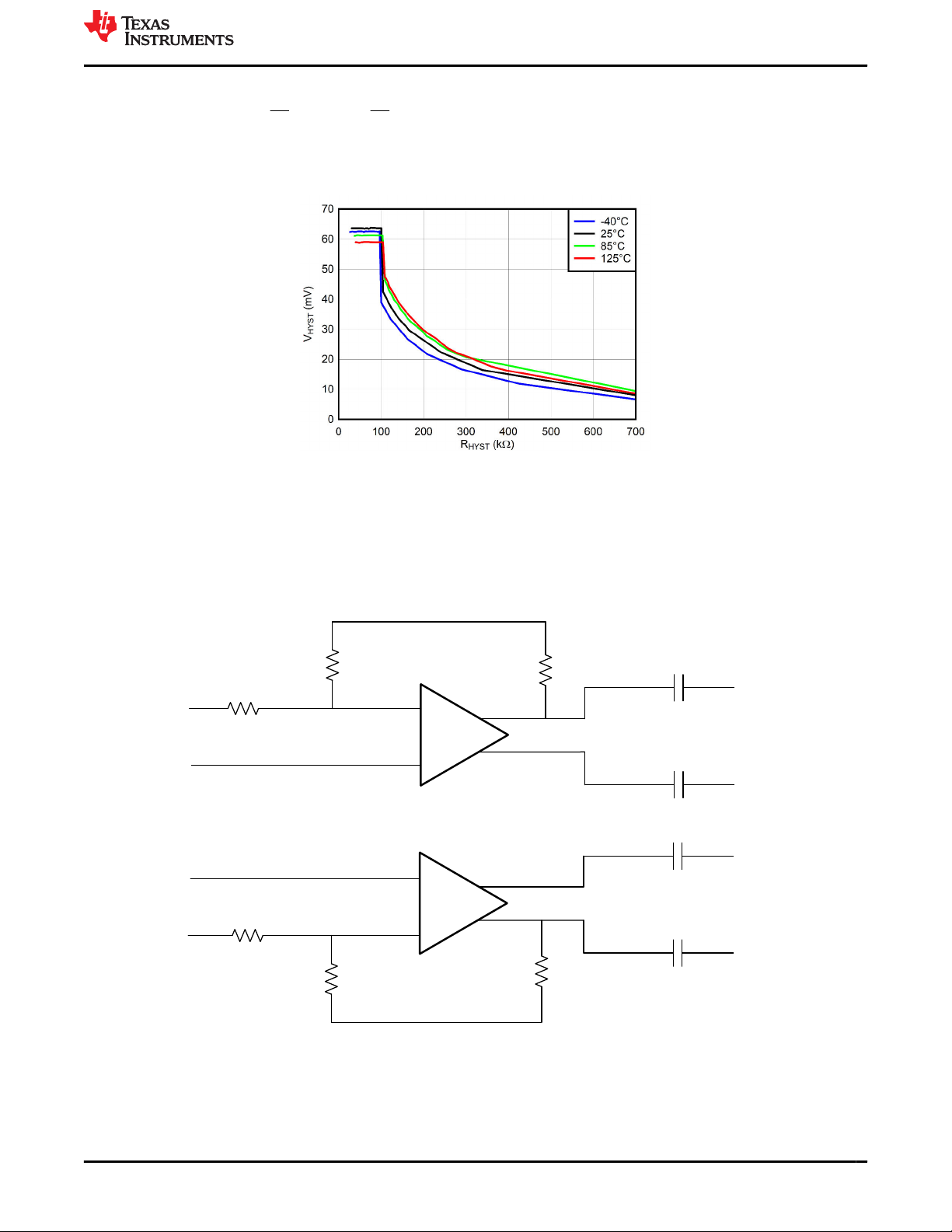

Figure 2-5. VHYST (mV) vs. RHYST (kΩ)

The TLV3607EVM is also able to support external hysteresis for each non-inverting input. Input resistors R7

and R8 are 0-Ω resistors but can be replaced accordingly for desired amount of hysteresis. For channel A,

the feedback resistor is the combination of R5 and R3. Likewise, for channel B, the feedback resistor is the

combination of R10 and R11. All resistors must be populated. If no external hysteresis is required, then these

optional feedback resistors can be left uninstalled.

–

C19

0.1uF

C18

0.1uF

OUT-B

OUT+B

–

C16

0.1uF

C17

0.1uF

OUT+A

OUT-A

R3 R11

R10

IN+A

IN-A

IN-B

IN+B

TLV3607A

TLV3607B

Optional Feedback

Resistors

RFeedback = R10 + R11

RFeedback = R5 + R3

Optional Feedback

Resistors

Input Resistor

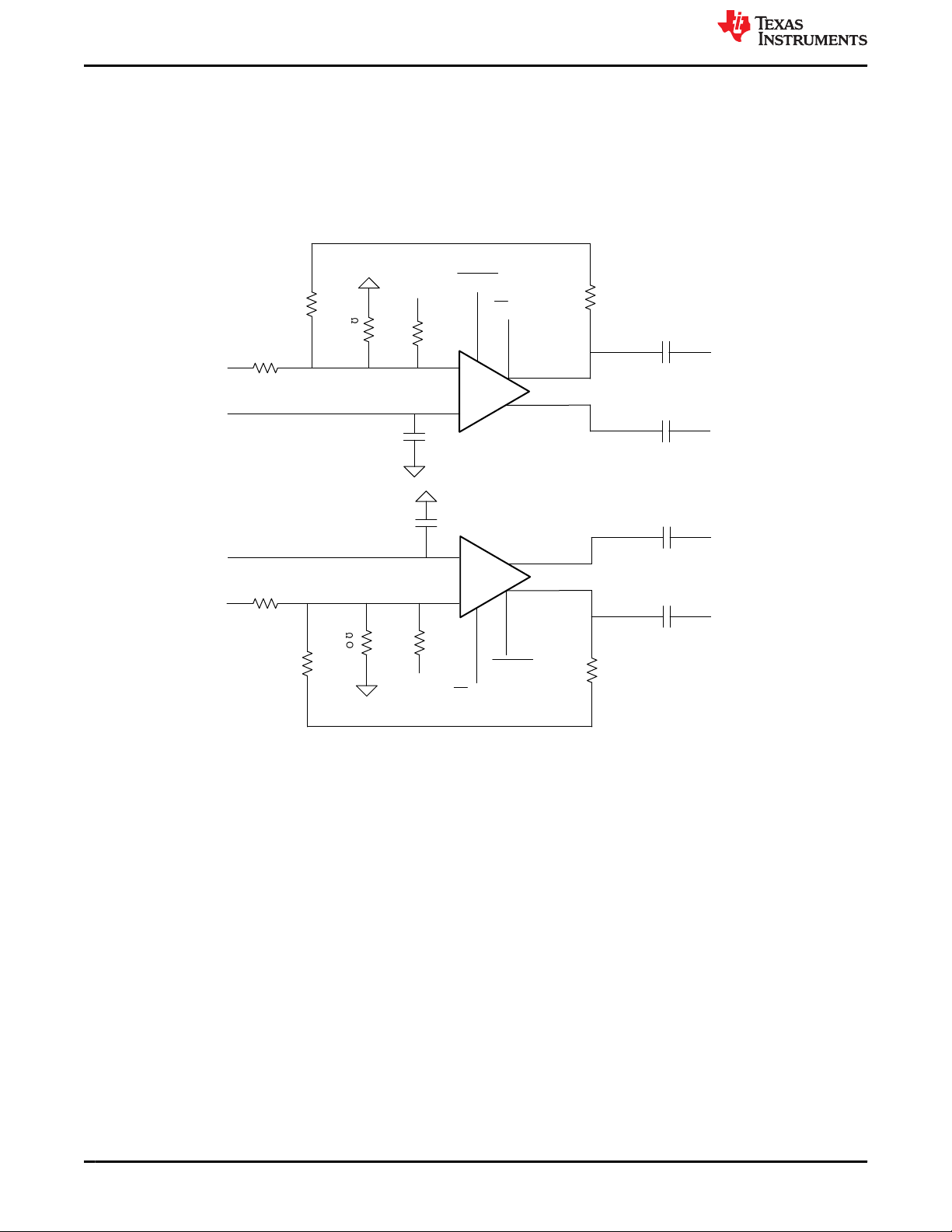

Figure 2-6. Hysteresis Block Diagram

www.ti.com Hardware

SNOU197 – JULY 2023

Submit Document Feedback

TLV3607 Evaluation Module 7

2.3 Quick-Start Procedure

Note

Do not turn on power supply until all connections to the device are made to the board.

The procedures listed below are the steps for a quick-start set-up using channel A.

1. Set VCCI/VCCO Power Supply to 5.0 V and disable the power supply output.

2. Since the same power supply is used for both VCCI and VCCO, connect positive terminal supply to TP5 and

TP3, and negative terminal to TP6.

3. Connect VEE and GND via jumper J17 and J3.

4. Connect SHDNA to VCCO via jumper J1 and SHDNB to VEE via jumper J13. This sets Channel A in active

mode and Channel B in shutdown mode.

5. Verify that cables connecting to IN+A SENSE, OUT+A, and OUT-A are matched length and impedance.

Perform any de-skewing if necessary. Set the function generator (50-Ω terminated) to produce a square

wave output with 400mVpp at 10 MHz, with a DC offset of 0.300 V. Disable the signal generator output.

Connect the output to IN+A.

6. Set one of the outputs of the DC power supply to 300 mV. Disable the power supply output. Connect the

output to IN-A.

7. Connect OUT+A and OUT-A to a 50-Ω terminated channel on the oscilloscope.

8. Connect IN+A SENSE, to another 50-Ω terminated scope channel.

9. Enable the VCCI/VCCO power supply.

10. Verify the total supply current is < 18 mA.

11. Enable the signal generator.

12. Monitor and verify the inputs from IN+A SENSE.

13. Monitor and verify the outputs for OUT+A and OUT-A.

DC Power Supply

+0.3V GND +5V

BNC-SMA

Note: The INA+ Sense

(J5) cable and OUT+A

(J6), OUT-A (J8) cables

should be length

matched

High Speed Oscilloscope

(50 Ohm Termina



ons)

CH. 1 CH. 2 CH. 3

BNC-SMA

High Speed Pulse Generator

(<500 ps Rise/Fall Time)

BNC-SMA

BANANA-GRABBER

CH. 1

BANANA-GRABBER

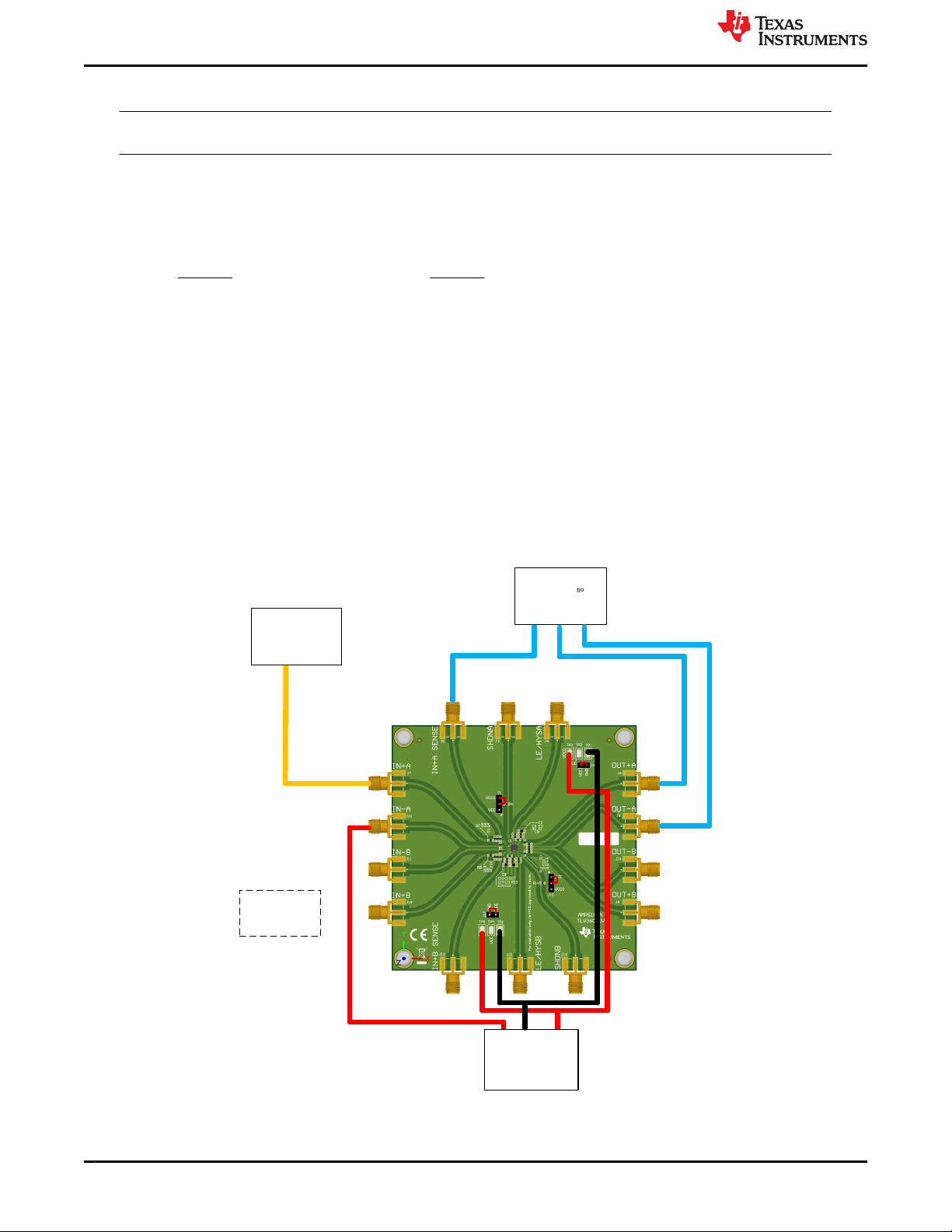

Figure 2-7. TLV3607EVM Quick Start Setup

Hardware www.ti.com

8TLV3607 Evaluation Module SNOU197 – JULY 2023

Submit Document Feedback

Next, is a scope shot capture of the inputs and outputs described in the quick-start procedure.

IN+A

OUT-A

OUT+A

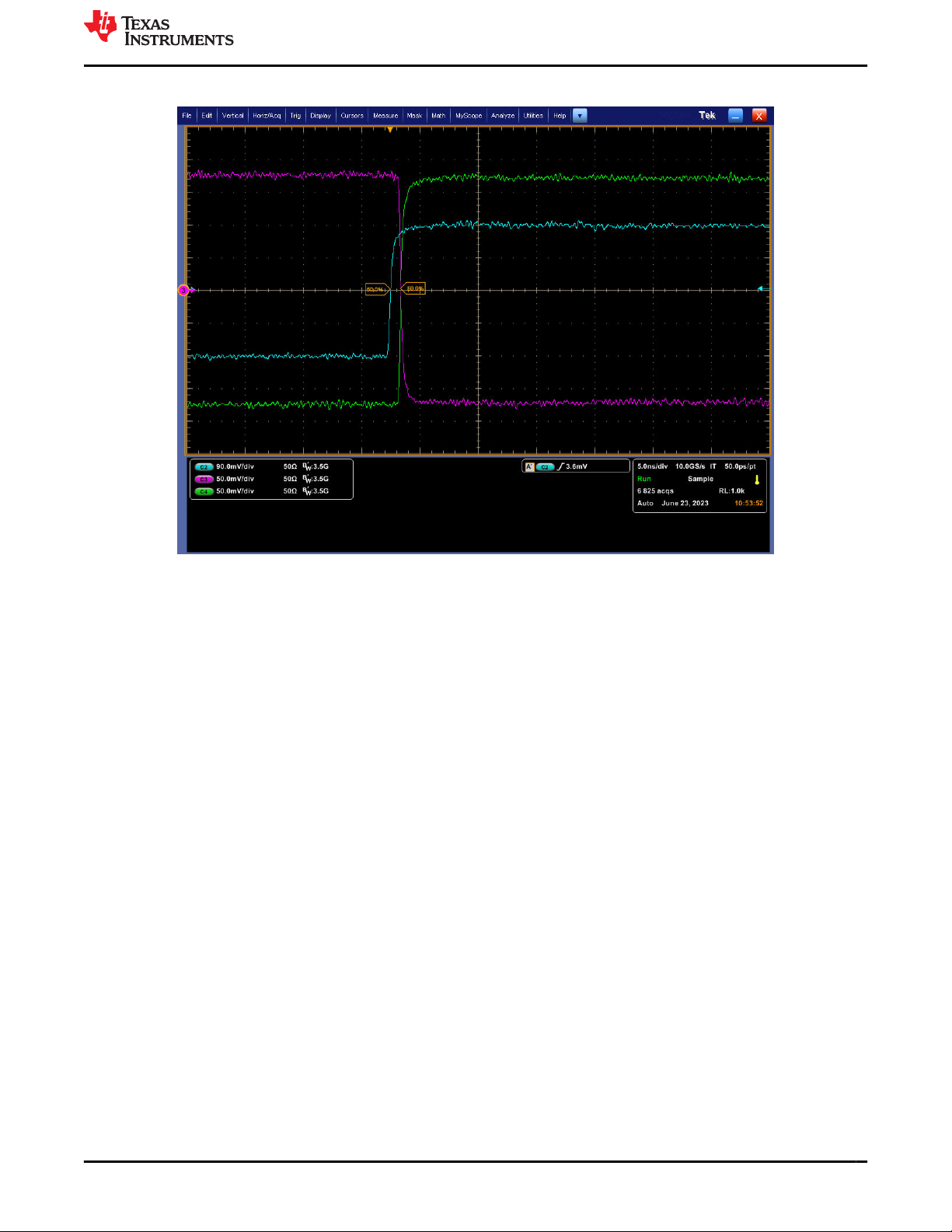

Figure 2-8. Quick-Start Example

www.ti.com Hardware

SNOU197 – JULY 2023

Submit Document Feedback

TLV3607 Evaluation Module 9

3 Hardware Design Files

3.1 Schematic

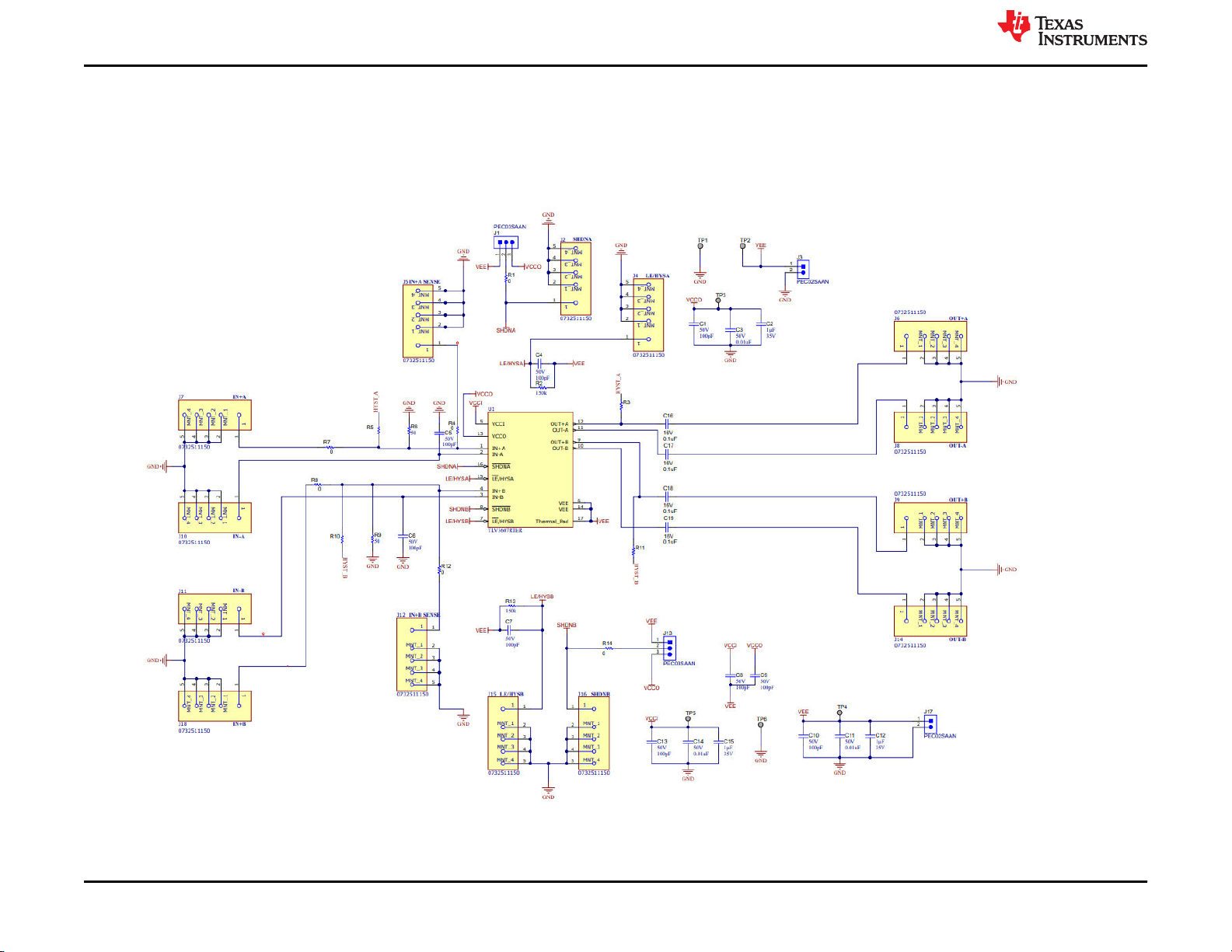

Figure 3-1. TLV3607EVM Schematic

Hardware Design Files www.ti.com

10 TLV3607 Evaluation Module SNOU197 – JULY 2023

Submit Document Feedback

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Texas Instruments Scheda madre

Texas Instruments

Texas Instruments DS90UB95x-Q1EVM Series Manuale utente

Texas Instruments

Texas Instruments LP8580EVM Manuale utente

Texas Instruments

Texas Instruments TAS5806MDEVM Manuale utente

Texas Instruments

Texas Instruments ADS9218EVM-PDK Manuale utente

Texas Instruments

Texas Instruments TPS65120EVM-076 Manuale utente

Texas Instruments

Texas Instruments LMX248 Series Manuale utente

Texas Instruments

Texas Instruments SRC4194EVM Manuale utente

Texas Instruments

Texas Instruments TPS61130EVM Manuale utente

Texas Instruments

Texas Instruments SN6507DGQEVM Manuale utente

Texas Instruments

Texas Instruments ADS8401EVM Manuale utente

Texas Instruments

Texas Instruments MCF8316A Manuale utente

Texas Instruments

Texas Instruments TPS25741EVM-802 Manuale utente

Texas Instruments

Texas Instruments ADS1158EVM Manuale utente

Texas Instruments

Texas Instruments LMG2100 Manuale utente

Texas Instruments

Texas Instruments BQ79600-Q1 Manuale utente

Texas Instruments

Texas Instruments DAC80508-04EVM Manuale utente

Texas Instruments

Texas Instruments TLC6C5816-Q1EVM Manuale utente

Texas Instruments

Texas Instruments TMP117EVM Manuale utente

Texas Instruments

Texas Instruments TRF3711xxEVM Series Manuale utente

Texas Instruments

Texas Instruments TLC6C5724-Q1 Manuale utente

Texas Instruments

Texas Instruments TPS3700EVM-202 Manuale utente

Texas Instruments

Texas Instruments LMK5B33414EVM Manuale utente

Texas Instruments

Texas Instruments AM64 SK EVM Series Manuale utente

Texas Instruments

Texas Instruments DRV88 Series Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
