User’s Guide

TPS715EVM-074 Evaluation Module

ABSTRACT

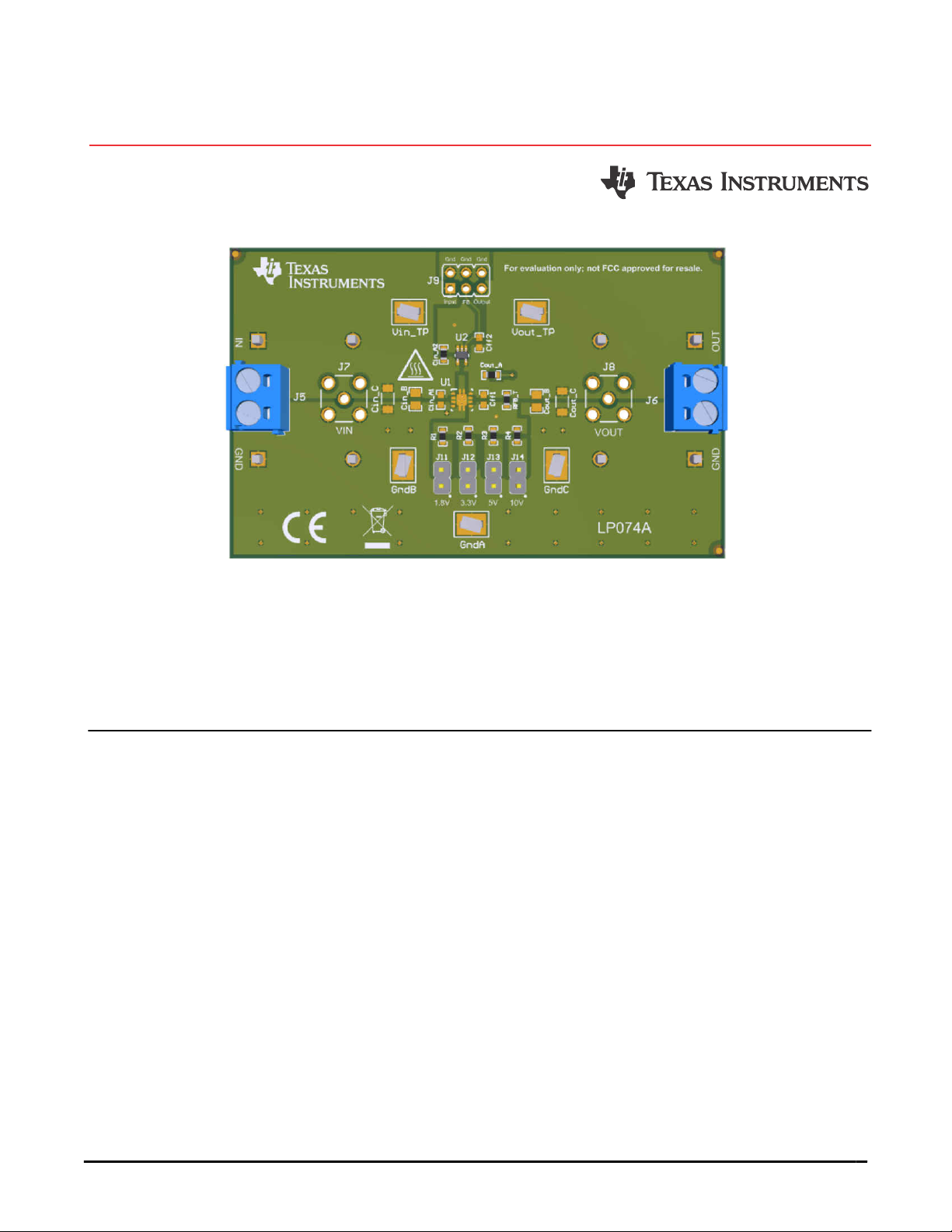

Figure 1-1. TPS715EVM-074 Evaluation Module

This user guide describes the operational use of the TPS715EVM-074 evaluation module (EVM) as a reference

design for engineering demonstration and evaluation of the TPS71501DCKR, low-dropout linear regulator

(LDO). Included in this user guide are setup and operating instructions, layout guidelines, a printed circuit

board (PCB) layout, a schematic diagram, and a bill of materials (BOM). Throughout this document, the terms

demonstration kit, evaluation board, evaluation module, and EVM are synonymous with the TPS715EVM-074.

www.ti.com

SBVU077 – OCTOBER 2022

Submit Document Feedback

TPS715EVM-074 Evaluation Module 1

Table of Contents

1 Introduction.............................................................................................................................................................................3

1.1 Before You Begin............................................................................................................................................................... 3

2 Schematic................................................................................................................................................................................4

3 EVM Setup............................................................................................................................................................................... 5

3.1 Jumper Connections.......................................................................................................................................................... 5

3.2 Test Points..........................................................................................................................................................................5

3.3 Soldering Guidelines.......................................................................................................................................................... 5

4 Equipment Connection and Operation................................................................................................................................. 5

5 PCB Layout..............................................................................................................................................................................6

6 Bill of Materials (BOM)............................................................................................................................................................7

List of Figures

Figure 1-1. TPS715EVM-074 Evaluation Module........................................................................................................................1

Figure 2-1. TPS715EVM-074 Schematic.....................................................................................................................................4

Figure 5-1. TPS715EVM-074 Top Layer Routing........................................................................................................................ 6

Figure 5-2. TPS715EVM-074 Internal Layer 1 Routing............................................................................................................... 6

Figure 5-3. TPS715EVM-074 Internal Layer 2 Routing............................................................................................................... 6

Figure 5-4. TPS715EVM-074 Bottom Layer Routing...................................................................................................................6

List of Tables

Table 3-1. Selecting VOUT.......................................................................................................................................................... 5

Table 3-2. Test Point Functions....................................................................................................................................................5

Table 6-1. TPS715EVM-074 BOM...............................................................................................................................................7

Trademarks

All trademarks are the property of their respective owners.

Table of Contents www.ti.com

2TPS715EVM-074 Evaluation Module SBVU077 – OCTOBER 2022

Submit Document Feedback

1 Introduction

Texas Instruments' TPS715EVM-074 helps design engineers evaluate the operation and performance of

the TPS71501DCKR linear regulator for possible use in their own circuit application. This particular EVM

configuration contains a single 50-mA, mid-voltage, low-IQ, low-dropout regulator (LDO) for general applications.

The regulator is capable of delivering up to 50 mA and has a VIN range of up to 24 V. For stability for the

TPS71501DCKR, use a 1-µF (or larger) output capacitor (Cout).

1.1 Before You Begin

The following warnings are noted for the safety of anyone using or working close to the TPS715EVM-074.

Observe all safety precautions.

WARNING

Failure to adhere to these steps or to not heed the safety requirements at each step may lead to

shock, injury, and damage to the hardware. Texas Instruments is not responsible or liable in any way

for shock, injury, or damage caused by negligence or failure to heed advice. If you are not trained

in the proper safety of handling and testing power electronics please do not test this evaluation

module.

CAUTION:

Caution! Do not leave EVM powered when unattended.

HOT SURFACE:

Caution Hot Surface! Contact may cause burns. Do not touch.

Please take the proper precautions when operating.

www.ti.com Introduction

SBVU077 – OCTOBER 2022

Submit Document Feedback

TPS715EVM-074 Evaluation Module 3

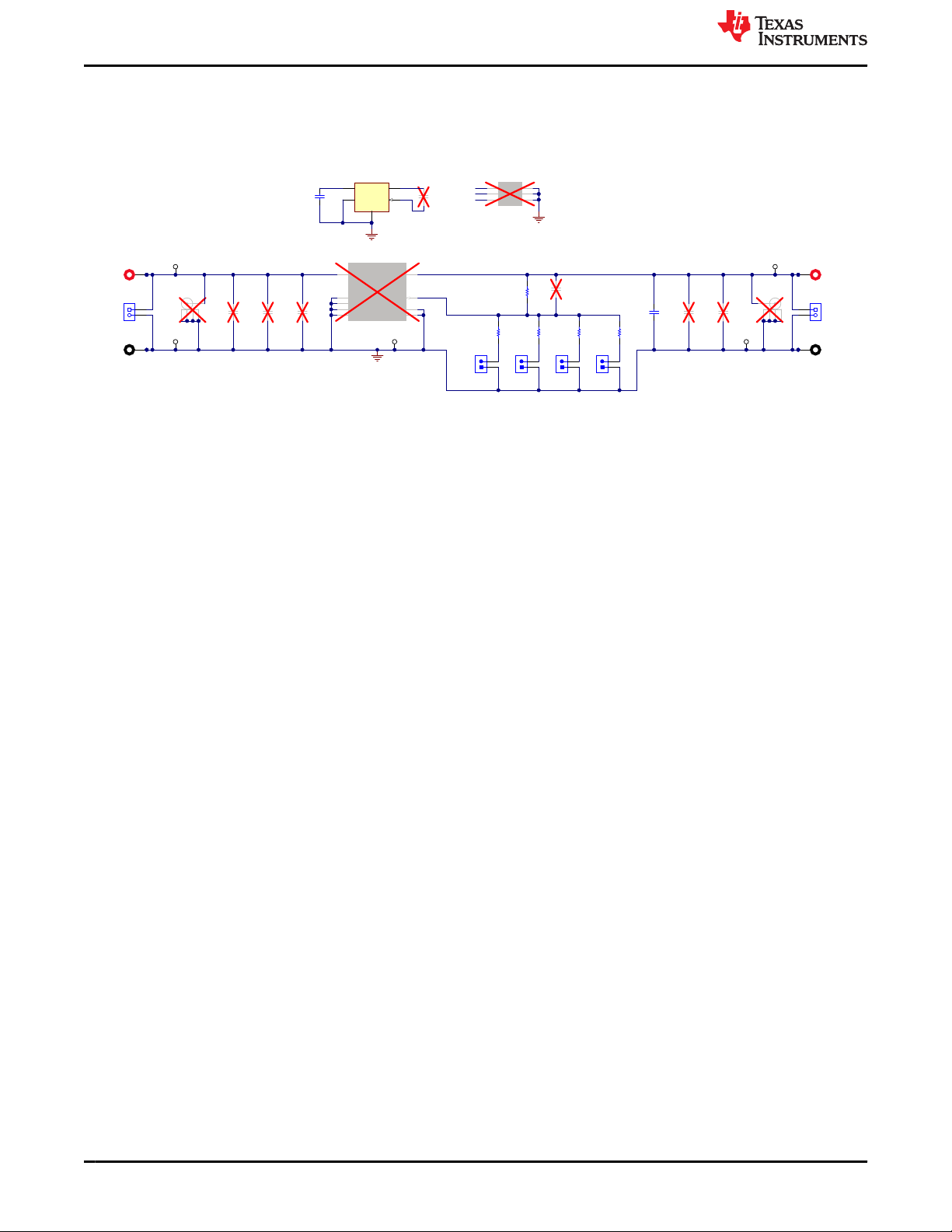

2 Schematic

Figure 2-1 shows the schematic for the TPS715EVM-074.

FB 1

4OUT 5

GND

TPS71501DCKR

GND 4

FB 5

OUT 8

PAD 9

TPS715A01DRBR

DNP

J1 J3

J2 J4

50V

0.1uF

Cin_A1

DNP

100nF

100V

Cin_B

DNP

100V

1uF

Cin_C

DNP

Vout_TPVin_TP

GndA GndB GndC

1.00M

J11

J12

J13

J14

GND

1µF

50V

Cout_B

DNP

50V

1uF

Cout_A

499k

RFB_T

287k

158k

68.1k

100V

0.01µF

Cﬀ2

DNP

100V

0.01µF

Cﬀ1

DNP

50V

0.1uF

Cin_A2

Input

Input Output

Output

GND

DNP

1 2

3 4

5 6

DNP

Input

Output

GND

100V

1µF

Cout_C

DNP

Vin Max = 24V

Iin Max = 50mA

Vout Max = 15V

Iout Max = 50mA

Figure 2-1. TPS715EVM-074 Schematic

Schematic www.ti.com

4TPS715EVM-074 Evaluation Module SBVU077 – OCTOBER 2022

Submit Document Feedback

3 EVM Setup

This section describes how to properly connect and setup the TPS715EVM-074, including the jumpers and

connectors on the EVM board. See Section 4 for the proper connections of test equipment.

3.1 Jumper Connections

3.1.1 J11-14: Output Voltage Select

Connect a shunt across the pins to set the output voltage. Table 3-1 lists the VOUT settings.

Table 3-1. Selecting VOUT

VOUT Jumper to Short

1.8 V J11

3.3 V J12

5 V J13

10 V J14

3.2 Test Points

Table 3-2 lists the test points for the TPS715EVM-074.

Table 3-2. Test Point Functions

TEST

POINTS

NAME DESCRIPTION

Vout_TP VOUT Regulated DC output.

Vin_TP VIN Unregulated DC input.

GNDA GND

Device GND.GNDB GND

GNDC GND

3.3 Soldering Guidelines

To avoid damaging the LDO, use a hot-air system for any solder rework to modify the EVM for the purpose of

repair or other application reasons.

4 Equipment Connection and Operation

Connect test equipment as described in this section and follow the listed steps to properly take measurements.

1. Configure the onboard shunts to set the main output voltage VOUT

2. Verify that the input voltage power supply is set from 0 V to 24 V

3. Connect the anode of the power supply to J1 (VIN) and the cathode to J2 (GND)

4. Connect the anode of the load for the output to J3 and the cathode to J4

5. Turn on the power supply

6. Vary VIN and the load as necessary for testing purposes

www.ti.com EVM Setup

SBVU077 – OCTOBER 2022

Submit Document Feedback

TPS715EVM-074 Evaluation Module 5

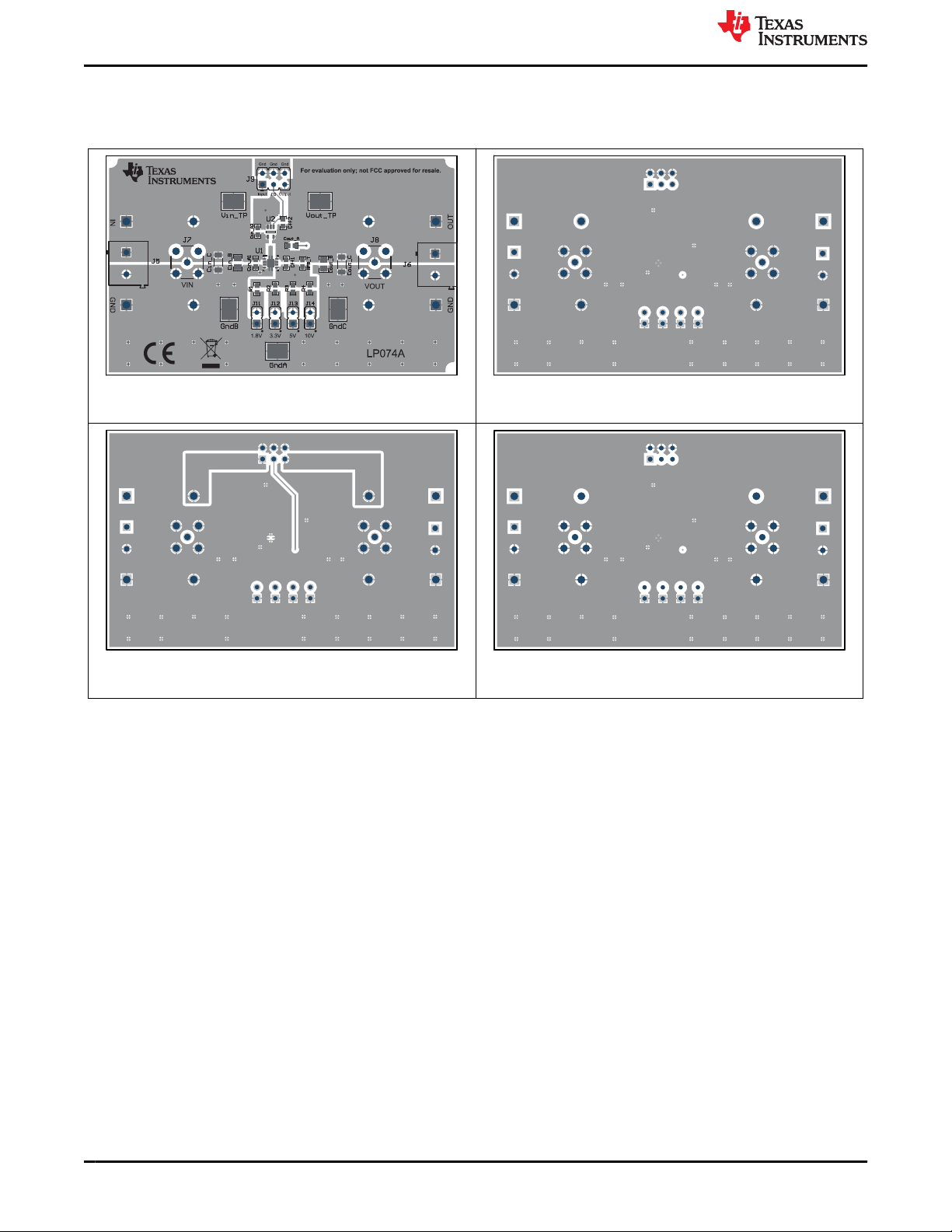

5 PCB Layout

Figure 5-1 through Figure 5-4 depict the layout of the TPS715EVM-074.

Figure 5-1. TPS715EVM-074 Top Layer Routing Figure 5-2. TPS715EVM-074 Internal Layer 1

Routing

Figure 5-3. TPS715EVM-074 Internal Layer 2

Routing

Figure 5-4. TPS715EVM-074 Bottom Layer Routing

PCB Layout www.ti.com

6TPS715EVM-074 Evaluation Module SBVU077 – OCTOBER 2022

Submit Document Feedback

6 Bill of Materials (BOM)

Table 6-1 shows the BOM for this EVM.

Table 6-1. TPS715EVM-074 BOM

Designator Quantity Value Description Package

Reference

Part Number Manufacturer Alternate

Part

Number

Alternate

Manufacturer

!PCB1 1 Printed Circuit Board LP074 Any

Cff1, Cff2 2 0.01uF CAP, CERM, 0.01 µF, 100 V,+/- 10%,

X8R, AEC-Q200 Grade 0, 0603

0603 CGA3E2X8R2A103

K080AD

TDK

Cin_A1,

Cin_A2

2 0.1uF CAP, CERM, 0.1 uF, 50 V, +/- 10%, X5R,

0603

0603 C1608X5R1H104K0

80AA

TDK

Cin_B 1 0.1uF CAP, CERM, 0.1 uF, 100 V, +/- 10%,

X7R, 0805

0805 C2012X7R2A104K1

25AA

TDK

Cin_C 1 1uF CAP, CERM, 1 uF, 100 V, +/- 10%, X7R,

1206

1206 C3216X7R2A105K1

60AA

TDK

Cout_A 1 1uF CAP, CERM, 1 uF, 50 V, +/- 10%, X5R,

0603

0603 C1608X5R1H105K0

80AB

TDK

Cout_B 1 1uF CAP, CERM, 1 µF, 50 V,+/- 10%, X7R,

0805

0805 CL21B105KBFNFN

Samsung

Cout_C 1 1uF CAP, CERM, 1 µF, 100 V,+/- 10%, X7R,

1206

1206 CC1206KKX7R0BB

105

Yageo

America

GndA,

GndB,

GndC,

Vin_TP,

Vout_TP

5 Test Point, Compact, SMT Testpoint_Keys

tone_Compact

5016 Keystone

Electronics

J1, J3 2 Standard Banana Jack, insulated, 10A,

red

571-0500 571-0500 DEM

Manufacturing

J2, J4 2 Standard Banana Jack, insulated, 10A,

black

571-0100 571-0100 DEM

Manufacturing

J5, J6 2 Terminal Block, 5 mm, 2x1, Tin, TH Terminal Block,

5 mm, 2x1, TH

691 101 710 002 Wurth

Elektronik

J7, J8 2 SMA Straight Jack, Gold, 50 Ohm, TH SMA Straight

Jack, TH

901-144-8RFX Amphenol RF

J9 1 Header, 2.54mm, 3x2, Gold, TH Header,

2.54mm, 3x2,

61300621121 Wurth

Elektronik

J11, J12,

J13, J14

4 Header, 100mil, 2x1, Gold, TH Sullins 100mil,

1x2, 230 mil

above insulator

PBC02SAAN Sullins

Connector

Solutions

R1 1 1.00M

RES, 1.00 M, 1%, 0.1 W, AEC-Q200

Grade 0, 0603

Header,

2.54mm, 3x1,

SMT

RMCF0603FG1M00 Stackpole

Electronics Inc

R2 1 287k RES, 287 k, 1%, 0.1 W, 0603 0603 RC0603FR-07287K

Yageo

R3 1 158k RES, 158 k, 1%, 0.1 W, 0603 0603 RC0603FR-07158K

Yageo

R4 1 68.1k RES, 68.1 k, 1%, 0.1 W, 0603 0603 RC0603FR-0768K1

Yageo

RFB_T 1 499k RES, 499 k, 1%, 0.1 W, 0603 0603 RC0603FR-07499K

Yageo

U1 1 24-V, 80-mA, Low Iq, Low-Dropout

Linear Regulator, DRB0008A (VSON-8)

DRB0008A TPS715A01DRBR Texas

Instruments

U2 1 Single Output LDO, 50 mA, Adjustable

1.2 to 15 V Output, 3 to 24 V Input, 5-pin

SC70 (DCK), -40 to 125 degC, Green

(RoHS & no Sb/Br)

DCK0005A TPS71501DCKR Texas

Instruments

www.ti.com Bill of Materials (BOM)

SBVU077 – OCTOBER 2022

Submit Document Feedback

TPS715EVM-074 Evaluation Module 7

STANDARD TERMS FOR EVALUATION MODULES

1. Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or

documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance

with the terms set forth herein. User's acceptance of the EVM is expressly subject to the following terms.

1.1 EVMs are intended solely for product or software developers for use in a research and development setting to facilitate feasibility

evaluation, experimentation, or scientific analysis of TI semiconductors products. EVMs have no direct function and are not

finished products. EVMs shall not be directly or indirectly assembled as a part or subassembly in any finished product. For

clarification, any software or software tools provided with the EVM (“Software”) shall not be subject to the terms and conditions

set forth herein but rather shall be subject to the applicable terms that accompany such Software

1.2 EVMs are not intended for consumer or household use. EVMs may not be sold, sublicensed, leased, rented, loaned, assigned,

or otherwise distributed for commercial purposes by Users, in whole or in part, or used in any finished product or production

system.

2Limited Warranty and Related Remedies/Disclaimers:

2.1 These terms do not apply to Software. The warranty, if any, for Software is covered in the applicable Software License

Agreement.

2.2 TI warrants that the TI EVM will conform to TI's published specifications for ninety (90) days after the date TI delivers such EVM

to User. Notwithstanding the foregoing, TI shall not be liable for a nonconforming EVM if (a) the nonconformity was caused by

neglect, misuse or mistreatment by an entity other than TI, including improper installation or testing, or for any EVMs that have

been altered or modified in any way by an entity other than TI, (b) the nonconformity resulted from User's design, specifications

or instructions for such EVMs or improper system design, or (c) User has not paid on time. Testing and other quality control

techniques are used to the extent TI deems necessary. TI does not test all parameters of each EVM.

User's claims against TI under this Section 2 are void if User fails to notify TI of any apparent defects in the EVMs within ten (10)

business days after delivery, or of any hidden defects with ten (10) business days after the defect has been detected.

2.3 TI's sole liability shall be at its option to repair or replace EVMs that fail to conform to the warranty set forth above, or credit

User's account for such EVM. TI's liability under this warranty shall be limited to EVMs that are returned during the warranty

period to the address designated by TI and that are determined by TI not to conform to such warranty. If TI elects to repair or

replace such EVM, TI shall have a reasonable time to repair such EVM or provide replacements. Repaired EVMs shall be

warranted for the remainder of the original warranty period. Replaced EVMs shall be warranted for a new full ninety (90) day

warranty period.

WARNING

Evaluation Kits are intended solely for use by technically qualified,

professional electronics experts who are familiar with the dangers

and application risks associated with handling electrical mechanical

components, systems, and subsystems.

User shall operate the Evaluation Kit within TI’s recommended

guidelines and any applicable legal or environmental requirements

as well as reasonable and customary safeguards. Failure to set up

and/or operate the Evaluation Kit within TI’s recommended

guidelines may result in personal injury or death or property

damage. Proper set up entails following TI’s instructions for

electrical ratings of interface circuits such as input, output and

electrical loads.

NOTE:

EXPOSURE TO ELECTROSTATIC DISCHARGE (ESD) MAY CAUSE DEGREDATION OR FAILURE OF THE EVALUATION

KIT; TI RECOMMENDS STORAGE OF THE EVALUATION KIT IN A PROTECTIVE ESD BAG.

www.ti.com

3Regulatory Notices:

3.1 United States

3.1.1 Notice applicable to EVMs not FCC-Approved:

FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software

associated with the kit to determine whether to incorporate such items in a finished product and software developers to write

software applications for use with the end product. This kit is not a finished product and when assembled may not be resold or

otherwise marketed unless all required FCC equipment authorizations are first obtained. Operation is subject to the condition

that this product not cause harmful interference to licensed radio stations and that this product accept harmful interference.

Unless the assembled kit is designed to operate under part 15, part 18 or part 95 of this chapter, the operator of the kit must

operate under the authority of an FCC license holder or must secure an experimental authorization under part 5 of this chapter.

3.1.2 For EVMs annotated as FCC – FEDERAL COMMUNICATIONS COMMISSION Part 15 Compliant:

CAUTION

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any interference received, including interference that may cause

undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to

operate the equipment.

FCC Interference Statement for Class A EVM devices

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to

correct the interference at his own expense.

FCC Interference Statement for Class B EVM devices

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more

of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

3.2 Canada

3.2.1 For EVMs issued with an Industry Canada Certificate of Conformance to RSS-210 or RSS-247

Concerning EVMs Including Radio Transmitters:

This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions:

(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may

cause undesired operation of the device.

Concernant les EVMs avec appareils radio:

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation

est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit

accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Concerning EVMs Including Detachable Antennas:

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser)

gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type

and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for

successful communication. This radio transmitter has been approved by Industry Canada to operate with the antenna types

listed in the user guide with the maximum permissible gain and required antenna impedance for each antenna type indicated.

Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited

for use with this device.

www.ti.com

Concernant les EVMs avec antennes détachables

Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et

d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage

radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope

rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Le

présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés dans le

manuel d’usage et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne

non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de

l'émetteur

3.3 Japan

3.3.1 Notice for EVMs delivered in Japan: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page 日本国内に

輸入される評価用キット、ボードについては、次のところをご覧ください。

http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page

3.3.2 Notice for Users of EVMs Considered “Radio Frequency Products” in Japan: EVMs entering Japan may not be certified

by TI as conforming to Technical Regulations of Radio Law of Japan.

If User uses EVMs in Japan, not certified to Technical Regulations of Radio Law of Japan, User is required to follow the

instructions set forth by Radio Law of Japan, which includes, but is not limited to, the instructions below with respect to EVMs

(which for the avoidance of doubt are stated strictly for convenience and should be verified by User):

1. Use EVMs in a shielded room or any other test facility as defined in the notification #173 issued by Ministry of Internal

Affairs and Communications on March 28, 2006, based on Sub-section 1.1 of Article 6 of the Ministry’s Rule for

Enforcement of Radio Law of Japan,

2. Use EVMs only after User obtains the license of Test Radio Station as provided in Radio Law of Japan with respect to

EVMs, or

3. Use of EVMs only after User obtains the Technical Regulations Conformity Certification as provided in Radio Law of Japan

with respect to EVMs. Also, do not transfer EVMs, unless User gives the same notice above to the transferee. Please note

that if User does not follow the instructions above, User will be subject to penalties of Radio Law of Japan.

【無線電波を送信する製品の開発キットをお使いになる際の注意事項】開発キットの中には技術基準適合証明を受けて

いないものがあります。技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの

措置を取っていただく必要がありますのでご注意ください。

1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用

いただく。

2. 実験局の免許を取得後ご使用いただく。

3. 技術基準適合証明を取得後ご使用いただく。

なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。

上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。日本テキサス・イ

ンスツルメンツ株式会社

東京都新宿区西新宿６丁目２４番１号

西新宿三井ビル

3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page

電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧ください。http:/

/www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page

3.4 European Union

3.4.1 For EVMs subject to EU Directive 2014/30/EU (Electromagnetic Compatibility Directive):

This is a class A product intended for use in environments other than domestic environments that are connected to a

low-voltage power-supply network that supplies buildings used for domestic purposes. In a domestic environment this

product may cause radio interference in which case the user may be required to take adequate measures.

Indice

Altri manuali Texas Instruments Scheda madre

Texas Instruments

Texas Instruments DRV8703-Q1 Manuale utente

Texas Instruments

Texas Instruments UCC14341EVM-069 Manuale utente

Texas Instruments

Texas Instruments TMP1075EVM Manuale utente

Texas Instruments

Texas Instruments TMUX741 EVM Series Manuale utente

Texas Instruments

Texas Instruments ISO154xEVM Manuale utente

Texas Instruments

Texas Instruments TPS7H4002EVM-CVAL Manuale utente

Texas Instruments

Texas Instruments LMH2832EVM-50 Manuale utente

Texas Instruments

Texas Instruments LP38798EVM Manuale utente

Texas Instruments

Texas Instruments DRV8303EVM Manuale utente

Texas Instruments

Texas Instruments DRV8701EVM Manuale utente

Texas Instruments

Texas Instruments LMK1C1104 Manuale utente

Texas Instruments

Texas Instruments CC2530DK Manuale utente

Texas Instruments

Texas Instruments ADC12J2700EVM Manuale utente

Texas Instruments

Texas Instruments DRV8329AEVM Manuale utente

Texas Instruments

Texas Instruments TSW12D1620 Manuale utente

Texas Instruments

Texas Instruments INA228 Manuale utente

Texas Instruments

Texas Instruments ADS1110EVM Manuale utente

Texas Instruments

Texas Instruments TPS54386EVM Manuale utente

Texas Instruments

Texas Instruments LMK61E2EVM Manuale utente

Texas Instruments

Texas Instruments MSP430FR6043 Manuale utente

Texas Instruments

Texas Instruments MSP430i2040 Manuale utente

Texas Instruments

Texas Instruments TPS6030 EVM-170 Series Manuale utente

Texas Instruments

Texas Instruments DRV8837C Manuale utente

Texas Instruments

Texas Instruments ADS8364EVM Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
