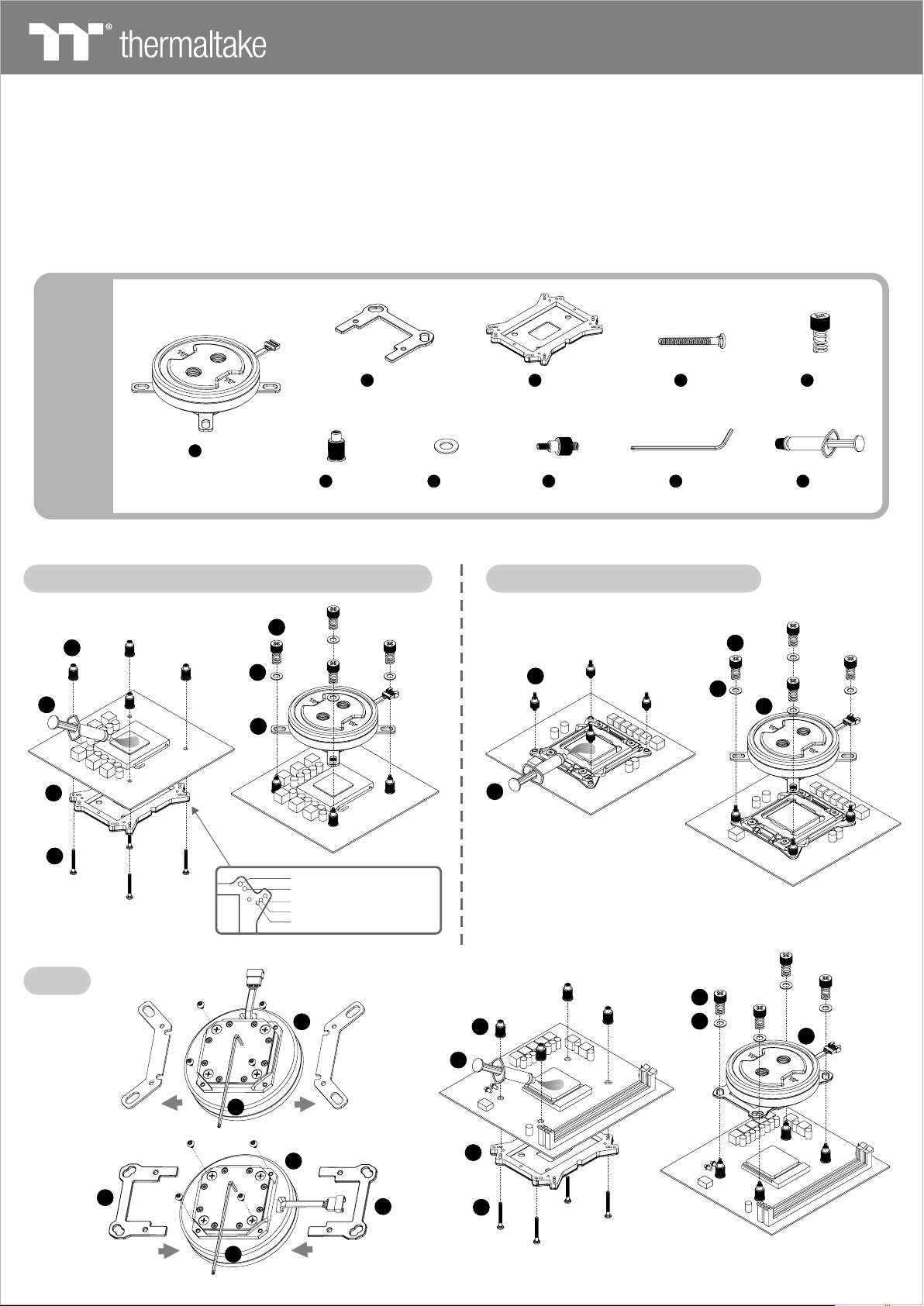

Thermaltake CL-W279-CU00SW-A Manuale utente

This product is intended for installation only by expert users. Please consult with a qualified technician for installation.

Improper installation may result in damage to your equipment.

Before you start using this product please follow these basic guidelines:

1. Please carefully read through the instruction manual before beginning the installation process.

2. Please remove your graphics card from your motherboard to insure the safest process and in order to prevent

any possible damages to your CPU and motherboard.

3. It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant Series.

Intel LGA 775,LGA115x,LGA1200,LGA1366 Intel LGA2066,2011-3,2011

AMD

A x 1

B x 2 C x 1 D x 4

F x 4 G x 4 H x 4 J x 1

I x 1

E x 4

Parts

List

Water Block

AMD clip

Thermal grease

Screw Screw

Washer

Backplate Screw Screw

Wrench

1.FM2/FM1/AM3/AM2

2.AM4

3.LGA1366

4.LGA1200/1150/1151/1155/1156

5.LGA775

Pacific W7 Plus CPU Water Block

210 mm

297 mm

刀模線

105G是X X 雙銅

單色無無

其他特殊處理效果表面處理

厚度(g/m )

折數材質雙面印刷印刷色彩單面印刷

規格樣式

單張

CHECK DESIGN

藍色線條為尺寸標示，請勿印刷上去！

產品料號

CL-W279-CU00SW-A Pacific W7 Plus 說明書 20/04/20 A

產品名稱印刷項目發稿日期版本

Peipei

(20/04/20)

Aan

(20/04/20)

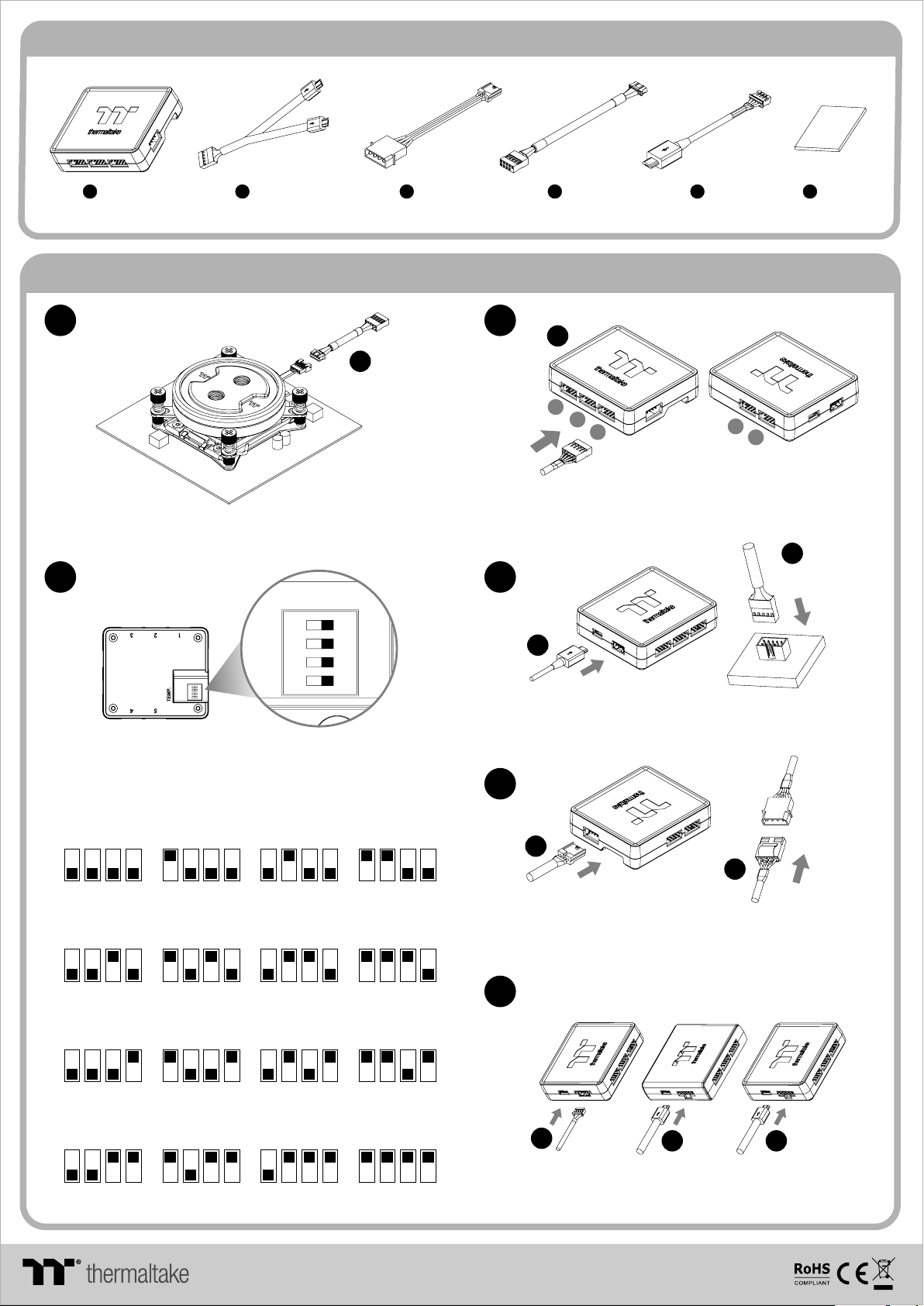

Controller Parts List

Controller Power Cable Velcro

Controller Cable

Kx 1 Lx 1 Mx Px 1

Installation Guide

Install the Water Block on the mainboard properly,

and connect the water block cable to the conversion cable.

Connect the plug into the port in numerical order,

start with plug one.

Set the DIP switch on the back side of the controller to assign

the number of the controller

NO.1

1 2 3 4

NO.3

1 2 3 4

NO.2

1 2 3 4

NO.4

1 2 3 4

NO.9

1 2 3 4

NO.11

1 2 3 4

NO.10

1 2 3 4

NO.12

1 2 3 4

NO.5

1 2 3 4

NO.7

1 2 3 4

NO.6

1 2 3 4

NO.8

1 2 3 4

NO.13

1 2 3 4

NO.15

1 2 3 4

NO.14

1 2 3 4

NO.16

1 2 3 4

Connect the controller cable onto the mainboard

(USB 2.0 9 pin) and controller.

Connect the power cable to the 4pin Molex connecter

and controller.

Conversion Cable

Nx 1

Bridge Cable

Ox 1

OO O

1 2 3 4

TEMP. Controller Plus Controller Trio C ontroller

1. Pacific W7 Plus is only compatible with Temp controller

2. Connect the controller cable to Temp controller ,

and then connect the rest of controllers in series

Connect with other addressable LED product

210 mm

297 mm

刀模線

105G是X X 雙銅

單色無無

其他特殊處理效果表面處理

厚度(g/m )

折數材質雙面印刷印刷色彩單面印刷

規格樣式

單張

CHECK DESIGN

藍色線條為尺寸標示，請勿印刷上去！

產品料號

CL-W279-CU00SW-A Pacific W7 Plus 說明書 20/04/20 A

產品名稱印刷項目發稿日期版本

Peipei

(20/04/20)

Aan

(20/04/20)
