Thiel ViewPoint Manuale utente
MOUNTING
HOLE
MOUNTING
HOLE
MOUNTING
HOLE
MOUNTING
HOLE

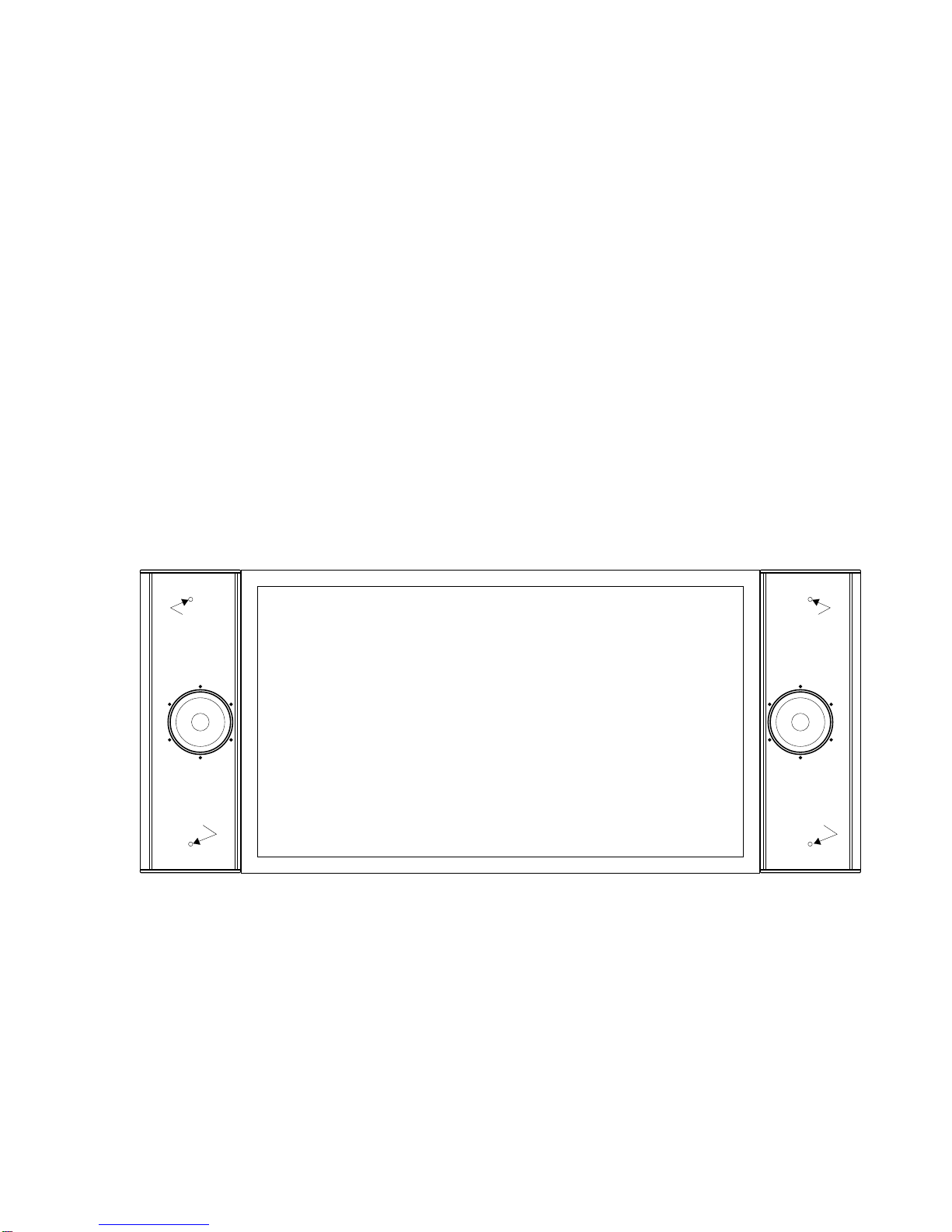

THIEL ViewPoint installation instructions with plasma screen mounted.
1. Hold speaker against wall,
against plasma side and in
desired location. Then mark the
mounting hole locations by
inserting a #1 philips screw-
driver or a pencil through
the mountin
g
holes.
2. Set speaker aside and drill
1/8" holes at marks through
wall surface material. If stud
is encountered continue drilling
a pilot hole. If there is no stud
expand the 1/8" hole to 3/8"
and install the provided expansion
anchor.
3. Connect the speaker input wires
and screw the speaker to the wall
using either the wood screw or the
anchor screw. Make final alignment
adjustments before tightening the
mountin
g
screws.
