Thinkware F790 Manuale utente

This product records videos while the vehicle is operating.

Read and follow the instructions in this guide to properly use and maintain the product.

User Guide

F790

Before using the product

About the product

This product records videos while the vehicle is operating. Use this product only for reference when

investigating incidents or road accidents. This product is not guaranteed to record or process cloud data

for all events. The device may not record accidents with impacts that are too minor to activate the impact

sensor or accidents with massive impacts that cause the vehicle’s battery voltage to deviate.

Video recording does not begin until the product is completely turned on (booted up). To ensure that all

vehicle events are recorded, wait until the product is completely booted up after turning it on, and then

begin operating the vehicle.

THINKWARE is not responsible for any loss caused by an accident, nor is it responsible for providing any

support regarding the outcome of an accident.

Depending on the vehicle’s configuration or operating conditions, such as the installation of remote door

lock devices, ECU settings, or TPMS settings, some product features may not be supported, and different

firmware versions may influence the product’s performance or features.

About the user guide

The information provided in the guide may change when the manufacturer updates its service policy.

This user guide is intended for THINKWARE Blade model only, and it may contain technical errors, editorial

errors, or missing information.

Copyrights

All rights for the content and maps in this guide are reserved by THINKWARE and are protected under

written consent from THINKWARE is prohibited and is eligible for criminal charges.

Registered trademarks

THINKWARE Blade is a registered trademark of THINKWARE.

Other product logos and service names in this guide are trademarks of the relevant companies.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

this device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio

or television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

• This appliance and its antenna must not be co-located or operation in conjunction with any other

antenna or transmitter.

• A minimum separation distance of 20cm must be maintained between the antenna and the person

for this appliance to satisfy the RF exposure requirements.

FCC CAUTION: Any changes or modifications to the equipment not expressly approved by the party

responsible for compliance could void your authority to operate the equipment.

FCC ID: 2ADTG-F790

Information to user : RSS-247

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum distance 20 cm between the radiator &

your body.

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science

and Economic Development Canada’s licence-exempt RSS(s).

Please be cautioned the changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

Notice: Operation is subject to the following two conditions : (1) this device may not cause

interference, and (2) this device must accept any interference, including interference that may cause

undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

IC: 12594A-F790

Contents

Safety information 5

1. Product overview 8

1.1 Included items 8

1.1.1 Standarditems 8

1.1.2 Accessories(soldseparately) 8

1.2 Part names 9

1.2.1 Frontcamera(mainunit)-frontview 9

1.2.2Frontcamera(mainunit)-rearview 10

1.2.3Cradle 10

1.2.4Rearcamera(optional) 11

1.3 Removing and inserting the memory card 11

2. Installing the product 12

2.1 Installing the front camera (main unit) 12

2.1.1 Selectinganinstallationlocation 12

2.1.2Securingtheproduct 12

2.1.3Connectingthepowercable 14

2.2 Installing the rear camera (optional) 15

2.2.1Selectinganinstallationlocation 15

2.2.2Securingtherearcamera 15

2.2.3Connectingtherearcameracable 16

3. Using recording features 17

3.1 Turning the product on or off 17

3.2 Learning about the file storage locations 17

3.3 Using the continuous recording feature 17

3.4 Recording manually 18

3.5 Using parking mode 18

3.6 Using the Super Night Vision 20

3.7 Using the road safety features 20

4. Using the mobile viewer 21

4.1 Connect the product to a smartphone 21

4.2 Viewing the mobile viewer screen layout 21

5. Using the PC viewer 22

5.1 System requirements 22

5.2 Learning about the PC viewer 22

5.2.1InstallingthePCviewer 22

5.2.2PCviewerscreenlayout(forWindows) 23

5.2.3 Playing recorded videos on the PC

viewer(forWindows) 24

5.2.4PCviewerscreenlayout(forMac) 25

5.2.5 Playing recorded videos on the PC

viewer(forMac) 26

6. Settings 27

6.1 Managing the memory card 27

6.2 Setting the Camera 27

6.3 Setting recording features 27

6.4 Setting road safety features 28

6.5 Configuring the system settings 29

7. Accessing the product information 30

7.1 Viewing the product information 30

7.2 Accessing and configuring the GPS 30

8. Upgrading the firmware 31

9. Troubleshooting 32

10. Specifications 33

Safety information

Read the following safety information to properly use the product.

Safety symbols in this guide

"Warning" - Indicates a potential hazard which, if not avoided, may result in injury or death.

"Caution" - Indicates a potential hazard which, if not avoided, may result in minor injury or property damage.

"Note" - Provides useful information to help users better utilize the product’s features.

Safety information for proper use

Driving and product operation

• Do not operate the product while driving a vehicle. Distraction while driving may cause accidents and

result in injury or death.

• Install the product in places where the driver’s view is not obstructed. Obstruction of the driver’s vision

may cause accidents and result in injury or death. Check with your state and municipal laws before

mounting the product to the windshield.

Power supply

• Do not operate or handle the power cable with wet hands. Doing so may result in electrocution.

• Do not use damaged power cables. Doing so may result in electrical fire or electrocution.

• Keep the power cable away from all heat sources. Failure to do so may cause the power cord insulation to

melt, resulting in electrical fire or electrocution.

• Use the power cable with the correct connector and make sure the power cable is connected securely

and is firmly in place. Failure to do so may result in electrical fire or electrocution.

• Do not modify or cut the power cable. Also, do not place heavy objects on the power cable or pull, insert,

or bend the power cable using excessive force. Doing so may result in electrical fire or electrocution.

• Use only genuine accessories from THINKWARE or an authorized THINKWARE dealer. THINKWARE does

not guarantee compatibility and normal operation of third-party accessories.

• When connecting the power cable to the product, ensure that the connection between the cable plug

and the power cable connector on the product is secure. If the connection is loose, the power cable may

become disconnected due to vehicle vibration. Video recording is not available if the power connector is

disconnected.

Children and pets

Ensure that the product is out of the reach of children and pets. If the product breaks, it may result in fatal

damage.

Other information about the product

Product management and operation

• Do not expose the product to direct sunlight or intense light. The lens or internal circuitry may fail

otherwise.

• Use the product at a temperature between 14°F and 140°F (-10°C to 60°C) and store the product at a

temperature between -4°F and 158°F (-20°C to 70°C). The product may not function as designed and some

permanent physical damages may result if it is operated or stored out of the specified temperature ranges.

Such damages are not covered by the warranty.

• Frequently check the product for the proper installation position. Impact caused by extreme road

conditions may alter the installation position. Ensure that the product is positioned as instructed in this

guide.

• Do not apply excessive force when pressing the buttons. Doing so may damage the buttons.

• Do not use chemical cleaners or solvents to clean the product. Doing so may damage plastic components

of the product. Clean the product using a clean, soft, and dry fabric.

• Do not disassemble the product or subject the product to impact. Doing so may damage the product.

Unauthorized disassembly of the product voids the product warranty.

• Handle with care. If you drop, mishandle, or expose the product to external shocks, it may cause damage

and/or result in the malfunction of the product.

• Do not attempt to insert foreign objects into the device. Doing so may damage the product.

• Avoid excessive humidity and do not allow any water to enter the product. Electronic components inside

the product may fail if exposed to humidity or water.

• Depending on the make and model of your car, the power may be constantly supplied to the dash cam

even when the ignition is turned off. Installation of the device to a continuously powered 12V outlet could

result in vehicle battery drainage.

• This device is designed to record video while the vehicle is in operation. The quality of the video might be

affected by weather conditions and the road environment, such as whether it is day or night, presence of

street lighting, entering/exiting tunnels, and the surrounding temperature.

• THINKWARE is NOT responsible for the loss of any recorded video during operation.

• Although the device was designed to withstand high-impact car collisions, THINKWARE does not

guarantee the recording of accidents when the device is damaged as a result of the accident.

• Keep the windshield and camera lens clean for optimal video quality. Particles and substances on the

camera lens or windshield may reduce the quality of the recorded videos.

• This device is intended to be used inside the vehicle only.

1. Product overview

1.1 Included items

Ensure that all the items are included when you open the product box.

1.1.1 Standard items

Front camera (main unit) Cradle Hardwiring cable

Adhesive cable holder MicroSD memory card with adapter

(consumable)

Quick start guide & Warranty

/ CS information / User guide

(stored in the microSD card)

The standard items may change without prior notice.

1.1.2 Accessories (sold separately)

Rear camera Rear camera cable Car charger

Product overview

1.2 Part names

1.2.1 Front camera (main unit) - front view

Speaker

Outputs the

voice guide and

buzzer sounds

to indicate the

product’s status. Power button

• Press and hold to turn

off the product.

• Press to turn on the

product.

Wi-Fi button

Press to connect the

product to a smartphone

via Wi-Fi network.

Voice recording button

Press to enable or

disable voice recording.

Reset button

Insert the tip of a sharp

object to reset the product

when an error occurs.

Format button

Press and hold

to format the

memory card.

Manual recording

button

Press to

start manual

recording.

STATUS LED

Indicates the product's status.

Wi-Fi LED

Indicates the

Wi-Fi connection status.

Cradle connector

Used to connect the cradle.

Microphone

Used for voice recording.

• To reset the product, press and hold the voice recording ( ) and manual recording (REC) buttons

simultaneously until you hear beeps.

• Refer to the following table to check the status of the product using the LED indicators.

LED LED STATUS Operation description

Security LED (light on) The product is turned on.

Wi-Fi LED (light on) In AP mode (Wi-Fi connected).

(flickers) In AP mode (Wi-Fi disconnected).

STATUS LED (light on) The product is turning on.

(flickers) SD card not reading.

Product overview

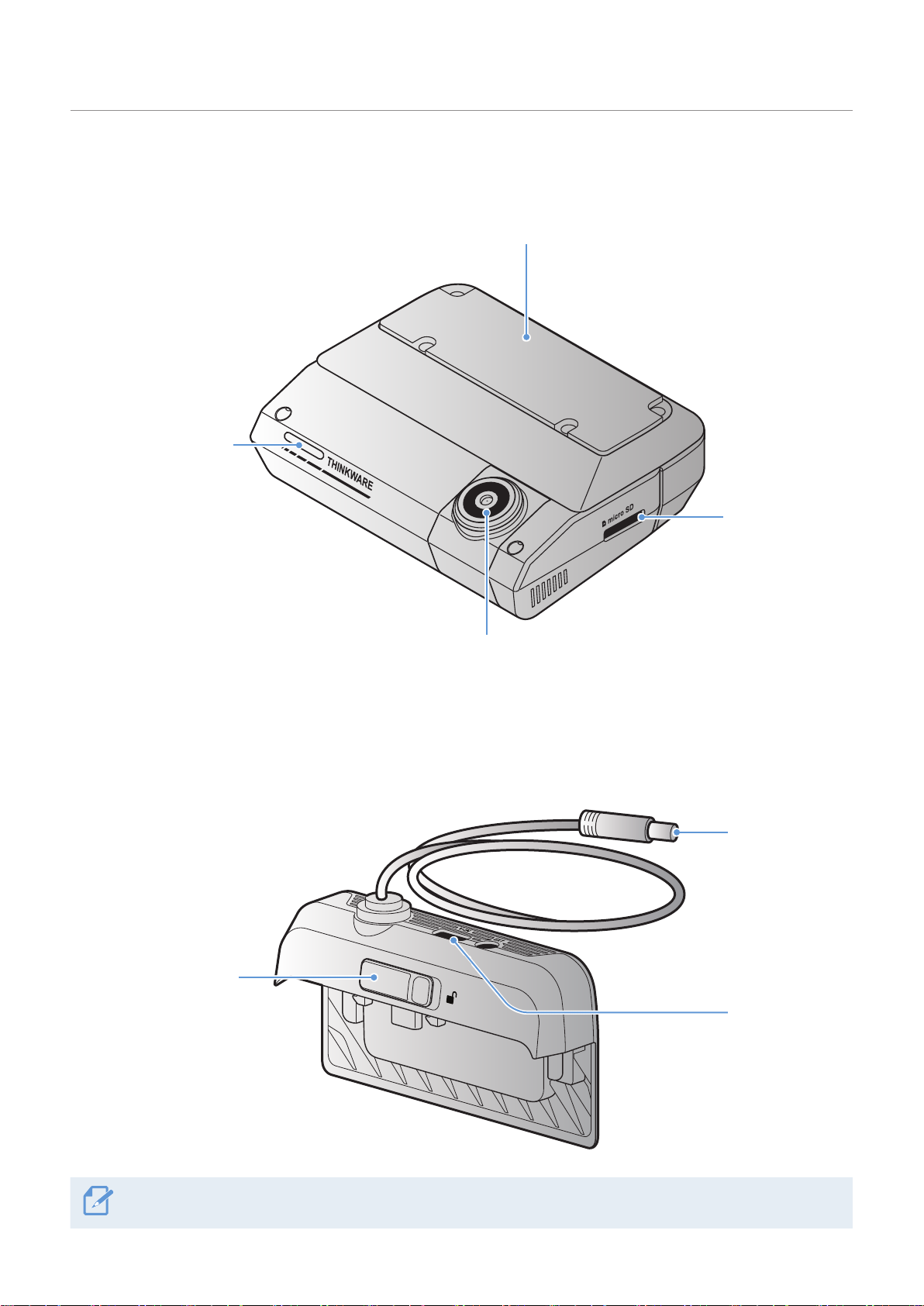

1.2.2 Front camera (main unit) - rear view

Memory card slot

Insert a memory

card to save

recordings.

Front camera lens

Records the front view.

Adhesive mount

Used to fix the front camera in the vehicle.

Security LED

Indicates that video is

being recorded.

1.2.3 Cradle

V-IN input port

Used to connect

the rear camera.

Slide lock

Use it to remove the

product from the cradle.

Hardwiring

connection cable

Used to connect

the hardwiring

cable.

GPS is built into the cradle.

Indice

Altri manuali Thinkware Telecamera da cruscotto

Thinkware

Thinkware DC-H1-FG Manuale utente

Thinkware

Thinkware H100 Manuale utente

Thinkware

Thinkware QX800 Manuale utente

Thinkware

Thinkware D2K64D Manuale utente

Thinkware

Thinkware F100 Manuale utente

Thinkware

Thinkware F70 PRO Manuale utente

Thinkware

Thinkware F50 Manuale utente

Thinkware

Thinkware XW10 Manuale utente

Thinkware

Thinkware T700 Manuale utente

Thinkware

Thinkware FW10 Manuale utente

Thinkware

Thinkware Q200 Manuale utente

Thinkware

Thinkware DC-M2-FG Manuale utente

Thinkware

Thinkware X500 Manuale utente

Thinkware

Thinkware iNAVI BLACK Clair2 Manuale utente

Thinkware

Thinkware DC-E1-FG Manuale utente

Thinkware

Thinkware Q1000 Manuale utente

Thinkware

Thinkware X330 Manuale utente

Thinkware

Thinkware F750 Manuale utente

Thinkware

Thinkware DASH CAM F200 PRO Manuale utente

Thinkware

Thinkware X500 Manuale utente

Thinkware

Thinkware F750 Manuale utente

Thinkware

Thinkware VHL3Z-19G490-C Manuale utente

Thinkware

Thinkware DC-M1-FG Manuale utente

Thinkware

Thinkware QXD5000 Manuale utente

Manuali Telecamera da cruscotto popolari di altre marche

Cansonic

Cansonic UltraDuo Z2 Manuale utente

Gazer

Gazer F720 Manuale utente

HP f500g Manuale utente

Xblitz

Xblitz TANGO 4K Manuale utente

Rexing

Rexing M1 Manuale utente

Maka Technologies

Maka Technologies Marbella MXPro Manuale utente

NESA

NESA NRC-80DLM Istruzioni per l'installazione e il funzionamento

Kaiser Baas

Kaiser Baas R20 Manuale utente

Boyo

Boyo VTM43TC Manuale utente

Minolta

Minolta MNCD37 Manuale utente

Momento

Momento MD-5200 Manuale utente

BlackVue

BlackVue DR590X-1CH Manuale utente

HP F300 Manuale utente

CammSys

CammSys BlackSys BH-300 Manuale utente

Snooper

Snooper DVR-2HD Manuale utente

Lukas

Lukas Q900 Manuale utente

RVS

RVS 450C Manuale utente

BlackVue

BlackVue 750G PRO Guida di riferimento
