THOMSON CALI-P Manuale utente
www.mythomson.com
V2
EN WiFi control module
For heater pilot wire
520002
CALI-P
Electrical
consumption
monitoring
Made in
France
WiFi
2.4GHz
PILOTE WIRE
24V
Solaire
OPTION
4m / 200kg Batterie
de secours
OPTION
GarantieGarantie
ans
Google Play
Free available on
Available on the
Google Play
Free available on
Available on the
EN 2
WI-FI CONTROL MODULE FOR HEATER PILOT WIRE
CONTENTS
A. SAFETY INSTRUCTIONS 5
1. OPERATING PRECAUTIONS 5
2. MAINTENANCE AND CLEANING 5
3. RECYCLING 5
B. PRODUCT DESCRIPTION 6
1. KIT CONTENTS 6
2. HEATING MODULE 6
C. INSTALLATION 7
1. INSTALLING THE HEATING MODULE 7
2. INSTALLING THE MOBILE APPLICATION AND CREATING AN ACCOUNT 8
3. PAIRING THE MODULE 9
4. RESETTING THE MODULE 10
D. USING THE PRODUCT 12
1. USE WITH GOOGLE HOME 12
1.1. IF YOU HAVE AN ANDROID SMARTPHONE WITH GOOGLE ASSISTANT. 12
1.2. IF YOU HAVE AN ANDROID SMARTPHONE WITHOUT GOOGLE ASSISTANT OR AN
IPHONE 12
2. PAIRING OF AN AT HOME CONNECTED OBJECT AND GOOGLE HOME 12
2.1. AT HOME 12
2.2. LINKING OF AT HOME AND GOOGLE HOME 13
2.3. GOOGLE HOME VOICE COMMANDS 15
3ENEN
3
3. ROUTINES 16
4. EXAMPLE OF ROUTINES 16
5. USE WITH AMAZON ALEXA 17
6. PROGRAMMING WITH ALEXA (WITH OR WITHOUT A SMART SPEAKER) 18
6.1. DETECTION OF CONNECTED OBJECTS IN THE ALEXA APP 19
6.2. CONFIGURING A PROGRAMME 20
6.3. EXAMPLES OF POSSIBLE USES WITH OTHER ELEMENTS FROM THE AT HOME
RANGE 25
7. ELECTRICITY CONSUMPTION MONITORING 25
E. TECHNICAL AND LEGAL INFORMATION 26
1. TECHNICAL CHARACTERISTICS 26
2. WARRANTY 26
3. ASSISTANCE AND ADVICE 26
4. PRODUCT RETURNS - AFTER SALES SERVICE 26
5. DECLARATION OF CONFORMITY 26
5EN
WI-FI CONTROL MODULE FOR HEATER PILOT WIRE
A - SAFETY INSTRUCTIONS
1 - OPERATING PRECAUTIONS
• Do not allow children to operate the product.
• This product is designed exclusively for indoor
use.
• This product is designed to be used with a
WiFi-compatible smartphone or a compatible
thermostat.
• When drilling, take care not to damage pipes
or electric cables under the surface.
• The electrical installation must meet current
standards (NF C 15-100) and should preferably
be done by a qualied person.
2 - MAINTENANCE AND CLEANING
• Disconnect from the mains before carrying out
any work on the device.
• Your product does not require any specic
maintenance.
• Use a soft, slightly damp cloth to clean your
product.
• Do not use abrasive or corrosive substances.
• Do not spray any products directly onto the
unit.
3 - RECYCLING
This logo denotes that devices no
longer in use should not be disposed of
as household waste. They are likely to
contain hazardous substances that are
dangerous to both health and the
environment. Return the equipment to
your local distributor or use the recycling collection
service provided by your local council.
Pour en savoir plus :
www.quefairedemesdechets.fr
6
WI-FI CONTROL MODULE FOR HEATER PILOT WIRE
EN
B - PRODUCT DESCRIPTION
1 - KIT CONTENTS
2 - HEATING MODULE
3x 2
1x 1 2x 2
1Control module for electric heating
2Wall plugs for attaching the module to the wall
1Indicator lights (details on page 11)
2Reset button and button to toggle manual mode
3Screws for attaching the module to the wall
1
2
3
4
3Front plastic cover (provides access to the
mounting holes)
4Back plastic cover (provides access to the
connection terminal block)
7EN
WI-FI CONTROL MODULE FOR HEATER PILOT WIRE
C - INSTALLATION
1 - INSTALLING THE HEATING MODULE
After disconnecting the electrical supply, remove the
radiator from the wall for easier access.
To do the electrical connection, remove the plastic
cover at the back as well as the cable tie.
)3
1B,1
/B,1
/B287
N Input
N in Pilot wire
Pilot wire P Input
P in P Output
P out
bleu / blue
rouge / red
noir / black
marron / brown
N entrée / N in
P sortie / P out
F pilote / Pilot wire
radiateur / heater
230V mains
outlet
230V/50Hz
Mains power
230V/50Hz
N Input
N in
P Input
P in Pilot wire
Pilot wire
P Output
P out
Once the electrical connection has been done,
replace the plastic cover at the back and attach
the receiver to the wall using the wall plugs and
screws included. The xings provided are suitable
only for masonry walls.
8
WI-FI CONTROL MODULE FOR HEATER PILOT WIRE
EN
C - INSTALLATION
35mm
ø 4mm
3cm
After having attached the receiver to the wall, the
radiator can be reassembled.
It is important that your radiator is set to piloted or
pilot wire mode (see the instruction manual for the
radiator).
2 - INSTALLING THE MOBILE APPLICATION
AND CREATING AN ACCOUNT
Once the heating module is connected, follow the
instructions below to pair it.
Download the Thomson At Home app from the
Android Play Store or Apple App Store
At Home
Launch the app and log in if you already have an
account. If not, press REGISTER and follow the in-
app instructions
Once you have entered your email address and
password, you will receive a con rmation code
in your inbox. Enter this code to nalise the
registration. Note that you might nd this email in
your spam folder.
9EN
WI-FI CONTROL MODULE FOR HEATER PILOT WIRE
C - INSTALLATION
3 - PAIRING THE MODULE
The heating module is in pairing mode by default.
Make sure your phone is connected to your ADSL
box’s 2.4 GHz network.
To start pairing, press ADD A PRODUCT.
AJOUTER UN PRODUIT
TABLEAU DE BORD
T
A
TAT
B
L
E
A
U
D
E
B
O
R
D
At Home
12:30
Aucun appareil connecté.
Select the product you wish to pair and select the
CALI-P module.
Ajouter un produit
12:30
Module de chauffage CALI‐O
Pour radiateur on/off
Module de chauffage CALI‐P
Pour radiateur fil pilote
Module de chauffage CALI‐B
Pour chaudière
Prise connectée PLUG‐I
Pour intérieur
Prise connectée PLUG‐O
Pour extérieur
Module connecté DIANE‐2
Pour éclairage deux voies
Module connecté GUARDIAN
Pour portes de garage et portails
Module connecté ACCESS
Pour volets roulants et stores
Check the connection and press START
CONFIGURATION.
Select your 2.4 GHz Wi-Fi network (N.B., your
smartphone must be connected to the Wi-Fi network
to which the module will be connected), enter your
network password and press
NEXT
.
Android Version IOS Version

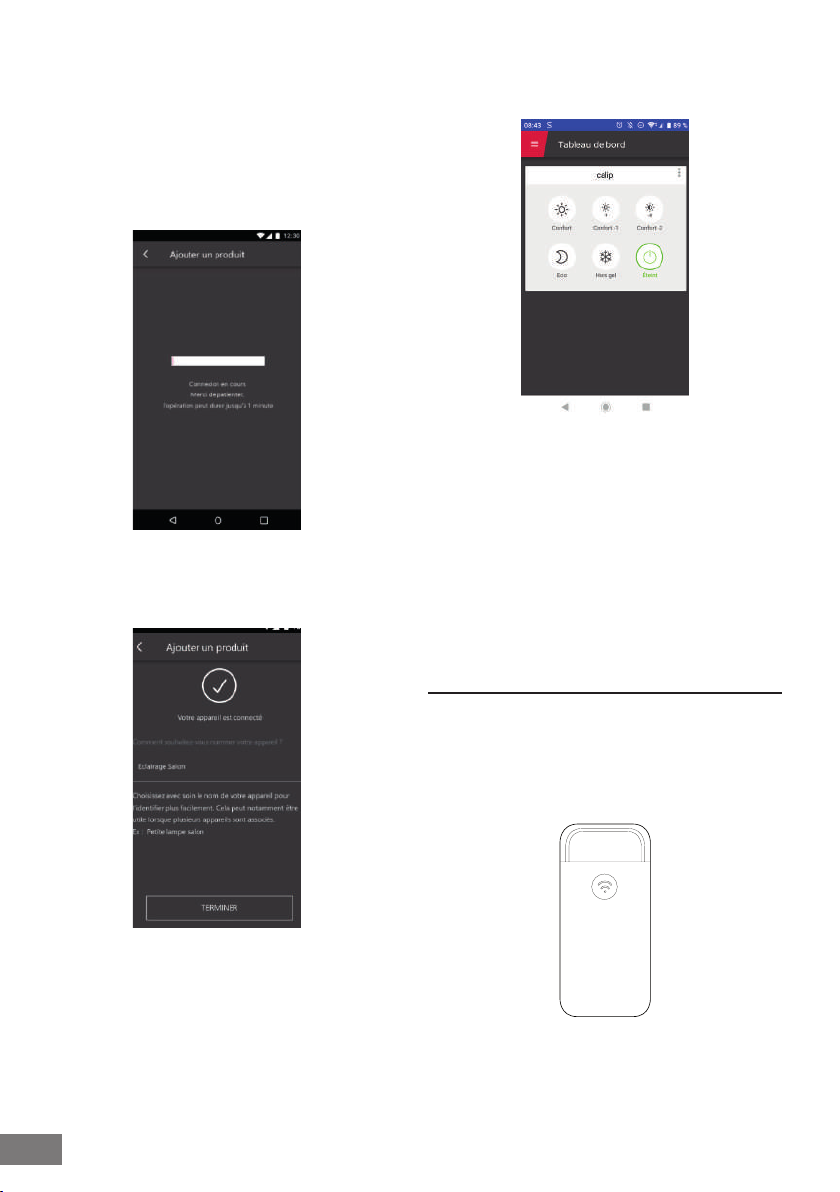

Please wait while the pairing procedure takes
place. This stage can last several minutes.
IMPORTANT: The network compatibility of this
device is 2.4 GHz WiFi - WPA/WPA2. Not compatible
with 5 GHz WiFi or with WEP encryption.
Please check the WiFi settings of your router
or contact your Internet service provider if you
experience connection dif culties.
EN 10
WI-FI CONTROL MODULE FOR HEATER PILOT WIRE
C - INSTALLATION
In case of failure, check the module’s Wi-Fi range. To
do so, connect it close to your Wi-Fi network. Check
your network password and check that you are on
2.4GHz WiFi. Then perform a reset and restart the
procedure.
Your Thomson heating module has been paired
successfully. You can specify a name and press
FINISH.
Your heating module is now operational and
appears in your dashboard. Wait until the icons
change from grey to black (indicating conrmation
of connection to your WiFi network).
You can now control your Thomson smart heating
module from your smartphone.
The icon changes to green a few seconds after the
module is activated. If this does not happen and
the icon remains grey, you must have a connection
problem. Check the range and your WiFi connection.
Check also that the heating module still has power.
From this step, you can add this device to the
Google Home and Alexa voice assistants.
The following instructions may help you if you have
any problems during the pairing procedure:
4 - RESETTING THE MODULE
- A long press (more than 15s) on the button located
on the front of the module enables you to reset
the module. The 3 indicators will ash rapidly to
conrm that the reset was successful. The reset
process can take 2 to 3 minutes.
ã
