THOMSON TS 870 - WITH TSC 80E CONTROLLER Manuale utente

9087A –198th Street, Langley, BC Canada V1M 3B1 ŸTelephone (604) 888-0110

Telefax (604) 888-3381 ŸE-Mail: [email protected] Ÿwww.thomsontechnology.com

TS 870

AUTOMATIC TRANSFER SWITCHES

With TSC 80e Controller

INSTALLATION, OPERATING &

SERVICE MANUAL

PM062 Rev 8 10/01/25

TS 870 TRANSFER SWITCH

PM062 REV8 10/01/25 Thomson Technology

TABLE OF CONTENTS

1. PRODUCT REVISION HISTORY 1

2. EQUIPMENT STORAGE 1

2.1. ENVIRONMENTAL CONDITIONS 1

3. NOTES TO INSTALLER 2

3.1. UPSTREAM CIRCUIT PROTECTIVE DEVICES/ELECTRICAL CONNECTIONS 2

3.2. TRANSFER SWITCHES WITH INTEGRAL OVER CURRENT PROTECTION 3

3.3. TRANSFER SWITCHES WITH MULTI-TAP VOLTAGE CAPABILITY 3

3.4. SYSTEM PHASING-HIGH LEG DELTA SYSTEMS 4

3.5. REMOTE START CONTACT FIELD WIRING 5

3.6. DIELECTRIC TESTING 5

3.7. INSTALLATION OF OPEN TYPE TRANSFER SWITCHES 5

3.8. MOUNTING OF ENCLOSED TRANSFER SWITCHES 6

4. GENERAL DESCRIPTION 8

4.1. PRODUCT MODEL CODE 10

4.2. TYPICAL COMMISSIONING PROCEDURES 11

5. GENERAL THEORY OF OPERATION 11

5.1. STANDARD AUTOMATIC TRANSFER SWITCH 11

5.2. SERVICE ENTRANCE AUTOMATIC TRANSFER SWITCH 12

5.3. TEST MODES 16

6. OVER CURRENT PROTECTION 16

6.1. STANDARD TS 870 AUTOMATIC TRANSFER SWITCH 16

6.2. OPTIONAL TS 870 AUTOMATIC TRANSFER SWITCH WITH INTEGRAL OVER

CURRENT PROTECTION 16

7. GENERAL NOTES ON SERVICING TRANSFER SWITCH MECHANISM18

TS 870 TRANSFER SWITCH

PM062 REV8 10/01/25 Thomson Technology

8. TRANSFER SWITCH MECHANISM –100A-800A, S STYLE 20

8.1. MANUAL OPERATION 20

9. TRANSFER SWITCH MECHANISM –1000A-1200A, T-STYLE 22

9.1. MANUAL OPERATION 22

10. RECOMMENDED MAINTENANCE 24

11. FRONT VIEW (TYPICAL) 3 / 4 POLE 100A-250A S-STYLE TRANSFER

MECHANISM 26

12. FRONT VIEW (TYPICAL) 3 POLE 400A-800A S-STYLE TRANSFER MECHANISM

(MECHANISM FRONT COVER REMOVED) 27

13. FRONT VIEW (TYPICAL) 3 / 4 POLE 1000A-1200A T-STYLE TRANSFER

MECHANISM 28

14. CONNECTION CONFIGURATION OPTIONS 29

15. CABLE TERMINAL INFORMATION 30

16. REQUIREMENTS FOR UPSTREAM CIRCUIT PROTECTIVE DEVICES 30

16.1. WITHSTAND CURRENT RATINGS (ALL MODELS WITHOUT INTEGRAL

OVERCURRENT PROTECTION OPTION) 30

16.2. INTERRUPTING CAPACITY CURRENT RATINGS (ALL MODELS WITH INTEGRAL

OVERCURRENT PROTECTION OPTION) 31

17. GROUND FAULT SITE TEST REQUIREMENTS 31

17.1. PERFORMANCE TEST 31

18. TROUBLESHOOTING 33

19. REPLACEMENT PARTS 36

20. PRODUCT RETURN POLICY37

21. NOTES 38

22. PERFORMANCE TEST FORM39

TS 870 TRANSFER SWITCH

PM062 REV 8 10/01/25 1Thomson Technology

1. PRODUCT REVISION HISTORY

The following information provides an historical summary of changes made to this product since

the original release.

Operating & Service Manual Version

Rev 0 04/11/19 Original release.

Rev 1 05/03/08 Changes to incorporate reversing style ATS Motor for 100-250A

transfer switches.

Rev 2 05/05/26 Revisions to Section 8 and Section 18.

Rev 3 06/05/08 Revisions to Section 15.

Rev 4 07/07/31 Changes to Incorporate new S-Style 400A mechanism

Rev 5 08/03/05 Changes to Incorporate new S-Style mechanism (100A, 150A,

200A, 250A, 600A, 800A)

Rev 6 08/08/01 Changes to Incorporate optional TSC 80E Transfer Controller

Rev 7 09/01/01 Changes to Incorporate standard TSC 80E Transfer Controller

Rev 8 10/01/25 Changes to Incorporate Seismic Certification and Mounting

Requirements

Contact Thomson Technology, to obtain applicable instruction manuals or if in doubt about

any matter relating to installation, operation or maintenance. Soft copy of the most current

version is available at www.thomsontechnology.com.

NOTE: All information contained in this manual is for reference only and is subject

to change without notice.

2. EQUIPMENT STORAGE

The following procedures are required for correct storage of the transfer switch prior to installation.

2.1. ENVIRONMENTAL CONDITIONS

CAUTION!!!

Failure to store and operate equipment under the specified environmental conditions may

cause equipment damage and void warranty.

TS 870 TRANSFER SWITCH

PM062 REV 8 10/01/25 2Thomson Technology

2.1.1. EQUIPMENT STORAGE

The transfer switch shall be stored in an environment with a temperature range not

exceeding -4° to +158° Fahrenheit (-20°to +70° Celsius) and a humidity range not

exceeding 5%-95% non-condensing. Before storing, unpack sufficiently to check for

concealed damage. If concealed damage is found, notify the ATS supplier and the

Carrier immediately. Repack with the original, or equivalent packing materials.

Protect from physical damage. Do not stack. Store indoors in a clean, dry, well

ventilated area free of corrosive agents including fumes, salt and concrete/cement

dust. Apply heat as necessary to prevent condensation.

2.1.2. EQUIPMENT OPERATING

The transfer switch shall be operated in an environment with a temperature range

not exceeding +5° to +122° Fahrenheit (-15°to +50°Celsius) and a humidity range

not exceeding 5%-95% non-condensing.

3. NOTES TO INSTALLER

DANGER!!!!

Arc Flash and Shock Hazard. Will cause severe injury or death.

Do not open equipment until ALL power sources are disconnected

This equipment must be installed and serviced only by qualified electrical

personnel utilizing safe work practices and appropriate Personal Protective

Equipment (PPE). Failure to do so may cause personal injury or death

3.1. UPSTREAM CIRCUIT PROTECTIVE DEVICES/ELECTRICAL

CONNECTIONS

To ensure satisfactory installation of this equipment be sure to observe "Cable Terminal

Information” regarding power cable connection tightness and "Requirements for Upstream

Circuit Protective Devices" located in this manual.

All mechanical and electrical connections must be checked for tightness prior to placing this

equipment in service to ensure proper operation and to validate applicable warranty

coverage.

TS 870 TRANSFER SWITCH

PM062 REV 8 10/01/25 3Thomson Technology

3.2. TRANSFER SWITCHES WITH INTEGRAL OVER CURRENT PROTECTION

For models of transfer switch with integral over current protection, the over current

protection must be set prior to operation. The equipment will be shipped from the factory

with a long-time current setting of 100% (of the equipment rating) and maximum short-

time/instantaneous current and time delay settings.

WARNING!

Do Not Energize this equipment until

device settings have been verified to

ensure proper system protection &

coordination. Failure to do so may

result in equipment failure.

Refer to Section 5.2.2 of this manual for additional information on operation of the Transfer

switch following an over current trip condition.

Refer to information supplied with the transfer switch documentation package for

adjustment procedures on the power switching units over current protection trip unit.

Contact the factory if any additional information is required.

3.3. TRANSFER SWITCHES WITH MULTI-TAP VOLTAGE CAPABILITY

If the transfer switch has programmable multi-tap voltage capability (i.e. ATS Model Code

with Voltage Code “Y”), confirm the transfer switch has been configured for the correct

system voltage prior to installation.

WARNING!

Failure to confirm and match transfer

switch voltage with the system voltage

could cause serious equipment damage.

The voltage selections and connections are shown on the engineered drawings attached to

each transfer switch. The factory default settings will be indicated on the calibration label

attached on the inside of the enclosure door (supplied loose on open style models). A

blank label is included to record the applicable settings if the configuration is changed from

the factory default settings.

TS 870 TRANSFER SWITCH

PM062 REV 8 10/01/25 4Thomson Technology

To change the transfer switch voltage, refer to “INSTRUCTIONS TO CHANGE SYSTEM

VOLTAGE ON TS870 SERIES TRANSFER SWITCHES WITH TSC 80E

CONTROLLER” (attached as “Appendix B). Contact Thomson Technology for further

information as may be required.

3.4. SYSTEM PHASING-HIGH LEG DELTA SYSTEMS

For systems using high leg delta 240V 3 phase 4 wire systems, connection of supply

conductors must have the correct phasing as shown below.

WARNING

Failure to match correct system

phasing will result in serious damage

to the TSC 80E controller.

208V

(Orange)

(High Leg)

(Yellow)

(Red)

(White)

PH A

(UA)

Automatic Transfer

Switch (Utility Supply)

PH B

(UB) PH C

(UC) Neural

(N)

120V 120V

240V 240V

Where transfer switches are supplied without power isolation transformers (PT1 &

PT2) for ATS control logic it is essential that the orientation of phase conductors of

TS 870 TRANSFER SWITCH

PM062 REV 8 10/01/25 5Thomson Technology

the supply source be arranged such that the phase of highest potential with respect

to ground is not connected to the power supply inputs to the controller (A Phase for

both supplies). Failure to do so will result in equipment damage.

Per NEC Article 384-3(f) “The B phase shall be that phase having the higher

voltage to ground on a 3-phase, 4-wire delta connected systems.”

3.5. REMOTE START CONTACT FIELD WIRING

As a minimum, the remote engine start control field wiring shall conform to the local

regulatory authority on electrical installations. Field wiring of a remote start contact

from a transfer switch to a control panel should conform to the following guidelines

to avoid possible controller malfunction and/or damage.

3.5.1. Minimum #14 AWG (2.5mm2) wire size shall be used for distances up to

100ft (30m)1). For distances exceeding 100 ft. (30m) consult Thomson

Technology

3.5.2. Remote start contact wires should be run in a separate conduit.

3.5.3. Avoid wiring near AC power cables to prevent pick-up of induced voltages.

3.5.4. An interposing relay may be required if field-wiring distance is excessively

long (i.e. greater than 100 feet (30m)) and/or if a remote contact has a

resistance of greater than 5.0 ohms.

3.5.5. The remote start contact must be voltage free (i.e. dry contact). The use of a

“powered” contact will damage the transfer controller.

3.6. DIELECTRIC TESTING

Do not perform any high voltage dielectric testing on the transfer switch with the TSC

80E controller connected into the circuit as serious damage will occur to the

controller. All AC control fuses and control circuit isolation plugs connected to the

TSC 80E must be removed if high voltage dielectric testing is performed on the

transfer switch.

3.7. INSTALLATION OF OPEN TYPE TRANSFER SWITCHES

Please refer to the factory for additional information.

TS 870 TRANSFER SWITCH

PM062 REV 8 10/01/25 6Thomson Technology

3.8. MOUNTING OF ENCLOSED TRANSFER SWITCHES

Model TS840, TS870 and TS880 Automatic Transfer Switches and Automatic

Transfer and Bypass Isolation Switches in "standard" enclosures are seismic

certified under AC156 building code for non-structural components.

"Standard" enclosures are all transfer switch enclosures Thomson Technology offers

in NEMA 1, NEMA 2, NEMA 3R and NEMA 4X for the above listed product. If a

customer requests a custom enclosure it would not be covered under the generic

certificate; if certification were a requirement Consult factory before ordering.

The Automatic Transfer Switches are qualified to the highest known level in North

America; based on site class D. Specifically this is a spectral acceleration of 342%.

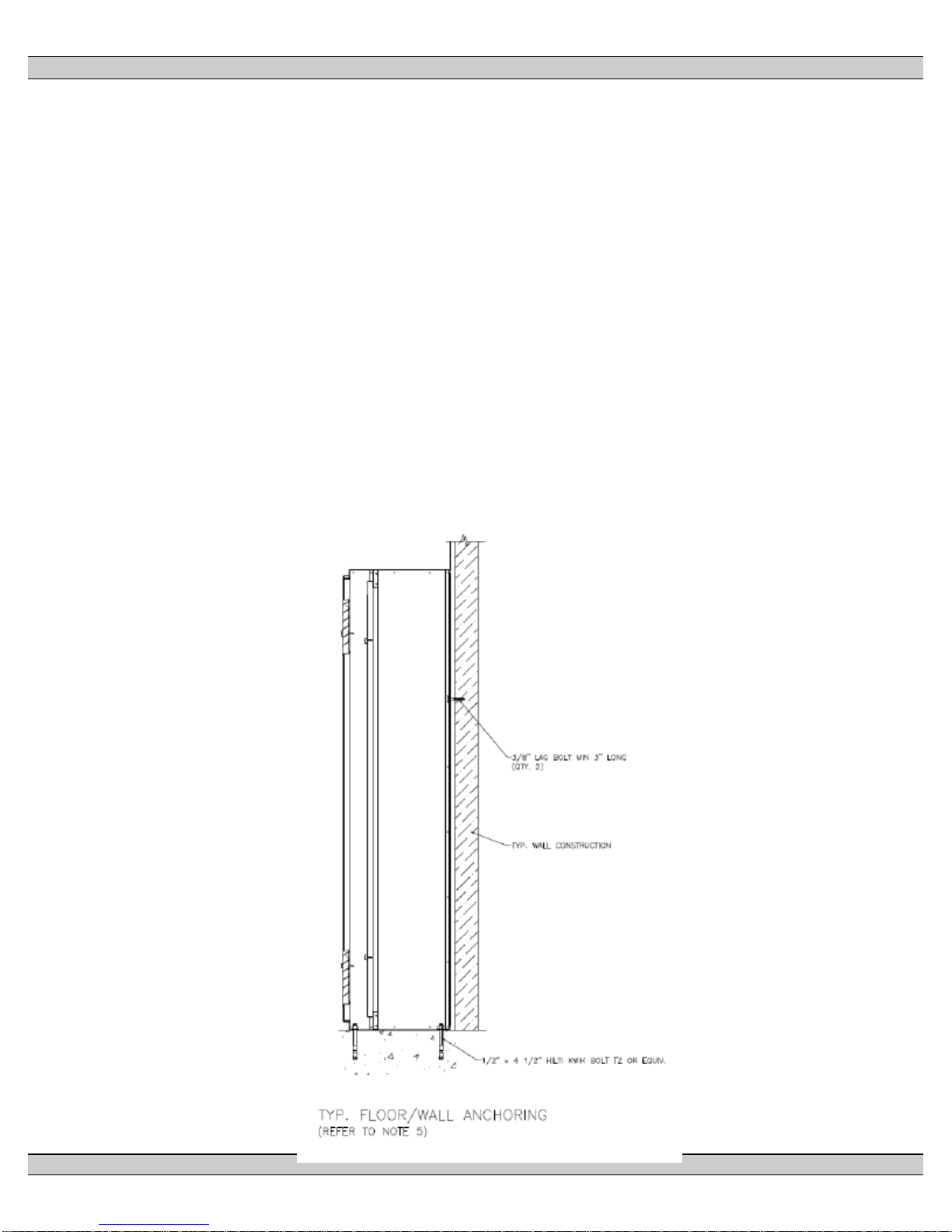

The transfer switch must be installed per the anchoring details provided for seismic

qualification. The equipment can be mounted in alternate means and still qualify if a

qualified Civil Engineer designs the alternate method of anchoring.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali THOMSON Interruttore

THOMSON

THOMSON Grass Valley Triton TTN-BVS-0808 Manuale utente

THOMSON

THOMSON GRASS VALLEY Triton TTN-BVS-1602CP Manuale utente

THOMSON

THOMSON TTN-BAS-0808CP Manuale utente

THOMSON

THOMSON Grass Valley TRITON TTN-BTS-0808/140 Manuale utente

THOMSON

THOMSON GRASS VALLEY Triton TTN-BES-1602/110 Manuale utente

THOMSON

THOMSON Grass Valley Triton TTN-BVS-1616 Manuale utente

THOMSON

THOMSON Grass Valley TRITON TTN-BTS-1616/140 Manuale utente

THOMSON

THOMSON Grass Valley TRITON TTN-BTS-6464/34 Manuale utente

THOMSON

THOMSON Grass Valley TRITON TTN-BTS-0808/34 Manuale utente

THOMSON

THOMSON Amethyst III Manuale utente

THOMSON

THOMSON TTN-BES-0808CP/110 Manuale utente

THOMSON

THOMSON grass valley XtenDD Manuale utente

THOMSON

THOMSON GRASS VALLEY Triton TTN-BAS-1602CP Manuale utente

THOMSON

THOMSON GRASS VALLEY KayakDD Series Manuale tecnico

THOMSON

THOMSON GRASS VALLEY Triton TTN-BES-1602/75 Manuale utente

THOMSON

THOMSON GRASS VALLEY Triton TTN-BVS-6464 Manuale utente

THOMSON

THOMSON grass valley TRITON TTN-BTS-6464/140 Manuale utente

THOMSON

THOMSON Amethyst III Manuale utente

THOMSON

THOMSON TTN-BDS-0808CP Manuale utente

THOMSON

THOMSON TS 840 Manuale utente

THOMSON

THOMSON marathon TS 910 Series Manuale utente

THOMSON

THOMSON Grass Valley Triton TTN-HDS-0808 Manuale utente

THOMSON

THOMSON GRASS VALLEY Triton TTN-BAS-1602 Manuale utente

THOMSON

THOMSON TTN-BES-0808CP/75 Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
