THORLABS OSL2IR Manuale utente

OSL2IR

High-Intensity

Fiber Light Source

User Guide

High-Intensity Fiber Light Source

Table of Contents

Chapter 1Warning Symbol Definitions ...........................................1

Chapter 2Safety.................................................................................2

2.1.Precautions....................................................................2

2.1.1.Power Sources ............................................................................2

2.1.2.Operation .....................................................................................2

2.1.3.Cleaning.......................................................................................2

Chapter 3Getting Started .................................................................3

3.1.UnpackingtheOSL2IR....................................................3

3.2.SetupOverview.............................................................3

3.2.1.Electrical Power Supply...............................................................3

3.2.2.Fiber Bundle and Light Output Port .............................................3

Chapter 4Physical Description ........................................................4

4.1.FrontPanelLightSourceDescriptions............................4

4.2.RearPanelLightSourceDescriptions.............................4

Chapter 5Lamp Replacement .......................................................... 5

5.1.LampReplacementInstructions.....................................5

Chapter 6Specifications ...................................................................6

6.1.GeneralSpecifications...................................................6

Chapter 7Certifications and Compliances .....................................8

Chapter 8Regulatory......................................................................... 9

8.1.WasteTreatmentisYourOwnResponsibility.................9

8.2.EcologicalBackground...................................................9

Chapter 9Thorlabs Worldwide Contacts.......................................10

High-Intensity Fiber Light Source Chapter 1: Warning Symbol Definitions

Rev A, March 30, 2021 Page 1

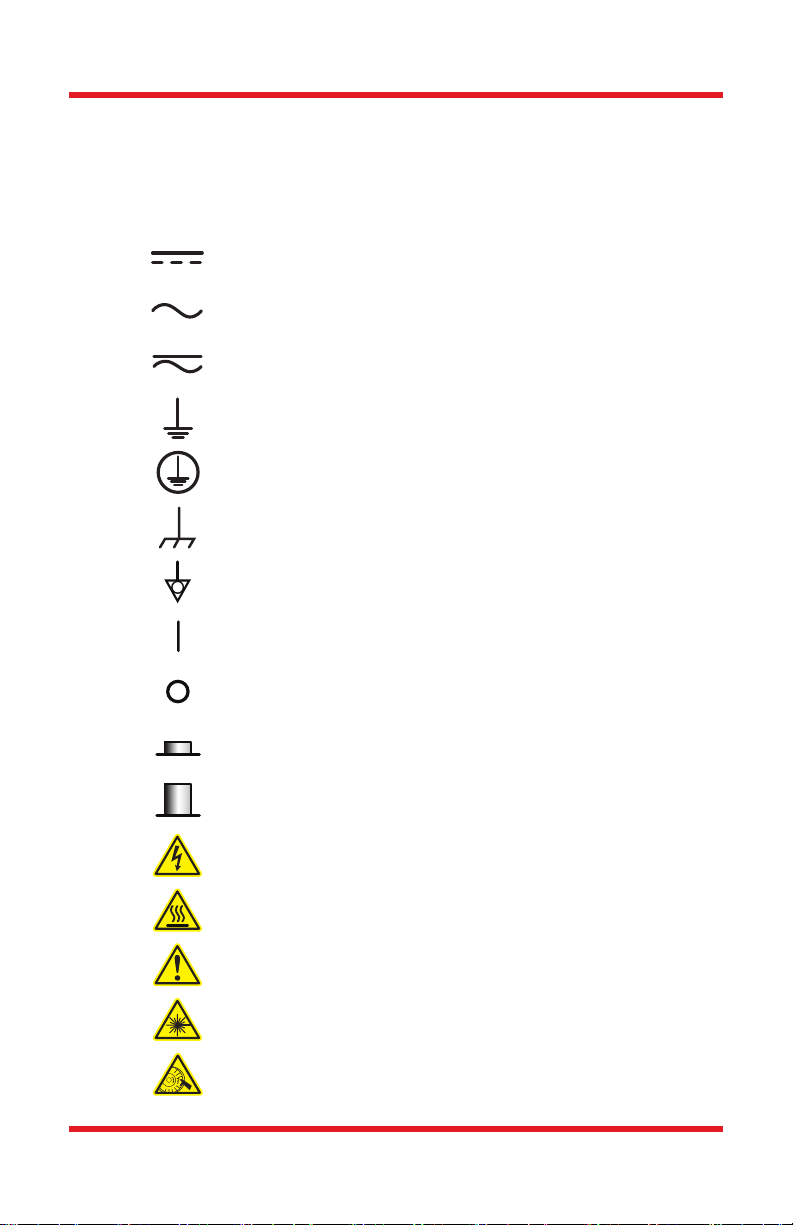

Chapter 1 Warning Symbol Definitions

Below is a list of warning symbols you may encounter in this manual or on your

device.

Symbol Description

Direct Current

Alternating Current

Both Direct and Alternating Current

Earth Ground Terminal

Protective Conductor Terminal

Frame or Chassis Terminal

Equipotentiality

On (Supply)

Off (Supply)

In Position of a Bi-Stable Push Control

Out Position of a Bi-Stable Push Control

Caution: Risk of Electric Shock

Caution: Hot Surface

Caution: Risk of Danger

Warning: Laser Radiation

Caution: Spinning Blades May Cause Harm

High-Intensity Fiber Light Source Chapter 2: Safety

Page 2 CTN016972-D02

Chapter 2 Safety

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN

INPUT: 200 W, Max

Line Fuse, 5 x 20 mm

100 – 120 VAC, 50/60 Hz 3 A Quick Acting

200 – 240 VAC, 50/60 Hz 3 A Quick Acting

Caution

You are cautioned that any change or modifications not expressly approved in this

manual could void your authority to operate this equipment.

2.1. Precautions

2.1.1. Power Sources

Before operating the product, check that the operating voltage is

identical to your local power supply. See specific descriptions for

operating voltages.

To disconnect the AC power cord, grasp the plug itself; never pull the

cord.

AC power cord must be replaced with IEC compatible cord.

2.1.2. Operation

Before connecting to fiber optic components, be sure that all power connections

are secure.

2.1.3. Cleaning

Clean the cabinet, panel, and controls with a soft cloth slightly moistened with a

mild detergent solution. Do not use any type of abrasive pad, scouring powder, or

solvent such as alcohol or benzine.

High-Intensity Fiber Light Source Chapter 3: Getting Started

Rev A, March 30, 2021 Page 3

Chapter 3 Getting Started

3.1. Unpacking the OSL2IR

Check that you received all items mentioned on the packing list below.

OSL2IR Packing List

Item Quantity

OSL2IR Light Source 1

OSL2FB Fiber Bundle 1

Fiber Bundle Adapte

1 (Ships Installed in the OSL2IR Output Port)

User Guide 1

Location-Specific Power Cord 1

3.2. Setup Overview

3.2.1. Electrical Power Supply

1. Turn off the power to the OSL2IR before making any connections.

2. Do not connect the AC power cord to the local power supply until the

connections are completed to the OSL2IR.

3. Be sure to make the connections firmly.

4. Be sure that the OSL2IR operating voltage matches the “local” power

supply.

3.2.2. Fiber Bundle and Light Output Port

The included OSL2FB fiber bundle can be connected to the OSL2IR light source

for easy control and placement of the illumination. Additionally, the fiber bundle

adapter can be removed from the output port of the OSL2IR. Unscrew the fiber

bundle adapter to expose the internal SM1 (1.035"-40) threads. This threaded

output port can be used for a variety of free space applications. See Section 4.1

for details on the location of the output port and operating controls of the OSL2IR.

High-Intensity Fiber Light Source Chapter 4: Physical Description

Page 4 CTN016972-D02

Chapter 4 Physical Description

4.1. Front Panel Light Source Descriptions

The following components are numbered to correspond with Figure 1, below.

1. Variable Intensity Controller (0 to 100%)

2. On/Off rocker Switch

3. Light Output Port

4. LED Indicator (Indicates lamp temperature status). The LED will be green

when the lamp temperature is normal. If the lamp overheats it will turn to

red and power to the lamp will be shut. Once the lamp has cooled down,

the LED will return to green and the lamp will resume normal operation.

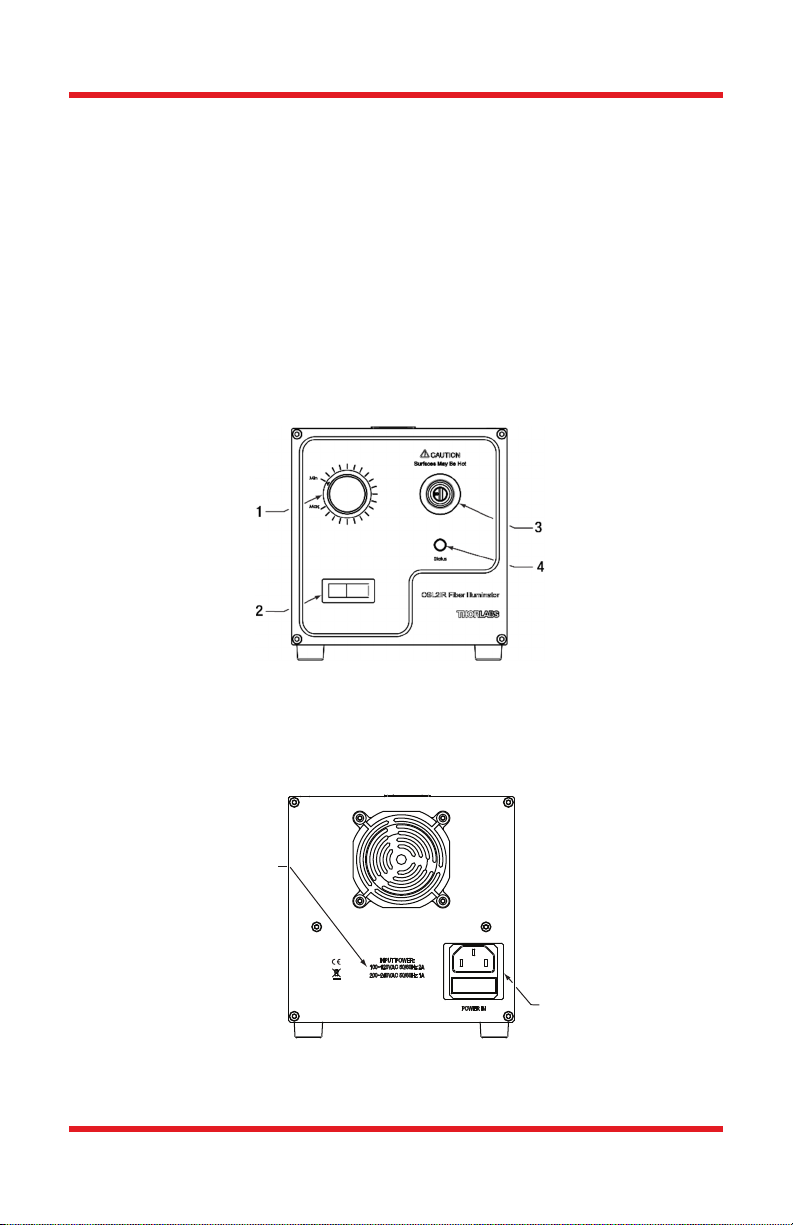

Figure 1 Front Panel Diagram

4.2. Rear Panel Light Source Descriptions

1. IEC Inlet with Line Filtering (Power Cable Input)

2. Operating Voltage Label

Figure 2 Rear Panel Diagram

High-Intensity Fiber Light Source Chapter 5: Lamp Replacement

Rev A, March 30, 2021 Page 5

Chapter 5 Lamp Replacement

5.1. Lamp Replacement Instructions

1. To replace the lamp, shut off the power and remove the power cord from

the AC outlet. To disconnect the AC power cord, grasp the plug itself;

never pull the cord.

2. Allow sufficient time for the unit to cool. Caution: Lamp and surfaces may

be extremely hot after operation.

3. Pull the paddle latch handle to open the bulb cover.

4. Remove the bulb socket and carefully pull the bulb out from the bulb

bracket.

5. Insert the replacement bulb into the bracket, pressing firmly to ensure it

is safely seated.

6. Connect the socket with the bulb and close the cover. It will automatically

latch closed.

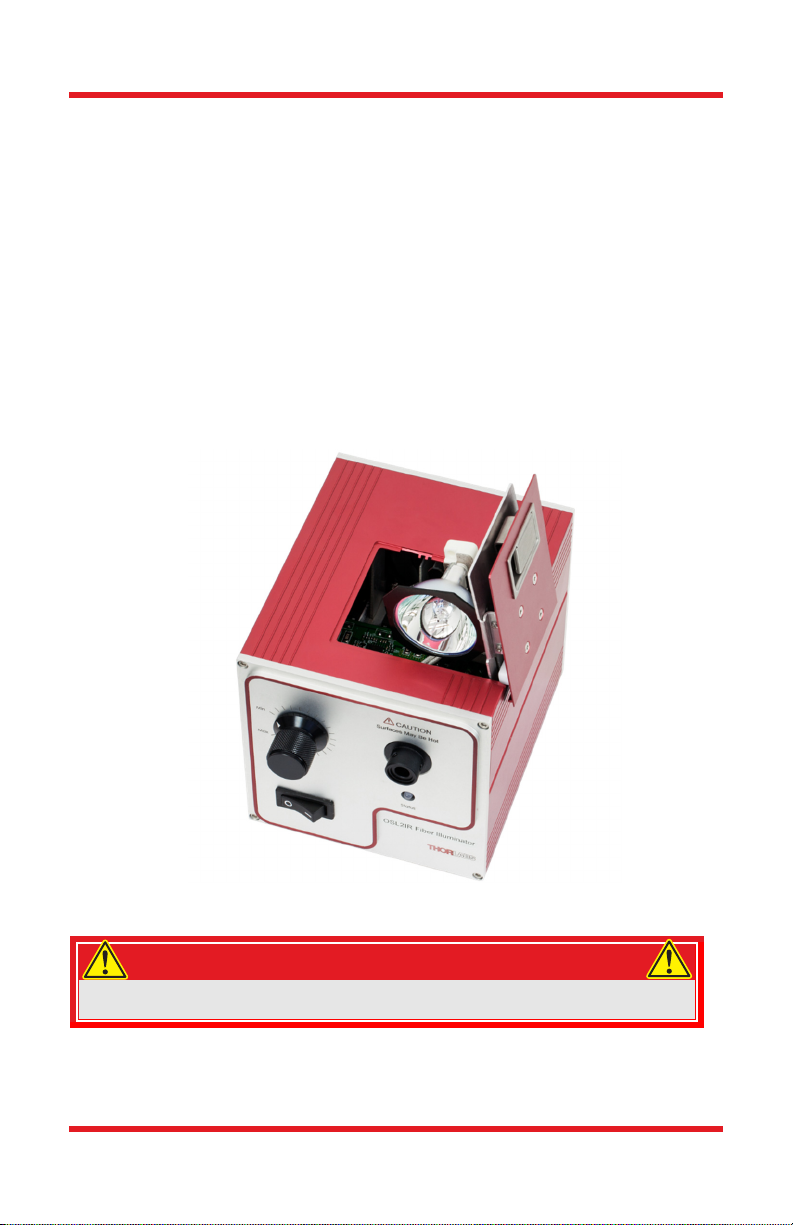

Figure 3 Lamp Access Door

CAUTION

Should any solid object or liquid fall into the assembly while the bulb cover is

open, have it inspected by qualified personnel before operation.

High-Intensity Fiber Light Source Chapter 6: Specifications

Page 6 CTN016972-D02

Chapter 6 Specifications

6.1. General Specifications

OSL2IR Specifications

Controller Specifications

Power at Fiber Tip 3.8 W at Maximum Bulb Intensity

Color Temperature 3200 K at Maximum Bulb Intensity

Operating Wavelength Range 400 – 1750 nm (Typical)

Color Rendering Index 90%

Intensity Adjustment Range 0 to 100%

Time to Full Brightness 4 s Typical, 7 s Maximum

Output Power Stability ±0.8% over 8 Hours

Lamp Lifetime 200 Hours to 50% Brightness

Included Lamp OSL2BIR (150 W 3200 K, Enhanced IR, EKE/AL)

Other Compatible Lamp

Types

OSL2B (150W, 3200 K, EKE/10H)

OSL2B2 (150 W, 3400 K, EJV)

OSL1B (150 W, 3250 K, EKE)

Input Voltage 100 – 120 VAC; 50/60 Hz

200 – 240 VAC; 50/60 Hz

Fuse Type 3 A, 250 V, 5 x 20 mm

Power Consumption 200 W at Maximum Bulb Intensity

Operating Temperaturea-20 to 40°C (-4 to 104°F)

Humidity Range 0 to 80%, Non-Condensing

Weight 2.9 lbs (1.3 kg)

Fiber Bundle Specs

Lengthb91 cm (36")

Numerical Aperture (NA) 0.57

Effective Core Diameter Ø6.4 mm (Ø0.25")

Operating Wavelength Rangec390

–

1750 nm

Attenuation <0.6 dB/m at 940 nm

Number of Fibers 6718 (Calculated)

Fiber Core Diameterd50 μm

Fiber Cladding Diameterd52.5 μm

Bundle Minimum Bend Radius 100 mm

Operating Temperaturea0 to 180 °C (32 to 356 °F)

a. The combined operating temperature range of the light source and fiber bundle is

0 to 40 °C.

b. Longer length fiber bundles are available as a custom order. Contact

[email protected] to order.

c. Defined by the wavelength range in which the transmission of the fiber is higher

than 10%.

d. Dimensions of the individual fibers within the bundle.

High-Intensity Fiber Light Source Chapter 6: Specifications

Rev A, March 30, 2021 Page 7

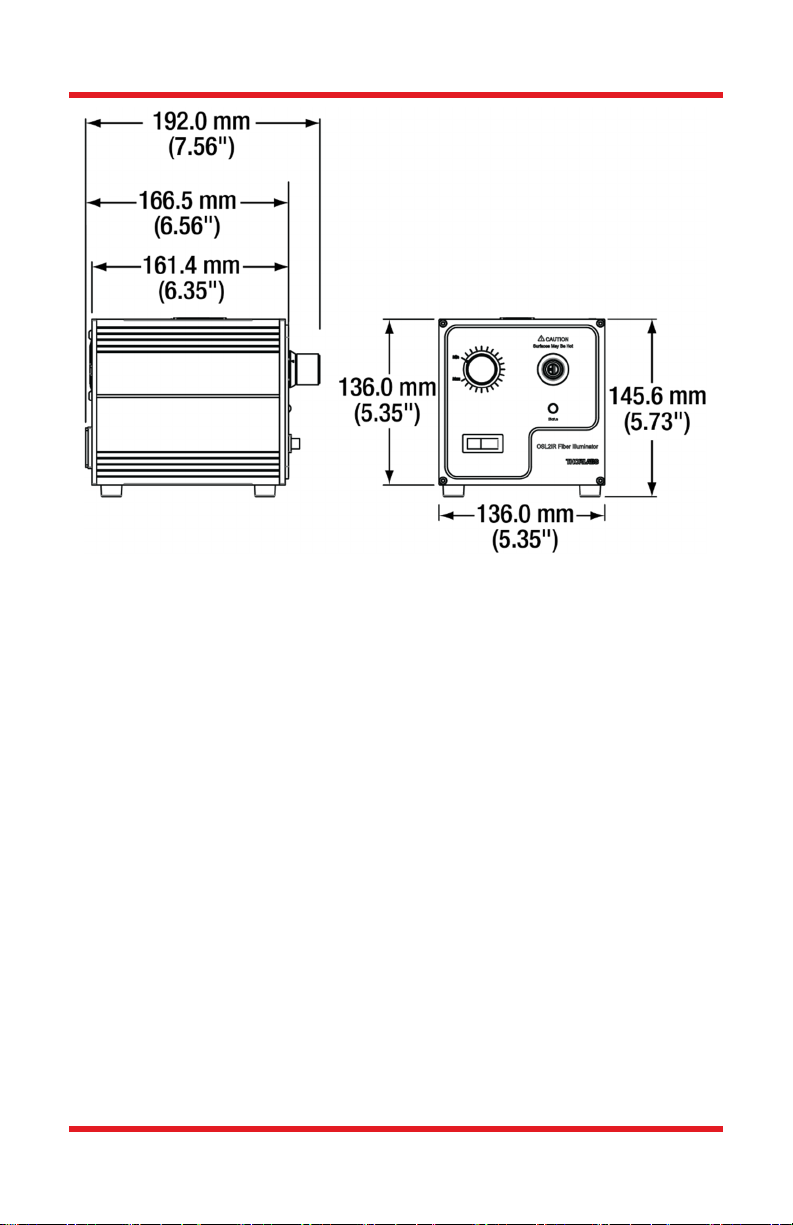

Figure 4 Dimensional Drawing

High-Intensity Fiber Light Source Chapter 7: Certifications and Compliances

Page 8 CTN016972-D02

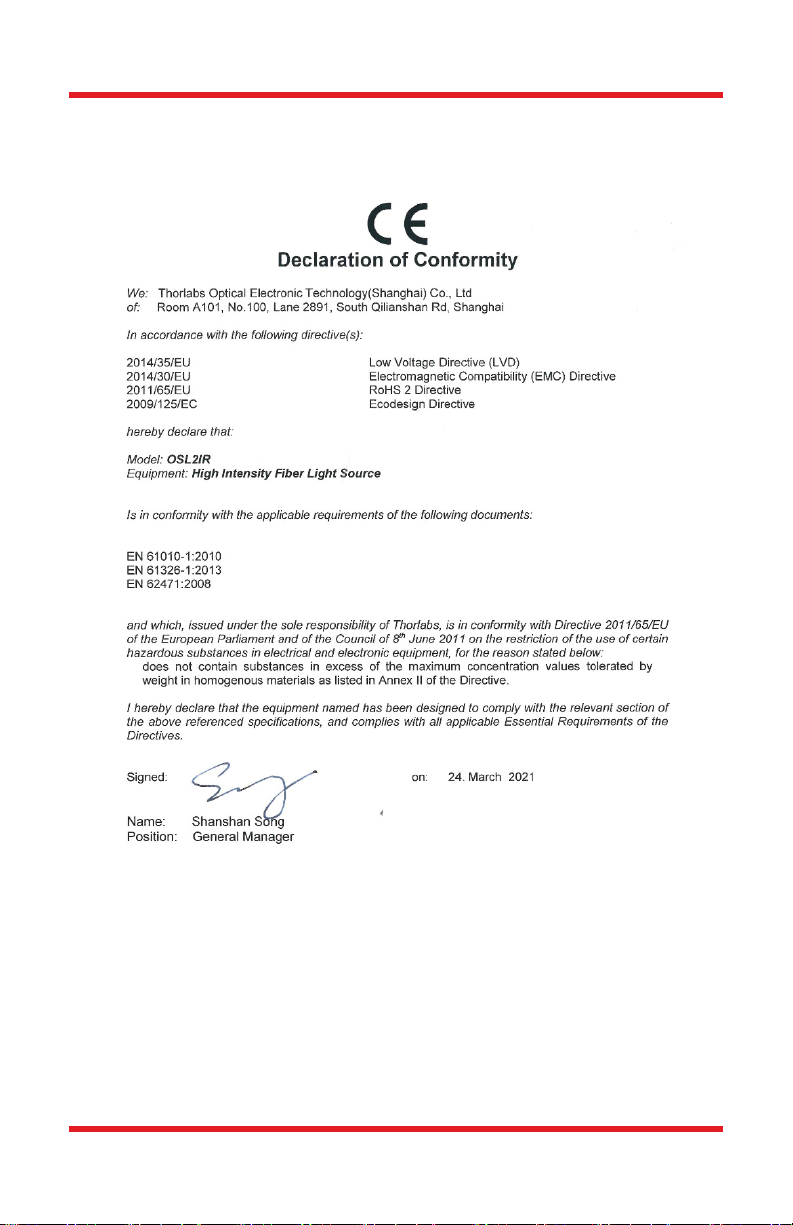

Chapter 7 Certifications and Compliances

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.
