Timeguard PDRS1500N Istruzioni per l'installazione

Model: PDRS1500N

I n s t a llation & Ope r ating Instruction s

360° Surface Mount Ceiling

PIR Light Controller

1. General Information

These instructions should be read carefully and retained for

further reference and maintenance.

Timeguard reserve the right to alter these instructions

at any time. Up to date instructions will always be available

for download at www.timeguard.com

2. Safety

• Before installation or maintenance, ensure the mains supply

to the PIR is switched off and the circuit supply fuses are

removed or the circuit breaker turned off.

• It is recommended that a qualified electrician is consulted or

used for the installation of this PIR and install in accordance

with the current IEE wiring and Building Regulations.

• Check that the total load on the circuit including when this

luminaire is fitted does not exceed the rating of the circuit

cable, fuse or circuit breaker.

• To clean use a clean dry cloth only. Do not use liquid cleaners.

3. Technical Specifications

• This PIR of of Class II Construction and must not be

earthed

Note:

• IP Rating: IP55

• Operating Temperature: -20˚to 40˚C

• Sensitivity Adjustment: 6m - 12m Distance

• Mains Supply: 230V AC 50Hz

103.00

46.00 44.00

101.00

∅101.00

∅103.00

• PIR Switching Capacity: Incandescent: 2000W,

• Motion Detection Range: Up to 12 metres diameter

(6m Radius) at a 3m mounting

height

• Presence Detection Range: Up to 6 metres diameter

(3m Radius) at a 3m mounting

height

• Detection Angle:

• Time ON Adjustment:

• (LUX) level adjustment: 2 - 1000

• Manual Override: Yes (Pulse)

• Standby Power: <0.5W

• Dimensions: Diameter 103, Depth 46mm

• Multiple PIR Sensor Switching:

A maximum of 8 PDRS1500N PIR sensors can be wired

in parallel, to enable any detector to turn ON all the lights

connected. (The total load must not exceed the lamp

rating of a single PDRS1500N unit.

360˚

1 minute - 30 minutes

Fluorescent, 600W,

CFL 150W, LED 600W

Fan (Max) 250W

4. Selecting a location

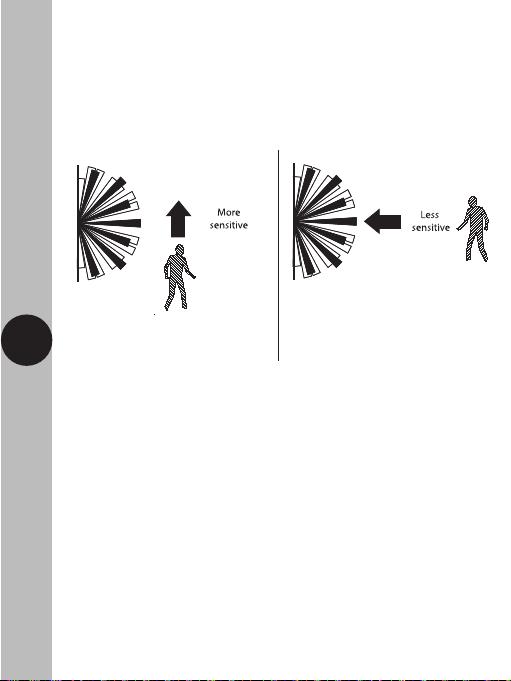

• The PIR has a number of detection zones at various

horizontal and vertical angles as shown below.

• A moving human body or object needs to cross one of

these zones to activate the sensor. The optimum height

for this is a 3m mounting height. Careful positioning of

the PIR is required to ensure the best performance from

the PIR and the appointed approach path.

Effective Approach Path

(ACROSS)

Ineffective Approach Path

(TOWARDS)

• Avoid positioning the PIR near any sources of heat in

and around the detection area such as extractor fans,

tumble dryers or boiler exhausts etc. This would also

include other light sources such as security lights.

The detection zones are a representation of the subjects walking path and not

of the detection angle.

• Reflective surfaces (i.e. pools of water, white painted

walls, overhanging branches and other types of foliage)

may cause false activation under heightened weather

conditions.

• During extreme weather conditions the PIR may exhibit

unusual behaviour. Once normal weather resumes, the

PIR will carry out normal operations.

• An isolating switch should be installed to enable the

power to be switched ON and OFF for maintenance

purposes.

• Remove the top cover of the sensor by twisting the top

cover anti-clockwise. The top cover can now be removed

from the sensor body.

• Loosen the x2 tapped screws from the mounting plate of

the PIR and the main body.

• Using the mounting pate as a template, mark the position

of the fitting holes.

• Drill the holes and insert the rawl plugs into the fitting

holes.

• Pass the supply cable through the cable entry point on the

foam gasket and then the mounting plate, ensuring the

grommet is used to maintain the IP rating of the PIR

sensor.

5. Installation

• Terminate the cable into the terminal block ensuring

correct polarity is observed and that all bare conductors

are sleeved (see section 6 Connection Diagram).

• When wiring is complete, it is recommended that the

ceiling mounting plate is fitted to the sensor body via the

previously loosened x2 screws and fixed to the ceiling.

• Insert fixing screws through the sensor assembly into the

wall plugs and secure. Do not over-tighten, if using a

power screwdriver ensure it is set to a low torque setting

so as not to damage the unit. Set the unit up as follows,

before refitting the decorative cover.

• The adjustment knobs located on

the topside of sensor main body.

They are factory set to

“Walk Test Mode”.

Double check they are

set as follows;

TIME: Fully anti-cloclwise,

LUX: Fully Clockwise,

SENS: Fully clockwise.

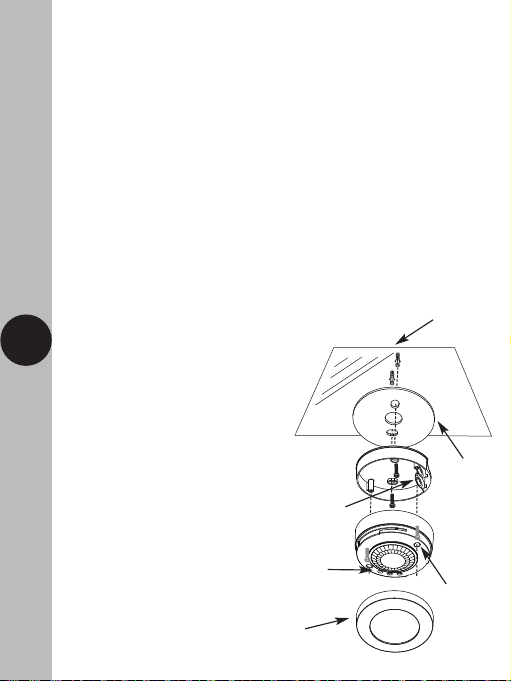

Time, Lux &

Sensitivity Controls

PIR Lid (Cover)

Grommets

(Cable Entry)

On Mounting Plate

Foam Gasket

Self tapping

screws

Ceiling

6. Connection Diagram

• Connect cables to the terminal block as follows;

If the load connected to the PIR is of Class I construction, continue the earth

continuity from the 230V 50hz mains circuit to the load.

Parallel Wiring Connection Diagram

7. Setting Up

Walk Test Procedure

• Turn the power to the unit ON. The lamp will immediately

illuminate as the unit goes through its “warm-up” period.

After approximately 1 minute the lamp will extinguish.

This indicates the unit is wired correctly and the unit is in

Test Mode.

• Try to remain outside the detection area during the

warm-up period.

• The unit will now operate during daytime as well as at

night, illuminating the lamp for approx. 2 seconds each

time. This allows testing to be carried out to establish

whether the sensor is covering the required area.

• Walk across the location the sensor is fitted, to establish

the detection area.

• The sensor will detect you approximately up to 12 metres

in diameter at mounting height of 3m.

• As you cross a detection “zone” the lamp will illuminate.

Now stand still until the lamp extinguishes

(this should take approx. 2 seconds).

• Start moving again after 2 seconds. As you cross each

“zone” the lamp will illuminate.

• Repeat the above, walking at various distances and angles

to the unit.This will help you to confirm the detection

pattern.

Setting Up for Automatic Operation

• When walk tests are done, adjust for automatic operation.

• The TIME setting controls how long the unit remains on

following activation and after all motion ceases.

• Use a thin flat blade screwdriver to make adjustments.

• The Time control knob at fully anti-clockwise is Test Mode,

slightly adjust to above the T is minimum time approx.

1 min, whilst the maximum time is approx. 30 minutes

indicated by the 30 position on the dial. Fully clockwise is

dusk till dawn indicated by “D”, meaning the light will

remain on at night and switch off in the morning,

providing that significant natural light is visable by the PIR.

• Set the control to the desired setting between these limits.

• The DUSK (LUX) control determines the level of darkness

required for the unit to start operating. The setting is

best achieved by the procedure below;

1. Set the DUSK control knob fully anti clockwise.

2. When the ambient light level reaches the level of

darkness at which you wish the lamp to become

operative (i.e. at dusk) SLOWLY rotate the control in a

clockwise direction until a point is reached where the

lamp illuminates.

3. Leave the control set at this point.

• At this position the unit should become operative at

approximately the same level of darkness each evening.

• Observe the operation of the unit. If the unit is starting to

operate too early (i.e. when it is quite bright) adjust the

control slightly anti-clockwise. If the unit starts to operate

too late (i.e. when it is very dark). Adjust the control

slightly clockwise.

• Continue to adjust until the unit operates as desired.

• Once the unit is set up as desired, adjust the sensitivity

level as to your requirements via the sensitivity adjustment

dial. Ensure the levels are enough for adequate detection,

subject to your installation location.

Time

Sen

5min

300Lux

Lux

Lux-Dusk/Dawn

Setting

Time On

Setting

Sensitivity

Setting

Manual Override Function

• To activate the manual override, turn the connected light

switch OFF then ON within 1.5 seconds. This can only be

done after dusk. The PIR will remain switched on for

up to 6 hours or until dawn if this comes first.

Note: The red LED

indication light

will flash when movement

is detected. Otherwise it

will remain off.

The red LED indication light

will flash every 1 second during

the PIRs warm up period or after

a restart from a loss of power.

While the manual override

is active the LED indication

will remain off until back in

auto mode.
