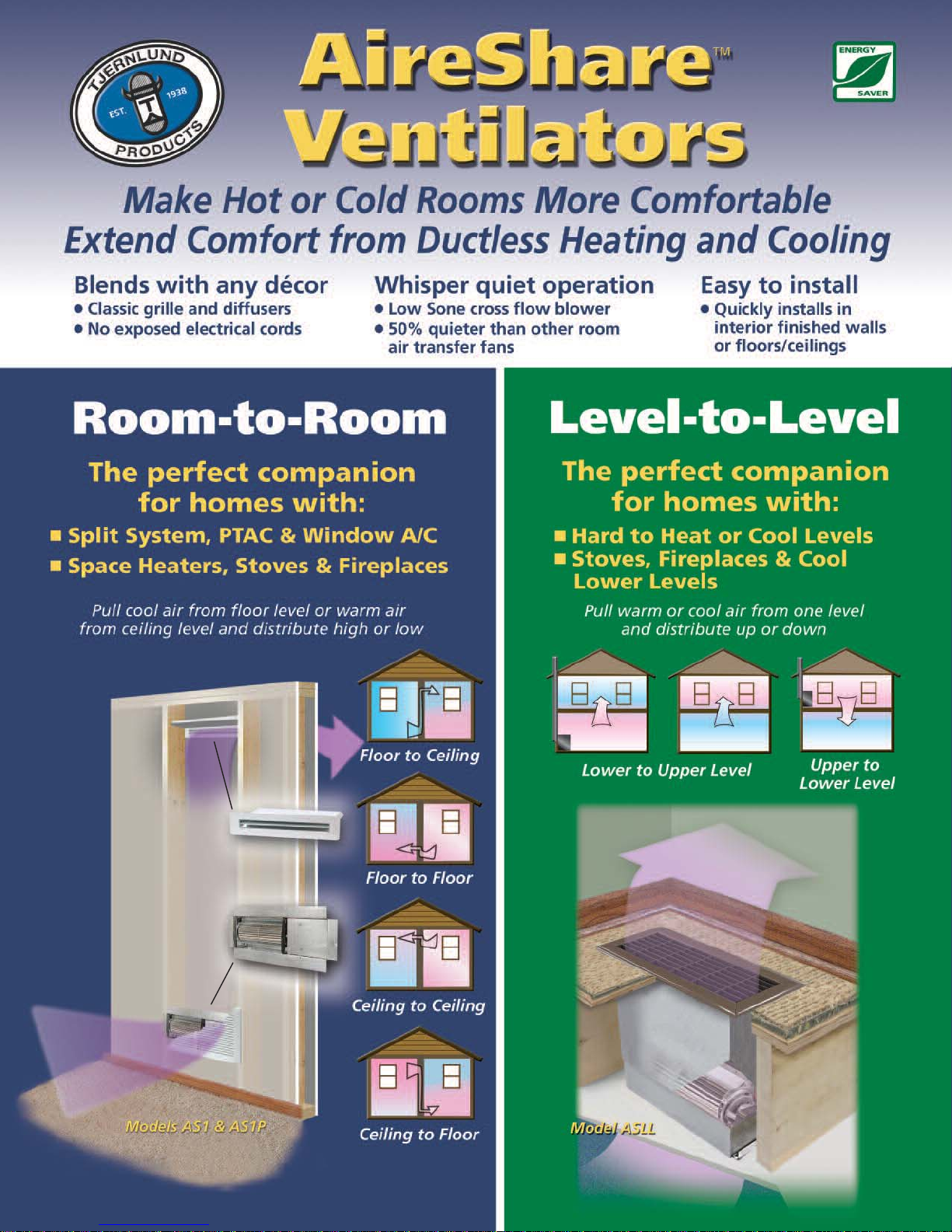

TJERNLUND AireShare AS1 Manuale utente

3. The diffuser is installed

in the same wall cavity in

the

adjacent

room.

Ceiling Grille

Floor Grille

Model ASLL

Expands

from

8 3/4”

16 1/2”

41/4”

12 1/4”

13 1/2”

13 3/4”

53/4” 5 1/2”

TJERNLUND PRODUCTS, INC.

1601 Ninth Street White Bear Lake, MN 55110-6794

Phone: 651.426.2993 800.255.4208 Fax: 651.426.9547

Visit our web site: www.tjernlund.com

Specifications:

Quick Comfort Calculation:

Available From:

Volts: 120

Hertz: 60

Amps: 0.50 Maximum

Watts: 25

CFM: 75

RPM: 1800

Sound: AS1 = 42dB (1.15 Sones)

AS1P = 45dB (1.42 Sones)

ASLL = 42dB (1.15 Sones)

Multiply the Length x Width x Height of uncomfortable room (in feet) and then divide

by 75 to determine the number of minutes needed to bring the uncomfortable room

to nearly the same air temperature as adjacent room.

Example: 15 ft x 15 ft x 8 ft = 1800 Cubic. Ft ÷ 75 = 24 minutes

Uncomfortable room dimensions:

L_________ x W_________ x H_________ ÷ 75 = _______minutes

This calculation relates to air temperature and makes certain basic assumptions. It is recommended that the AireShare be operat-

ed for an extended period so that objects within the room such as walls and furnishings also equal the air temperature.

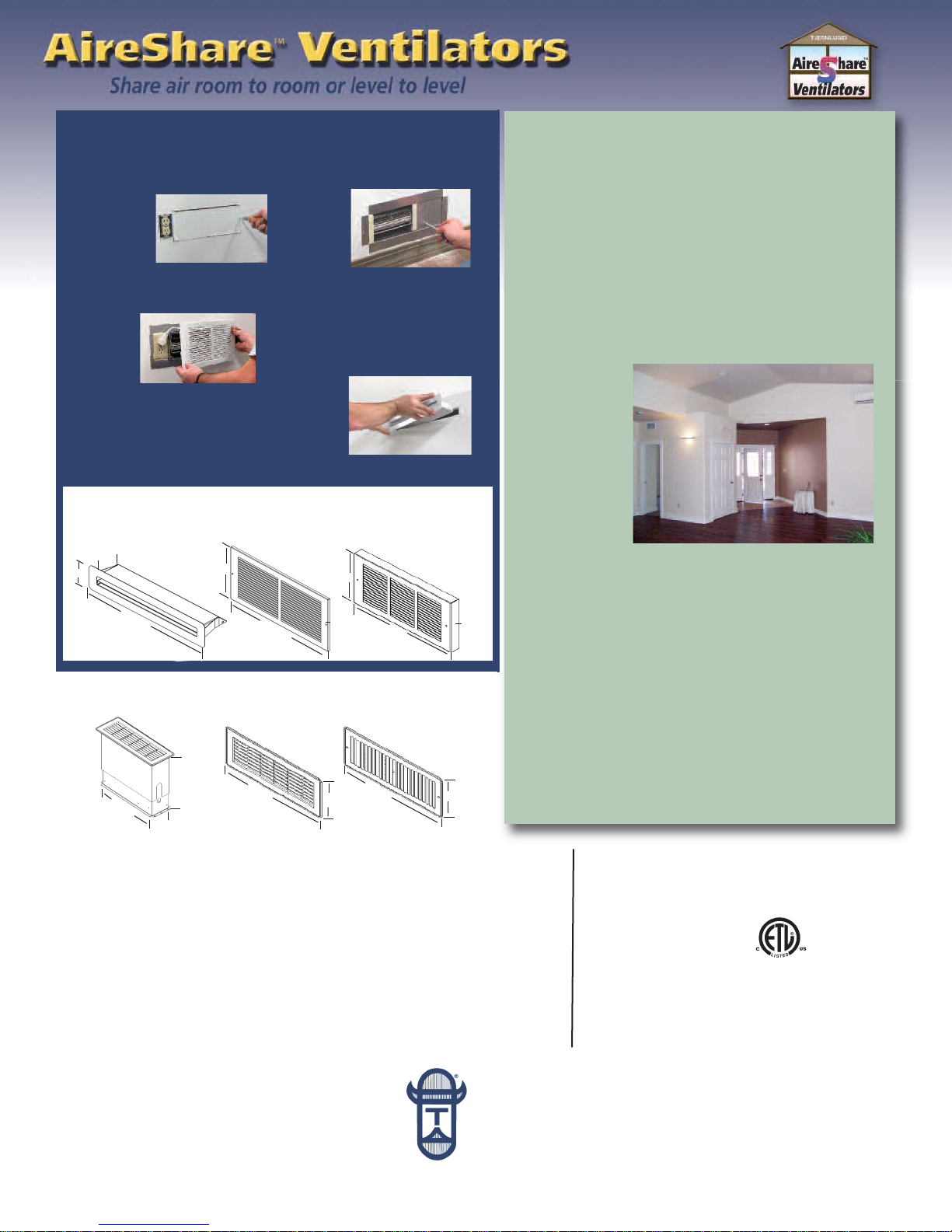

Dimensions AS1 & AS1P (Room-to-Room):

Dimensions ASLL (Level-to-Level):

Diffuser for Models

AS1 and AS1P

Grille for Model AS1 Grille for Model AS1P

3 7/8”

3”

15 1/8"

15 3/4"

7 3/4”

1/4”

73/4”

16"

11/4”

Case History

AireShareTM ventilators

enhance performance

and comfort of split

system air handlers

Harbor View Windows, Heating and Air, Inc., based in

Brookings, Oregon, has installed ductless split system heat-

ing/cooling for years and is a top producing dealer. Ductless

systems offer high-energy savings, but can also have comfort

challenges if an

air handler is not

installed in each

room. Rooms

without air han-

dlers are subject

to being too hot

or cold. On a

recent multi-fam-

ily project using

ductless systems,

Harbor View was

able to over-

come this prob-

lem by installing

an average of

two AireShareTM

room-to-room ventilators per five-room townhouse. The venti-

lators, made by Tjernlund Products, effectively distribute con-

ditioned air to rooms without air handlers.

“We thought it might be a great solution to a long term

problem…to flip a switch and be able to draw air conditioned

or heated air out of the main rooms into the small rooms and

it’s working perfectly,” said Pat and Sherry Nied, Harbor

View’s owners.

The Nieds believe a cost-effective way has finally been

found to make ductless systems deliver comfort in a wide

range of residential applications. “We think AireShareTM, in uni-

son with the ductless system, fills a gap that has persisted.”

Photo shows AireShare

blower grille

above door on left and air handler for duct-

less split system at upper right corner.

2a. Concealed Power Cord

Model AS1P includes a

con-

cealed

power

cord

and

must

be installed adjacent to an

electrical outlet. It features

an on-off switch on the bot-

tom of its grille and accom-

modates electrical outlets on

the right or left side.

Easy Install AS1 & AS1P (Level-to-Level):

1. Use a hand sheetrock saw

and provided templates to cut

the open-

ings for

the blow-

er and

diffuser.

2. Hardwired Model AS1

requires a 120 VAC electrical

connec-

tion

from

within

the wall

cavity.

Add a 120 VAC wall switch or

thermostat to turn it on or off.
