Any non-condensing gas or oil fired heater that

can be vented by natural draft can be Side Wall

Vented with a Tjernlund Power Venter. Power

Venters are available in a variety of capacities and

also packaged for specific applications. All models

feature built-in interlock controls and most have

post-purge operation. Selection is based on type

of fuel, burner type and the BTU/hr. input rating

of the heater(s).

Safety proven Side Wall Venting Systems save time

and money and are an excellent choice for electric-

to-gas conversions, renovations, new construction

and for replacing deteriorated chimneys. Side Wall

Venting saves costly materials and labor on two,

three or more story runs. Install heaters where it

was previously impossible...in most cases up to 100

equivalent feet from an outside wall.

Venting for heating appliances

doesn’t have to go through

the roof. Neither does the cost.

www.tjernlund.com •

800.255.4208

Tjernlund Side Wall

Venting Products

Accessories

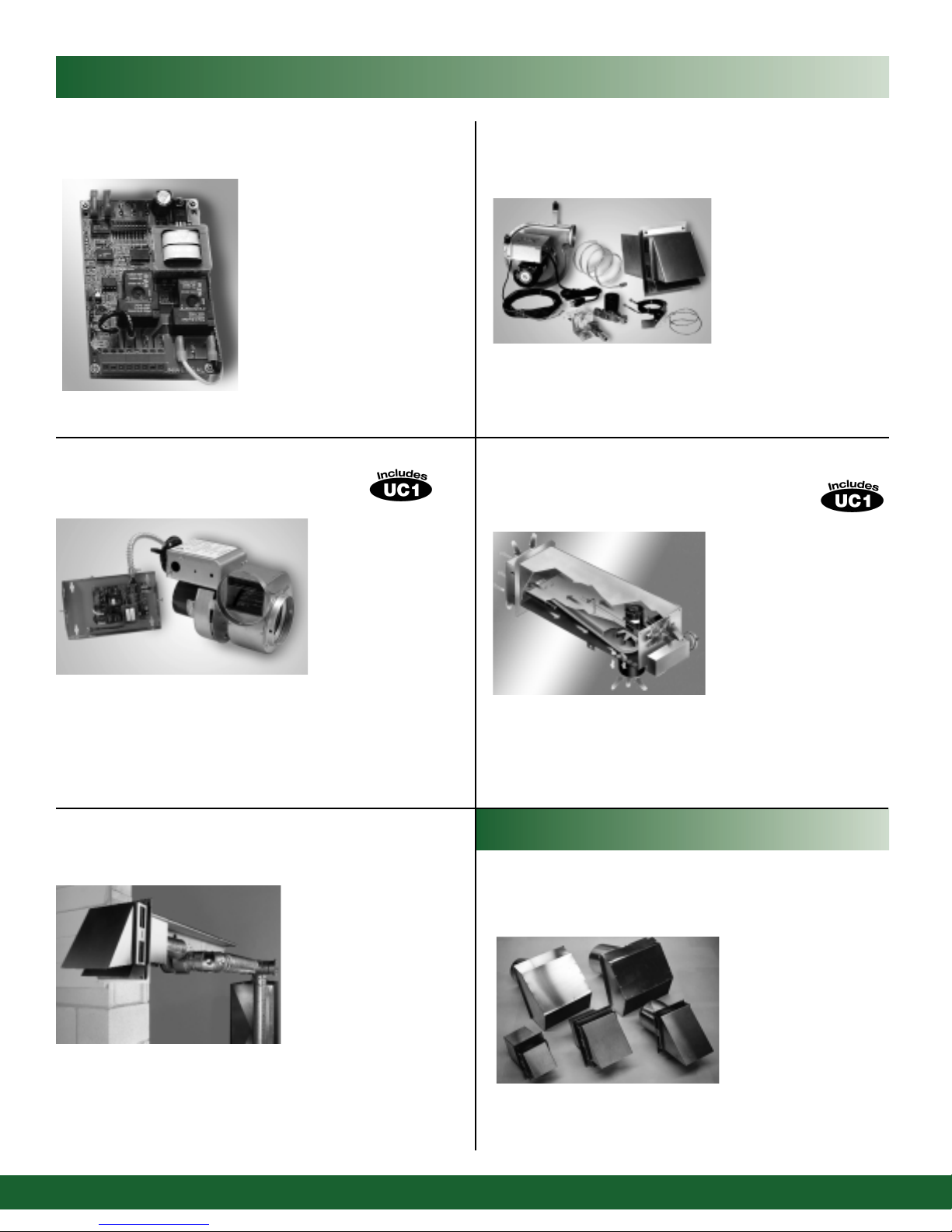

A full range of

models from small

residential to large

commercial capaci-

ties. All models

feature the UC1

interlock control,

factory set Fan

Proving Switch and

adjustable damper

to fine tune vent

system draft. Can be used on natural gas, LP and oil-fired

furnaces, boilers and water heaters. We recommend using

the SideShot vent systems for oil fired applications and do

not recommend using the models HS3, 4, 5 for oil due to the

potential volume of soot if the burner goes out of adjust-

ment. Select the appropriately sized VH1-Series Vent Hood

to complete your side wall vent system.

The most technologically

advanced side wall vent

systems available. Now

includes the UC1 Universal

Control. Designed for oil

fired heating equipment

or a deluxe gas vent sys-

tem. Patented terminus

prevents staining by pro-

pelling flue gases away

from the building exterior.

Features: zero clearance installation, pre-wired opera-

tion and safety controls and stainless steel construction

in all critical components. The second generation SS2

features a self-cleaning blower wheel, ultra fine draft

adjustment and slide out venter assembly.

For side wall venting

millivolt gas water

heaters. The ideal solu-

tion for electric-to-gas

conversions, renovations,

new construction or for

replacing old chimneys.

Package includes post-

purge relay/timer, 24V

solenoid valve, gas

pressure switch, spill switch and vent hood. Factory

pre-wired electrical box and 24V control cables

eliminate need for an electrician.

Specially designed to

terminate Tjernlund

Side Wall Vent Systems.

They are also an

approved method of

terminating many hori-

zontally vented appli-

ances. Vent hoods fea-

ture heavy duty, corro-

sive-resistant aluminum

construction. Models VH1-3, 4 and 6 also have built in

clearances from combustibles. Building exteriors are kept

clean while the structure’s exterior aesthetics remain undis-

turbed. All mounting hardware is included.

Solid state control interlocks

with any burner control circuit.

Features include: adjustable pre

and post purge, LED status/

diagnostic indicators, prover

switch delay to avoid burner

start up and wind induced

short cycling. Interlocks with

any 24-120 VAC burner control

circuit and also includes “dry”

contact actuation option.

Selectable voltage eliminates

false activation by burner con-

trol check circuits.

Power Venters

Models HSJ, HS1, HS2, HS3, HS4, HS5

Universal Control

Model UC1

SideShot®Oil and Deluxe Gas

Side Wall Vent Systems

Models SS1, SS1C, SS2

Gas Power Venters and Vent Packages

Models GPAK-JT*, GPAK-1T*, GPAK-1TR*

Primarily used for 80+

gas furnaces and boilers.

Complete kit includes

the Power Venter, VH1-4

4" Vent Hood and DC4

4" Draft Control

packaged together.

Millivolt Gas Water Heater

Venting Packages

Models VP-2, VP-3

Side Wall Power Vent Systems

Vent Hoods

Models VH1-3, VH1-4, VH1-6, VH1-8, VH1-10

1 www.tjernlund.com •

800.255.4208

For additional information request brochure #8500004

For additional information request brochure #8500000

Side Wall Venting

Termination

Requirements

Quality engineered and

manufactured to maintain a

consistent draft on a wide

range of oil and gas fired

heating equipment. May be

used with chimney vented or

power vented heating equip-

ment. For fan assisted gas, oil

or solid fuel applications with

vent diameters from 4"–10",

choose the DC4 thru DC10.

For LP and natural gas applica-

tions with vent diameters from 4"–10",

choose the DC4G thru DC10G.

Used with any UC1 con-

trolled venter to inter-

lock additional 24/115

VAC heaters. Powered

by and communicates

with the UC1 through a

factory wired whip. For

one additional 24/115

VAC heater add the

MAC1E. To interlock up

to four more additional 24/115 VAC heaters, add the

MAC4E. MAC4E’s can be daisy chained together for

greater than 5 heaters. Important: Total combined

BTU/hr. input of all heaters and total equivalent pipe

lengths must be within venter’s capacity.

For use with UC1

Universal Control,

MAC1E or MAC4E

auxiliary controls.

The WHKE gas pressure

switch actuates the ven-

ter through the A - B

Dry contacts. The

Linear Limit switch

disables the heater in

the event of a venting

malfunction. Includes JA1 thermocouple junction

adapter. To interlock millivolt water heater(s) only

with a UC1 controlled venter add a WHKE for each

millivolt heater. To interlock a millivolt water

heater and one 24/115 VAC furnace or boiler with a

UC1 controlled venter, add a WHKE and a MAC1E.

Millivolt Interlock Kit

Model WHKE

Barometric Draft Controls

Models DC4, DC5, DC6, DC7, DC8, DC9, DC10

DC4G, DC6G, DC7G, DC8G, DC9G, DC10G

Multiple Appliance Controls

Models MAC1E, MAC4E

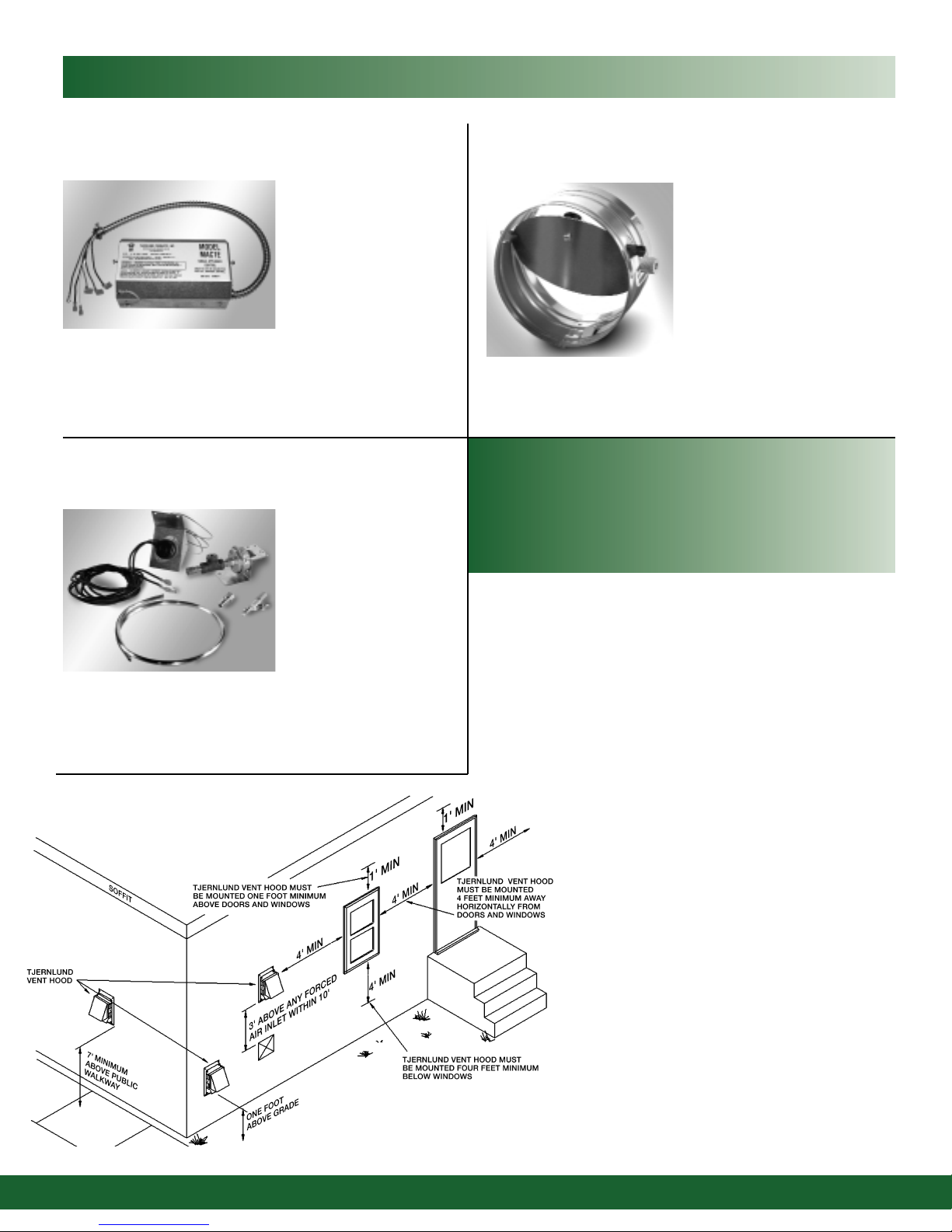

Vent Hood Termination Code Requirements for

U.S. Installations

If possible, locate the Vent Hood on a wall that does not

face the direction of prevailing winds. This will diminish the

possibility of appliance interruption during periods of extreme

winds and prevent oil odors caused by backdrafts.

If possible, locate the Vent Hood no closer than 3

feet from an inside corner of an L-shaped structure.

Terminate the vent system so that proper

minimum clearances are maintained as cited

in the latest edition of the National Fuel Gas Code

(NFPA #54) and the latest edition of NFPA #211,

or as follows:

•Not less than 7 feet above grade when located

adjacent to public walkways...

•At least 3 feet above any forced air inlet located

within 10 feet...

•At least 4 feet below, 4 feet horizontally from or

1 foot above any door, window or gravity air inlet

into any building...

•At least 12 inches above grade...

•So that the flue gases are not directed so as to

jeopardize people, overheat combustible

structures or enter buildings, and...

•Not less than 2 feet from an adjacent building.

NOTE: Termination of a Side Wall Vent System with a device

other than the Tjernlund VH1 Series Hood could affect

system performance and result in a possible safety hazard.

Consult Vent Hood Instructions for complete installation

details.

Accessories

www.tjernlund.com •

800.255.4208 2

For additional information request brochure #8500490

Model

Numbers

HSJ

HS1

HS2

Vent

Pipe

Dia.

BTU/hr

Input

50,000

75,000

100,000

125,000

150,000

200,000

250,000

300,000

150,000

200,000

250,000

300,000

350,000

400,000

450,000

500,000

550,000

600,000

350,000

400,000

450,000

500,000

550,000

600,000

100'

35'

100'

87'

40'

100'

30'

100'

94'

15'

100'

67'

100'

23'

60'

57'

12'

–

100'

92'

–

100'

72'

–

100'

–

100'

–

35'

27'

–

100'

–

100'

67'

–

100'

–

110

158

286

.50"

115

235

.75"

215

1.0"

196

1.4"

–

158

Maximum Pipe

Length (Ft.)

At Stack Temp.

CFM at 700 F

HS Series (Residential/Light Commercial)

Model

Numbers

HS3

HS4

HS5

Vent

Pipe

Dia.

10"

12"

10"

12"

14"

450,000

500,000

600,000

700,000

450,000

500,000

600,000

700,000

800,000

900,000

1,000,000

1,100,000

1,200,000

700,000

800,000

900,000

1,000,000

1,100,000

1,200,000

700,000

800,000

900,000

1,000,000

1,100,000

1,200,000

1,400,000

1,600,000

1,825,000

1,200,000

1,400,000

1,600,000

1,825,000

1,200,000

1,400,000

1,600,000

1,825,000

100'

21'

100'

70'

32'

100'

97'

14'

100'

34'

100'

29'

100'

72'

100'

500

925

1425

.50"

425

800

1250

.75"

380

730

1200

1.0"

325

620

1130

1.4"

110

425

1000

CFM at 700F

HS3, 4, 5 Series (Commercial)

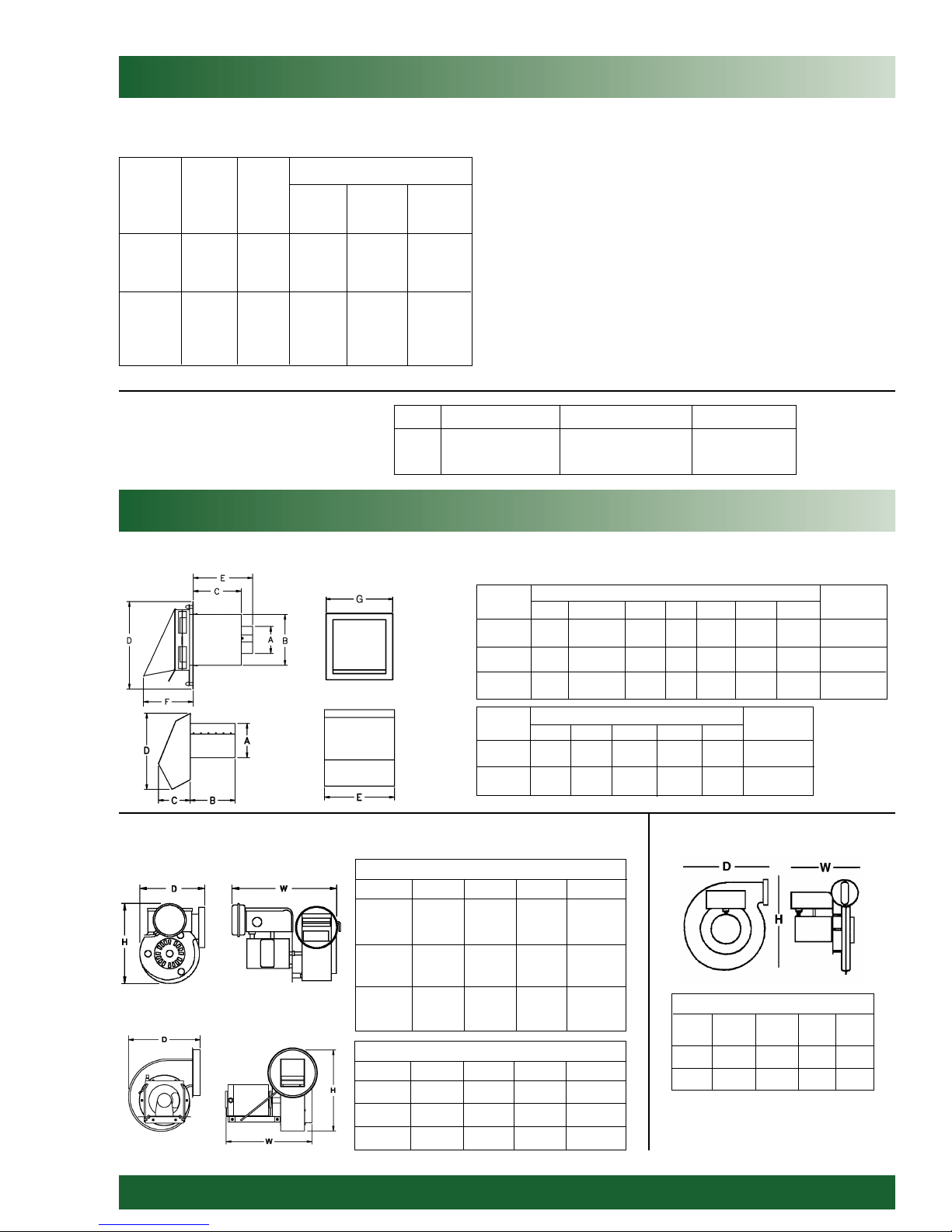

Selecting the Proper SideShot®

Vent System

Verify that the total BTU/hr. input of the heating

appliance(s) falls within the proper category listed.

All BTU/hr. capacity ranges are based on a maximum

of 50 equivalent feet. To determine equivalent feet,

add the total length of straight vent pipe plus 10

feet for each 90 degree elbow and 5 feet for each

45 degree elbow. Vent runs of over 15 linear feet

should use an approved insulated vent connector to

prevent problems related to condensation.

Model

SS2

Flame Retention

Oil Burner

70,000

168,000*

Max. Equivalent

Feet

NOTE: BTU inputs less than 105,000 may require use of

insulated vent pipe for linear runs exceeding 10 feet.

Fan Assisted

Natural & LP Gas Atmospheric

Natural & LP Gas

40,000

150,000 BTU/hr 40,000

125,000 BTU/hr

*Maximum capacity based on 13% CO2and Max. 5000F inlet temperature. Consult factory for details.

MODEL

SS1

Natural &

LP Gas

50,000 - 160,000

BTU/hr.

Max. Equivalent

Feet

Flame Retention

Oil Burner Conventional

Oil Burner

50,000 - 220,000

BTU/hr. 50,000 - 180,000

BTU/hr

MODEL

SS1C

Max. Equivalent

Feet

Flame Retention

Oil Burner Conventional

Oil Burner

50,000 - 315,000

BTU/hr. 50,000 - 223,000

BTU/hr

Model Selection Tables

100% Dilution

3000F 25%Dilution

4000F

Maximum Pipe

Length (Ft.)

at Stack Temp.

www.tjernlund.com •

800.255.4208 3

1.55 gal/hr. max 1.25 gal/hr. max

2.25 gal/hr. max. 1.59 gal/hr. max. 15.2 meters

1.2 gal/hr. max.

Gas Fired

Selecting the Proper Power Venter

NOTE: The vent pipe diameter in a Power Vent system

is usually smaller than that of a chimney vented

appliance. Select the Power Venter based on the

BTU/hr input of the appliance(s) rather than the

diameter of the appliance vent outlet. Use a tapered

reducing collar or transition fitting to reduce vent

pipe to diameter listed in selection table. To deter-

mine equivalent feet, add the total length of straight

vent pipe plus 10 feet for each 90 degree elbow and

5 feet for each 45 degree elbow.

GAS FIRED

Atmospheric

with Draft

Hood or Draft

Diverter

GAS FIRED

Power

Burner with

Barometric

Oil

Fired

5000F

BTU/hr

Input

3000 F 4000F

NOTE: For capacities over 1,825,000 BTU/hr., consult factory.

Model

VH1–3

VH1–4

VH1–6

A Dia.

6 1/4" Sq.

7 1/2" Sq.

8 1/2" Dia.

8 1/2"

7 1/8"

7 7/8"

10"

13"

12"

10"

8 5/8"

9 1/2"

5 1/4"

7 3/8"

10 1/2"

7 3/4"

11"

10"

Rough-In

Dimensions

6 3/4" Sq.

8" Sq.

9" Dia.

Dimensions

Model

VH1–8

VH1–10

A Dia.

10"

16"

7 3/4"

18 3/8"

20"

Rough-In

Dimensions

8 1/2" Dia.

10 1/2" Dia.

Dimensions

NOTES:

1. If the appliance flue outlet is greater than 4'', install a tapered reducer after the draft

hood, draft diverter or barometric draft control, reducing vent pipe diameter to 4''. All

vent pipe from the appliance to the Power Venter may be 4''.

2.Table is based on straight vent pipe.90 degree elbows are equivalent to 6 feet of

straight vent pipe.

3.Determine maximum pipe length from type of equipment being vented and GPAK Model.

Column A pipe runs over 30 linear feet should use Type “B” vent. Column

B & C pipe runs over 15 linear feet should use Type “B” vent.

4. Column C allows for up to a 40,000 BTU/hr. input atmospheric water heater

common vented with a fan assisted appliance from column B.

5. All reducers and vent pipe are to be supplied by the installer and are available from your

local heating wholesaler.

6. GPAK* Series include a DC-4 Draft Control andVH1-4Vent Hood and are authorized for

use on furnaces eligible for the HTPV CorrectiveAction Program. Installations for the

HTPV Program must useType“B”vent.

7. Also available, GPAK-1TR* for use with Rheem, Ruud,Weatherking and Heat Controller brands.

100'

45'

100'

87'

40'

60'

N/A

60'

N/A

60'

N/A

Maximum Total Vent Pipe Length

Models

GPAK-JT*

GPAK-1T*

Vent Pipe

Diameter

4''

45,000

75,000

100,000

120,000

100,000

120,000

150,000

200,000

250,000

*40,000 ATM

Atmospheric Fan Assisted +Column B

A B C

GPAK* Series Selection Table

Unit Dimensions (In.)

Model

VP-2

VP-3

(H)

Height

10 1/2"

7 7/8"

(W)

Width

7 1/2"

10 1/4"

(D)

Depth

10"

Inlet/

Outlet

VP Series Dimensions

Unit Dimensions (In.)

Model

HSJ

GPAK–JT*

HS1

GPAK–1T*

HS2

(H) Height

7 7/8"

9 1/4"

(W)Width

10 1/4"

11"

11 1/2"

(D) Depth

8 1/2"

Inlet/Outlet

Unit Dimensions (In.)

Model

HS3

HS4

HS5

(H) Height

12 1/2"

14 3/4"

18"

(W)Width

13 1/4"

15 1/4"

16 1/2"

(D) Depth

11"

13"

16 1/2"

Inlet/Outlet

10"

HS/GPAK Series Dimensions

Model Selection Tables

Model Dimensions

4 www.tjernlund.com •

800.255.4208

VP-2 includes VH1-3 Vent Hood.

VP-3 includes VH1-4 Vent Hood.

VH1 Series Vent Hood Dimensions

VP Series Millivolt Water

Heater Vent Packages Models

VP-2

VP-3

Burner Capacity

Up to 60,000 BTU/hr

60,000 to 120,000 BTU/hr

Maximum Venting Length

75 equivalent feet

BTU/hr

Input

UC1 Universal Control is 8" x 5" x 2 3/4" and includes a 2' wire whip.

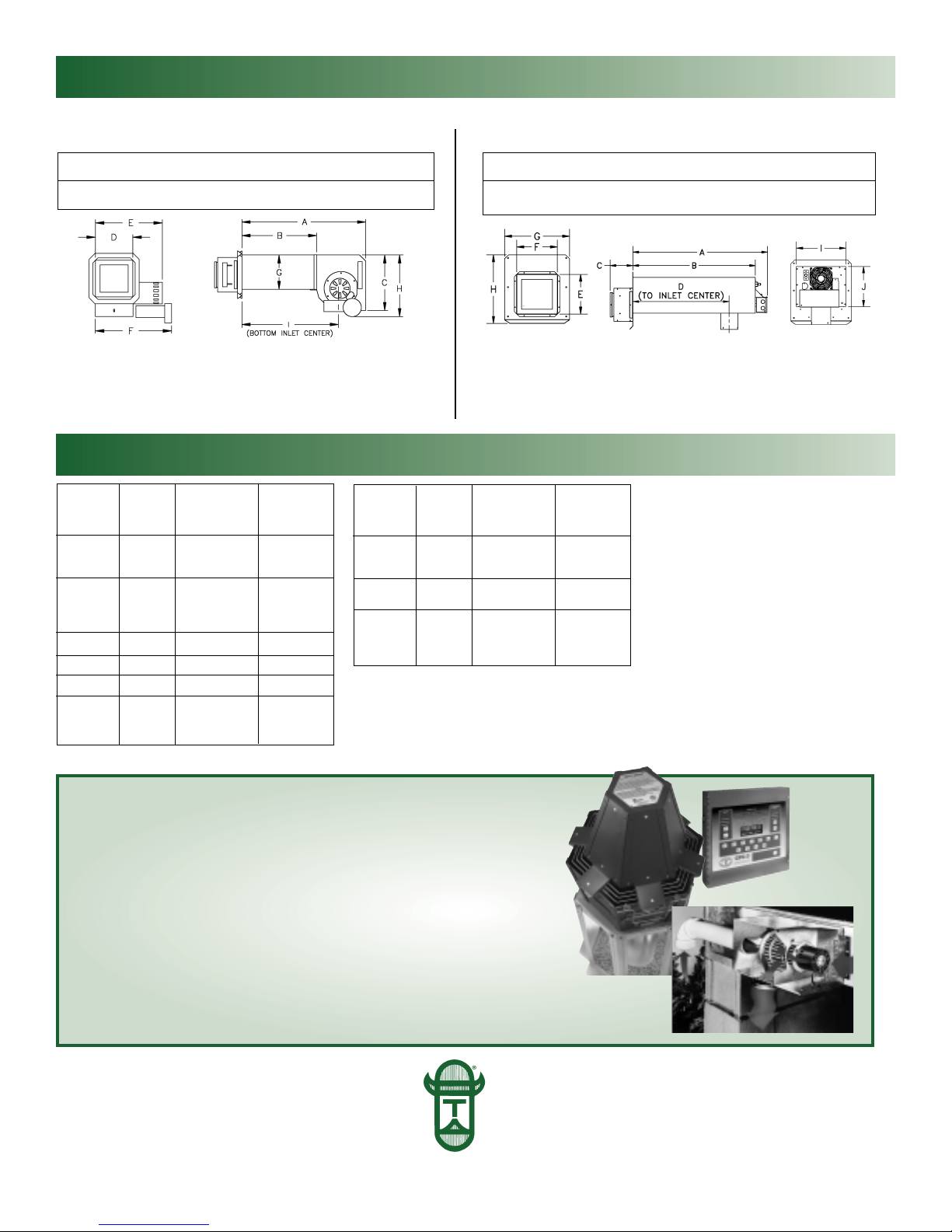

SIDE VIEW FRONT VIEW

Vent Pipe Diameter

NOTE: The SS1 features a bottom or rear vent connection. The

inlet collar accepts any brand or type of 6" diameter vent pipe.

The SS1 requires an 8"H x 8 3/8"W opening through the wall.

A B C DE

27-3/8'' 16-1/2'' 12-1/4'' 8'' 13-3/4'' 15-1/8'' 7-3/4'' 14-3/4'' 23-1/4''

F G H I

FRONT VIEW SIDE VIEW

A B C DE

32-1/2'' 28-1/2'' 5-1/2'' 22-3/8'' 7-3/4'' 8'' 12-1/2'' 13-1/4'' 10-1/2'' 8-1/2

F G H I

NOTE: SS2 has a 4" vent connector. Install full size vent pipe and

reduce at SS2 connector. The SS2 requires an 8 1/2"H x 10 1/2"W

opening through the wall.

FRONT VIEW SIDE VIEW BACK VIEW

SideShot®Model SS2 Dimensions

TJERNLUND PRODUCTS, INC.

1601 Ninth Street White Bear Lake, MN 55110-6794

Phone: 651.426.2993 800.255.4208 Fax: 651.426.9547

Visit our web site: www.tjernlund.com

Model Dimensions

Voltage

115/1/60

208/1/60

230/1/60

1.76

1.26

1.76

1.26

2.0

3.2

6.3

13.1

6.2

6.3

Model

HSJ

GPAK-JT*

HS1

GPAK-1T*

GPAK-1TR*

HS2

HS3

HS4

HS5

Model Electrical Specifications

SideShot®Models SS1 & SS1C Dimensions

Tjernlund Products also offers:

Auto-Draft variable & fixed speed inducers. For roof top or side

wall venting. Reduce vent diameters by up to 50% and overcome

convoluted vent layouts. Fan speed is automatically regulated

based on a user set manifold/vent pressure, resulting in perfect

draft and true energy savings. Virtually unlimited capacities.

Combustion Air In-Forcers provide dedicated combustion air

for safer, more efficient equipment operation. Eliminates burner

control lockouts & oil odors associated with backdrafting. Ideal

for "confined space" and electric to oil or gas conversions.

Residential and commercial fixed & variable speed capacities up

to 6000 CFM available.

Auto-Draft®

Inducer

Combustion Air

In-Forcer™

15*

15****

Voltage

115/1/60

5VDC

2.8

2.3

1.35

1.76

0.50

0.05***

0.15***

N/A

Model

SS1

SS1C

SS2

VP-2

VP-3

UC1

MAC1E

MAC4E

WHKE

15*

N/A**

15*

N/A

Power

Requirements

in Amps

Safety Circuit

Max. Load

in Amps

Power

Requirements

in Amps

Safety Circuit

Max. Load

in Amps

* UC1, MAC1E,MAC4E appliance interlock relay contacts rated for 15 amps or 1 HP.

** Self-contained safety circuit does not interlock directly with gas valve.

*** Power for MAC1E and MAC4E comes from UC1.Add amps listed to that of UC1.

**** UC1 must be wired with 115VAC. Add UC1 amp draw of .5 to total amps listed.

If wiring the HS5 motor for 208-230VAC in conjunction with the UC1 Universal

Control, a 115VAC coil, DPST motor contactor rated for 1 HP is required.

All products are Listed to various

National and International

Codes.

Consult the factory or visit our

web site at: www.tjernlund.com

under the instructions download

button to view instruction manu-

als. Listings are on the cover of

each manual.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali TJERNLUND Fan

TJERNLUND

TJERNLUND HSJ Manuale utente

TJERNLUND

TJERNLUND 950-2064 L-185 SAFETY INTERLOCK KIT 8504020 REV 3... Manuale utente

TJERNLUND

TJERNLUND HS-3 Manuale utente

TJERNLUND

TJERNLUND SS1 SIDESHOT WITH UC1 UNIVERSAL CONTROL (VERSION X.02) 8504102 REV... Manuale utente

TJERNLUND

TJERNLUND EF-6AUTO Manuale utente

TJERNLUND

TJERNLUND Cool Breeze CB14 Manuale utente

TJERNLUND

TJERNLUND DUCT BOOSTER IN-LINE DUCT FANS 8500380 REV. A... Manuale utente

TJERNLUND

TJERNLUND DRAFT INDUCER DJ-3 Manuale utente

TJERNLUND

TJERNLUND DB-2 DUCT BOOSTER 8504030 REV B 0900 Manuale utente

TJERNLUND

TJERNLUND DC BAROMETRIC DRAFT CONTROL LIT 8500490 REV B... Manuale utente

TJERNLUND

TJERNLUND SS1C SIDESHOT WITH UC1 UNIVERSAL CONTROL (VERSION X.06) 8504103 REV D... Manuale utente

TJERNLUND

TJERNLUND AireShare AS1 Manuale utente

TJERNLUND

TJERNLUND XCHANGER X2D Manuale utente

TJERNLUND

TJERNLUND VP-2, VP-3 8500567 0702 Manuale utente

TJERNLUND

TJERNLUND SS2 SIDESHOT (DISCONTINUED VERSION-PRE UC1 UNIVERSAL CONTROL) 8504063 REV B... Manuale utente

TJERNLUND

TJERNLUND SS1 SIDESHOT (DISCONTINUED VERSION-PRE UC1 UNIVERSAL CONTROL) 8504041 REV A... Manuale utente

TJERNLUND

TJERNLUND 1 Manuale utente

TJERNLUND

TJERNLUND WHKI MILLIVOLT APPLIANCE INTERLOCK (RECOMMEND WHKE FOR USE WITH UC1) 8504055 REV 3... Manuale utente

TJERNLUND

TJERNLUND SS1R SIDESHOT WITH UC1 UNIVERSAL CONTROL (VERSION X.04) 8504117 REV... Manuale utente

TJERNLUND

TJERNLUND 1 Manuale utente

TJERNLUND

TJERNLUND HSJ Guida utente

TJERNLUND

TJERNLUND SS1R SIDESHOT (DISCONTINUED VERSION-PRE UC1 UNIVERSAL CONTROL) 8504046 REV... Manuale utente

TJERNLUND

TJERNLUND SS1C SIDESHOT WITH UC1 UNIVERSAL CONTROL (VERSION X.02) 8504103 REV... Manuale utente

TJERNLUND

TJERNLUND DB2 DUCT BOOSTER Manuale utente

Manuali Fan popolari di altre marche

ELTA FANS

ELTA FANS H03VV-F Manuale utente

Hunter

Hunter 20714 Manuale di istruzioni

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuale utente

Hunter

Hunter Caraway Manuale di istruzioni

Panasonic

Panasonic FV-15NLFS1 Manuale utente

Kompernass

Kompernass KH 1150 Manuale utente

VES

VES FALA100/12V/TR Manuale utente

Vertiv

Vertiv Liebert DCD Manuale utente

Westinghouse

Westinghouse GFP Series Manuale utente

Venmar

Venmar KUBIX HRV PLUS Series Manuale utente

Maico

Maico ECR 31 Manuale utente

Sonnenkonig

Sonnenkonig Dinky Manuale utente

S&P

S&P ECOWATT HXBR Manuale utente

Wider

Wider IMP03369BH Manuale utente

Panasonic

Panasonic F-60DHN Manuale utente

Hinkley

Hinkley HIGHLAND Manuale utente

Broan

Broan 766BN Manuale utente

Premium

Premium PFS16022 Istruzioni per il montaggio
