TMI Products VD50C Manuale utente

Issued on: 15. Jan. 2016

ψ29. 50 mm

H 4. 57 mm

Specification - 1

Specification - 2

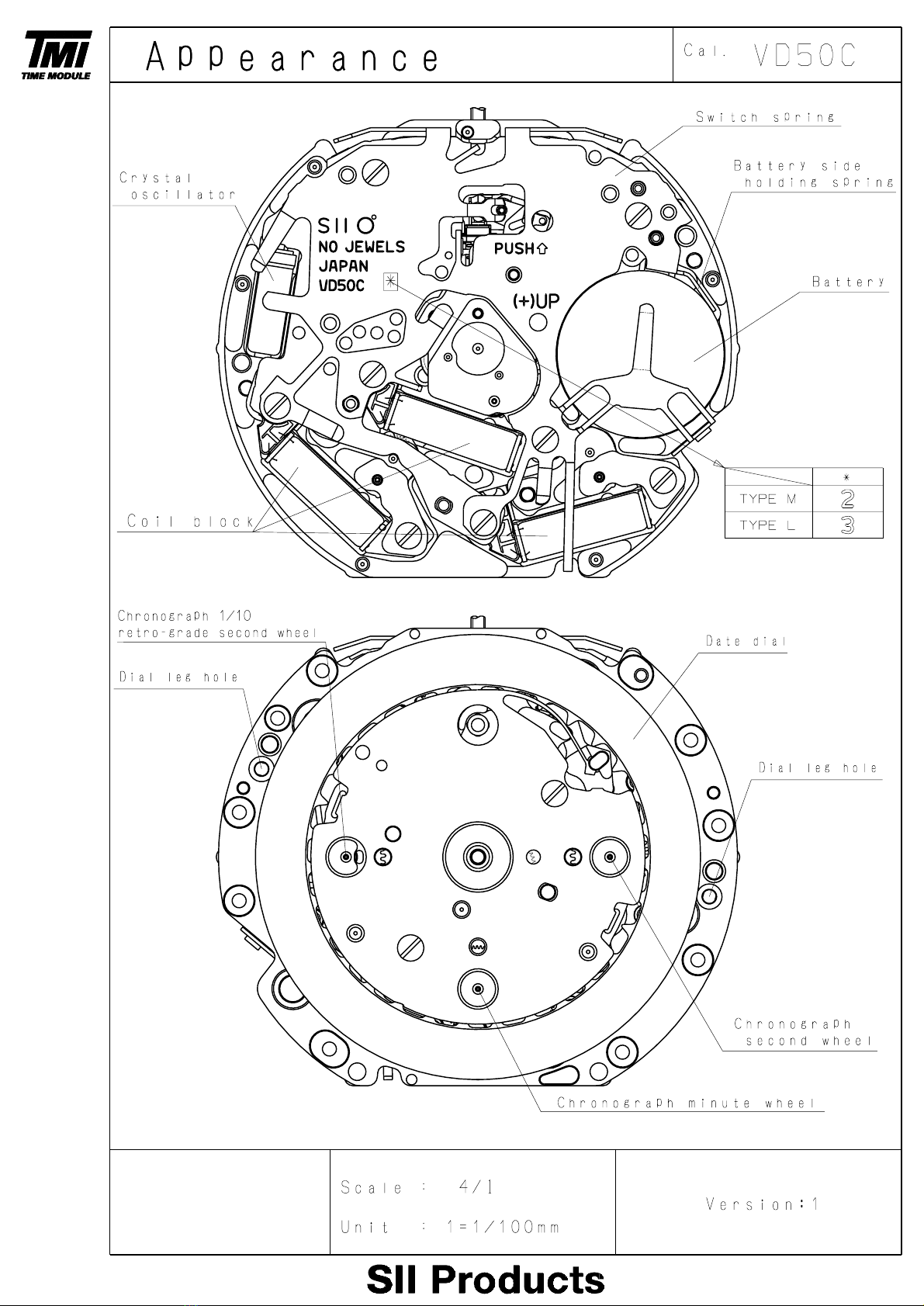

Appearance

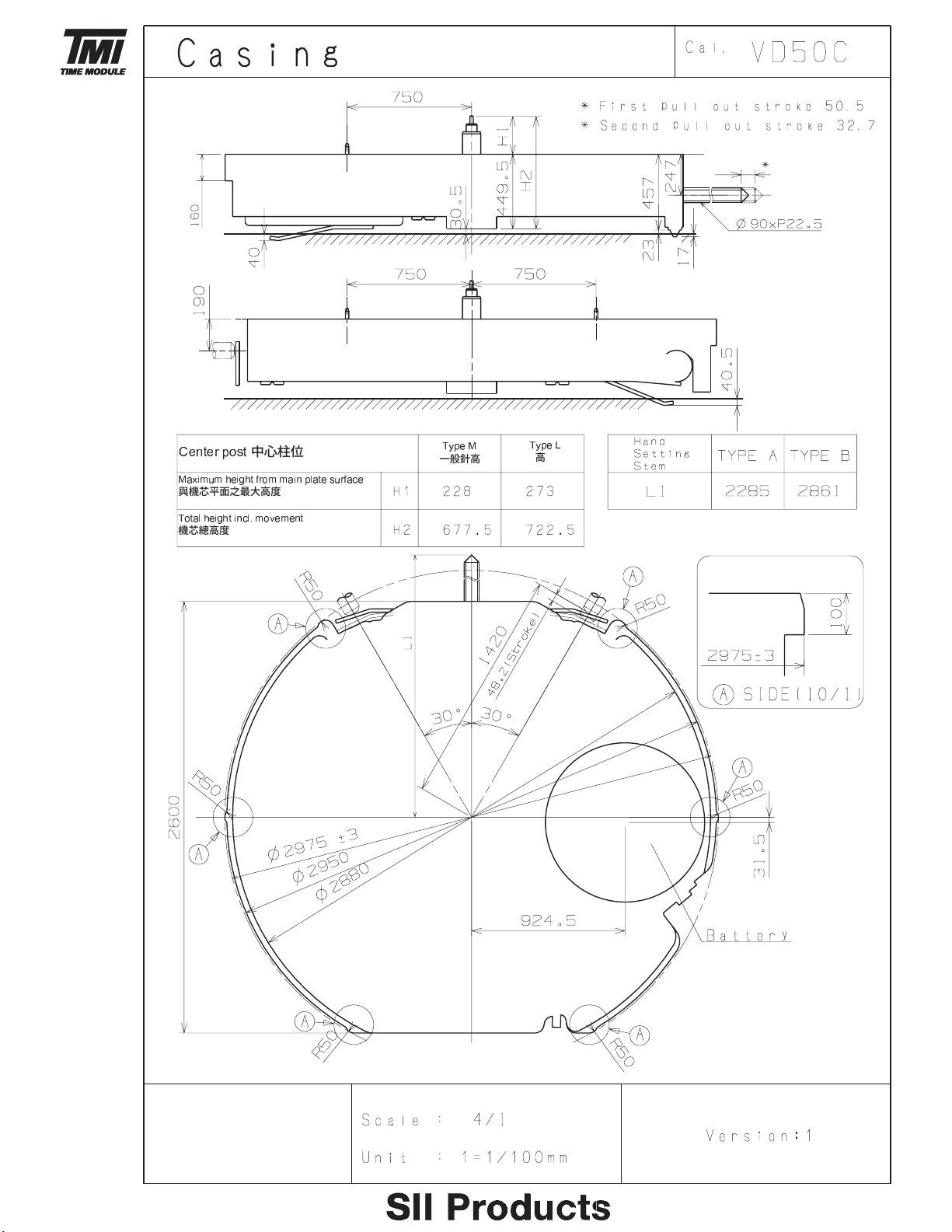

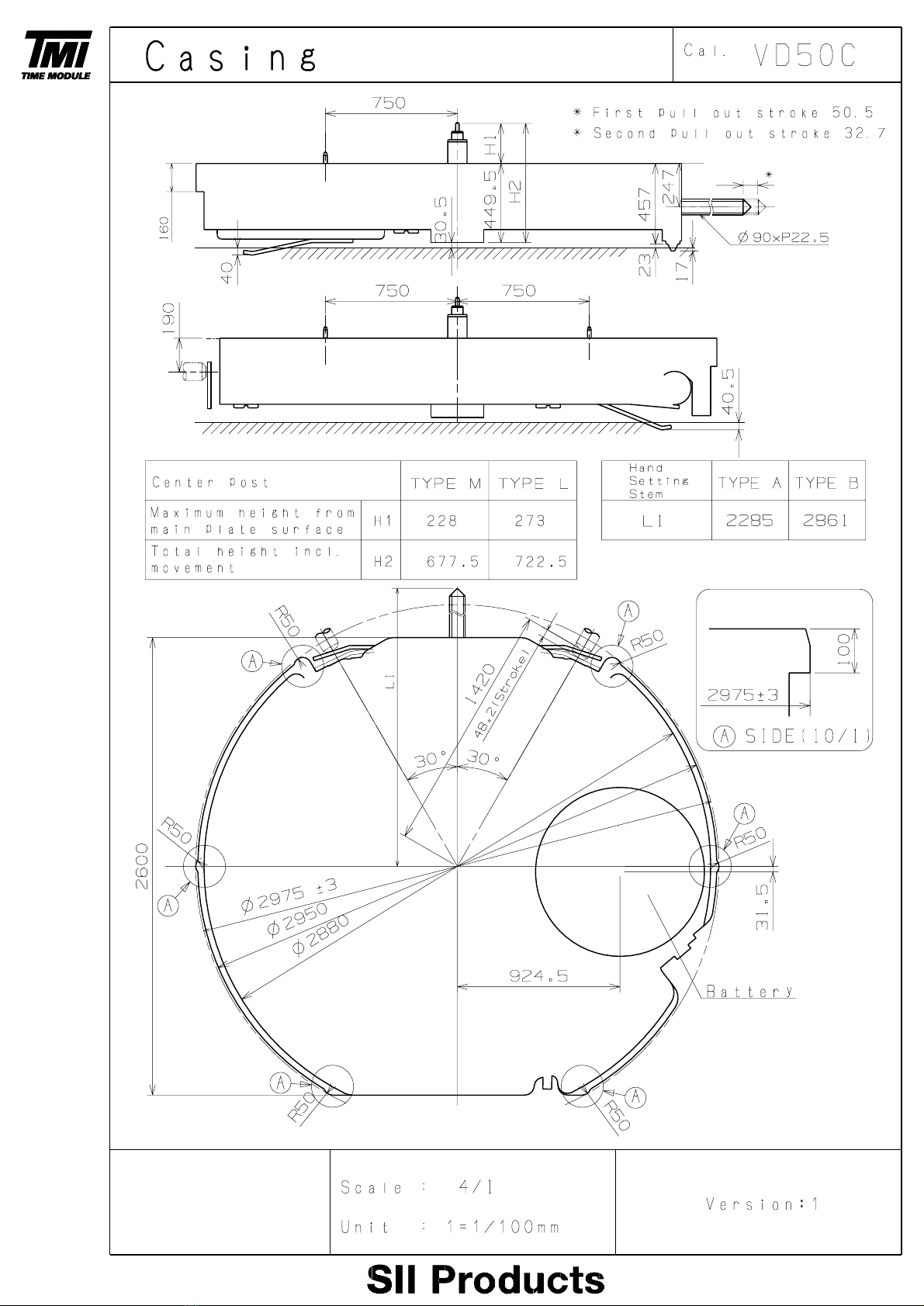

Casing

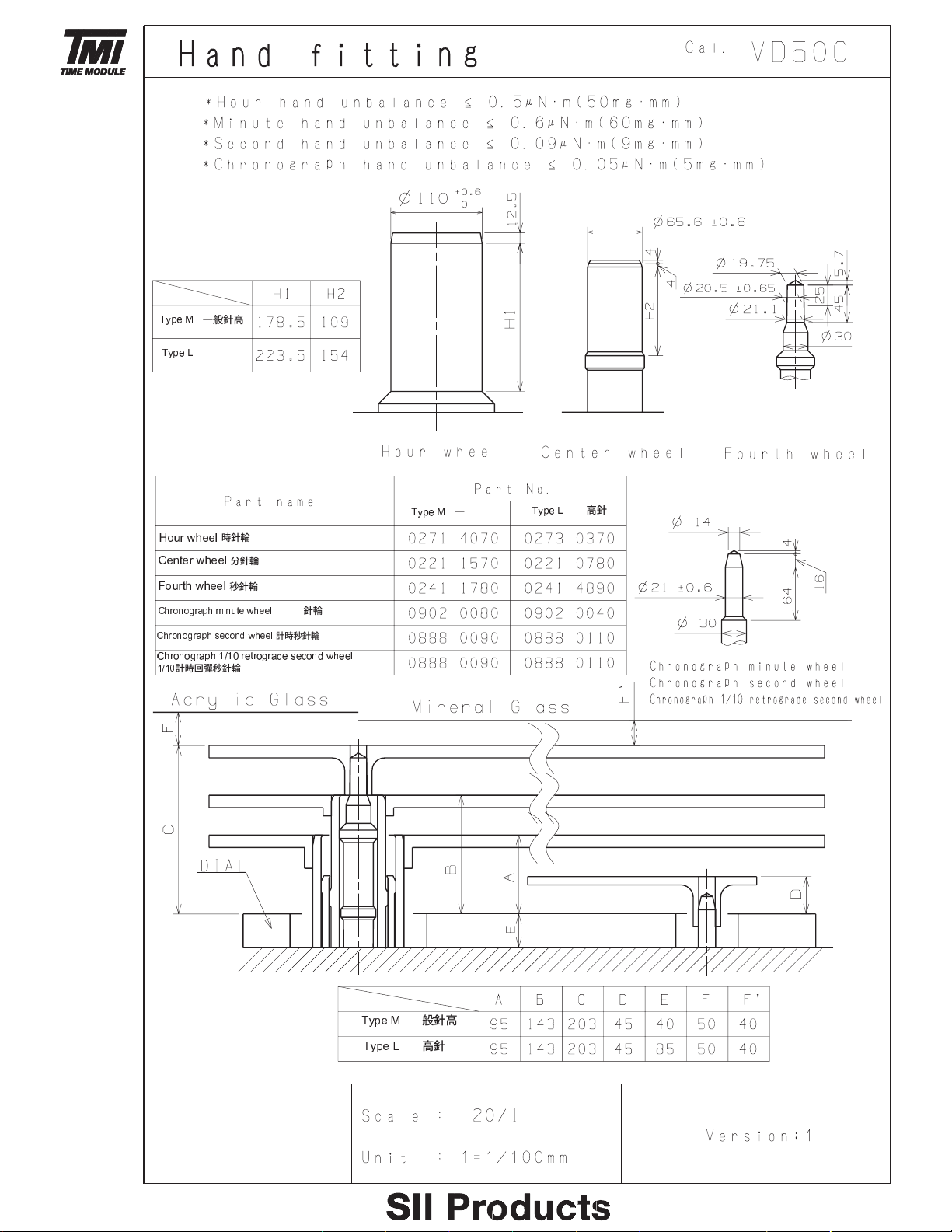

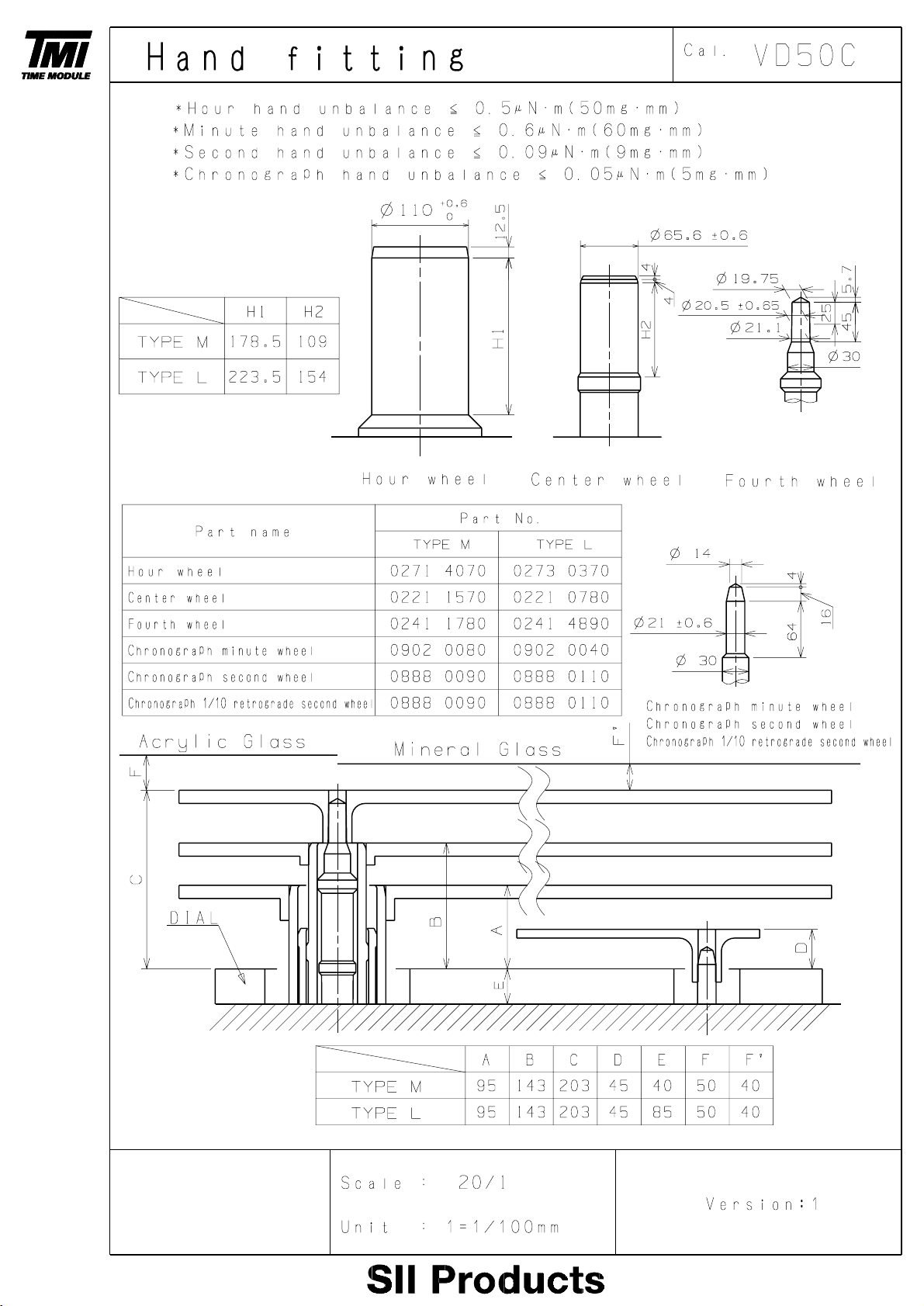

Hand Fitting

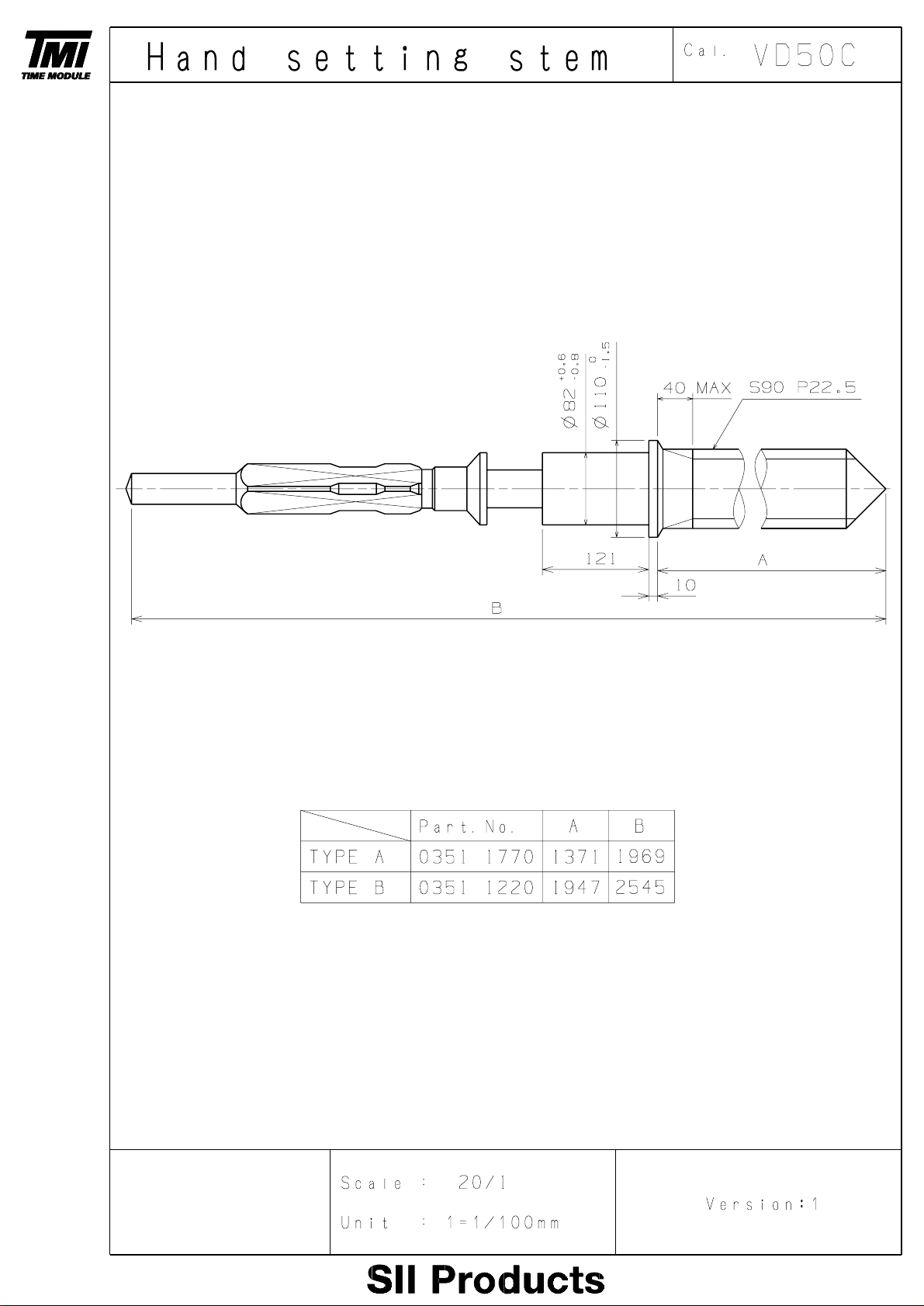

Hand Setting Stem

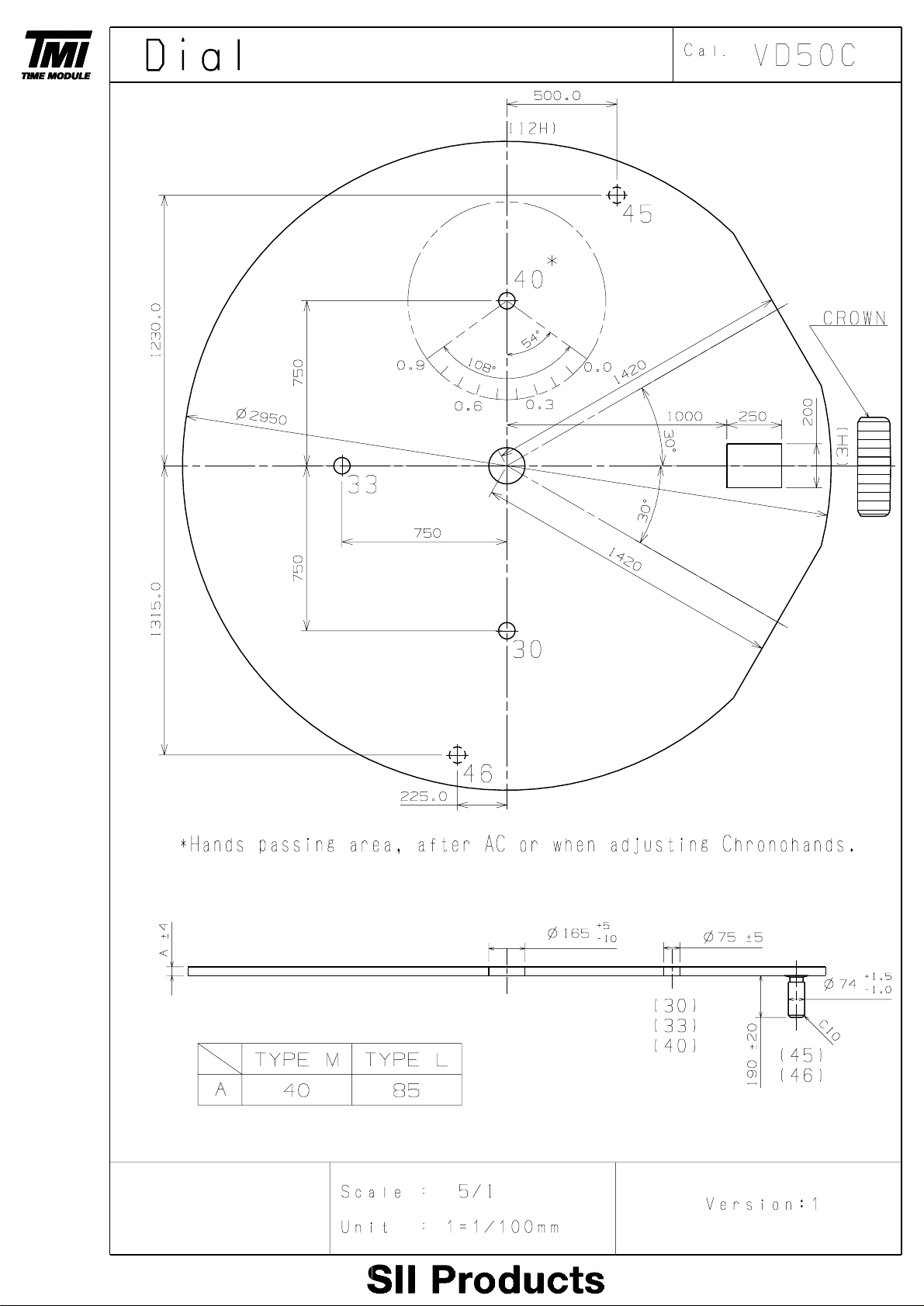

Dial

Assembly Plan - 1

Assembly Plan - 2

Hands

SII Products

Cal. VD50C

Version 1

Version No.Item

Version 1

MOVEMENT SPECIFICATION - 1

CAL.VD50C 12 3 / 4 Ligne Quartz Movement

1. MOVEMENT DIMENSIONS

Outside diameter ψ29.50mm

(12H~6H)

x 26.00mm

(3H~9H)

Casing diameter ψ28.80mm

(12H~6H)

Total height 4.57 mm

Dimensions of small hands away from center 7.50 mm

2. TIME STANDARD

Type of quartz oscillator Tuning fork

Frequency of quartz oscillator 32,768 Hz

Accuracy Monthly rate: Less than 20 seconds per month at

normal temperature range

Regulation device Nil

Regulation hands unbalance Second : Less than 0.09 µN·m ( 9mg·mm )

Minute : Less than 0.60 µN·m ( 60mg·mm )

Hour : Less than 0.50 µN·m ( 50mg·mm )

: Less than 0.05 µN·m ( 5mg·mm )

Additional function

Stopwatch

: up to 1 minute in 1/10 second

: up to 60 minutes in 1 second split time

3. BATTERY

Type Silver oxide battery

Nominal voltage 1.55 V

Size ψ9.5 x t 2.0 ( mm )

Battery life Approx. 3 years

Recommended battery SR920SW ( SEIZAIKEN )

4. DIAL FIXED METHOD

The dial is fixed by two dial leg holes of the main plate

5. JEWEL

0 jewel

6. ANTIMAGNETISM

≧1600 A / m

( direct current magnetic field )

7. SHOCK RESISTANCE

On equal level with general quartz movement

8. OPERATING TEMPERATURE RANGE

From - 5 ℃to + 50 ℃

9. TEST OF ACCURACY

Equipment to be used SEIKO Quartz Tester QT - 99

Greiner Quartz Timer - C

Witschi Q-Tester 4000

Duration of measurement 10 seconds

Microphone to be used Electromagnetic detection type

* All specifications are subject to change without notice.

SII Products

Version: 1

Three Hands with 3 Eyes / Date (Chrono. 1/10 retro-grade second, Chrono. Second, Chrono. Minute & Calendar )

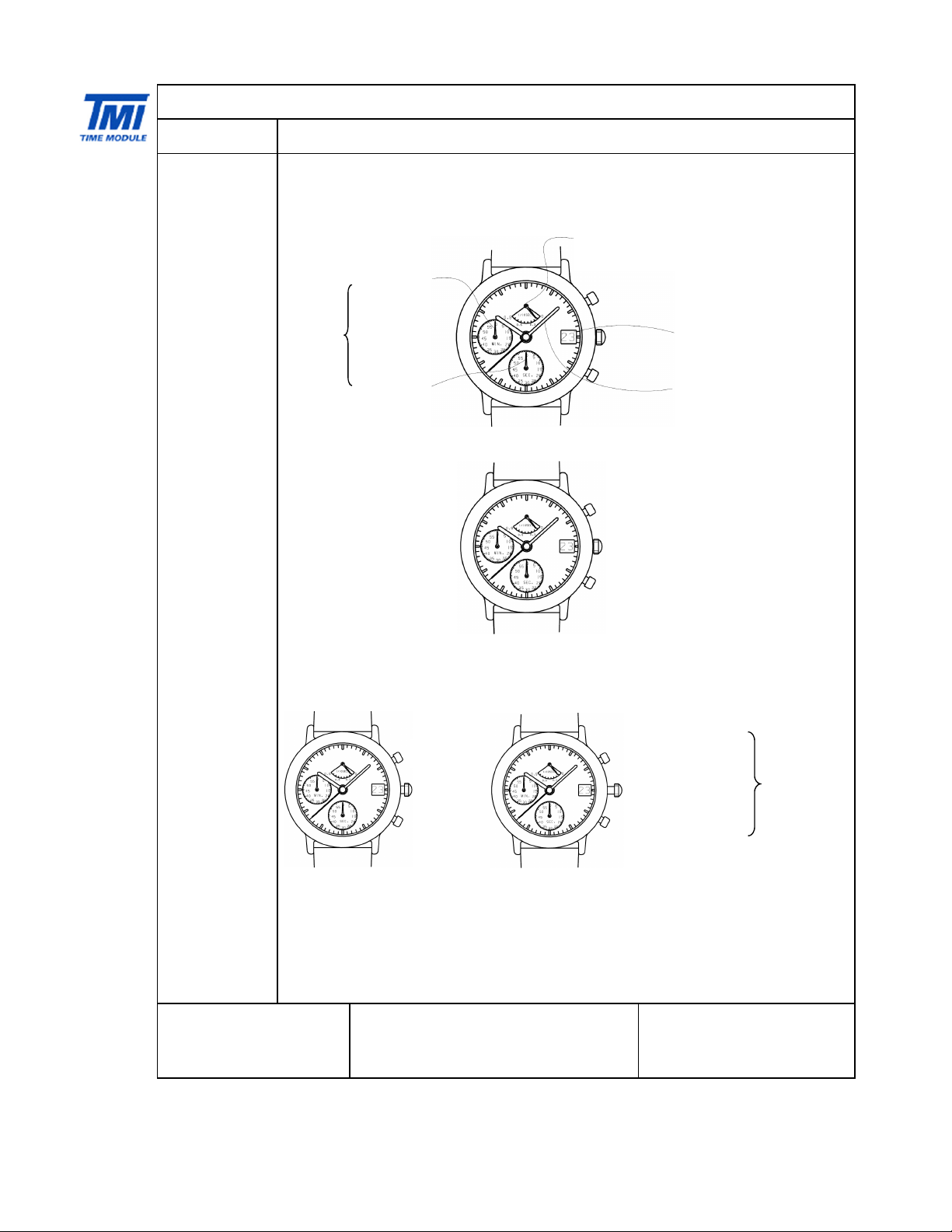

Chronograph hands

Movement Specification - 2

OPERATION 3 step motors ( 3 hands with calendar, 1 / 10 sec. chrono. maximum to 60 minutes )

1st click

2nd click

adjusting calendar

adjusting minute, hour & chrono. hands

( clockwise )

* Stopwatch 1/10 second hand moves for a first minute.

* Pull the crown to 2nd click to adjust the stopwatch hand position.

* AC functions is available if stopwatch hand position is disorderly.

* When using AC functions, stopwatch hand moves back and returned to where it was

( second hand moves 1/2 circle counterclockwise and 1/2 circle clockwise, 1/10

second hand moves 1 circle clockwise )

Version 1

SII Products

CAL. VD50C

stopwatch

second hand

stopwatch

minute hand

3 hands

Normal position

AC FUNCTIONS

( KEEP

BUTTONS

"A" AND "B"

PRESSED AT

THE SAME TIME

FOR 2

SECONDS, AND

THEN RELEASE

THE BUTTONS )

START

STOP

FREE

linkage

RESET

ADJUSTING THE

STOPWATCH SEC.& MIN.

HAND POSITION

(CLOCKWISE )

TIMING SETTING

RESET SWITCH

SECOND SETTING

ADJUSTING THE

STOPWATCH 1/10 SEC.

HAND POSITION

(MOVES 1 CIRCLE

CLOCKWISE)

date

ADJUSTING

CALENDAR

RESET

START

STOP

Chronograph 1/10 retro-grade second hand

(This chronograph hand moves for the first

minute which indicates the measurement time

in 1/10 unit)

                      

機芯總高度

                                

與機芯平面之最大高度

         

中心柱位

    

一般針高

    

高針

! " # $ % & & '

時針輪

(&)*&# $ %&&'

分針輪

+ ! " # * % $ % & & '

秒針輪

, - . / 0 / 1 . 2 3 - 4 5 0 6 7 8 9 - 8 8 :

計時分針輪

, - . / 0 / 1 . 2 3 - ; < ; = . 8 7 . / 1 . 2 > 8 ? 8 @ / 0 > 9 - 8 8 :

A B A C

計時秒針輪

D E F G H

一般針高

D E F G I

高針

J K L & M

一般針高

J K L & N

高針

, - . / 0 / 1 . 2 3 - ? 8 @ / 0 > 9 - 8 8 :

計時秒針輪

D E F G H

一般針高

D E F G I

高針

                                   

   

計時回彈秒針輪
