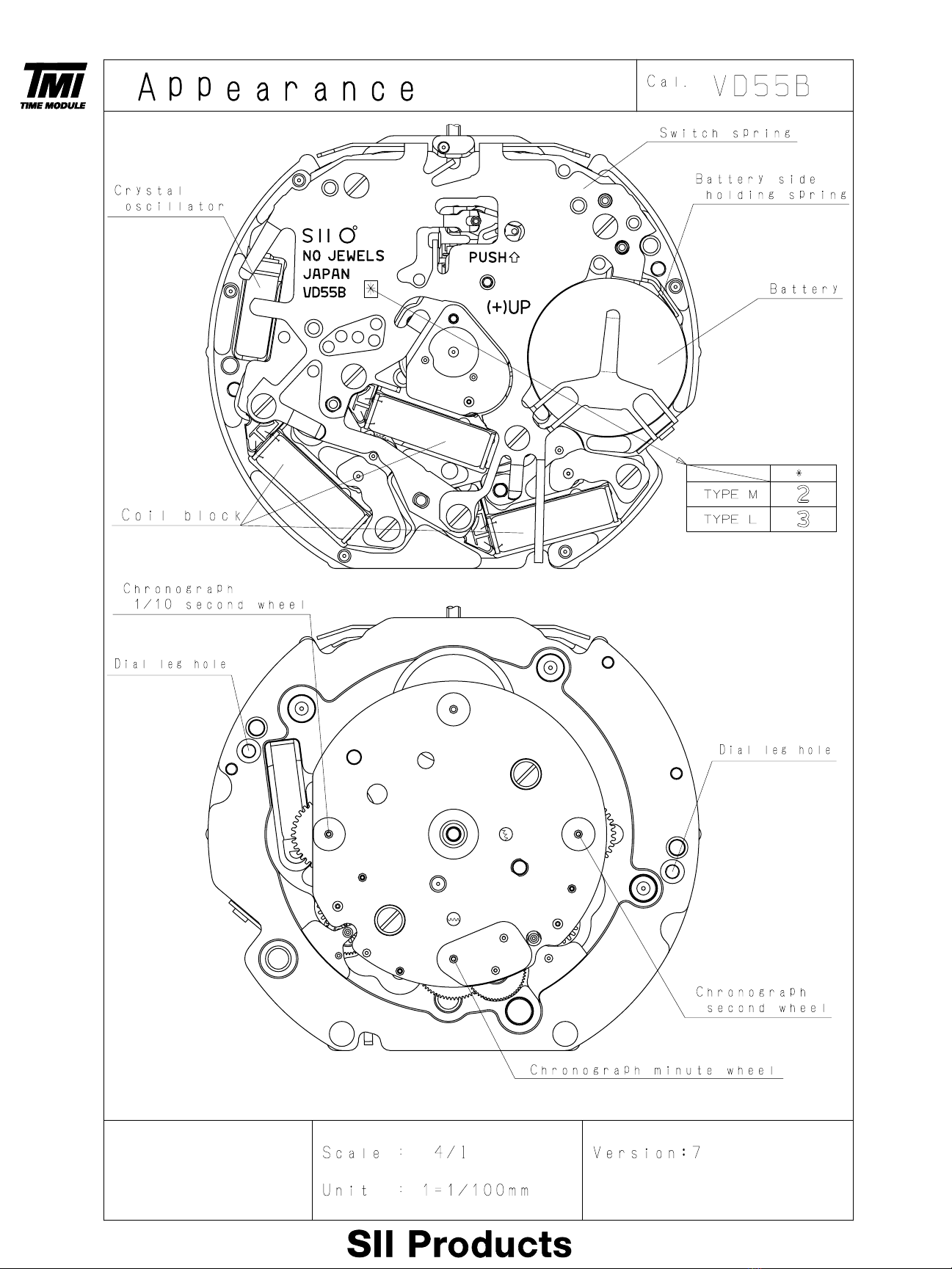

Appearance

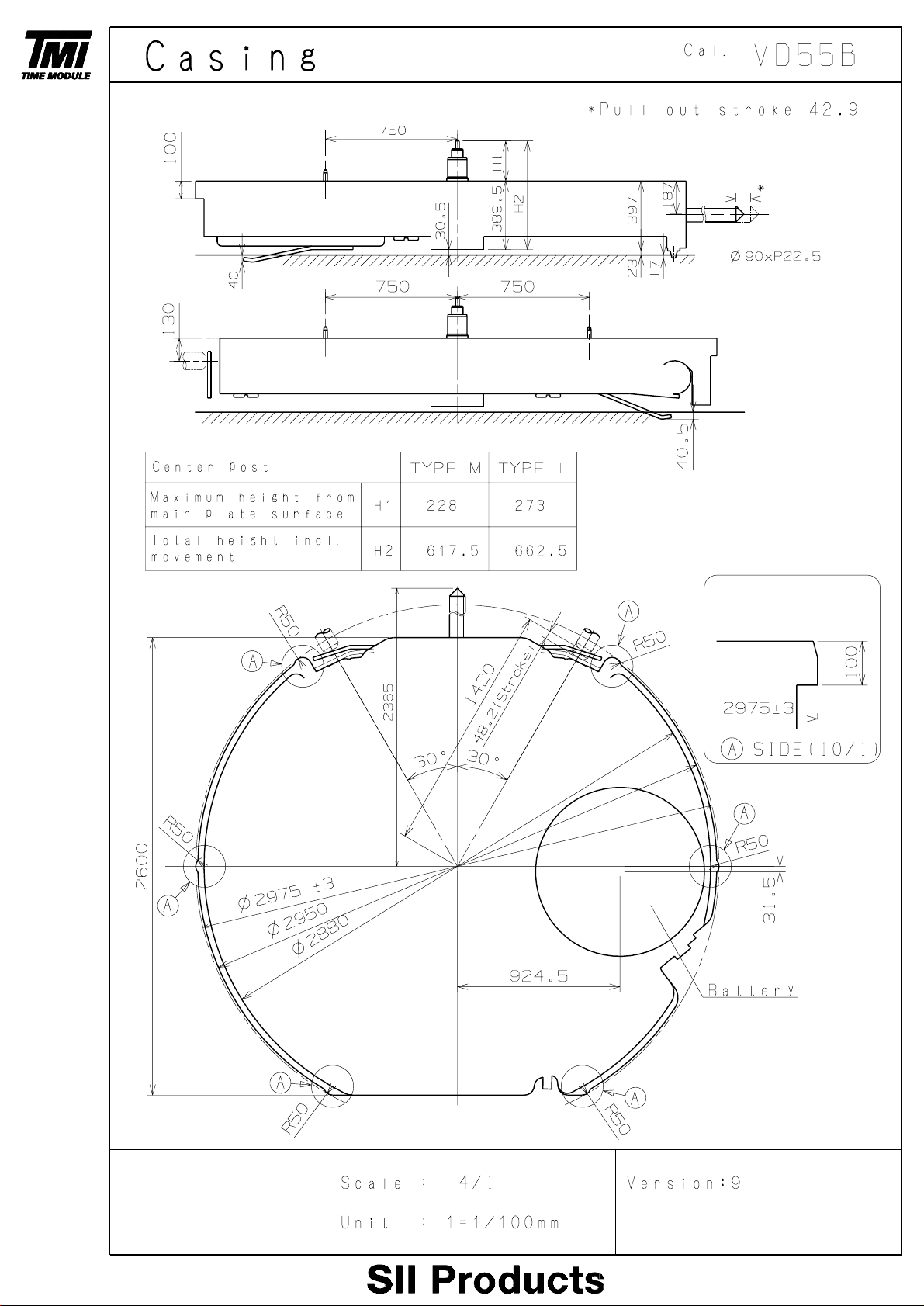

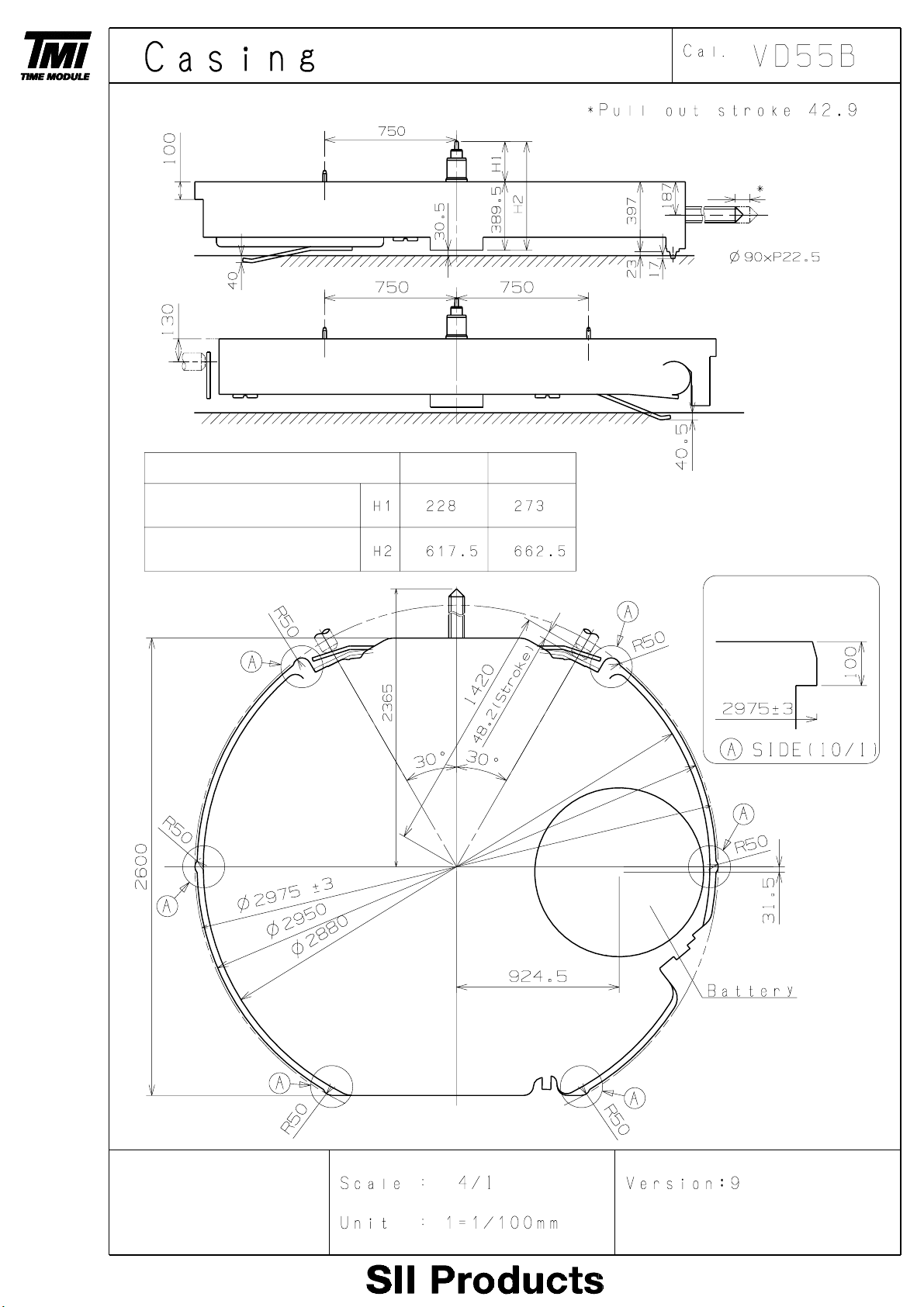

Casing

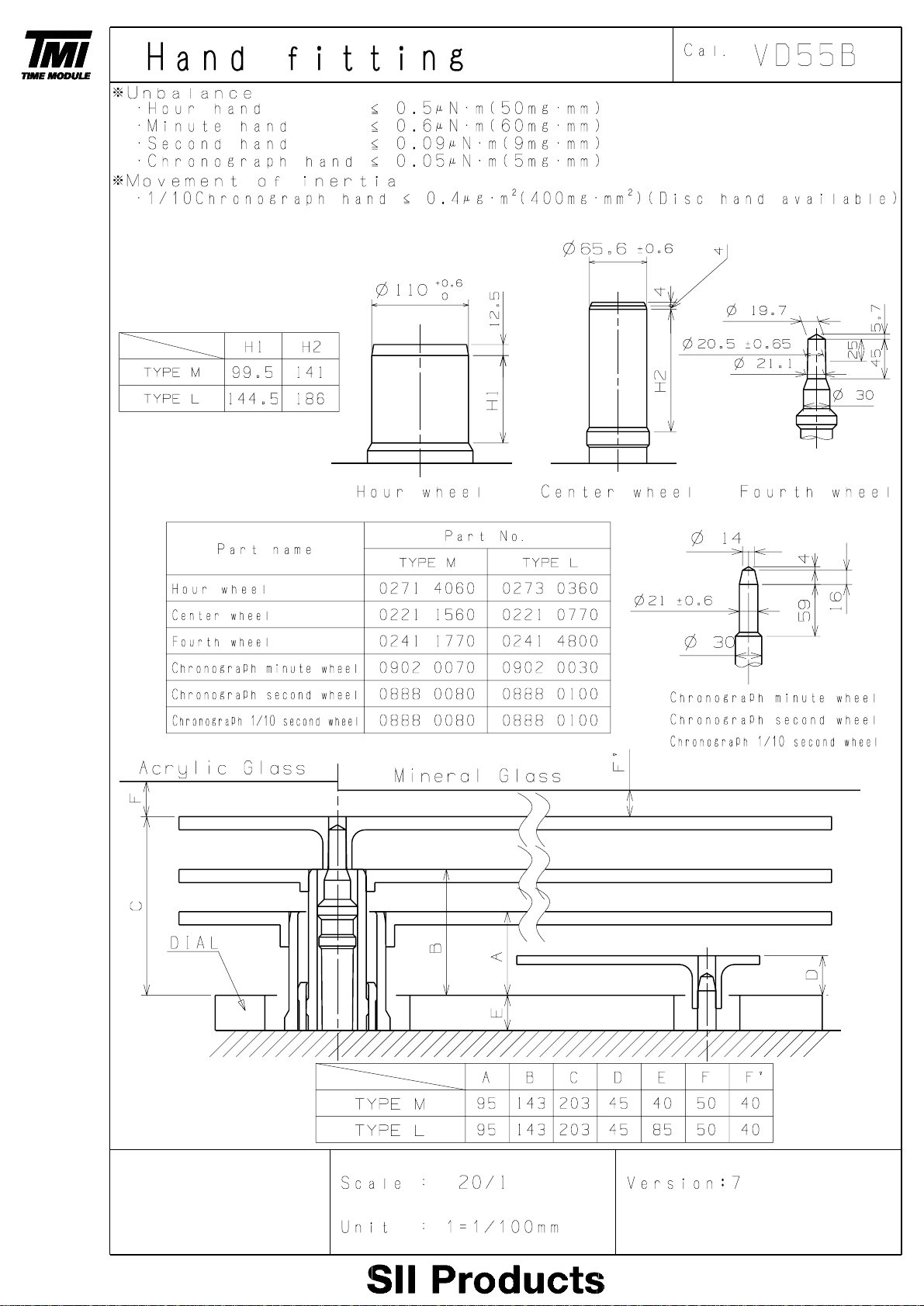

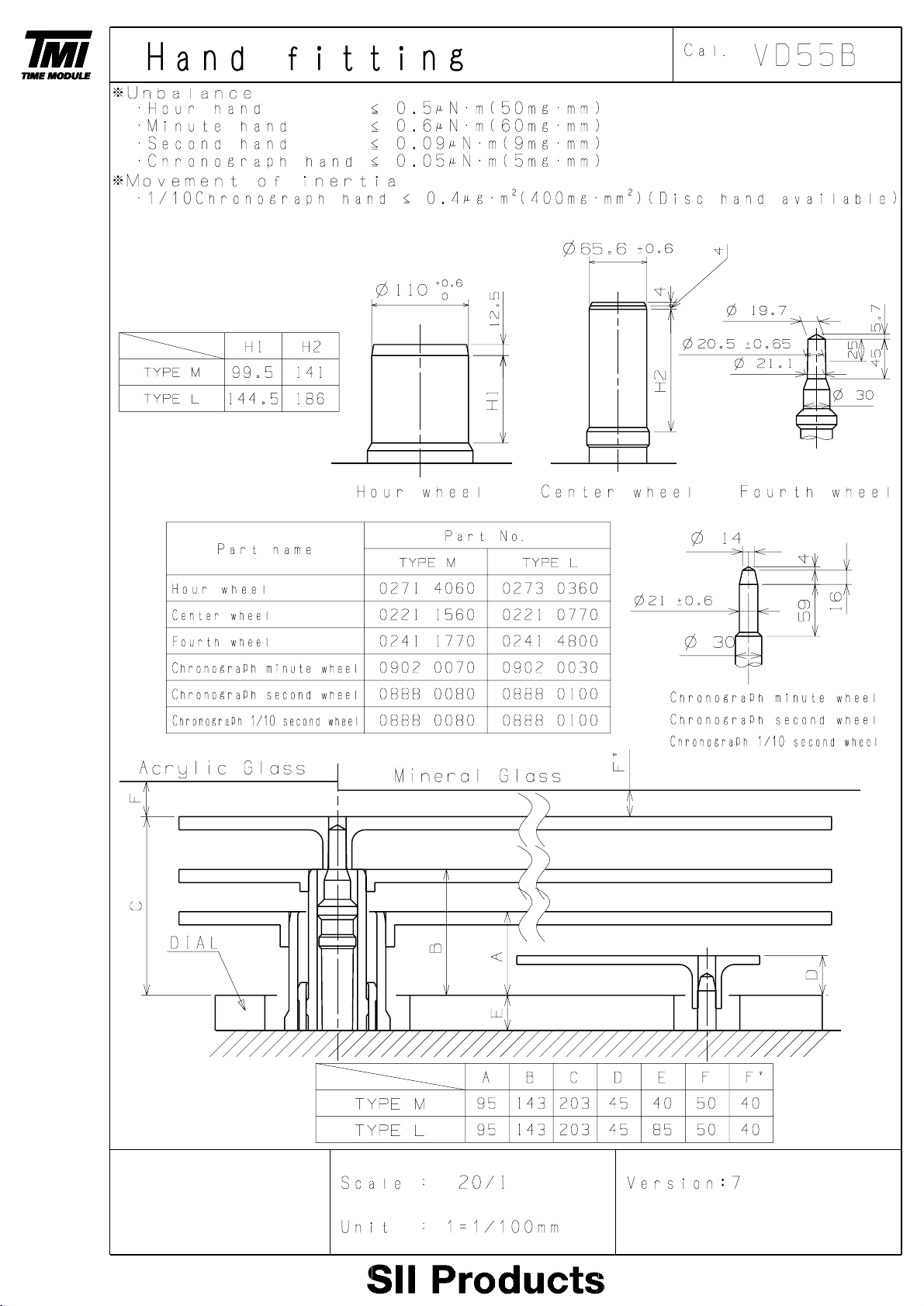

Hand Fitting

Hand Setting Stem

Dial - 1

Assembly Plan - 1

Assembly Plan - 2

Hands

SII Products

Version 5

Version 4

Version 9

Version 7

Version 5

Version 6

Version 7

Version 1

Cal. VD55B

Version No.Item

MOVEMENT SPECIFICATION - 1

CAL.VD55B 12 3 / 4 Ligne Quartz Movement

Three Hands with 3 Eyes ( Minute, Second, 1 / 10 Second Chronograph )

1. MOVEMENT DIMENSIONS

Outside diameter ψ29.50mm (12H~6H) x 26.00mm (3H~9H)

Casing diameter ψ28.80mm (12H~6H)

Total height 3.97 mm

Dimensions of small hands away from center 7.50 mm

2. TIME STANDARD

Type of quartz oscillator Tuning fork

Frequency of quartz oscillator 32,768 H Z

Accuracy Monthly rate: Less than 20 seconds per month at

normal temperature range

Regulation device Nil

Regulation hands unbalance Second : Less than 0.09 µN·m ( 9mg·mm )

Minute : Less than 0.60 µN·m ( 60mg·mm )

Hour : Less than 0.50 µN·m ( 50mg·mm )

Chronograph hands : Less than 0.05 µN·m ( 5mg.mm )

The moment of inertia 1/10 chronograph hand : Less than 0.40 µg·m² ( 400mg·mm² )

(Disc hand)

Additional function Stopwatch : up to 1 minute in 1/10 second ( 2 seconds per round )

up to 60 minutes in 1 second split time

3. BATTERY

Type Silver oxide battery

Size ψ9.5 x t 2.0 ( mm )

Battery life Approx. 2 years

Recommended battery SR920SW ( SEIZAIKEN )

4. STEPPING MOTOR

Number of units 3 pieces

Type Two pole stepping motor

Step 180°every second

5. JEWEL

0 jewel

6. ANTIMAGNETISM

≧1600 A / m

( direct current magnetic field )

7. SHOCK RESISTANCE

On equal level with general quartz movement

8. OPERATING TEMPERATURE RANGE

From - 5 ℃to + 50 ℃

9. TEST OF ACCURACY

Equipment to be used SEIKO Quartz Tester QT - 99

Greiner Quartz Timer - C

Witschi Q-Tester 4000

Duration of measurement 10 seconds

Microphone to be used Electromagnetic detection type

10. ATTACHED PARTS

* All specifications are subject to change without notice.

SII Products Version: 6

3013 - 14G0

0110 - 3570

Parts Name

Hand setting stem

Sticker

Silver oxide battery

Parts Code

0351 - 1780 (Normal)

Movement Specification - 2

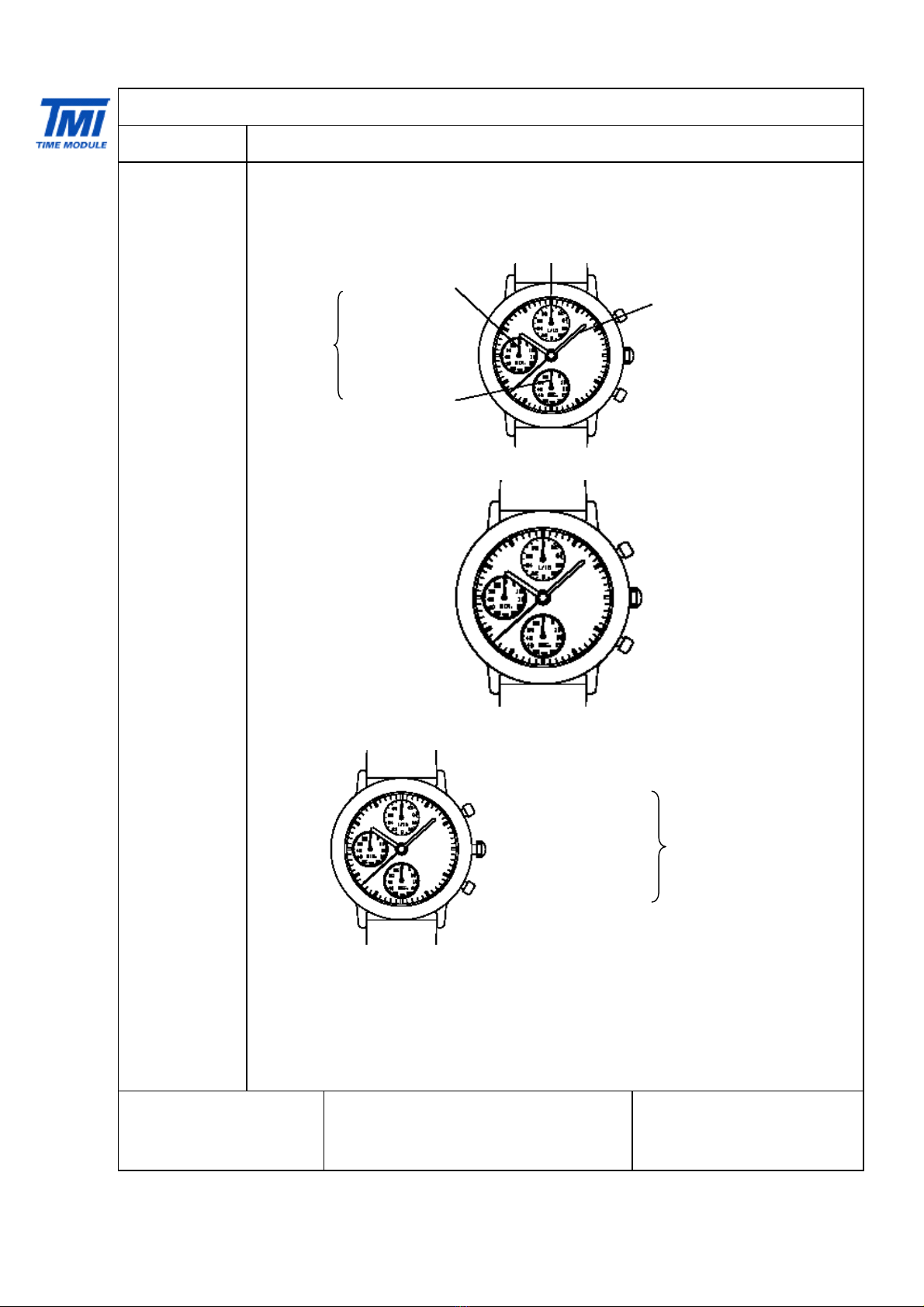

OPERATION 3 step motors ( 3 hands, 1 / 10 sec. chrono. maximum to 60 minutes )

1st click

adjusting minute, hour & chrono. hands

* Stopwatch 1/10 second hand moves 2 seconds for 1 circle.

* Pull the crown to 2nd click to adjust the stopwatch hand position.

* AC functions is available if stopwatch hand position is disorderly.

* When using AC functions, stopwatch hand moves back and returned to where it was

( second hand moves 1/2 circle counterclockwise and 1/2 circle clockwise, 1/10

second hand moves 1 circle clockwise ) Version 1

SII Products

CAL. VD55B

stopwatch

second hand

stopwatch

minute hand 3 hands

ormal position

AC FUNCTIONS

( KEEP

BUTTONS

"A" AND "B"

PRESSED AT

THE SAME TIME

FOR 2 SECONDS,

AND THEN,

RELEASE THE

BUTTONS )

START

STOP

FREE

linkage

SPLIT

RESET

ADJUSTING THE

STOPWATCH SEC.& MIN.

HAND POSITION

(CLOCKWISE )

TIMING SETTING

RESET SWITCH

SECOND SETTING DEVICE

ADJUSTING THE

STOPWATCH 1/10 SEC.

HAND POSITION

(CLOCKWISE )

Press button A, stopwatch 1/10 sec.hand indicates 1/10

unit of measurement time during stopwatch 1/10 second

hand moves for a first minute.

Center post 中心柱位

Maximum height from main plate surface

與機芯平面之最大高度

Total height incl. movement

機芯總高度

Type M

一般針高

Type L

高針

Hour wheel 時針輪

TYPE M 一般針高

TYPE L 高針

Center wheel 分針輪

Fourth wheel 秒針輪

Chronograph minute wheel 計時分輪

Chronograph second wheel 計時秒輪

Chronograph 1/10 second wheel 計時1/10秒針輪

TYPE M 一般針高

TYPE L 高針

TYPE M 一般針高

TYPE L 高針
