TOORX BRX35 Manuale utente

Ed : Rev : Cod:

INSTRUCTION

09/18 GRLDTOORXBRX3500

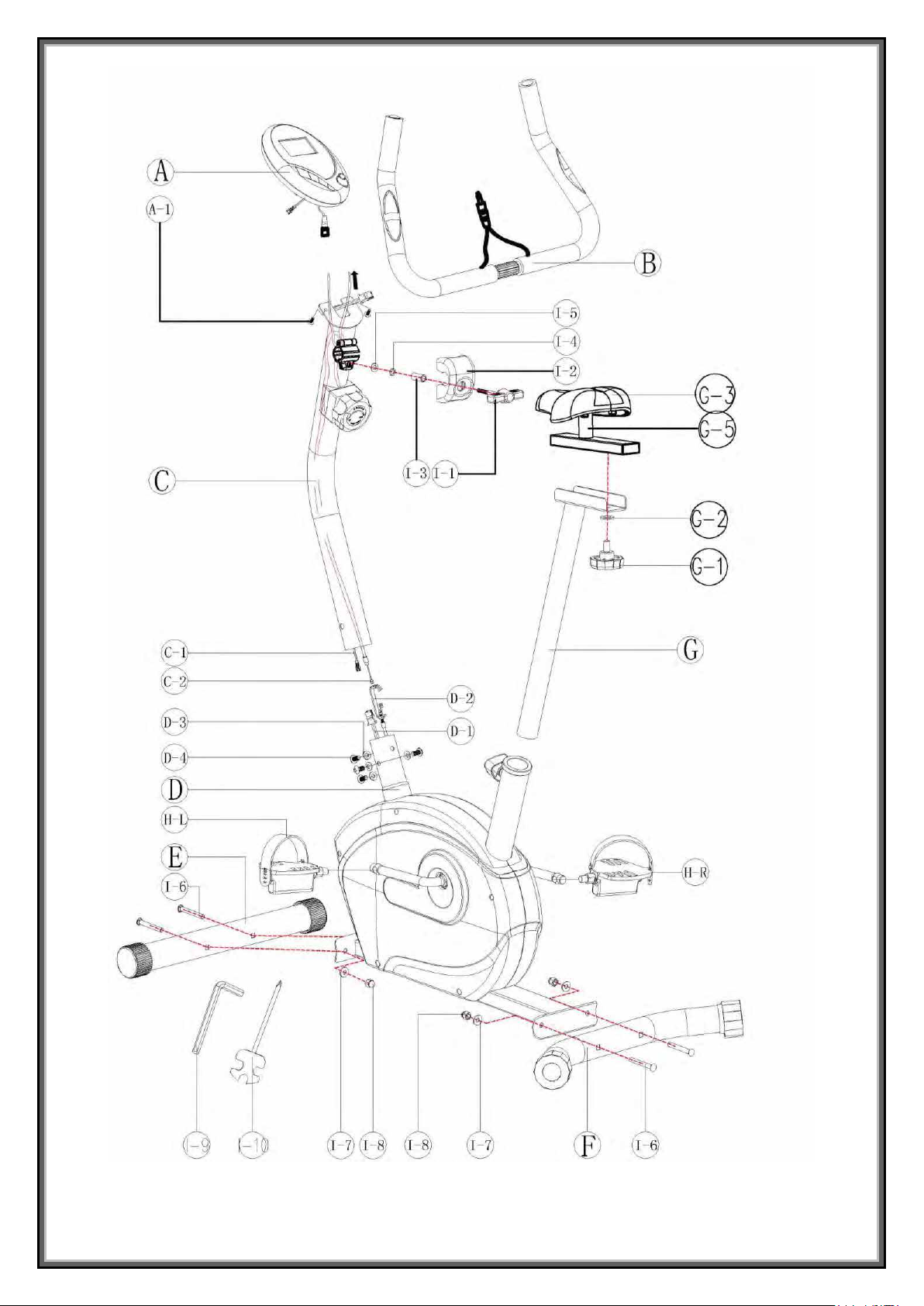

ASSEMBLY INSTRUCTIONS

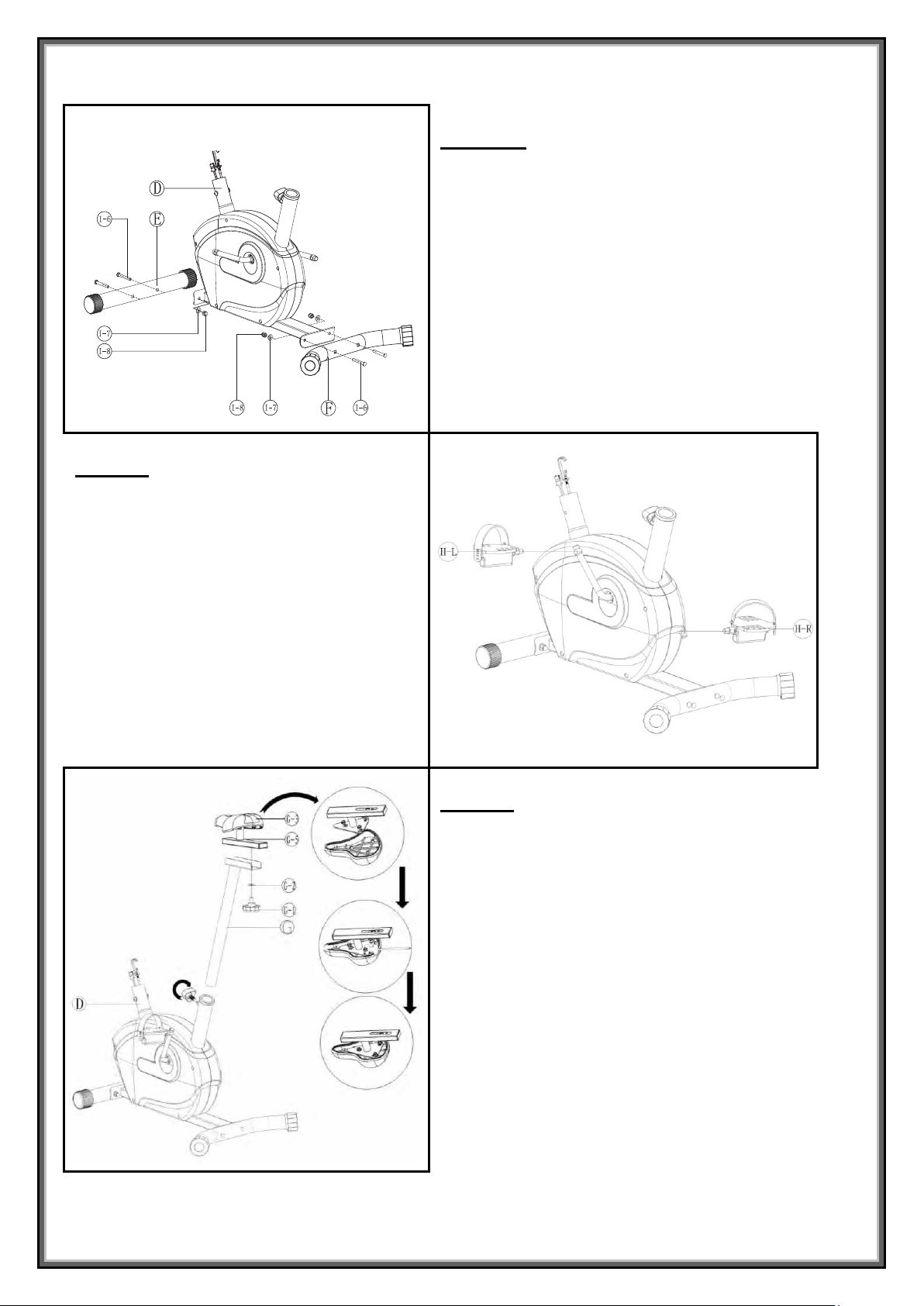

Step 1

Assembly the rear and front stabilizer (F&E)

with 4 bolts (I-6), 4 nuts (I-8) and 4 washers

(I-7).

Step 2

Assemble the left hand pedal (H-L) and the

right hand pedal (H-R) to the hand crank.

Step 3

Connect the saddle (G-3) and the slider

(G-5) with three bolts and washers.

Attach the slider onto the top of the seat post

(G), fix it with one seat knob (G-1) and one

flat washer (G-2).

ASSEMBLY INSTRUCTIONS

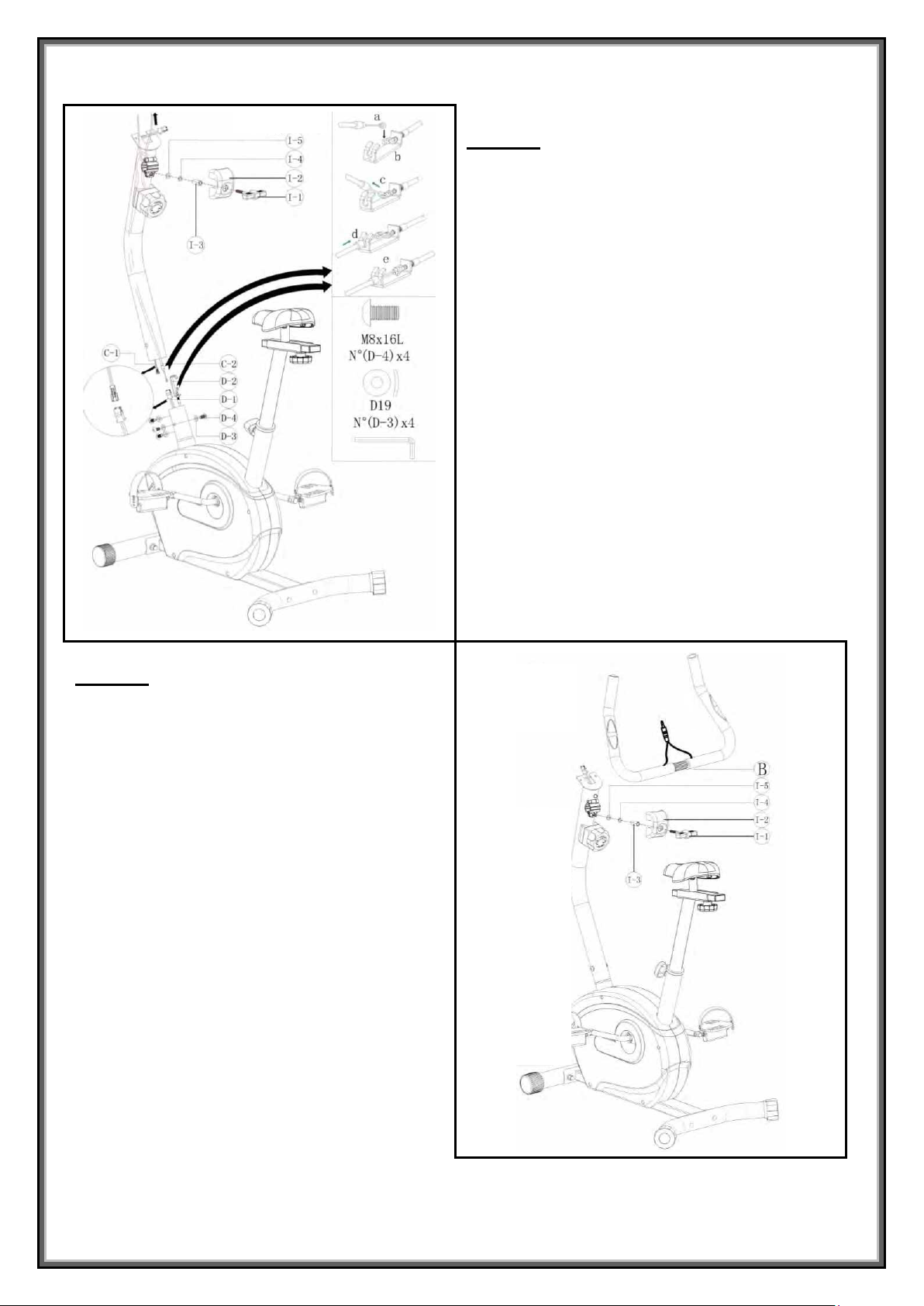

Step 4

Loosen the four screws (D-4) and four flat

washer (D-3) on the support tube of handle

bar post.

Insert the handle bar post onto the support

tube, connect the tension control cable upper

& lower (C-2) & (D-2), connect the sensor

cable upper & lower (C-1) & (D-1), fix the

handle bar post with four screws and

washers.

Step 5

Attach the handlebar (B) to the handlebar

post between the steel covers, insert the

hand pulse through the hole on hanle bar

post, assemble the plastic cover (I-2) over

the steel cover, secure the steel cover

assembly using one flat washer (I-5), one

spring washer (I-4), one bushing (I-3) and

one T-knob (I-1).

ASSEMBLY INSTRUCTIONS

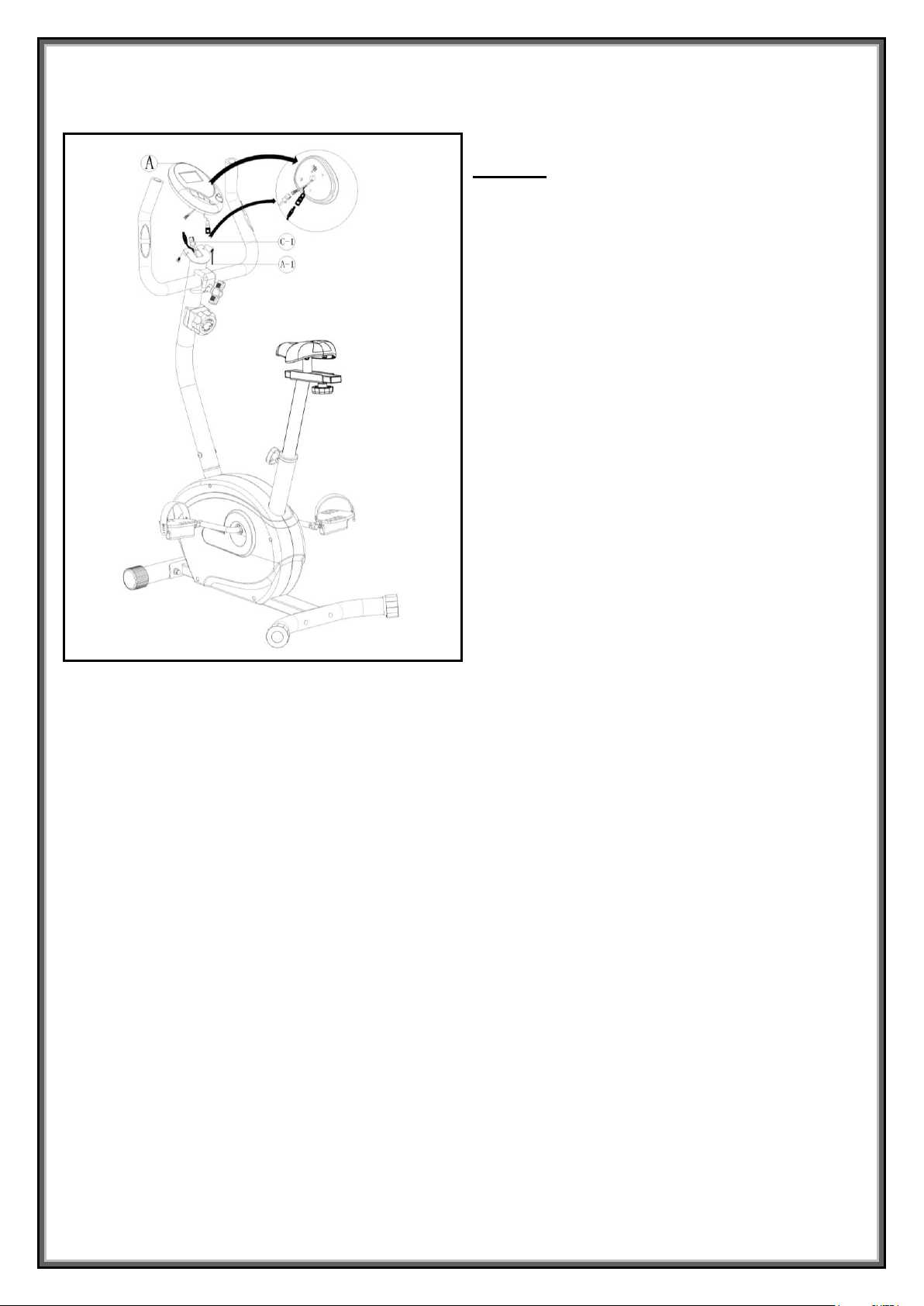

Step 6

Connect the sensor cable (C-1) between the

computer (A) and the handle bar post,

connect the hand pulse cable between the

handle bar and computer. Fix the computer

with two screws (A-1).

PARTS LIST

NO.

DESCRIPTION

Q'TY

Computer

1PC

A-1

Screw

2PCS

Handlebar set

1SET

B-1

Handlebar foam

2PCS

B-2

Handle bar end cap

2PCS

B-3

Hand grip

2PCS

Handlebar post

1SET

C-1

Sensor cable(Upper)

1PC

C-2

Tension controller(Upper)

1PCS

Main frame

1PC

D-1

Sensor cable(Lower)

1PC

D-2

Tension controller(Lower)

1PC

D-3

Semicircular washer

4PCS

D-4

Hex. Screw

4PCS

D-5

Seat post knob

1PC

D-6

Triangle screw

1PC

D-7

Hex. nut

1PC

D-8

Have tooth washer

1PC

D-9

Left thread

1PC

D-10

Ball retainer

2PCS

D-11

Bottom bracket

2PCS

D-12

Grooved belt

1PC

D-13

Chain cover(R&L)

2PCS

D-14

Screw

4PCS

D-15

Screw

3PCS

D-16

Sleeve

1PC

Front stabilizer

1SET

E-1

Front stabilizer end cap

2PCS

Rear stabilizer

1SET

F-1

Rear stabilizer end cap

2PCS

Seat post

1PC

G-1

Seat knob

1PC

G-2

Flat washer

1PC

G-3

Saddle

1PC

G-4

Cap

2PCS

G-5

Slider

1PC

G-6

Fixed screw for slider

1PC

G-7

Flat washer

3PCS

G-8

Screw

3PCS

H-R/L

Pedal

2PCS

I-1

T knob

1PC

I-2

Plastic cover

1PC

I-3

Bushing

1PC

I-4

Spring washer

1PC

I-5

Flat washer

1PC

I-6

Carriage screw

4PCS

I-7

Wave washer

4PCS

I-8

Nut

4PCS

J-1

Plastic belt pully

1PC

J-2

Right thread

1PC

J-3

Crank

1PC

Idler clamping

1SET

K-1

Idler wheel

1PC

K-2

Sleeve

1PC

K-3

Idler spring

1PC

K-4

Nylon nut

2PCS

K-5

Hex. screw

1PC

K-6

Flat washer

1PC

Magnetic set

1SET

L-1

Hex. screw

2PCS

L-2

Spring washer

2PCS

L-3

Flat washer

2PCS

L-4

C-circle

2PCS

L-5

Wave washer

1PC

L-6

Mandril

1PC

Flywheel

1PC

M-1

Deep groove ball bearing 6900

1PC

M-2

Deep groove ball bearing 6000

1PC

M-3

Sleeve

1PC

M-4

Mandril

1PC

M-5

Nut

5PCS

M-6

Star washer

2PCS

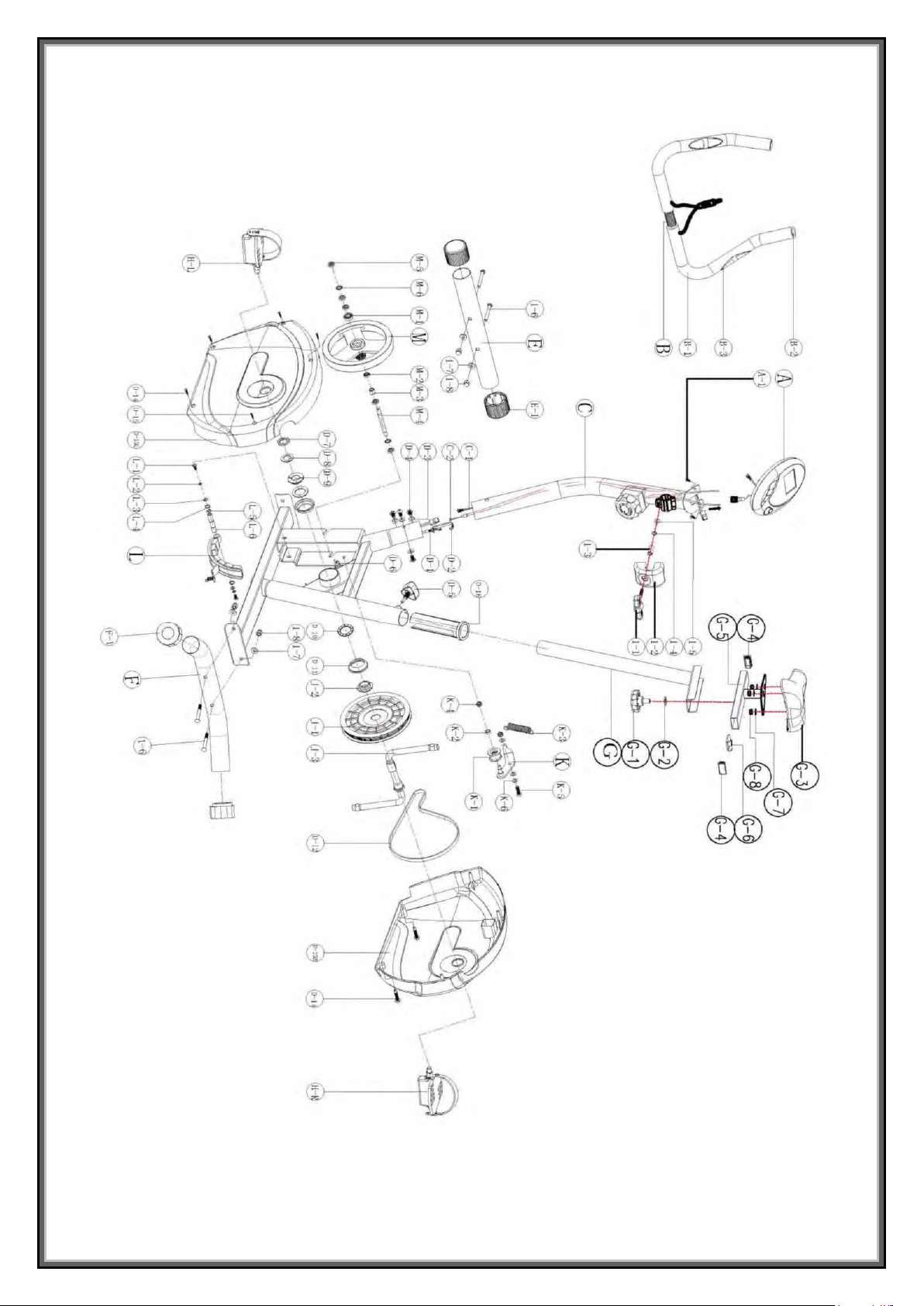

COMPLETE BIKE ASSEMBLY

EXERCISE COMPUTER

Monitor Display

KEY FUNCTION:

MODE: This key lets you to select and lock on to a particular function you want.

FUNCTIONS

SCAN

Automatically scan through each mode in sequence every 6 seconds. The display loop is

SCAN-TIME-DISTANCE-CALORIE-SCAN on the main screen.

TIME

Accumulates total working time from 00:00 up to 99:59.

SPEED

Displays current training SPEED, the maximum is 99.9km/ml,it always displays.

DISTANCE

Accumulates training distance from 0.00 to the maximum 99.99km/ml with each increment

0.01km/ml.

ODO

Press the MODE key until the pointer advance to ODOMETER. The total accumulated distance

will be shown.

CALORIE

Accumulates calories consumption during training from 0 to the maximum 9999 cal with each

increment 1 cal.

PULSE

Press the MODE key until the pointer advance to PULSE. User’s current heart rate will be

displayed in beats per minutes. Place the palms of your hands on both of the contact pads (or

put ear-clip to ear),and wait for 30 seconds for the most accurate reading.

NOTE

1. Without any signal been transmitted into the monitor for 4 minutes, the LCD display will shut off automatically,

and all function values will be kept. You may press mode or start pedaling to have the monitor power on again.

2. If improper display on monitor, please re-install batteries to have a good result.

3. Battery spec: 1.5v um-3 or AAA (2 pcs).

MODE

SCAN

TIME

SPEED

DISTANCE

ODO

CALORIES

PULSE

SET

RESET

GARLANDO SPA

Via Regione Piemonte, 32 - Zona Industriale D1

15068 - Pozzolo Formigaro (AL) - Italy

www.toorx.it - info@toorx.it
