6V/12V Wireless Battery and System Tester
USER MANUAL
BT MOBILE
Welcome
About
Package List
Compatibility
Features
APP Installation & Setup
Operation Introduction
Technical Specication
Warranty
Warnings
Cautions
FAQ
3
3
3
4
5
6
8
23
24
25
26
27
Content
EN
3
English
Welcome
Thank you for purchasing the TOPDON BT MOBILE wireless battery tester.
Please read and understand this manual carefully before using this product.
About
BT MOBILE is a 6V/12V wireless battery and system tester, adopting the
most advanced conductance detection technology and reverse polarity
protection technology to provide key information about battery health for
technicians, professionals, so as to quickly, easily and accurately identify
battery and charging problems.
Package List
1.BT MOBILE Wireless Battery Tester 2.User Manual
EN
4 5
Compatibility
Please be noted that battery type and CCA values (Cold Cranking Amp)
marked on the battery label. Please refer to it before using BT MOBILE.
1. Regular Flooded
2. AGM Flat plate
3. AGM Sprial
4. GEL
5. EFB
NOTE: If your vehicle battery is not the battery mentioned above and you
are not sure about which type it is, please choose AGM to conduct test, and
the error is within 10%.
Features
Bad battery connect - green light on
Normal battery connect - green light off
Bluetooth connection successfully - blue light on
Fault red light
Green Light
Blue Light
Red Light
LED Indicator
Indicator Display
Battery Status
EN
6 7
APP Installation & Setup
Installation:
Download and install the App: “BT MOBILE” in Apple Store or Google Play.
NOTE: For Apple devices, update to iOS 8.0 or later; Android devices, OS 4.3
or later.
For the rst time, you can
choose to register with
email or skip login.
Setup:
Drop-down Menu Function:
EN
8 9
Operation Introduction
Before Test:
Before you test a battery in a vehicle, turn off the ignition, all accessories
and loads. Close all of the vehicle’s doors and trunk lid.
Make sure the battery terminals are clean. Use a wire brush to clean
them, if necessary.
NOTE: This tester works best if the battery connectors have been
removed and the battery posts have been cleaned. Any corrosion
between the tester clamps and the battery connectors, or between
the battery connectors and the battery posts, will degrade the tester’s
efciency.
Connect the RED (+) Positive Battery Clamp to the (+) positive battery
terminal, and connect the BLACK (-) Negative Battery Clamp to the (-)
negative battery terminal. Ensure that the clamps are securely attached
to the correct terminals.
Open the Bluetooth on mobile phone.
Test Introduction
• BATTERY TEST: Display SOH (State of Health), SOC (State of Charge),
Voltage, Current, Rating, and the readable analysis results on App;
• CRANKING TEST:Analyze the actual cranking voltage and the cranking
time to help you quickly gure out the whole state of the starting system;
• CHARGING TEST: Test different parts of charging system, including
generator, rectier, rectier diode, and so on for a reliable charging volt
value.
1.
5.
2.
3.
4.

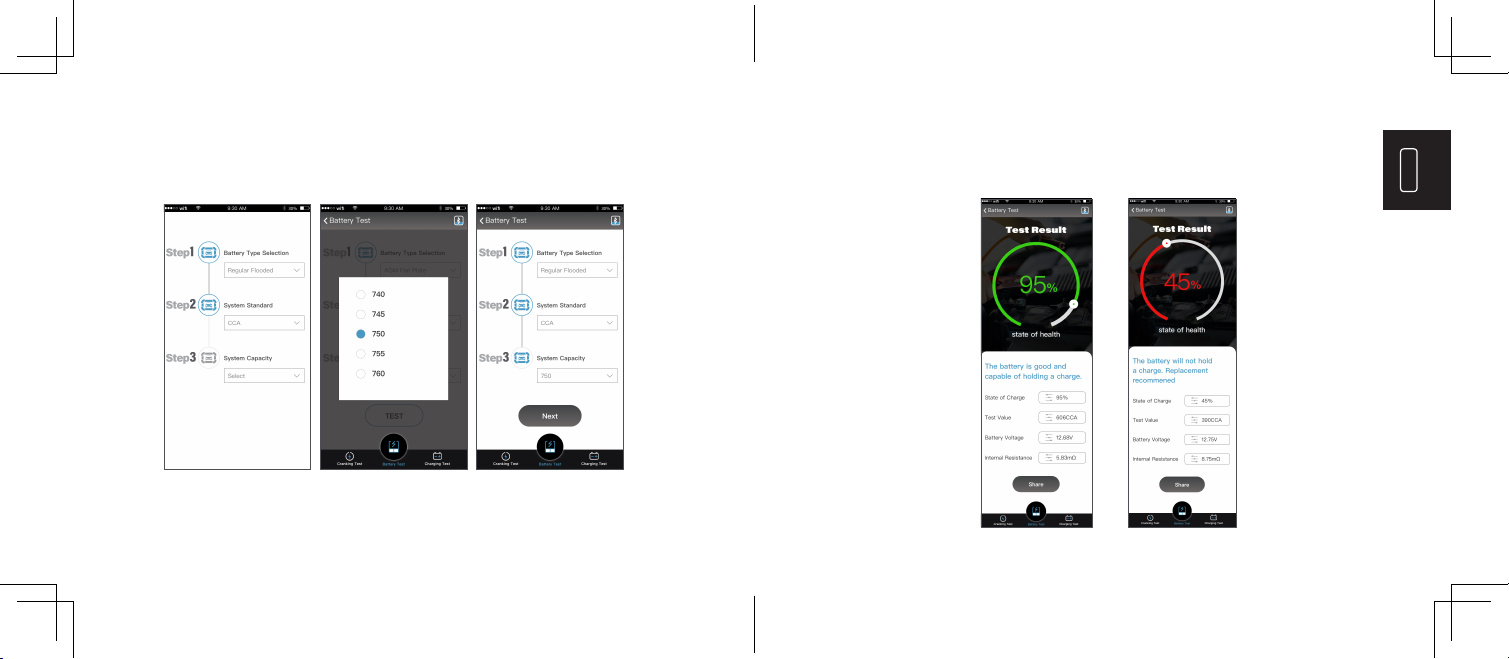

1. Battery Test (for 12V battery)
Open the APP on your mobile device and log in.
Click the flashing Bluetooth logo in the upper right corner of the home
screen to enter the connection interface and search for the matching
device name (If the Bluetooth connection is successful, the Bluetooth
logo stops flashing).
1)
2)
EN
10 11
Click “Battery Test”
on the home screen
and click “Start”.
4)
Click the matching device name to connect.3) Select the standard value marked on the battery label, and click “OK” to
conrm.
NOTE: If the battery is JIS standard, please refer to the table for value
and select CCA (SAE) as the test standard (please Google JIS to CCA).
6)
Select battery type and click “OK”
to conrm.
5)
EN
12 13
Select standard value marked on the battery label and click “OK”
to conrm.
Click “Next” and wait a few seconds for results.
Drop down to share the results.
7)
8)
9)
EN
14 15

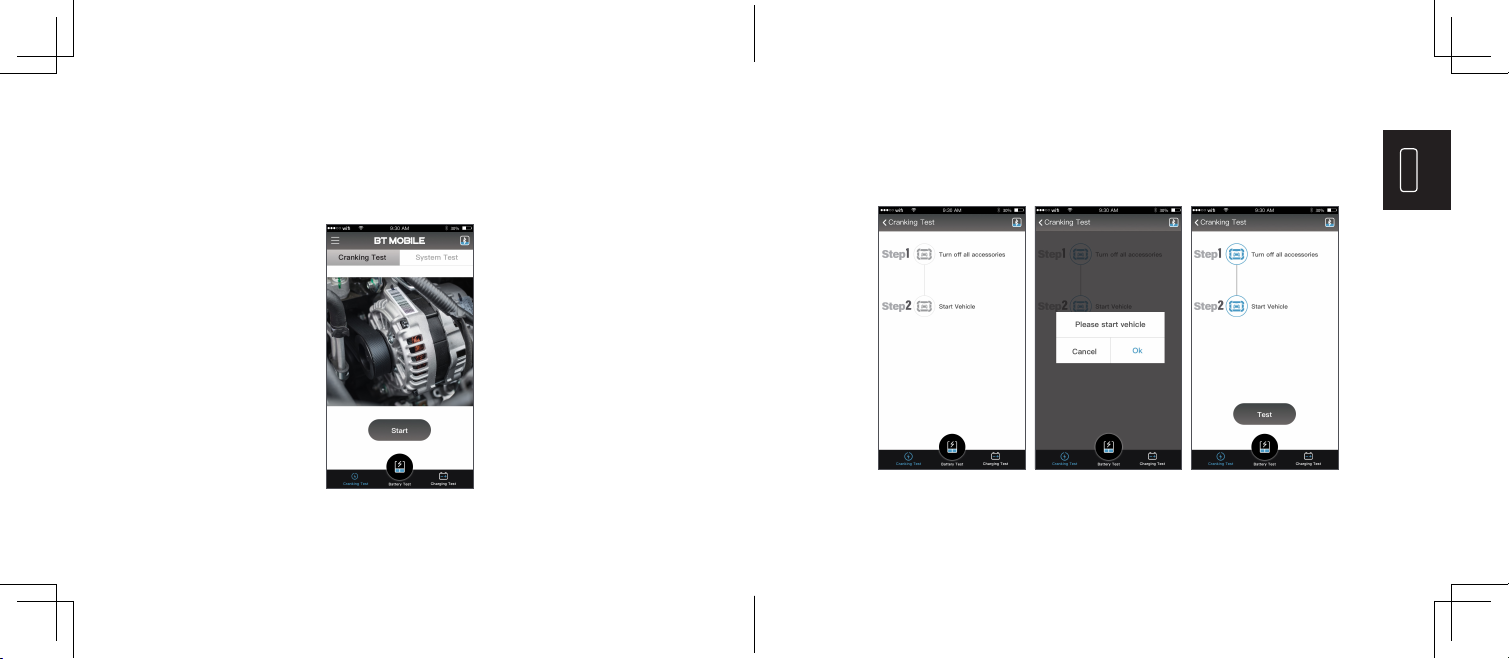

2. Cranking Test
Click “Cranking Test” on the home screen, and then click “Start”.
NOTE: The engine and all other accessory loads must be OFF during test.
1)
Follow the steps and start vehicle.2)
EN
16 17
Click “Test” to get the results.
Drop down to share the results.
3)
4)
3. Charging Test
Click “Charging Test” on the home screen, then click “Start”.
NOTE: The engine must be ON during test.
1)
