Topfield CBC-5150 Manuale utente

TOPFIELD

CBC-5150

User Guide

Digital Cable Receiver

IRDETO Embedded

ii CONTENTS

Contents

Contents ii

1 Introduction 1

1.1 Features .............................. 1

1.2 Controlling the digital receiver .................. 2

1.2.1 Front panel ........................ 2

1.2.2 Remote control ...................... 4

1.3 Subscription card information .................. 6

2 Setup 7

2.1 Unpacking ............................. 7

2.2 Safety precautions ......................... 7

2.3 Rear panel connections ...................... 9

2.4 Connecting up your digital receiver ............... 10

2.4.1 Connecting to the broadcasting cable .......... 10

2.4.2 Connecting to your television set ............ 10

2.5 Switching on for the ﬁrst time .................. 11

3 Service Search 13

3.1 Searching for broadcasting services ............... 13

3.2 Resetting to factory settings ................... 14

4 Preference Settings 16

4.1 Language settings ......................... 16

4.1.1 Menu language ...................... 16

CONTENTS iii

4.1.2 Subtitle language ..................... 17

4.1.3 Audio language ...................... 17

4.2 Video and audio settings ..................... 17

4.2.1 Television standard .................... 17

4.2.2 Television aspect ratio .................. 18

4.2.3 Audio mode ........................ 19

4.2.4 Radio frequency output ................. 19

4.3 Local time setting ......................... 20

4.4 Parental control .......................... 21

4.5 Adjusting the On-Screen Display ................ 23

5 Every Day Use 24

5.1 Volume control .......................... 24

5.2 Watching television ........................ 24

5.2.1 The services list ...................... 24

5.2.2 The favourite service lists ................ 26

5.2.3 Viewing programme information ............ 27

5.2.4 Selecting audio tracks .................. 28

5.2.5 Selecting subtitle tracks ................. 29

5.2.6 Viewing teletext ...................... 29

5.3 Viewing electronic programme guide .............. 29

5.4 Making timer events ....................... 31

6 Organising Services 33

6.1 Editing the services list ...................... 33

6.2 Editing the favourite lists ..................... 35

6.3 How to use on-screen keyboard ................. 37

7 Firmware Update 38

A Universal Remote Control 39

A.1 TV .................................. 41

A.2 VCR ................................. 46

A.3 DVD ................................ 48

Index 50

Chapter 1

Introduction

The CBC-5150 digital receiver is fully compliant with the inter-

national Digital Video Broadcasting (DVB) standard, and thus

is able to receive digital broadcasts of that standard.

NOTE

In general we equate a channel with a frequency. However,

unlike analogue broadcasts, digital broadcasts are not all

assigned to their own frequencies; instead, multiple televi-

sion broadcasts are transmitted through a single frequency.

The frequency in digital broadcasting is usually called trans-

ponder or multiplex. To reduce confusion in this manual,

the word service is preferably used than channel as a term

to indicate one television or radio broadcast.

1.1 Features

This digital receiver has the following features:

• Can store up to 2,000 television and radio services.

• You can edit the services list.

• Can create lists of your favourite services.

2 Introduction

• Can view information about the current television or ra-

dio programme.

• Has an electronic programme guide that provides an

overview of scheduled programmes.

1.2 Controlling the digital receiver

You can operate the digital receiver with the remote control or

the buttons on the front panel.

NOTE

When the digital receiver is oﬀ but plugged into a wall

socket, we say that it is in standby mode; on the other hand,

when it is on, it is in active mode. Even when you are not

using the digital receiver, you should keep it plugged into

a wall socket to be in standby mode so that it can run timer

events at any time.

1.2.1 Front panel

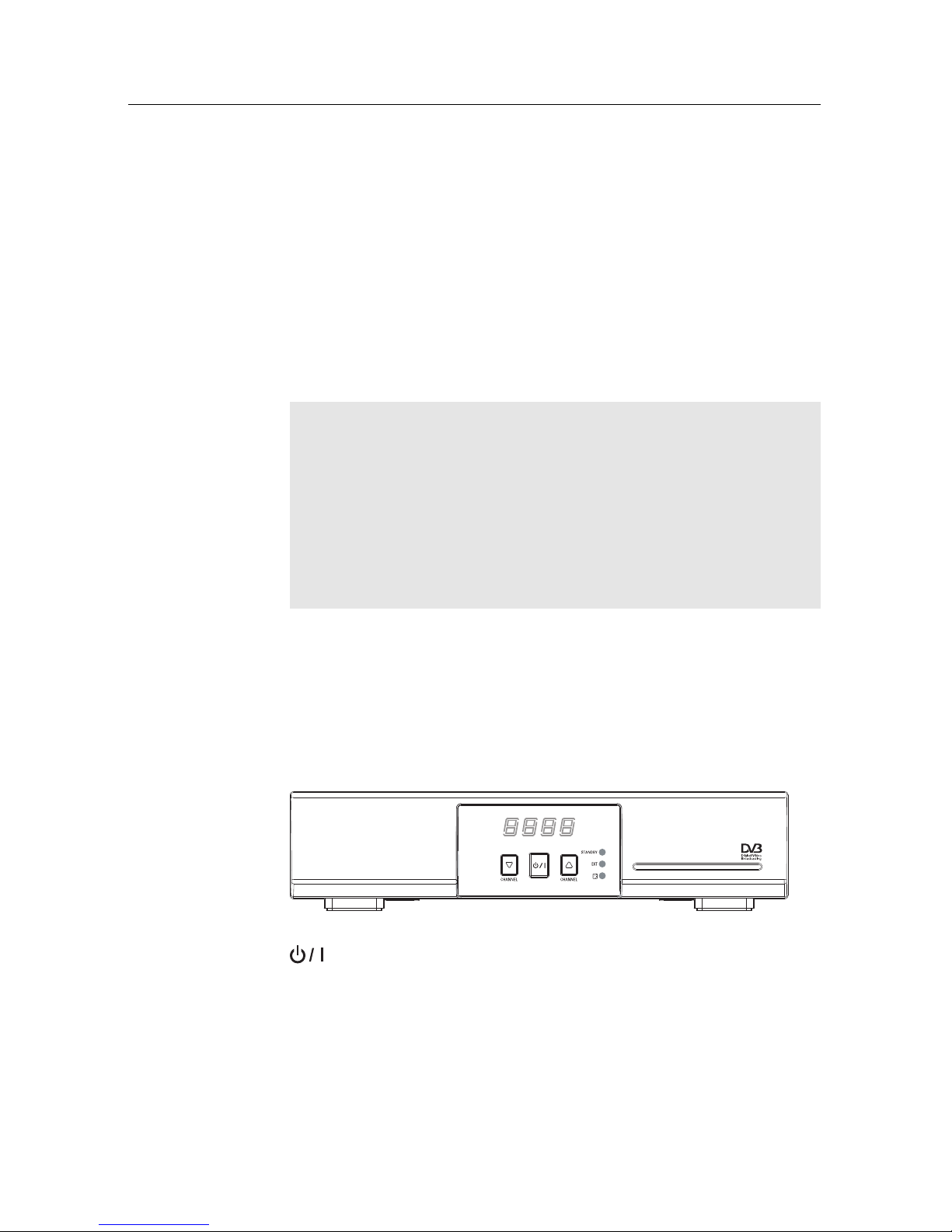

The front panel of the digital receiver has buttons to control

the digital receiver, speciﬁc lights and a display to indicate its

status. The following indicates what they mean.

button switches the digital receiver between standby mode

and active mode.

Front display shows the current time in standby mode, and

displays the current service in active mode.

STANDBY lightlights up while the digital receiver is in standby

mode.

1.2 Controlling the digital receiver 3

lightblinks every time you press a button on the remote

control.

CHANNEL

buttons switch to the previous or next ser-

vice.

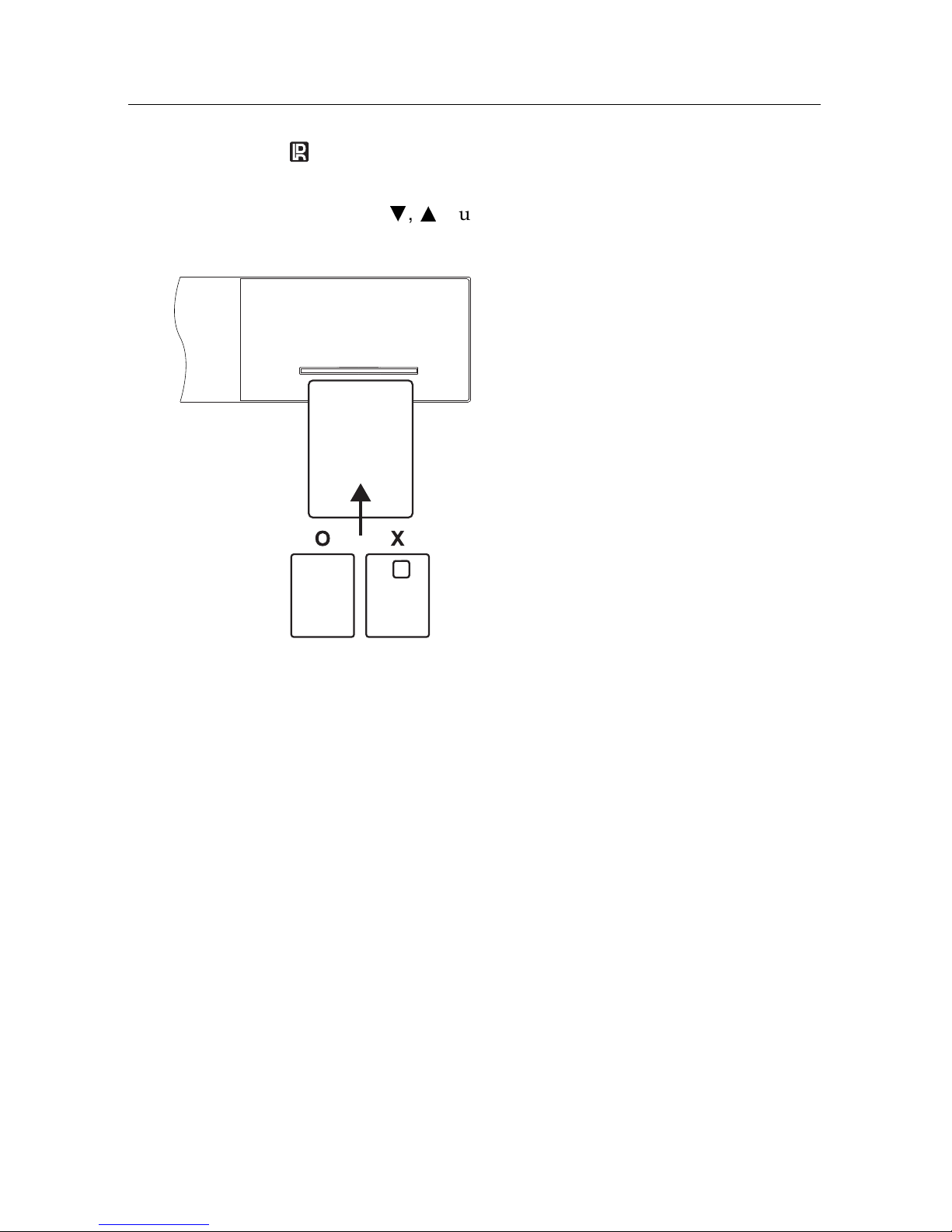

You have to insert your subscription

card into the front slot to watch pay

services. When you insert the subscrip-

tion card, the side on which the chip is

mounted must face downward.

4 Introduction

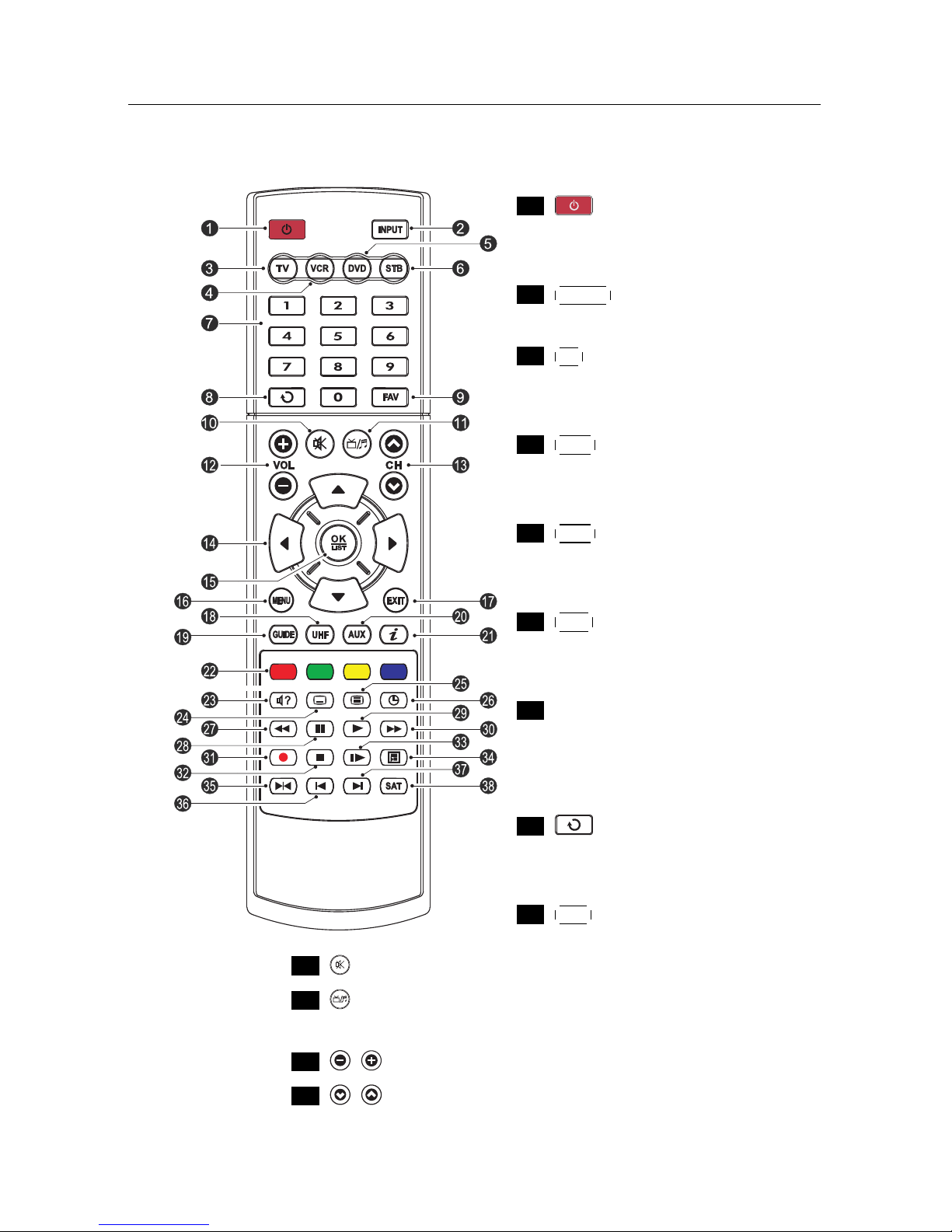

1.2.2 Remote control

.1button switches the dig-

ital receiver between standby

mode and active mode.

.2







INPUT selects an input to your

television.

.3







TV switches the remote control

to television mode to operate

your television.

.4







VCR switches the remote con-

trol to VCR mode to operate

your video recorder.

.5







DVD switches the remote con-

trol to DVD mode to operate

your DVD player.

.6







STB switches the remote con-

trol to receiver mode to operate

the digital receiver.

.7Numeric buttons are used to

enter a service number for ser-

vice change or to specify values

for menu options.

.8switches over between the

current service and the previ-

ously viewed one.

.9







FAV displays the favourite lists.

10 mutes the sound. Press again to switch it back on.

11 switches over between television services and radio

services.

12 , buttons decrease or increase the volume.

13 , buttons switch to the previous or next service.

1.2 Controlling the digital receiver 5

14 Navigation buttons are used to navigate in menus or to

change values for menu options.

15 







OK displays the services list. See §5.2.1 for more details.

It is also used to select a menu item.

16 







MENU displays the main menu. It is also used to return to

the previous menu from a submenu.

17 







EXIT is used to exit a menu or to hide on-screen informa-

tion.

18 







GUIDE displays the electronic programme guide.

19 







UHF displays the radio frequency setting menu. See §4.2.4

for more details.

20 







AUX is not used in this model.

21 displays the service information box. It is also used to

display more information about a programme.

22 These buttons have diﬀerent functions per menu. They

will be guided by on-screen help.

23 is used to select an audio track and a sound mode.

24 is used to select a subtitle track.

25 displays teletext.

26 is used to set a sleep timer in 10 minute increments.

27 is not used in this model.

28 pauses live television.

29 is not used in this model.

30 is not used in this model.

31 is not used in this model.

32 is not used in this model.

33 is not used in this model.

34 is not used in this model.

35 has diﬀerent functions per menu.

36 is not used in this model.

6 Introduction

37 is not used in this model.

38 







SAT is not used in this model.

NOTE

When using the remote control, point it at the remote sensor

on the front panel of the digital receiver.

1.3 Subscription card information

With this digital receiver, you can view pay services scrambled

with the IRDETO conditional access system. Probably you

have a subscription card. If you would like to view information

in detail about your subscription card, select the Conditional

Access menu. There you can also check the messages from

the broadcasting operator.
