Topfield TBF - 7110 Manuale utente
TBF - 7110
User Guide
High Definition
Digital Terrestrial Receiver

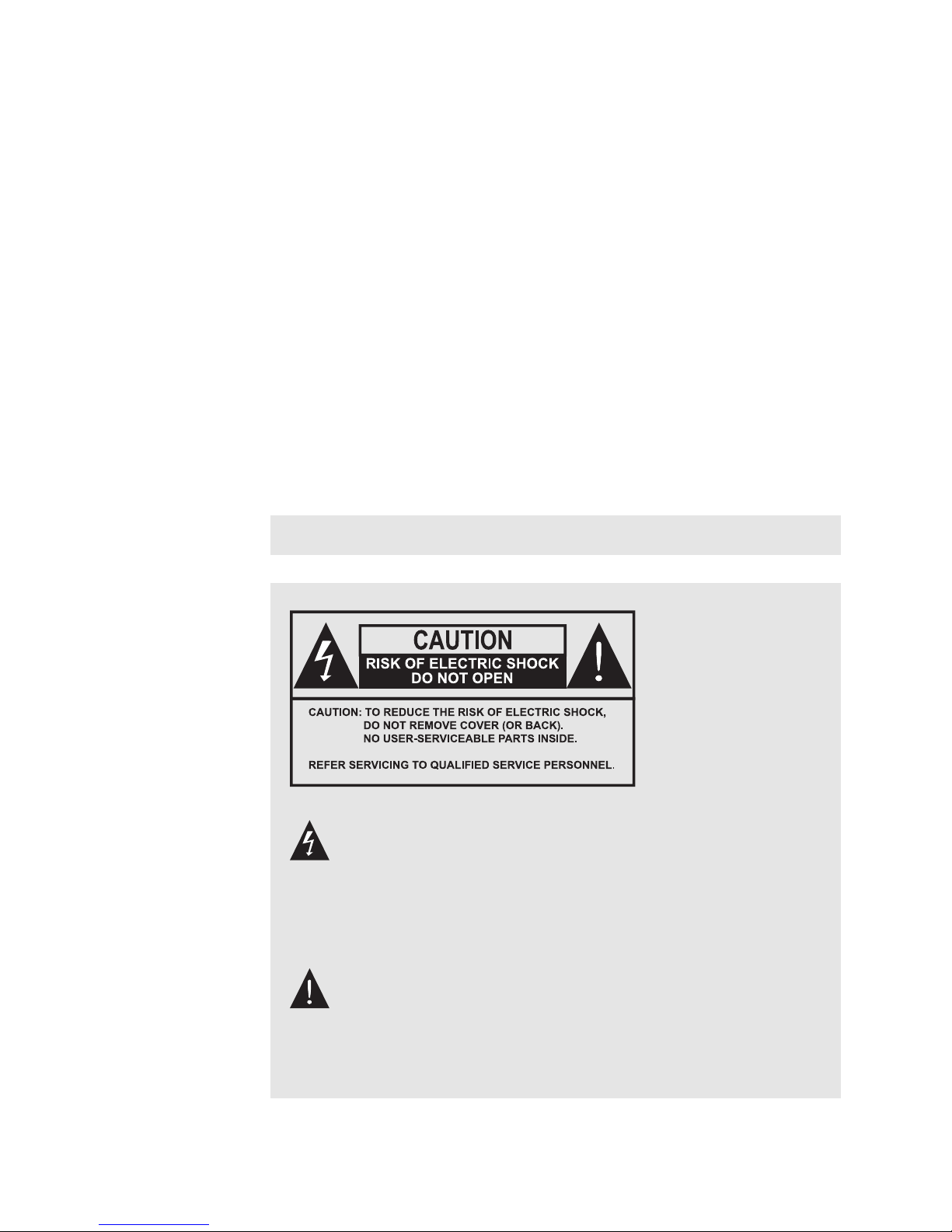

The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to a person.
The exclamation point, within an equilateral triangle, is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the product.
iv CONTENTS
Contents
Contents iv
1 Introduction 1
1.1 Features ............................... 1
1.2 Controlling the digital receiver .................. 2
1.2.1 The front panel ....................... 3
1.2.2 The remote control ..................... 4
2 Setup 6
2.1 Unpacking .............................. 6
2.2 Safety precautions ......................... 6
2.3 Rear panel connections ....................... 8
2.4 Connecting up your digital receiver ............... 9
2.4.1 Connecting the antenna .................. 9
2.4.2 Connecting to your television set ............ 10
2.5 Inserting batteries in the remote control ............. 12
2.6 Switching on for the first time ................... 12
2.6.1 Powering on and checking picture ............ 12
3 Preference Settings 13
3.1 Language settings .......................... 13
3.2 Video and audio settings ...................... 14
3.2.1 Television aspect ratio ................... 14
3.2.2 High definition television ................. 16
3.2.3 Audio mode ........................ 16
CONTENTS v
3.3 Local time setting .......................... 17
3.4 Parental control ........................... 19
3.5 Adjusting the On-Screen Display ................. 21
3.6 Displaying the time in standby mode .............. 21
4 Service Search 22
4.1 Searching broadcasting services .................. 22
4.2 Resetting to factory settings .................... 23
5 Daily Usage 24
5.1 Volume control ........................... 24
5.2 Watching television ......................... 24
5.2.1 The services list ....................... 24
5.2.2 The favourite services list ................. 26
5.2.3 Viewing programme information ............ 27
5.2.4 Selecting audio tracks ................... 27
5.2.5 Selecting subtitle tracks .................. 28
5.2.6 Viewing teletext ...................... 28
5.3 Viewing electronic programme guide .............. 28
5.4 Making timer events ........................ 30
6 Listing Services 32
6.1 Editing the favourite list ...................... 32
6.2 How to use on-screen keyboard .................. 34
7 Firmware Update 35
7.1 Checking the firmware information ............... 35
7.2 From a USB memory ........................ 36
7.3 From your computer via RS-232 port ............... 37
Index 38
1
Chapter 1
Introduction
The TBF - 7110 digital receiver is fully compliant with the inter-
national Digital Video Broadcasting (DVB) standard, and thus
is able to receive digital broadcasts of that standard.
For its operation you need an antenna, which must be installed
appropriately.
NOTE
In general we equate a channel with a frequency. However,
unlike analogue broadcasts, digital broadcasts are not all as-
signed to their own frequencies; instead, multiple television
broadcasts are transmitted through a single frequency. The fre-
quency in digital broadcasting is usually called transponder. To
reduce confusion in this manual, the word
service
is preferably
used than
channel
as a term to indicate one television or radio
broadcast.
1.1 Features
The TBF - 7110 digital receiver has the following features:
2 Introduction
• Supports the Australian Freeview Phase 1.
• Can store up to 2000 television and radio services.
• Can create favourite lists of your favourite services.
•
Can view information about the current television or
radio programme.
•
Has an electronic programme guide that provides an
overview of scheduled programmes.
1.2 Controlling the digital receiver
You can operate the digital receiver with the remote control or
the buttons on the front panel.
NOTE
When the digital receiver is off but plugged into a wall outlet,
we say that it is in standby mode; on the other hand, when it is
on, it is in operation mode. Even when you are not using the
digital receiver, you should keep it plugged into a wall outlet
to be in standby mode so that it can run timer events at any
time.
1.2 Controlling the digital receiver 3
1.2.1 The front panel
The front panel of the digital receiver has buttons to control
the digital receiver, specific lamps and a display to indicate its
status. The following indicates what they mean.
STANDBY
button switches the digital receiver between
standby mode and operation mode.
CHANNEL
c
,
a
buttons switch to previous or next service.
They are also used to navigate in menus and interactive
screens.
lamp blinks whenever you press a button on the remote
control.
STANDBY
lamp lights up while the digital receiver is in
standby mode.
Front display
shows the current time in standby mode, and
displays the current service in operation mode.
4 Introduction
1.2.2 The remote control
14
14
18
16
9
12
2
17
3
5
10
15
7
6
11
13
19
3
8
20
21
5
1
button switches the digital re-
ceiver between standby mode and
operation mode.
2
is used to set a sleep timer in 10
minute increments.
3
V−
,
V+
buttons decrease or in-
crease the volume. They are also
used to change values for menu op-
tions.
4
mutes the sound. Press again
to switch it back on.
5
P−
,
P+
buttons switch to previ-
ous or next service. They are also
used to navigate in menus and in-
teractive screens.
6
switches between the current
service and the previously viewed
one.
7
Numeric buttons are used to en-
ter a service number for service
change or to specify values for
menu options.
8
OK
displays the services list. See
§
5.2.1 for more details. It is also
used to select a menu item.
9
FAV displays the favourite lists.
10
displays the service information box. It is also used
to display more information about a programme.
11
is used to select an audio track and a sound mode, or
