Topfield TF6000F Manuale utente
TOPFIELD
TF6000F
User Manual
Digital Satellite Receiver
Free To Air
ii CONTENTS
Contents
Contents ii
1 Overview 1
1.1 Introduction ............................ 1
1.2 Controlling The Digital Receiver ................. 2
1.2.1 Front Panel ........................ 2
1.2.2 Remote Control ...................... 3
2 Installation 5
2.1 Packing Contents ......................... 5
2.2 Safety Precautions ......................... 5
2.3 The Connection Panel ....................... 7
2.4 Connecting The Digital Receiver ................. 7
2.4.1 Connecting to The Satellite Antenna .......... 7
2.4.2 Connecting to The TV by RCA Cable .......... 8
2.4.3 Connecting to The TV by RF Cable ........... 8
2.5 Inserting Batteries in The Remote Control ........... 9
2.6 Station Settings .......................... 9
2.6.1 LNB Setting ........................ 10
iii
2.6.2 Service Search ....................... 12
2.6.3 Motorized DiSEqC 1.2 .................. 14
2.6.4 USALS Setting ....................... 15
2.6.5 Editing The Transponder List .............. 17
2.6.6 Factory Setting ...................... 19
2.6.7 System Recovery ..................... 19
3 Preference Settings 20
3.1 Time Setting ............................ 20
3.2 Timer Setting ............................ 21
3.3 Access Restriction ......................... 23
3.4 Language Setting ......................... 24
3.5 Audio and Video Setting ..................... 25
3.6 Menu Display Transparency ................... 26
3.7 Display Time of The Information Box .............. 26
3.8 Position of The Information Box ................. 26
4 Listing Services 28
4.1 Editing The Services List ..................... 28
4.2 Editing The Favorites List .................... 30
5 Daily Usage 31
5.1 Browsing Services ......................... 31
5.2 Information Box .......................... 32
5.3 Electronic Program Guide .................... 33
5.4 Viweing Subtitle .......................... 34
5.5 Viewing Teletext .......................... 34
5.6 Selecting Sound Track ....................... 35
5.7 Selecting Multifeed ........................ 35
iv CONTENTS
6 Firmware Update and Data Transfer 36
6.1 Firmware Update ......................... 37
6.1.1 From The Satellite ..................... 37
6.1.2 From a Personal Computer via RS232 Port ....... 37
6.1.3 From another Digital Receiver via RS232 Port . . . . . 38
6.2 Data Transfer ............................ 39
A Information 40
A.1 Operational Functions and Features ............... 40
A.2 Technical Specification ...................... 41
Index 43
1
Chapter 1
Overview
1.1 Introduction
The TF6000F digital receiver is fully compliant with the in-
ternational digital video broadcasting standard, and can play
digital satellite services. To operate it, you need a satellite an-
tenna, which must be installed and directed at the required
satellite.
Unlike analogue broadcasting, digital television and radio ser-
vices are not all assigned their own frequencies; instead, sev-
eral television and radio are transmitted by a single transpon-
der.
To help you with the choice and settings for satellite services,
a selection of television and radio services have already been
programmed for you. You can do service search so that all the
satellite services that have since gone on air are available to
you. Of course, you can easily program new services yourself.
You can find the current transponder information on teletext
from various broadcasters.
The TF6000F digital receiver has the features as follows:
2Overview
•This digital receiver supports DiSEqC 1.0, DiSEqC 1.1,
DiSEqC 1.2 and USALS (DiSEqC).
•This digtial receiver saves up to 5000 TV and radio ser-
vices.
•You can edit the service list and make your own favorite
service list.
•You can view the program guide
•You can view the information of a TV programme.
•You can update the firmware of the digital receiver to
the latest, which will be provided by Topfield.
Refer to Section A.1 on page 40 for detailed features.
1.2 Controlling The Digital Receiver
You can control the digital receiver with the remote control
and the front panel buttons.
1.2.1 Front Panel
CHANNEL
lamp lights up whenever you press a button of the remote
control.
PWR lamp lights up while the digital receiver is in the the
standby mode.
CHANNEL
a
,
c
buttons switch services up and down, and
move the cursor up and down in the menus.
button toggles the digital receiver between the operation
mode and the standby mode.
1.2 Controlling The Digital Receiver 3

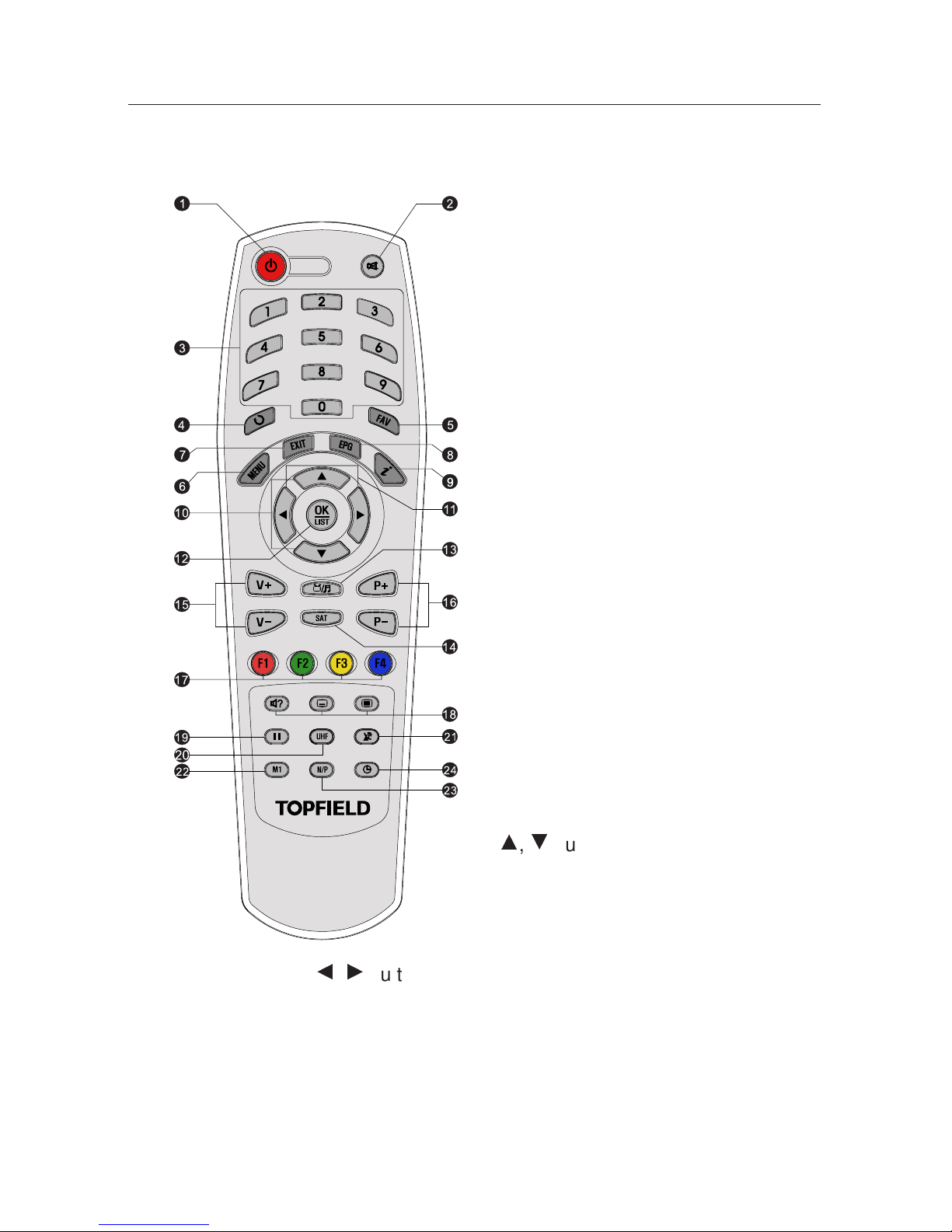

1.2.2 Remote Control
1
Standby button toggles the digital re-
ceiver between operation mode
and standby mode.
2
Mute button mutes the television or
audio appliance.
3
Numeric buttons selects a service to
watch, or enters a parameter
value such as recording time.
4
Recall button makes a return to the
previous service.
5
FAV button displays the favorite ser-
vice list.
6
Menu button displays the menu, or
escapes to a higher level menu
out of a submenu.
7
Exit button escapes from any menu.
8
Guide button displays program
guides, if available.
9
Information button displays the infor-
mation about the programme on
the air.
10
a
,
c
buttons switch services up and
down, and move the cursor up
and down in the menus.
11
b
,
d
buttons change the volume, and select and change
individual entries in the menus.
12
OK button displays the service list, and selects an entry in
the menus.
13
TV/Radio button toggles between TV mode and radio mode.
4Overview
14
SAT button displays the satellite list. (available only for the
satellite receiver)
15
V+and V−buttons change the volume, and select and change
individual entries in the menus.
16
P+and P−buttons switch services up and down, and move
the cursor up and down in the menus.
17
Function buttons have other functions per menu. Their func-
tions will be guided in the help window on a menu
screen.
18
Sound, Subtitle and Teletext button selects sound track and
mode, enables subtitle display, and enables teletext dis-
play, if available.
19
Pause button keeps a picture from the programme on the
air as it is.
20
UHF button displays the RF modulator settings.
21
TV/STB button toggles between digital TV from the digital
receiver and analogue TV from the conventional aerial
broadcasting.
22
M1 button displays the multipicture selection window. (avail-
able only in specific models)
23
N/P button switches the colour encoding method.
24
Sleep button sets the sleep timer. The digital receiver is
turned off to standby mode when a specified time is
elapsed,
5
Chapter 2
Installation
2.1 Packing Contents
Unpack your receiver and check the following cables and ac-
cessories are also included in the package:
•1 remote control.
•2 batteries (AAA 1.5 V).
•1 user manual
2.2 Safety Precautions
Please read the following safety precautions carefully for your
safety.
•The mains supply must be 90 to 250 volt. Check it before
connecting the digital receiver to the mains supply.
•This digital receiver is designed to receive, record and
play back video and audio signals. Any other use is ex-
pressly prohibited.
6Installation
•When setting up the digital receiver, make sure it is in
a horizontal position and that the mains socket is easily
accessible.
•Do not expose the digital receiver to any moisture. The
digital receiver is designed for use in dry rooms. If you
do use it outdoors, please ensure that it is protected from
moisture, such as rain or splashing water. Do not place
any vessels such as vases on the digital receiver. These
may be knocked over and spill fluid on the electrical
components, thus presenting a safety risk.
•Do not place the digital receiver close to heating units or
in direct sunlight, as this will impair cooling. Place the
digital receiver on a hard, level surface. Do not lay any
objects such as magazines on the digital receiver. When
placed in a cabinet, make sure there is a minimum space
of 10 cm around it.
•Thunderstorms are a danger to all electrical devices. Even
if the digital receiver player is switched off, it can be
damaged by a lightning strike to the mains or the an-
tenna. Always disconnect the mains and antenna plugs
during a storm.
•Never open the digital receiver casing under any cir-
cumstances. Warranty claims are excluded for damage
resulting from improper handling.
