Topfield TF 7700 HTCO Manuale utente
TOPFIELD
TF 7700 HTCO
User Guide
High Definition
Digital Terrestrial Receiver
CONAX
The lighting flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to consititute a risk of electric shock to a person.
The exclamation point, within an equilateral triangle, is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the product.
iv Contents
Contents
Contents iv
1 Introduction 1
1.1 Features ............................... 1
1.2 Controlling the digital receiver .................. 2
1.2.1 The front panel ....................... 3
1.2.2 The remote control ..................... 5
2 Setup 7
2.1 Unpacking .............................. 7
2.2 Safety precautions ......................... 7
2.3 Rear panel connections ....................... 9
2.4 Connecting up your digital receiver ............... 10
2.4.1 Connecting the antenna .................. 10
2.4.2 Connecting to your television set ............ 10
2.4.3 Connecting to your video cassette recorder ....... 13
2.5 Switching on for the first time ................... 13
2.5.1 Inserting batteries in the remote control ......... 13
2.5.2 Powering on and checking picture ............ 14
3 Preference Settings 15
3.1 Language settings .......................... 15
3.2 Video and audio settings ...................... 17
3.2.1 Colour model ........................ 17
3.2.2 Video cassette recorder .................. 17
Contents v
3.2.3 Television aspect ratio ................... 18
3.2.4 High definition television ................. 19
3.2.5 Audio mode ........................ 20
3.3 Local time setting .......................... 20
3.4 Parental control ........................... 21
3.5 Adjusting the on-screen display .................. 23
3.6 Selecting Favourite Network ................... 23
4 Service Search 24
4.1 Searching broadcasting services .................. 24
4.2 Resetting to factory settings .................... 25
5 Daily Usage 26
5.1 Volume control ........................... 26
5.2 Watching television ......................... 26
5.2.1 The services list ....................... 26
5.2.2 The favourite services list ................. 28
5.2.3 Viewing programme information ............ 29
5.2.4 Selecting audio tracks ................... 30
5.2.5 Selecting subtitle tracks .................. 30
5.2.6 Viewing teletext ...................... 30
5.3 Viewing electronic programme guide .............. 31
5.4 Watching multifeed programme ................. 32
5.5 Making timer events ........................ 32
6 Listing Services 35
6.1 Editing the favourite list ...................... 35
6.2 How to use on-screen keyboard .................. 37
7 Firmware Update 38
Index 39
1
Chapter 1
Introduction
The TF 7700 HTCO digital receiver is fully compliant with the
international Digital Video Broadcasting (DVB) standard, and
thus is able to receive digital broadcasts of that standard. For
its operation you need an antenna, which must be installed
appropriately.
NOTE
In general we equate a channel with a frequency. Unlike ana-
logue broadcasts, however, digital broadcasts are not all as-
signed to their own frequencies; instead, multiple television
broadcasts are transmitted through a single frequency. The fre-
quency in digital broadcasting is usually called transponder. To
reduce confusion in this manual, the word
service
is preferably
used than
channel
as a term to indicate one television or radio
broadcast.
1.1 Features
The TF 7700 HTCO digital receiver has the following features:
• Can store up to 2000 television and radio services.
2 Introduction
•
You can create favourite lists of your favourite services.
•
You can view information about the current television or
radio programme.
•
Has an electronic programme guide that provides an
overview of scheduled programmes.
1.2 Controlling the digital receiver
You can operate the digital receiver with the remote control
and the buttons on the front panel.
NOTE
When the digital receiver is off but plugged into a wall outlet,
we say that it is in standby mode; on the other hand, when it is
on, it is in operation mode. Even when you are not using the
digital receiver, you should keep it plugged into a wall outlet
to be in standby mode so that it can run timer events at any
time.
1.2 Controlling the digital receiver 3
1.2.1 The front panel

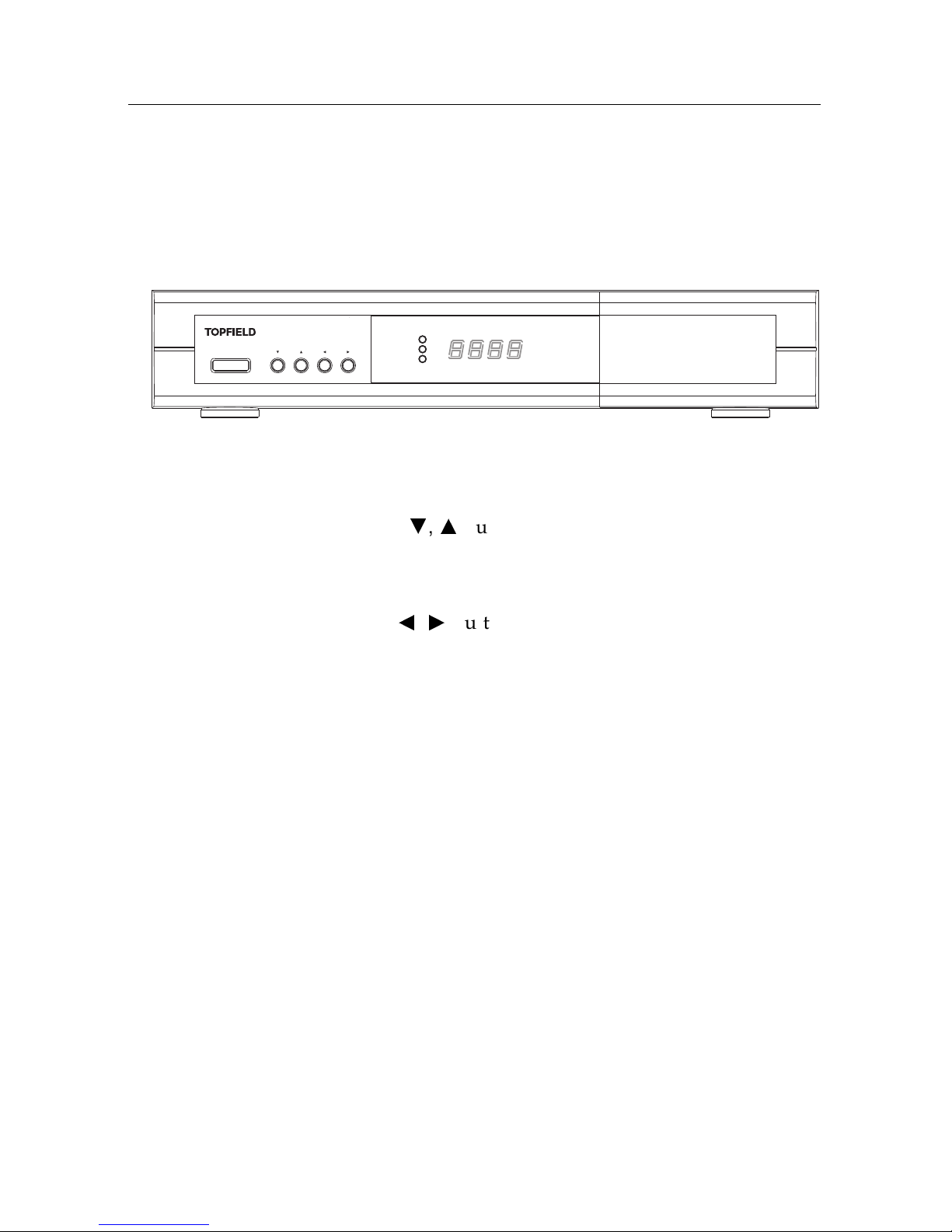

The front panel of the digital receiver has buttons to control the
digital receiver, and specific lamps and a display to indicate its
status. The following indicates what they mean.
STANDBY
CHANNEL
VOLUME
TV/STB
REMOTE
STANDBY
STANDBY
button switches the digital receiver between
standby mode and operation mode.
CHANNEL
c
,
a
buttons switch to previous or next service.
They are also used to navigate in menus and interactive
screens.
VOLUME
b
,
d
buttons decrease or increase the volume.
They are also used to change values for menu options.
TV/STB
lamp lights up while your video recorder operates
instead of the digital receiver. See
§
3.2.2 for more
details.
REMOTE
lamp lights up whenever you press a button on
the remote control.
STANDBY
lamp lights up while the digital receiver is in
standby mode.
Front display
displays the current time in standby mode,
and displays the current service in operation mode.
4 Introduction

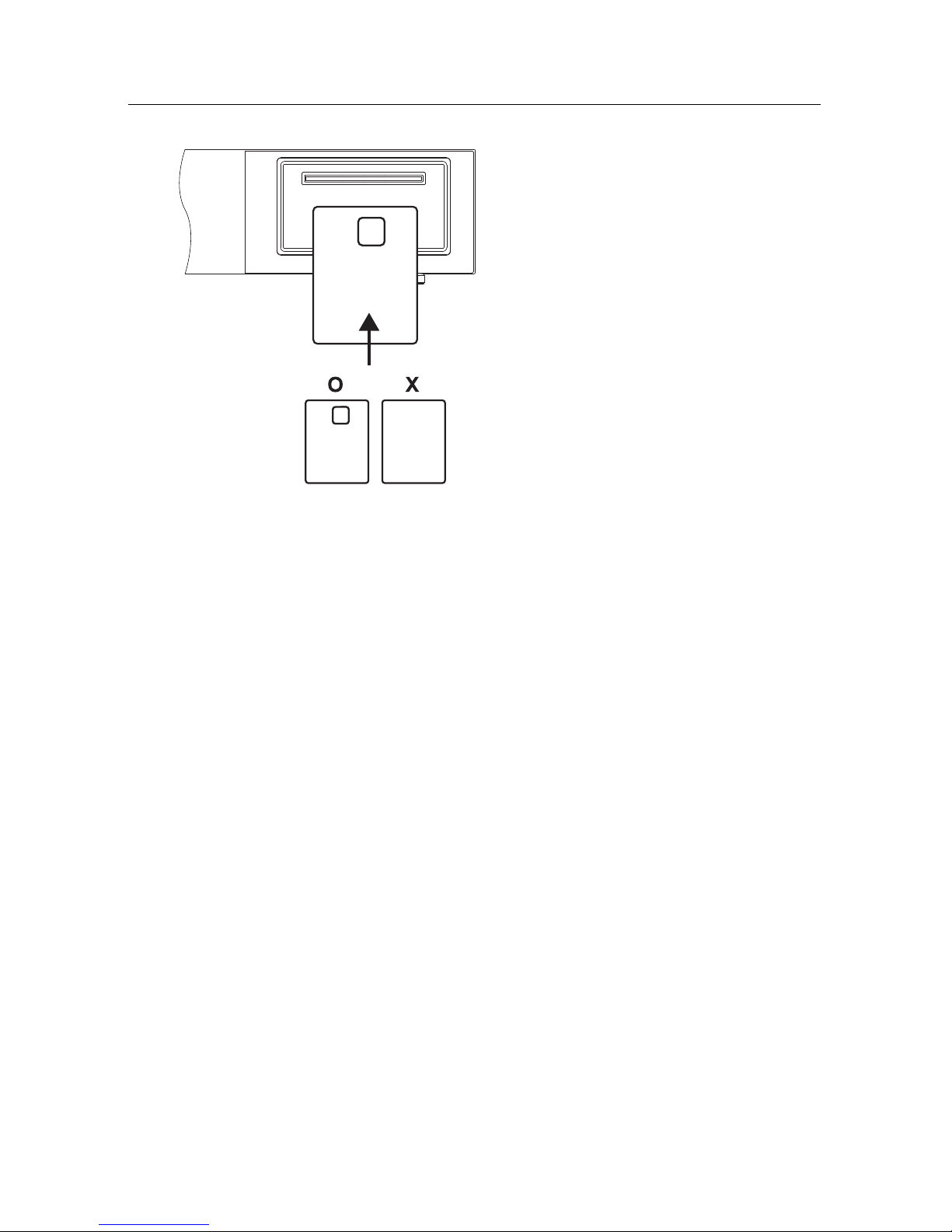

Pull the right edge of the front panel
to open the flap. You have to insert
your subscription card into the front
slot to watch pay services. The side on
which the electronic chip is mounted
must face upward.
