Topfield TF 7700 HSCI Manuale utente

TOPFIELD

TF 7700 HSCI

User Guide

High Deﬁnition

Digital Satellite Receiver

Common Interface

Contents iii

Contents

1 Introduction 1

1.1 Features ............................... 1

1.2 Controlling the digital receiver .................. 2

1.2.1 The front panel ....................... 3

1.2.2 The remote control ..................... 4

1.3 What is common interface? .................... 5

2 Setup 7

2.1 Unpacking .............................. 7

2.2 Safety precautions ......................... 7

2.3 Rear panel connections ....................... 9

2.4 Connecting up your digital receiver ............... 10

2.4.1 Connecting the antenna .................. 11

2.4.2 Connecting to your television .............. 11

2.4.3 Connecting to your video cassette recorder ....... 14

2.5 Switching on for the ﬁrst time ................... 14

2.5.1 Inserting batteries in the remote control ......... 14

2.5.2 Powering on and checking picture ............ 15

iv Contents

3 Preference Settings 16

3.1 Language settings .......................... 16

3.2 Video and audio settings ...................... 18

3.2.1 Colour model ........................ 18

3.2.2 Video cassette recorder .................. 18

3.2.3 Television aspect ratio ................... 19

3.2.4 High deﬁnition television ................. 19

3.2.5 Sound mode ........................ 20

3.3 Local time setting .......................... 21

3.4 Parental control ........................... 23

3.5 Adjusting the on-screen display .................. 24

4 Service Search 26

4.1 Searching broadcasting services .................. 26

4.1.1 Conﬁguring LNB settings ................. 26

4.1.2 Conﬁguring DiSEqC 1.2 settings ............. 29

4.1.3 Conﬁguring USALS settings ............... 30

4.1.4 Searching services ..................... 31

4.2 Editing the transponder list .................... 34

4.3 Resetting to factory settings .................... 35

4.4 Resetting to installer settings ................... 35

5 Daily Usage 37

5.1 Volume control ........................... 37

5.2 Watching television ......................... 37

5.2.1 The services list ....................... 37

5.2.2 The favourite services list ................. 40

5.2.3 Viewing programme information ............ 41

5.2.4 Selecting audio tracks ................... 42

5.2.5 Selecting subtitle tracks .................. 42

Contents v

5.2.6 Viewing teletext ...................... 42

5.3 Viewing electronic programme guide .............. 43

5.4 Watching multifeed programme ................. 44

5.5 Making timer events ........................ 44

6 Listing Services 47

6.1 Editing the services list ....................... 47

6.2 Editing the favourite list ...................... 49

6.3 How to use on-screen keyboard .................. 51

6.4 Transferring receiver data ..................... 51

7 Firmware Update 53

7.1 Checking the ﬁrmware information ............... 53

7.2 From a USB memory device .................... 55

7.3 From your computer via RS-232 port ............... 56

7.4 From another digital receiver via RS-232 port .......... 57

7.5 Over the air ............................. 58

Index 59

Chapter 1

Introduction

The TF 7700 HSCI digital receiver is fully compliant with the

international Digital Video Broadcasting (DVB) standard, and

can receive digital broadcasts. For its operation you need an

antenna, which must be installed appropriately.

NOTE

In general we equate a channel with a frequency. Unlike ana-

logue broadcasts, however, digital broadcasts are not all as-

signed to their own frequencies; instead, multiple television

broadcasts are transmitted through a single frequency. The fre-

quency in digital broadcasting is usually called transponder. To

reduce confusion in this manual, the word

service

is preferably

used than

channel

as a term to indicate one television or radio

broadcast.

1.1 Features

The TF 7700 HSCI digital receiver has the following features:

•

Supports DiSEqC 1.0, DiSEqC 1.1, DiSEqC 1.2 and US-

ALS.

2 Introduction

• Can store up to 5000 television and radio services.

• You can edit the services list.

• You can create favourite lists of your favourite services.

•

You can view information about the current television or

radio programme.

•

Has an electronic programme guide that provides an

overview of scheduled programmes.

•

You can update the ﬁrmware of the digital receiver to the

latest version, provided by the manufacturer.

1.2 Controlling the digital receiver

The digital receiver can be operated with the remote control

and the buttons on the front panel.

NOTE

When the digital receiver is off but plugged into a wall outlet,

we say that it is in standby mode; on the other hand, when it is

on, it is in operation mode. Even when you are not using the

digital receiver, you should keep it plugged into a wall outlet

to be in standby mode so that it can run timer events at any

time.

1.2 Controlling the digital receiver 3

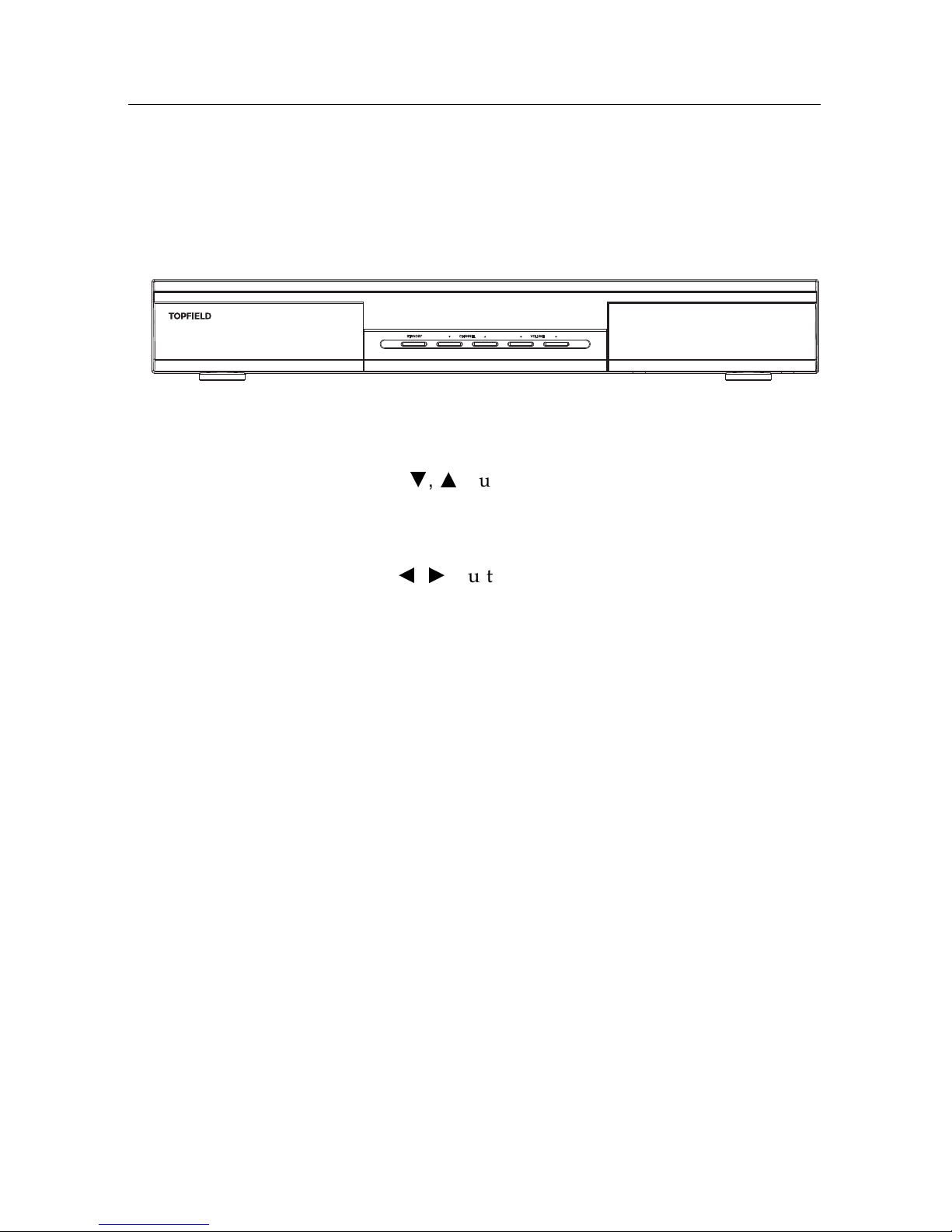

1.2.1 The front panel

The front panel of the digital receiver has buttons to control the

digital receiver, and speciﬁc lamps and a display to indicate its

status. The following indicates what they mean.

STANDBY

button switches the digital receiver between

standby mode and operation mode.

CHANNEL

buttons switch to previous or next service.

They are also used to navigate in menus and interactive

screens.

VOLUME

buttons decrease or increase the volume.

They are also used to change values for menu options.

Front display

displays the current time in standby mode,

and displays the current service in operation mode.

4 Introduction

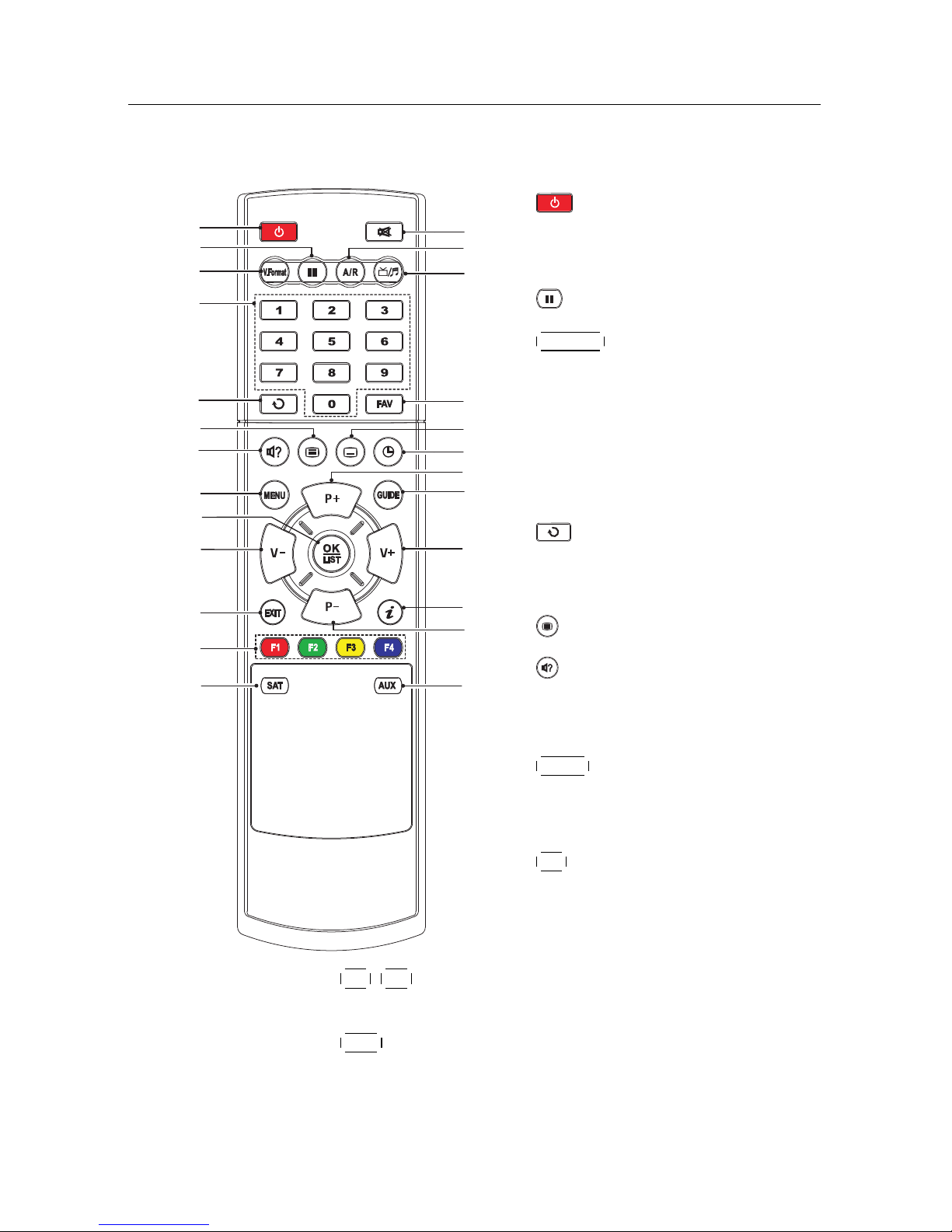

1.2.2 The remote control



button switches the digital re-

ceiver between standby mode and

operation mode.

pauses live television.









V.Format

changes video resolution.

See § 3.2.4 for more details.



Numeric buttons are used to en-

ter a service number for service

change or to specify values for

menu options.



switches between the current

service and the previously viewed

one.

displays teletext.

is used to select an audio track

and a sound mode, or a video

track of multifeed programme.









displays the main menu. It

is also used to return to the previ-

ous menu from a submenu.









displays the services list. See

5.2.1 for more details. It is also

used to select a menu item.









V−









V+

buttons decrease or increase the volume. They

are also used to change values for menu options.









EXIT is used to exit the current screen.



These buttons have different functions per menu. They

will be guided by on-screen help.
