Topfield CBC-5200 Manuale utente

CBC - 5200

User Guide

Digital Cable Receiver

CONAX

Use only with the cart, stand, tripod, bracket, or

table speciﬁed by the manufacturer or sold with

the apparatus. When a cart is used, use caution

when moving the cart/apparatus combination to

avoid injury from tip-over.

•

Changes or modiﬁcations not expressly approved by the

party responsible for compliance could void the user’s

authority to operate the equipment.

•

The mains plug, which is used as a disconnect device,

shall remain readily operable.

The lightning ﬂash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of uninsulated “dangerous voltage” within the

product’s enclosure that may be of sufﬁcient magnitude

to constitute a risk of electric shock to a person.

The exclamation point, within an equilateral triangle, is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in

the literature accompanying the product.

iv CONTENTS

Contents

Contents iv

1 Introduction 1

1.1 Features ............................... 1

1.2 Controlling the digital receiver .................. 2

1.2.1 The front panel ....................... 3

1.2.2 The remote control ..................... 4

2 Setup 6

2.1 Unpacking .............................. 6

2.2 Safety precautions ......................... 6

2.3 Rear panel connections ....................... 8

2.4 Connecting up your digital receiver ............... 9

2.4.1 Connecting to the broadcasting cable .......... 9

2.4.2 Connecting to your television set ............ 9

2.4.3 Connecting to your video cassette recorder ....... 11

2.5 Inserting batteries in the remote control ............. 11

2.6 Switching on for the ﬁrst time ................... 12

2.6.1 Powering on and checking picture ............ 12

3 Preference Settings 13

3.1 Language settings .......................... 13

3.2 Video and audio settings ...................... 14

3.2.1 Television standard .................... 14

3.2.2 Colour model ........................ 15

CONTENTS v

3.2.3 Video cassette recorder .................. 15

3.2.4 Television aspect ratio ................... 16

3.2.5 Audio mode ........................ 16

3.3 Local time setting .......................... 17

3.4 Parental control ........................... 19

3.5 Adjusting the On-Screen Display ................. 20

4 Service Search 22

4.1 Searching broadcasting services .................. 22

4.2 Resetting to factory settings .................... 23

5 Daily Usage 25

5.1 Volume control ........................... 25

5.2 Watching television ......................... 25

5.2.1 The services list ....................... 25

5.2.2 The favourite services list ................. 26

5.2.3 Viewing programme information ............ 28

5.2.4 Selecting audio tracks ................... 29

5.2.5 Selecting subtitle tracks .................. 29

5.2.6 Viewing teletext ...................... 29

5.3 Viewing electronic programme guide .............. 29

5.4 Watching multifeed programme ................. 31

5.5 Making timer events ........................ 31

6 Listing Services 34

6.1 Editing the services list ....................... 34

6.2 Editing the favourite list ...................... 36

6.3 How to use on-screen keyboard .................. 38

6.4 Transferring receiver data ..................... 38

7 Firmware Update 40

7.1 Checking the ﬁrmware information ............... 40

7.2 From your computer via RS-232 port ............... 42

7.3 From another digital receiver via RS-232 port .......... 43

Index 44

Chapter 1

Introduction

The CBC - 5200 digital receiver is fully compliant with the inter-

national Digital Video Broadcasting (DVB) standard, and thus

is able to receive digital broadcasts of that standard.

NOTE

In general we equate a channel with a frequency. However,

unlike analogue broadcasts, digital broadcasts are not all as-

signed to their own frequencies; instead, multiple television

broadcasts are transmitted through a single frequency. The fre-

quency in digital broadcasting is usually called transponder. To

reduce confusion in this manual, the word

service

is preferably

used than

channel

as a term to indicate one television or radio

broadcast.

1.1 Features

The CBC - 5200 digital receiver has the following features:

• Can store up to 2000 television and radio services.

• You can edit the services list.

2 Introduction

• Can create favourite lists of your favourite services.

•

Can view information about the current television or

radio programme.

•

Has an electronic programme guide that provides an

overview of scheduled programmes.

1.2 Controlling the digital receiver

You can operate the digital receiver with the remote control or

the buttons on the front panel.

NOTE

When the digital receiver is off but plugged into a wall outlet,

we say that it is in standby mode; on the other hand, when it is

on, it is in operation mode. Even when you are not using the

digital receiver, you should keep it plugged into a wall outlet

to be in standby mode so that it can run timer events at any

time.

1.2 Controlling the digital receiver 3

1.2.1 The front panel

The front panel of the digital receiver has buttons to control

the digital receiver, speciﬁc lamps and a display to indicate its

status. The following indicates what they mean.

Front display

shows the current time in standby mode, and

displays the current service in operation mode.

button switches the digital receiver between standby

mode and operation mode.

CHANNEL

buttons switch to previous or next service.

They are also used to navigate in menus and interactive

screens.

STANDBY

lamp lights up while the digital receiver is in

standby mode.

MESSAGE lamp is not used.

IR/RADIO

lamp blinks whenever you press a button on the

remote control.

You have to insert your subscription card into the front slot to

watch pay services.

4 Introduction

1.2.2 The remote control



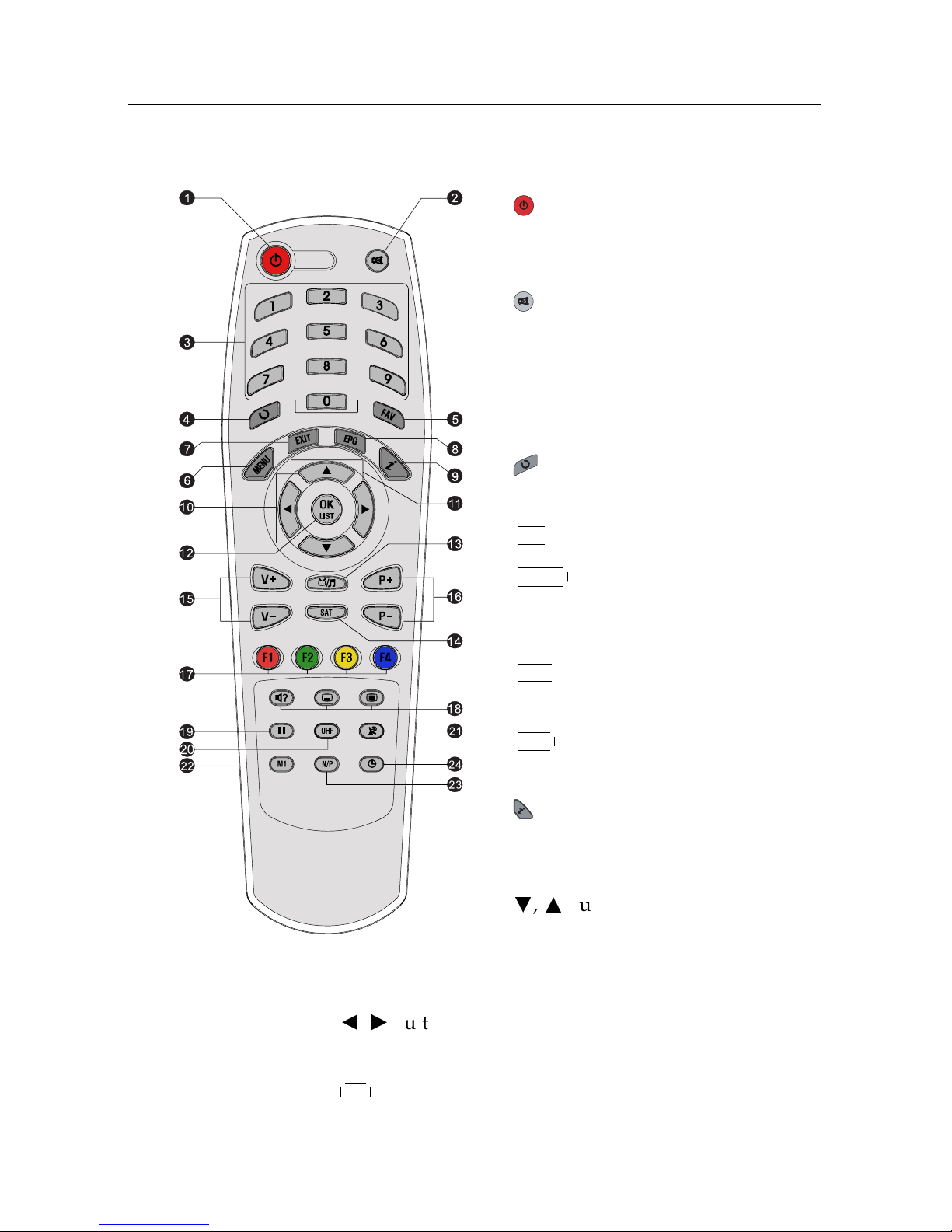

button switches the digital re-

ceiver between standby mode and

operation mode.



mutes the sound. Press again to

switch it back on.



Numeric buttons are used to enter a

service number for service change or

to specify values for menu options.

switches between the current ser-

vice and the previously viewed one.









FAV displays the favourite lists.









displays the main menu. It is

also used to return to the previous

menu from a submenu.









EXIT

is used to exit a menu or to hide

on-screen info.









EPG

displays the electronic pro-

gramme guide.



displays the service information

box. It is also used to display more

information about a programme.



buttons switch to previous or

next service. They are also used to

navigate in menus and interactive

screens.



buttons decrease or increase the volume. They are

also used to change values for menu options.









displays the services list. See

5.2.1 for more details.
