PROGRAMMABLE CONTROLLERS

OIS50

Operator Interface Station

An Economical Device for

Monitoring & Changing Data

Toggle Device / Write to Register

Large Number of Special Objects

Unlimited Screens (based on memory)

256 Definable Alarms

Auto Detect Communications Port

Data Entry, Message Display, & Alarm Notification

In A Small Economical Package

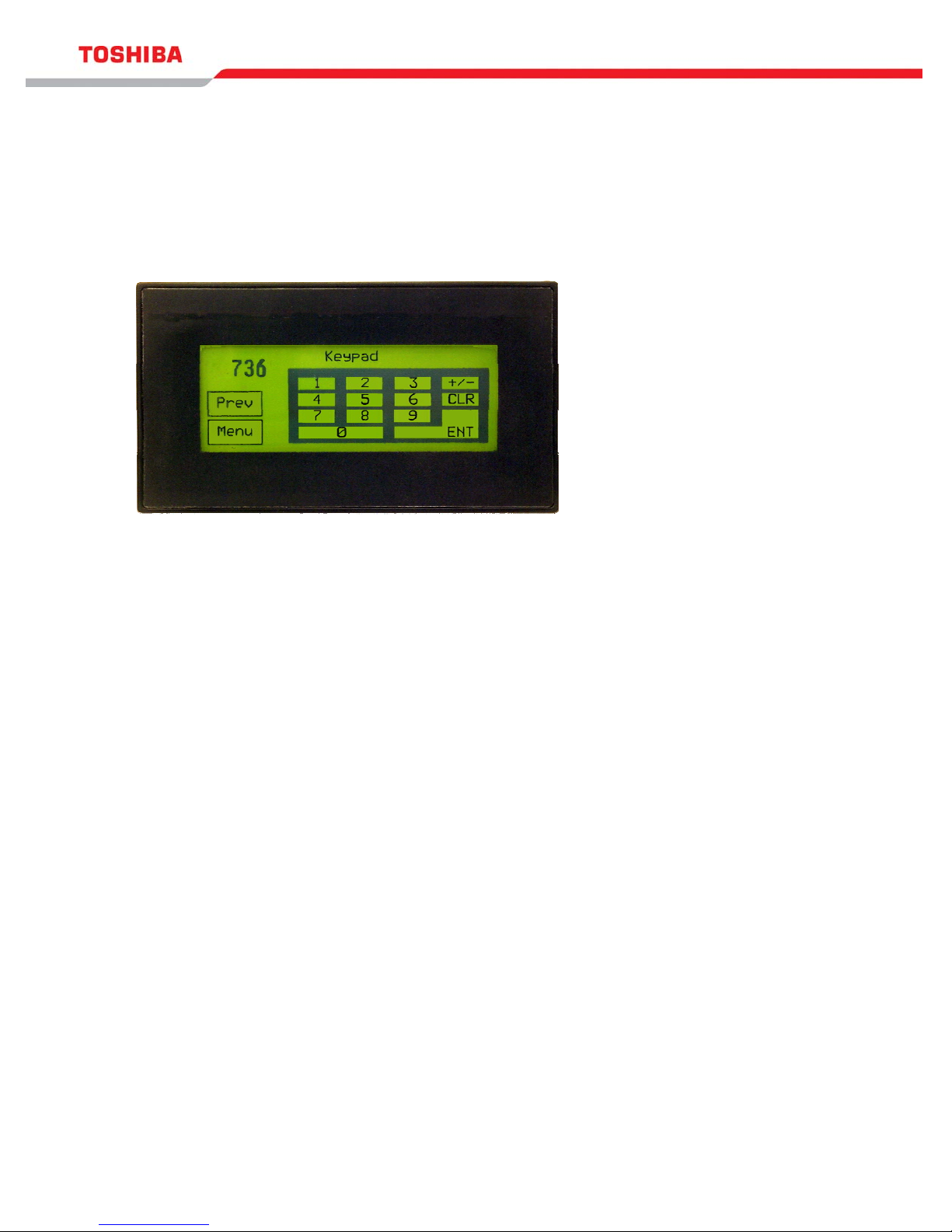

The OIS50 is a user definable 192 x 64 pixel (4.1” analog resistive) touch screen. The user can

define a touch key actions for three events: 1. When the key is pressed, 2. While the key is

pressed, 3. When the key is released. Multiple tasks can also be assigned to a single

keystroke.

Tasks include:

Coil operations (such as coil on, off, toggle, hold on or hold off).

Register operations (such as write constant to registers, copy tags, etc.).

Screen operations (such as go to a specific screen, go to the next defined screen, go to

previous screen etc.),

Alarm operations (acknowledge alarm, print alarm, select next/ previous alarm etc.).

Each user defined touch key can have different functions depending on the active screen. This

can be used effectively to navigate easily through the application. Password protection can be

defined for each key.

Changing Data

Data entry objects can be displayed on the OIS50 where data is to be changed. A numeric

keypad object can be defined on the screen. Since every user wants different ways to edit the

data, the keypad object provides full flexibility in cursor control and key operations during data

entry. Several pre-defined keypad types are available.

Connected Devices

The OIS50 connects to all Toshiba T-Series PLCs, the Computer Link Port of the V2000/3000

Series Integrated Controllers, Toshiba ASDs and the V1000 Loop Controller. Check with

Toshiba for other devices.

Available Objects

Various graphic objects are available in the OIS50 for display of data, entering data, or alarm notification.

These include:

Keypads Switches Bit Map Pictures

Bit Map Buttons Bar Graphs Lamps

Multi State Objects Circles Rectangles

Push Buttons Lines

Specifications

Power 24 VDC ± 10%

3 W maximum

Bezel IP 65 rated Touch Screen

Tem

erature O

eratin

: 0 to 50 de

rees C

Stora

e: -25 to 80 de

rees C

Humidit

10% to 90%

(

Non condensin

Bezel Size 140.1 W X 77.3 H x 35.1 D mm

Panel cutout 132.2 W X 68.6 H mm

Communication Two serial ports, one for

connecting to the PLC and one

for programming / serial printing

Immunit

to ESD Level 3 as

er IEC1000-4-2

Immunit

to Transients Level 3 as

er IEC1000-4-4

Radiated Susce

tibilit

Level 3 as

er IEC1000-4-3

Emissions EN55011 CISPR

Dimensional Sketch

(

All dimensions are in mm

)

ADJUSTABLE SPEED DRIVES MOTORS CONTROLS UPS INSTRUMENTATION PLC DCS

Available Through:

INDUSTRIAL DIVISION

13131 West Little York Rd Houston, TX 77041

Ph: 713-466-0277 Fax: 713-466-8773

US: 800-231-1412 Canada: 800-872-2192 Mexico: 001-800-527-1204

Email: [email protected] Website: www.tic.toshiba.com
