TOSHIBA Bluetooth Module Installation

This sheet provides information on installing the Bluetooth module in the

TECRA S3.

Installing the Bluetooth module

1. Discharge static electricity from your body by touching a metal object,

before you handle the card.

2. Turn off the power and disconnect the AC adaptor.

3. Turn the computer upside down.

4. Remove the battery pack from the computer. For instructions on

removing the battery pack, refer to Chapter 6 in the online manual.

5. Turn the computer right side up, open the display panel and make it flat.

6. Insert a thin object into the notches of both sides of the speaker cover

and lift it out.

7. Remove two screws securing the keyboard.

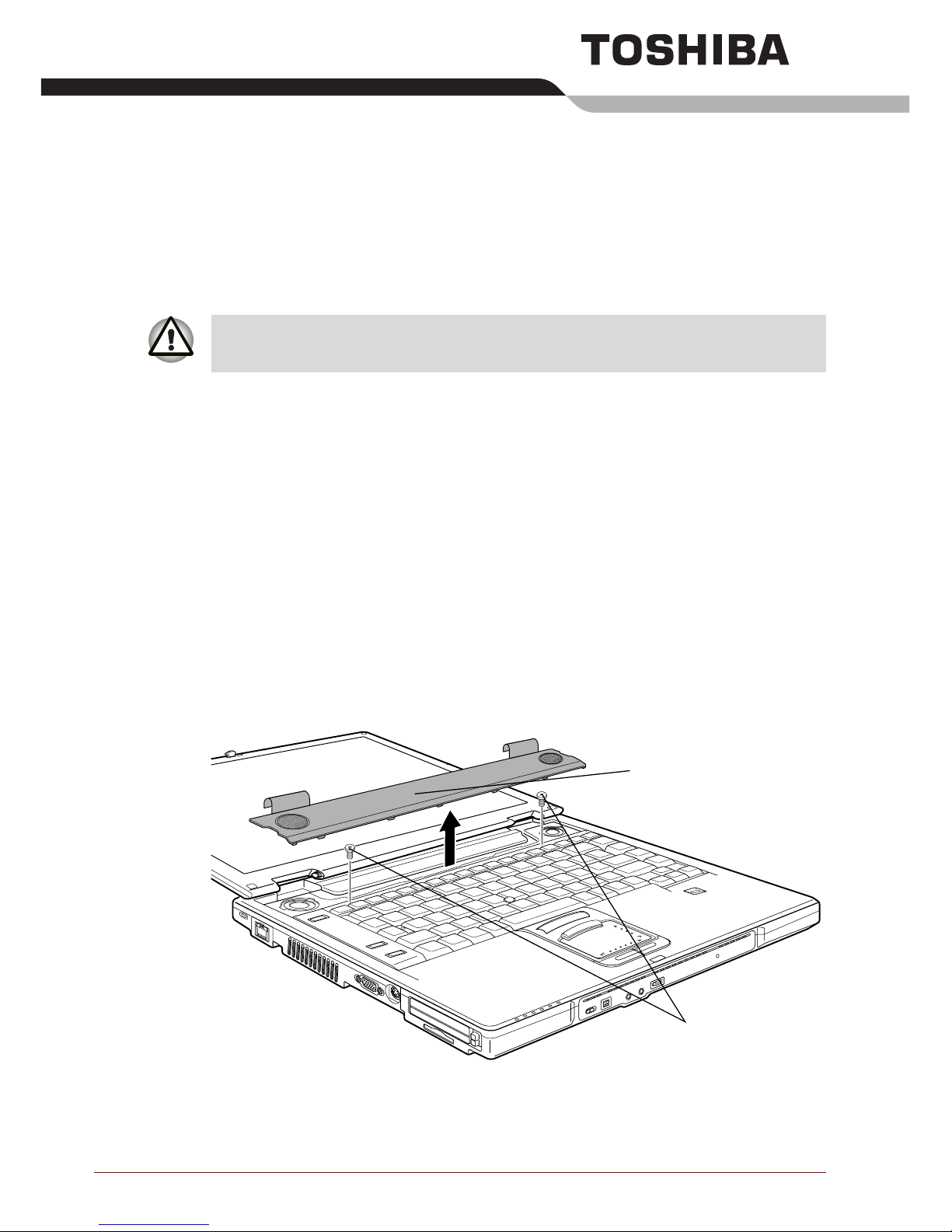

Figure 1: Removing the speaker cover and two screws

This sheet is for information only. The Bluetooth module must be installed

by dealers of TOSHIBA or TOSHIBA OEM products.

Speaker cover

Screws

GB-2

TOSHIBA Bluetooth Module Installation

8. Lift up the back of the keyboard while releasing the three latches, rotate

it toward you and lay it face down on the palm rest.

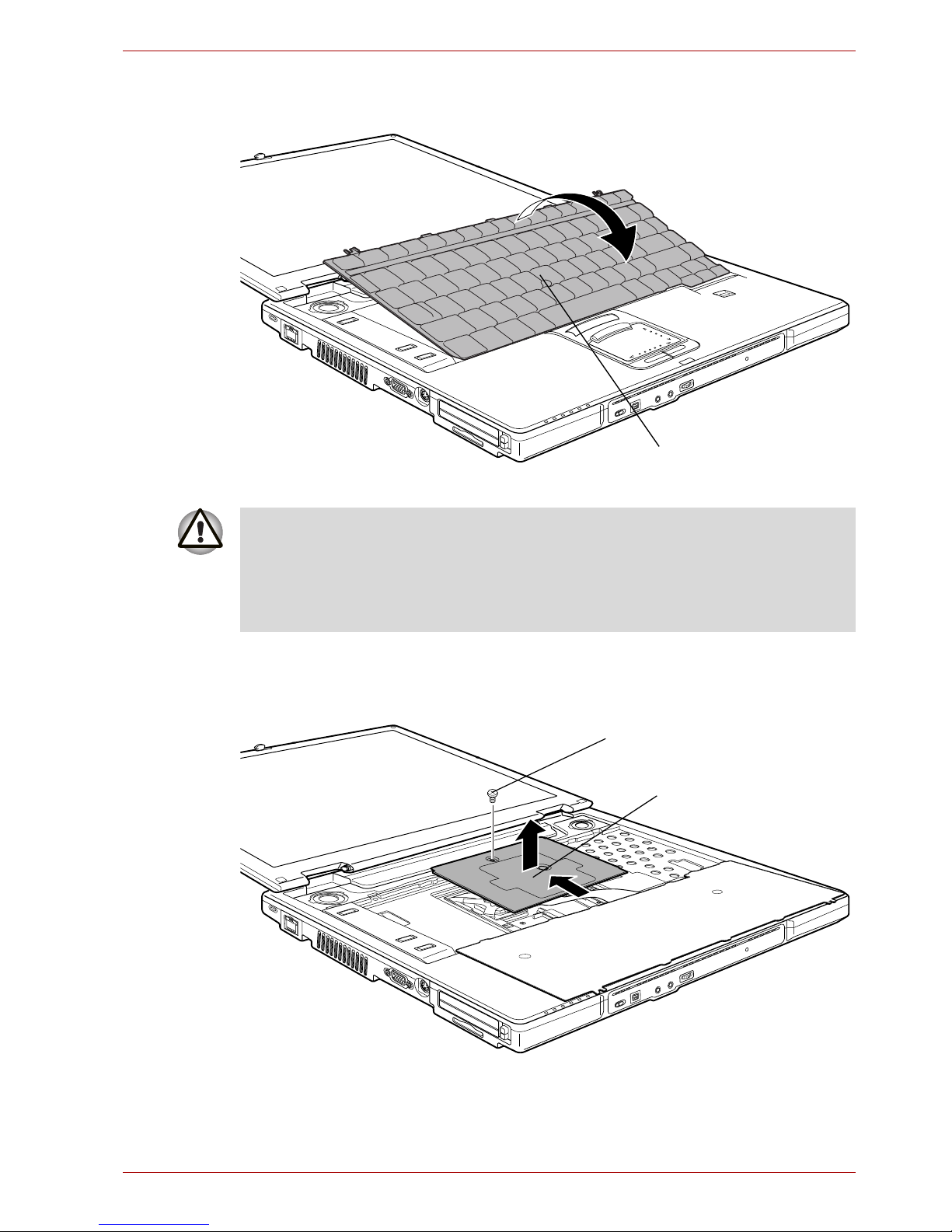

Figure 2: Rotating the keyboard

9. Remove one screw securing the keyboard support plate.

10. Peel off the adhered portion (adhered to the CPU holder) of the

keyboard support plate, and slid to remove it.

Figure 3: Removing the keyboard support plate

Keyboard

When you move the keyboard forward, do not touch the keys. Doing so

could cause misalignment. Hold the keyboard by the sides and lay it gently

on the palm rest.

The keyboard is connected to the computer by the keyboard ribbon cable.

Be careful not to apply tension to this cable when you lift up the keyboard.

Screw

Keyboard support plate

GB-3

TOSHIBA Bluetooth Module Installation

11. Disconnect the keyboard ribbon cable and remove the keyboard.

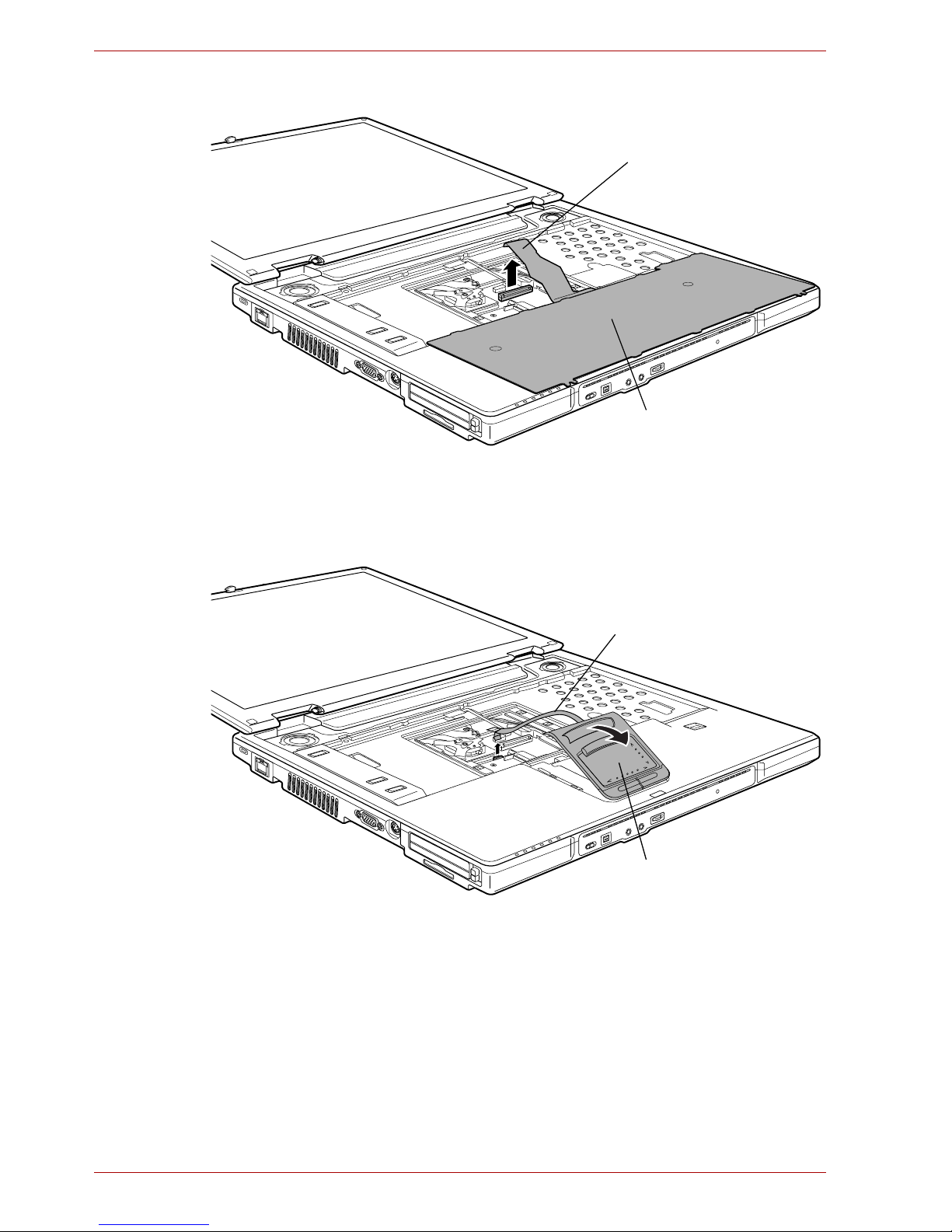

Figure 4: Removing the keyboard

12. Disconnect the touch pad cable.

13. Remove the touch pad assembly while releasing the latches on both

sides of it.

Figure 5: Removing the touch pad assembly

14. Connect the antenna cable to the Bluetooth module.

15. Connect the other end of the flexible cable to the Bluetooth module.

16. Connect one end of the flexible cable to the connector on the computer.

17. Seat the Bluetooth module.

18. Pass the antenna cable to the slit.

Keyboard ribbon cable

Keyboard

Touch pad cable

Touch pad assembly

GB-4

TOSHIBA Bluetooth Module Installation

Figure 6: Connecting the flexible cable and antenna cable

19. Install the touch pad assembly to the slot of the palm rest and connect

the touch pad cable.

20. Seat the keyboard and connect the keyboard ribbon cable.

21. Slide the keyboard support plate toward you and attach it while sticking

the adhered portion on to the CPU holder.

22. Secure one screw of the keyboard support plate.

23. Seat the keyboard down, set the three latches and screw in the two

screws.

24. Seat the speaker cover and press to secure latches.

25. Close the display panel and turn the computer upside down.

26. Install the battery pack.

Hold the Bluetooth module by the sides only. Do not touch the connector

on the card or on the computer. Debris on the connectors may cause

access problems. Be careful not to apply pressure to the ICs on the

Bluetooth module.

Fold up a flexible cable after seating the Bluetooth module.

Flexible cable

Antenna cable

Check that the touch pad cable is above the antenna cable.

GB-5

Applying labels

The figures below show the locations of labels.

Label positions

The letters A and B correspond to labels identified in later illustrations. The

applied labels will vary according to your computer’s configuration.

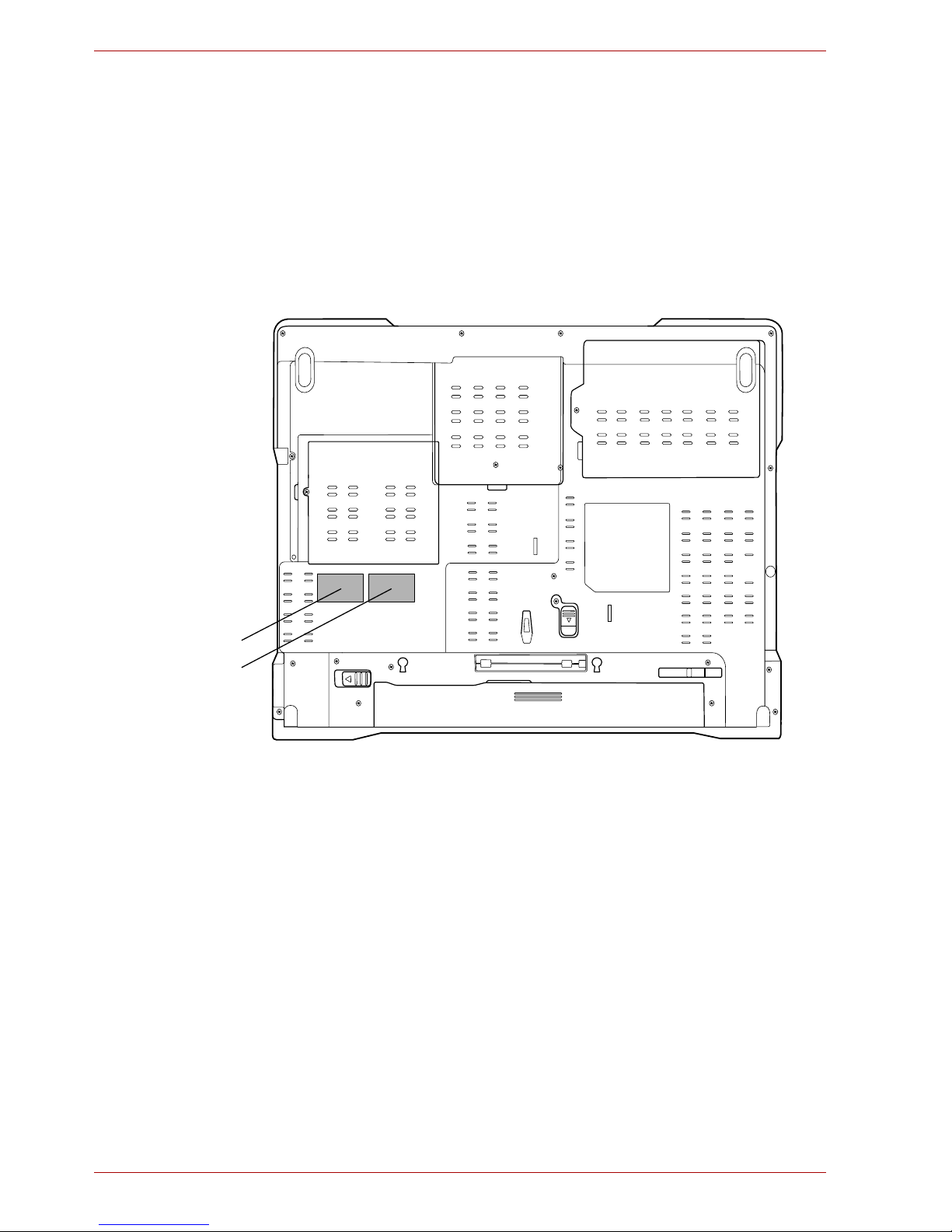

Figure 7: Label positions

GB-6

Applying labels

New labels

Refer to figures above and below when you apply new labels.

1. Remove the battery pack. Refer to Chapter 6 in the online manual for

details.

2. Apply the Bluetooth label to position B.

These labels are samples.

Figure 8: Bluetooth label

Figure 9: Wireless LAN label

FR-7

Installation du module Bluetooth

TOSHIBA

Cette fiche vous informe sur l’installation du module Bluetooth sur le

TECRA S3.

Installation du module Bluetooth

1. Déchargez-vous de toute électricité statique en touchant un objet

métallique avant de manipuler la carte.

2. Mettez l’ordinateur hors tension et déconnectez l’adaptateur secteur.

3. Retournez l’ordinateur (écran vers la surface de travail).

4. Sortez la batterie de l’ordinateur. Pour des instructions sur le retrait de

la batterie principale, reportez-vous au chapitre 6 du manuel de

l’utilisateur en ligne.

5. Remettez l’ordinateur à l’endroit et ouvrez complètement l’écran.

6. Insérez un objet fin entre les encoches situées des deux côtés du capot

du haut-parleur et soulevez ce dernier.

7. Enlevez les deux vis fixant le clavier.

Illustration 1 : Retrait du capot de haut-parleur et deux vis

Cette fiche est à conserver pour référence. Le module Bluetooth doit être

installé par des revendeurs de produits TOSHIBA ou TOSHIBA OEM.

Capot du haut-parleur

Vis

FR-8

Installation du module Bluetooth TOSHIBA

8. Soulevez l’arrière du clavier tout en relâchant les trois loquets, faites-le

tourner vers vous et posez le côté comportant les touches sur le

repose-mains.

Illustration 2 : Rotation du clavier

9. Enlevez la vis de fixation de la plaque de support du clavier.

10. Retirez la partie adhérente (sur le boîtier de l’unité centrale) de la

plaque de support du clavier et faites-la glisser pour la retirer.

Illustration 3 : Retirez la plaque du support de clavier.

Clavier

N’appuyez pas sur les touches lorsque vous déplacez le clavier vers

l’avant. Cela pourrait entraîner un désalignement. Tenez le clavier par les

cotés et posez-le avec précaution sur le repose-mains.

Le clavier est connecté à l’ordinateur par un câble souple. Veillez à ne pas

tirer sur ce câble en soulevant le clavier.

Vis

Plaque de support du

clavier
