2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)

OPERATION OF INSTRUMENTS AND

CONTROLS

Overview of instruments and controls

Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument cluster overview 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Indicator symbols on the instrument panel 7. . . . . . . . . . . . . . . . . . . . . . .

04 01.06

SECTION

WWW.MANUALS.WS

22004 ECHO S/D from Feb. ’04 Prod. (OM52573U)

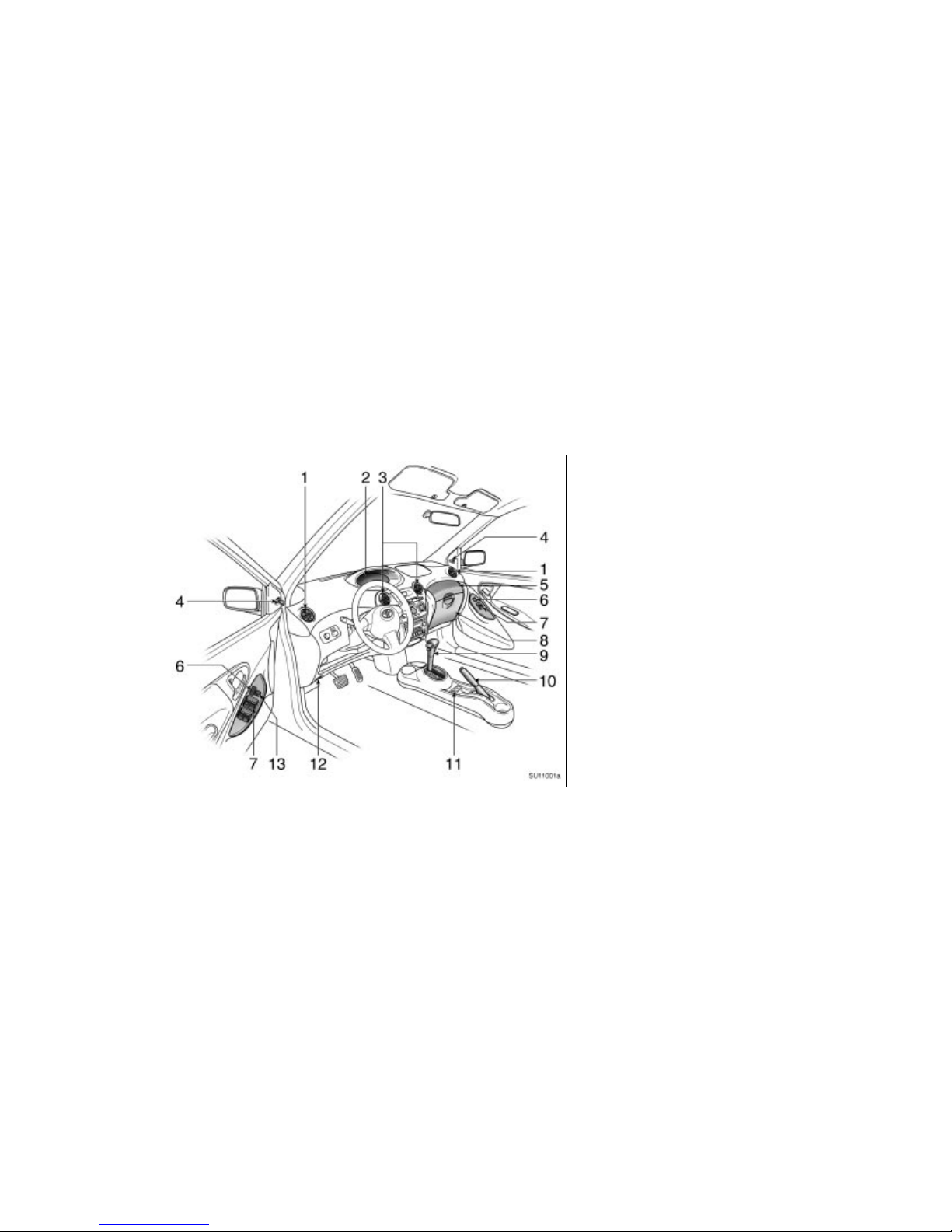

Instrument panel overview

1. Side vents

2. Instrument cluster

3. Center vents

4. Rear view mirror remote control levers

5. Auxiliary box

6. Power door lock switches

(with power windows)

7. Power window switches

8. Glove box

9. Automatic transmission selector lever or

manual transmission gear shift lever

10. Parking brake lever

11. Power door lock switch

(without power windows)

12. Hood lock release lever

13. Window lock switch

04 01.06

SU11001a

WWW.MANUALS.WS

2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)

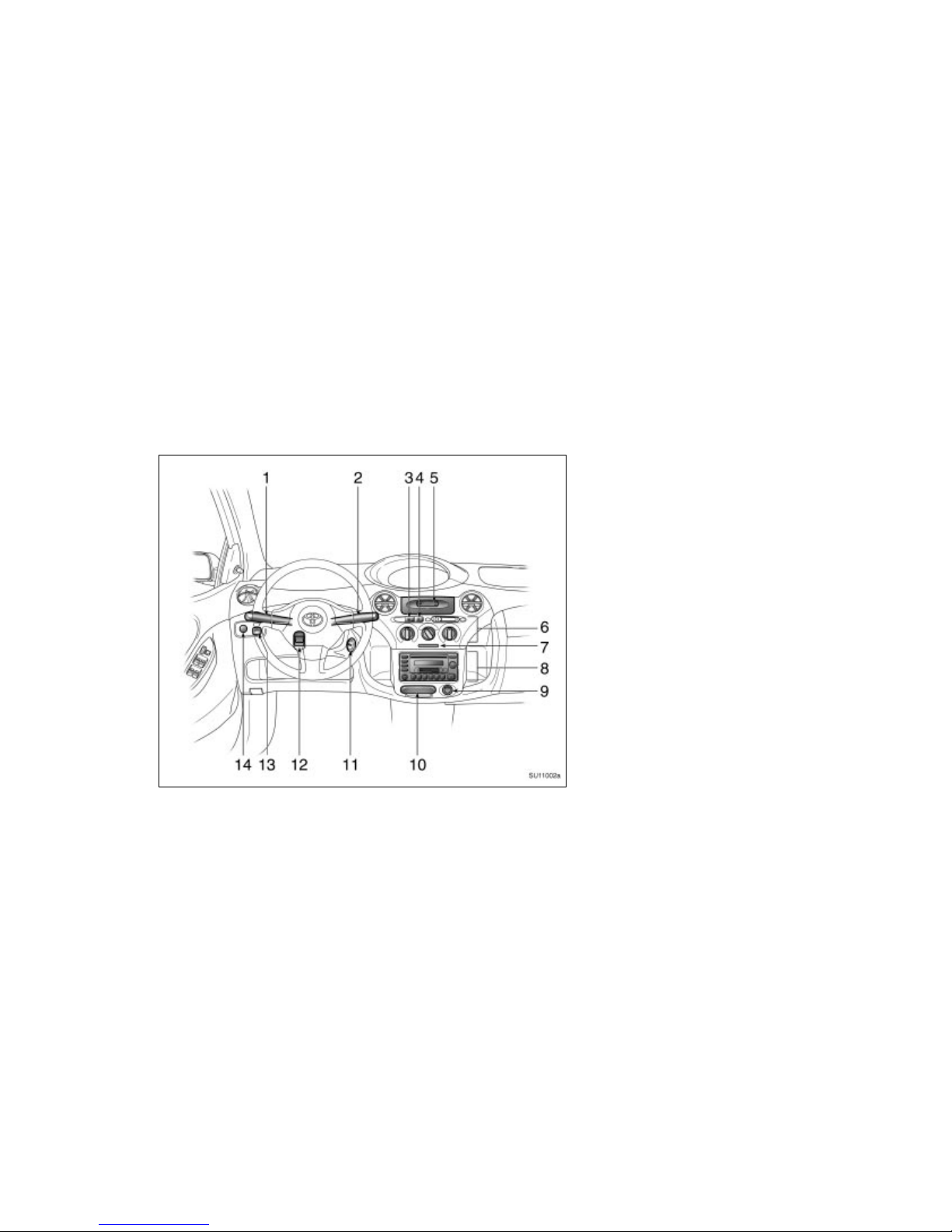

1. Headlight and turn signal switches

2. Wiper and washer switches

3. Rear window defogger switch

4. Emergency flasher switch

5. Clock

6. Air conditioning controls

7. Security indicator light/Front passen-

ger’s seat belt reminder light

8. Car audio

9. Cigarette lighter/Power outlet

10. Ashtray/Coin box

11. Ignition switch

12. Tilt steering lock release lever

13. Power rear view mirror control switches

14. Instrument panel light control knob

04 01.06

SU11002a

WWW.MANUALS.WS

42004 ECHO S/D from Feb. ’04 Prod. (OM52573U)

SU11015

1. Service reminder indicators and

indicator lights

2. Speedometer

3. Fuel gauge

4. Odometer and two trip meters

5. Trip meter reset knob

04 01.06

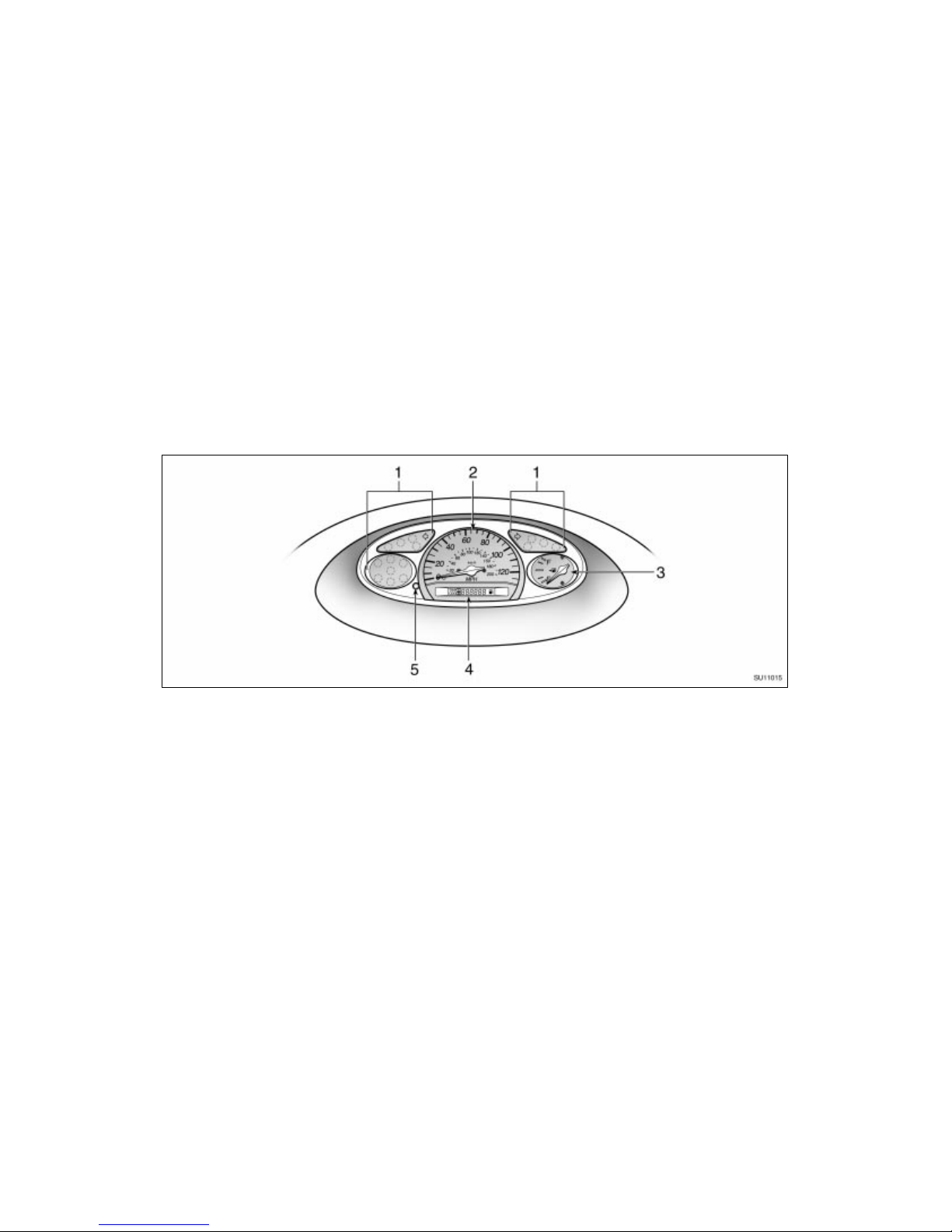

Instrument cluster overview

Type A

WWW.MANUALS.WS

2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)

SU11014

1. Service reminder indicators and

indicator lights

2. Speedometer

3. Fuel gauge

4. Odometer and two trip meters

5. Trip meter reset knob

04 01.06

Type B

WWW.MANUALS.WS

62004 ECHO S/D from Feb. ’04 Prod. (OM52573U)

SU11009a

1. Service reminder indicators and

indicator lights

2. Speedometer

3. Extinction canceling button

4. Odometer and two trip meters

5. Fuel gauge

6. Trip meter reset button

7. Tachometer

04 01.06

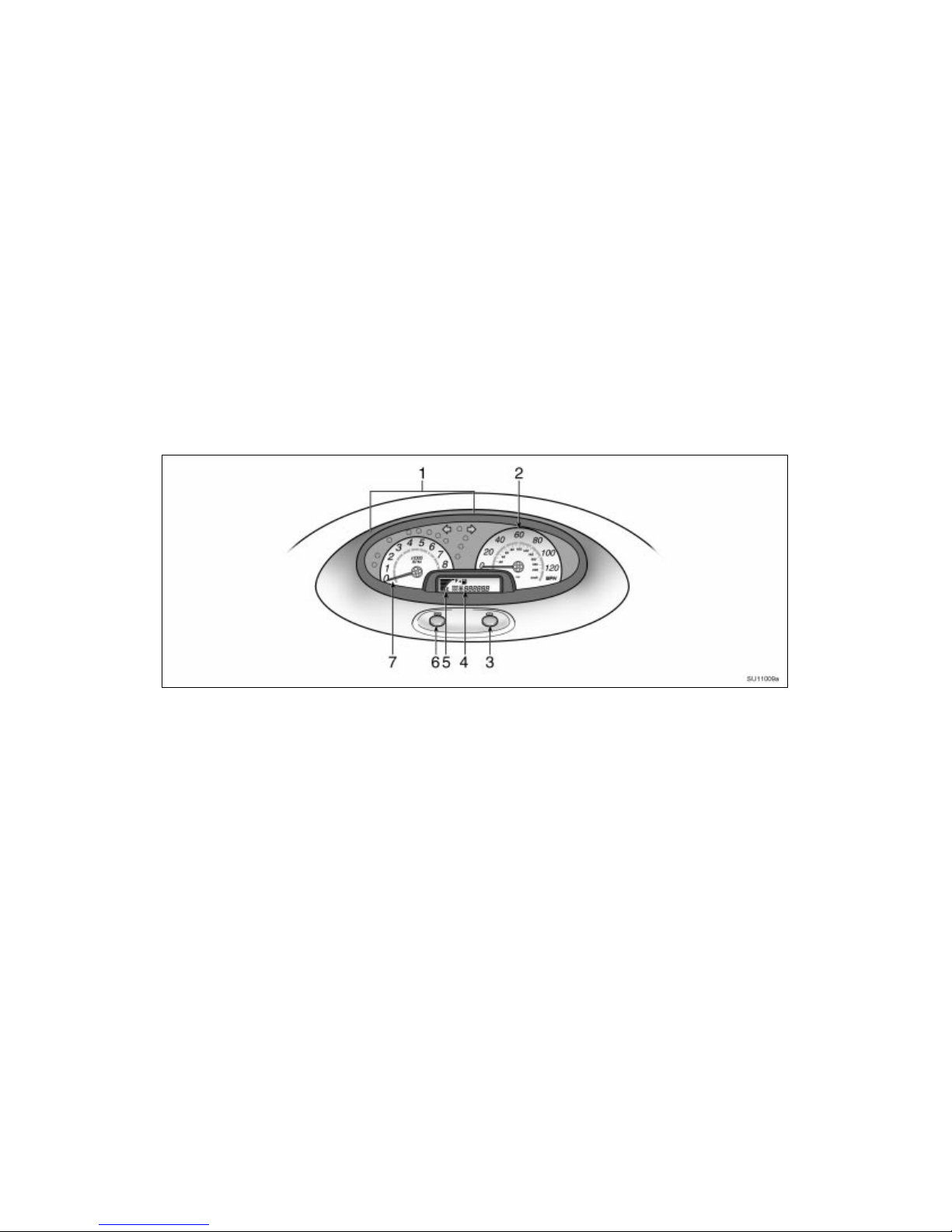

Type C

WWW.MANUALS.WS

2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)

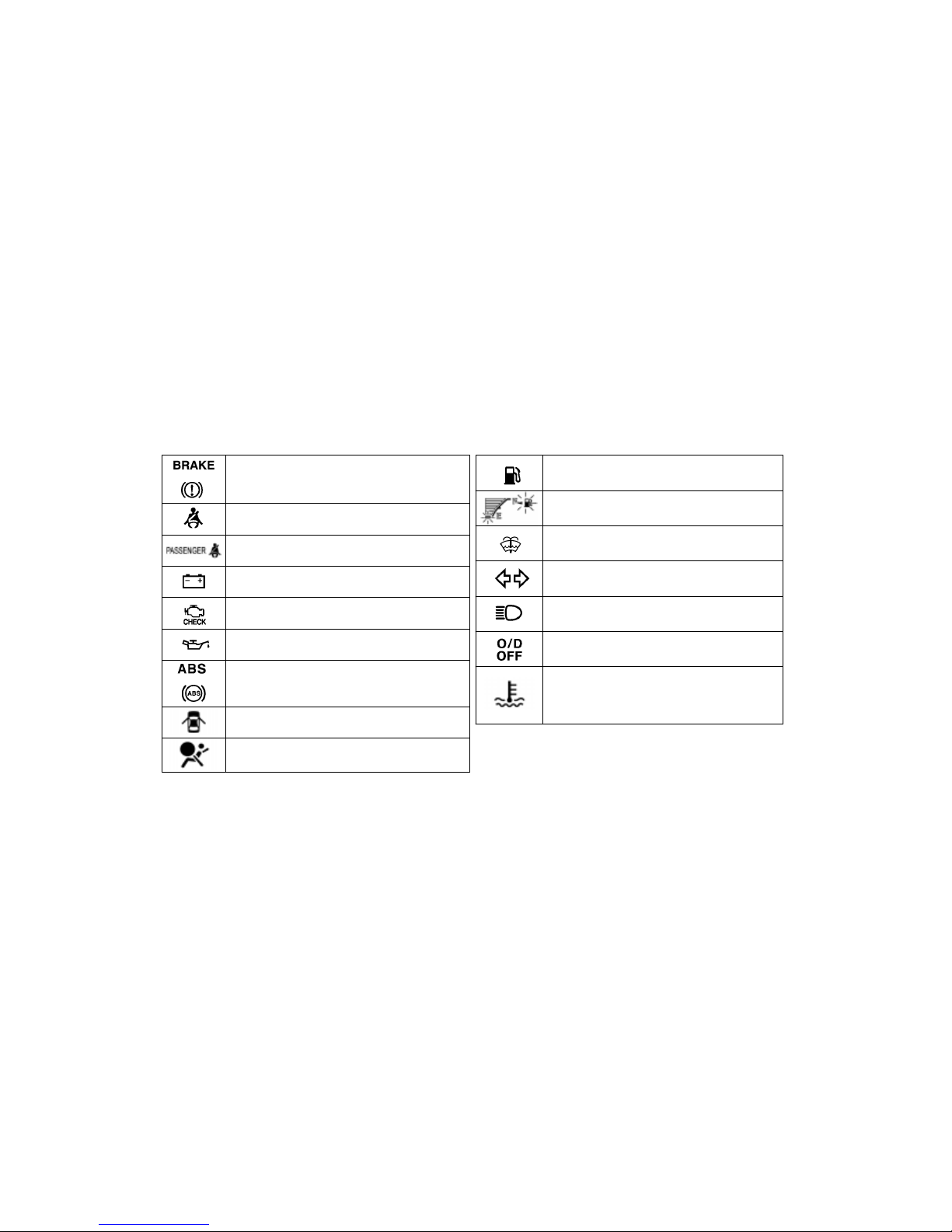

Indicator symbols on theinstrument panel

or Brake system warning light∗1

Driver’s seat belt reminder light∗1

Discharge warning light∗1

Malfunction indicator lamp∗1

Low engine oil pressure warning light∗1

Anti-lock brake system warning light∗1

SRS warning light∗1

Low windshield washer fluid level warning light∗1

Low fuel level warning light∗1(type A)

Turn signal indicator lights

Headlight high beam indicator light

Overdrive- off indicator light

Low engine coolant temperature indicator light

(in blue)∗2

High engine coolant temperature warning light

(in red)∗1

Front passenger’s seat belt reminder light∗1

Open door warning light∗1

Low fuel level indicator light∗1(type B)

∗1: For details, see “Service reminder indicators and warning

buzzers” on page 92 in Section 1-6.

∗2: For details, see “Engine coolant temperature indicator and

warning light” on page 89 in Section 1-6.

04 01.06

WWW.MANUALS.WS

82004 ECHO S/D from Feb. ’04 Prod. (OM52573U)

04 01.06

WWW.MANUALS.WS

2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)

OPERATION OF INSTRUMENTS AND

CONTROLS

Keys and Doors

Keys 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wireless remote control 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Side doors 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power windows 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Trunk lid 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Hood 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Theft deterrent system 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel tank cap 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

04 01.06

SECTION

WWW.MANUALS.WS

10 2004 ECHO S/D from Feb. ’04 Prod. (OM52573U)

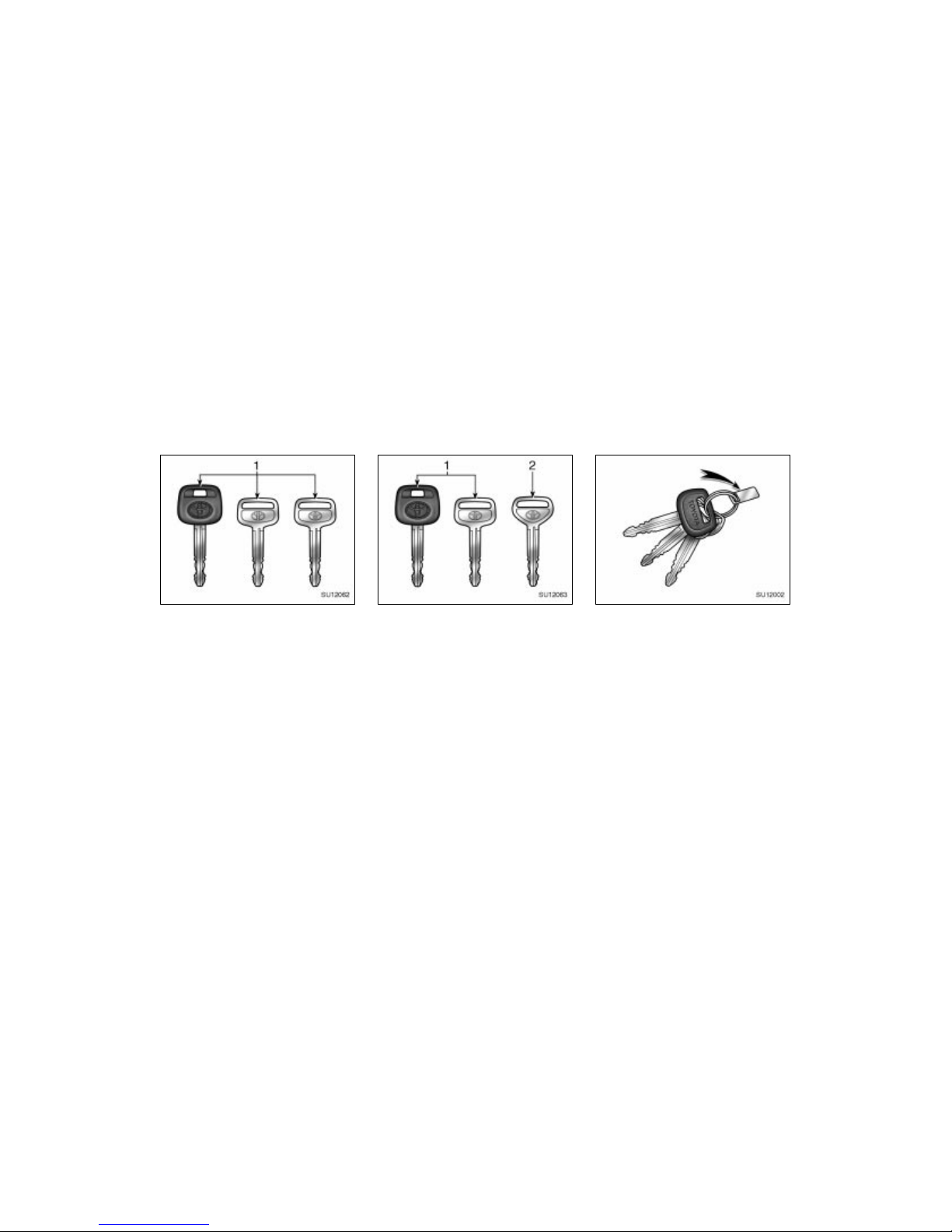

Keys (type A)

SU12062

These keys work in every lock.

1. Master keys—These keys work in ev-

ery lock.

Since the doors and trunk lid can be

locked without a key, you should always

carry a spare key in case you accidentally

lock your keys inside the vehicle.

Keys (type B)

SU12063

Your vehicle is supplied with two kinds

of key.

1. Master keys—These keys work in ev-

ery lock.

2. Sub key—This key will not work in the

trunk.

To protect items locked in the trunk when

using valet parking, leave the sub key

with the attendant.

Since the doors and trunk lid can be

locked without a key, you should always

carry a spare master key in case you

accidentally lock your keys inside the ve-

hicle.

SU12002

KEY NUMBER PLATE

Your key number is shown on the plate.

Keep the plate in a safe place such as

your wallet, not in the vehicle.

If you should lose your keys or if you

need additional keys, duplicates can be

made by a Toyota dealer using the key

number.

We recommend writing down the key num-

ber and storing it in a safe place.

04 01.06
