TP-Link CPE605 Manuale utente

Installation Guide

Outdoor CPE

Get Started with Setup Videos

Scan the QR code or visit

https://www.tp-link.com/support/setup-video/

Contents

Overview 01

Package Contents 01

Hardware Overview 02

Application Example 04

Hardware Connection 05

Site Consideration 05

Hardware Installation 07

Power Supply 14

Lightning & ESD Protection 15

Installer Compliance Responsibility 16

Software Conguration 17

Logging in to the PharOS 17

Conguration for a Typical Application 18

Antenna Alignment 20

Specications 21

FAQ 22

Overview

TP-Link's Pharos series outdoor CPEs are dedicated to outdoor

wireless network solutions.

Package Contents

Installation Guide

Outdoor CPE

Pharos CPE

Rear Cover

Center Reector Panel Side Reector Panels

(Qty.2)

Mounting Bracket

(For CPE)

Protective Cap

Power CordHexagon Bolts with Wing Nut

and Washer Assemblies

(M6x79)

Metal Strap

Mounting Bracket

(For PoE Adapter)

Passive PoE Adapter Installation Guide

ST3×16 Self-tapping Screws

(Qty.2)

D3×28 Plastic Wall Anchors

(Qty.2)

Four M2.5*8 Combination Screws

with M2.5*2 Nuts

(QTY.4)

(Only for CPE710)

Hardware Overview

• Bottom View

Reflector Assembly

Securing Arms

Bubble Level

Mounting Bracket

Rear Cover

Metal Strap

• Panel Layout

On:

A device is connected to the ETHERNET port,

but there is no activity.

Flashing: A device is connected to the

ETHERNET port and is active.

On: The CPE is powered on.

On: The wireless function is enabled.

RESET

Press and hold for 5 seconds to reset the CPE to

its factory defaults.

ETHERNET

The port is used to connect to the POE port of

the provided PoE adapter for both data

transmission and power supply through Ethernet

cabling.

• Passive PoE Adapter

Power LED

On: The CPE is powered on.

Off: The CPE is powered off.

Remote Reset

Press and hold for about 5 seconds to reset

the CPE to its factory defaults.

Application Example

The CPE device with the reector installed provides outdoor

network access over long distances for point-to-point

applications.

The CPE device without the reector installed provides outdoor

-to-indoor Wi-Fi coverage with the Feed only mode.

Hardware Connection

Site Consideration

• Mounting Height

Ensure a clear line of sight between the wireless devices for

optimum performance. An elevated location is recommended

as obstacles like trees, buildings and large steel structures will

weaken the wireless signal. See ‘Q2’ in ‘FAQ’ for details about how

to calculate the minimum mounting height of the devices.

Line of Sight

Side View

• Orientation

Install the CPE devices and make sure that they point towards

the devices that will receive the signal. You can orient the devices

with the help of Google Maps, GPS and some landmarks. The

horizontal bandwidth of CPE605/CPE710 is 7°.

shenzhen

Line of Sight

Horizontal

Beamwidth

Hardware Installation

installed by a certied professional. Installers must abide by local

rules and regulations in terms of legal frequency channels, output

power, and Dynamic Frequency Selection (DFS) requirements.

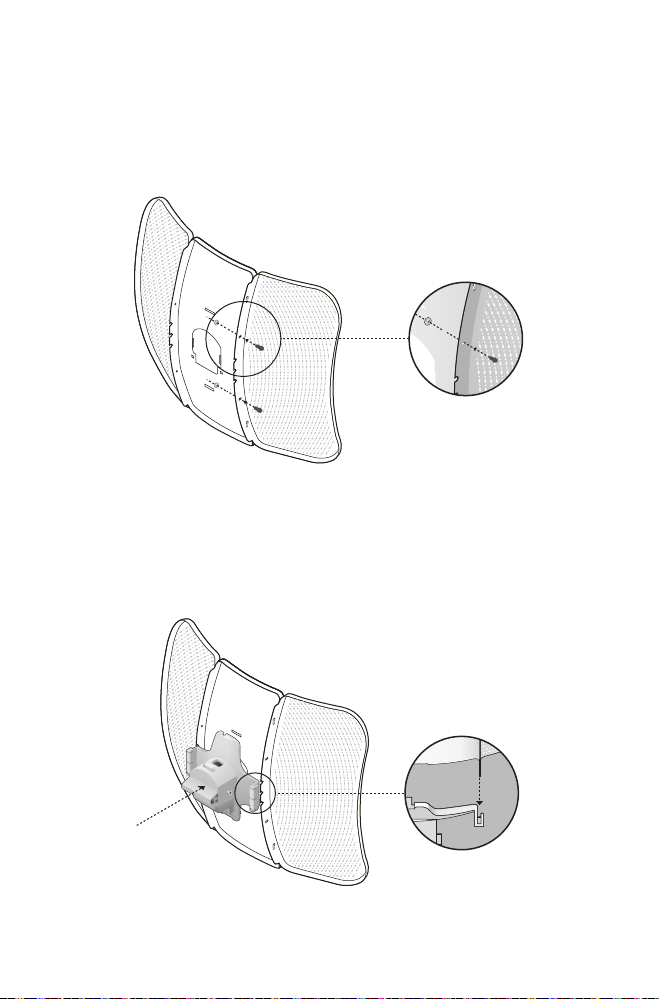

1. Attach the Side Reector Panels to the Center Reector Panel

as follows:

a. Insert the two mounting studs on the Center Reector Panel

into the large opening of the slots on the Side Reector Panel.

b. Slide the Side Reector Panel until the mounting studs are

positioned over the narrow opening of the slots, and the top

edges of the panels should be aligned when done.

c. Repeat step a and step b to attach the other Side Reector

Panel.

d. Attach the Side Reector Panels to the Center Reector Panel

more securely using four M2.5*8 combination screws with

M2.5*2 nuts (only provided with CPE710).

2. Attach the Rear Cover to the reector assembly as follows:

a. While holding the reector assembly, align the raised edges

on the back with the Securing Arms of the Rear Cover, and

align the Snap Hooks on the Rear Cover with the slots on the

Center Reector Panel.
