Your Supplier, Your Partner,

Your Friend.

Transcend

TS-AVE3

USER’S MANUAL

Intel® Socket 370 CeleronTM /

Pentium® III FC-PGA Series

TS-AVE3 Motherboard

Supporting Intel® Socket 370 CeleronTM/Pentium IIITM FC-PGA Series Processor

66/100/133 MHz Front Side Bus Frequency

AGP 4X

VIA®Apollo Pro 133A Chipset

Welcome !!

Congratulations on your purchase of this great value motherboard, with its range of special

features and innovative onboard functions, built around the advanced architecture of the new

VIA®Apollo Pro 133A Chipset. More details to follow later in this manual.

Our Website

Please come and visit us at our website on http://www.transcendusa.com/ . You’ll find plenty

of interesting information about this and many other quality Transcend products.

Your User’s Manual

This User’s Manual is designed to help end users and system manufacturers to set up and

install the motherboard. All of the information within has been carefully checked for accuracy.

However, Transcend Information, Inc. (hereafter referred to as “Transcend”) carries no

responsibility or liability for any errors or inaccuracies which this manual may contain. This

includes references to products and software. In addition, the information and specifications

are subject to change without prior notice.

Disclaimer

Transcend provides this manual “as is” without any warranty of any kind, either expressed or

implied, including - but not limited to - the implied warranties, conditions of merchantability or

fitness for a particular purpose. Transcend, its management, employees, distributors and

agents are in no way liable for any indirect special, incidental or consequential damages,

including loss of profits, loss of business and the like. This is even if Transcend has been

advised of the possibility of such damages arising from any defect or error in this manual or

product.

Trademarks

All brands, product names and trademarks mentioned in this document are the property of

their respective owners or companies and are used solely for identification or explanation. It

is Transcend policy to respect all product rights.

This manual may not, in whole or in part, be photocopied, reproduced, transcribed, translated

or transmitted, in whatever form or language, without the written consent of the manufacturer,

except for copies retained by the purchaser for personal archiving purposes.

Manual Version: 1.1

Release Date: November, 2000

TableofContents

CHAPTER 1 INTRODUCTION 1

1.1 Essential HandlingPrecautions......................................................................................1

1.2 Checklist: Hardware Required for Setup .......................................................................2

1.3 Package Contents .................................................................................................. 2

1.4 Specificationsand Features...........................................................................................3

CHAPTER 2 HARDWARE INSTALLATION 5

2.1 Transcend’s TS-AVE3 Motherboard ............................................................... 5

2.2 Layout of Transcend’s TS-AVE3 Motherboard ................................................. 6

2.3 CPU Installation ............................................................................................ 7

2.4 66/100/133MHz System Configuration ........................................................ 10

2.5 Memory Configuration ................................................................................... 10

2.6 Primary/Secondary IDE Connectors ............................................................. 11

2.7 Floppy Disk Drive Connector .......................................................................... 12

2.8 Fan Power Connectors ............................................................................... 12

2.9 Wake-on-LAN Connector ............................................................................ 13

2.10 IrDA-Compliant Infrared Module Connector .................................................. 13

2.11 Panel Connectors ....................................................................................... 14

2.12 Power Connector ....................................................................................... 16

2.13 External Back Panel I/O Ports ..................................................................... 16

2.14 Using JPS to clear CMOS Jumper........................................................................... 17

2.15 Onboard Audio Setting .............................................................................. 18

2.16 Internal Audio Connectors ...................................................................................... 19

2.17 Internal USB Port Connector

................................................................................ 20

CHAPTER 3 BIOS SETUP 21

3.1 BIOS Setup.................................................................................................. 21

3.2 The Main Menu ........................................................................................... 21

3.3 Standard CMOS Features............................................................................. 23

3.4 Advanced BIOS Features............................................................................. 26

3.5 Advanced Chipset Features .......................................................................... 29

3.6 Integrated Peripherals ........................................................................... 32

3.7 Power Management Setup......................................................................... 35

3.8 PnP/PCI Configurations ................................................................................ 38

3.9 PC Health Status................................................................................... 41

3.10 Frequency/Voltage Control ........................................................................... 42

3.11 Load Fail-Safe Defaults ............................................................................. 42

3.12 Load Optimized Defanlts.............................................................................. 43

3.13 Supervisor Password ................................................................................ 43

3.14 User Password.................................................................................... 44

3.15 Save & Exit Setup................................................................................... 44

3.16 Exit Without Saving................................................................................... 44

CHAPTER 4 BIOS UPGRADE 45

4.1 How to Check Your BIOS File Name and Version .......................................... 45

4.2 How to Download the Correct BIOS File from Our Web Site.............................45

4.3 How to Upgrade Your Motherboard BIOS .................................................... 46

INTRODUCTION 1

CHAPTER 1 INTRODUCTION

1.1 Essential Handling Precautions

IMPORTANT. Read this page before unpacking your motherboard!

•Power Supply

Be careful! Always ensure that the computer is disconnected from the power supply when

working on the motherboard and its components.

•Static

Staticelectricitymaycausedamagetothedelicateintegratedcircuitchipsonyourmotherboard.

Before handling the motherboard outside of its protective packaging, ensure that there is no

static electric charge in your body. To avoid this risk, please observe these simple precautions

while handling the motherboard and other computer components:

1. If possible, wear an anti-static wrist strap. This fits around your wrist and is connected to

a natural earth ground.

2. Touch a grounded or anti-static surface, or a metal fixture such as a pipe or the chassis of

your system, before touching the motherboard.

3. When you have removed the motherboard from its anti-static packaging, try to hold it only

by the edges, without touching any components.

4. Avoid contacting the components on add-on cards, motherboards, and modules with the

golden fingers (gold-colored connectors) which plug into the expansion slots.

5. It is safest to handle system components only by their mounting brackets.

6. Keep components which are not connected to the system in the anti-static packaging

whenever possible.

These precautions help to reduce the risk of static build-up and ensure any static discharge is

harmless to your equipment.

••

•Battery Replacement

The battery which holds the system settings memory on your motherboard should not require

replacement for at least five years, and probably much longer. In picture 2.2, it is located near

the bottom right hand corner.

Please replace your battery only with the same type, or a similar type recommended by the

manufacturer.If the battery is replaced incorrectly, there is a risk of a shortcircuit or explosion.

Used batteries should disposed of according to the manufacturer’s instructions.

••

•Electric Screwdrivers

To reduce the risk of damage to the motherboard due to excessive torque, avoid setting

electric screwdrivers above 7.5 kg/cm.

1.2 Checklist: Hardware Required for Setup

It is advisable to have all of these items of hardware available before you unpack your

motherboard from its anti-static packaging and start building your system.

- Computer case and chassis with appropriate power supply.

- Monitor.

- Socket 370 Central Processing Unit (CPU).

- DIMM memory module.

- PS/2 or USB Keyboard.

- PS/2 or USB Mouse.

- Hard Disk Drive.

- Floppy Disk Drive.

- CD-ROM Drive.

- (Optional) External Peripherals: printer, speakers, plotter, modem.

- (Optional) Internal Peripherals: modem, LAN cards.

1.3 Package Contents

This motherboard package should contain the following items. Please check them as soon as

you unpack. If you find any damaged or missing items, please contact your retailer.

- TS-AVE3 motherboard

- 1 x CD-ROM

- 1 x FDD cable

- 1 x Ultra DMA/66 cable

- User ’s Manual

-1xExternal USB connector(Optional)

2 INTRODUCTION

INTRODUCTION 3

1.4 Specifications and Features

• •

• CPU

- Supports Intel Socket 370 CeleronTM

- Supports Intel Pentium III FC-PGA

• •

• Chipset

-TS-AVE3: VIA 694X/686A AGPset

-TS-AVE3/B: VIA 694X/686B AGPset

• •

• DRAM Memory

-Supports SynchronousDRAM

- Supports Virtual Channel Memory

- 3 x slots for 168-pin DIMM module

- 8MB~1.5GB memory size

- 8/16/32/64/128/256/512MB SDRAM DIMM

- Supports ECC

- 64 data bits structure only

- PC100/PC133 SDRAM compliant

• •

• I/O BUS Slot

- 1 x AGP slot

- 5 x Master/Slave PCI slots (PCI 2.1 compliant)

- 1 x ISA slot

- 1 x ARM slot (Share with ISA slot)

• •

• I/O Functions

- Supports PIO Mode 3,4 ATAPI devices and Ultra DMA/33/66/(100,For 686B Only)

- Supports 2 high speed UART 16550 COM ports

- Supports SPP/EPP/ECP LPT port

- Supports 1.44/2.88 MB floppy drive

- Supports PS/2 Mouse and PS/2 Keyboard

- Supports IrDA port

- Supports 4 Universal Serial Bus (USB) ports

4INTRODUCTION

•

Award BIOS

- Support Plug-and-Play, PC98

- Support ACPI, APM, DMI and Green Feature

- Easy BIOS Recovery

•

Wake Up Features

-Supports Wake-on-LAN function

- Remote Ring Wake Up

- Time Wake Up

•

PCB Dimensions

- ATX form factor, 4-layer PCB, 19cm x 30.5cm (8 inch x 12 inch)

•

Switching Voltage Regulator

- Intel VRM 8.4 compliant

•

Other Features

- Year 2000 compliant

- Anti-Virus Boot up

- System voltage monitors for CPU Vcore, +2.5, +3.3V, +5V and +12V

- CPU temperature monitor

- System temperature monitor

- FAN speed monitor

HARDWARE INSTALLATION 5

CHAPTER 2 HARDWARE INSTALLATION

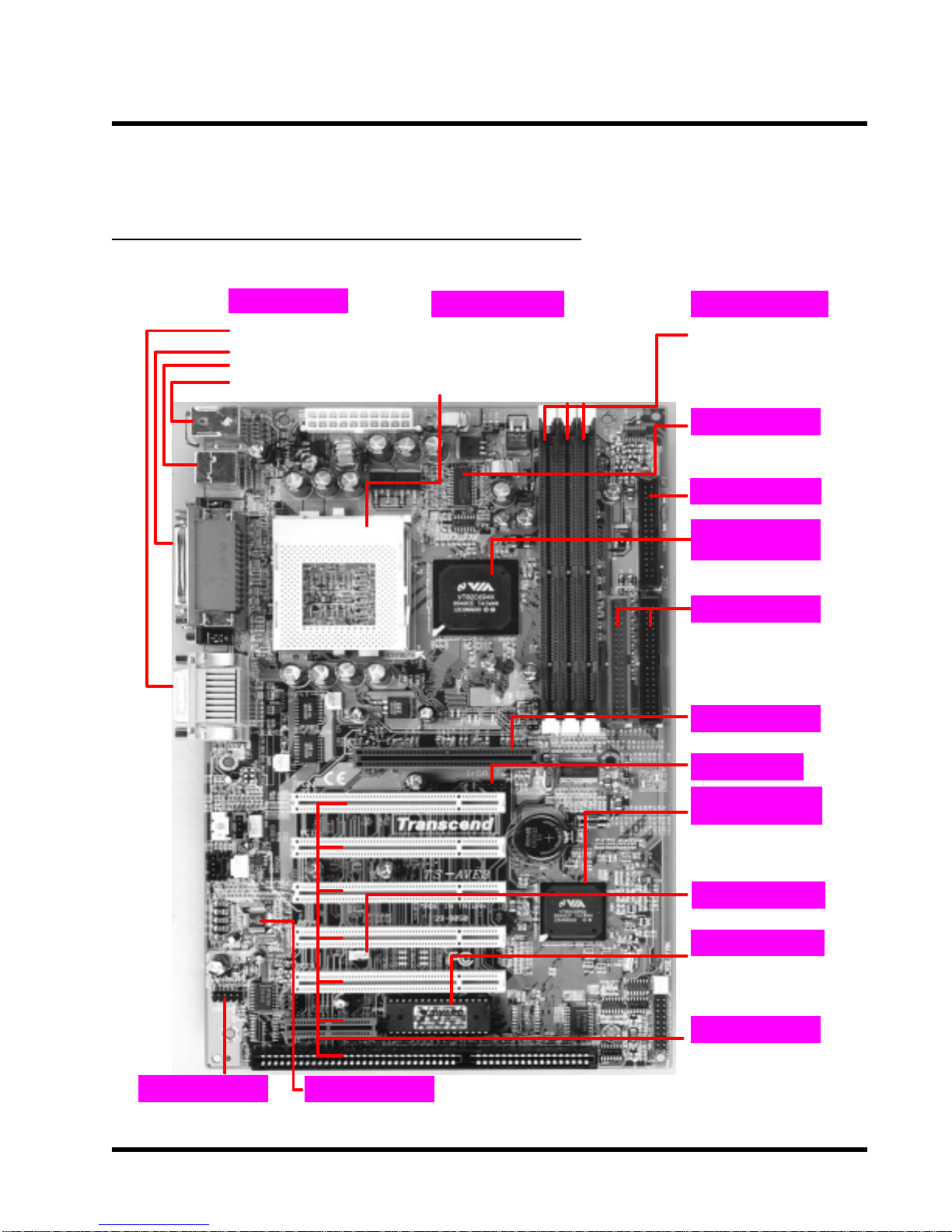

2.1 Transcend’s TS-AVE3 Motherboard

I/O Port

2 x USB Ports

I/O Port

2x COM Ports & 1 x Parallel Port

PS/2 KB Port & PS/2 Mouse Port

General MIDI Port & Audio Jack

(Line-In, Line-Out, MIC-In)

Intel

Pentium

III Socket 370 FC-PGA

CPU 533A~633+ MHz (FSB 66MHz)

Intel

Celeron

Socket 370 PPGA

CPU 300A~533 MHz (FSB 66MHz)

CPU

FDD Connector

PCI IDE Connector

IrDA

VIA Apollo

Pro 133A Chipset

Supports 66/100/133MHz FSB

VIA 686A Super

South Brid

Supports S

stem Health

Monitor

Build-In Super I/O

··

5 x PCI Slots

··

1 x AMR Slot

1 x ISA Slot

(Shared with AMR)

AGP Connector

Supports AGP1X/2X/4X

AC97 CODEC

AC97 V2.1 Audio CODEC

External USB

Connector

2 x USB Ports

Memory

3 x 168 -pin DIMM Sockets

8MB~1.5GB SDRAM

Intel

VRM 8.4 Compliant

Switchin

.Switchin

Bus Master

PIO Mode 3/4

DMA Mode 2

Ultra DMA 33/66

WOL HeaderWOL Header

Wake-on-LAN

Flash EEPROMFlash EEPROM

Award BIOS

PnP,DMI

ACPI compliant

Expansion SlotsExpansion Slots

CPU 500~933+MHz (FSB 100/133MHz)

DIMM1

DIMM3

DIMM2

PGA

370

VIA

694X

Chipset

FDC

PS/2

B:Keyboard

USB

T:Port 1

B:Port 2

COMB

COMA

Printer

Parallel Port

KB MOUSE

USB

T:Mose

JP5

CPU-FAN

AGP Slot

VIDEO

AUX

CD2

CD1

MODEM

LINE-IN LINE-OUT

GAME

MIC

AC97

CODEC

JP6

2M-bit Flash

BIOS(EEPROM)

TS-AVE3

IrDA

Transcend

JP3

JP7

PCI Slot 1

PCI Slot 3

PCI Slot 4

AMR Slot

ISA Slot

CN14

USB 3/4

JP2

JP4

ATX Power Connector

IDE1

IDE2

CASE-FAN

Panel

Connector

PCI Slot 5

PCI Slot 2

Game Port

Li Battery

Chipset

VIA

686A

JP1 KB-AWK

AUDIO

CMOS_CLR

66/100

100/133 Intel/Cyrix

VIO

WOL

2.2 Layout of Transcend’s TS-AVE3 Motherboard

6HARDWARE INSTALLATION

Indice

Altri manuali Transcend Scheda madre

Transcend

Transcend TS-UWL31 Manuale utente

Transcend

Transcend TS-ALR4 Manuale utente

Transcend

Transcend TS-ASL3 Manuale utente

Transcend

Transcend TS-AKXA Manuale utente

Transcend

Transcend TS-ABX11 Manuale utente

Transcend

Transcend TS-ABX31 Manuale utente

Transcend

Transcend TS-AVD1 Manuale utente

Transcend

Transcend TS-ABX31A Manuale utente

Transcend

Transcend TS-AVE3/B Manuale utente

Transcend

Transcend TS-ABX11 Manuale utente

Transcend

Transcend TS-ABX31 Manuale utente

Transcend

Transcend TS-AWE3 Manuale utente

Transcend

Transcend TS-AVD3 Manuale utente

Transcend

Transcend TS-AAP12 Manuale utente

Transcend

Transcend TS-AKT4 Series Manuale utente

Transcend

Transcend TS-ABD4 Series Manuale utente

Transcend

Transcend TS-AKT4 Series Manuale utente

Transcend

Transcend TS-APR3 Manuale utente

Transcend

Transcend TS-ACA1 Manuale utente

Transcend

Transcend TS-UWL31 Manuale utente

Transcend

Transcend TS-USL3 Manuale utente

Transcend

Transcend TS-ASL3 Manuale utente

Transcend

Transcend TS-ASP3 Manuale utente

Transcend

Transcend TS-APM3 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
