Transition Networks LANMaster T8 Manuale utente

Lan Master™ T8

8 port Ethernet Hub with SIC Slot

ASSEMBLY INSTRUCTIONS

Satisfi Design

Introduction

The Lan Master™ T8 is an eight-port Ethernet Hub which allows computers to

communicate with each other. Up to eight (8) computers can be plugged in to the Ethernet

Hub at one time.

Putting together your Transition Networks®Lan Master™ is easy. Simply follow the

instructions and illustrations, and in minutes your Ethernet Hub will be ready for use! (See

Instruction Manual for how to use your Lan Master™ T8 once it is assembled.)

Table of Contents

.............................................................................................0.1 Parts List 2

....................................................0.2 Side Labels for Platform and Cover 3

..................................................1.0 Installing the Circuit Network Board 4

..............................2.0 Installing the Power Supply Printed Circuit Board 7

............................................................3.0 Connecting the Circuit Boards 9

...................................................4.0 Installing the Input Power Conduit 12

...........................................................................5.0 Securing the Cover 17

Transition Networks®Lan Master TM T8 Assembly Instructions

Version 1.1

Page 1

6475 City West Parkway

Minneapolis, MN 55344

www.transition.com

Satisfi Design

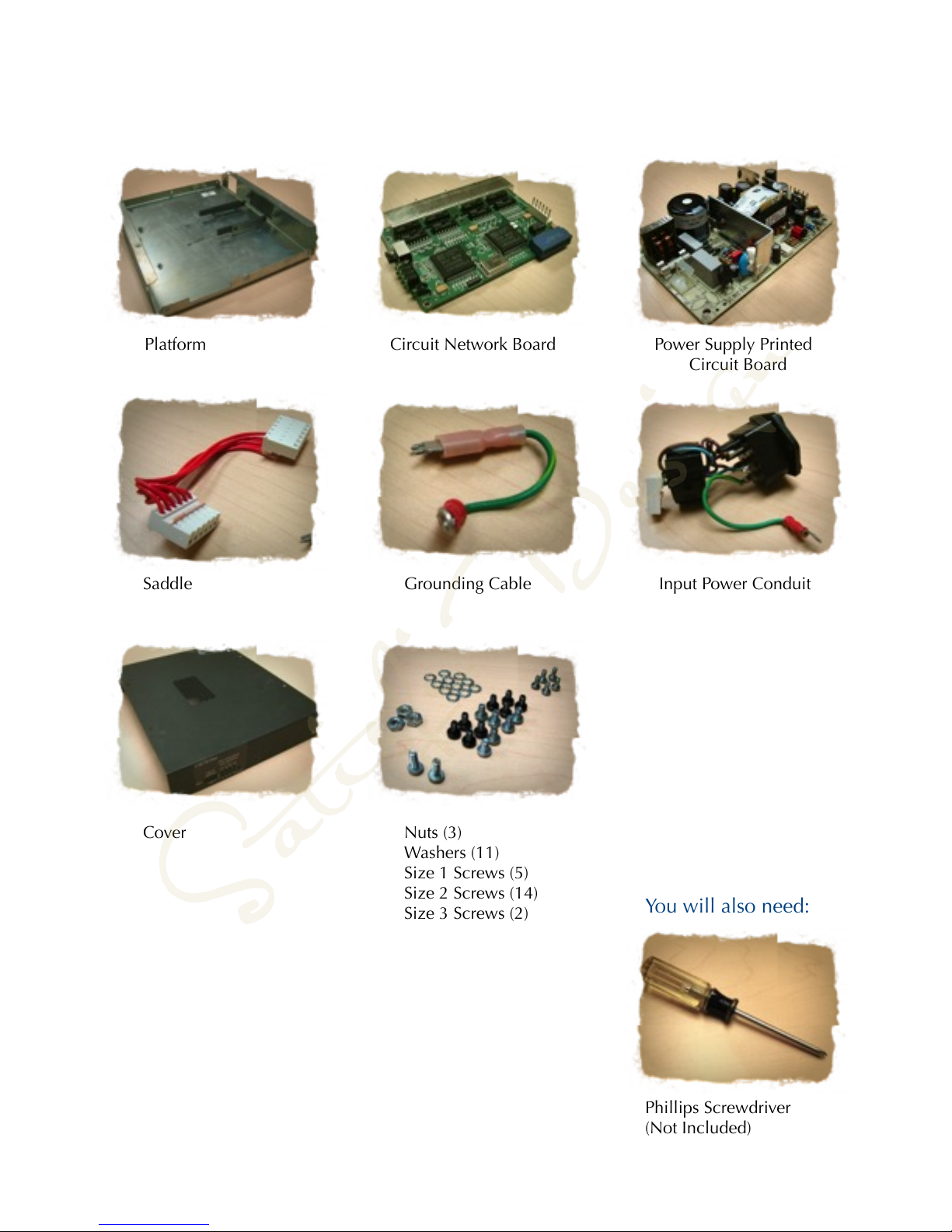

0.1 Parts List

Transition Networks®Lan Master TM T8 Assembly Instructions

Version 1.1

Page 2

Nuts (3)

Washers (11)

Size 1 Screws (5)

Size 2 Screws (14)

Size 3 Screws (2)

Cover

Saddle

Grounding Cable

Input Power Conduit

Power Supply Printed

Circuit Board

Circuit Network Board

Platform

You will also need:

Phillips Screwdriver

(Not Included)

Satisfi Design

0.2 Side Labels for Platform and Cover

Transition Networks®Lan Master TM T8 Assembly Instructions

Version 1.1

Page 3

Side A

Side B Side C

Side D

Side A

Side B Side C

Side D

Figure 0.2

Satisfi Design

1.0 Installing the Circuit Network Board

1.1 To position the Circuit Network Board

1.1.1 Locate the ﬁve (5) screw holsters near side A and side D of the platform.

1.1.2. Slide the Circuit Network Board under the opening of Side A and set down on top of screw

holsters.

Transition Networks®Lan Master TM T8 Assembly Instructions

Version 1.1

Page 4

Screw

Holsters

Side D Side A

Figure 1.0

Figure 1.1.1

Figure 1.1.2

Satisfi Design

1.2 To secure the Circuit Network Board

1.2.1 Align the screw holes of the Circuit Network Board with the screw holsters of the platform.

1.2.2. Place one (1) washer on top of each screw hole and insert Size 1 Screws.

1.2.3. Tighten the screws by turning the Phillips screwdriver clockwise.

Transition Networks®Lan Master TM T8 Assembly Instructions

Version 1.1

Page 5

Figure 1.2.2

Figure 1.2.3

Tighten until the screw does not turn

easily anymore. Over-tightening will

damage the circuit board.

Screw

Holes

Figure 1.2.1

Satisfi Design

Transition Networks®Lan Master TM T8 Assembly Instructions

Version 1.1

Page 6

The Installed Circuit Network Board

Figure 1.3

Satisfi Design

2.0 Installing the Power Supply Printed Circuit Board

2.1 To position the Power Supply Printed Circuit Board

2.1.1 Locate the four (4) remaining screw holsters near side A and side B of the platform.

2.1.2 Set the Power Supply Printed Circuit Board on the screw holsters as shown.

2.2 To secure the Power Supply Printed Circuit Board

2.2.1. Align the screw holes of the Power Supply Printed Circuit Board with the screw holsters of

the platform.

Transition Networks®Lan Master TM T8 Assembly Instructions

Version 1.1

Page 7

Figure 2.0

Side A

Side B

Figure 2.1.2

✗

✓

Figure 2.2.1

Satisfi Design

2.2.2. Place one (1) washer on top of each screw hole and insert Size 2 Screws.

2.2.3. Tighten the screws by turning the Phillips screwdriver clockwise.

Transition Networks®Lan Master TM T8 Assembly Instructions

Version 1.1

Page 8

The Installed Power Supply Printed Circuit Board

Tighten until the screw does not turn

easily anymore. Over-tightening will

damage the circuit board.

Figure 2.2.2

Figure 2.2.3

Satisfi Design

3.0 Connecting the Circuit Boards

3.1 To link the circuit boards via the saddle

3.1.1. Plug the saddle into the Power Supply Printed Circuit Board as shown.

3.1.2. Snap the saddle into Circuit Network Board as shown.

Transition Networks®Lan Master TM T8 Assembly Instructions

Version 1.1

Page 9

Snap!

✗

✓

Snap!

Figure 3

Figure 3.1.1

Figure 3.1.2

Satisfi Design
