Transition Networks MIL-S800I-V2 Manuale utente

8-port 10/100TX internal power switch

MIL-S800i-v2

User Manual

Rev. 1.00

11-November-2008

Regulatory Approval

- FCC Class B

- UL 1950

- CSA C22.2 No. 950

- EN60950

- CE

- EN55022 Class A

- EN55024

Canadian EMI Notice

This Class A digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment

Regulations.

Cet appareil numerique de la classe A respecte toutes les exigences du Reglement sur le materiel brouilleur du

Canada.

European Notice

Products with the CE Marking comply with both the EMC Directive (89/336/EEC) and the Low Voltage Directive

(73/23/EEC) issued by the Commission of the European Community Compliance with these directives imply

conformity to the following European Norms:

EN55022 (CISPR 22) - Radio Frequency Interference

EN61000-X - Electromagnetic Immunity

EN60950 (IEC950) - Product Safety

Five-Year Limited Warranty

Transition Networks warrants to the original consumer or purchaser that each of it's products,

and all components thereof, will be free from defects in material and/or workmanship for a

period of five years from the original factory shipment date. Any warranty hereunder is

extended to the original consumer or purchaser and is not assignable.

Transition Networks makes no express or implied warranties including, but not limited to, any

implied warranty of merchantability or fitness for a particular purpose, except as expressly set

forth in this warranty. In no event shall Transition Networks be liable for incidental or

consequential damages, costs, or expenses arising out of or in connection with the

performance of the product delivered hereunder. Transition Networks will in no case cover

damages arising out of the product being used in a negligent fashion or manner.

Trademarks

The MiLAN logo and Transition Networks trademarks are registered trademarks of Transition Networks

in the United States and/or other countries.

To Contact Transition Networks

For prompt response when calling for service information, have the following information ready:

- Product serial number and revision

- Date of purchase

- Vendor or place of purchase

You can reach Transition Networks technical support at:

E-mail: [email protected]

Telephone: +1.800.260.1312 x 200

Fax: +1.952.941.2322

Transition Networks

6475 City West Parkway

Eden Prairie, MN 55344

United States of America

Telephone: +1.800.526.9267

Fax: : +1.952.941.2322

http://www.milan.com

info@ Transition.com

FCC Statement

This Equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of FCC rules. These limits are

designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses, and can radiate

radio frequency energy and if not stalled and used in accordance with the

instruction, it may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measure:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CE Mark Warning

This is a class B product. In a domestic environment this product may

cause radio interference in which case the user may be required to take

adequate measures

Introduction

The 8-port 10/100TX internal power switch is compact and attractively

designed for desktop use. It is an ideal solution for small office or the

SOHO network user. This switch provides wire-speed, Fast Ethernet

switching function, that allows for high-performance, low-cost connections.

The switch will automatically detect the speed of the device that you plug

into it, allowing the use of both 10 and 100Mbps device. It features

store-and-forward switching and can auto-learn and store source address.

Features

Conforms to IEEE 802.3 10Base-T, 802.3u 100Base-TX and 802.3x

Flow control

Non-blocking and full wire speed forwarding rate

Store and Forward switching architecture

Universal internal switch power

1.6 Gbps back plane

LED on top side of case

Auto-MDIX on all ports

N-way Auto-Negotiation

Back pressure half duplex

Flow control full duplex

768Kbits packet buffer

1K MAC address table

Compact size and wall mount design

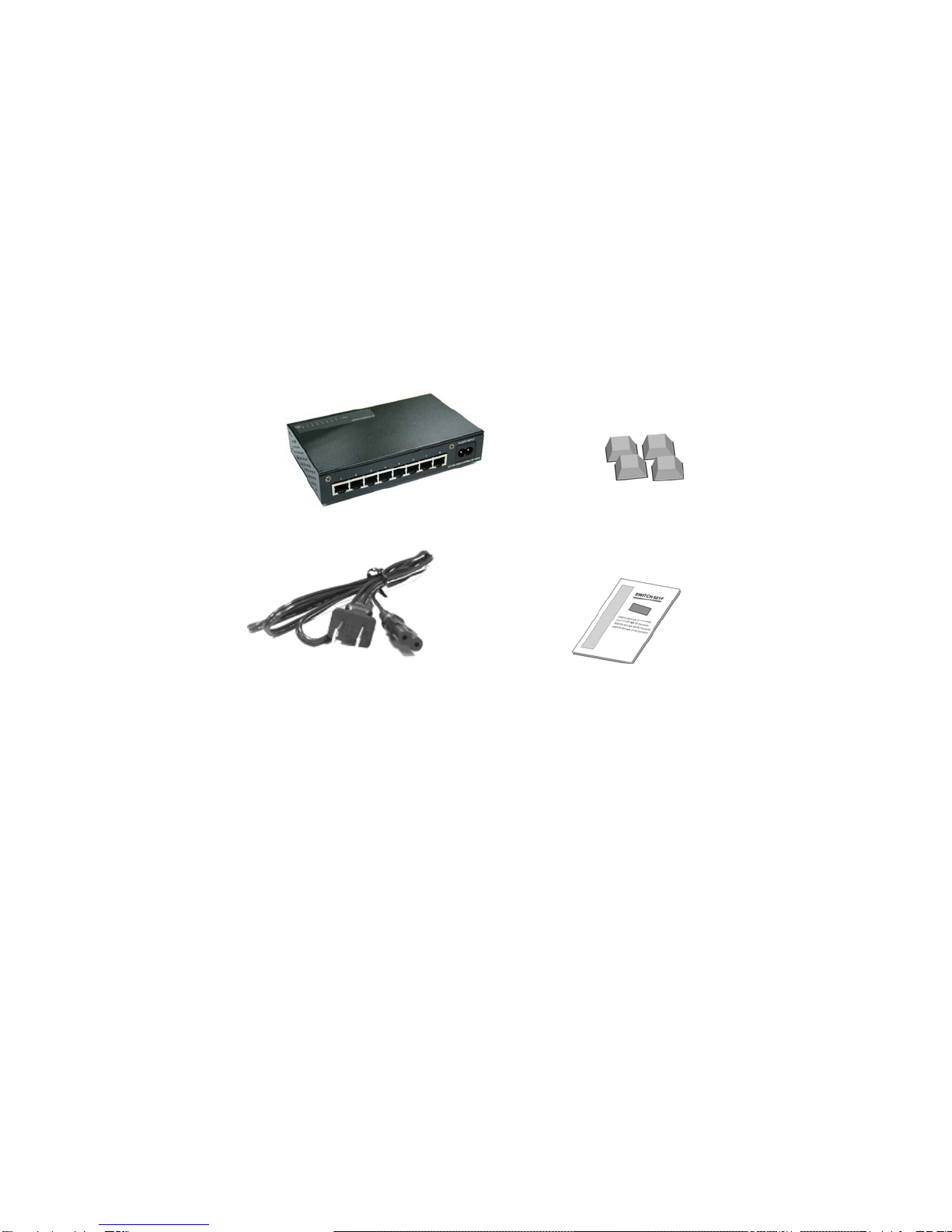

Package Contents

8-port 10/100TX internal power switch

Rubber Feet

Power cord

User Manual

The 8 10/100BASE-TX Switch Rubber Feet

Powercord UserManual

Package Contents

Compare the contents of your switch with the standard checklist above. If

any item is missing or damaged, please contact your local dealer for

service.

Hardware Description

This section mainly describes the hardware of the 8-port 10/100TX

internal power switch.

Physical Dimension

The physical dimensions of the 8-port 10/100TX internal power switch is

165mm(W) X 100mm(D) x 32.5mm(H).

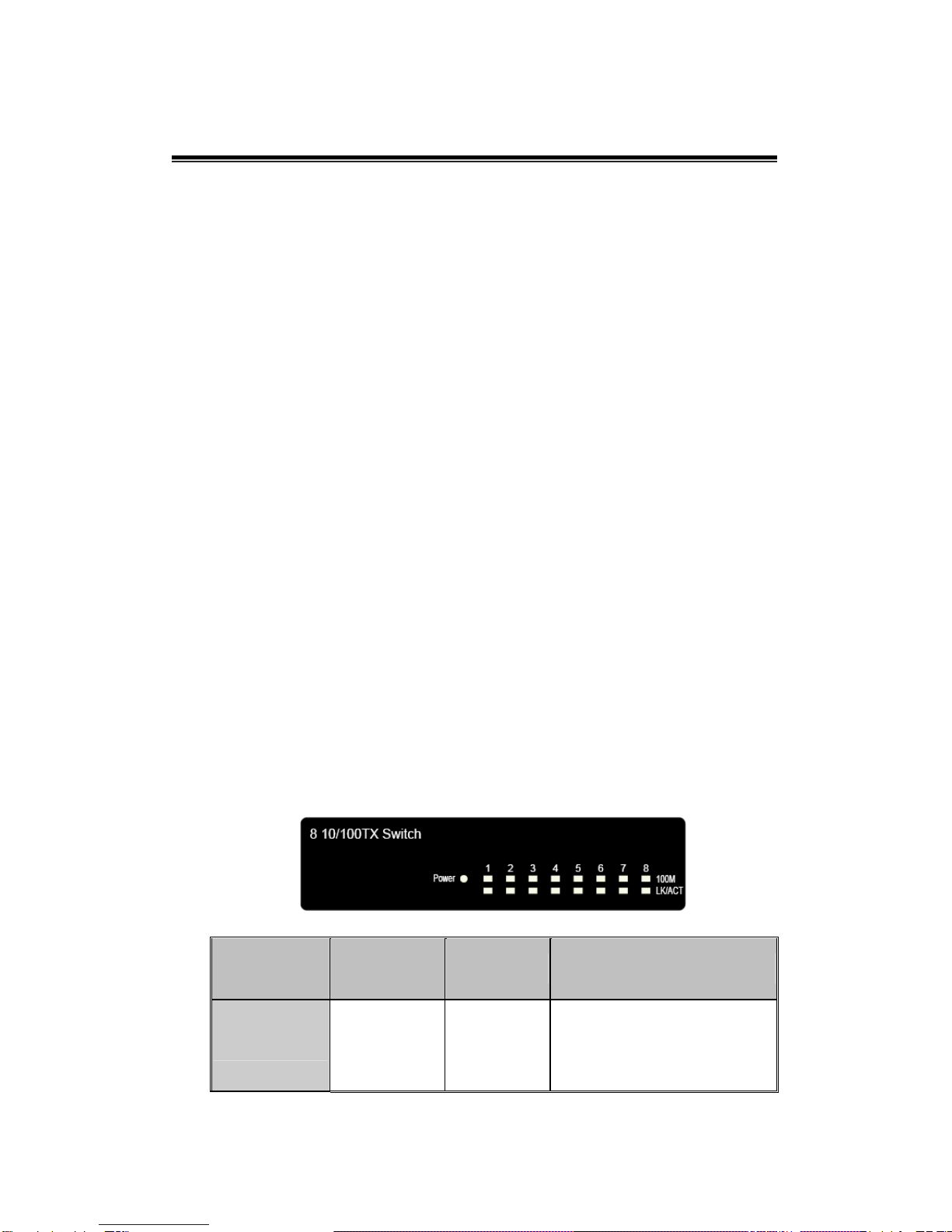

Front Panel

The LED indicators are located on the upper cover of the switch. They

provide a real-time indication of systematic operation status.

LED Indicator

The following table provides descriptions of the LED statuses and their

meaning.

LED Status Color Description

Power On Green

The power of the Switch

is On

On Green

The connection speed is

100Mbps

100M

Off The connection speed is

10Mbps

On Green

The port is successfully

connecting with the

device.

Blink The port is receiving or

transmitting data.

LNK /ACT

Off No device attached.

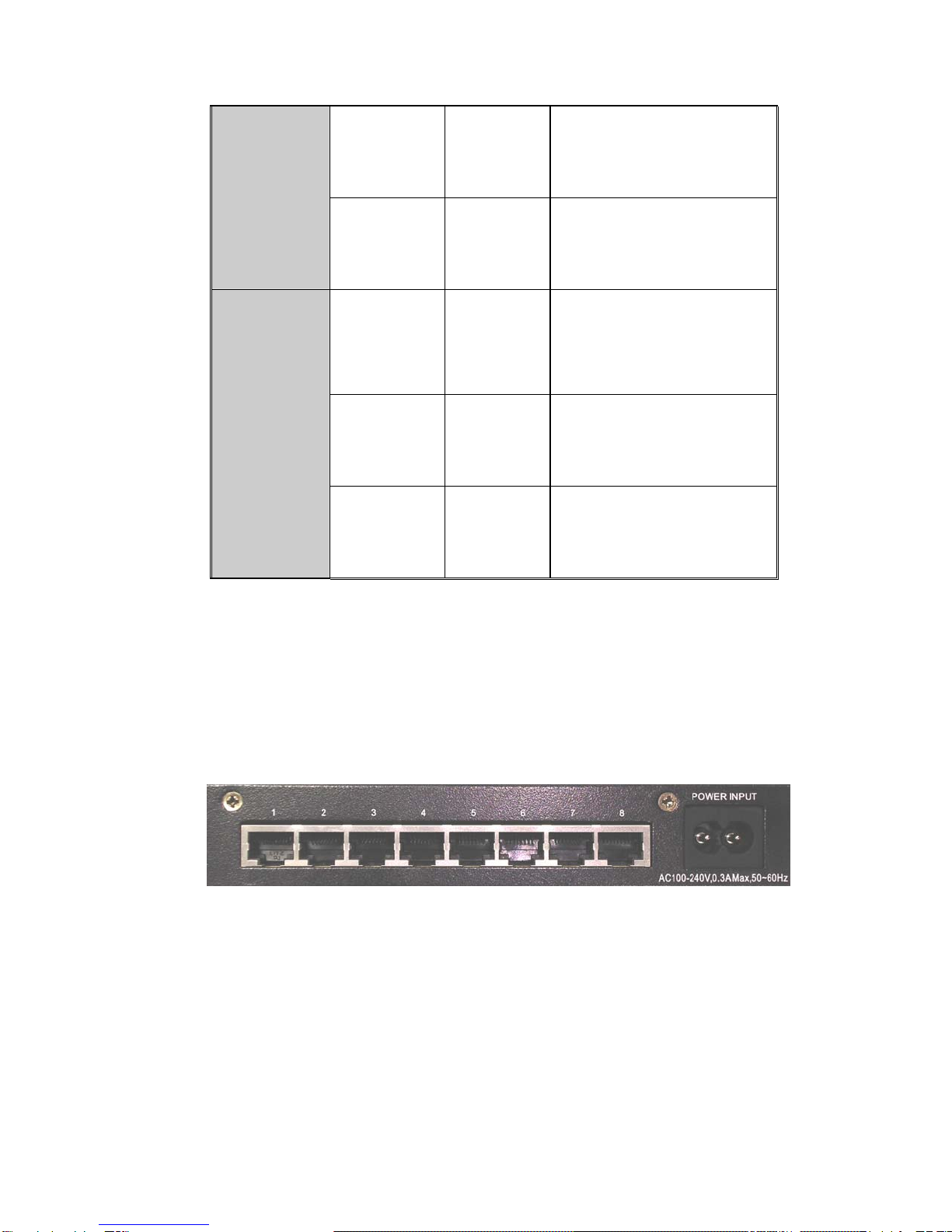

Rear Panel

The Rear Panel of the 8-port 10/100TX internal power switch consists of

8x 10/100 RJ-45 Ethernet ports and one power connector.

Rear Panel of the 8-port 10/100TX internal power switch

RJ-45 Port: 8x 10/100N-Way auto-sensing for 10Base-T or

100Base-TX connection.

Auto MDI/MDI-X: Will detect if a straight-through cable is connected

to a NIC or cascaded to a hub or switch, without the need to change

the cable or connector. The maximum distance between the Switch

and another device is 100 meters.

Installation

This section shows the installation procedures of the switch.

Set the Switch on a sufficiently large flat space with a power outlet nearby.

The surface where you put the Switch should be clean, smooth, level, and

sturdy. Make sure there is enough clearance around the Switch to allow

attachment of cables, power cord and air circulation.

Attaching Rubber Feet

A. Make sure mounting surface on the bottom of the Switch is grease and

dust free.

B. Remove adhesive backing from your Rubber Feet.

C. Apply the Rubber Feet to each corner on the bottom of the Switch.

These footpads will help protect the Switch from shock/vibration.

Mounting on the Wall

The switch is designed so it can mount on the wall. The bottom of the

switch has two cross hook holes for mounting the switch to a wall. Follow

the steps below for wall mounting the switch.

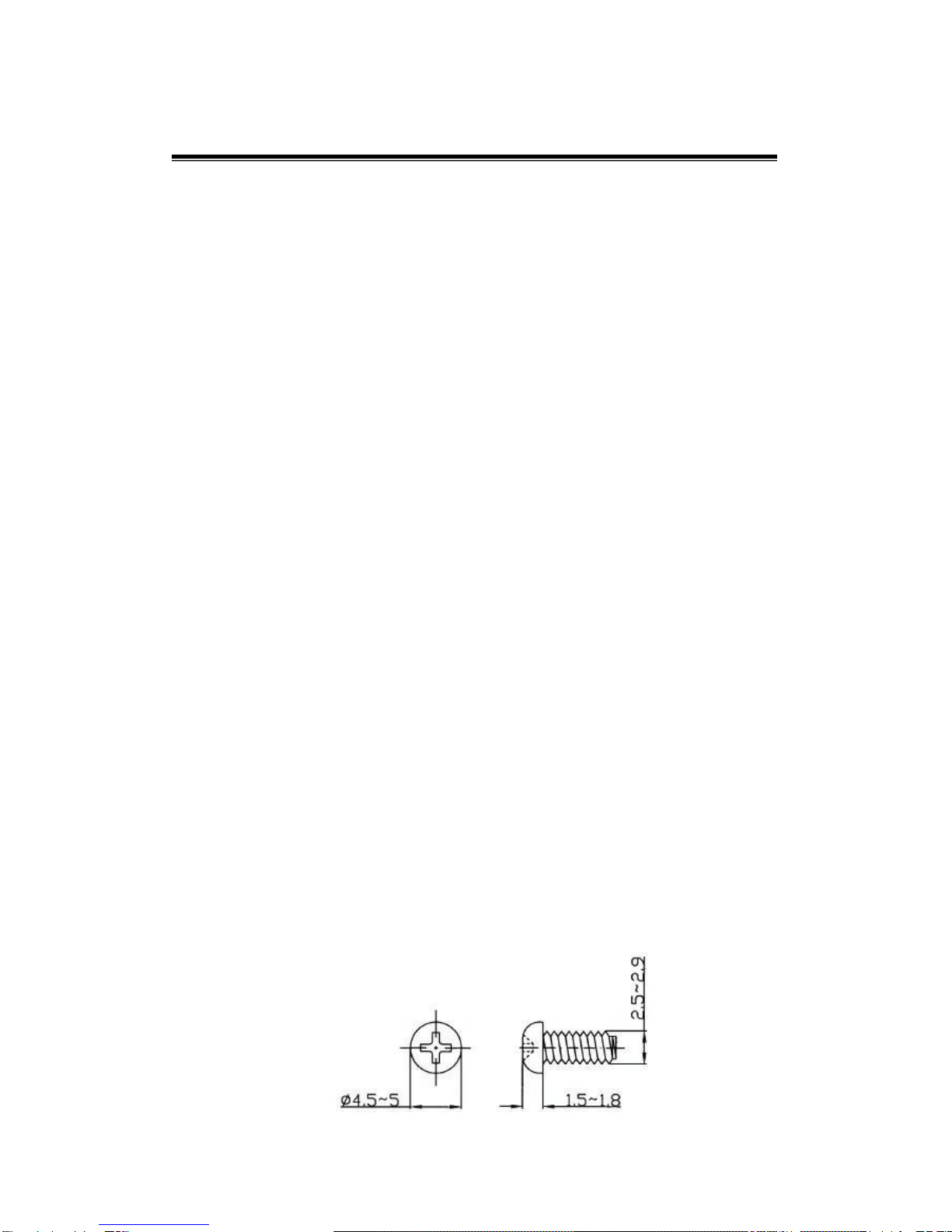

1. Using the screw as the following figure showed. The screws did not

include in the package. User needs to provide their own screws.

2. Attach the screws to the wall so they are positioned for the hanging the

switch. Do not over tighten the screws; leave some space between

screws and the wall.

3. Mount the switch to the screws on the wall.

Power On

Connect the power cord to the power socket on the rear panel of the

Switch. The other end of power cord connects to the power outlet. Check

the power indicator on the upper panel to see if power is properly

supplied.

Using the cross hook hole at the

bottom of the switch to mount the

switch on the wall

Trouble Shooting

The switch can be easily monitored through panel indicators to assist in

identifying problems. This section describes common problems you may

encounter and where you can find possible solutions.

Diagnosing LED Indicators

If Link indicator does not light up after making a connection, you may

check whether network interface (e.g., a network adapter card on the

attached device), network cable, or switch port is defective or not. Be sure

the cable is plugged into both the Switch and corresponding device.

Verified the proper cable type is used and its length does not exceed

specified limits.

Power

If the power indicator does not turn on when the power cord is plugged in,

you may have a problem with power outlet, or power cord. However, if the

switch powers off after running for a while check for loose power

connection, power loses or surges at power outlet. If you still cannot

resolve the problem, contact your local dealer for assistance.

Cabling

RJ-45 Ports: Use unshielded twisted-pair (UTP) or shield twisted-pair

(STP) cable for RJ-45 connections: 100ΩCategory 3,4 or 5 Cable for

10Mbps connections or 100 ΩCategory 5 Cable for 100Mbps

connections. Also be sure that the length of any twisted-pair connection

does not exceed 100 meters (328 feet).
